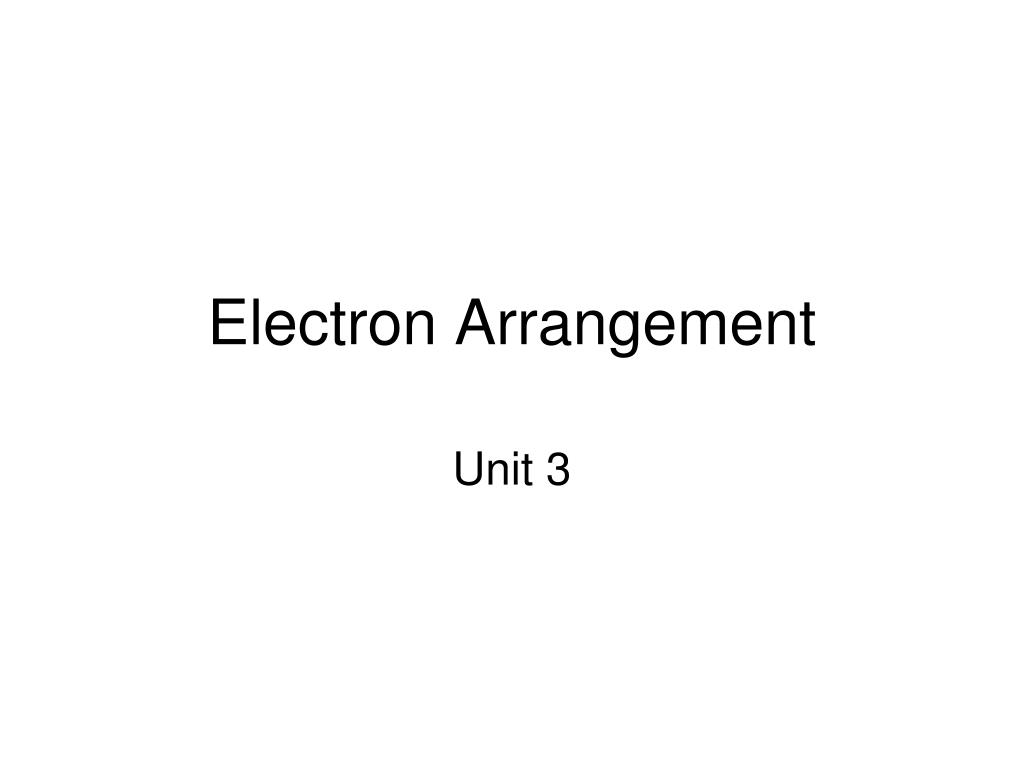

  1. Electron Arrangement Unit 3

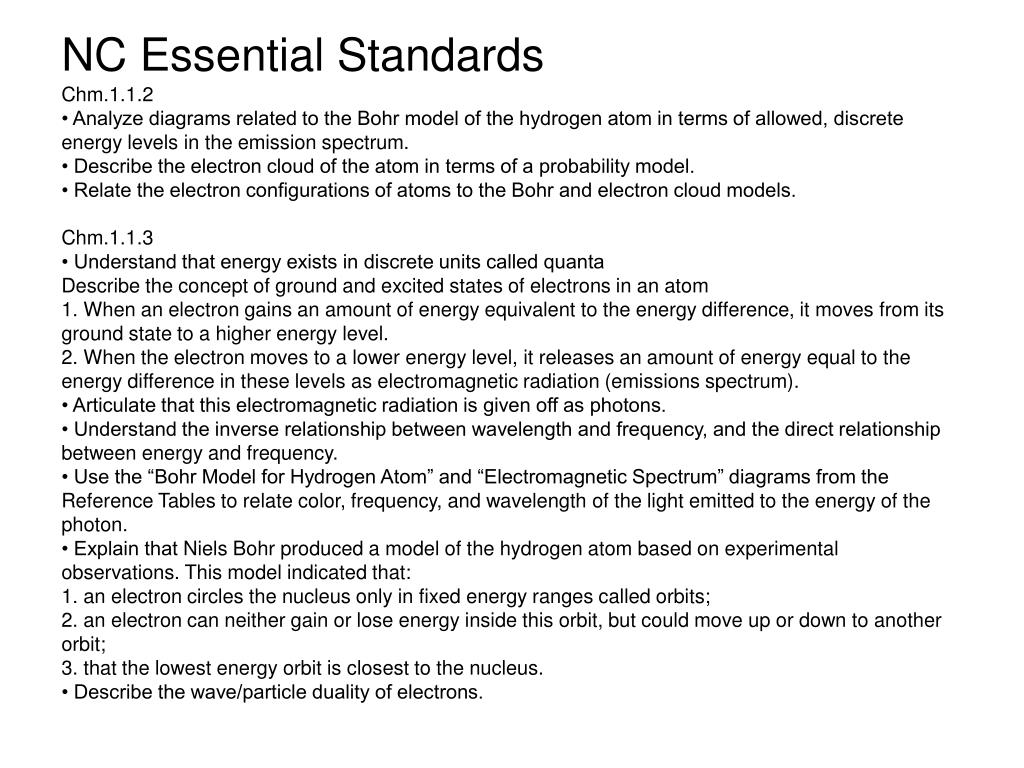

  2. NC Essential Standards • Chm.1.1.2 • • Analyze diagrams related to the Bohr model of the hydrogen atom in terms of allowed, discrete energy levels in the emission spectrum. • • Describe the electron cloud of the atom in terms of a probability model. • • Relate the electron configurations of atoms to the Bohr and electron cloud models. • Chm.1.1.3 • • Understand that energy exists in discrete units called quanta • Describe the concept of ground and excited states of electrons in an atom • 1. When an electron gains an amount of energy equivalent to the energy difference, it moves from its ground state to a higher energy level. • 2. When the electron moves to a lower energy level, it releases an amount of energy equal to the energy difference in these levels as electromagnetic radiation (emissions spectrum). • • Articulate that this electromagnetic radiation is given off as photons. • • Understand the inverse relationship between wavelength and frequency, and the direct relationship between energy and frequency. • • Use the “Bohr Model for Hydrogen Atom” and “Electromagnetic Spectrum” diagrams from the Reference Tables to relate color, frequency, and wavelength of the light emitted to the energy of the photon. • • Explain that Niels Bohr produced a model of the hydrogen atom based on experimental observations. This model indicated that: • 1. an electron circles the nucleus only in fixed energy ranges called orbits; • 2. an electron can neither gain or lose energy inside this orbit, but could move up or down to another orbit; • 3. that the lowest energy orbit is closest to the nucleus. • • Describe the wave/particle duality of electrons.

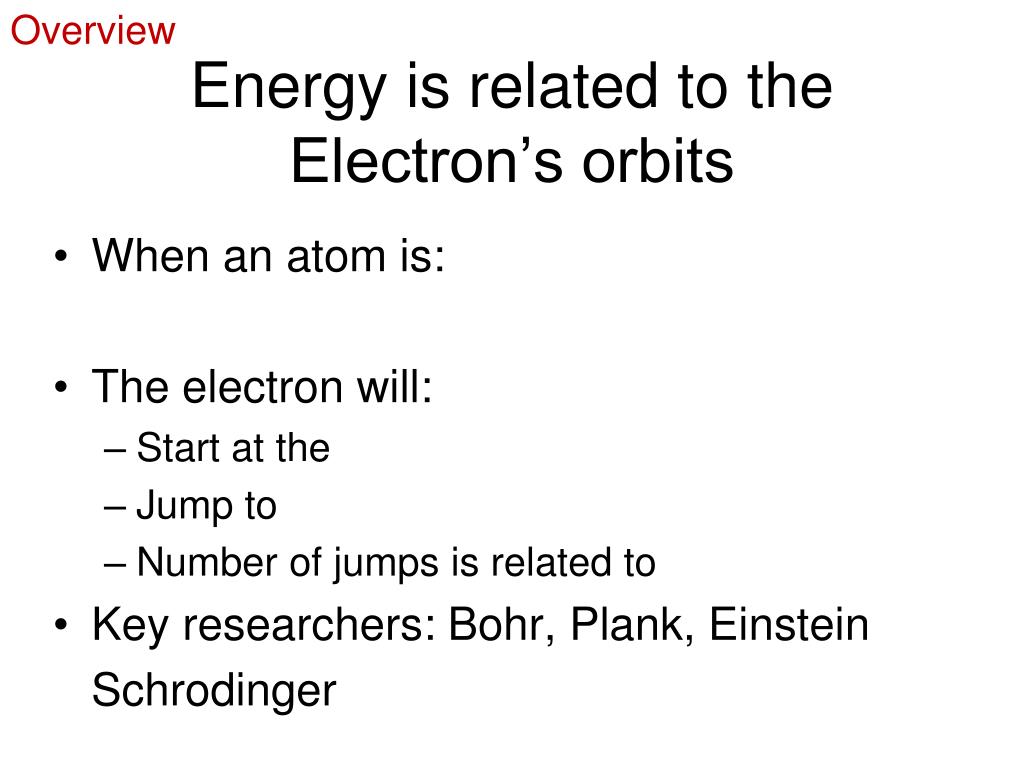

  3. Overview Energy is related to the Electron’s orbits • When an atom is: • The electron will: • Start at the • Jump to • Number of jumps is related to • Key researchers: Bohr, Plank, Einstein Schrodinger

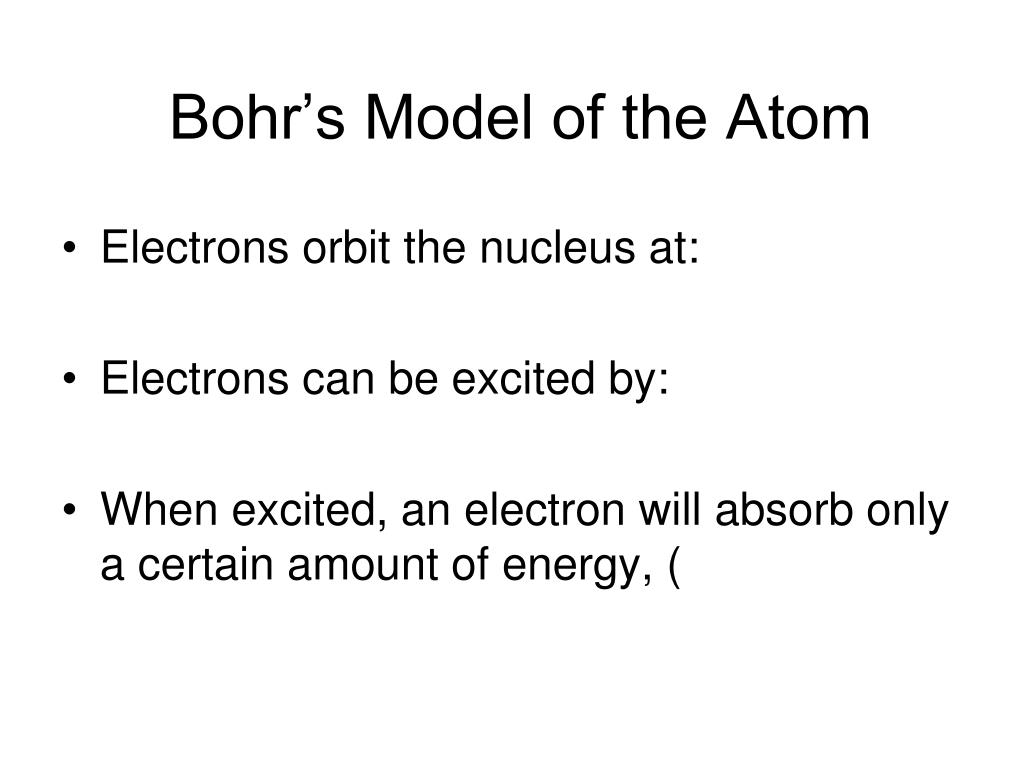

  4. Bohr’s Model of the Atom • Electrons orbit the nucleus at: • Electrons can be excited by: • When excited, an electron will absorb only a certain amount of energy, (

  5. Bohr’s model • When excited, the electron • Called the _________ state • The electron does not stay in the excited state but falls back toward the nucleus and releases

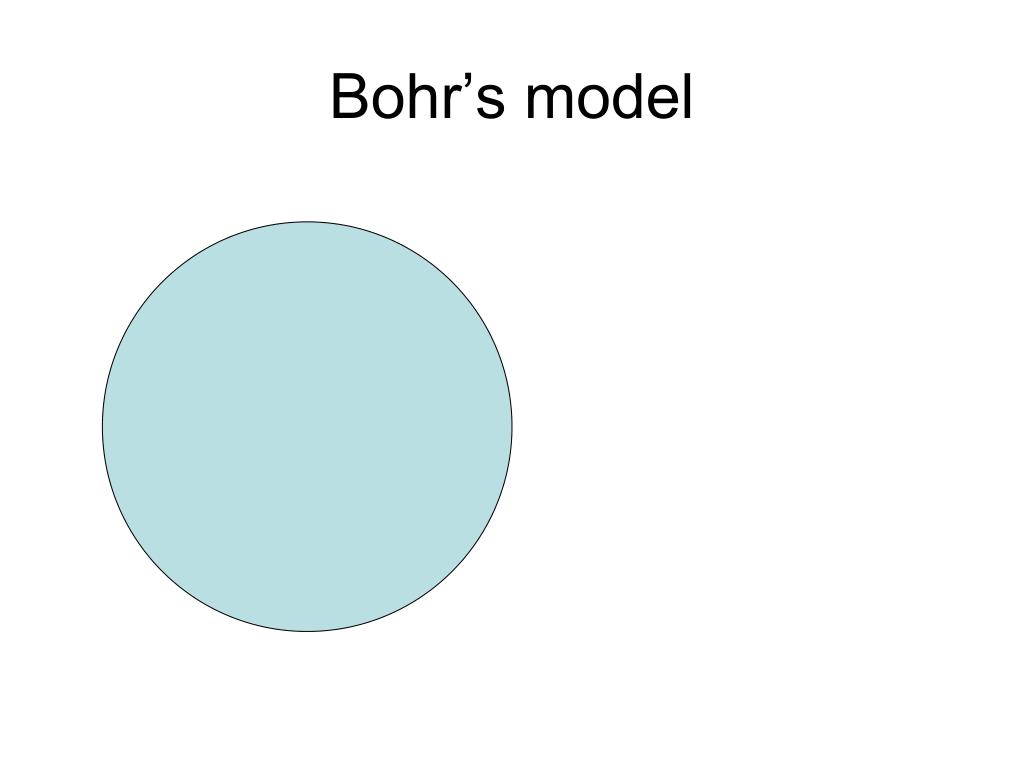

  6. Bohr’s model

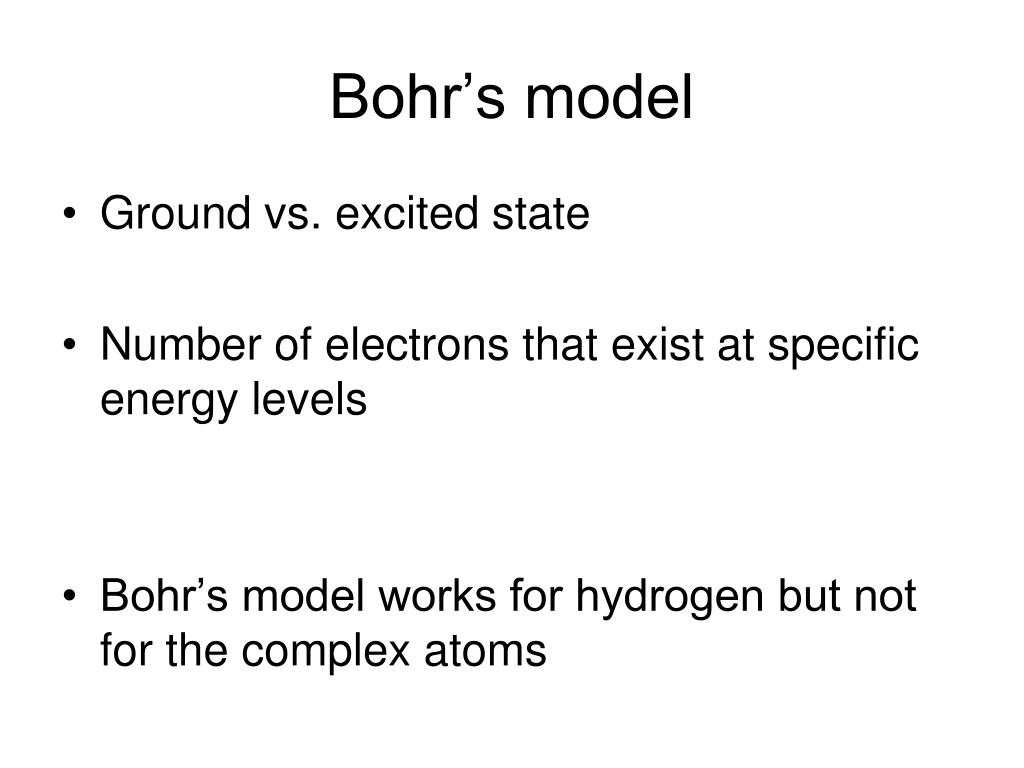

  7. Bohr’s model • Ground vs. excited state • Number of electrons that exist at specific energy levels • Bohr’s model works for hydrogen but not for the complex atoms

  8. Here are several models of the atom as they were developed in history: ............ ...... ................ Development of the Modern Atomic Model

  9. Electron Cloud Model • Quantum Mechanical Model • Based on determining the probable location of the electron • Within the boundary of the atom, its electrons can be found 90% of the time (based on probability)

  10. Methods for Writing Electron Arrangements • Orbital notation • Electron configuration • Noble gas notation How are you going to remember the names for each method of writing the electron arrangement?

  11. Rules for Electron Arrangement • Aufbau: • Place the electron at the lowest energy orbital possible. * • Pauli’s exclusion principle: Place a maximum of 2 electrons in each orbital. • Hund’s rule: Place an electron in each orbital of a sublevel before pairing up. * Check the diagram for the order of increasing energy level

  12. Electron Arrangement Diagram • n= principal energy level • Sublevels – s, p, d, f • Orbitals • Each orbital holds 2 electrons with opposite spins, shown by arrows:

  13. Energy Diagram n = principal energy level Sublevels: Orbitals Electrons & spin Increasing Energy Nucleus

  14. SPUD Farm Memory tool

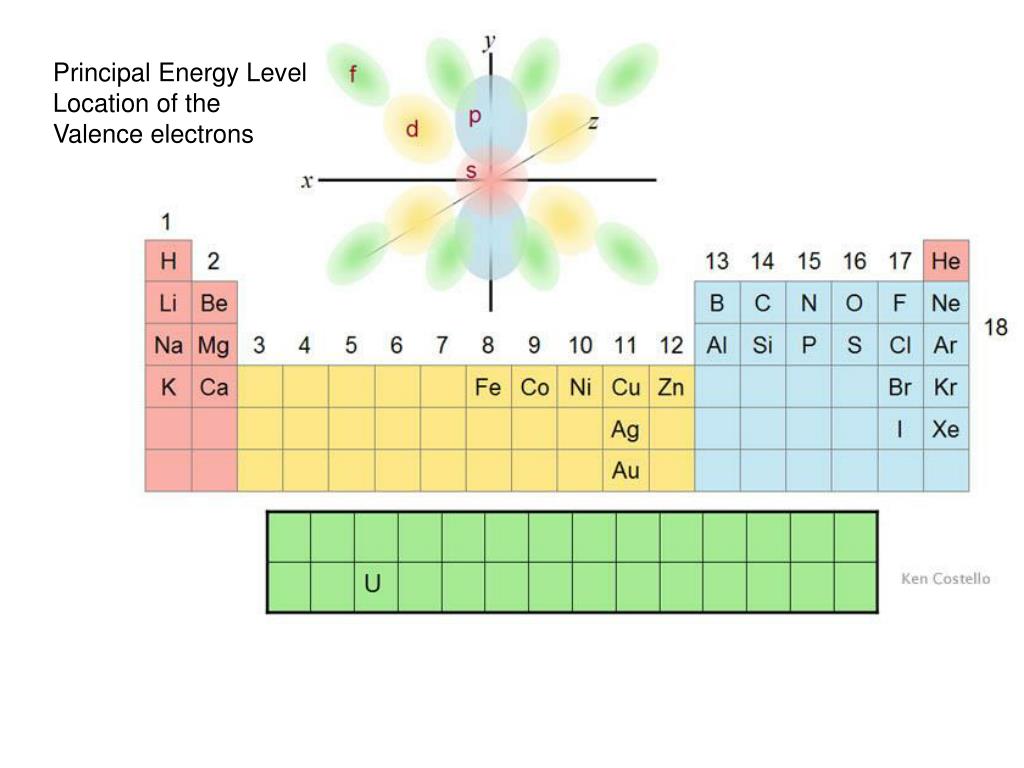

  15. Principal Energy Level Location of the Valence electrons

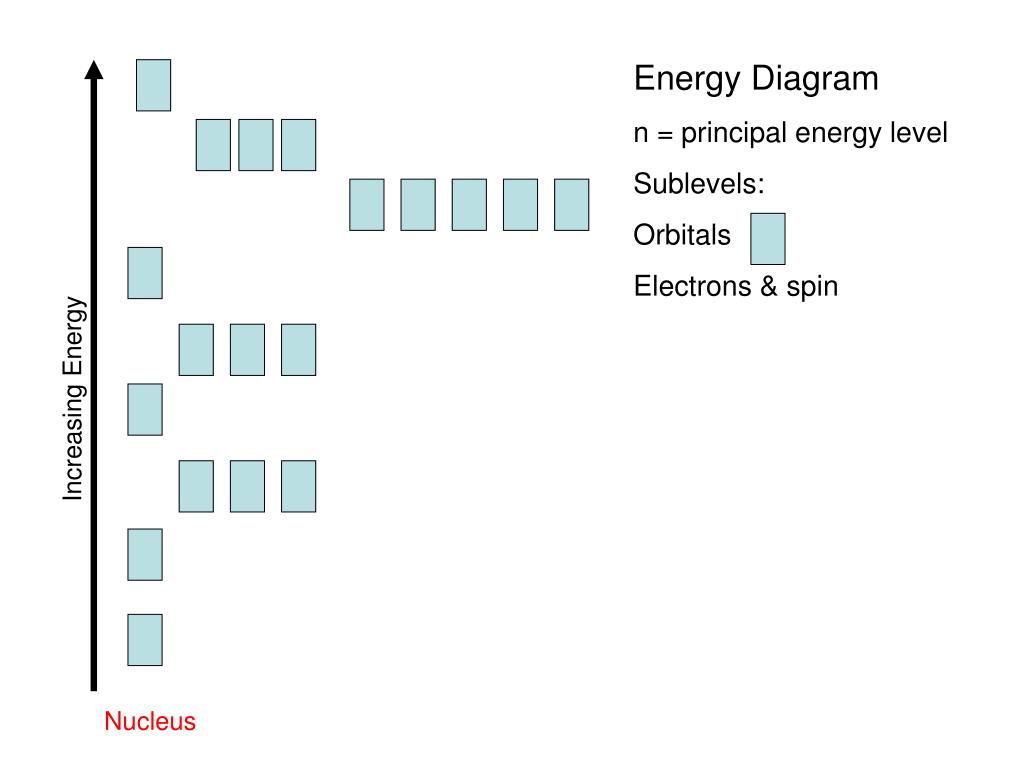

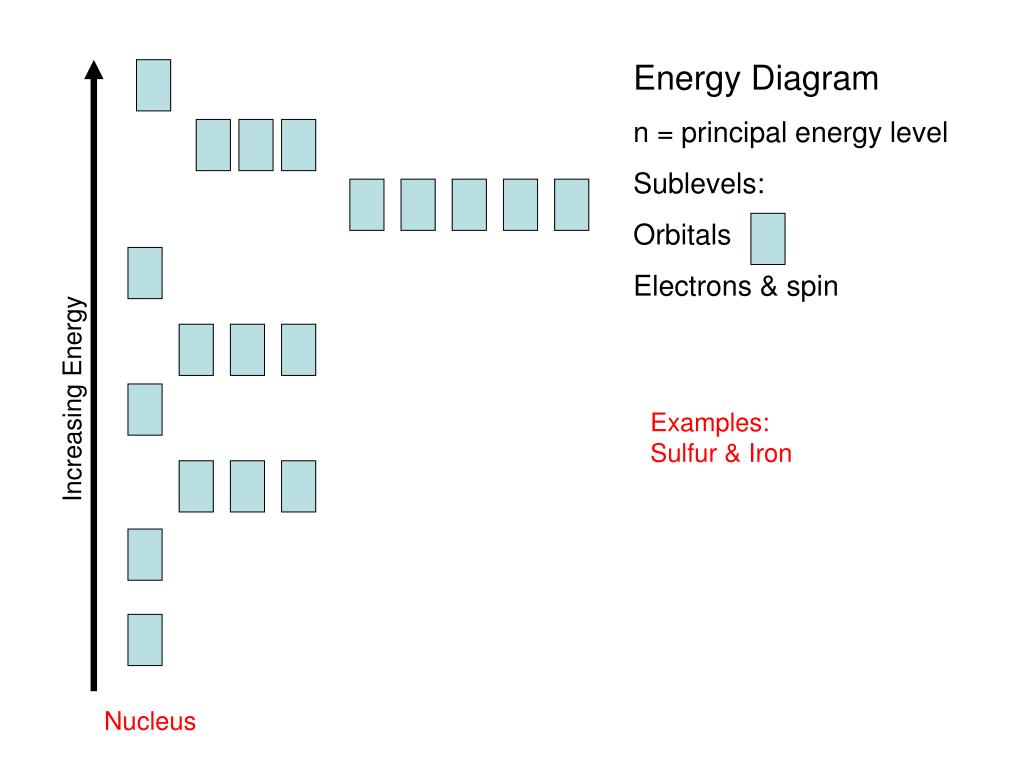

  16. Energy Diagram n = principal energy level Sublevels: Orbitals Electrons & spin Increasing Energy Examples: Sulfur & Iron Nucleus

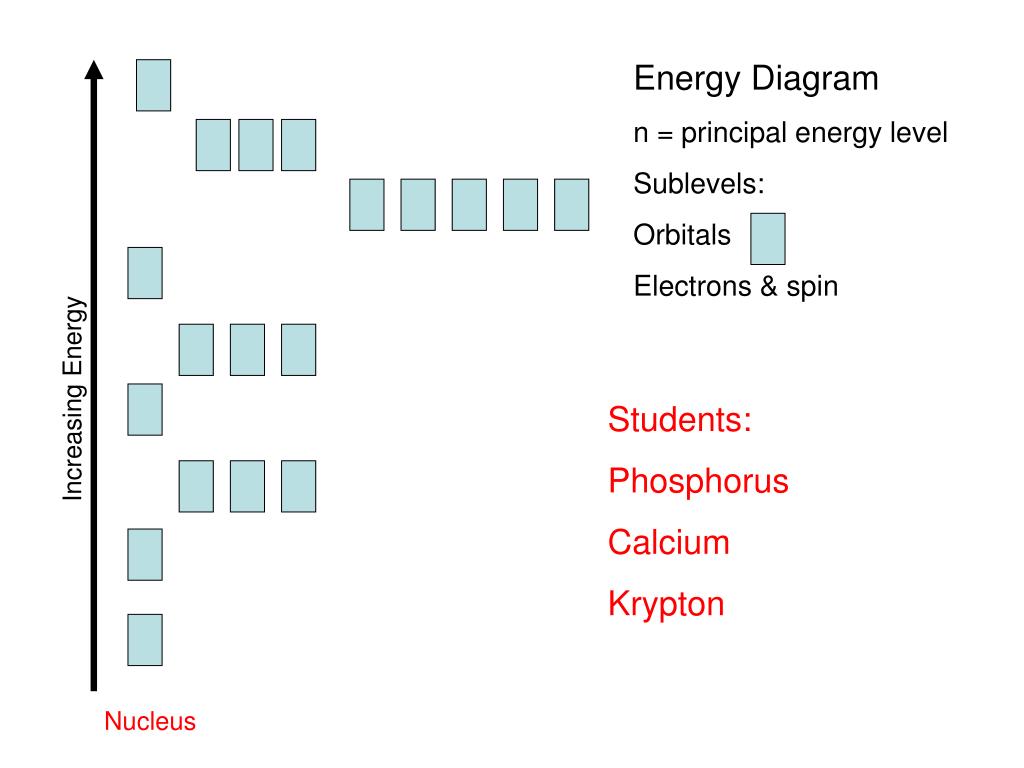

  17. Energy Diagram n = principal energy level Sublevels: Orbitals Electrons & spin Increasing Energy Students: Phosphorus Calcium Krypton Nucleus

  18. Energy Diagram n = principal energy level Sublevels: Orbitals Electrons & spin Increasing Energy Nucleus

  19. Energy Diagram n = principal energy level Sublevels: Orbitals Electrons & spin Increasing Energy Nucleus

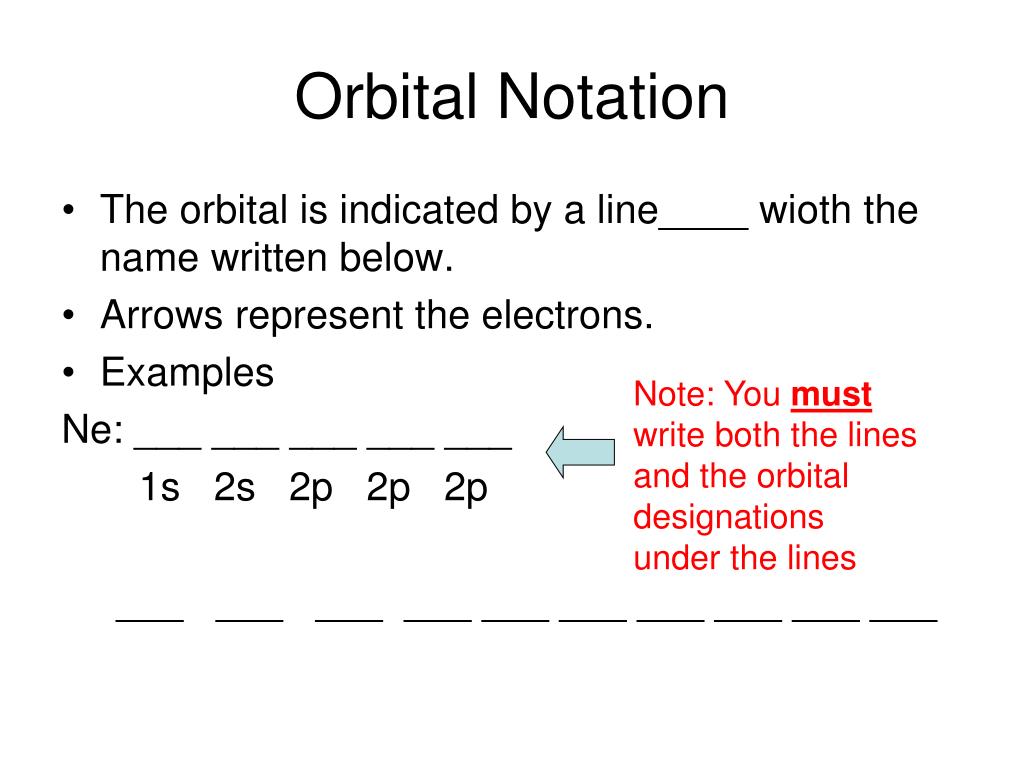

  20. Orbital Notation • The orbital is indicated by a line____ wioth the name written below. • Arrows represent the electrons. • Examples Ne: ___ ___ ___ ___ ___ 1s 2s 2p 2p 2p ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ Note: You must write both the lines and the orbital designations under the lines

  21. Element Atomic # (Z) H He Li Be B Orbital Notation ___ 1s ___ 1s ___ ___ 1s 2s ___ ___ 1s 2s ___ ___ ___ ___ ___ 1s 2s 2p 2p2p Practice

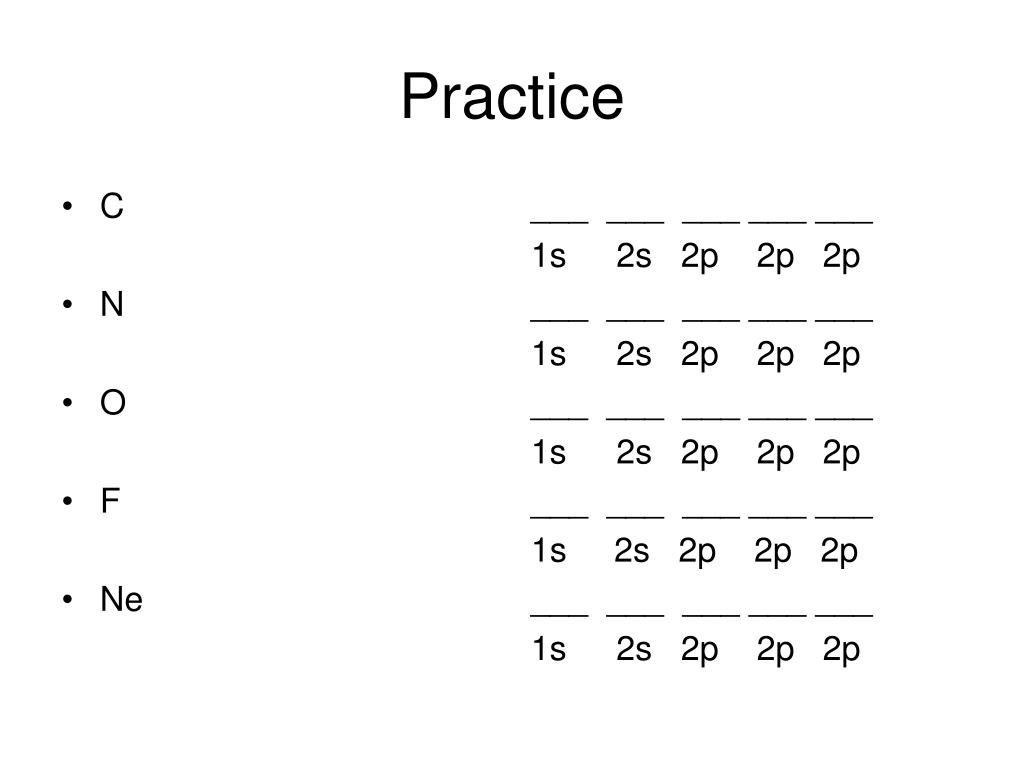

  22. C N O F Ne ___ ___ ___ ___ ___ 1s 2s 2p 2p 2p ___ ___ ___ ___ ___ 1s 2s 2p 2p 2p ___ ___ ___ ___ ___ 1s 2s 2p 2p 2p ___ ___ ___ ___ ___ 1s 2s 2p 2p 2p ___ ___ ___ ___ ___ 1s 2s 2p 2p 2p Practice

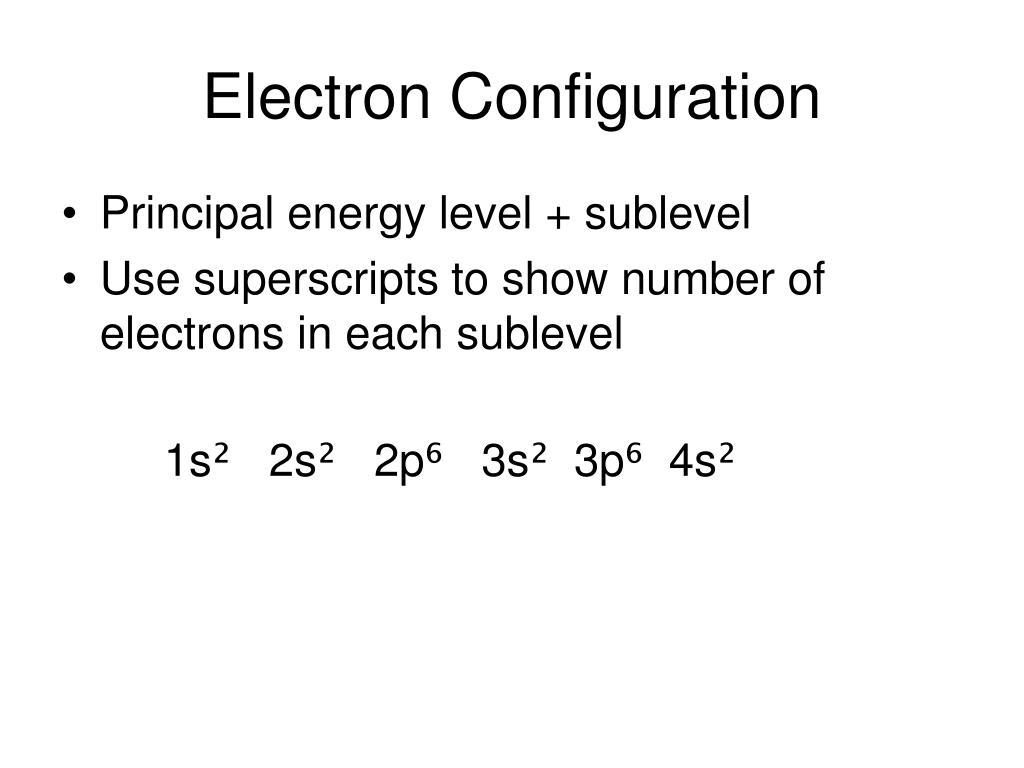

  23. Principal energy level + sublevel Use superscripts to show number of electrons in each sublevel 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² Electron Configuration

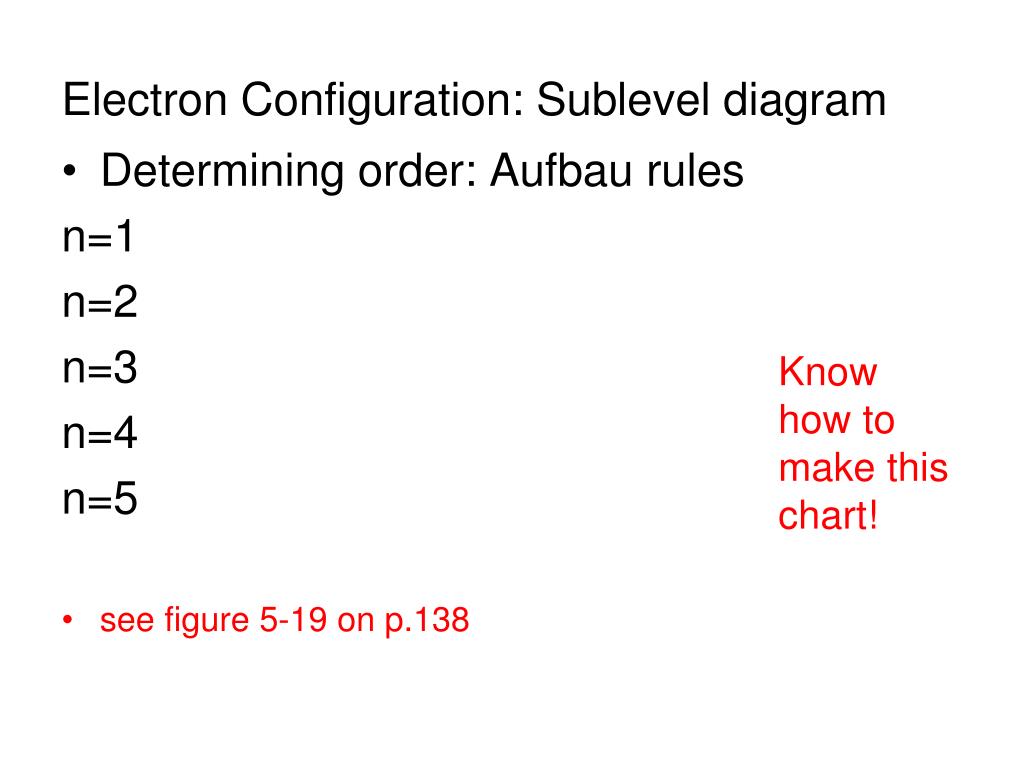

  24. Electron Configuration: Sublevel diagram • Determining order: Aufbau rules n=1 n=2 n=3 n=4 n=5 • see figure 5-19 on p.138 Know how to make this chart!

  25. Check your electron configuration answers using the Periodic Table S, P, D, F Blocks Periods 18

  26. Valence Electrons • Electrons in the outermost (highest) principal energy level • Important • Participate in bonds to make compounds • 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 1s² 2s² 2p⁶ 3s² 3p⁴ 1s² 2s² 2p⁶ 3s¹ 1s² 2s² 1s¹

  27. Review: Electron Configuration Write • Potassium • Aluminum • Chlorine Circle the valence electrons.

  28. Electron Dot Notation • Represents valence electrons K Al Cl Maximum number = 8 Octet rule: atoms will lose, gain or share electrons to have 8 valence electrons & become stable

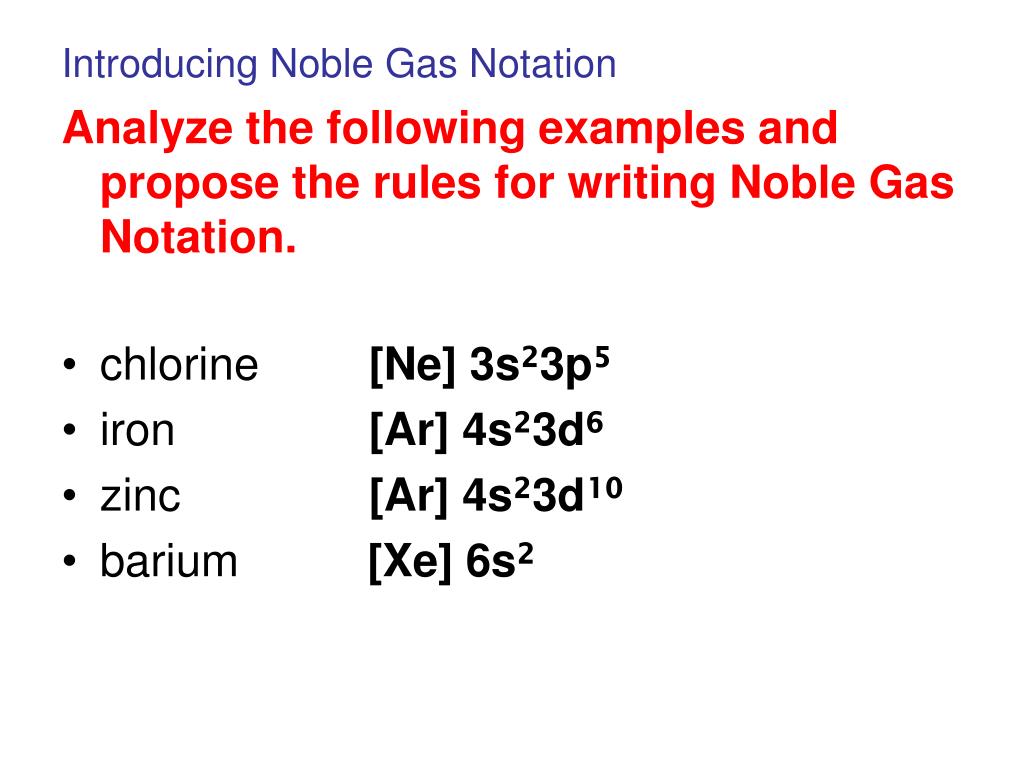

  29. Introducing Noble Gas Notation Analyze the following examples and propose the rules for writing Noble Gas Notation. • chlorine [Ne] 3s²3p⁵ • iron [Ar] 4s²3d⁶ • zinc [Ar] 4s²3d¹⁰ • barium [Xe] 6s²

  30. Noble Gas Notation • Short cut method for electron arrangement • Use the noble gas in the period above the element • Example: Na 1s² 2s² 2p⁶ 3s¹ • Use Neon • Represent neon’s configuration 1s² 2s² 2p⁶ as [Ne] - Use in Na: [Ne] 3s¹

  31. Noble Gas Notation Element 1s² 2s² 2p⁶ 3s² 3p⁶ 1s² 2s² 2p⁶ 3s² 3p⁴ 1s² 2s² 2p⁶ 3s¹ 1s² 2s² 2p⁶

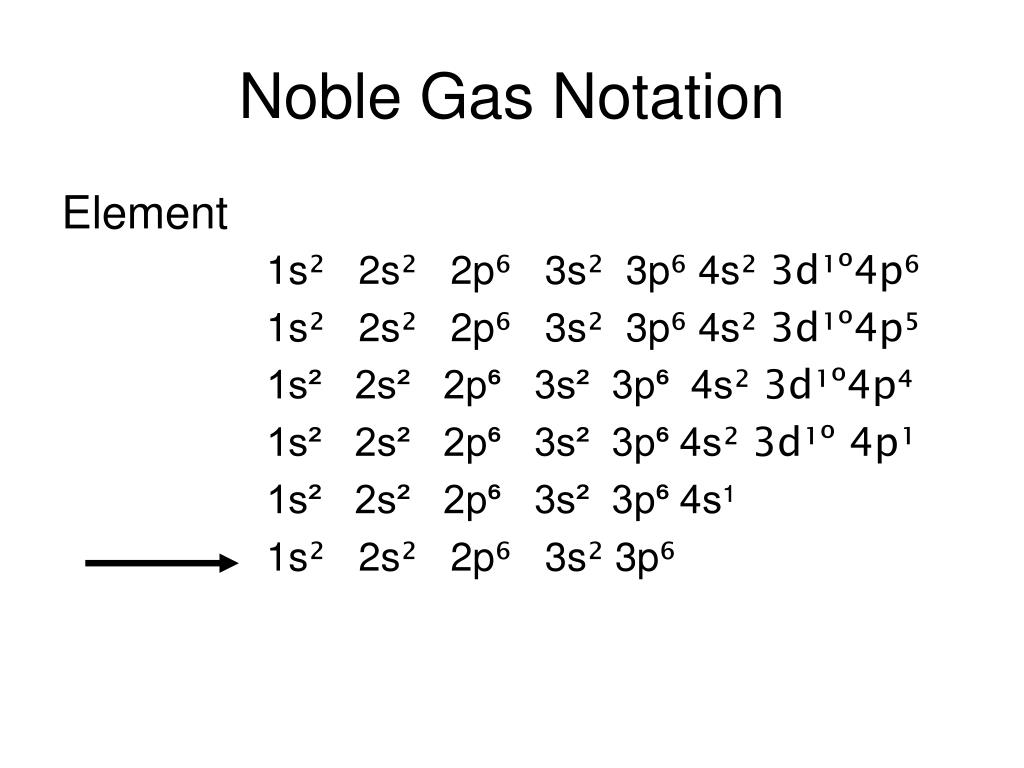

  32. Noble Gas Notation Element 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁶ 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁵ 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁴ 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º 4p¹ 1s² 2s² 2p⁶ 3s² 3p⁶ 4s¹ 1s² 2s² 2p⁶ 3s² 3p⁶

  33. Noble Gas Notation 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º 4p⁶ 5s²4d¹⁰ 5p⁵ 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁶ 5s² 4d¹⁰5p⁴ 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁶ 5s² 4d¹⁰5p² 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁶ 5² 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d¹º4p⁶

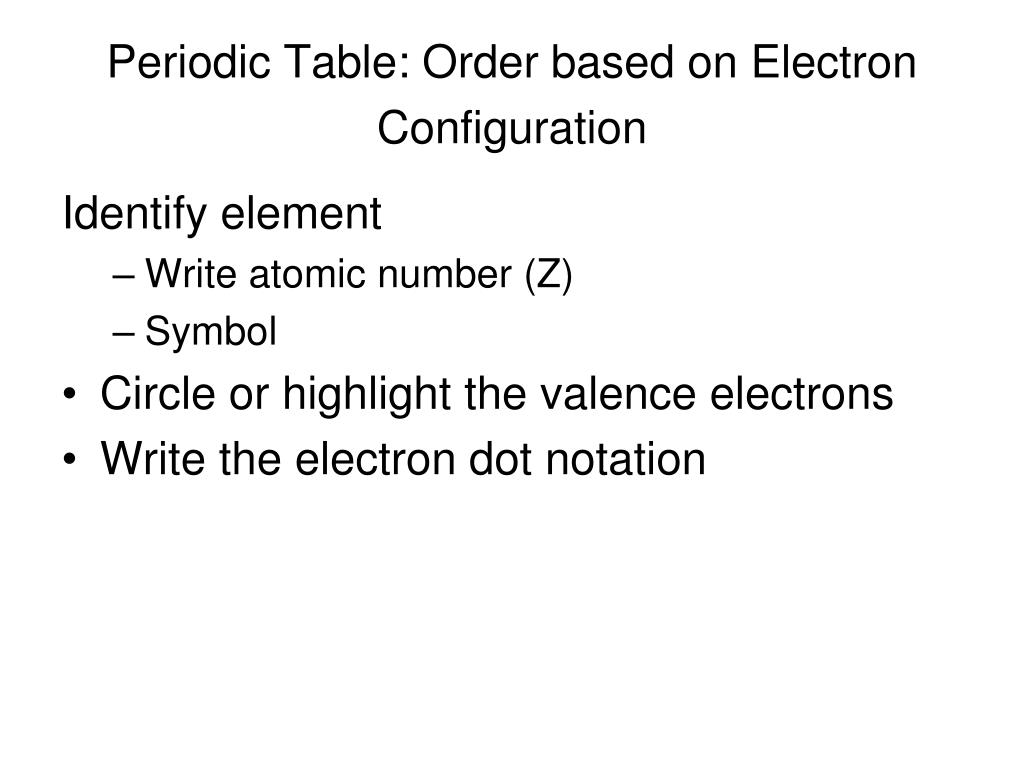

  34. Periodic Table: Order based on Electron Configuration Identify element • Write atomic number (Z) • Symbol • Circle or highlight the valence electrons • Write the electron dot notation

  35. 1 18

  36. Write the Electron Dot in the correct location for the element

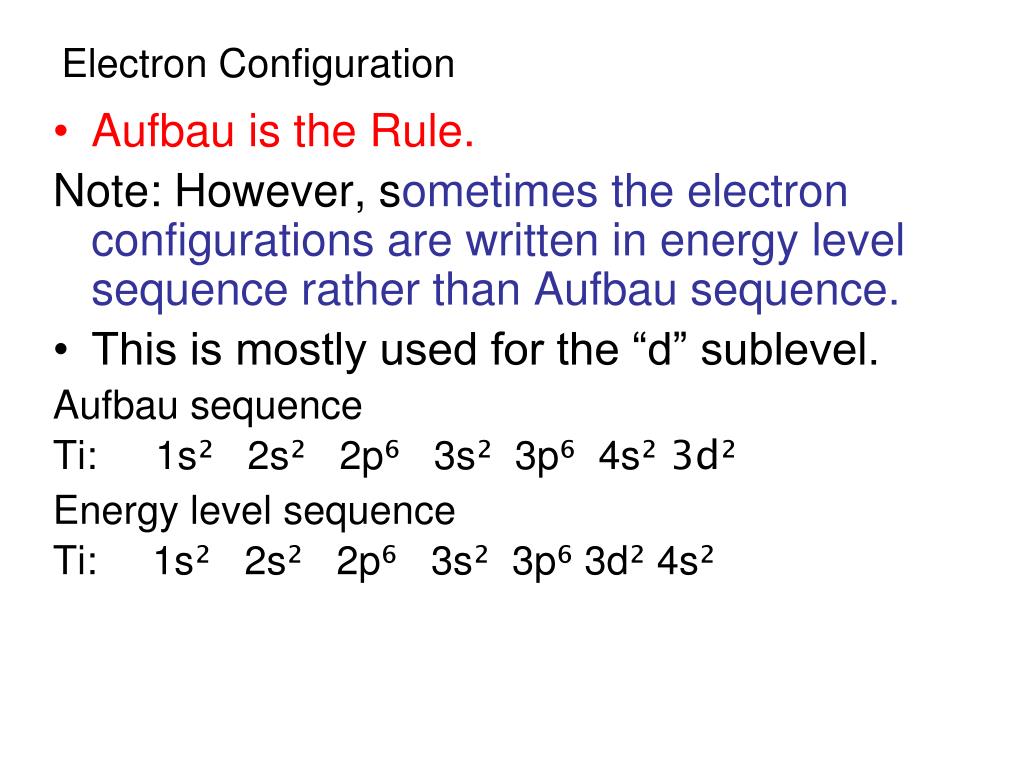

  37. Electron Configuration • Aufbau is the Rule. Note: However, sometimes the electron configurations are written in energy level sequence rather than Aufbau sequence. • This is mostly used for the “d” sublevel. Aufbau sequence Ti: 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d² Energy level sequence Ti: 1s² 2s² 2p⁶ 3s² 3p⁶ 3d² 4s²
