What is Biomechanics

1. What is Biomechanics Biomechanics is a branch of science which employs mechanical and engineering principles to study biological systems The objectives of Biomechanics are: • To understand human physical performance: how do we perform movement and apply forces?how is human motion controlled and how can it be refined; • To understand how the biological tissues (materials) such as muscles, bones, cartilage, tendons and other soft tissues participate in such performance;

2. Objectives of Biomechanics Cont. • To determine what kind of forces are acting on musculoskeletal tissue elements during physical activity; • To find out what are the mechanical propertiesof the relevant biological tissues; how do they deform and endure the application of forces and how do they remodel; • To understand the mechanisms of injury;what kind of loads cause tissues to fail (lose their structural integrity);

3. Examples of Questions that Biomechanics can Answer • Truck drivers are known to develop chronic lower back pain. Is there a critical vibration spectrum which will cause injury? • Running can produce injuries to the joints of the lower limbs. Can athletic shoes help prevent injury by improving dynamic foot-ground interaction? • Leg amputation and a continuous use of prosthesis is likely to produce lower back pain in later life. Can such arthritic development be prevented via control of the limb structural parameters?

4. Examples of Biomechanical Applications • Plastic surgeon needs to perform skin graft to cover an affected area of burned skin. What is the best way to prepare skin for grafting? • Plastic surgeon needs to perform reconstructive surgery by transplanting cartilage from the sternum to the nose. How can he prevent stress related deformity • How does one control an overuse syndrome in articular cartilage such as in osteoarthritis of the knee or hip;

5. Examples Cont. • An orthopedic surgeon is presented with a case of a child where the hip joint is abnormally overloaded such that it causes degeneration of the joint cartilage. What kind of solution can be applied and what are the consequences; • Degenerative changes in a joint (Ankle, knee, hip, spine) may cause unbearable pain. The surgeon may consider fusion of the bony elements of the joint. What are the benefits and the shortcomings of the procedure.

6. An alternative solution to the same problem could be to resurface the joint with prosthetic components, what kind of loads need to be considered? how should the prosthetic component be interfaced to the bony tissue? what kind of geometry need to be reproduced? Runners often suffer joint injuries as a result of the frequent and extensive loading. Are shoes contributory to the alleviation of such stresses? Which shoe characteristics need to be considered? A child broke his tibia. Is plaster casting a good solution? Examples Cont.

7. Examples Cont. • In the design of high acceleration equipment, such as: airplanes, space rockets, roller coasters and road vehicles, how does one decide what kind of accelerations can the body sustain without being injured? • In the design of off road equipment and vehicles, exposure to vibrations considers: frequencies; amplitudes; duty cycle; exposure time, etc.? • In the design of seat belts for automotive application, what would be an optimal configuration to prevent rib fractures?

8. Human Performance Biomech. • Biomechanics in Rehabilitation • Biomechanics in Sport • Occupational Biomechanics

9. Fm Quad Fm Calf Fn Fm Achil Performance of Movement 1. How do we perform movement and/or apply forces;

10. The Musculoskeletal System Anatomy & Physiology

11. Origin Insertion Musculoskeletal Biomechanics • Modeling of the MSK system with the objective of identifying forces exerted/acting on the Bones, Joints, Muscles and other soft tissues; • Application to Trauma, Prosthetics and Orthopedic Implant Design.

12. Tissue Biomechanics • The study of the mechanical behavior of biological tissues • Force • Deformation • Growth and Remodeling • Failure

13. Bone Mechanics & Remodeling

14. Knowledge Required to deal with Biomechanical Problems • Anatomy: understanding body structural composition • Physiology: understanding the body operational principles • Applied Engineering-Mechanics: The modeling tools

15. The Principles of Biomechanical Analysis • We approach the biomechanical analysis similarly to the mechanical analysis: • Determine the external forces either by static modeling or by dynamic modeling • Determine the internal forces via fragmentation and free body diagrams • Attribute the internal forces and moments to the corresponding tissues • Perform Tissue Mechanics analysis

16. Performance Analysis is the way to Determine the External Loading • Document the motion (kinematics); • Measure the applied forces; • Assess muscular activity (EMG); • Analyze trajectories of motion; • Develop a dynamic model to determine the forces; • Suggest ways to ptimize the performance; • Alternatively, analyze the motions of an elite athlete and adopt his/her criteria;

17. A Typical Protocol For Tissue Mechanics Study • Determine the performance characteristics • Motion, External Forces (measurable); • Focus on a particular body part/tissue of interest and determine the forces acting on it • Typically a model is required; • Subject the specific part/tissue to the applied forces and obtain its mechanical behavior comparing loads and deformations; • Compare the forces to the tissue endurance values

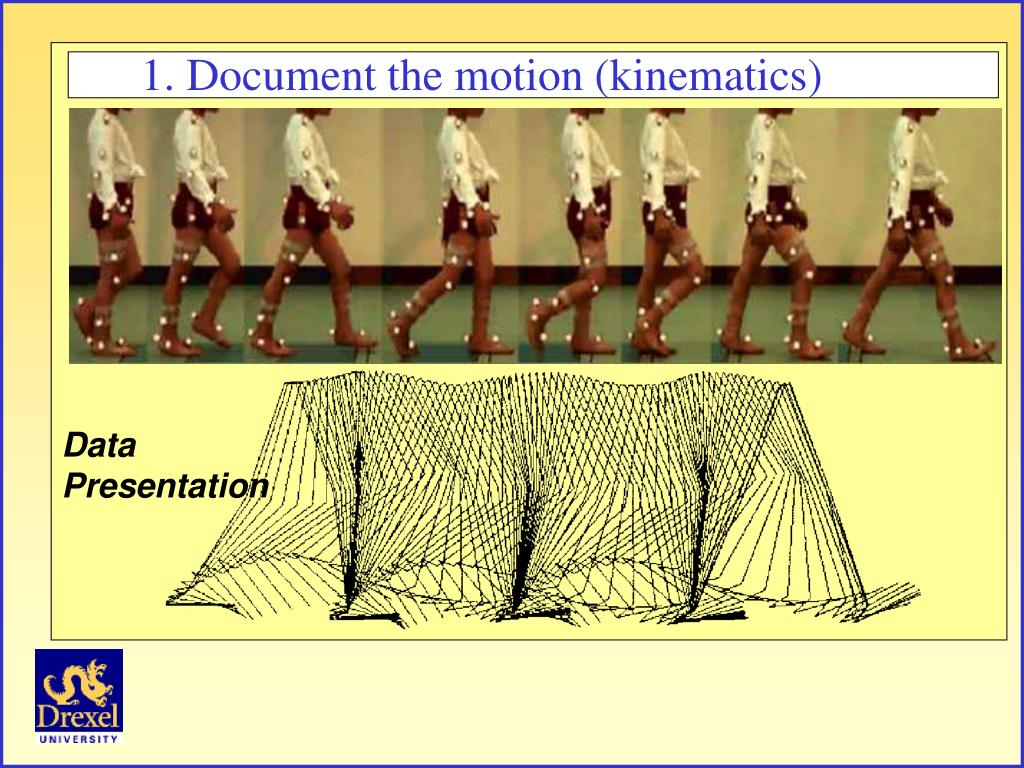

18. 1. Document the motion (kinematics) Data Presentation

19. 2. Measure the applied forces Ground Forces acting during locomotion

20. Analyze Trajectories of Motion Determine velocities and accelerations
