10 The Awk Programming Language Mauro Jaskelioff (originally by Gail Hopkins)

Introduction • What is awk? • Command line syntax • Patterns and procedures • Commands • Variables • Built in variables • Variable assignment • Arrays • Defining functions

What is awk? • A pattern matching program for processing files • There are different versions of awk: • awk - the original version, sometimes called old awk, or oawk • New awk - additional features added in 1984. Often called nawk • GNU awk (gawk)- has even more features • The version installed in unnc-cslinux is GNU awk 3.1.3

What does awk do? • A text file is thought of as being made up of records and fields • On this file you can: • Do arithmetic and string operations • Use loops and conditionals (if-then-else) • Produce formatted reports

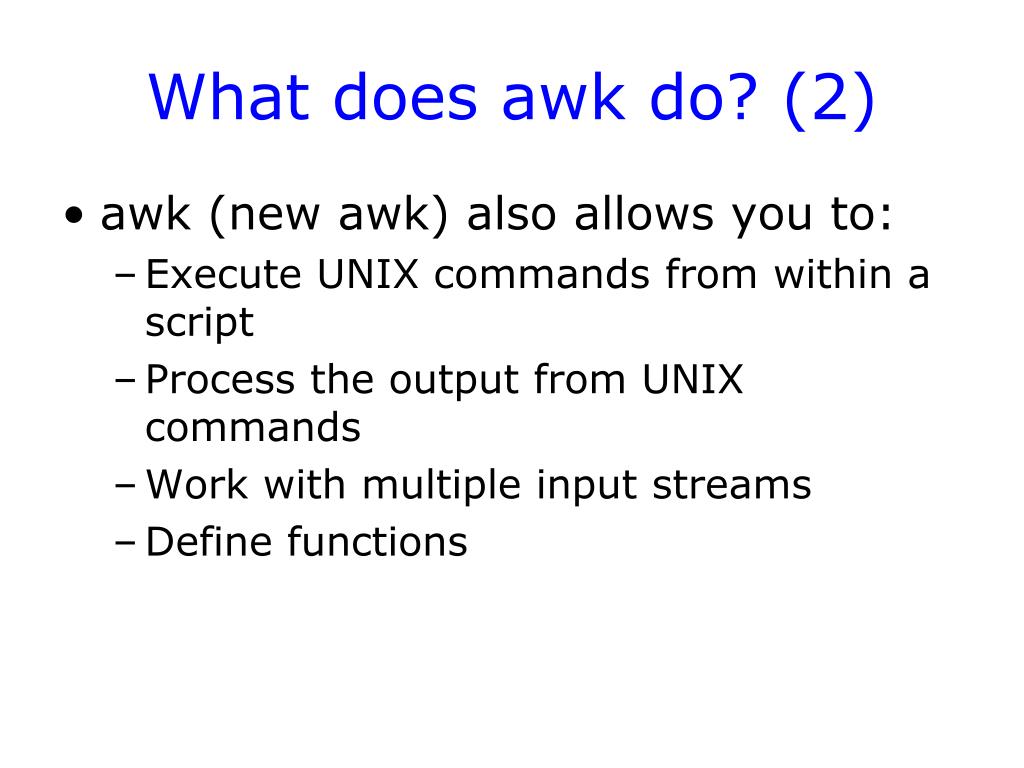

What does awk do? (2) • awk (new awk) also allows you to: • Execute UNIX commands from within a script • Process the output from UNIX commands • Work with multiple input streams • Define functions

What does awk do? (3) • awk can also be combined with sed and shell scripting! • Shell is very easy and quick to write, but it lacks functionality. • sed, awk and shell are designed to be integrated • Simply invoke the sed or awk interpreter from within the shell script, rather than from the command line!

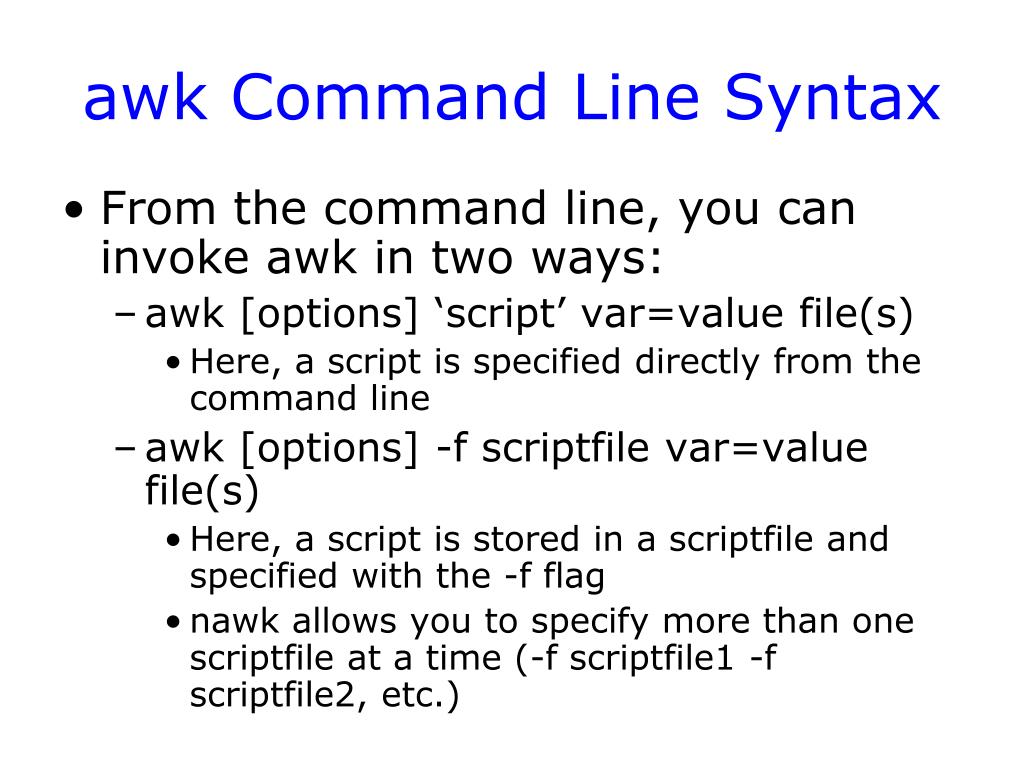

awk Command Line Syntax • From the command line, you can invoke awk in two ways: • awk [options] ‘script’ var=value file(s) • Here, a script is specified directly from the command line • awk [options] -f scriptfile var=value file(s) • Here, a script is stored in a scriptfile and specified with the -f flag • nawk allows you to specify more than one scriptfile at a time (-f scriptfile1 -f scriptfile2, etc.)

awk Command Line Syntax - assigning values to variables • You can assign a value to a variable on the command line (nawk only): • This value can be one of three things: • A literal, e.g. count=5 • awk -f scriptFile count=5 • A shell variable, e.g. $count • awk -f scriptFile count=$count • A command substitution, e.g. `cmd` • awk -f scriptFile count=`who | wc-l` • The value is ONLY available after the BEGIN statement within the script is executed • To make the value available to BEGIN statement: • awk -v count=5 -f scriptFile

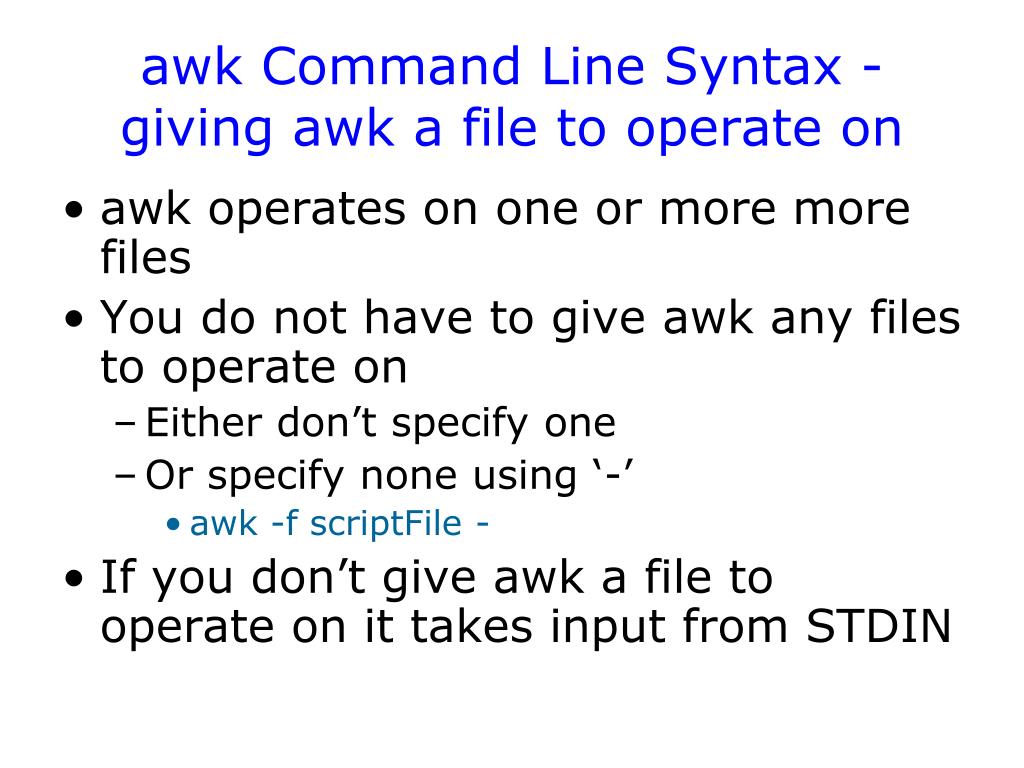

awk Command Line Syntax - giving awk a file to operate on • awk operates on one or more more files • You do not have to give awk any files to operate on • Either don’t specify one • Or specify none using ‘-’ • awk -f scriptFile - • If you don’t give awk a file to operate on it takes input from STDIN

awk Command Line Syntax - Field separators • You can set a field separator • In other words, a symbol (or even a regular expression in nawk) that should appear between fields of a record • Do this using -F • E.g. awk –F’;’ –f scriptFile count=5 myFile • Would look for fields in a record (or line) in myFile separated by a semi-colon • Also awk –f scriptFile FS=’;’ count=5 myFile • Fields are referred to by the variables $1, $2, etc. • $0 means the whole record

Field Separators - example $ head /etc/passwd root:x:0:0:root:/root:/bin/bash rootnir:x:0:0:root:/root:/bin/bash bin:x:1:1:bin:/bin:/sbin/nologin daemon:x:2:2:daemon:/sbin:/sbin/nologin adm:x:3:4:adm:/var/adm:/sbin/nologin lp:x:4:7:lp:/var/spool/lpd:/sbin/nologin sync:x:5:0:sync:/sbin:/bin/sync shutdown:x:6:0:shutdown:/sbin:/sbin/shutdown halt:x:7:0:halt:/sbin:/sbin/halt mail:x:8:12:mail:/var/spool/mail:/sbin/nologin • Suppose you want to extract and print the first three (colon-separated) fields of each record in /etc/passwd, on separate lines

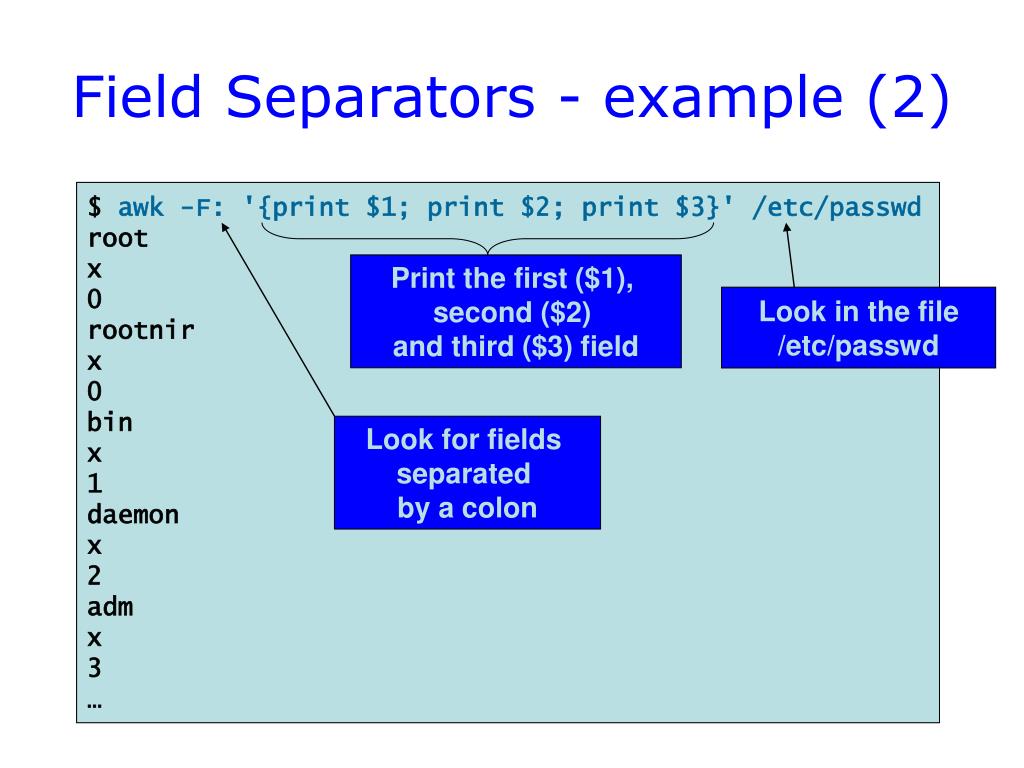

Field Separators - example (2) $ awk -F: '{print $1; print $2; print $3}' /etc/passwd root x 0 rootnir x 0 bin x 1 daemon x 2 adm x 3 … Print the first ($1), second ($2) and third ($3) field Look in the file /etc/passwd Look for fields separated by a colon

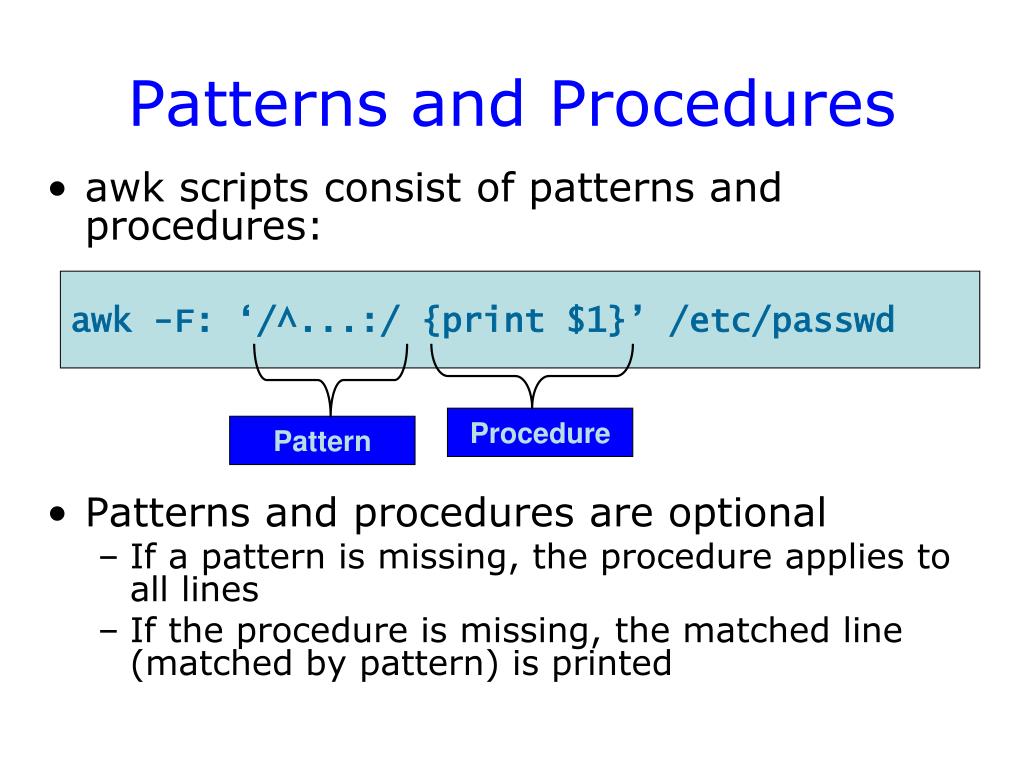

Patterns and Procedures • awk scripts consist of patterns and procedures: • Patterns and procedures are optional • If a pattern is missing, the procedure applies to all lines • If the procedure is missing, the matched line (matched by pattern) is printed awk -F: ‘/^...:/ {print $1}’ /etc/passwd Procedure Pattern

Patterns A pattern can be: • /regular expression/ • Use the metacharacters we have already seen • ^ and $ mean the beginning and end of a string (e.g. the fields) NOT beginning/end of a line awk -F: ‘/^...:/ {print $1}’ /etc/passwd • Relational expression • Use relational operators, e.g. $1 > $2 • Can do numeric or string comparisons awk -F: ‘$1==“gdm” {print $0}’ /etc/passwd

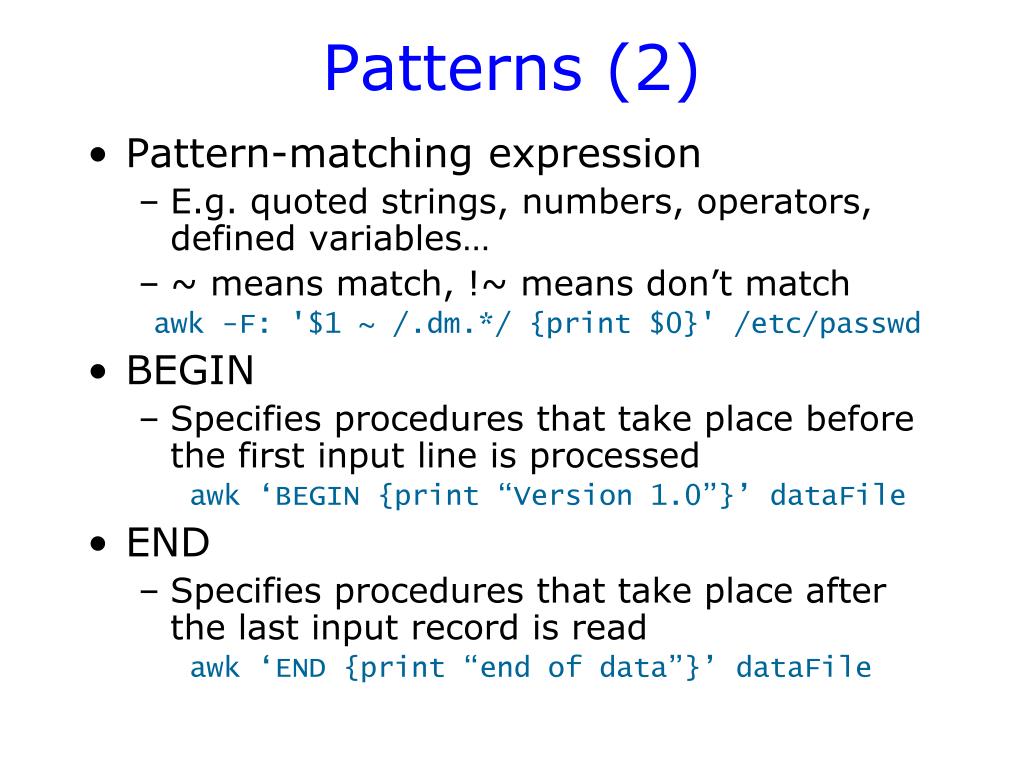

Patterns (2) • Pattern-matching expression • E.g. quoted strings, numbers, operators, defined variables… • ~ means match, !~ means don’t match awk -F: '$1 ~ /.dm.*/ {print $0}' /etc/passwd • BEGIN • Specifies procedures that take place before the first input line is processed awk ‘BEGIN {print “Version 1.0”}’ dataFile • END • Specifies procedures that take place after the last input record is read awk ‘END {print “end of data”}’ dataFile

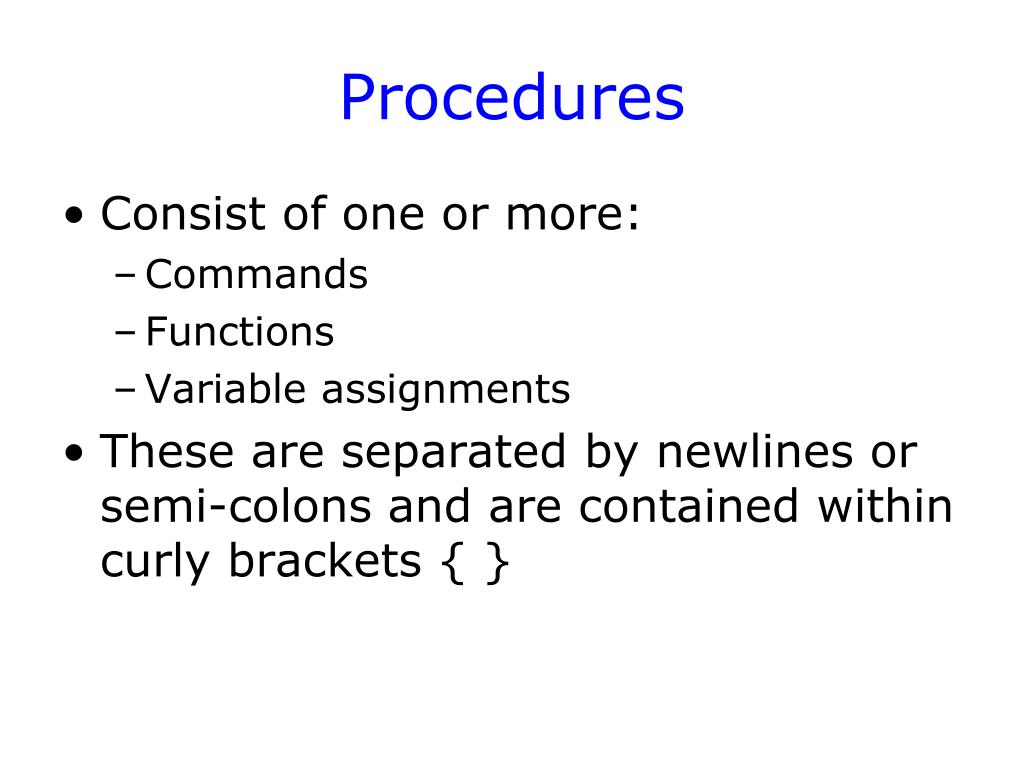

Procedures • Consist of one or more: • Commands • Functions • Variable assignments • These are separated by newlines or semi-colons and are contained within curly brackets { }

Commands used with Procedures • There are 5 types of commands: • Assignments of variables or arrays • Commands that print • Built-in functions • Control-flow commands • User-defined functions (in nawk only)

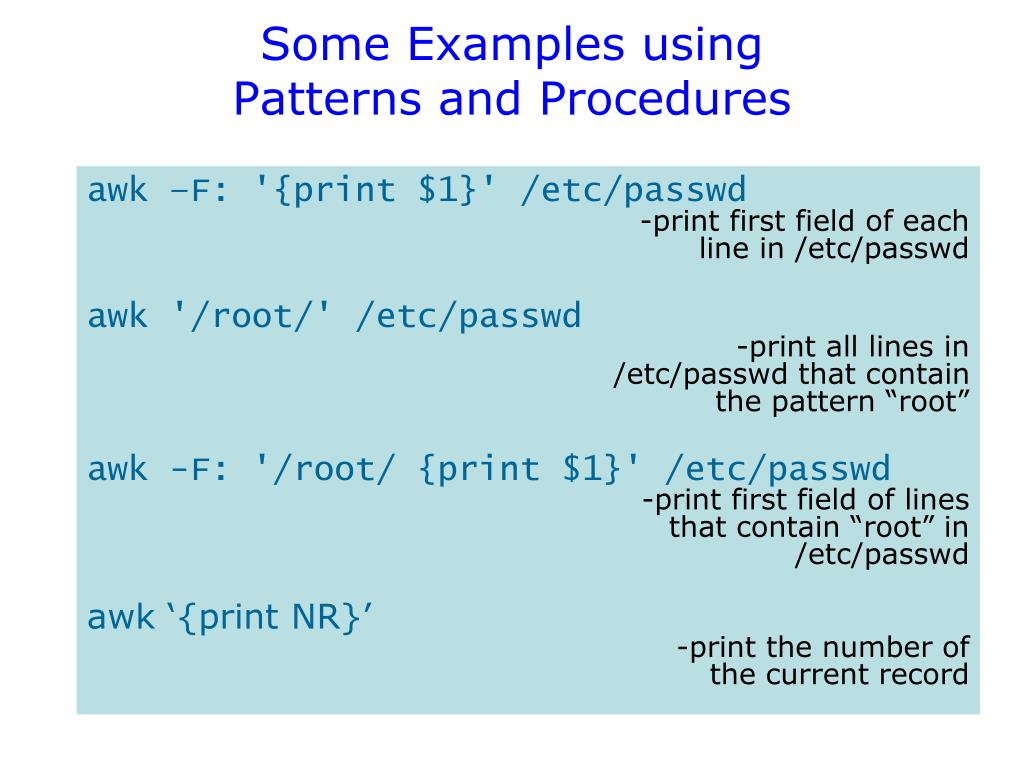

Some Examples usingPatterns and Procedures awk –F: '{print $1}' /etc/passwd -print first field of each line in /etc/passwd awk '/root/' /etc/passwd -print all lines in /etc/passwd that contain the pattern “root” awk -F: '/root/ {print $1}' /etc/passwd -print first field of lines that contain “root” in /etc/passwd awk ‘{print NR}’ -print the number of the current record

awk Built-in Variables • awk has a number of built in variables: • FILENAME - current filename • FS - Field separator • NF - Number of fields in current record • NR - Number of current record • RS - Record separator • $0 - Entire input record • $n - nth field in current record

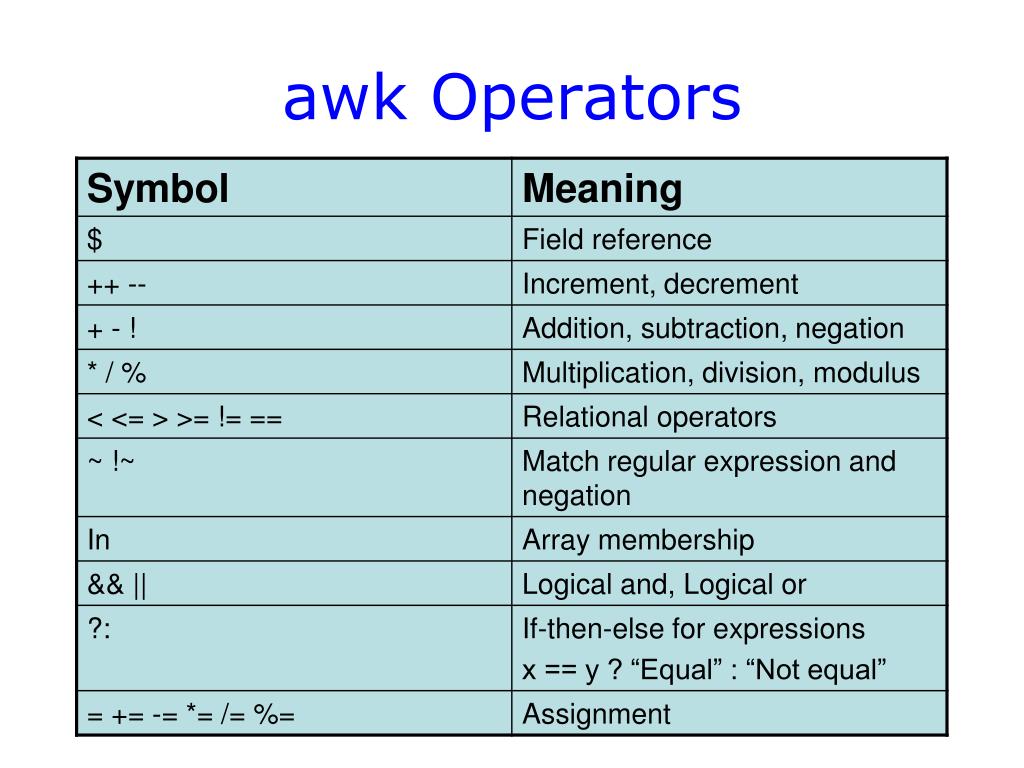

awk Operators

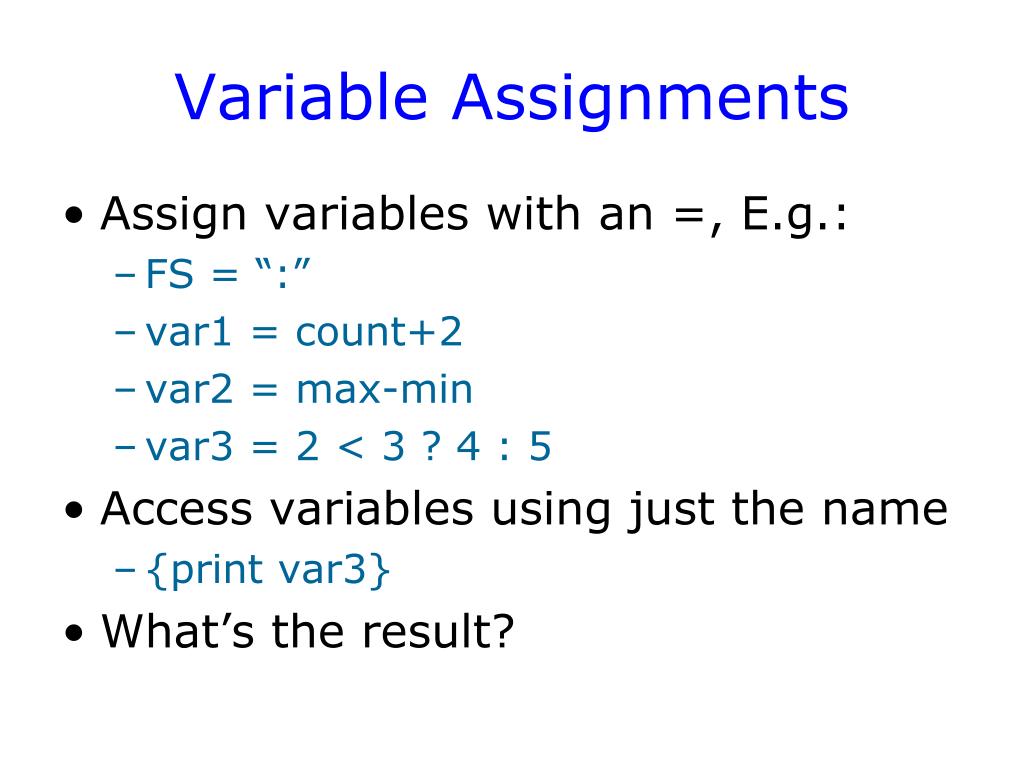

Variable Assignments • Assign variables with an =, E.g.: • FS = “:” • var1 = count+2 • var2 = max-min • var3 = 2 < 3 ? 4 : 5 • Access variables using just the name • {print var3} • What’s the result?

Arrays in awk • awk has arrays with elements subscripted with strings (associative arrays) • Assign arrays in one of two ways: • Name them in an assignment statement • myArray[i]=n++ • Use the split() function • n=split(input, words, "")

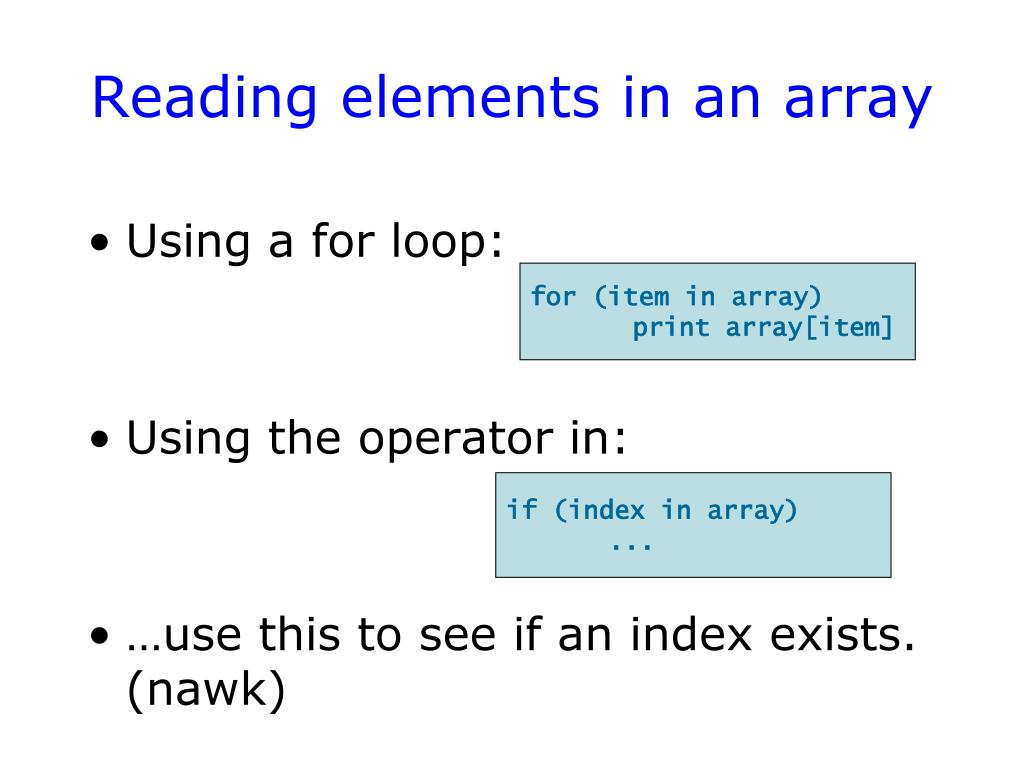

Reading elements in an array • Using a for loop: • Using the operator in: • …use this to see if an index exists. (nawk) for (item in array) print array[item] if (index in array) ...

Defining Functions in awk • You can define your own functions in awk, in much the same way as you define a function in C or Java • Thus code that is to be repeated can be grouped together inside a function • Allows code reuse! • NOTE: when calling a function you have defined yourself, no space is allowed between the function name and the left bracket.

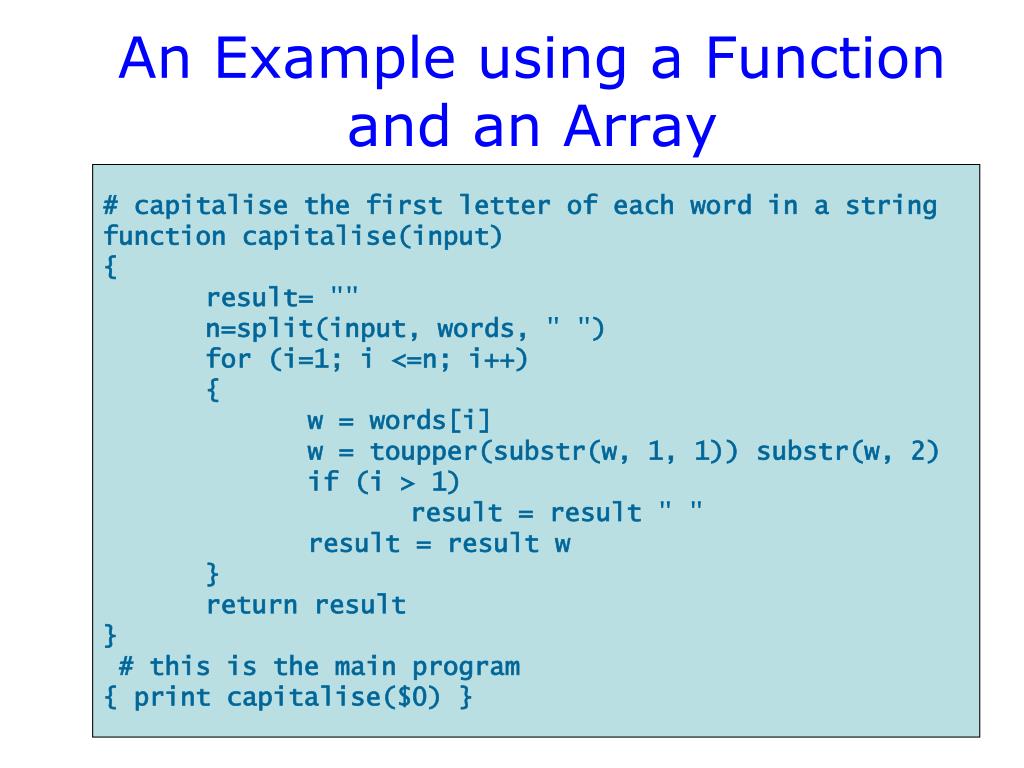

An Example using a Function and an Array # capitalise the first letter of each word in a string function capitalise(input) { result= "" n=split(input, words, "") for (i=1; i <=n; i++) { w = words[i] w = toupper(substr(w, 1, 1)) substr(w, 2) if (i > 1) result = result "" result = result w } return result } # this is the main program { print capitalise($0) }

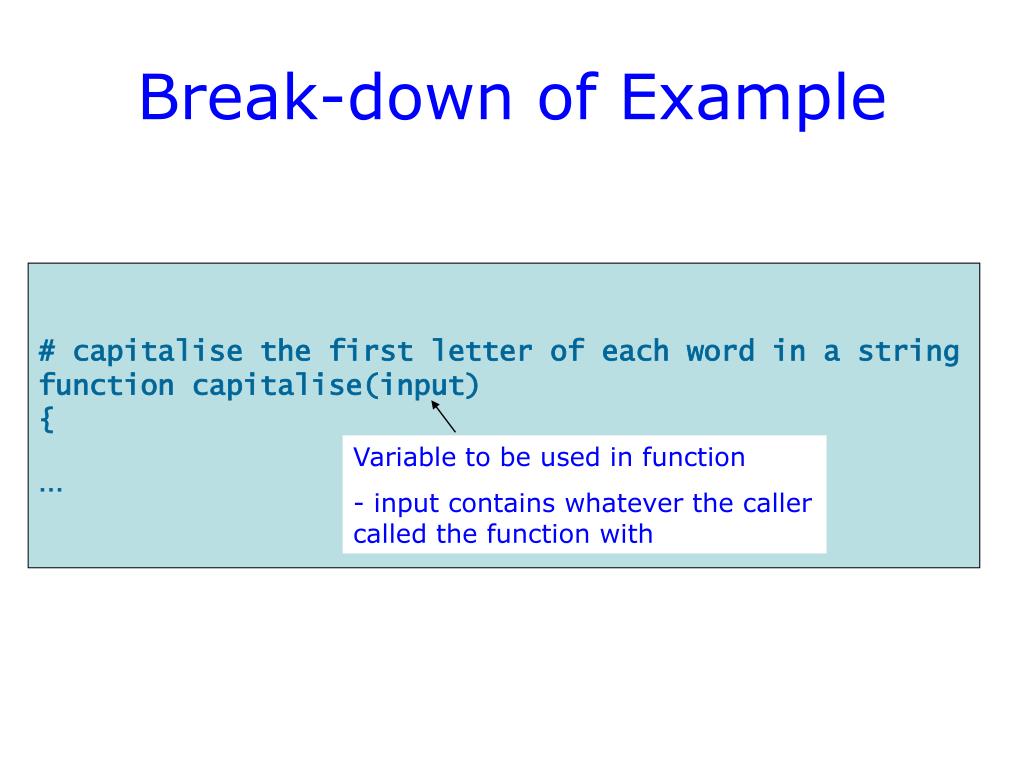

Break-down of Example # capitalise the first letter of each word in a string function capitalise(input) { … Variable to be used in function - input contains whatever the caller called the function with

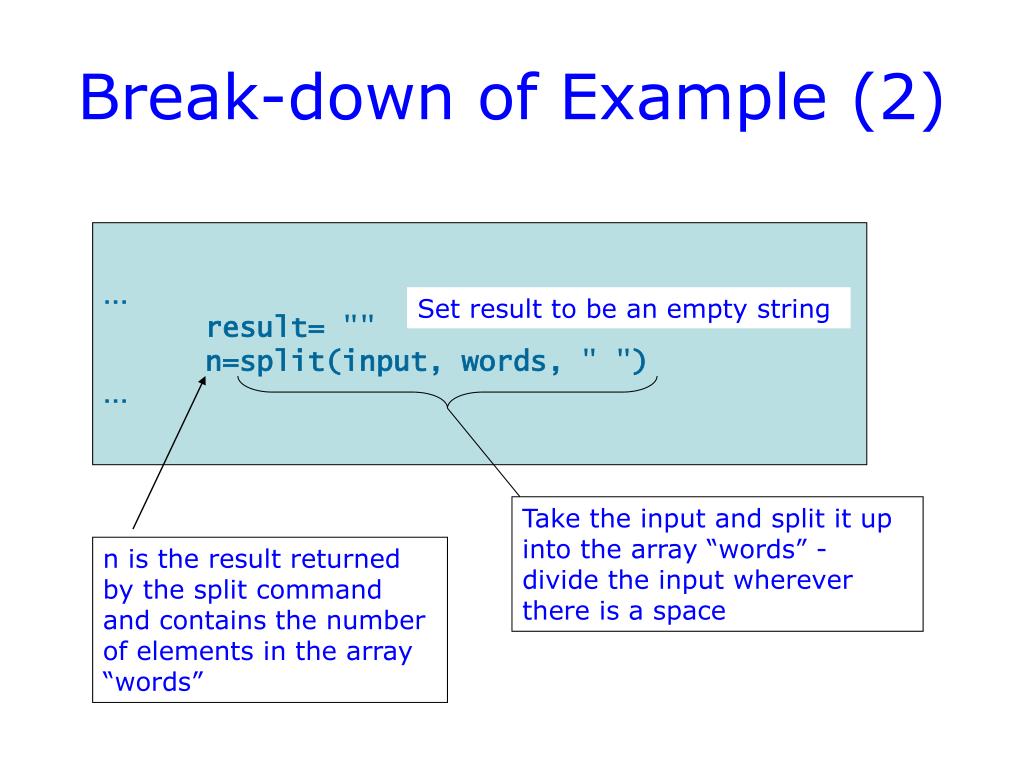

Break-down of Example (2) … result= "" n=split(input, words, "") … Set result to be an empty string Take the input and split it up into the array “words” - divide the input wherever there is a space n is the result returned by the split command and contains the number of elements in the array “words”

Break-down of Example (3) Take remainder of string starting at 2nd character and append it to capitalised character Take the substring which starts at the first character and has a length of 1 and capitalise using toupper() For each element of array from 1 to the number of elements… … for (i=1; i <=n; i++) { w = words[i] w = toupper(substr(w, 1, 1)) substr(w, 2) if (i > 1) result = result "" result = result w } return result } … Assign element to w Tag a space on to the end of the result string Tag the next word on to the end of the result string

Break-down of Example (4) … # this is the main program { print capitalise($0) } This is a comment in awk Call the capitalise function with the entire input record. Print the result.

Output from Example • Given the input file: • …our Capitalise function will output: In theory there is no difference between theory and practice, but in practice there is In Theory There Is No Difference Between Theory And Practice, But In Practice There Is

Summary • An introduction to awk • Using awk patterns and procedures on the command line • Writing awk scripts
