  1. The City Scanning Project : Validation and parallel algorithms Olivier Koch, Visitor from March to August 2002 Advisor : Seth Teller

  2. Contents 1/ Project overview 2/ code validation 3/ parallel algorithms 4/ a few ideas The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  3. Project overview Reconstruct a realistic 3D model of an urban environment from calibrated real-world images Technology Square Argus The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  4. Project overview • Nodes The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  5. Project overview • Edge detection The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  6. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world edge Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  7. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world edge Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  8. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world edge Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  9. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Horizontal plane Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  10. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Horizontal line Horizontal plane Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  11. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Horizontal line Horizontal plane Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  12. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world horizontal line horizontal line Horizontal plane Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  13. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Horizontal line Horizontal plane Camera plane Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  14. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Horizontal line Camera center Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  15. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Horizontal line Ground plane The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  16. Project overview • assume edges are horizontal • determine corresponding orientation in 3D world Z Horizontal line X  Y Ground plane  = azimuth of 3D edge The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  17. Project overview • Edge detected… The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  18. Project overview • Edge detected… now have an azimuth ! • each azimuth is color-coded. The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  19. Project overview • histogram edges weight azimuth 0 360 Façade orientation wrt due east The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  20. Project overview • histogram horizontal edges weight azimuth 0 360 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  21. Project overview • histogram horizontal edges weight azimuth 0 360 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  22. Project overview • keep orientations that are supported by at least 3 nodes weight azimuth  0 360 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  23. Project overview • determine corresponding edges weight azimuth  0 360 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  24. Project overview From : Extracting Textured Vertical Facades from Controlled Close-Range Imagery, S. Teller, S. Coorg in Proc. CVPR, pp. 625-632, June 1999. The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  25. Project overview correlation computed correlation value step grid cell projected edge The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  26. Project overview correlation peak step grid cell sweep step The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  27. Project overview correlation peak step grid cell sweep step The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  28. Project overview correlation peak step grid cell The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  29. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  30. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  31. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

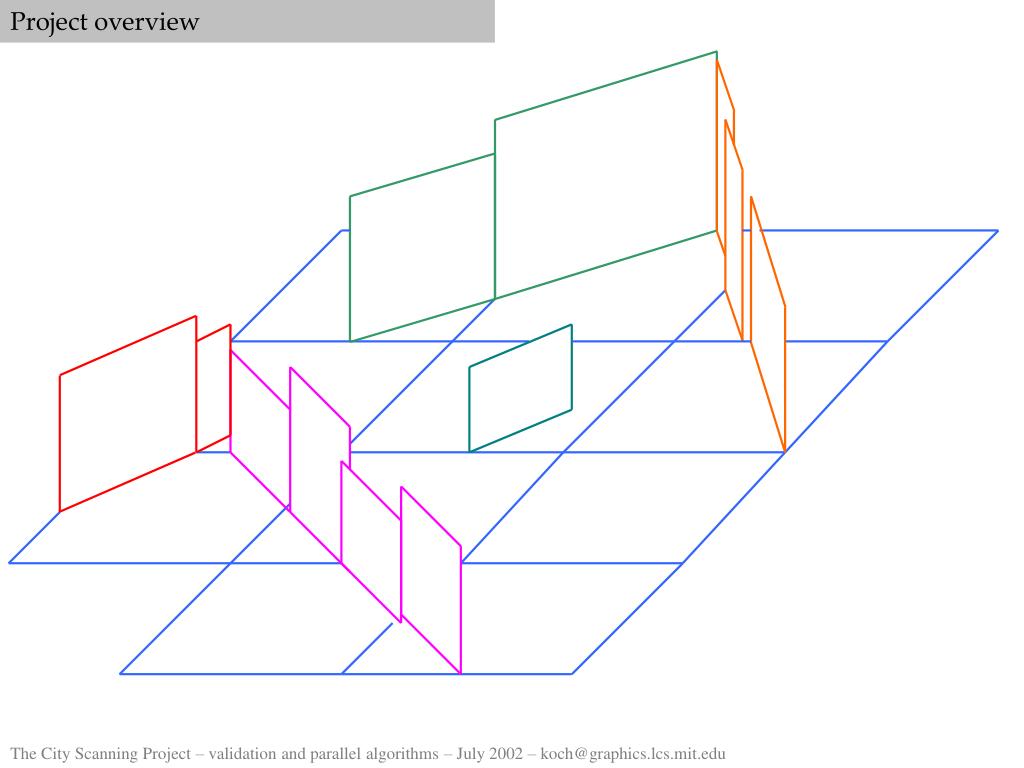

  32. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  33. Project overview 2 2 2 1 1 1 1 1 1 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  34. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  35. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  36. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  37. Project overview The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

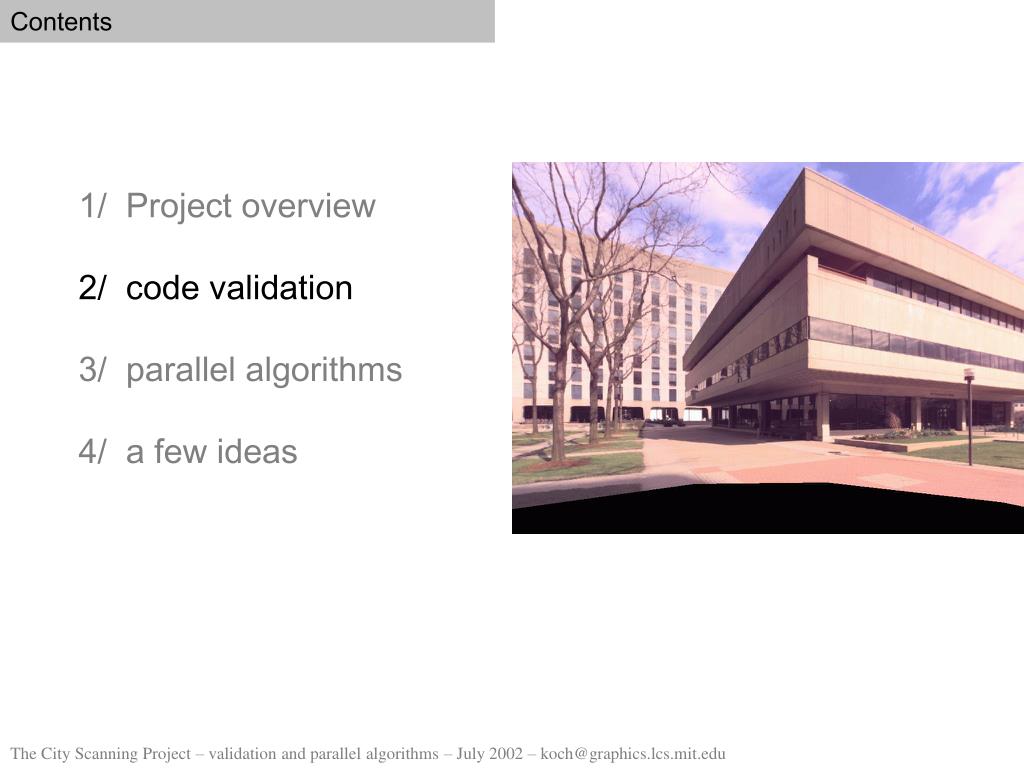

  38. Contents 1/ Project overview 2/ code validation 3/ parallel algorithms 4/ a few ideas The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  39. Code validation • edge detection improvement automatic edges manual edges The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  40. Code validation • edge detection improvement manual edges automatic edges The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  41. Code validation • polygon filtering : remove polygons without support. without filter with filter The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  42. Code validation • debugging bugs warnings CVD Rational Purify log files, class constructors, … The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  43. Contents 1/ Project overview 2/ code validation 3/ parallel algorithms 4/ a few ideas The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  44. Parallel algorithms not processed • why parallelize ? being processed processed IRIX machine grid cells The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  45. Parallel algorithms not processed • why parallelize ? being processed processed IRIX machine The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  46. Parallel algorithms not processed • why parallelize ? being processed processed IRIX machine The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  47. Parallel algorithms not processed • why parallelize ? being processed processed > 7 hours on IRIX single processor = The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  48. Parallel algorithms • first method Machine 2 Machine 1 Machine 3 Machine 4 Machine 5 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  49. Parallel algorithms • first method • CPU speed varies across machines • time to process a cell is not constant difficult optimization problem… Static allocation turpentine ray trace mosaic acetone hue panorama orange 2285 sec. 2678 2443 2131 2711 2342 1755 1939 Computing time : 45 min. Standard dev : 3.4 % The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu

  50. Parallel algorithms • second method Machine 2 Machine 1 Machine 3 Machine 4 Machine 5 The City Scanning Project – validation and parallel algorithms – July 2002 – koch@graphics.lcs.mit.edu
