Chapter 8: Rotational Motion

Chapter 8: Rotational Motion. Pure rotational motion means the circular movement of a ‘rigid body’ where all points have the same angular motion…this motion spins about an axis of rotation.

ronli
Download Presentation

Chapter 8: Rotational Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

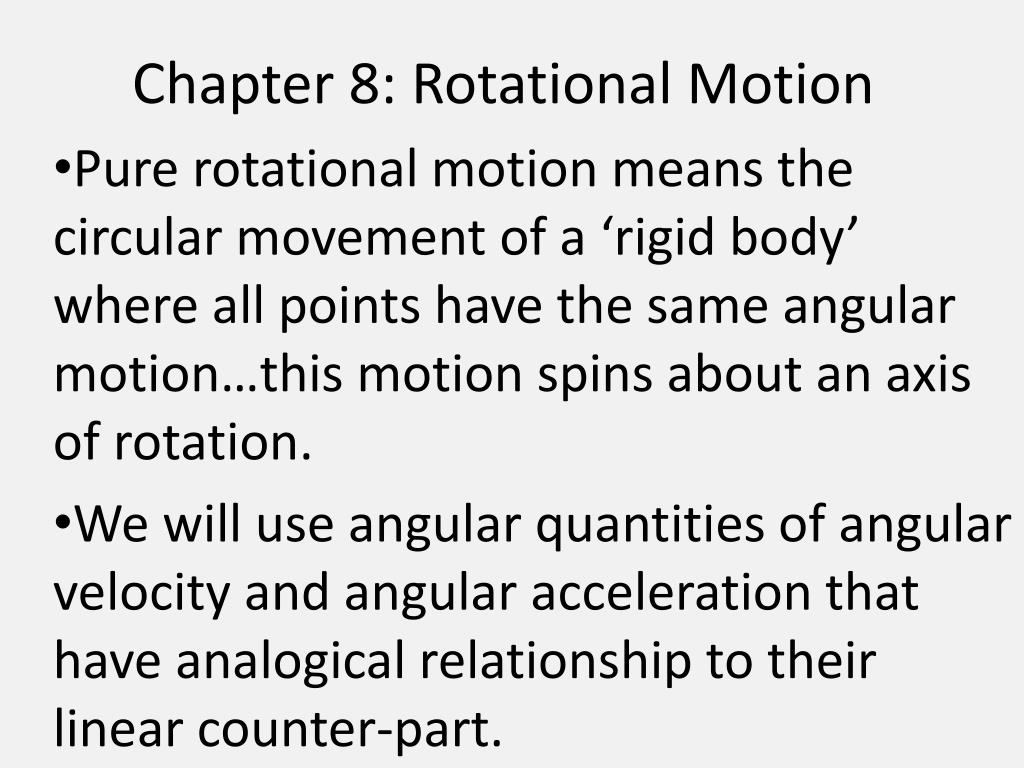

  1. Chapter 8: Rotational Motion Pure rotational motion means the circular movement of a ‘rigid body’ where all points have the same angular motion…this motion spins about an axis of rotation. We will use angular quantities of angular velocity and angular acceleration that have analogical relationship to their linear counter-part.

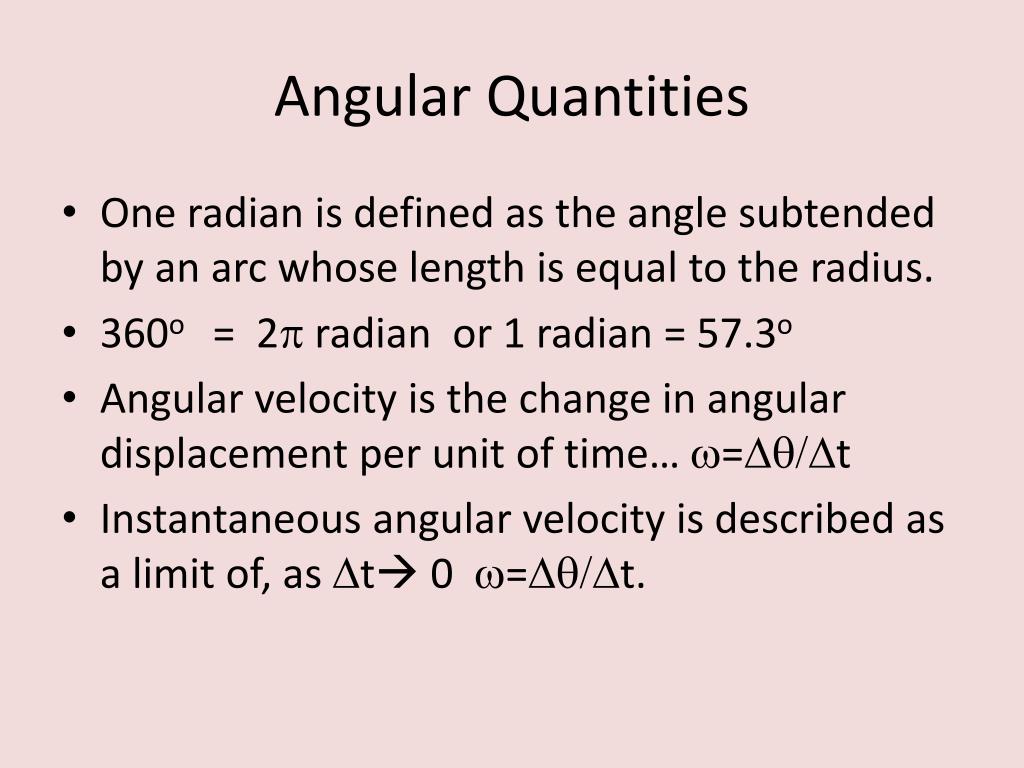

  2. Angular Quantities • One radian is defined as the angle subtended by an arc whose length is equal to the radius. • 360o = 2p radian or 1 radian = 57.3o • Angular velocity is the change in angular displacement per unit of time… w=Dq/Dt • Instantaneous angular velocity is described as a limit of, as Dt 0 w=Dq/Dt.

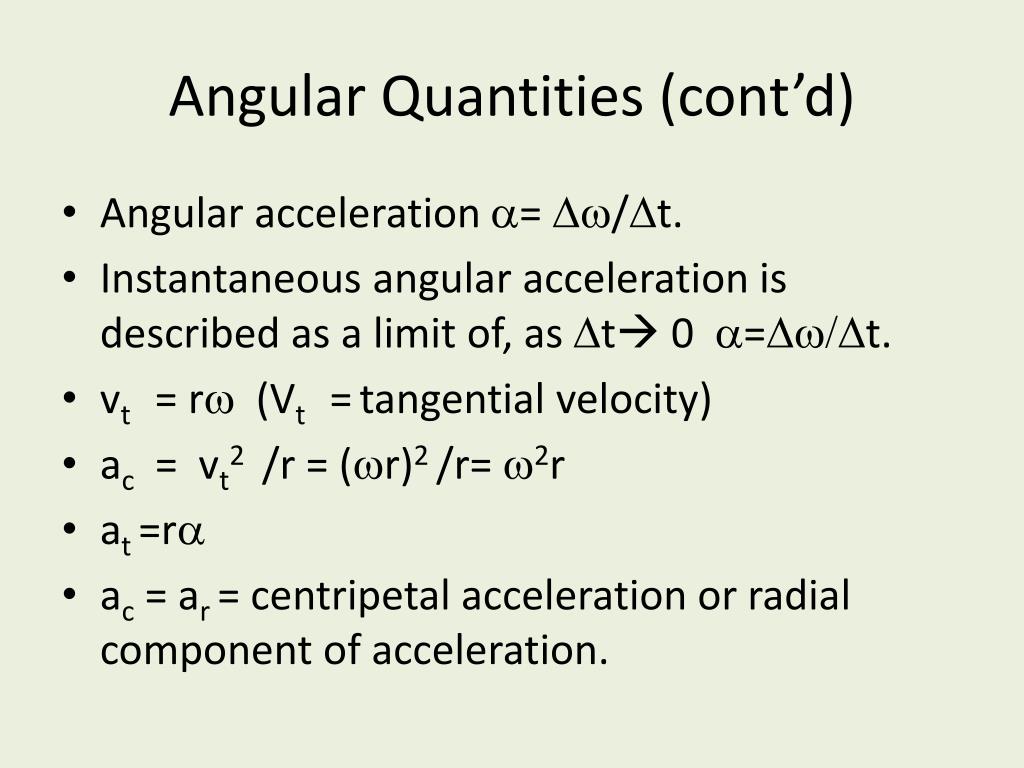

  3. Angular Quantities (cont’d) • Angular acceleration a= Dw/Dt. • Instantaneous angular acceleration is described as a limit of, as Dt 0 a=Dw/Dt. • vt = rw (Vt =tangential velocity) • ac = vt2 /r = (wr)2 /r= w2r • at =ra • ac = ar= centripetal acceleration or radial component of acceleration.

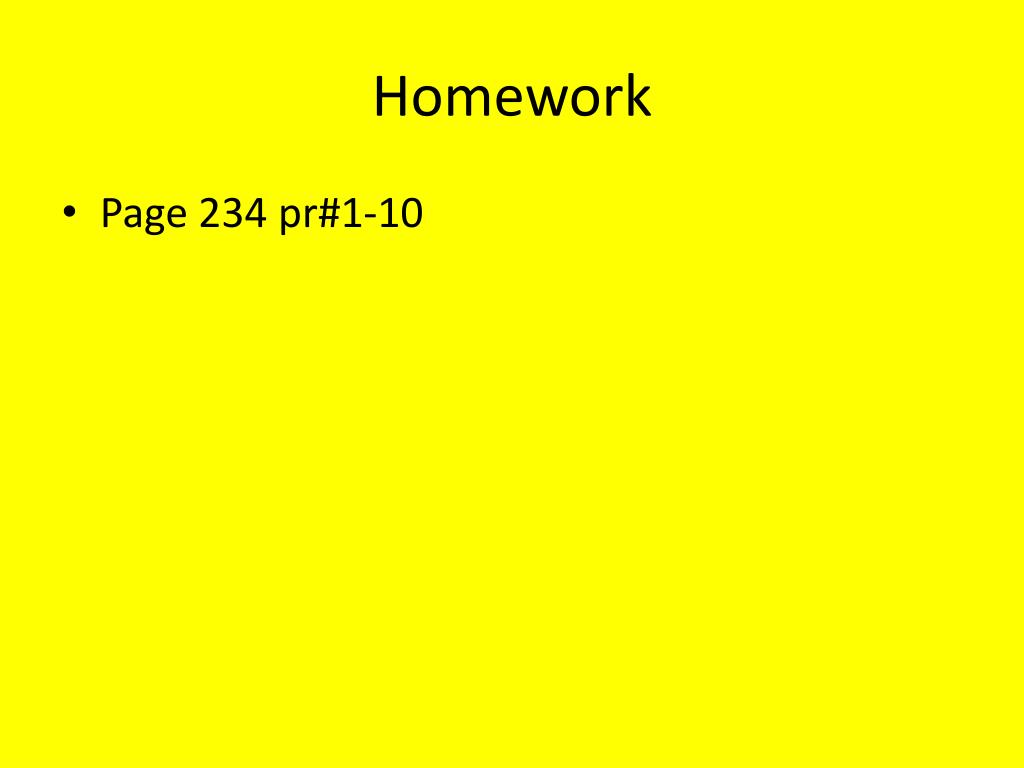

  4. Homework • Page 234 pr#1-10
