Structure and Function on the Skeletal System.

Structure and Function on the Skeletal System. Structure of the Skeleton. We know that the 206 bones of the skeleton are split into two different groups… The Axial Skeleton – 80 bones. The Appendicular skeleton – 126 bones. Consists of: Skull The vertebrae The sternum The ribs.

ronny
Download Presentation

Structure and Function on the Skeletal System.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Structure and Function on the Skeletal System.

  2. Structure of the Skeleton We know that the 206 bones of the skeleton are split into two different groups… The Axial Skeleton – 80 bones The Appendicular skeleton – 126 bones

  3. Consists of: Skull The vertebrae The sternum The ribs The central core of the body or its AXIS. It provides the core from which the limbs hang from. Axial Skeleton

  4. Appendicular Skeleton The parts/ limbs hanging off of the AXIAL skeleton. Shoulder Girdle (scapula/ clavicle) Pelvic Girdle Upper and Lower limbs

  5. List the below Bone names into the relevant column in the table below… Task… cranium, clavicle, ribs, sternum, humerus, radius, ulna, scapula, ilium, pubis, ischium, carpals, metacarpals, phalanges, femur, patella, tibia, fibula, tarsals, metatarsals, vertebral column – cervical, thoracic, and lumbar vertebrae, sacrum, coccyx, Fixed immovable joints, Allows movement. Answers!!

  6. Task: Match the EVERY DAY name for each bone, with its correct ANATOMICAL name.

  7. In pairs: 1 person labels the other as a ‘human skeleton’. Making labels for ALL of the various bones that we have learned thus far. Task!! You also need to be to know ‘both’ names for each bone. You will then mark each others work…

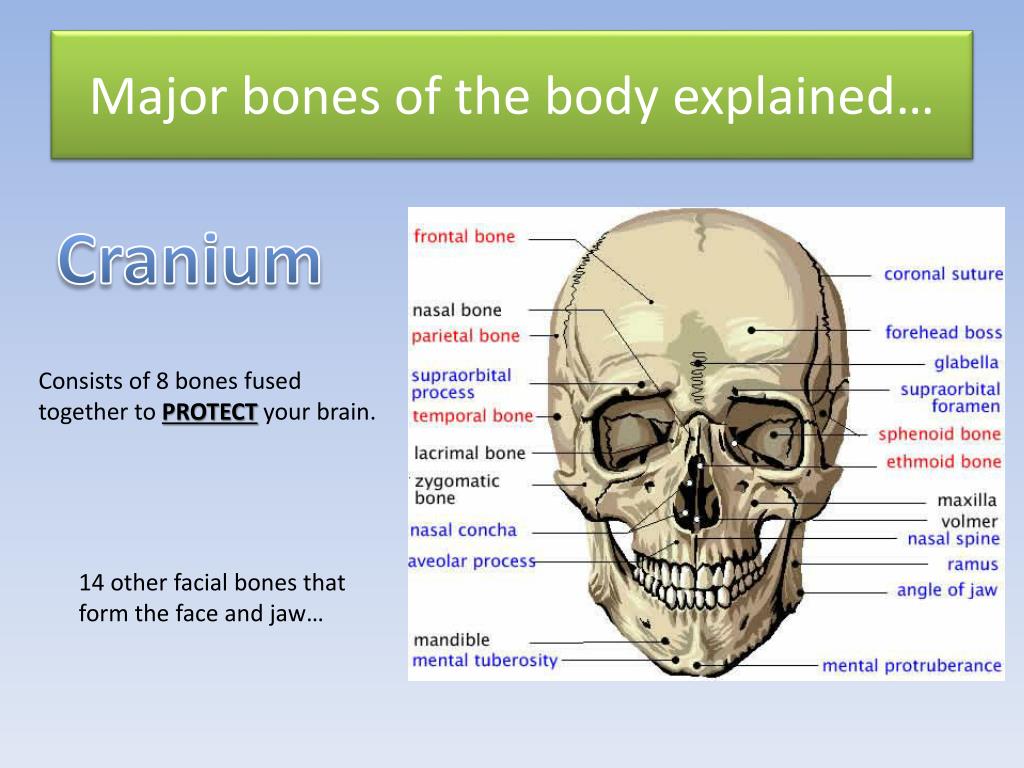

  8. Major bones of the body explained… Cranium Consists of 8 bones fused together to PROTECT your brain. 14 other facial bones that form the face and jaw…

  9. Sternum PROTECTS the heart and acts as an ATTACHMENT point for the ribs and clavicle Flat bone in the middle of your chest shaped like a dagger.

  10. Ribs Adults have 12 pairs of ribs, that run between sternum and thoracic vertebrae. True Ribs False Ribs Ribs are flat bones that form a PROTECTIVE cage around the HEART and LUNGS. Floating Ribs

  11. One end is connected to the sternum and the other to the scapula Clavicle Situated on the upper back of the body The role of the Clavicle is to keep the scapula the correct distance from the sternum Provides a point of attachment for many muscles of upper arm and back. Scapula

  12. ARM The Humerus, Radius and Ulna all form the ELBOW joint. In order for the hand to move, the Radius moves across the ulna… Ulna Radius Humerus

  13. Hand Phalanges- 14 bones Consists of 3 area, made up of different kind of bone. Meta-Carpels Carpels- 8 bones

  14. Pelvis Consists of 3 bones fused together- ILLIUM, PUBIS and ISCHIUM Function: to PROTECT the lower internal organs… such as the bladder, reproductive organs and when pregnant the developing foetus!

  15. LEG Consists of 4 bones: FEMUR, FIBULA, TIBIA and PATELLA Femur: Longest bone in the body and forms the knee joint with the TIBIA Patella: Bone that floats over the knee and lie within the patella tendon and SMOOTHES the movement of the tendons over the knee. Tibia: The weight bearing bone of the lower leg Fibula: The non-weight bearing bone of the lower leg and helps form the ankle.

  16. Foot Consists of 3 areas: Tarsals, Metatarsals and Phalanges Tarsals- 7 bones -5 Bones 3 Phalanges in each toe… apart from the big toe that has 2

  17. Vertebrae 7 Cervical vertebrae make up the neck and runs to the shoulders 12 Thoracic vertebrae make up the chest area 5 Lumbar vertebrae make up the lower back 5 vertebrae which are fixed together make the Sacrum. Coccyx is 4 bones fused together, remnants from when we had a tail!

  18. Task… To achieve P1 you need to describe: • The bones that make up the axial and appendicular skeleton and what their role is. • The sections that comprise the Vertebral Column (i.e. cervical) and how many bones are in each section. • Identify the location of the major bones (i.e. cranium, clavicle, ribs, sternum, Humerus, radius, ulna, scapula, ilium, pubis, ischium, carpals, metacarpals, phalanges, femur, patella, tibia, fibula, tarsals, metatarsals, vertebral column - cervical, thoracic, and lumbar vertebrae, sacrum, coccyx) • The different types of bone (i.e. long, short, flat, irregular, sesamoid) and identify the major bones within the body. • The function of the skeletal system (i.e. support; protection; attachment for skeletal muscle; source of blood cell production; store of minerals)
