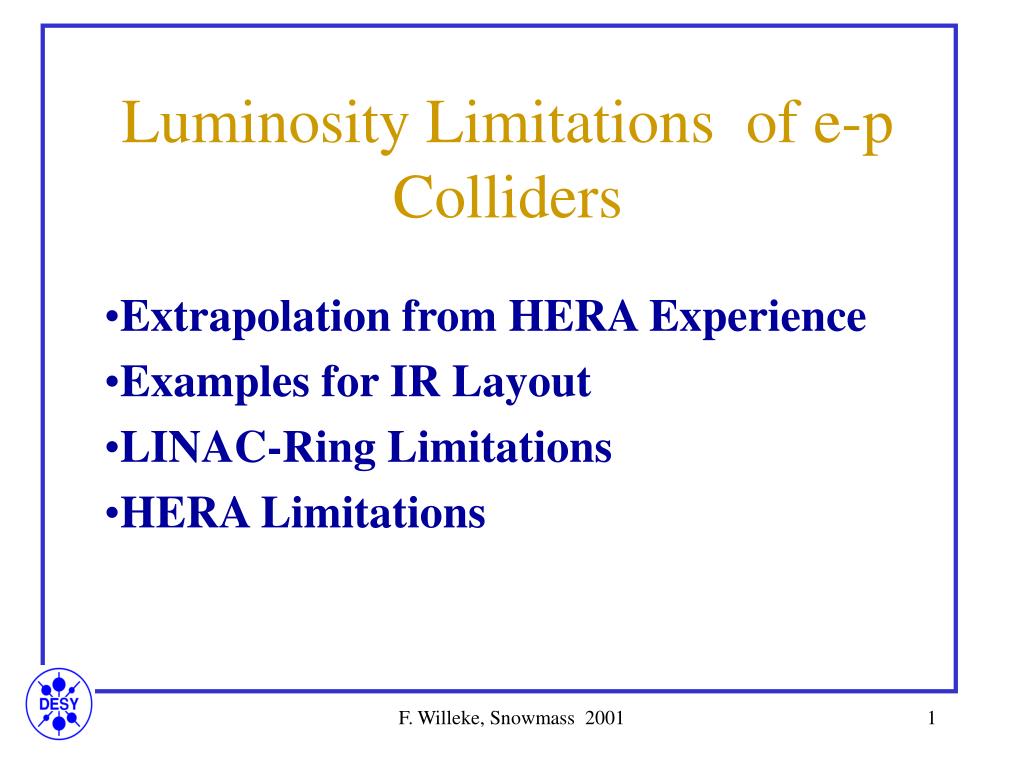

Luminosity Limitations of e-p Colliders. Extrapolation from HERA Experience Examples for IR Layout LINAC-Ring Limitations HERA Limitations. HERA Luminosity. 2001 PARAMETERS N p number of protons per bunch = 1 x 10 11 N e number of leptons per bunch = 3 x 10 10

rosie
Download Presentation

Luminosity Limitations of e-p Colliders

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Luminosity Limitations of e-p Colliders • Extrapolation from HERA Experience • Examples for IR Layout • LINAC-Ring Limitations • HERA Limitations F. Willeke, Snowmass 2001

  2. HERA Luminosity • 2001 PARAMETERS • Np number of protons per bunch = 1 x 1011 • Ne number of leptons per bunch = 3 x 1010 • nb number of bunches = 174 • f0 revolution frequency = 47.3kHz • sx,y,p,e hor./vert. beam dimensions of leptons & protons = 114mm/ 30mm • half crossing angle = 0 L luminosity = 7 x 1031cm-2sec-1 F. Willeke, Snowmass 2001

  3. HERA Luminosity Constraints & Limitations L = 7 x 1031cm-2sec-1 • Constraints: q< 1mr (beam-beam tracking Sen‘95) =>q set 0(head on coll.) • sx,yp=~ sx,ye (Brinkmann, Willeke PAC’93) • Dne not (yet) limiting Limitations: Np / eN proton beam brightness = 1 x 1011/ 4mm (injector, ibs, bb-e) Ie total lepton beam current = 60mA (rf power, bb-p) gp proton relativistic factor = 981 (max field, circumference) bx,y p hor.& vert. Betafunctions at the IP = 2.45m/0.18m (ir layout, sp) To what extend are these fundamental? F. Willeke, Snowmass 2001

  4. Proton Beam Brightness Limitations Present design Np / eN =1 x 1011 / 4 x 10-6 m Laslett Tuneshift in DESY III Booster Synchrotron 50MeV (kin.energy) injection • Dnsc ~ R Np / ( eN b2gB ) = 0.6@ 1.3 1011&eN=2mm Can be overcome by smaller ring are higher injection energy in the booster No principal limitation `just´ costs Example: DESYIII Inj. Energy from 50MeV120MeV @ 10M$ F. Willeke, Snowmass 2001

  5. Proton Beam Brightness Limitations:IBS Scaling from HERA F. Willeke, Snowmass 2001

  6. F. Willeke, Snowmass 2001

  7. Scaling IBS ts~eN1.42~es1.52~URF1/4 • Increasing Np/eN increases growth time: •  larger es Larger ss  larger b* (hourglass effect) • Luminosity almost independent of Np/eN Possible Cure: More RF Voltage tibs~URF0.25however se ~ URF0.25 L / L0 = (se / se )2= (URF/ URF0)1/2 (expensive) HERA Experience: Running with 2x nominal se still ok but effect already noticeable (increased backgrounds) F. Willeke, Snowmass 2001

  8. Cooling Bunched Beam Stochastic Cooling at High Energy  Not very promising perspective Bunched e-Beam Cooling: -May be cost effective way to provide bright beams -Doesn‘t look promising for high energies -May work for ions  See K.Balewski‘s presentation F. Willeke, Snowmass 2001

  9. Lepton Beam-Beam Effect Dney=0.045 This is already a rather large value which potentially limits the proton beam brigthness. What are the margins? beam-beam experiments F. Willeke, Snowmass 2001

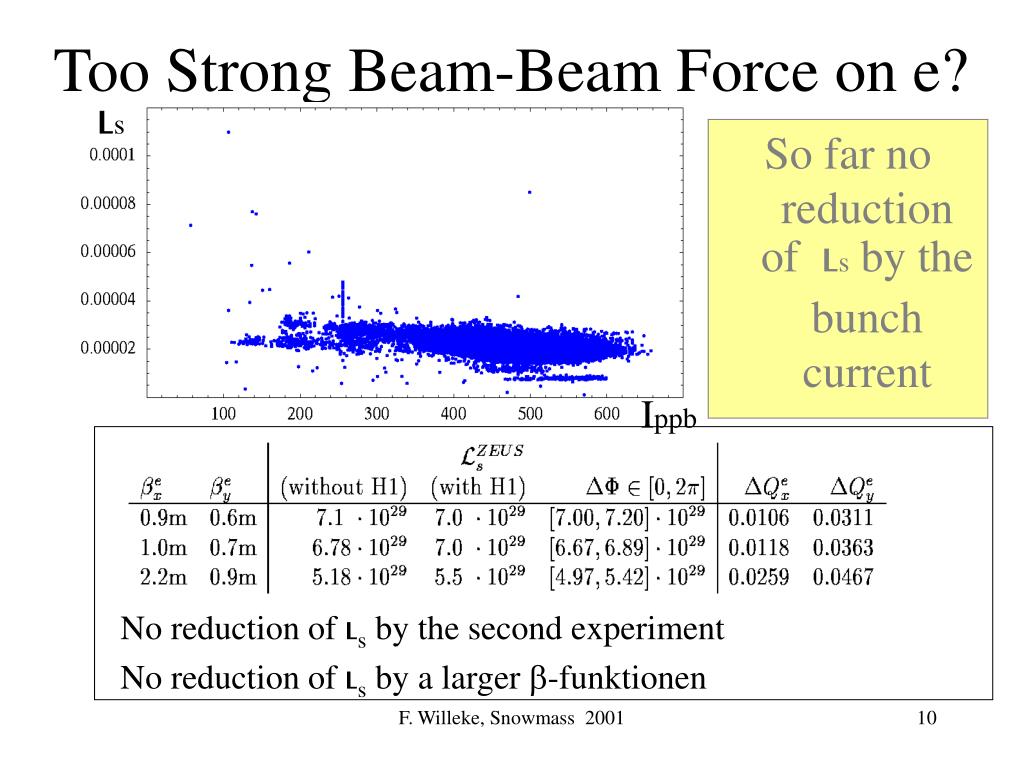

  10. Too Strong Beam-Beam Force on e? Ls So far no reduction of Ls by the bunch current Ippb No reduction of Ls by the second experiment No reduction of Ls by a larger b-funktionen F. Willeke, Snowmass 2001

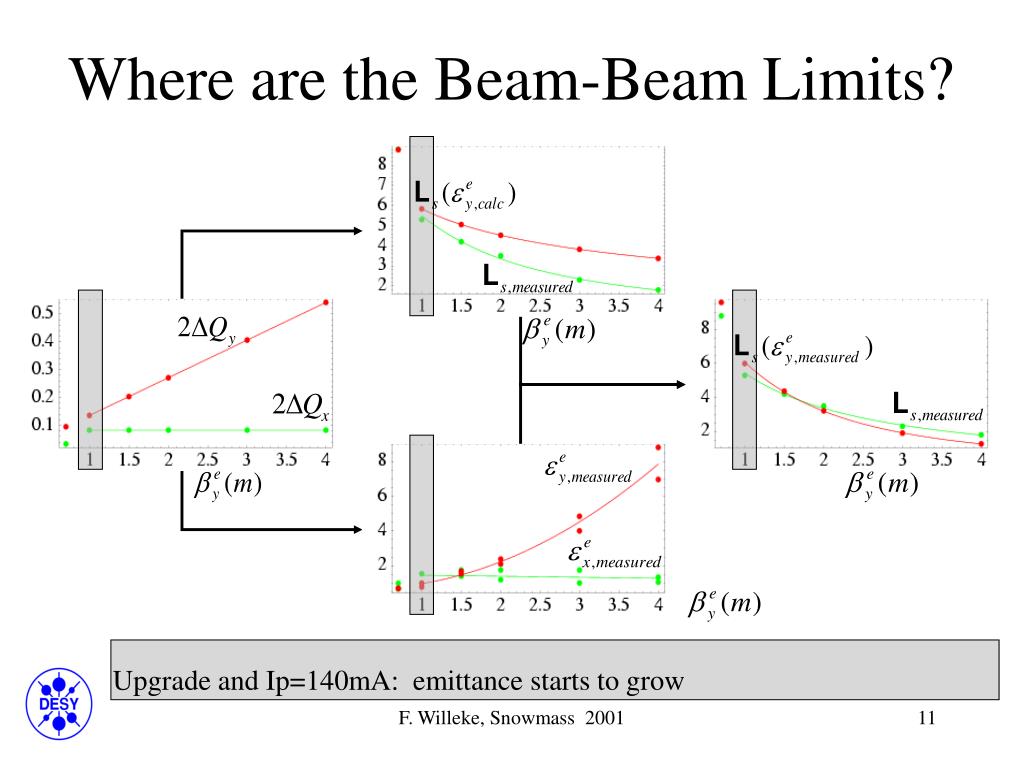

  11. Where are the Beam-Beam Limits? Upgrade and Ip=140mA: emittance starts to grow F. Willeke, Snowmass 2001

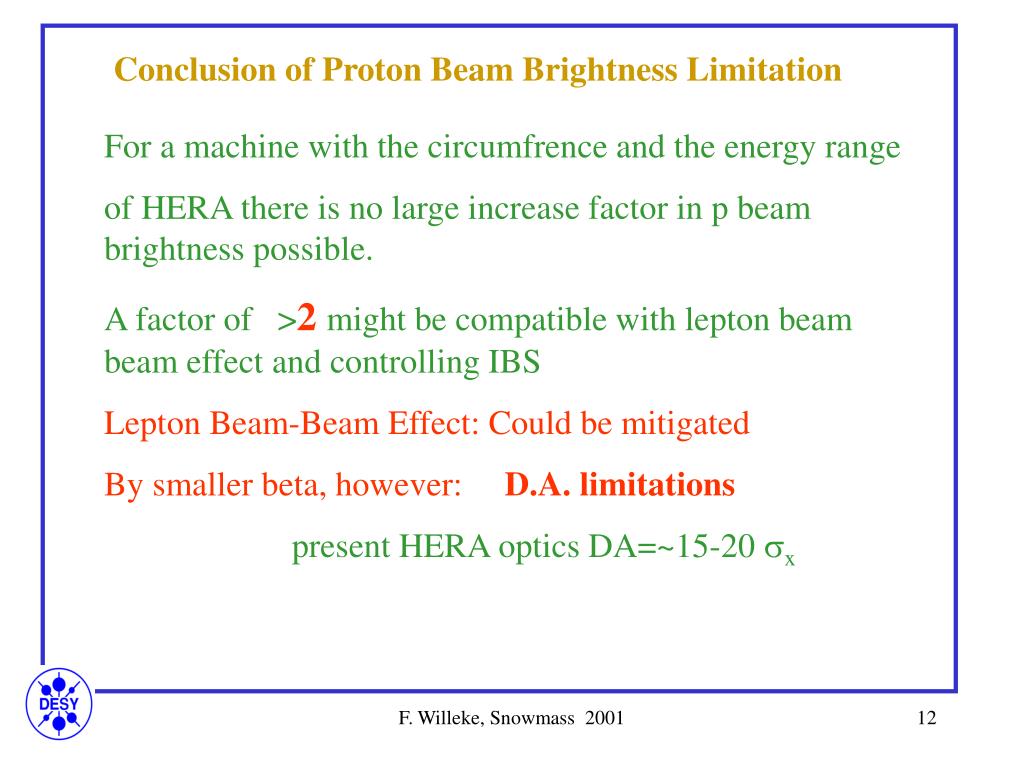

  12. Conclusion of Proton Beam Brightness Limitation For a machine with the circumfrence and the energy range of HERA there is no large increase factor in p beam brightness possible. A factor of >2 might be compatible with lepton beam beam effect and controlling IBS Lepton Beam-Beam Effect: Could be mitigated By smaller beta, however: D.A. limitations present HERA optics DA=~15-20 sx F. Willeke, Snowmass 2001

  13. Electron Beam Current Limitations RF RF installation costs, operation costs Not fundamental Now: RF power 12 MW, RS1.5GW  60mA @ 27.5GeV Cost example: prov RF to increase I by factor 1.6  5M$ Vacuum costs, not fundamental SR losses 5.2MW @ 1000W/m (~B-Factories ) Presumably no big current increase factor reasonable! (factor 2-3?) costs! Feedback System: designed for 60mA, upgrade no technical problem Proton Beam Beam Effect(stability, background, lifetime concerns) tb=96ns, unproblematic For IR design & paras. Resonances f: fill factor Dnpx=1.4 x 10-3 limit? F. Willeke, Snowmass 2001

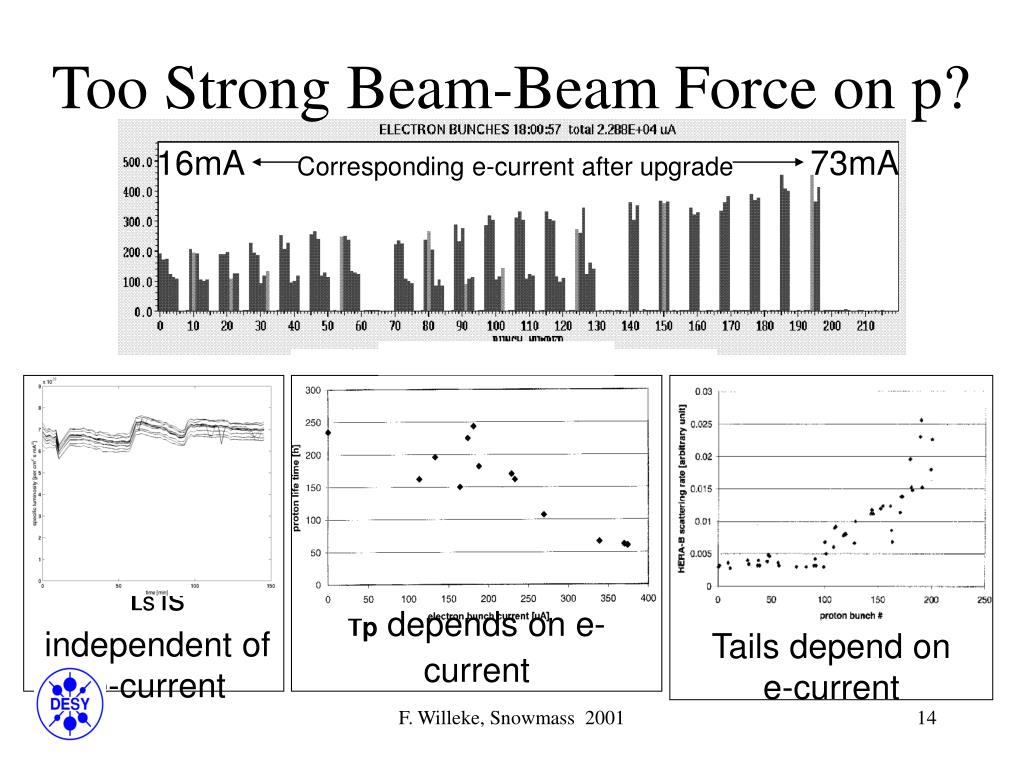

  14. Too Strong Beam-Beam Force on p? 16mA 73mA Corresponding e-current after upgrade Lsis independent of e-current Tp depends on e-current Tails depend on e-current F. Willeke, Snowmass 2001

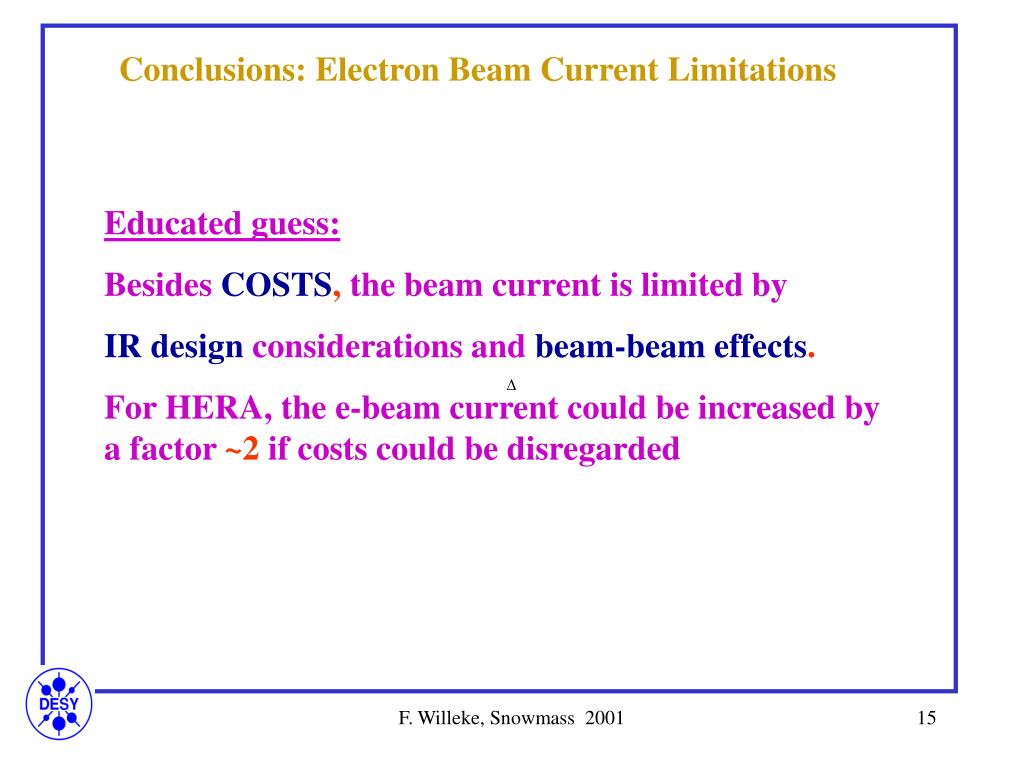

  15. Conclusions: Electron Beam Current Limitations Educated guess: BesidesCOSTS, the beam current is limited by IR designconsiderations andbeam-beam effects. For HERA, the e-beam current could be increased bya factor ~2 if costs could be disregarded F. Willeke, Snowmass 2001

  16. Limitations to Focussing • Chromatic effects Dynamic Aperture Limitations • Hourglass Effect • Interaction Region Layout and IR Magnet Design: • Need e & p lenses close to IP • Crossing angle • separate quickly beam dynamics, geometry • Magnetic Separation • Concern about SR F. Willeke, Snowmass 2001

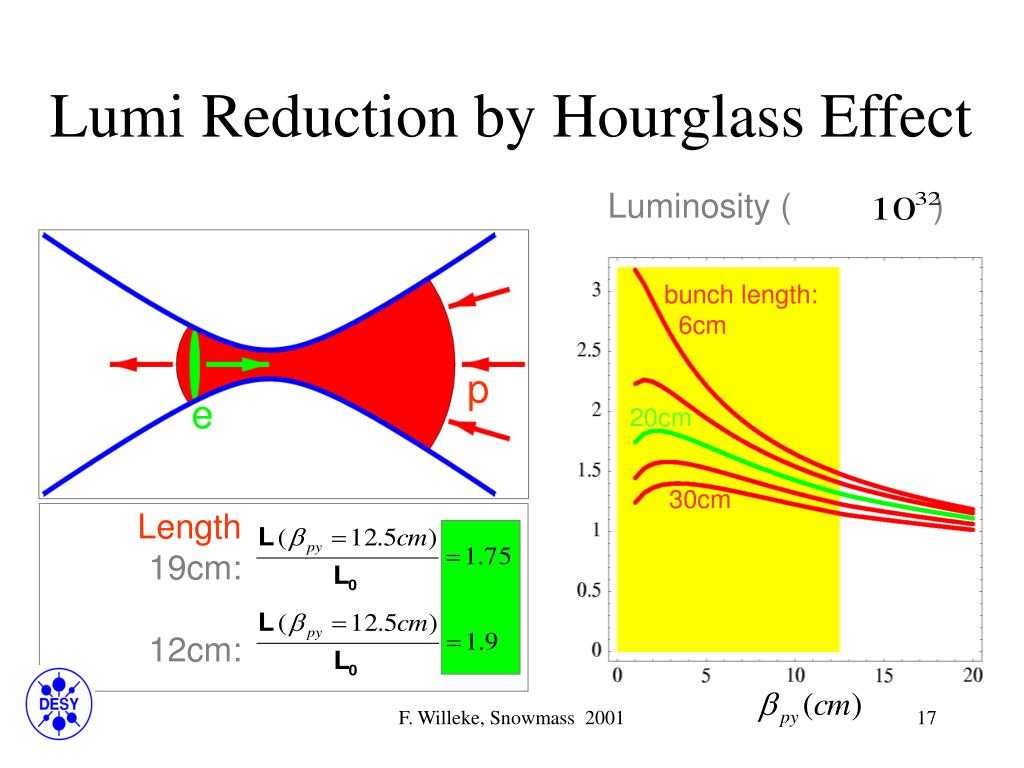

  17. Luminosity ( ) Lumi Reduction by Hourglass Effect bunch length: 6cm p e 20cm 30cm Length19cm: 12cm: F. Willeke, Snowmass 2001

  18. New HERA Inter Action Region (==>see M. Seidel)strong magnetic combined function separation e-focusing DF p-focusing D-F-D-F Half Quadrupoles Superconducting Separator/Quads p-focusing sc sc p-beam e-beam F. Willeke, Snowmass 2001

  19. Superconducting Magnets in the Detectors F. Willeke, Snowmass 2001

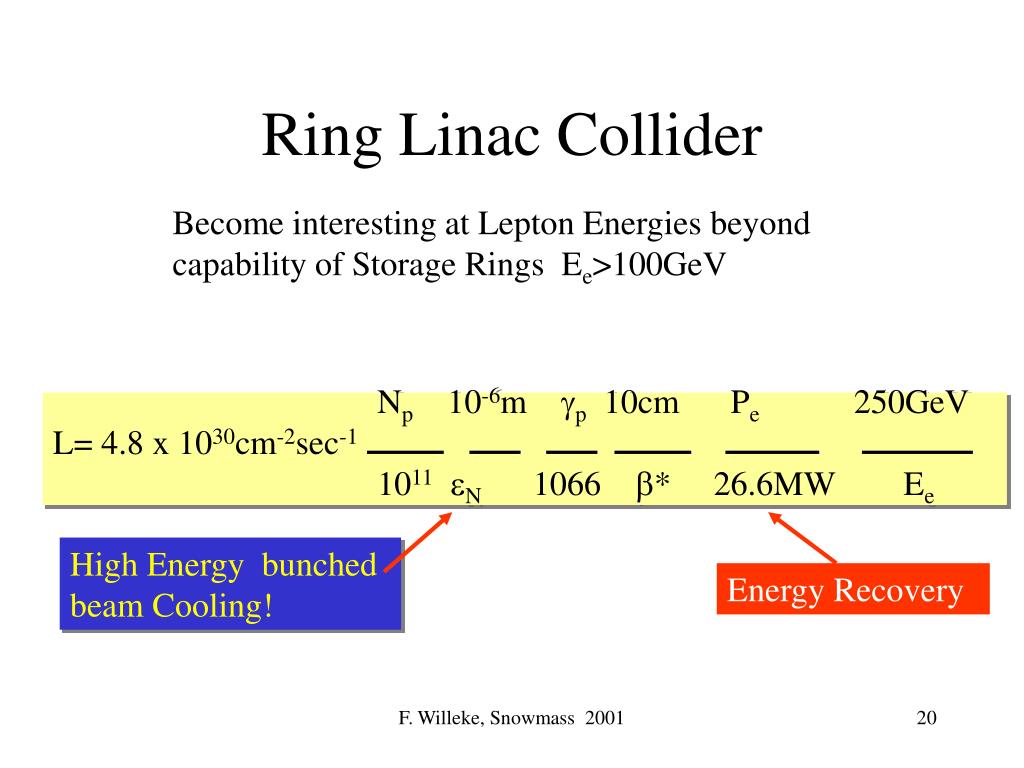

  20. Ring Linac Collider Become interesting at Lepton Energies beyond capability of Storage Rings Ee>100GeV Np 10-6m gp 10cm Pe 250GeV L= 4.8 x 1030cm-2sec-1 1011eN 1066 b* 26.6MW Ee High Energy bunched beam Cooling! Energy Recovery F. Willeke, Snowmass 2001

  21. THERA LINAC-Ring Lattice (proposed)small crossing angleprotons focussed by 2 electron low beta triplets, b*=10cm bmax 8kmprotons deflected from e-orbit by a long off-center quadrupoleelectron orbit straightenergy range Ep/Ee: 4/1 - 1/1 Proton Optics 1TeV Electron Optics 250GeV-800GeV F. Willeke, Snowmass 2001

  22. Conclusions • Ring-Ring HERA L=~1032cm-2sec-1 New Collider in the range of HERA Energies: L=1033cm-2sec-1 is an ambitious goal and may be considered as a target for new designs • Ring-LINAC L>1031cm-2sec-1 :only feasible witg bunched beam cooling F. Willeke, Snowmass 2001
