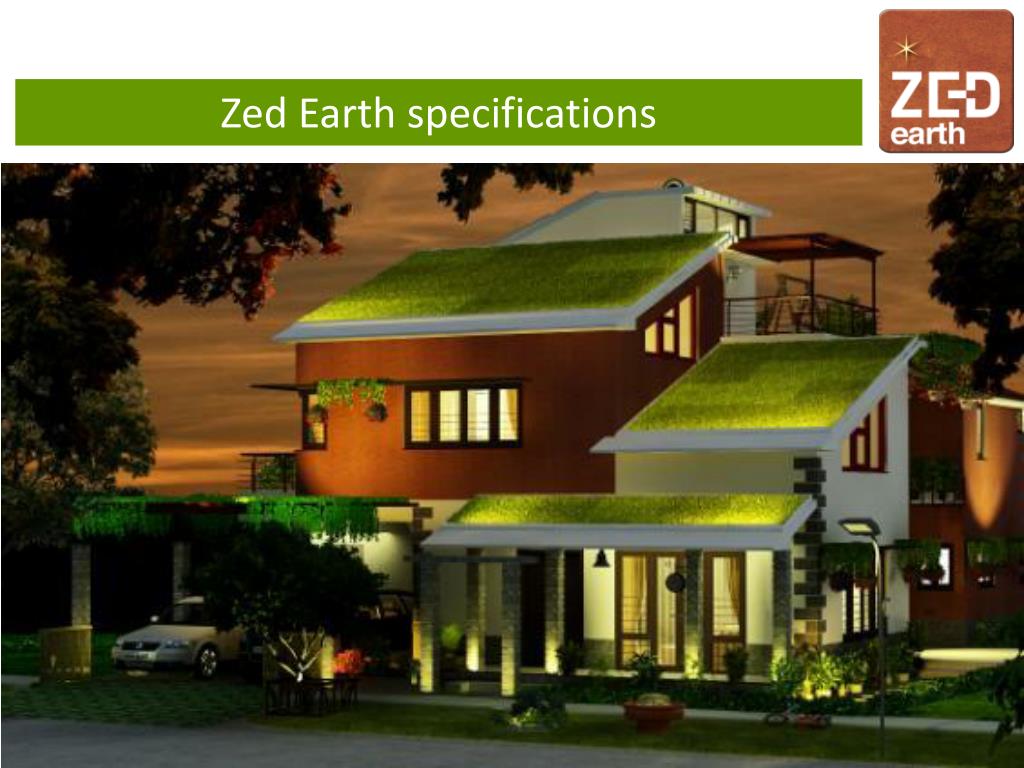

  1. Zed Earth specifications

  2. Zed Earth specifications WALLS Homes are built with walls made of specially engineered hollow masonry blocks and designer blocks. They are energy-efficient, and are part of microclimate architecture. These blocks ensure that heat gain inside the home is reduced by 3-4 deg C. We have used u-block lintel instead of concrete lintel with shuttering. Mortar usage is less in hollow blocks and hence, they are 50% lighter than normal solid blocks. As A result, the pace of construction is much faster. STONE COLUMNS Stone columns are placed at the entrance, verandah, and car parking. These are single-line dressed natural stones with less embodied energy.

  3. Zed Earth specifications EXTERNAL FINISHES ROOF Green roof for the sloping rooftop to keep the slab at shaded temperature. Water-efficient, horizontally spread plants are grown with drip irrigation. EXTERNAL WALLS Cement plaster for the walls. Earthy-texture and lighter ivory paint, which are water-proof and water-repellent, lend a beautiful look to the walls. SPLIT BLOCKS Split blocks are used in the corners and first fourcourses of the villa.

  4. Zed Earth specifications INTERNAL FINISHES PLASTER Gypsum plaster is provided for all the internal walls which reduces carbonemission. PAINTS Spot- or comb-textured paint finishes are used for one wall in every room. The remaining walls come with ivory smooth finish which is non-toxic, low-VOC paint. INTERNAL CLADDING Designer stone cladding for one wall is another notable internal feature.

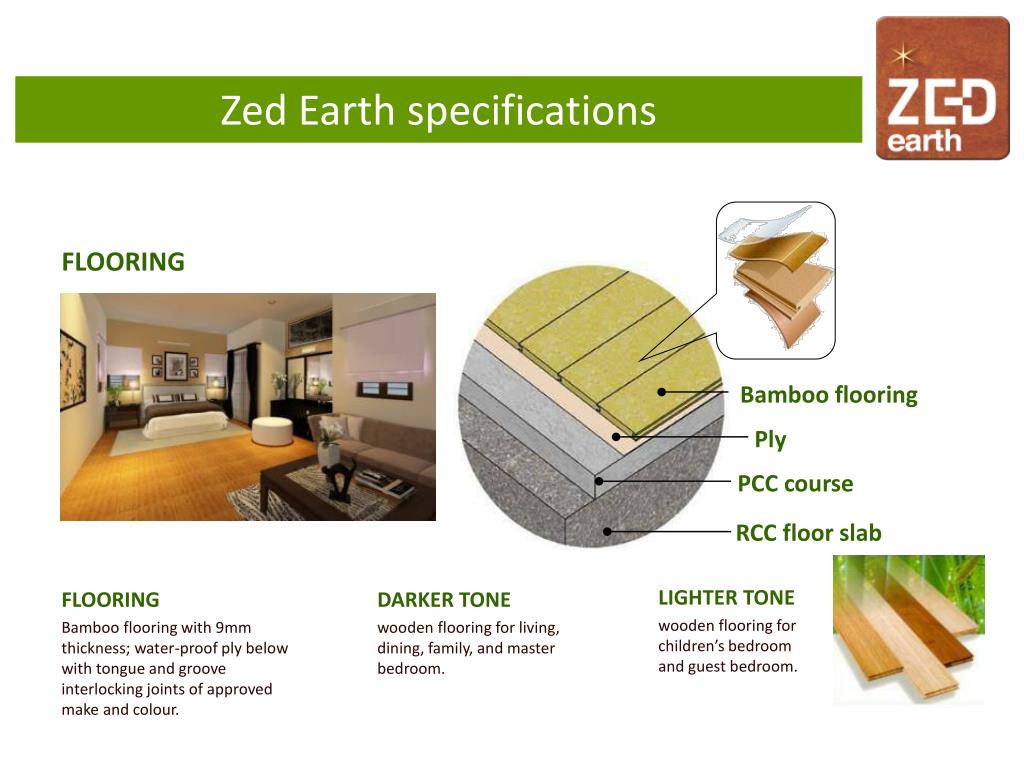

  5. Zed Earth specifications FLOORING Bamboo flooring Ply PCC course RCC floor slab LIGHTER TONE wooden flooring for children’s bedroom and guest bedroom. FLOORING Bamboo flooring with 9mm thickness; water-proof ply below with tongue and groove interlocking joints of approved make and colour. DARKER TONE wooden flooring for living, dining, family, and master bedroom.

  6. Zed Earth specifications KITCHEN CLADDING Specialized texture cladding for walls for stain-free surfaces COUNTER Black granite is used as countertop. FLOORING: Sira stone with orange granite as border is provided for flooring.

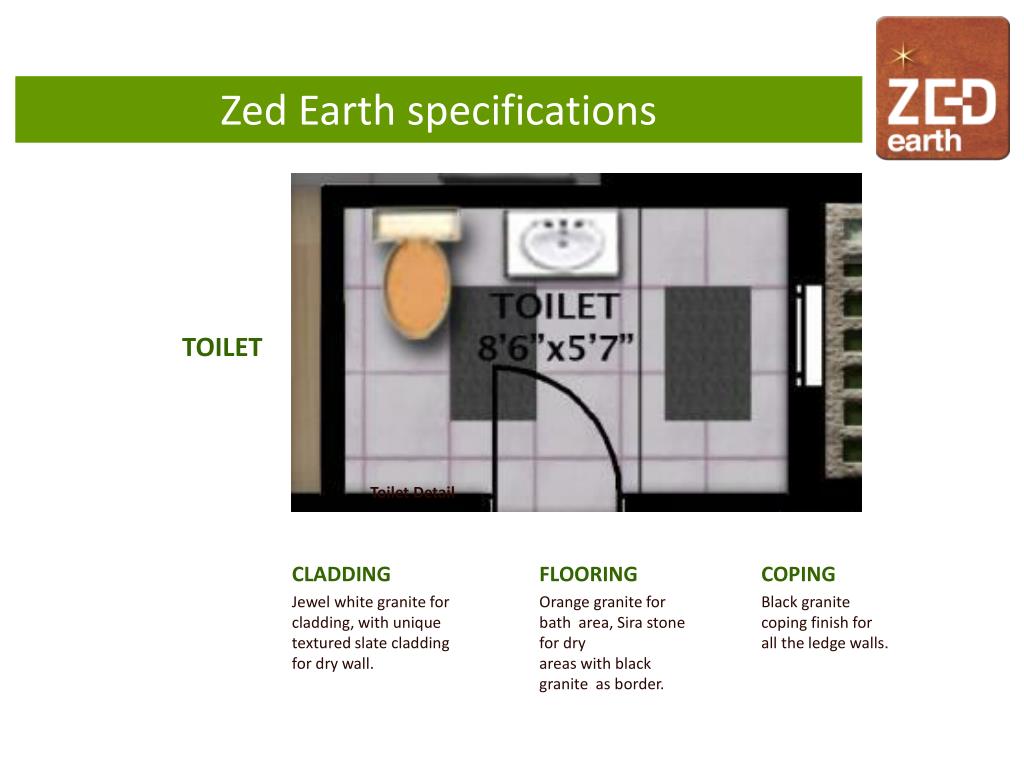

  7. Zed Earth specifications TOILET Toilet Detail CLADDING Jewel white granite for cladding, with unique textured slate cladding for dry wall. FLOORING Orange granite for bath area, Sira stone for dry areas with black granite as border. COPING Black granite coping finish for all the ledge walls.

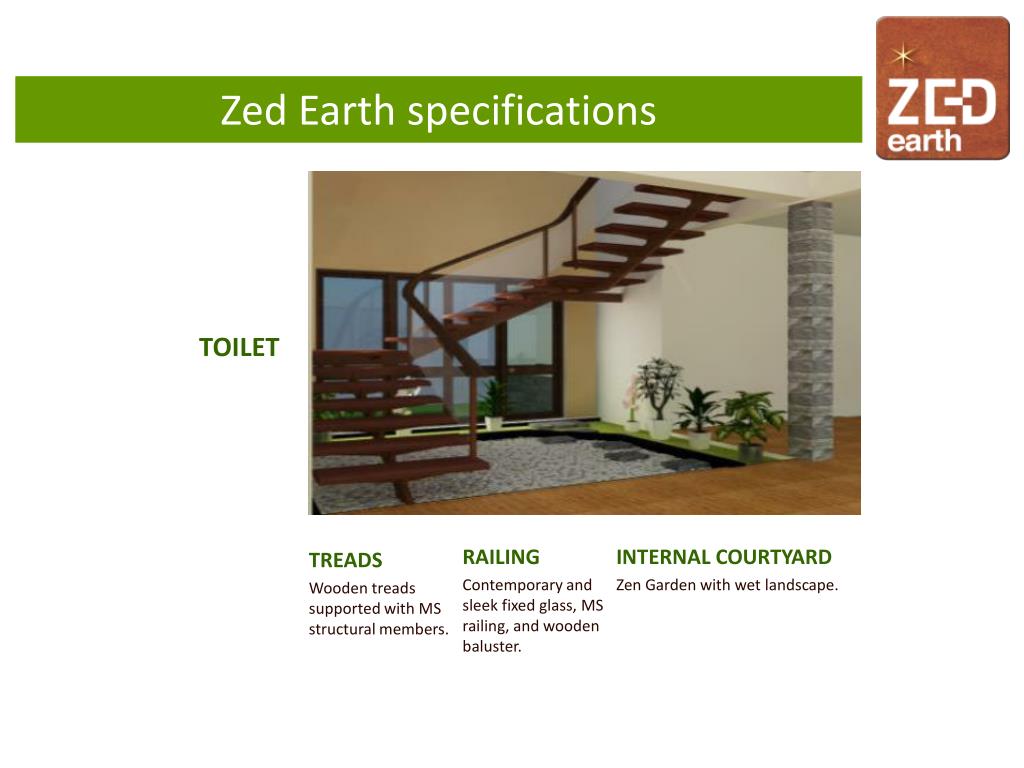

  8. Zed Earth specifications TOILET RAILING Contemporary and sleek fixed glass, MS railing, and wooden baluster. INTERNAL COURTYARD Zen Garden with wet landscape. TREADS Wooden treads supported with MS structural members.

  9. Zed Earth specifications DOORS • MAIN DOOR:teakwood frame & door • OTHER DOORS: engineered / sustainable wood WINDOWS Windows: engineered / sustainable wood.

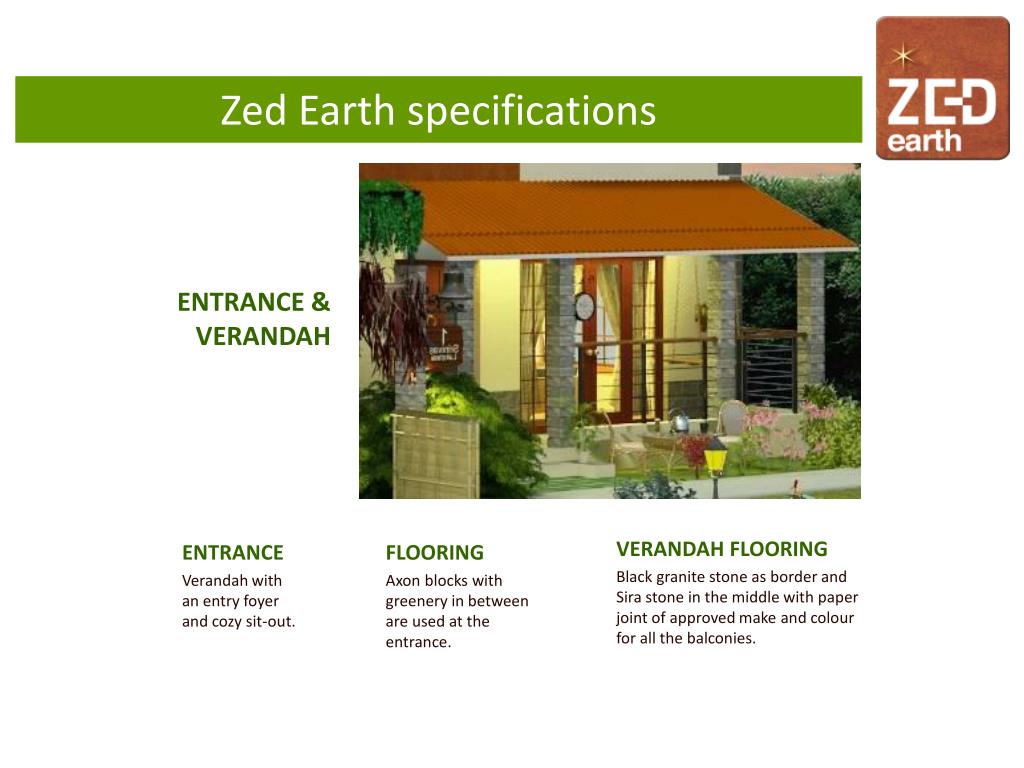

  10. Zed Earth specifications ENTRANCE & VERANDAH VERANDAH FLOORING Black granite stone as border and Sira stone in the middle with paper joint of approved make and colour for all the balconies. ENTRANCE Verandah withan entry foyer and cozy sit-out. FLOORING Axon blocks with greenery in between are used at the entrance.

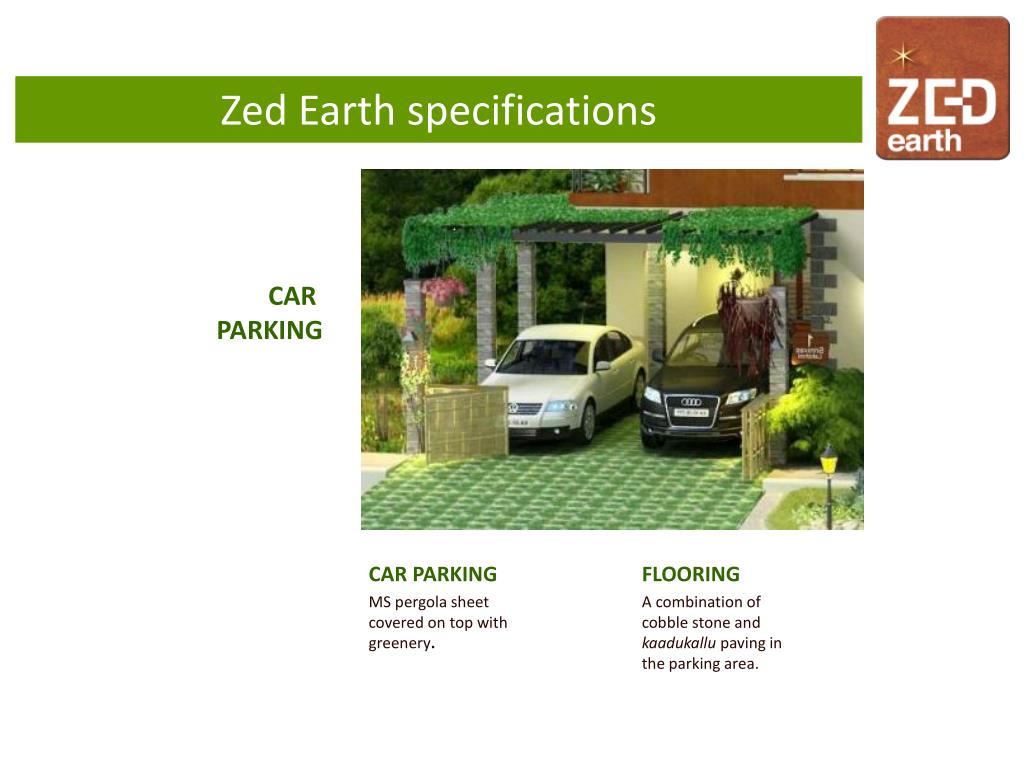

  11. Zed Earth specifications CAR PARKING CAR PARKING MS pergola sheet covered on top with greenery. FLOORING A combination of cobble stone and kaadukallu paving in the parking area.

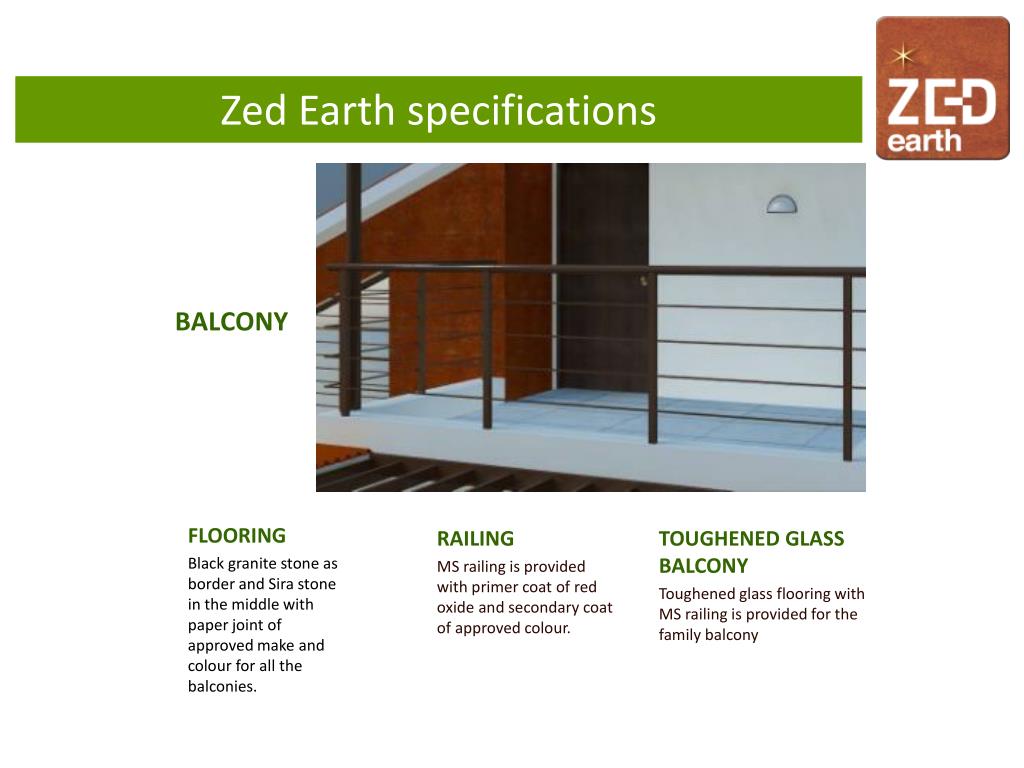

  12. Zed Earth specifications BALCONY TOUGHENED GLASS BALCONY Toughened glass flooring with MS railing is provided for the family balcony FLOORING Black granite stone as border and Sira stone in the middle with paper joint of approved make and colour for all the balconies. RAILING MS railing is provided with primer coat of red oxide and secondary coat of approved colour.

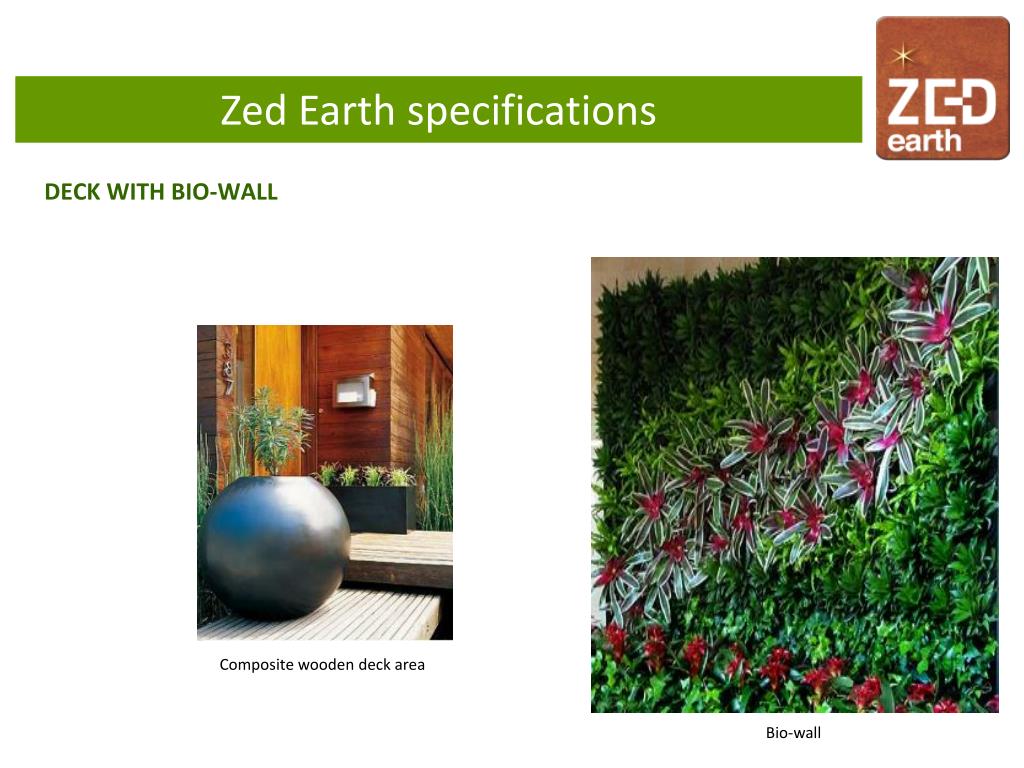

  13. Zed Earth specifications DECK WITH BIO-WALL Composite wooden deck area Bio-wall

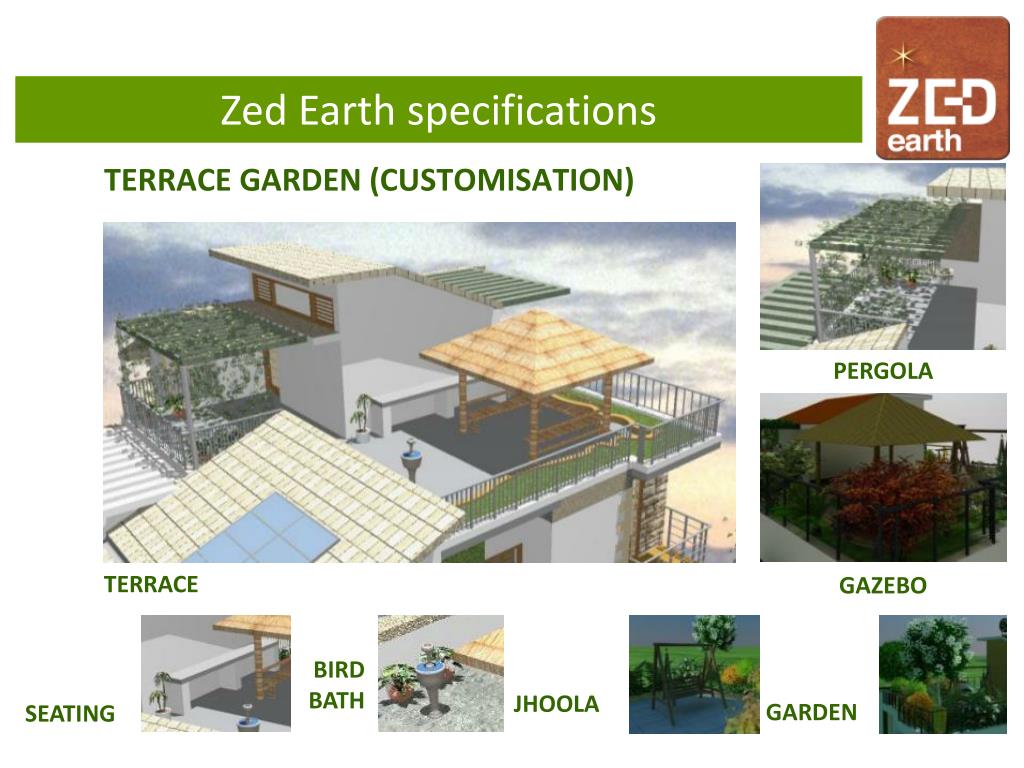

  14. Zed Earth specifications TERRACE GARDEN (CUSTOMISATION) PERGOLA TERRACE GAZEBO BIRD BATH JHOOLA GARDEN SEATING

  15. Zed Earth specifications BIO-WALL BIO-WALL These breathable bio-wallson longer sides of the villaoffer privacy, as well as cool the air inside the villa. Ducts are covered with moss poles-based green vertical curtains.

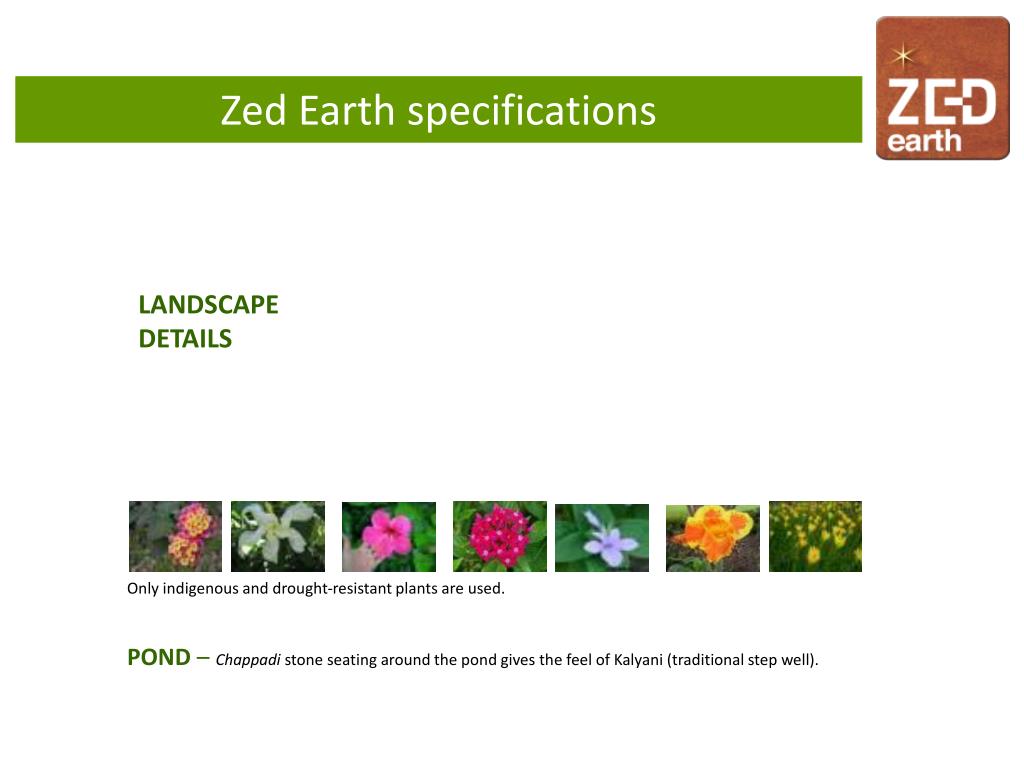

  16. Zed Earth specifications LANDSCAPE DETAILS Only indigenous and drought-resistant plants are used. POND – Chappadi stone seating around the pond gives the feel of Kalyani (traditional step well).

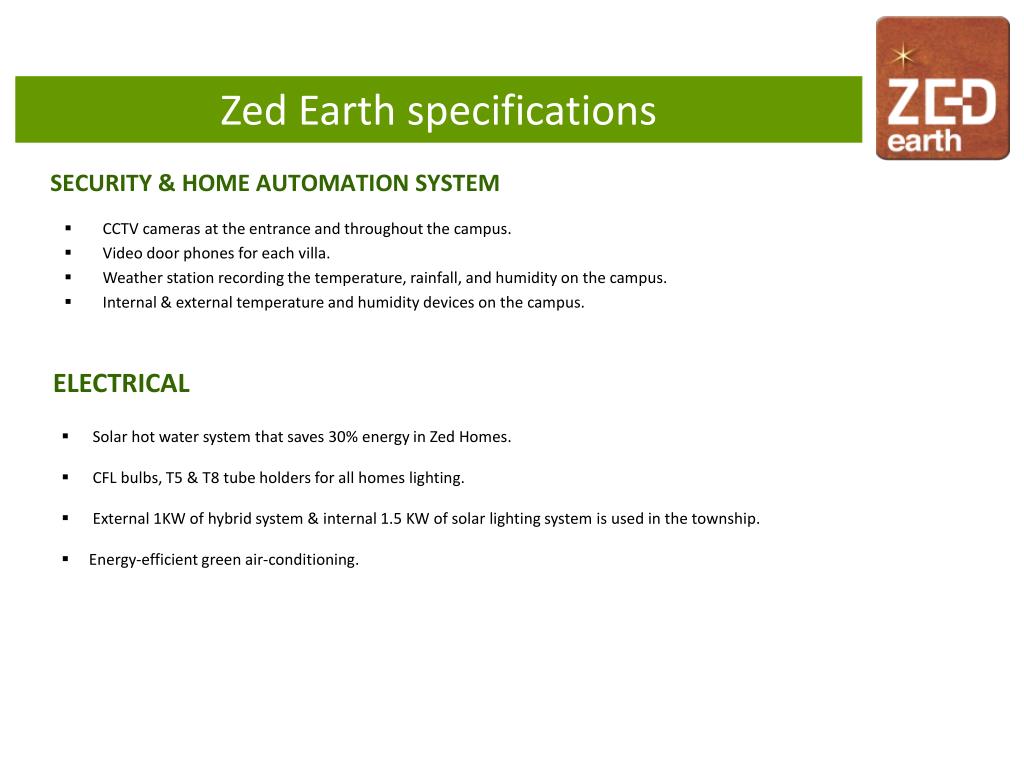

  17. Zed Earth specifications SECURITY & HOME AUTOMATION SYSTEM • CCTV cameras at the entrance and throughout the campus. • Video door phones for each villa. • Weather station recording the temperature, rainfall, and humidity on the campus. • Internal & external temperature and humidity devices on the campus. ELECTRICAL • Solar hot water system that saves 30% energy in Zed Homes. • CFL bulbs, T5 & T8 tube holders for all homes lighting. • External 1KW of hybrid system & internal 1.5 KW of solar lighting system is used in the township. • Energy-efficient green air-conditioning.

  18. Zed Earth specifications PLUMBING • Water-efficient fixtures save about 35,000 liters of water per year. • Wash basin and WC come with branded fittings • Treated water is used for landscaping. • Hydro pneumatic system for the entire township. • Rooftop water will be channelized into percolation pits to recharge the groundwater table.
