  1. OmniSwitch 10KSales Training

  2. Alcatel-Lucent Enterprise Network Infrastructure Contact Center & Customer Service applications Communication& Collaborationapplications User Centric Experience SIP Conversation Engine Application Fluent Network On premises in Cloud  choice  Provides Application Fluent Networks that uniquely enable a high quality user experience with reduced operations complexity

  3. Network Infrastructure is Under an Unprecedented Stress Virtualization Causes Disruption Explosion of Applications & Devices Bandwidth Sensitive Applications

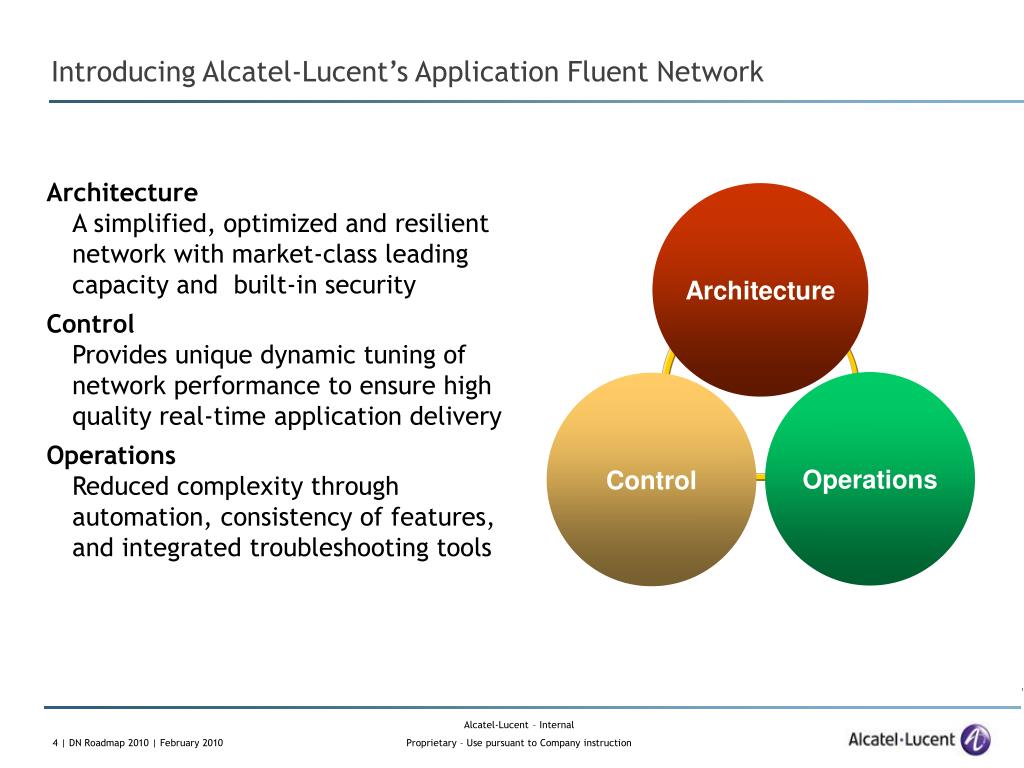

  4. Introducing Alcatel-Lucent’s Application Fluent Network Architecture • A simplified, optimized and resilient network with market-class leading capacity and built-in security Control • Provides unique dynamic tuning of network performance to ensure high quality real-time application delivery Operations • Reduced complexity through automation, consistency of features, and integrated troubleshooting tools Architecture Operations Control Convergence Without Complexity

  5. OmniSwitch 10K — initial step in a new Alcatel-Lucent architecture designed to provide OmniSwitch 10K is a high-capacity, high-density modular Ethernet switch Alcatel-Lucent OmniSwitch 10K Modular LAN Chassis Introduction Control Architecture Operations

  6. OmniSwitch 10K — New addition to the data and security portfolio Network mgmt. VitalSuite OmniVista 2500 OmniVista 3600 5620 SAM 8950 AAA NEW LAN WLAN WAN 7750 & 7710 SR OmniAccess WLAN 6000 7450 ESS 7705 SAR OmniSwitch 10K OmniSwitch 9000 Network infrastructure Access OmniAccess WLAN 4000 OmniSwitch 6850 & 6855 OmniAccess 5700 & 5510 USG OmniSwitch 6400 & 6250 OmniAccess WLAN, AP & RAP OmniAccess 5300 BG Embedded security Host integrity check Threat management Security Access Guardian Quarantine Manager CyberGatekeeper FortiGate

  7. OmniSwitch 10K Modular LAN Chassis Positioning Enterprise Edge & Aggregation 1G and 10G port density POE, Edge security Large Enterprise Core & Distribution High density 10G, 40G/100G ready 256*10G ports non-blocking performance Lossless fabric, Virtual output Queuing OS10K OS9E Systemperformance 10G, 40G, 100G Port density OmniSwitch 9000/E OmniSwitch 10K

  8. OmniSwitch 10K — First platform of a new architecture Architecture Operations Control • Capacity and performance reduces layers • HW and SW redundancy provides maximum uptime • L2 technologies increase performance & resiliency • Mission critical — VPLS & MPLS ready • Policy driven traffic management for high quality bandwidth • Supports VM mobility • Profile directed Security • Automated deployment & configuration • Low energy consumption • Common OmniSwitch AOS reduces training & field proven • Installation flexibility — compact size, front accessible components

  9. Core Distribution Access Core Layer OmniSwitch 10K Access Layer OmniSwitch OmniSwitch 10K delivers simplified network layers • Typical 3 layer network needed for port expansion • Expensive • Complex OmniSwitch 10K reduces network layers • 256 ports of non-blocking 10GigE ports per OS10K eliminates need for distribution layer • Flexible OS10K 10GigE line card also supports 1GigE connections for migration to 10GigE as needed • Switch enhancements maximizes layer 2 switching bandwidth

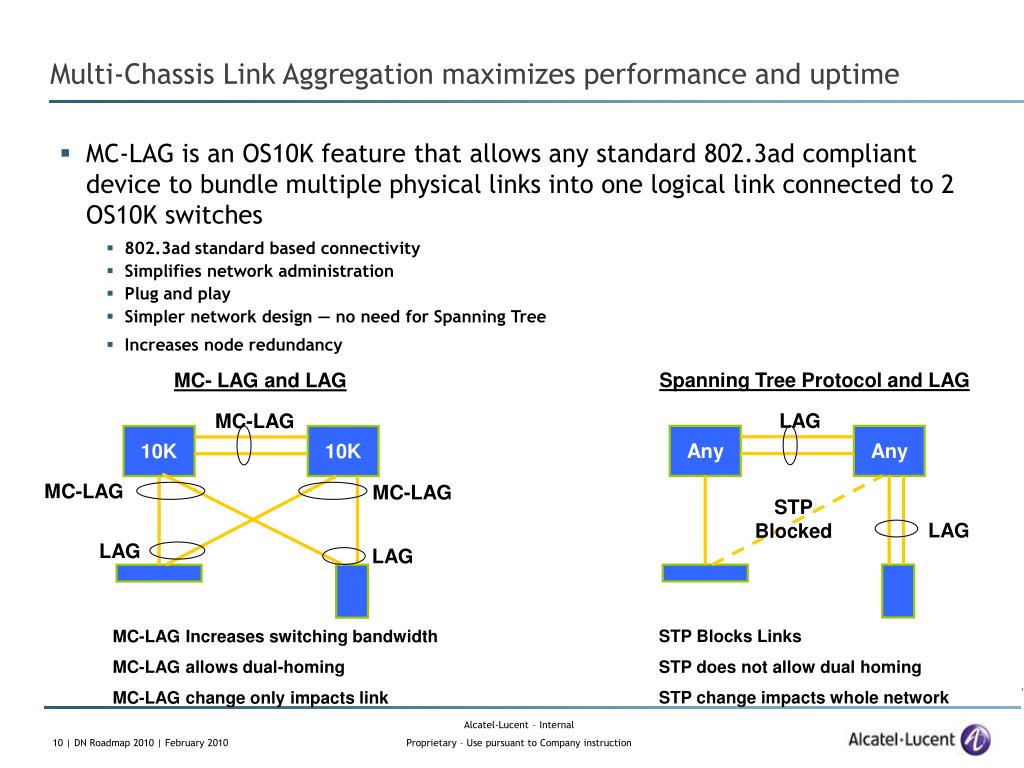

  10. Multi-Chassis Link Aggregation maximizes performance and uptime • MC-LAG is an OS10K feature that allows any standard 802.3ad compliant device to bundle multiple physical links into one logical link connected to 2 OS10K switches • 802.3ad standard based connectivity • Simplifies network administration • Plug and play • Simpler network design — no need for Spanning Tree • Increases node redundancy Spanning Tree Protocol and LAG MC- LAG and LAG LAG MC-LAG Any Any 10K 10K MC-LAG MC-LAG STP Blocked LAG LAG LAG STP Blocks Links STP does not allow dual homing STP change impacts whole network MC-LAG Increases switching bandwidth MC-LAG allows dual-homing MC-LAG change only impacts link

  11. OmniSwitch 10K — Ethernet Ring Protection • Ethernet Ring Protection (ERP) is a carrier grade feature • Superior capabilities in terms of performance, resiliency, and recovery in Layer 2-based Ethernet core networks • ERP is a standards-based implementation • Key benefits: • Provides fast recovery of 50 ms or less matching carrier network performance • Non-proprietary, standards-based ITU-T G.8032/Y.1344 ensuring interoperability • Easy to understand and configure — no special training or equipment required ERP is compatible with MC-LAG OS10K OS10K OS10K MC-LAG OmniSwitch OS10K OS10K OS10K OS10K OS10K OS10K

  12. Converged Campus Network with the OS10K • Highlights: • High performance core switching (L2 and L3) for converged applications • Low-cost, direct-connect chassis-chassis cable connectivity • 10GigE density/ non-blocking performance eliminates need for a distribution layer • Optimized to support both L2 and L3 network designs • Simplified configuration: No Spanning Tree or VRRP • Architecture ready support: • MPLS/VPLS • OS10K Virtual Chassis (VC) • Multi-switch Management (MSM): Allows plug & play for OmniSwitch access layer deployment and auto-configuration Virtual Chassis* x*10G Core layer OmniSwitch 10K X*10G X*10G Multi-Switch Management (MSM)* Access layer OmniSwitch

  13. VM Manager* Virtual Chassis* x*10G Core layer OmniSwitch 10K Multi-Switch Management (MSM)* X*10G X*10G Access Layer OmniSwitch FCOE X*10G X*10G Storage FCF Application Server Application Server Application Server Application Server Data Center Network with the OS10K • Highlights • 256 x 10GigE Non-blocking • 5.12 Terabits/ps switching capacity • Lossless fabric with VOQ • Extensive traffic mgt w/ deep packet buffering improves application performance • MC-LAG maximizes L2 switching bandwidth • Optimized form factor • F2B cooling • 16ru for real estate savings • Low power consumption & heat dissipation • Architecture ready support: • 40GigE connectivity • Dynamic, auto provision VMs • Unified fabric support (FCOE Transit) Media Server Media Server *Future support

  14. Hardware 12 slot chassis (8 line card slots) Chassis Mgt Module (CMM) Chassis Fabric Module (CFM) Fan Tray Cable Management AC Power supply DC Power Supply 32 x 10GbE SFP/SFP+ Line Card 48 x 1GbE RJ45 copper 48 x 11GbE SFP OmniSwitch 10K Initial Release Package AoS 7.1.1 Q4 2010

  15. OmniSwitch 10K Modular Chassis Cable mgt tray • 12 Slot Chassis • 8 Line Card Slots: • Designed for 1,248Gbps per slot • 640Gbps per slot initially • 256 x 10Gbps non-blocking ports • 1+1 Mgt • N+1 Fabric • N+M Power • 1+1 Fan Tray 19” rack mount 4 x ½ slots for 2x CMM, 2x CFM 16RU Line cards will fit other 19” form factor chassis eg; 16 slot horizontally aligned chassis Dual fan trays 4 PS AC or DC, AC PS supports both low-line and hi-line input

  16. OmniSwitch 10K SalesSupplement

  17. Preliminary Pricing Information*

  18. OmniSwitch Power Calculator • NOTE: OS10K Chassis cannot support a fully populated chassis using lo-line AC power-JAPAN sales take special precaution • Use the tool!

  19. CAPEX Savings 256 L3 non-blocking 10G ports 4 x Nexus 7010 = or 1 x OS10K-12 4 x Juniper 8208 Industry comparison of 10GbE Capabilities Scalability/Performance • 10GbE Linecard comparison

  20. ALU OS10K- Eco-Friendly Leader for Green IT • Reducing energy consumption in networking infrastructure equipment has become a key purchasing criteria for many customers • Reduces operating expenses • Alleviates data center challenges in power and cooling • Helps organizations meet energy policies • ALU Solution • 10GbE ports that consume >50% power vs similar class switches • Energy efficient power supplies • Dynamic management of subsystems that reduces power consumption when not needed 92% efficient power supply = less energy wasted Software controlled fans reduces power consumption and noise (db) OS10K-XNI-U32S 32 port 10GbE SFP+

  21. OS10K Chassis-Scalable and Flexible by Design • Customer Issues: Need to maximize capital spending and have investment protection (scalable, long-lifecycle), and have the flexibility to deploy and redeploy network assets based on changing/growing needs • Solution: Simple, but elegant OS10K chassis form factor • Benefits: • Future ready components- A backplane that can scale to 10.24 Terabits of switching capacity • Compact design- 16ru high, and only 59cm deep means • All components are front accessible allowing the chassis to be deployed in locations where rear access is minimal • Front to back cooling meets the strict cooling/exhaust requirements found in the data center • Integrated cable management tray makes routing all those 10GbE cables much easier OS10K Chassis OS10K-CFM

  22. Rushmore HW-Fan Trays • 2 fan trays & 12 fans per tray (1+1 fan tray redundancy) • Fan speed dynamically managed by SW • 198W max power consumption per fan tray • 70db @ 27C (80F) • Thermal will meet NEBS requirements • Thermal capabilities support exceeds 55C op temp and 600w cooling per slot

  23. OS10K HW- AC Power Supply • Off the Shelf Power Supply • Proven = lower risk & lower cost • Self-contained system • Includes fan w/ front-back air flow • Universal auto ranging Input • 90Vac-264Vac • Output • <132Vac = 1200w lo-line • >132Vac = 2500w hi-line • 92% efficient • 12v DC output • NEBS filter chassis accessory includes power cord lock

  24. OS10K Manageability • Customer Issue: Technical IT personnel struggle with system access and lack of switch memory making administration, testing, troubleshooting, and upgrading complex resulting in unplanned network outages, costly upgrades, and unnecessary delays • Solution: OS10K Management Module with lots of memory and interface support to make talking to the switch easy and secure OS10K-CMM • Benefits • 1GB of memory for storing multiple system images and config files making it very easy to test, verify, and troubleshoot using different images. Also means that when upgrading to support new feature packages it does not also require upgrading the management module memory • USB interface that accommodates flash drives to quickly transfer files back and forth with the switch. Security enhancements prevent the switch from booting directly from a USB drive • Dedicated and isolated GbE interface that can be connected to a secure management network for high-speed and secure communication. This interface can only talk with the host CPU and cannot access the systems user network directly • Unix based shell (BASH) provides the intuitive, short-cut friendly environment the network gurus love to use

  25. OmniSwitch 10K 10GbE & 1GbE Line Card • Simplified layer enabler • Provides 32 x 1GbE or 10GbE connectivity as needs change • Supports SFP+ for 10GbE or SFP for 1GbE • Benefits/Features • Better application performance:1.25Gbits memory per port • Non-blocking wire-rate performance: 640Gbps of switching capacity • Unified fabric support: Priority Flow Control (PFC) • Smooth out bursty traffic to alleviate congestion with per-priority pause • Segregate and privatize communications using Virtual Routing & Forwarding (VRF) • Onboard CPU for local management

  26. OS10K 1GbE Ethernet Modules • 10K-GNI-U48E (supports 1GbE SFP) • 10K-GNI-C48E • Benefits/Features • Better application performance:1.25Gbits memory per port • Non-blocking wire-rate performance • Unified fabric support: Priority Flow Control (PFC) • Smooth out bursty traffic to alleviate congestion: per-priority pause • Segregate and privatize L3 communications: Virtual Routing & Forwarding (VRF) • MPLS Ready • Onboard CPU for local NI and span-tree management 10K-GNI-U48E 10K-GNI-C48E

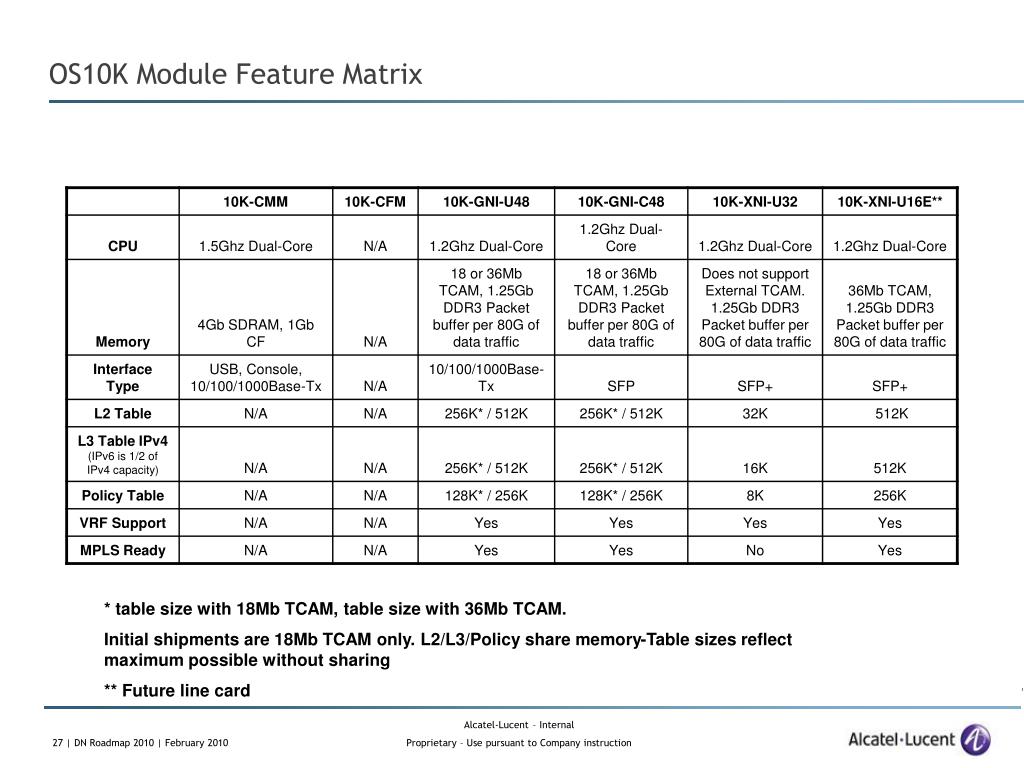

  27. OS10K Module Feature Matrix
