The Cone

The Cone. A Cone is a three dimensional solid with a circular base and a curved surface that gradually narrows to a vertex. . +. +. =. Volume of a Cone = . Exercise #1.

rue
Download Presentation

The Cone

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

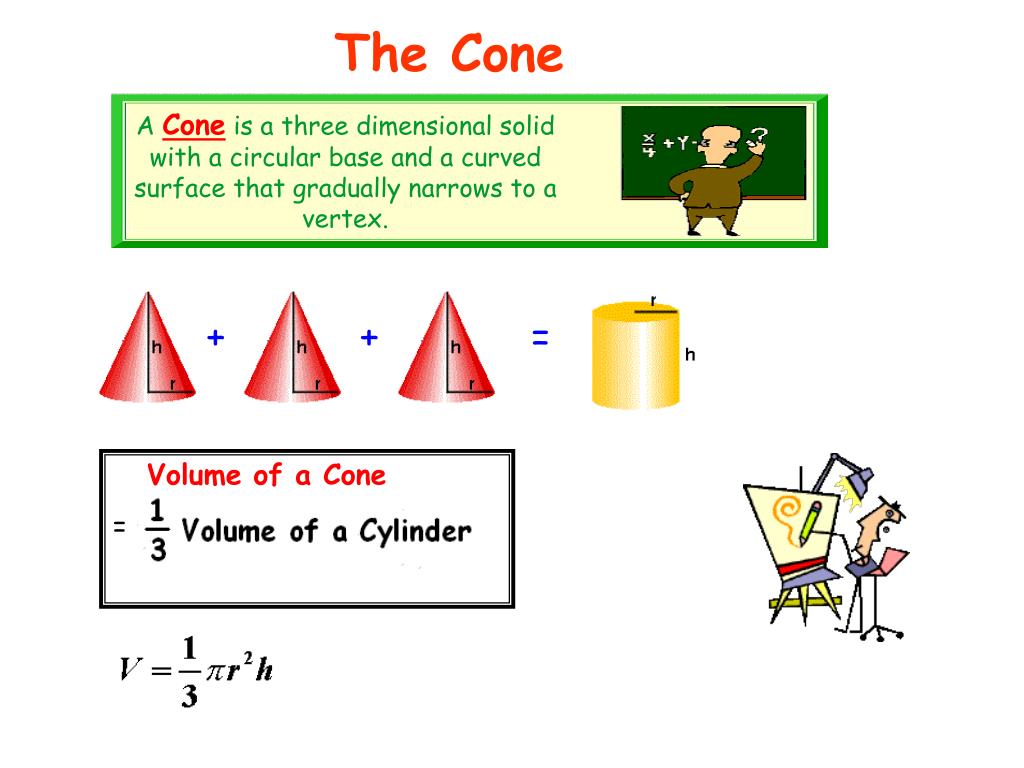

  1. The Cone A Coneis a three dimensional solid with a circular base and a curved surface that gradually narrows to a vertex. + + = Volume of a Cone =

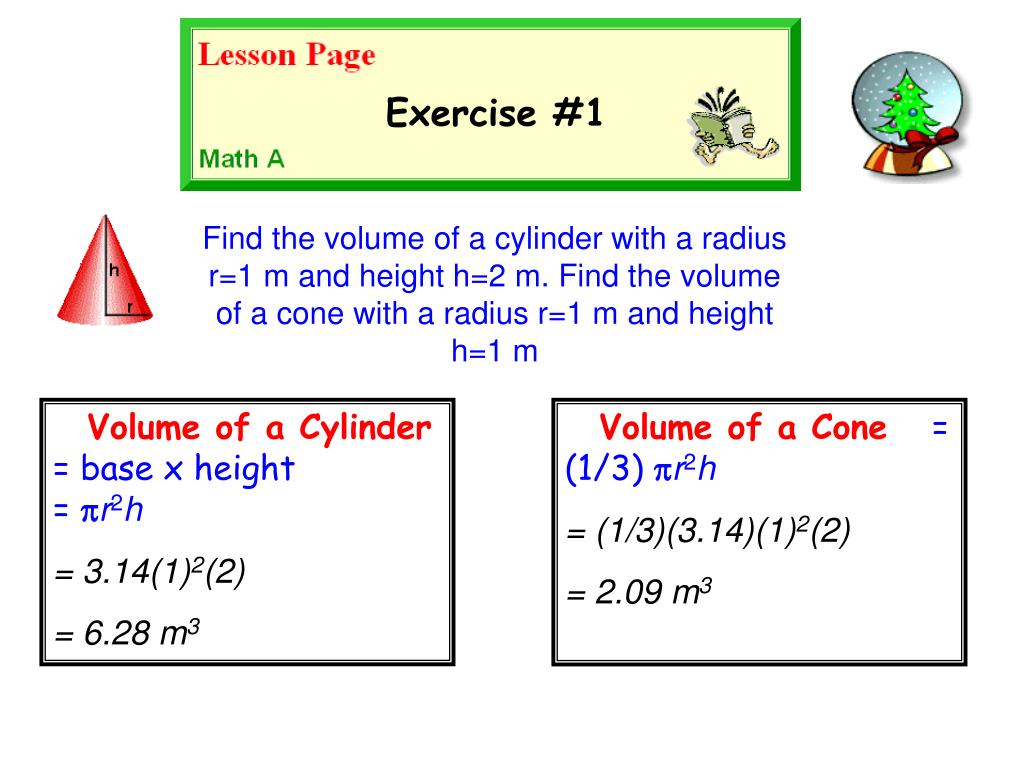

  2. Exercise #1 Find the volume of a cylinder with a radius r=1 m and height h=2 m. Find the volume of a cone with a radius r=1 m and height h=1 m Volume of a Cylinder = base x height = pr2h = 3.14(1)2(2) = 6.28 m3 Volume of a Cone = (1/3) pr2h = (1/3)(3.14)(1)2(2) = 2.09 m3

  3. Surface Area of a Cone Find the area of a cone with a radius r=3 m and height h=4 m. r = the radius h = the height l = the slant height Use thePythagorean Theorem to find l l 2 = r2 + h2 l 2= (3)2 + (4)2 l 2= 25 l = 5 Surface Area of a Cone = pr2 + prl = 3.14(3)2 + 3.14(3)(5) = 75.36 m2

  4. Cones – Practice Questions Textbook: P. 421 - 422 # 2a, 3b, 9 P. 439 – 441 # 2abcd, 3, 4c, 5ab, 10abc

  5. Pyramids A Pyramid is a three dimensional figure with a regular polygon as its base and lateral faces are identical isosceles triangles meeting at a point. Identical isosceles triangles base = quadrilateral base = heptagon base = pentagon

  6. Volume of Pyramids Volume of a Pyramid: V = (1/3) Area of the base x height V = (1/3) Ah Volume of a Pyramid = 1/3 x Volume of a Prism = + +

  7. Exercise #2 Find the volume of the pyramid. height h = 8 m apothem a = 4 m side s = 6 m Volume = 1/3 (area of base) (height) = 1/3 ( 60m2)(8m) = 160 m3 h Area of base = ½ Pa a = ½ (5)(6)(4) = 60 m2 s

  8. Area of Pyramids Find the surface area of the pyramid. height h = 8 m apothem a = 4 m side s = 6 m Surface Area = area of base + 5 (area of one lateral face) What shape is the base? Area of a pentagon h = ½ Pa = ½ (5)(6)(4) = 60 m2 l a s

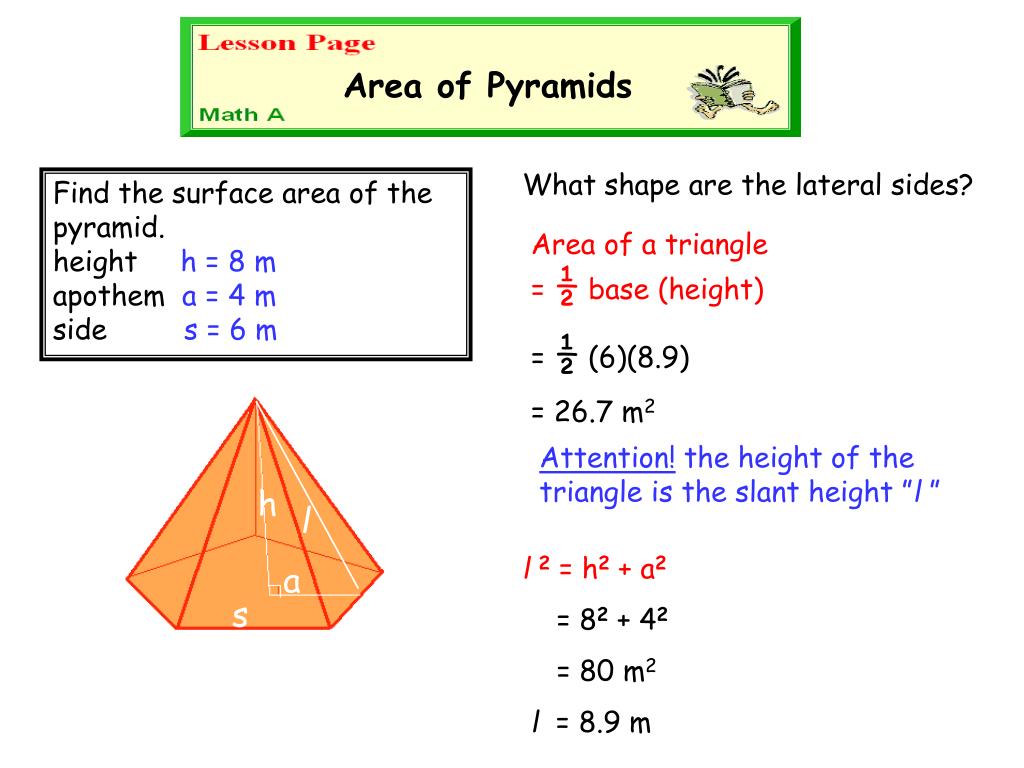

  9. Area of Pyramids What shape are the lateral sides? Find the surface area of the pyramid. height h = 8 m apothem a = 4 m side s = 6 m Area of a triangle = ½ base (height) = ½ (6)(8.9) = 26.7 m2 Attention! the height of the triangle is the slant height ”l ” h l l 2 = h2 + a2 = 82 + 42 = 80 m2 l = 8.9 m a s

  10. Area of Pyramids Surface Area of the Pyramid = 60 m2 + 5(26.7) m2 = 60 m2 + 133.5 m2 = 193.5 m2 Find the surface area of the pyramid. height h = 8 m apothem a = 4 m side s = 6 m h l a s

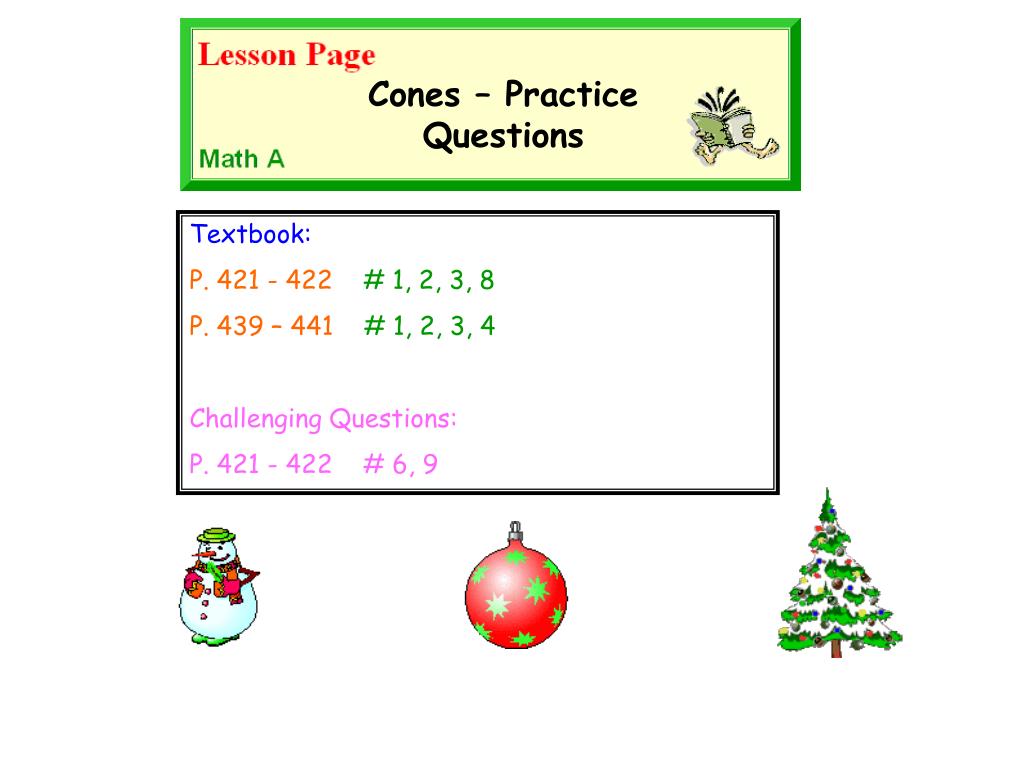

  11. Cones – Practice Questions Textbook: P. 421 - 422 # 1, 2, 3, 8 P. 439 – 441 # 1, 2, 3, 4 Challenging Questions: P. 421 - 422 # 6, 9

  12. This powerpoint was kindly donated to www.worldofteaching.com http://www.worldofteaching.com is home to over a thousand powerpoints submitted by teachers. This is a completely free site and requires no registration. Please visit and I hope it will help in your teaching.
