  1. Long Distance Communications Carriers and Modems

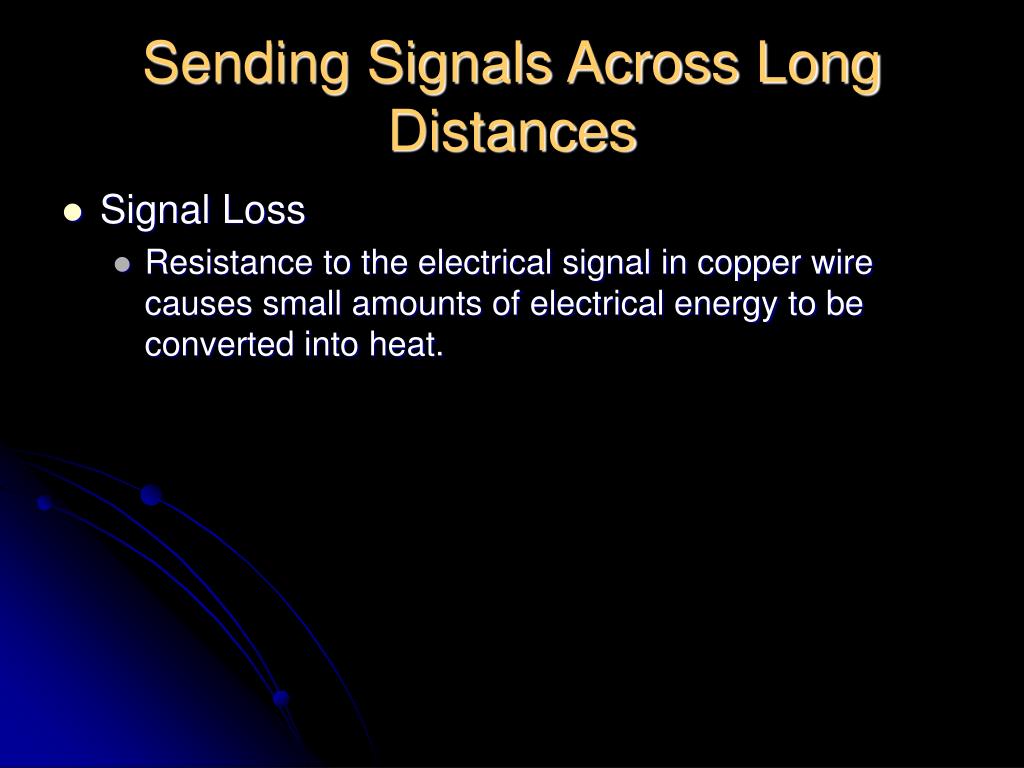

  2. Sending Signals Across Long Distances • Signal Loss • Resistance to the electrical signal in copper wire causes small amounts of electrical energy to be converted into heat.

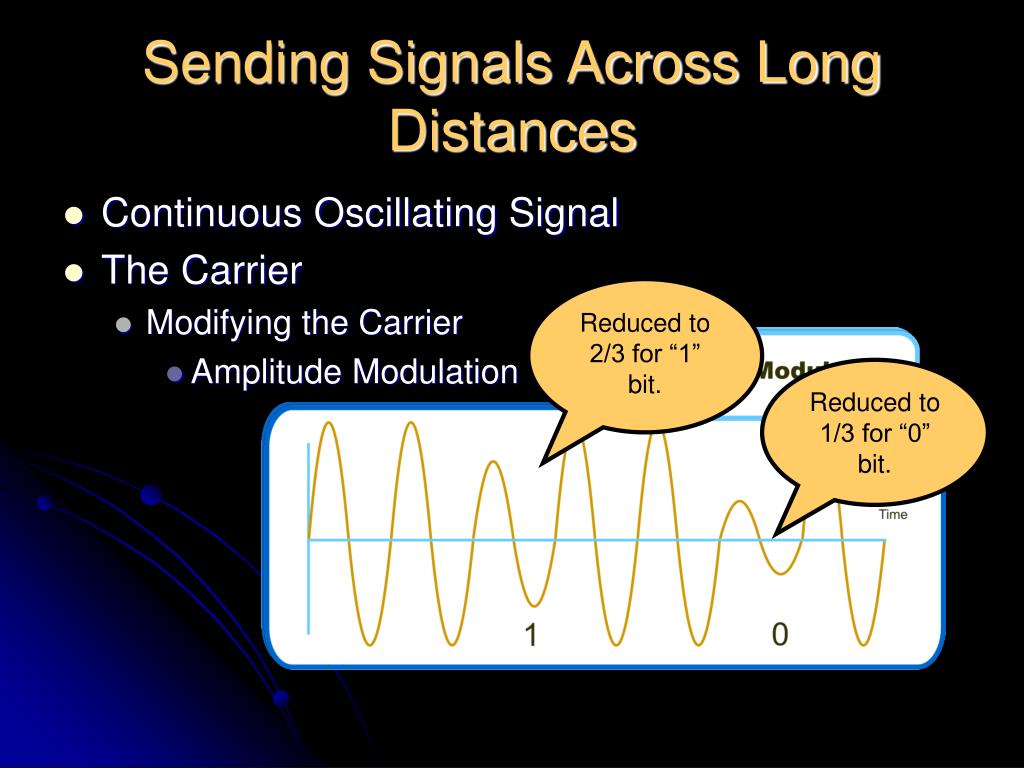

  3. Sending Signals Across Long Distances • Continuous Oscillating Signal • The Carrier • Modifying the Carrier • Amplitude Modulation Reduced to 2/3 for “1” bit. Reduced to 1/3 for “0” bit.

  4. Sending Signals Across Long Distances Frequency Modulation

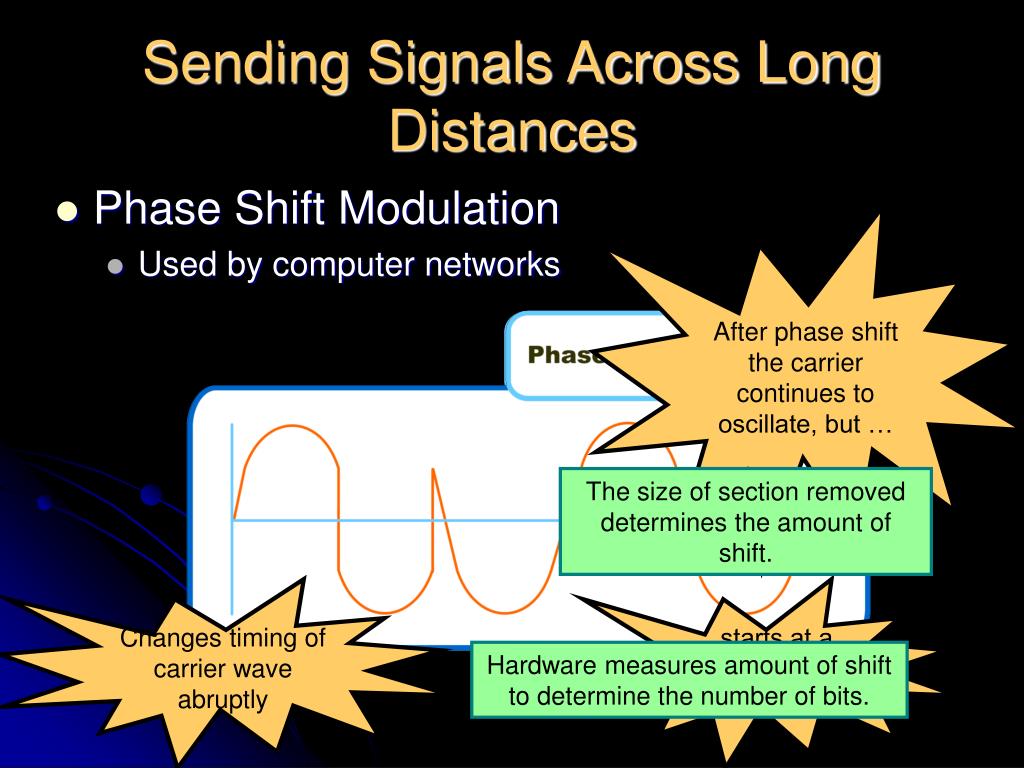

  5. Sending Signals Across Long Distances • Phase Shift Modulation • Used by computer networks After phase shift the carrier continues to oscillate, but … Carrier abruptly jumps to a new point in the cycle The size of section removed determines the amount of shift. Changes timing of carrier wave abruptly …starts at a new point in the cycle Hardware measures amount of shift to determine the number of bits.

  6. The End.
