  1. Uncertain Reasoning over Time Artificial Intelligence CMSC 25000 February 22, 2007

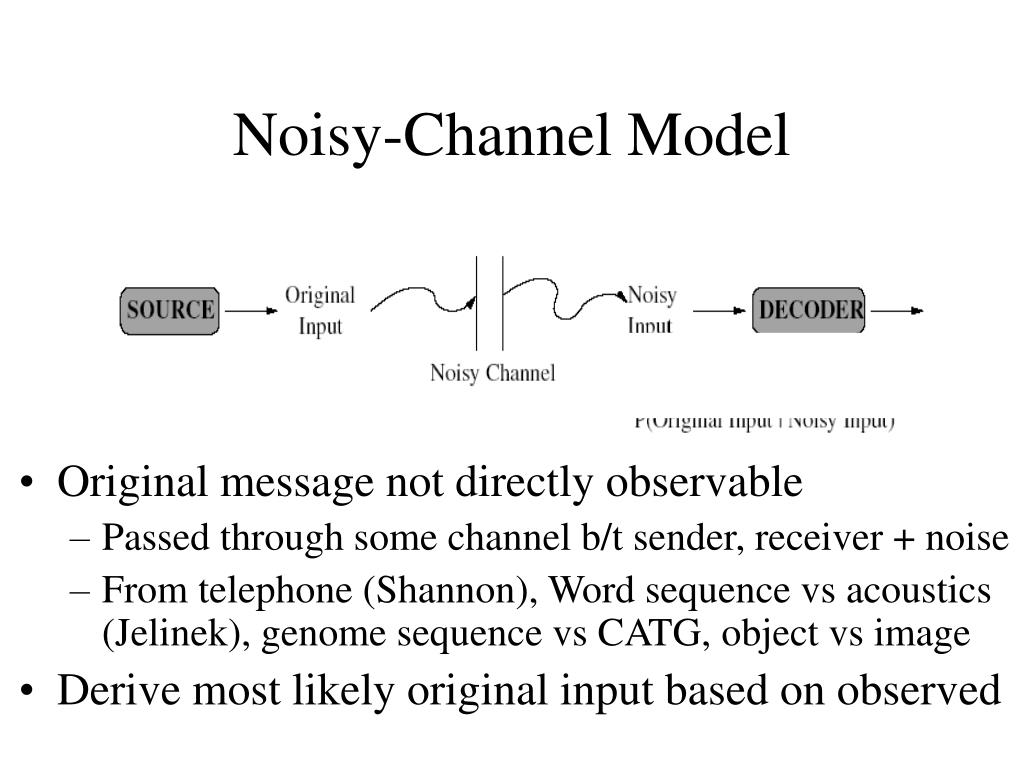

  2. Noisy-Channel Model • Original message not directly observable • Passed through some channel b/t sender, receiver + noise • From telephone (Shannon), Word sequence vs acoustics (Jelinek), genome sequence vs CATG, object vs image • Derive most likely original input based on observed

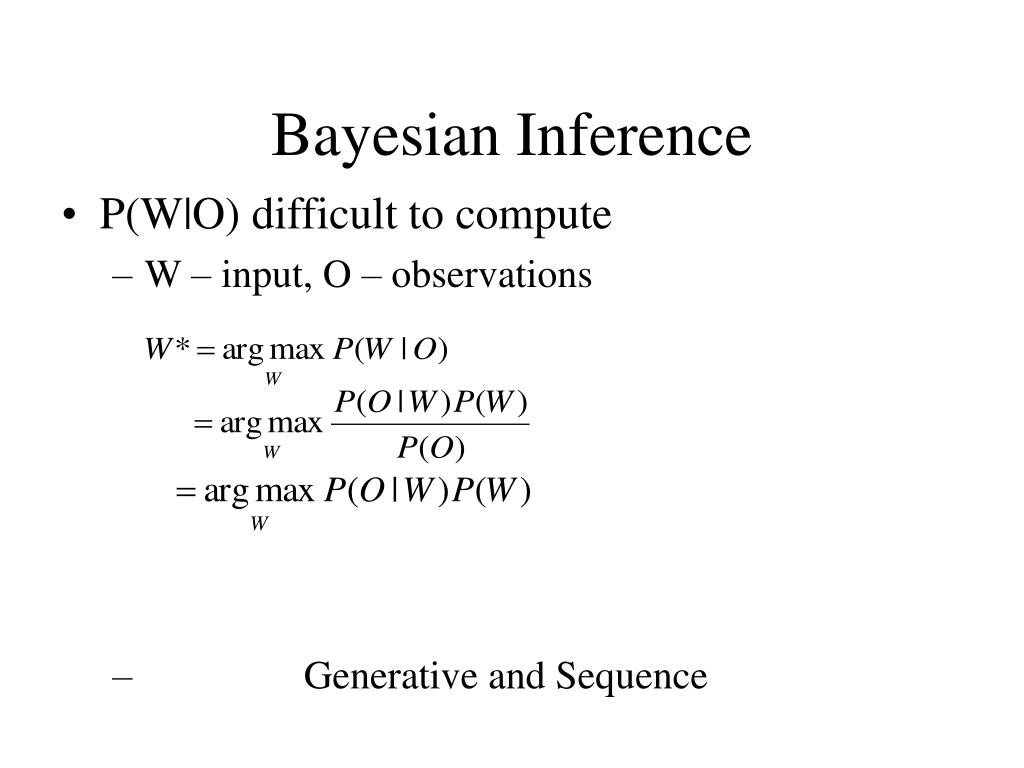

  3. Bayesian Inference • P(W|O) difficult to compute • W – input, O – observations • Generative and Sequence

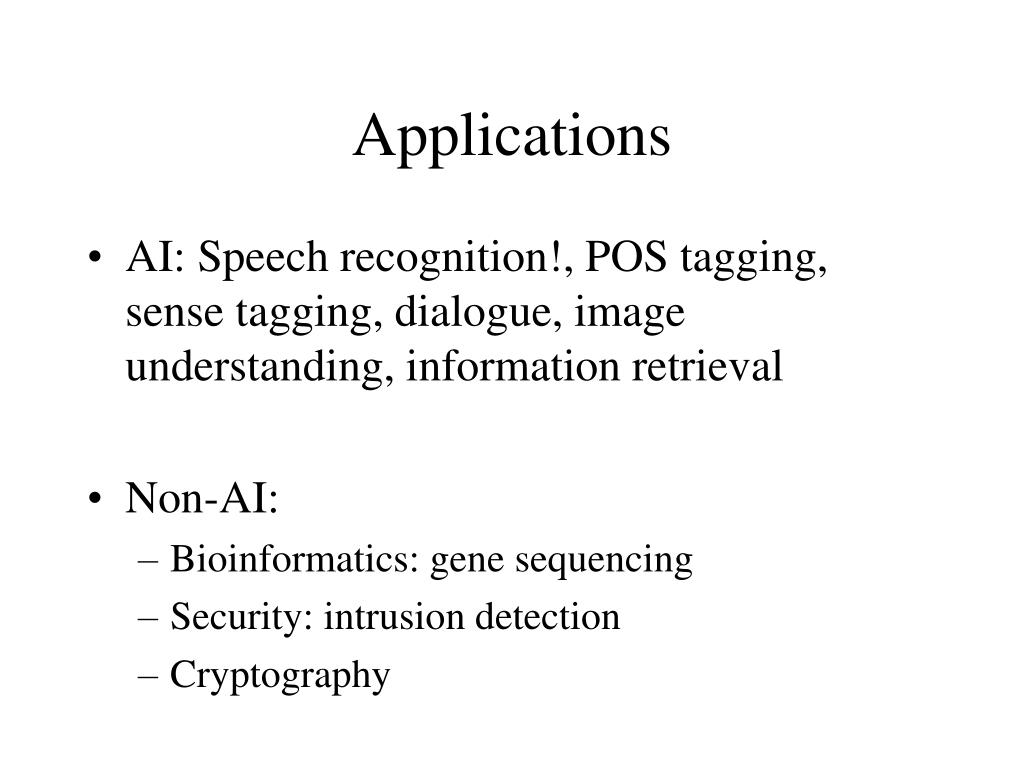

  4. Applications • AI: Speech recognition!, POS tagging, sense tagging, dialogue, image understanding, information retrieval • Non-AI: • Bioinformatics: gene sequencing • Security: intrusion detection • Cryptography

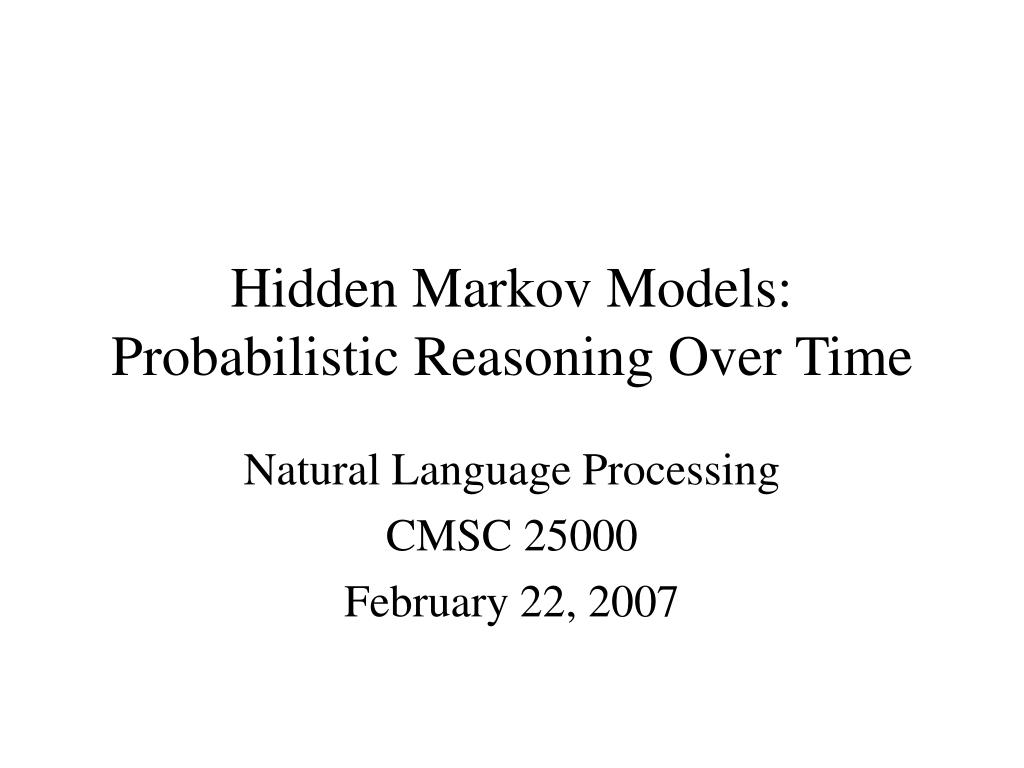

  5. Natural Language Processing CMSC 25000 February 22, 2007 Hidden Markov Models:Probabilistic Reasoning Over Time

  6. Agenda • Hidden Markov Models • Uncertain observation • Temporal Context • Recognition: Viterbi • Training the model: Baum-Welch • Speech Recognition • Framing the problem: Sounds to Sense • Speech Recognition as Modern AI

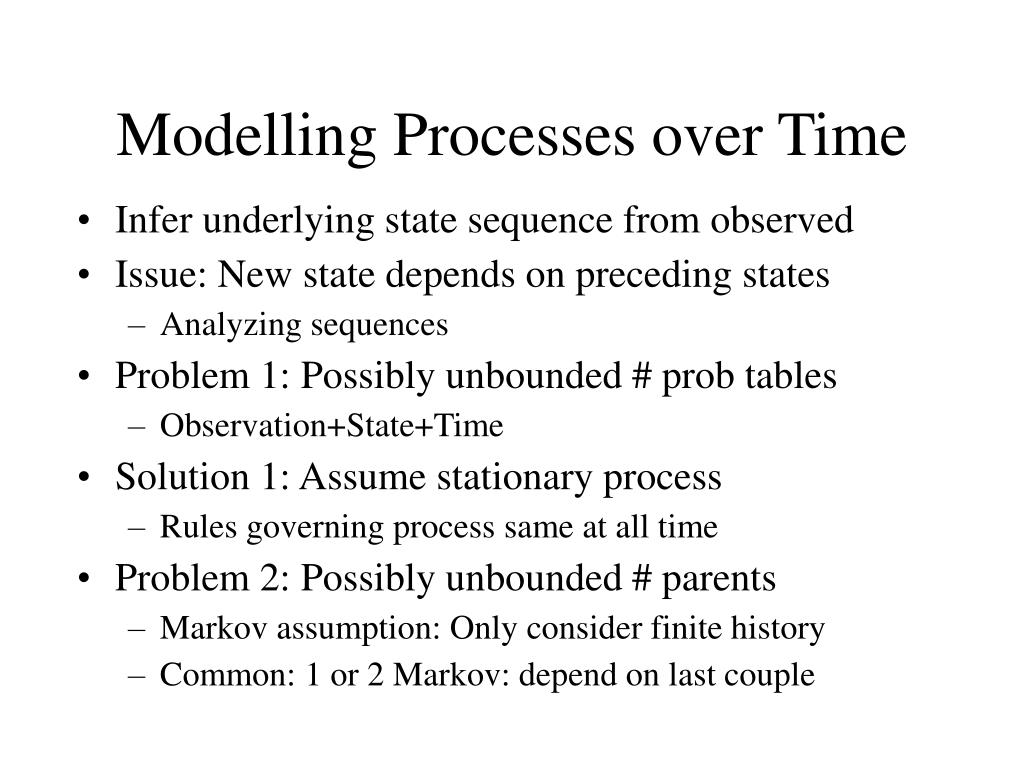

  7. Modelling Processes over Time • Infer underlying state sequence from observed • Issue: New state depends on preceding states • Analyzing sequences • Problem 1: Possibly unbounded # prob tables • Observation+State+Time • Solution 1: Assume stationary process • Rules governing process same at all time • Problem 2: Possibly unbounded # parents • Markov assumption: Only consider finite history • Common: 1 or 2 Markov: depend on last couple

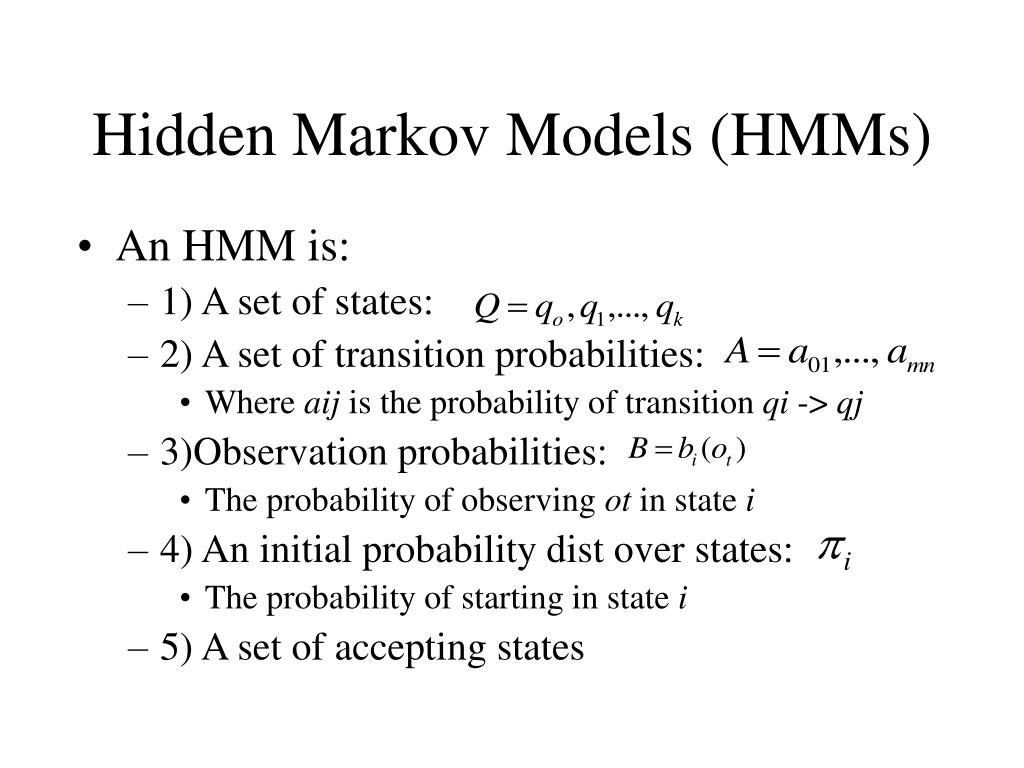

  8. Hidden Markov Models (HMMs) • An HMM is: • 1) A set of states: • 2) A set of transition probabilities: • Where aij is the probability of transition qi -> qj • 3)Observation probabilities: • The probability of observing ot in state i • 4) An initial probability dist over states: • The probability of starting in state i • 5) A set of accepting states

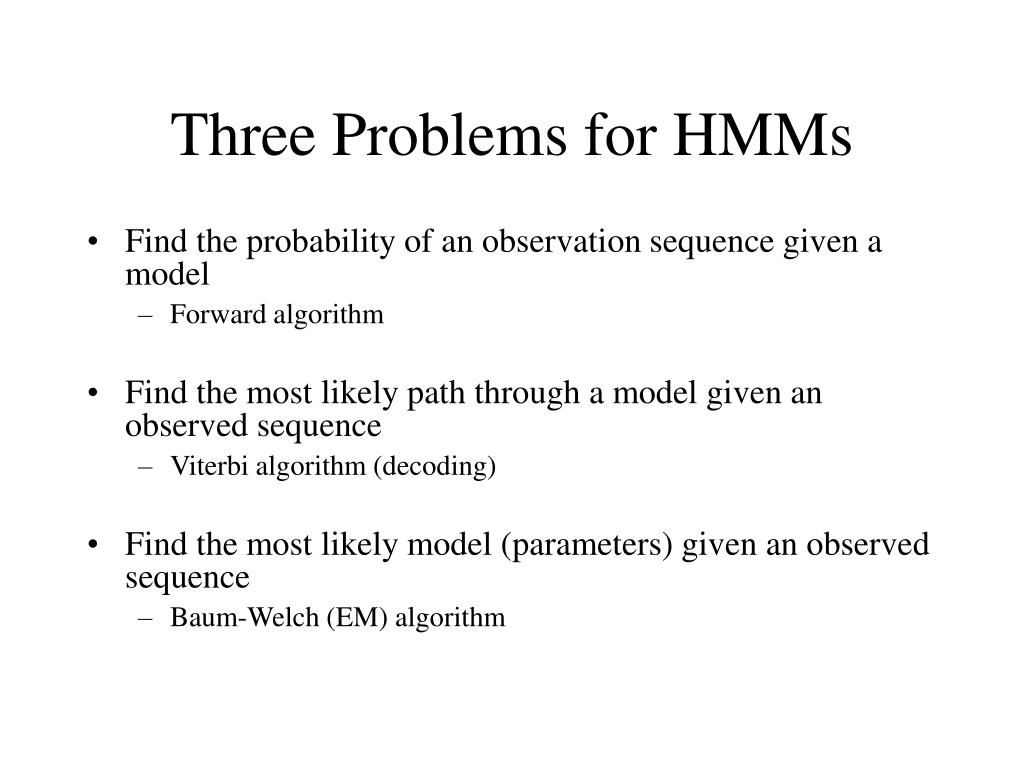

  9. Three Problems for HMMs • Find the probability of an observation sequence given a model • Forward algorithm • Find the most likely path through a model given an observed sequence • Viterbi algorithm (decoding) • Find the most likely model (parameters) given an observed sequence • Baum-Welch (EM) algorithm

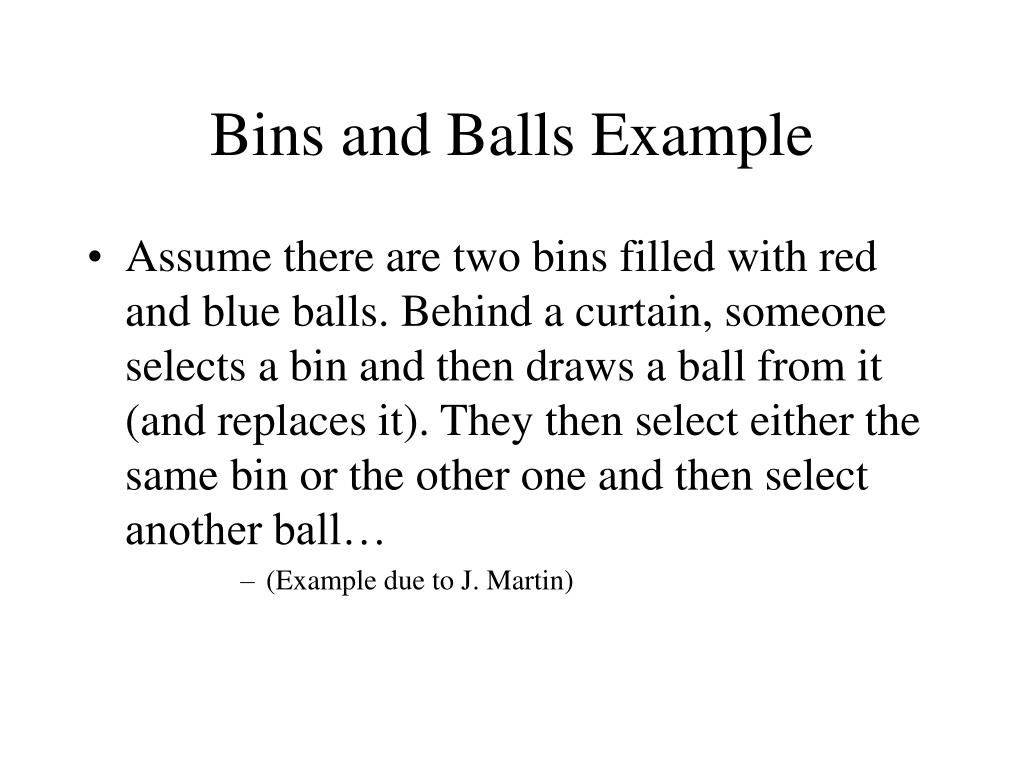

  10. Bins and Balls Example • Assume there are two bins filled with red and blue balls. Behind a curtain, someone selects a bin and then draws a ball from it (and replaces it). They then select either the same bin or the other one and then select another ball… • (Example due to J. Martin)

  11. Bins and Balls Example .6 .7 .4 Bin 1 Bin 2 .3

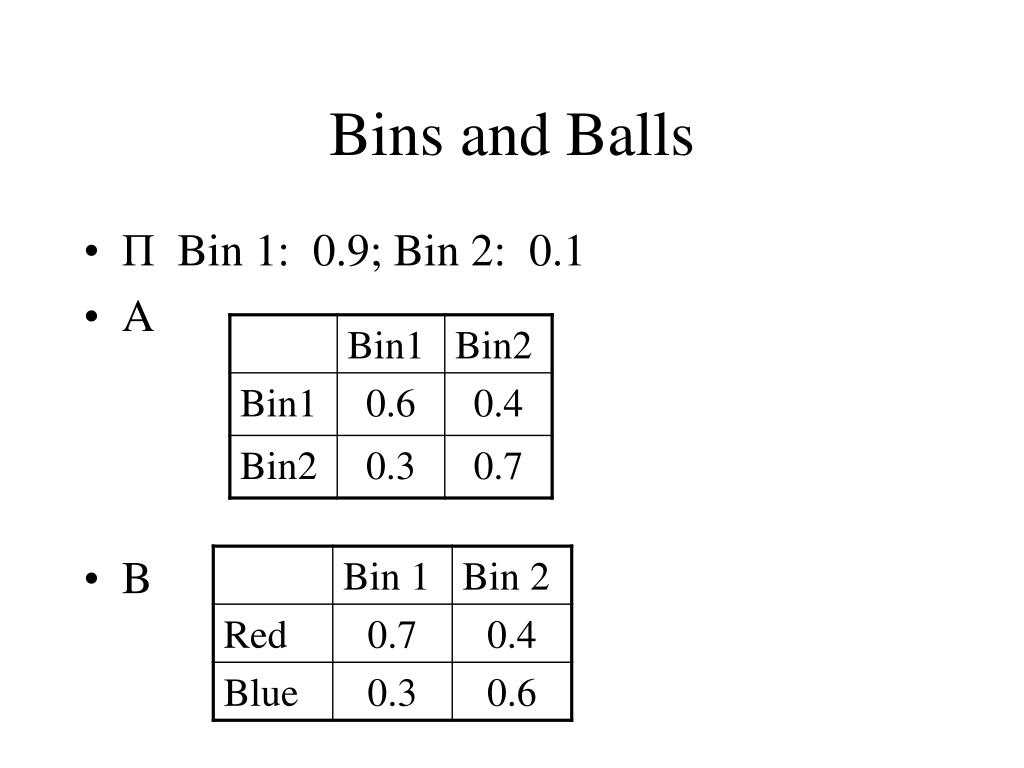

  12. Bins and Balls • Π Bin 1: 0.9; Bin 2: 0.1 • A • B

  13. Bins and Balls • Assume the observation sequence: • Blue Blue Red (BBR) • Both bins have Red and Blue • Any state sequence could produce observations • However, NOT equally likely • Big difference in start probabilities • Observation depends on state • State depends on prior state

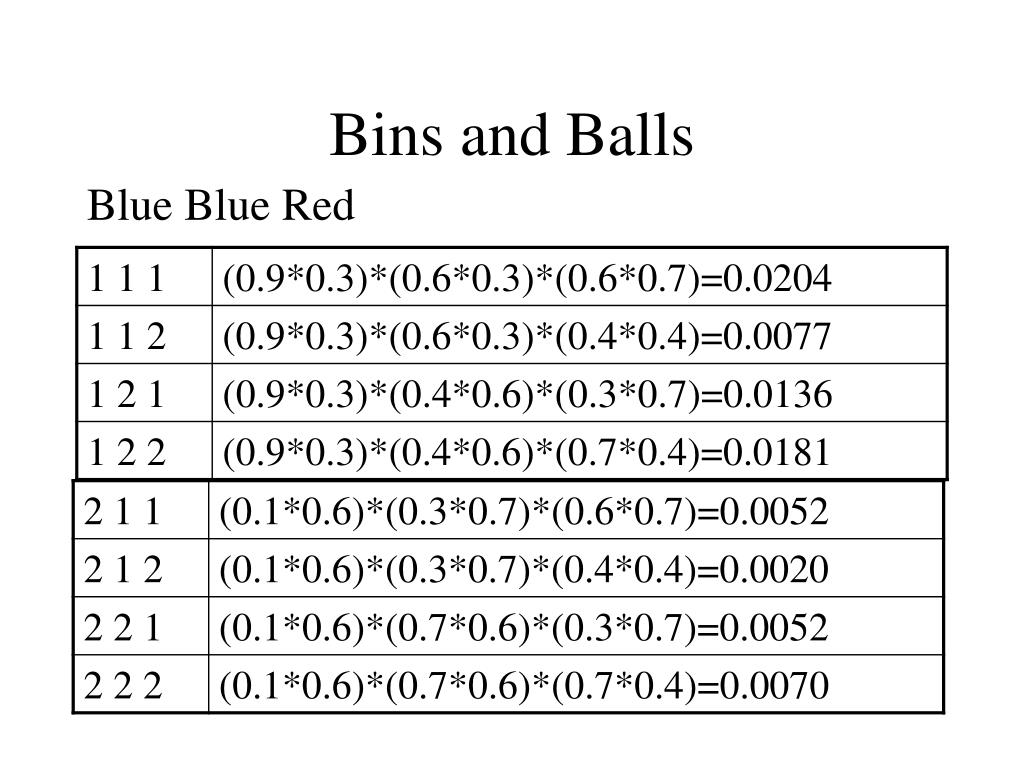

  14. Bins and Balls Blue Blue Red

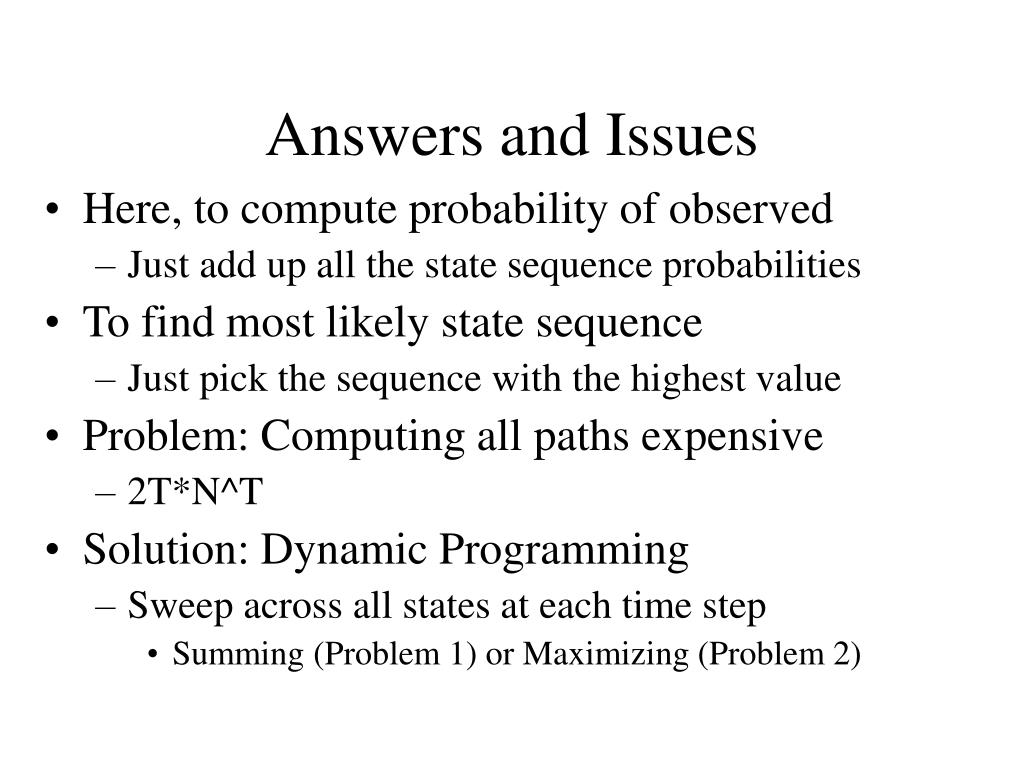

  15. Answers and Issues • Here, to compute probability of observed • Just add up all the state sequence probabilities • To find most likely state sequence • Just pick the sequence with the highest value • Problem: Computing all paths expensive • 2T*N^T • Solution: Dynamic Programming • Sweep across all states at each time step • Summing (Problem 1) or Maximizing (Problem 2)

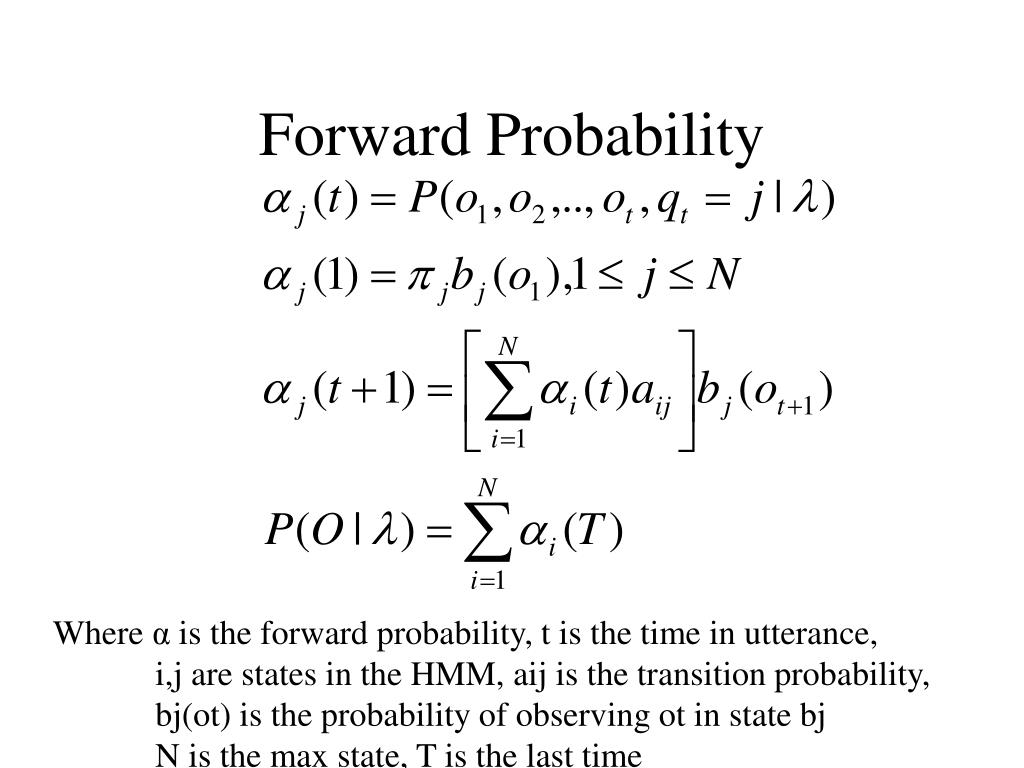

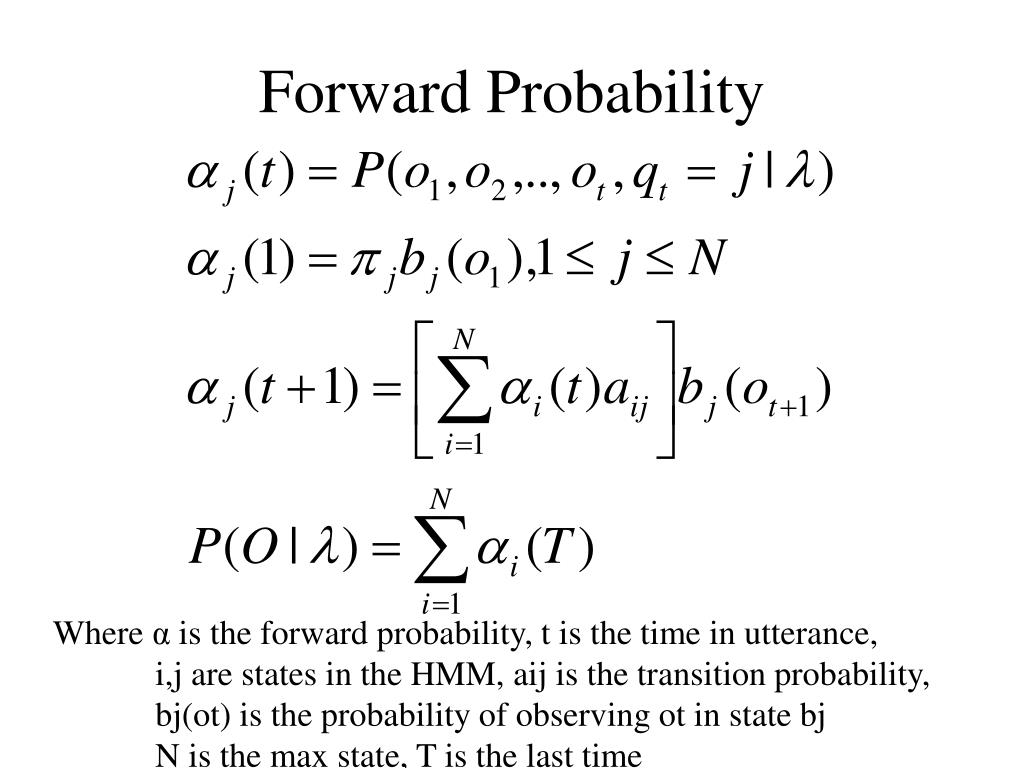

  16. Forward Probability Where α is the forward probability, t is the time in utterance, i,j are states in the HMM, aij is the transition probability, bj(ot) is the probability of observing ot in state bj N is the max state, T is the last time

  17. Forward Algorithm • Idea: matrix where each cell forward[t,j] represents probability of being in state j after seeing first t observations. • Each cell expresses the probability: forward[t,j] = P(o1,o2,...,ot,qt=j|w) • qt = j means "the probability that the tth state in the sequence of states is state j. • Compute probability by summing over extensions of all paths leading to current cell. • An extension of a path from a state i at time t-1 to state j at t is computed by multiplying together: i. previous path probability from the previous cell forward[t-1,i], ii. transition probabilityaij from previous state i to current state j iii. observation likelihood bjt that current state j matches observation symbol t.

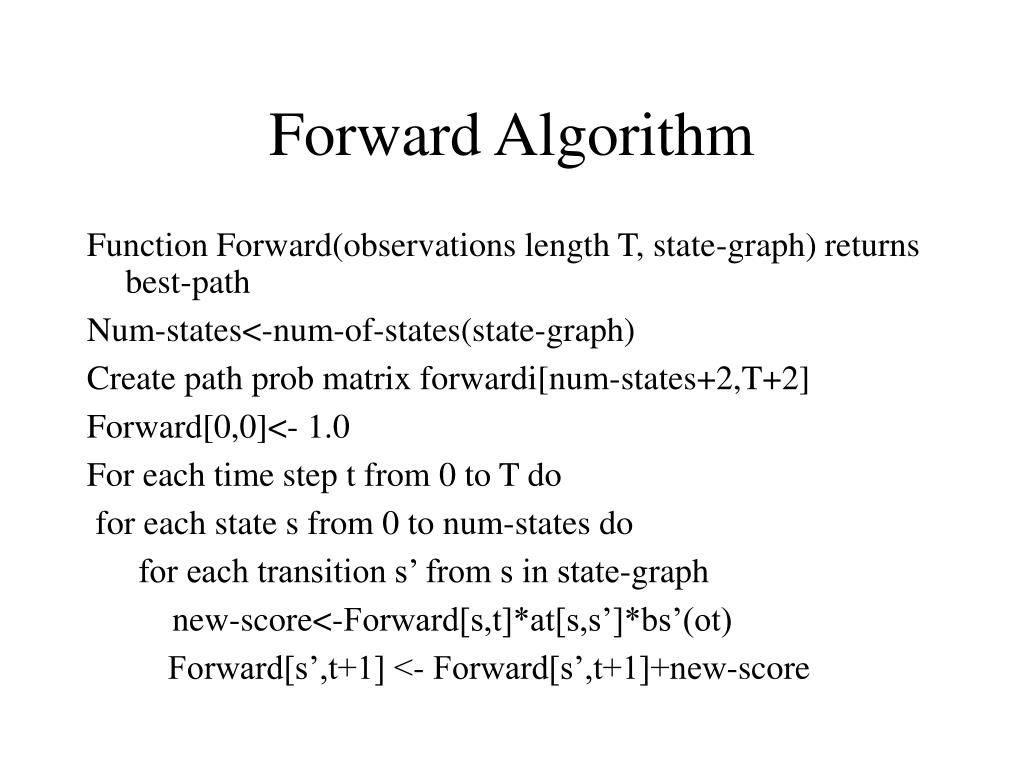

  18. Forward Algorithm Function Forward(observations length T, state-graph) returns best-path Num-states<-num-of-states(state-graph) Create path prob matrix forwardi[num-states+2,T+2] Forward[0,0]<- 1.0 For each time step t from 0 to T do for each state s from 0 to num-states do for each transition s’ from s in state-graph new-score<-Forward[s,t]*at[s,s’]*bs’(ot) Forward[s’,t+1] <- Forward[s’,t+1]+new-score

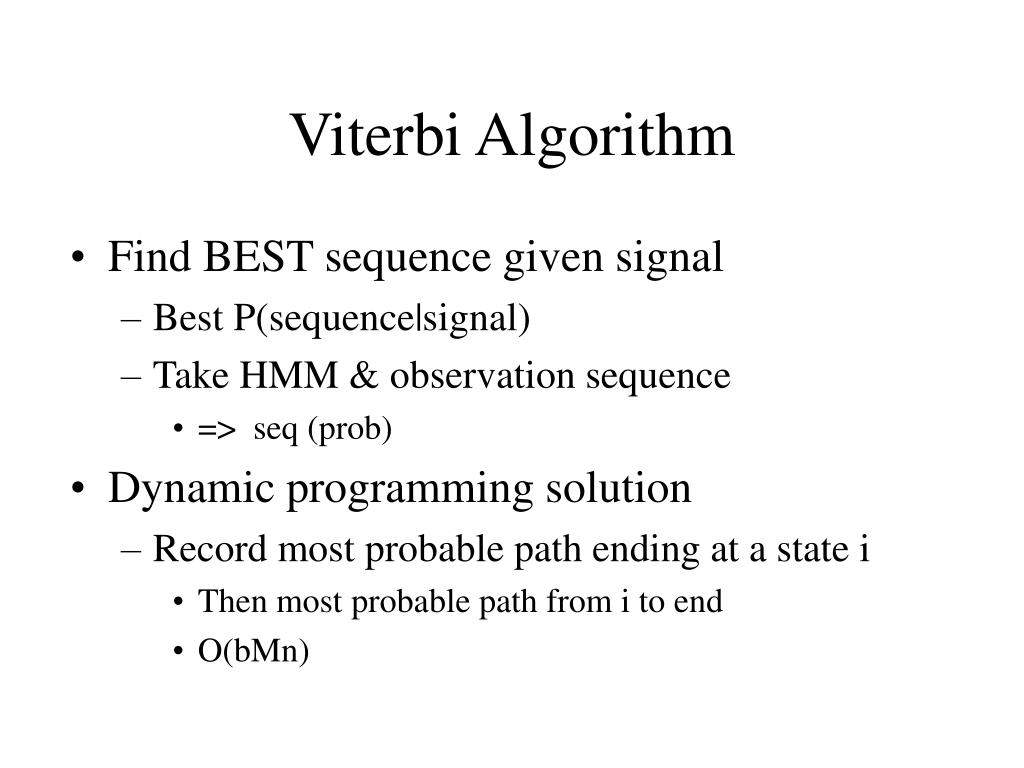

  19. Viterbi Algorithm • Find BEST sequence given signal • Best P(sequence|signal) • Take HMM & observation sequence • => seq (prob) • Dynamic programming solution • Record most probable path ending at a state i • Then most probable path from i to end • O(bMn)

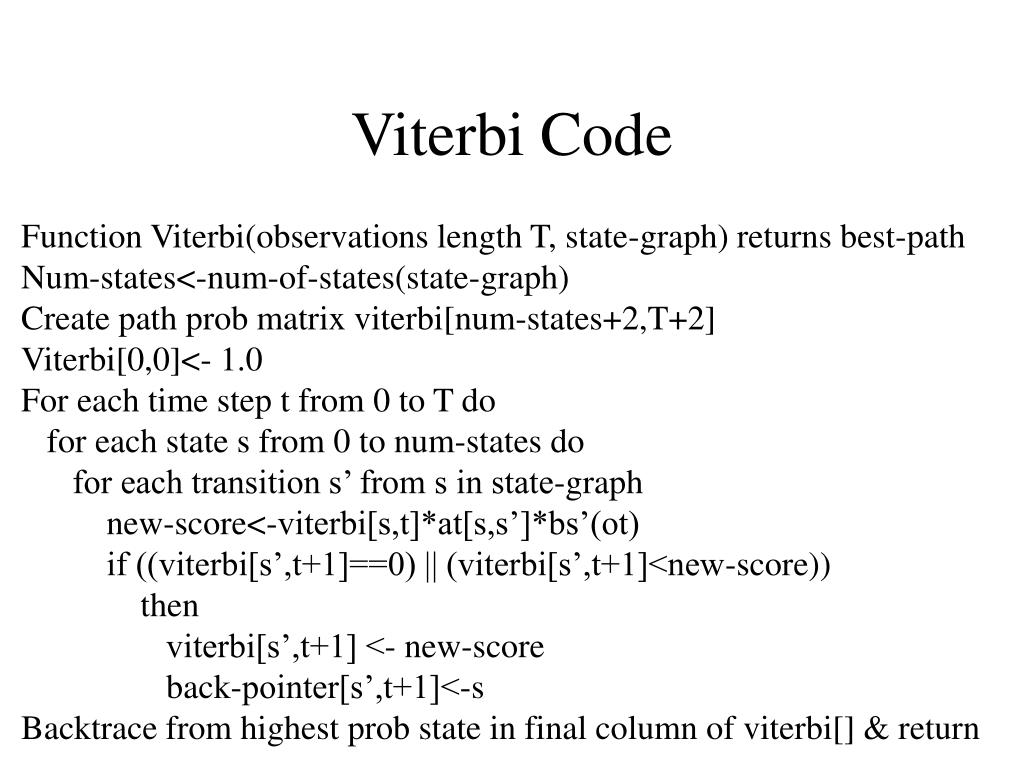

  20. Viterbi Code Function Viterbi(observations length T, state-graph) returns best-path Num-states<-num-of-states(state-graph) Create path prob matrix viterbi[num-states+2,T+2] Viterbi[0,0]<- 1.0 For each time step t from 0 to T do for each state s from 0 to num-states do for each transition s’ from s in state-graph new-score<-viterbi[s,t]*at[s,s’]*bs’(ot) if ((viterbi[s’,t+1]==0) || (viterbi[s’,t+1]<new-score)) then viterbi[s’,t+1] <- new-score back-pointer[s’,t+1]<-s Backtrace from highest prob state in final column of viterbi[] & return

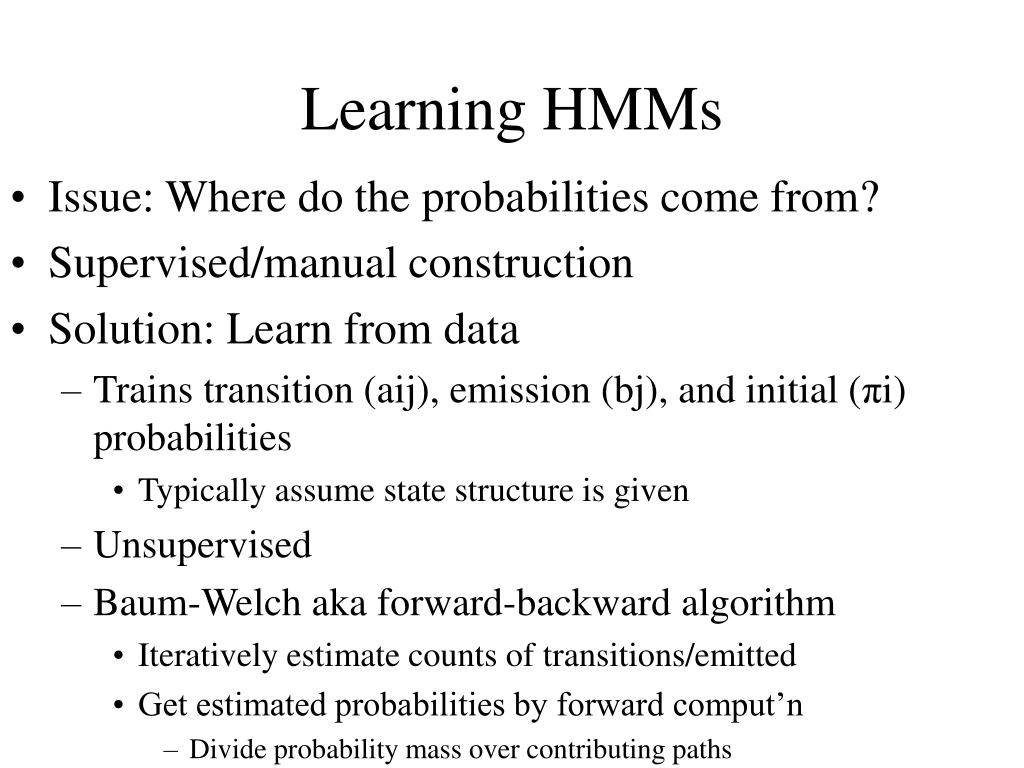

  21. Learning HMMs • Issue: Where do the probabilities come from? • Supervised/manual construction • Solution: Learn from data • Trains transition (aij), emission (bj), and initial (πi) probabilities • Typically assume state structure is given • Unsupervised • Baum-Welch aka forward-backward algorithm • Iteratively estimate counts of transitions/emitted • Get estimated probabilities by forward comput’n • Divide probability mass over contributing paths

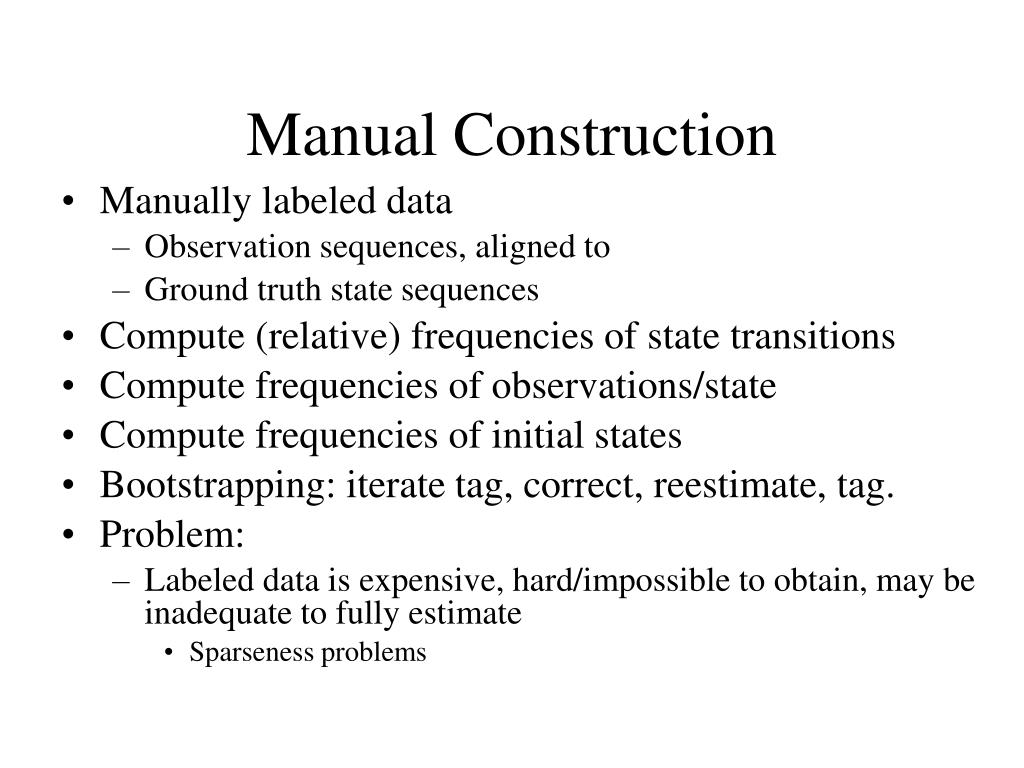

  22. Manual Construction • Manually labeled data • Observation sequences, aligned to • Ground truth state sequences • Compute (relative) frequencies of state transitions • Compute frequencies of observations/state • Compute frequencies of initial states • Bootstrapping: iterate tag, correct, reestimate, tag. • Problem: • Labeled data is expensive, hard/impossible to obtain, may be inadequate to fully estimate • Sparseness problems

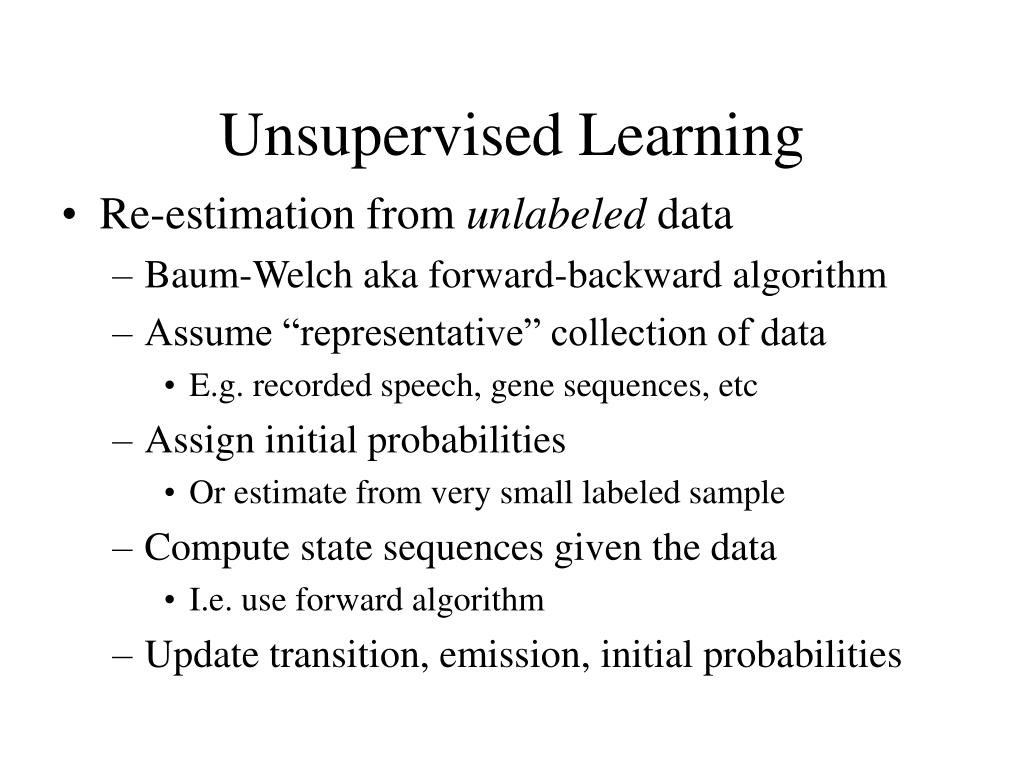

  23. Unsupervised Learning • Re-estimation from unlabeled data • Baum-Welch aka forward-backward algorithm • Assume “representative” collection of data • E.g. recorded speech, gene sequences, etc • Assign initial probabilities • Or estimate from very small labeled sample • Compute state sequences given the data • I.e. use forward algorithm • Update transition, emission, initial probabilities

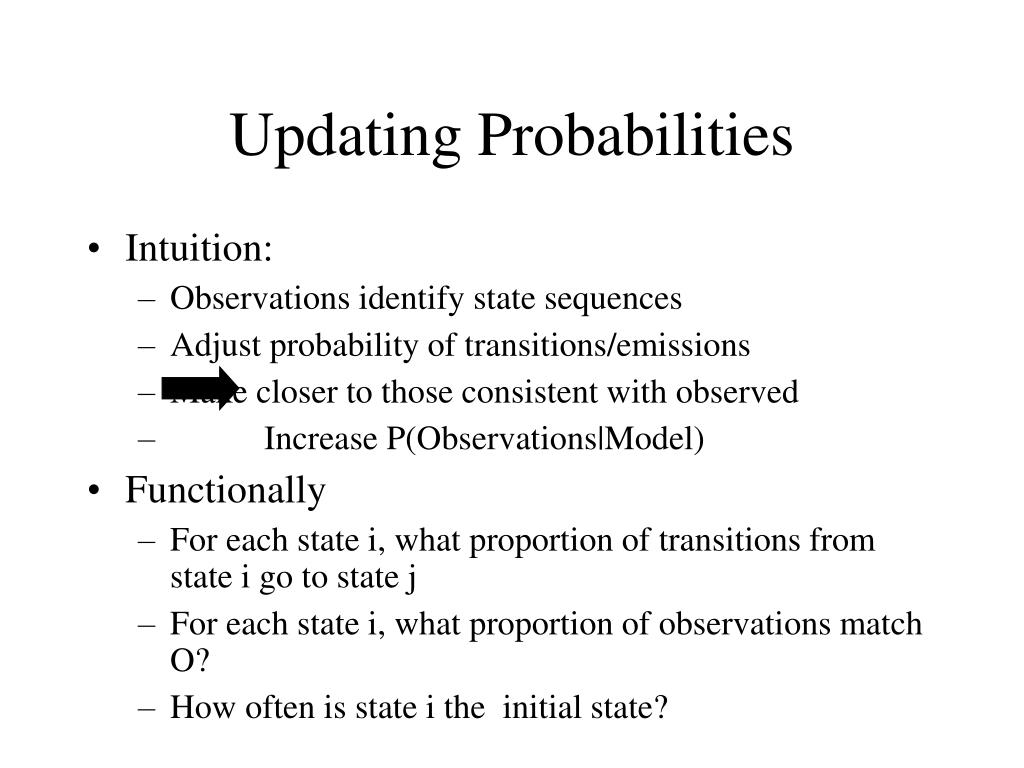

  24. Updating Probabilities • Intuition: • Observations identify state sequences • Adjust probability of transitions/emissions • Make closer to those consistent with observed • Increase P(Observations|Model) • Functionally • For each state i, what proportion of transitions from state i go to state j • For each state i, what proportion of observations match O? • How often is state i the initial state?

  25. Estimating Transitions • Consider updating transition aij • Compute probability of all paths using aij • Compute probability of all paths through i (w/ and w/o i->j) i j

  26. Forward Probability Where α is the forward probability, t is the time in utterance, i,j are states in the HMM, aij is the transition probability, bj(ot) is the probability of observing ot in state bj N is the max state, T is the last time

  27. Backward Probability Where β is the backward probability, t is the time in sequence, i,j are states in the HMM, aij is the transition probability, bj(ot) is the probability of observing ot in state bj N is the final state, and T is the last time

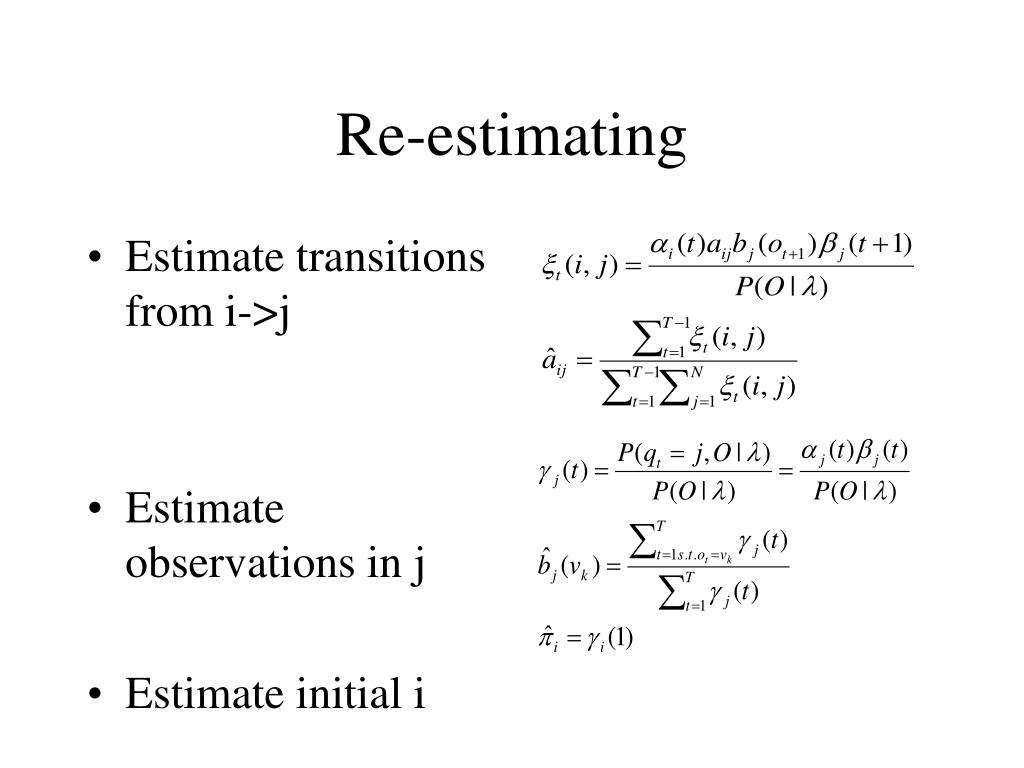

  28. Re-estimating • Estimate transitions from i->j • Estimate observations in j • Estimate initial i

  29. Speech Recognition • Goal: • Given an acoustic signal, identify the sequence of words that produced it • Speech understanding goal: • Given an acoustic signal, identify the meaning intended by the speaker • Issues: • Ambiguity: many possible pronunciations, • Uncertainty: what signal, what word/sense produced this sound sequence

  30. Decomposing Speech Recognition • Q1: What speech sounds were uttered? • Human languages: 40-50 phones • Basic sound units: b, m, k, ax, ey, …(arpabet) • Distinctions categorical to speakers • Acoustically continuous • Part of knowledge of language • Build per-language inventory • Could we learn these?

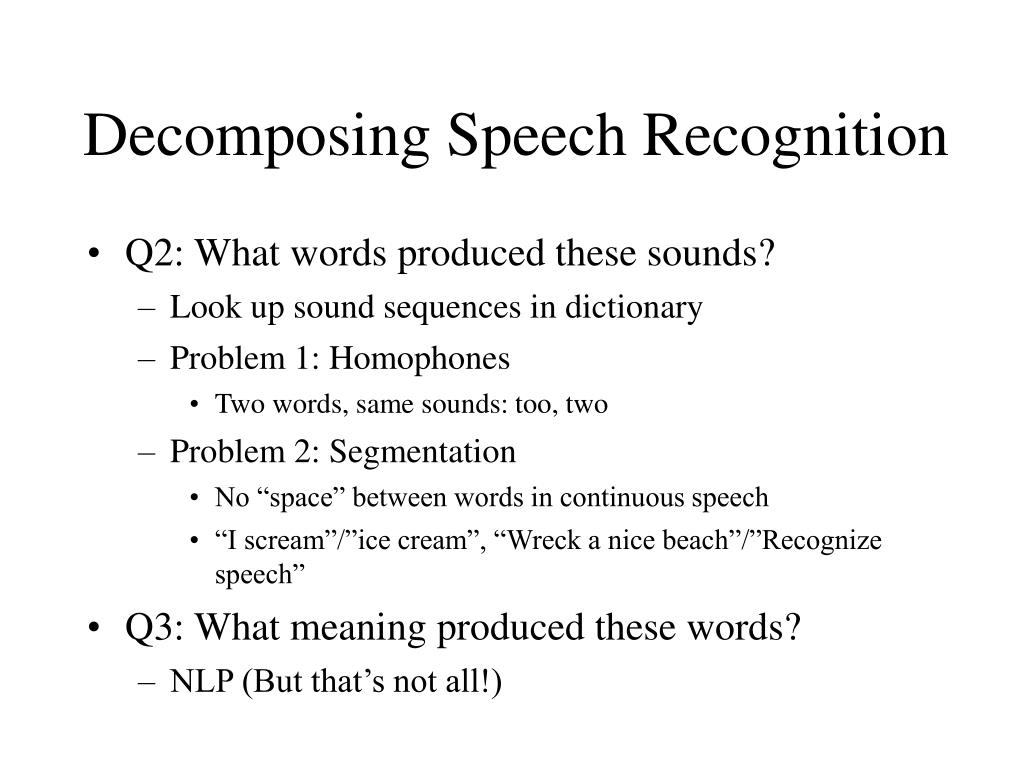

  31. Decomposing Speech Recognition • Q2: What words produced these sounds? • Look up sound sequences in dictionary • Problem 1: Homophones • Two words, same sounds: too, two • Problem 2: Segmentation • No “space” between words in continuous speech • “I scream”/”ice cream”, “Wreck a nice beach”/”Recognize speech” • Q3: What meaning produced these words? • NLP (But that’s not all!)

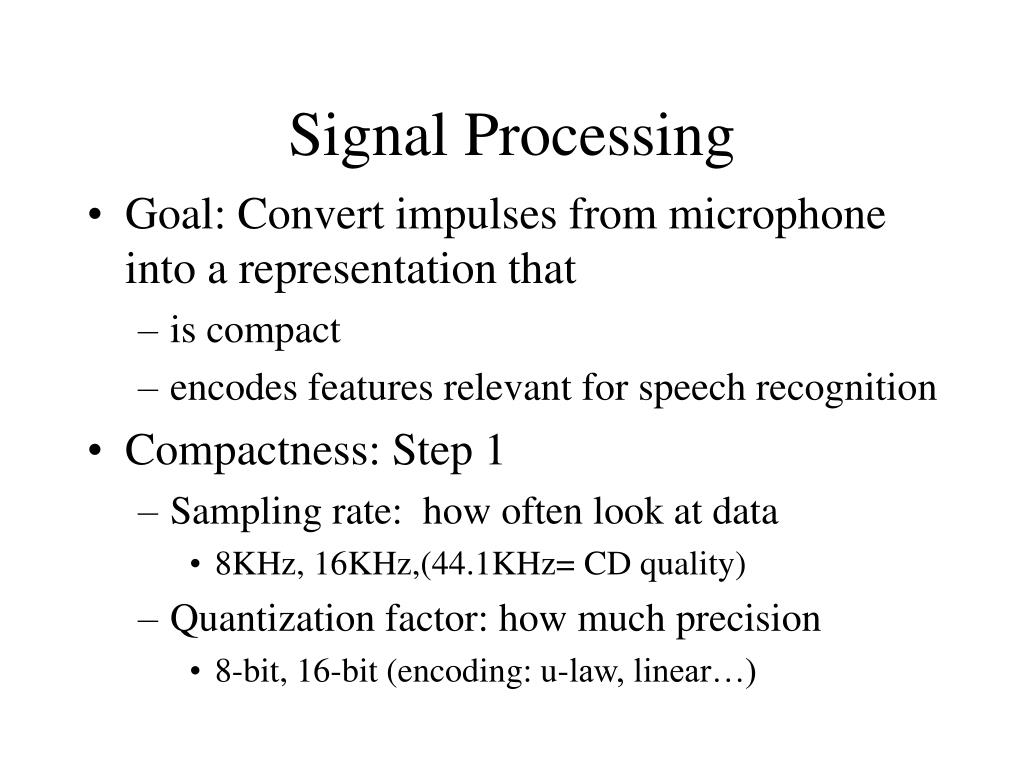

  32. Signal Processing • Goal: Convert impulses from microphone into a representation that • is compact • encodes features relevant for speech recognition • Compactness: Step 1 • Sampling rate: how often look at data • 8KHz, 16KHz,(44.1KHz= CD quality) • Quantization factor: how much precision • 8-bit, 16-bit (encoding: u-law, linear…)

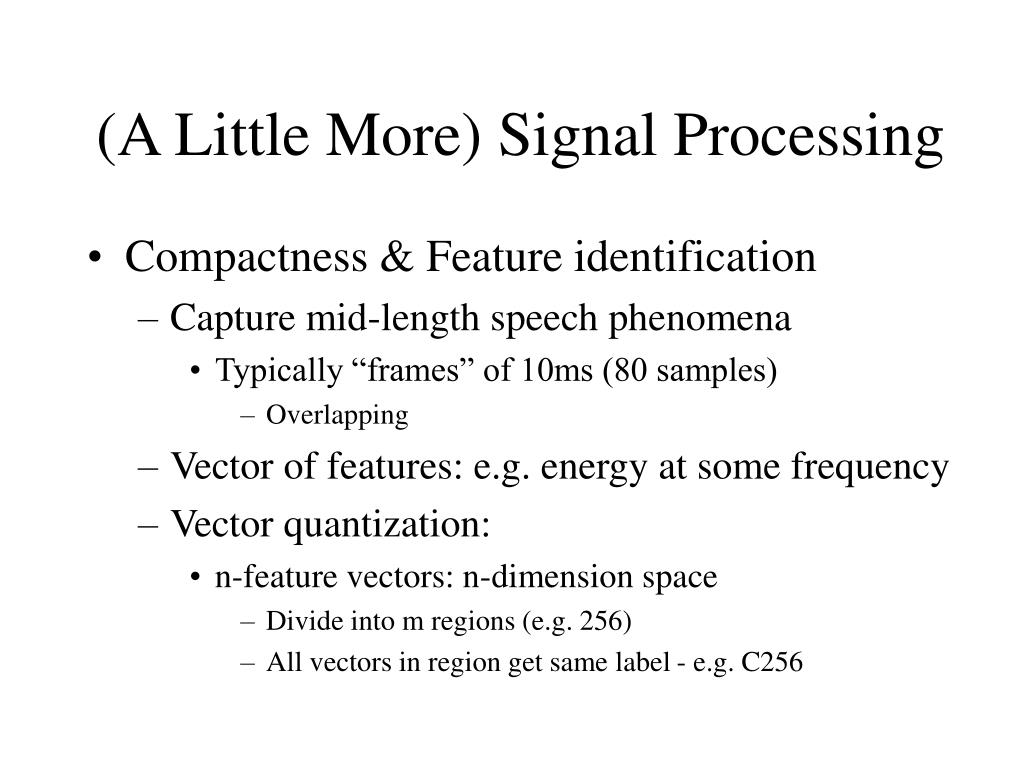

  33. (A Little More) Signal Processing • Compactness & Feature identification • Capture mid-length speech phenomena • Typically “frames” of 10ms (80 samples) • Overlapping • Vector of features: e.g. energy at some frequency • Vector quantization: • n-feature vectors: n-dimension space • Divide into m regions (e.g. 256) • All vectors in region get same label - e.g. C256

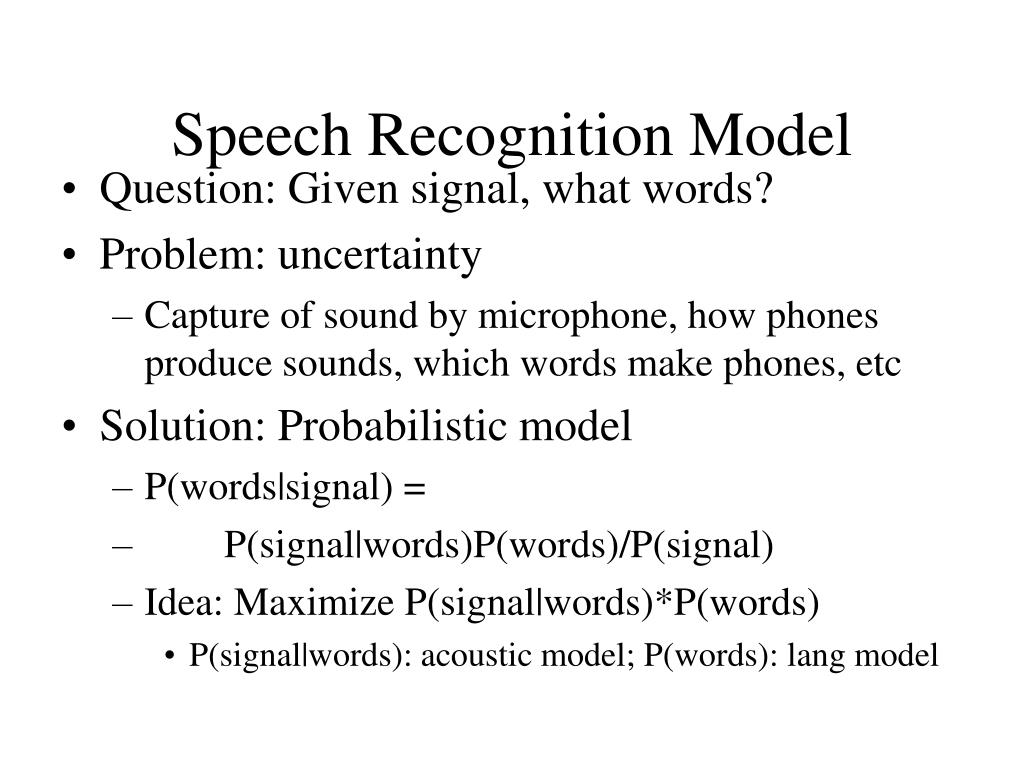

  34. Speech Recognition Model • Question: Given signal, what words? • Problem: uncertainty • Capture of sound by microphone, how phones produce sounds, which words make phones, etc • Solution: Probabilistic model • P(words|signal) = • P(signal|words)P(words)/P(signal) • Idea: Maximize P(signal|words)*P(words) • P(signal|words): acoustic model; P(words): lang model

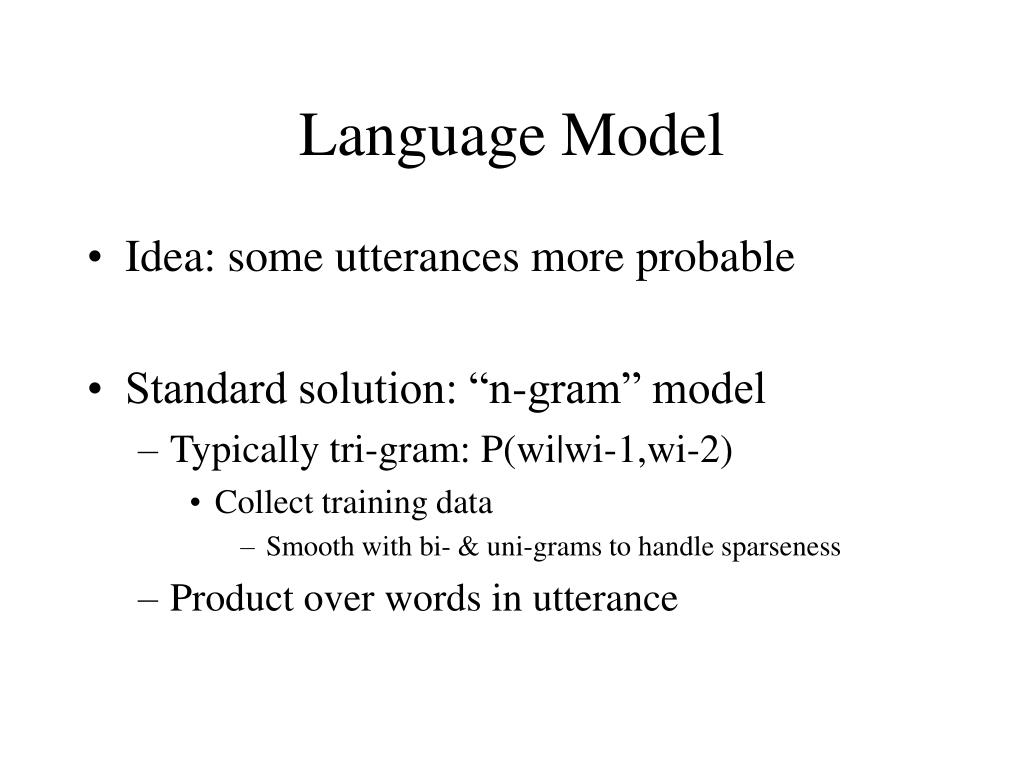

  35. Language Model • Idea: some utterances more probable • Standard solution: “n-gram” model • Typically tri-gram: P(wi|wi-1,wi-2) • Collect training data • Smooth with bi- & uni-grams to handle sparseness • Product over words in utterance

  36. Acoustic Model P(signal|words) words -> phones + phones -> vector quantiz’n Words -> phones Pronunciation dictionary lookup Multiple pronunciations? Probability distribution Dialect Variation: tomato +Coarticulation Product along path aa t ow m t ow ey ow aa t m t ow ax ey 0.5 0.5 0.2 0.5 0.5 0.8

  37. Pronunciation Example • Observations: 0/1

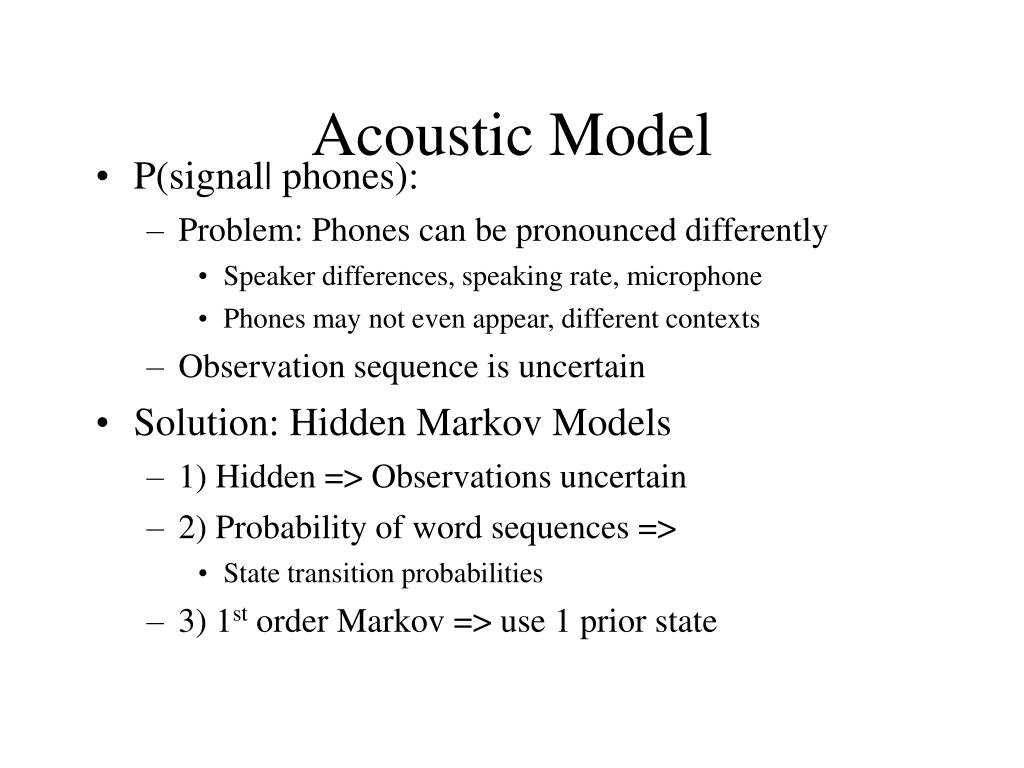

  38. Acoustic Model • P(signal| phones): • Problem: Phones can be pronounced differently • Speaker differences, speaking rate, microphone • Phones may not even appear, different contexts • Observation sequence is uncertain • Solution: Hidden Markov Models • 1) Hidden => Observations uncertain • 2) Probability of word sequences => • State transition probabilities • 3) 1st order Markov => use 1 prior state

  39. Onset Mid End Final Acoustic Model • 3-state phone model for [m] • Use Hidden Markov Model (HMM) • Probability of sequence: sum of prob of paths 0.3 0.9 0.4 Transition probabilities 0.7 0.1 0.6 C3: 0.3 C5: 0.1 C6: 0.4 C1: 0.5 C3: 0.2 C4: 0.1 C2: 0.2 C4: 0.7 C6: 0.5 Observation probabilities

  40. ASR Training • Models to train: • Language model: typically tri-gram • Observation likelihoods: B • Transition probabilities: A • Pronunciation lexicon: sub-phone, word • Training materials: • Speech files – word transcription • Large text corpus • Small phonetically transcribed speech corpus

  41. Training • Language model: • Uses large text corpus to train n-grams • 500 M words • Pronunciation model: • HMM state graph • Manual coding from dictionary • Expand to triphone context and sub-phone models

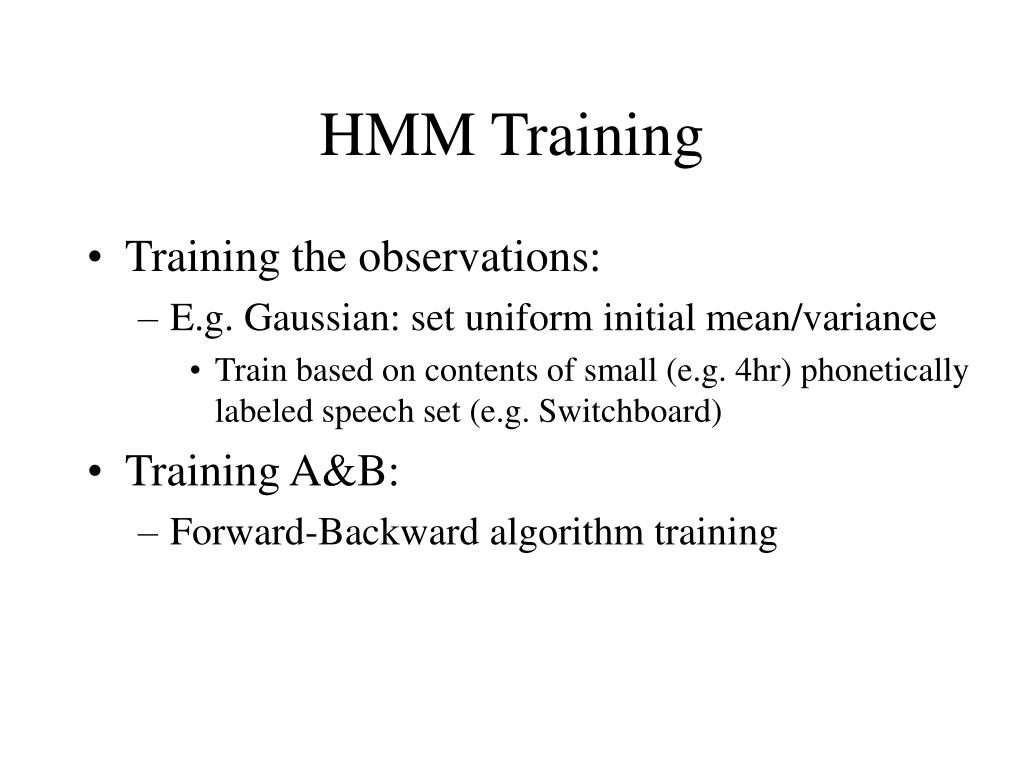

  42. HMM Training • Training the observations: • E.g. Gaussian: set uniform initial mean/variance • Train based on contents of small (e.g. 4hr) phonetically labeled speech set (e.g. Switchboard) • Training A&B: • Forward-Backward algorithm training

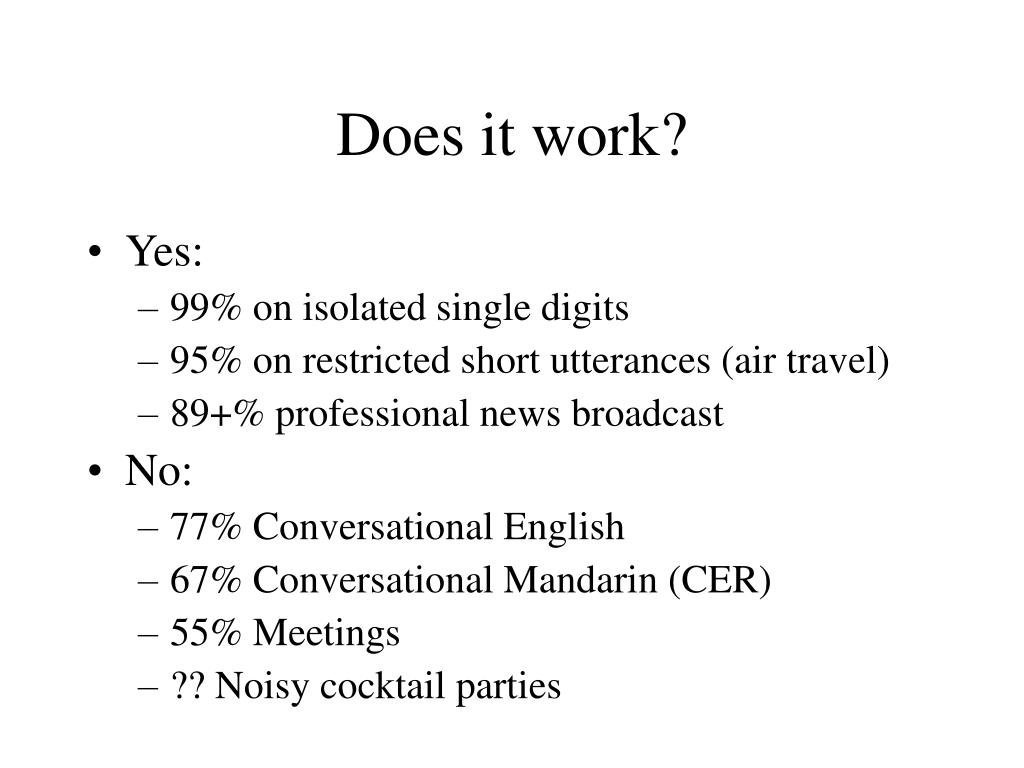

  43. Does it work? • Yes: • 99% on isolated single digits • 95% on restricted short utterances (air travel) • 89+% professional news broadcast • No: • 77% Conversational English • 67% Conversational Mandarin (CER) • 55% Meetings • ?? Noisy cocktail parties

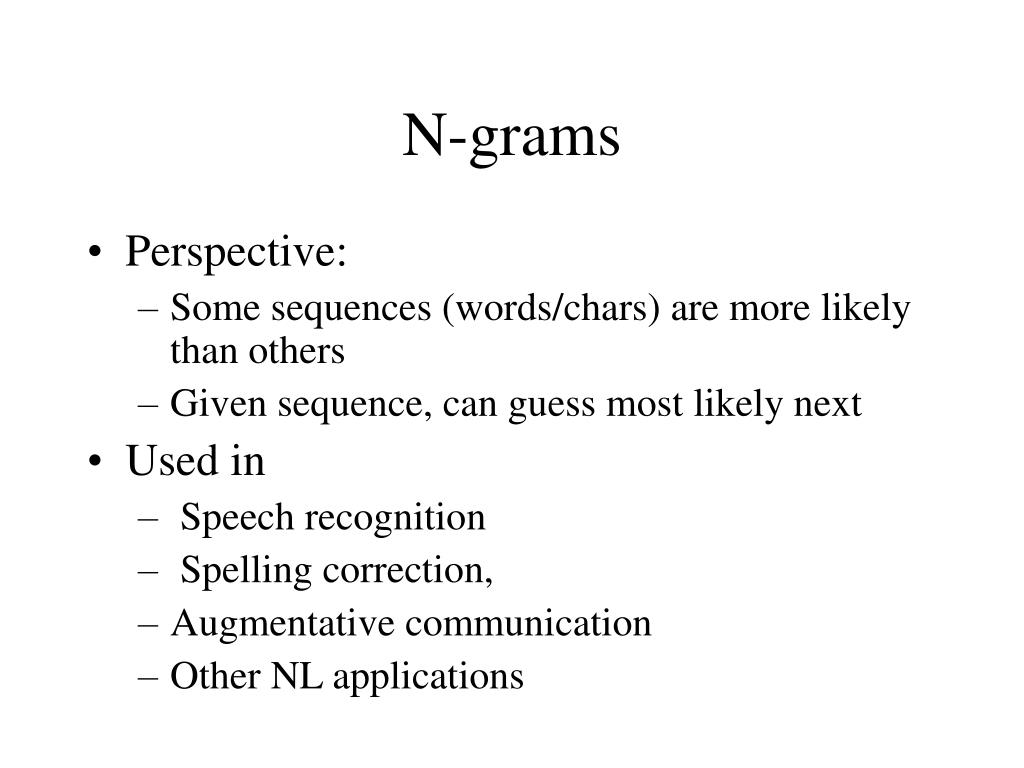

  44. N-grams • Perspective: • Some sequences (words/chars) are more likely than others • Given sequence, can guess most likely next • Used in • Speech recognition • Spelling correction, • Augmentative communication • Other NL applications

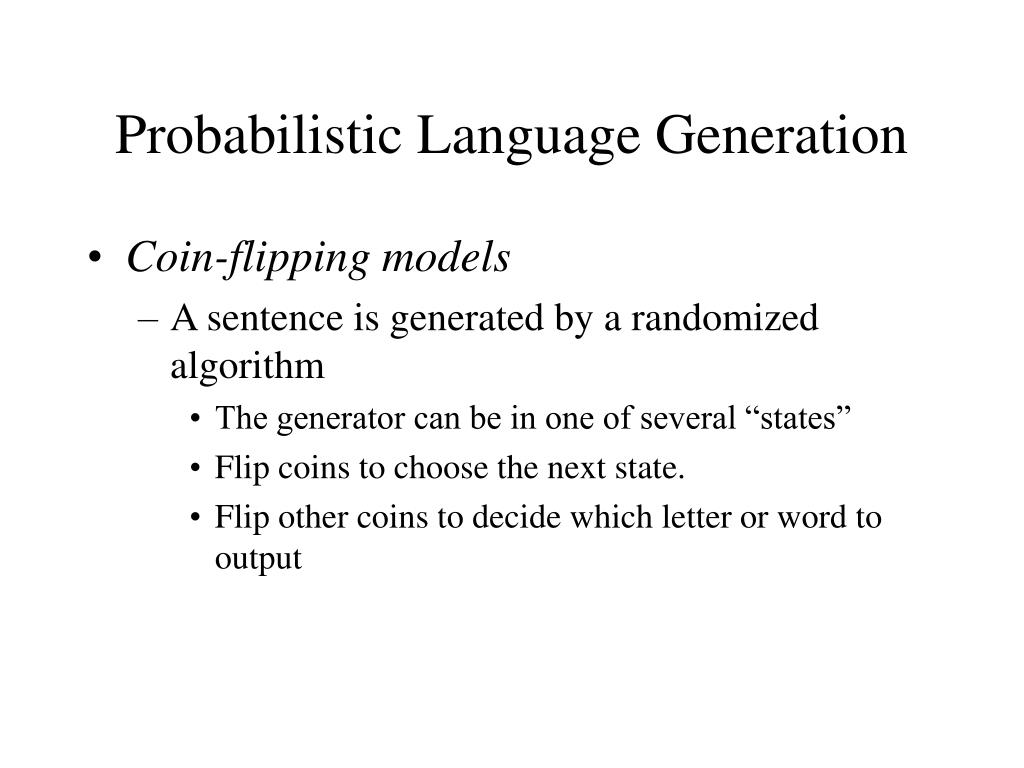

  45. Probabilistic Language Generation • Coin-flipping models • A sentence is generated by a randomized algorithm • The generator can be in one of several “states” • Flip coins to choose the next state. • Flip other coins to decide which letter or word to output

  46. Shannon’s Generated Language • 1. Zero-order approximation: • XFOML RXKXRJFFUJ ZLPWCFWKCYJ FFJEYVKCQSGHYD QPAAMKBZAACIBZLHJQD • 2. First-order approximation: • OCRO HLI RGWR NWIELWIS EU LL NBNESEBYA TH EEI ALHENHTTPA OOBTTVA NAH RBL • 3. Second-order approximation: • ON IE ANTSOUTINYS ARE T INCTORE ST BE S DEAMY ACHIND ILONASIVE TUCOOWE AT TEASONARE FUSO TIZIN ANDY TOBE SEACE CTISBE

  47. Shannon’s Word Models • 1. First-order approximation: • REPRESENTING AND SPEEDILY IS AN GOOD APT OR COME CAN DIFFERENT NATURAL HERE HE THE A IN CAME THE TO OF TO EXPERT GRAY COME TO FURNISHES THE LINE MESSAGE HAD BE THESE • 2. Second-order approximation: • THE HEAD AND IN FRONTAL ATTACK ON AN ENGLISH WRITER THAT THE CHARACTER OF THIS POINT IS THEREFORE ANOTHER METHOD FOR THE LETTERS THAT THE TIME OF WHO EVER TOLD THE PROBLEM FOR AN UNEXPECTED

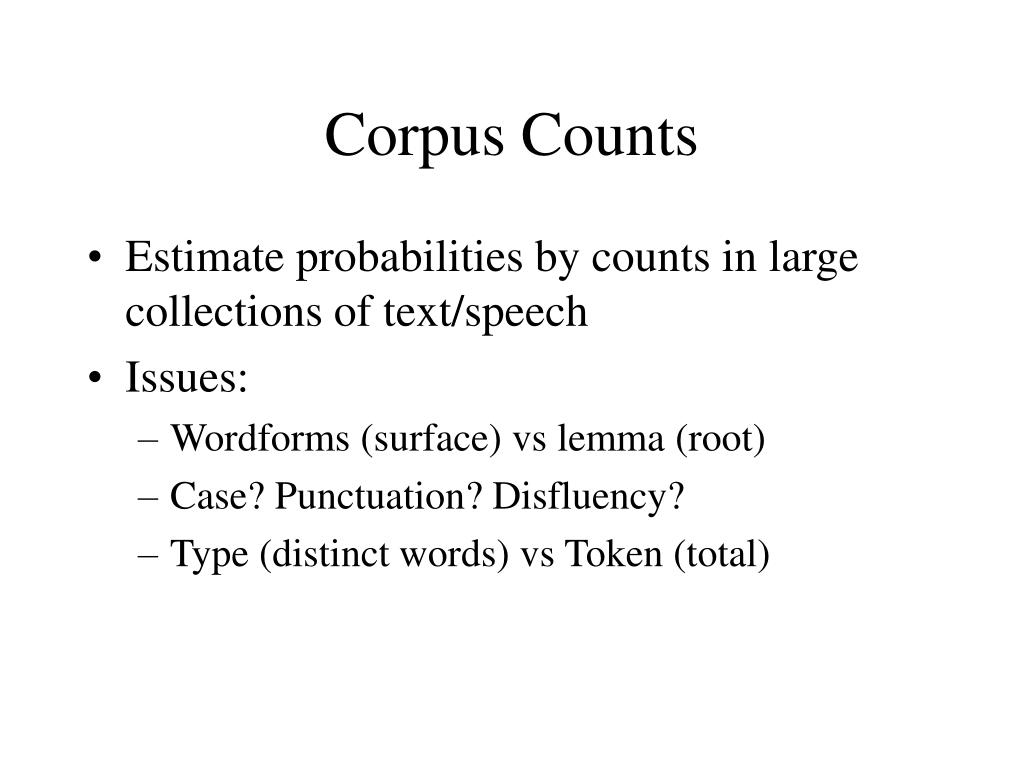

  48. Corpus Counts • Estimate probabilities by counts in large collections of text/speech • Issues: • Wordforms (surface) vs lemma (root) • Case? Punctuation? Disfluency? • Type (distinct words) vs Token (total)

  49. Basic N-grams • Most trivial: 1/#tokens: too simple! • Standard unigram: frequency • # word occurrences/total corpus size • E.g. the=0.07; rabbit = 0.00001 • Too simple: no context! • Conditional probabilities of word sequences
