  1. The New Data Pump Caleb Small Caleb@caleb.com

  2. Next generation Import / Export • New features • Better performance • Improved security • Versatile interfaces

  3. Old Import / Export • Still exists • Installed and enabled by default • Supports features through version 9i • No new releases • Required to import pre-10g dump files • Dump files & scripts are NOT compatible

  4. New Features • Data Sampling & filtering • Object filtering • Estimate file size, max file size, multiple files • Remap datafile, schema, tablespace • Network mode • Point-in-time export • Version conversion • Column data encryption

  5. Better Performance • Complete re-write • Parallel processing • Parallel data streams to multiple files • Runs within the instance • Uses direct path whenever possible • Restartable • Tunable (auto tuning) • Progress monitoring

  6. Improved Security • Server based only – no client side exports! • Based on directory objects within database • Always runs as “oracle” process on behalf of invoking database user.

  7. Versatile Interfaces • Command line • Parameter file • Interactive mode • DBMS_DATAPUMP package • DB console (Enterprise manager) • External table • Scheduled job

  8. Datapump Architecture • Master process • Manages and controls the operation • Worker process(es) • Responsible for data movement • One for each degree of parallelism • Master table • Created in invokers schema at job start • Maintained during job execution • Dropped after successful completion • Used to resume a paused/failed job • Control & status queues

  9. Types of Exports • Table • Schema • Tablespace • Database • Transportable Tablespace (metadata) • INCLUDE / EXCLUDE object filters • QUERY and SAMPLE data filters • CONTENTS = data | metadata | both

  10. Directory Objects • Created as a database object • Requires CREATE_ANY_DIRECTORY privilege • Permissions (read, write) granted on the object to specific user(s) • Not validated – existence, syntax, OS privilege • Accessed as user “oracle” at the OS level • Default DATA_PUMP_DIRmaps to …

  11. Data Access • Direct Path • Chosen automatically whenever possible • Reads/writes data blocks directly • No undo, redo can be turned off • See Utilities Guide for exceptions (eg. active triggers, clustered tables, BFILE column, etc) • External Table • Equivalent to old “conventional path” • Normal SQL and commit processing, slower • NOT the same as the external table driver for SQL

  12. Monitoring Data Pump • STATUS parameter • Detach / re-attach jobs • Stop / start / kill jobs • STATUS command (interactive mode) • Data dictionary views • DBA_DATAPUMP_JOBS • DBA_DATAPUMP_SESSIONS • V$SESSION_LONGOPS • Log File

  13. Interactive Mode • NOT the same as old imp/exp! • Default starts schema mode export • Use command line arguments or par file • “logging” vs “interactive command” mode • Default logging mode logs to terminal • Ctl-C to enter interactive command mode • Job will continue to run even if client disconnects! expdp scott/tiger@fred parfile=myjob.par

  14. Interactive Mode Commands

  15. Export BUFFER COMPRESS CONSISTENT DIRECT RECORD_LENGTH RESUMABLE STATISTICS USERID VOLSIZE Import BUFFER CHARSET COMMIT COMPILE FILESIZE RECORD_LENGTH RESUMABLE STATISTICS Obsolete Parameters Others have changed, see the Utilities Guide!

  16. Data Pump API • Grant execute on DBMS_DATAPUMP and optionally DBMS_METADATA • Exec DBMS_DATAPUMP.OPEN • Define parameters (job type, dump file, etc) • Exec DBMS_DATAPUMP.START_JOB • Optionally monitor, detach, re-attach, stop, start or kill the job • Can be scheduled as a recurring job

  17. External Table (SQL) • Created as a database object (TABLE) • Organization EXTERNAL • Uses ORACLE_DATAPUMP access driver • Can load and unload data • Dumpfile contains row data only • Metadata stored in data dictionary • Not compatible with regular dump file

  18. Network Mode • Works across database link • Import reads tables from remote DB and writes directly to tables in local DB • No dump file created • Directory object still required for logging • Export reads tables from remote DB and writes to dump file on local server

  19. SQL File • Import can generate an SQL file instead of actually performing the import • Contains DDL that would have been executed based on job parameters • Passwords excluded • No change to target DB

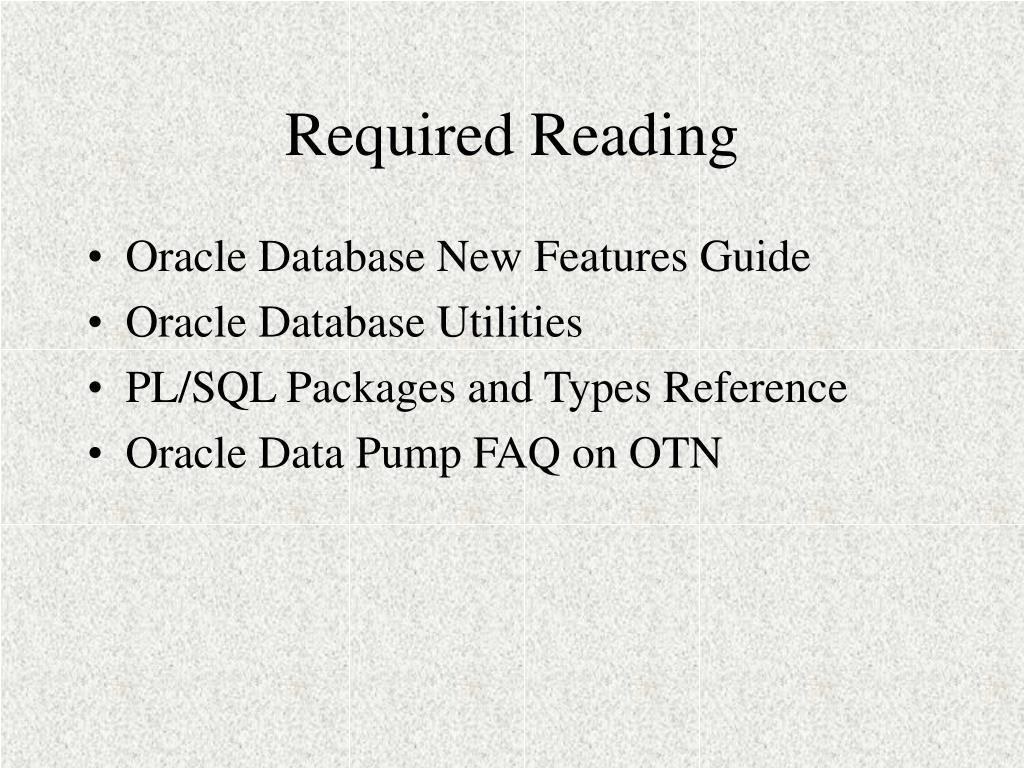

  20. Required Reading • Oracle Database New Features Guide • Oracle Database Utilities • PL/SQL Packages and Types Reference • Oracle Data Pump FAQ on OTN

  21. Demonstration • Directory object basics • Basic Data Pump unload and load • Query / Sample data filtering • Re-attaching and monitoring a big job • The PL/SQL API • SQL File import • External Table access driver www.caleb.com/dba Caleb@caleb.com

  22. Tuning Data Pump • PARALLEL is the only DP specific parameter • Set to 2 times number of CPUs • Will cause increased resource consumption • Memory, CPU, I/O bandwidth • Do not overload these resources! • Individual worker processes can use parallel query • Use multiple dump files to maximize parallelism • Separate files on separate physical devices/channels • Use wildcard in filename eg: dumpfile%u.dmp • Separate device/channel from source tablespace(s)

  23. Tuning Data Pump Instance parameters that may affect performance: • DISK_ASYNCH_IO=TRUE • DB_BLOCK_CHECKING=FALSE • DB_BLOCK_CHECKSUM=FALSE • PROCESSES • SESSIONS • PARALLEL_MAX_SERVERS • SHARED_POOL_SIZE • UNDO_TABLESPACE
