FETOSCOPE

FETOSCOPE. Starting around 20 weeks the fetal heart beat can be heard without doppler amplification (ultrasound) Best heard over the baby’s back uterus will feel firm A special stethescope called a fetoscope may be used. May Be Difficult If…. Mother is overweight

sanjiv
Download Presentation

FETOSCOPE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

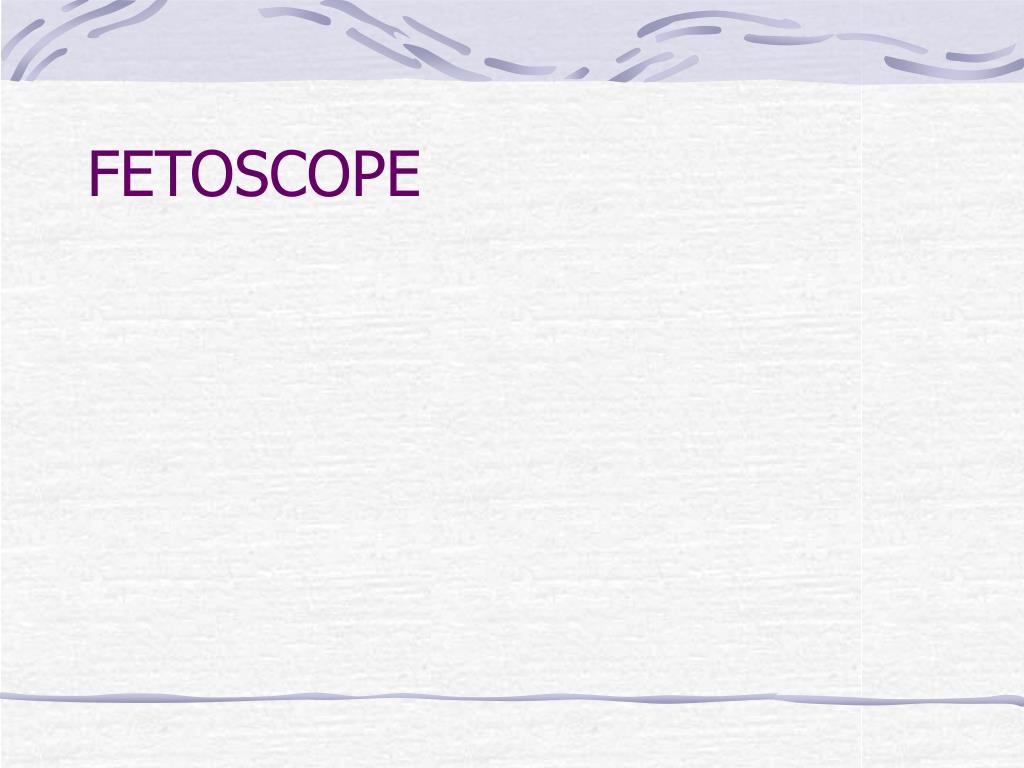

  1. FETOSCOPE

  2. Starting around 20 weeks the fetal heart beat can be heard without doppler amplification (ultrasound) • Best heard over the baby’s back • uterus will feel firm • A special stethescope called a fetoscope may be used

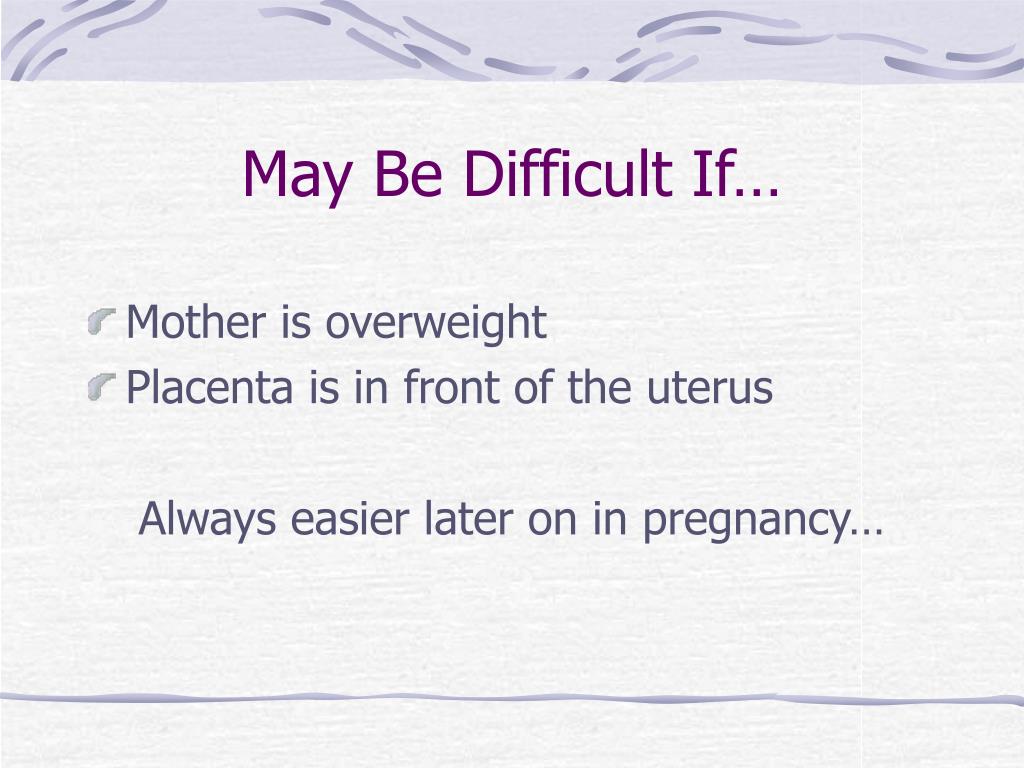

  3. May Be Difficult If… • Mother is overweight • Placenta is in front of the uterus Always easier later on in pregnancy…

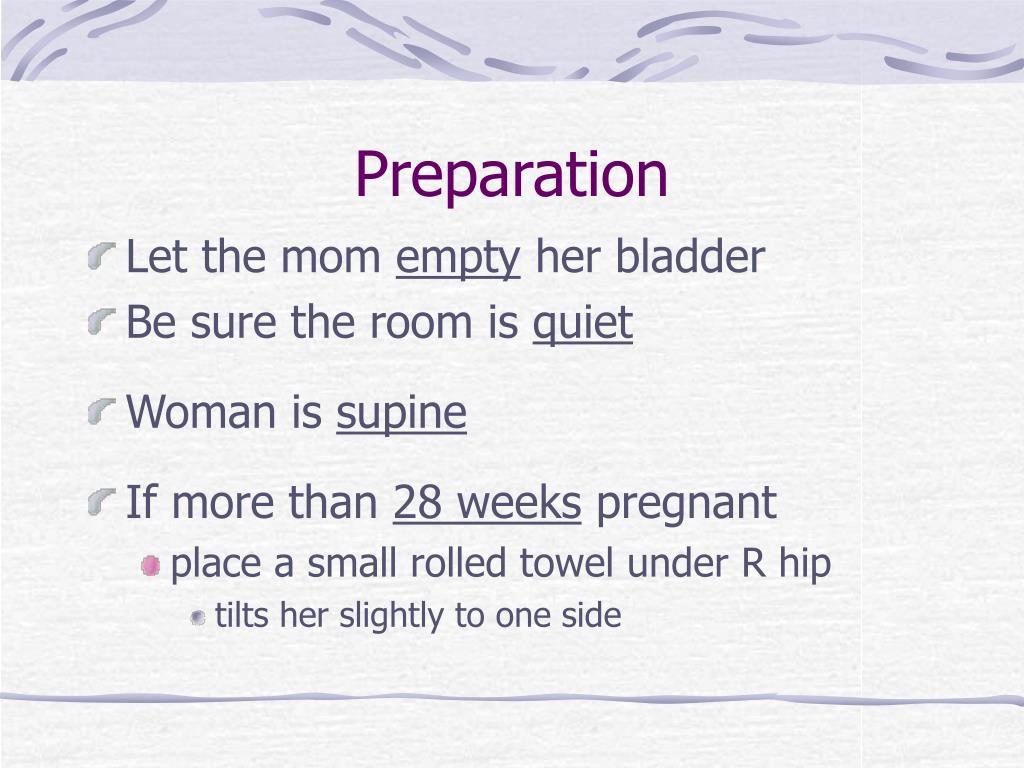

  4. Preparation • Let the mom empty her bladder • Be sure the room is quiet • Woman is supine • If more than 28 weeks pregnant • place a small rolled towel under R hip • tilts her slightly to one side

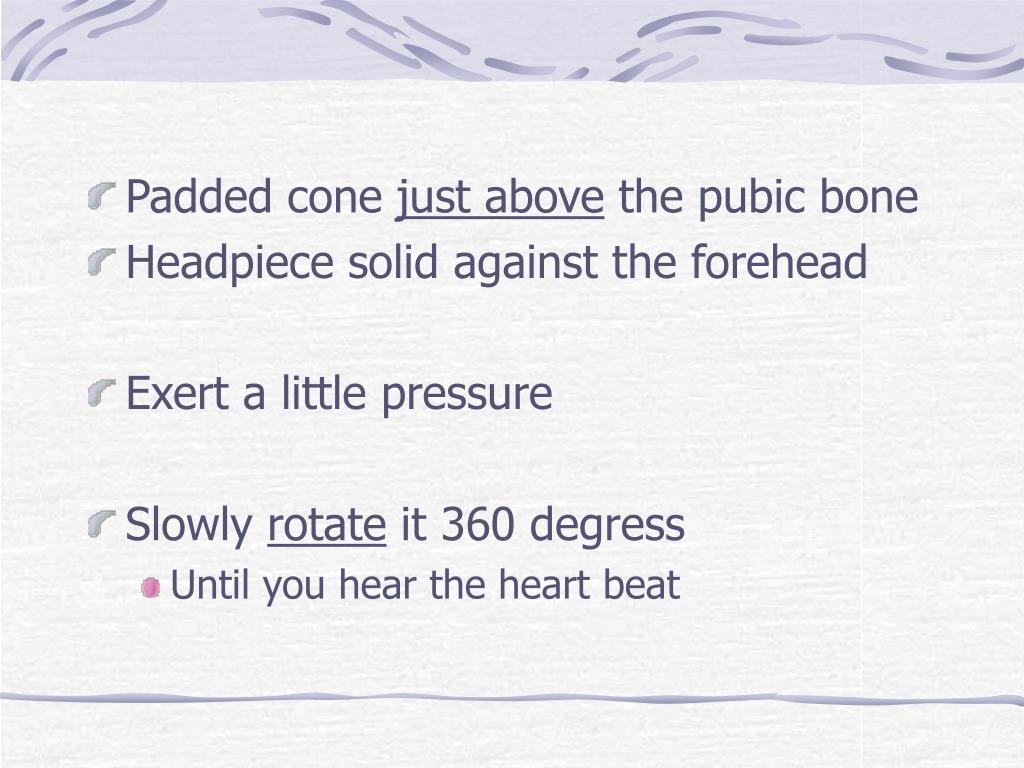

  5. Padded cone just above the pubic bone • Headpiece solid against the forehead • Exert a little pressure • Slowly rotate it 360 degress • Until you hear the heart beat

  6. If nothing is heard… • Move the instrument • 1 cm at a time • up toward the umbilicus • Rotate the instrument at each new position • must be directed at the baby’s heart

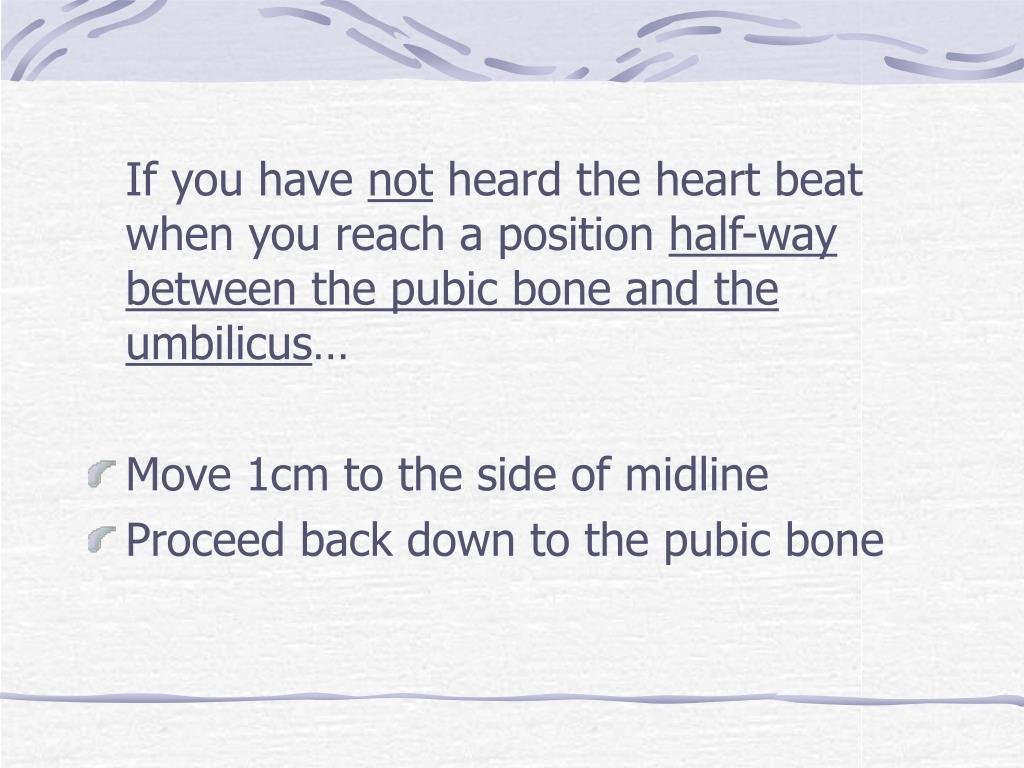

  7. If you have not heard the heart beat when you reach a position half-way between the pubic bone and the umbilicus… • Move 1cm to the side of midline • Proceed back down to the pubic bone

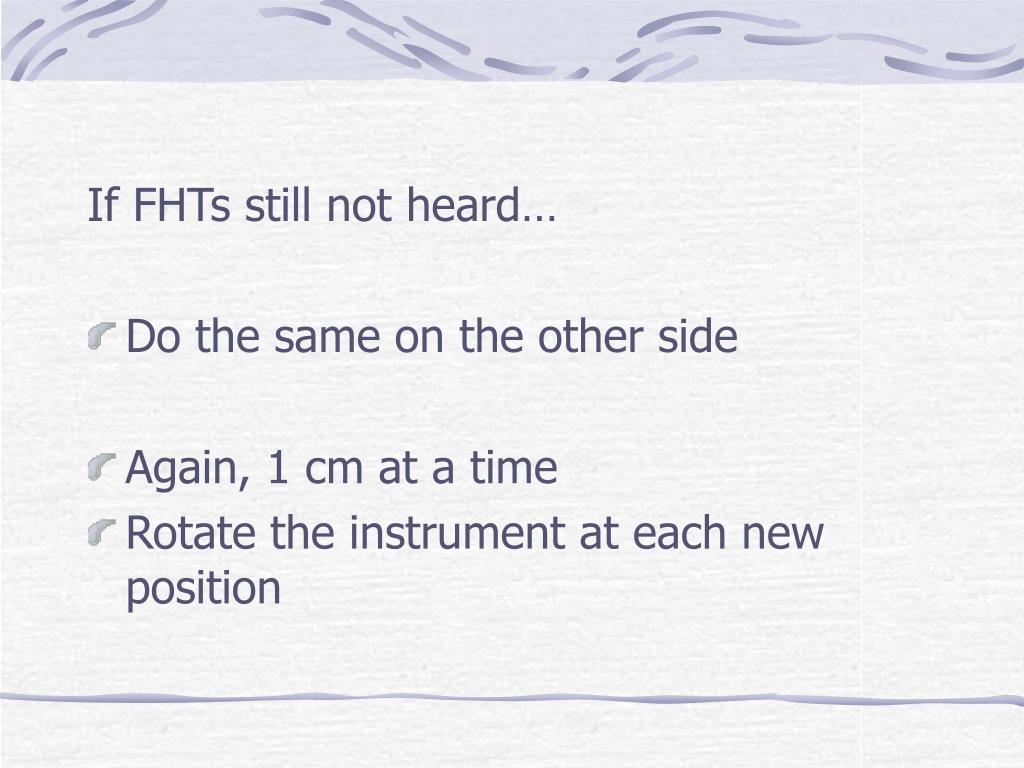

  8. If FHTs still not heard… • Do the same on the other side • Again, 1 cm at a time • Rotate the instrument at each new position

  9. Fetal Heart Rate • Count the FHTs for 15 seconds • Multiply by 4 ( ) x 4 = ___ per minute

  10. Where will you hear the heartbeat? See Figure 17-43

  11. Best heard over the back.
