  1. Chris Foster Brian Moore Scott Thibaudeau

  2. Overview • I/O • EE – Emotion Engine!! • Graphics Synthesizer • Comparison

  3. System Overview RDRAM Graphics Synthesizer Digital RGB Emotion Engine Analog RGB IEEE1394 Digital L/R IO Processor Sound Processor USB (x2) Analog L/R Controller SRAM PCMCIA Interface OS ROM DVD

  4. Controllers • Two controller ports • PS2 Dual Shock 2! • Directional Pad • Force Feedback • 15 buttons • All but Start/Select are ANALOG!

  5. Memory Cards/Ports • 8 Mb storage capacity • Transfer rate 250 times that of PSX memory cards • Incorporates “MagicGate”

  6. DVD/CD-ROM • Supports DVDs, Audio CDs, PSX CDs, PS2 DVDs • 4.7 Proprietary DVD • 4x DVD-ROM • 24x CD-ROM • DVD video playback Built into hardware

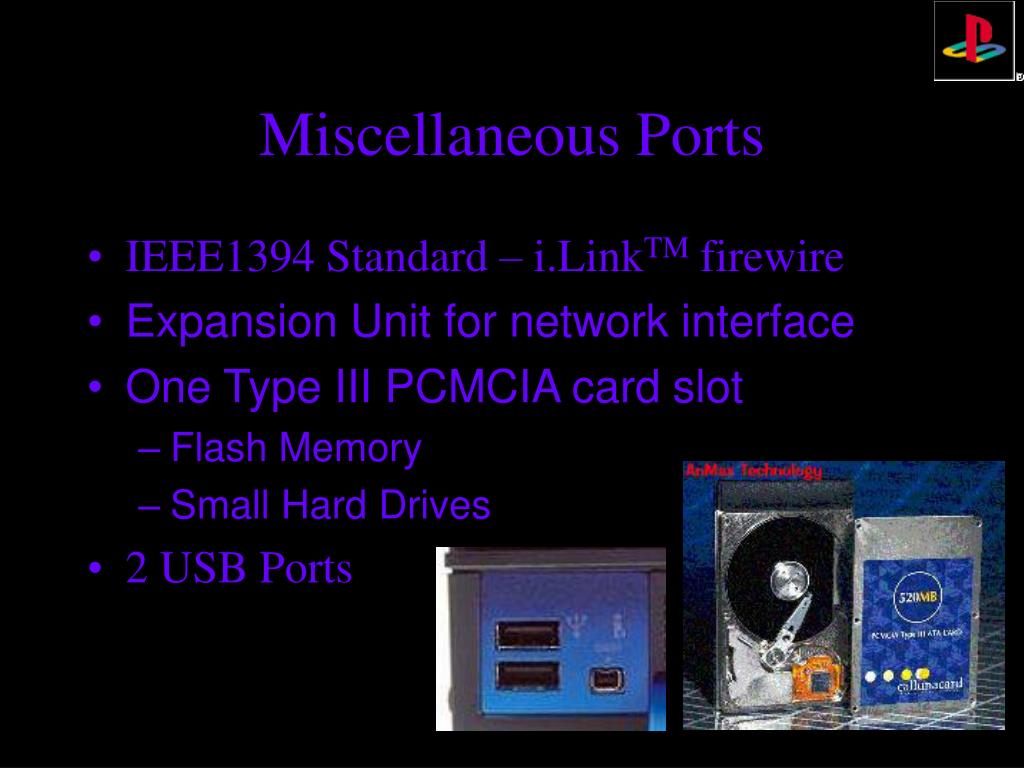

  7. Miscellaneous Ports • IEEE1394 Standard – i.LinkTM firewire • Expansion Unit for network interface • One Type III PCMCIA card slot • Flash Memory • Small Hard Drives • 2 USB Ports

  8. Input/Output Processor • Handles all input and output • PSX Core Processor • 33.8688MHz or 36.864MHz (Selectable) • 2 MB Memory • 32-bit Bus • Interfaces with i.LinkTM, USB, Controller and Memory ports

  9. The Emotion Engine Designed By Toshiba Combination CPU and DSP Processor Simulates Massive 3D worlds

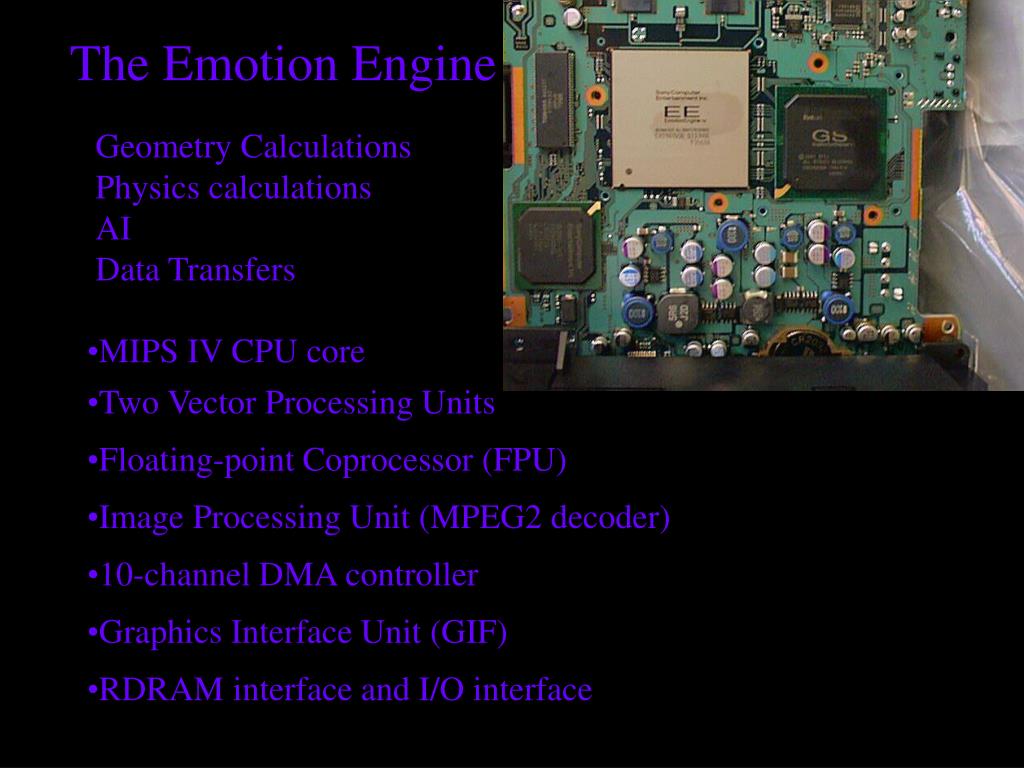

  10. The Emotion Engine Geometry Calculations Physics calculations AI Data Transfers • MIPS IV CPU core • Two Vector Processing Units • Floating-point Coprocessor (FPU) • Image Processing Unit (MPEG2 decoder) • 10-channel DMA controller • Graphics Interface Unit (GIF) • RDRAM interface and I/O interface

  11. Geometry + Perspective Transformation 66 Million Polygons/sec + Lighting 38 Million Polygons/sec + Fog 36 Million Polygons/sec Curved Surface Generation (Bezier) 16Million Polygons/sec Image Processing Unit MPEG2 Macroblock Layer Decoder Image Processing Performance 150Million Pixels/sec

  12. DSP Features Most Important DSP Feature Today: the MAC Vector Calculations: Dot Product Summing of Products x0*x1 + y0*y1 + z0*z1 PS2 has 10 FMACs Itanium Contains Only 4! Each FMAC Computes One 32-bit Floating-point MAC Operation per Clock Cycle

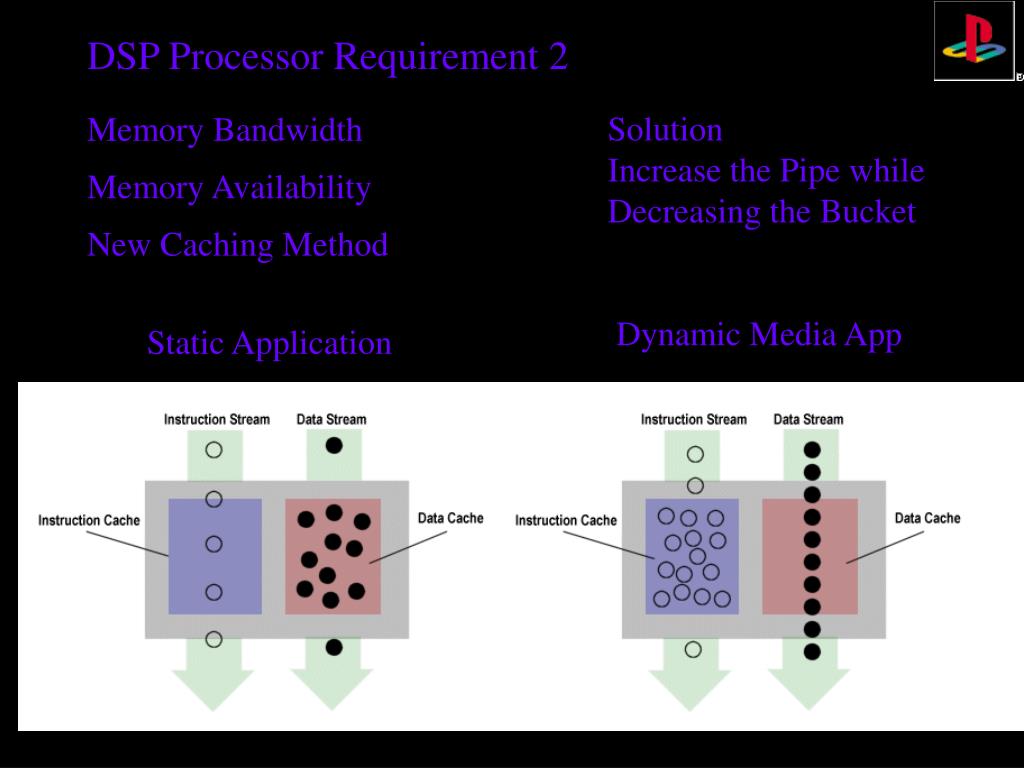

  13. DSP Processor Requirement 2 Memory Bandwidth Memory Availability New Caching Method Solution Increase the Pipe while Decreasing the Bucket Dynamic Media App Static Application

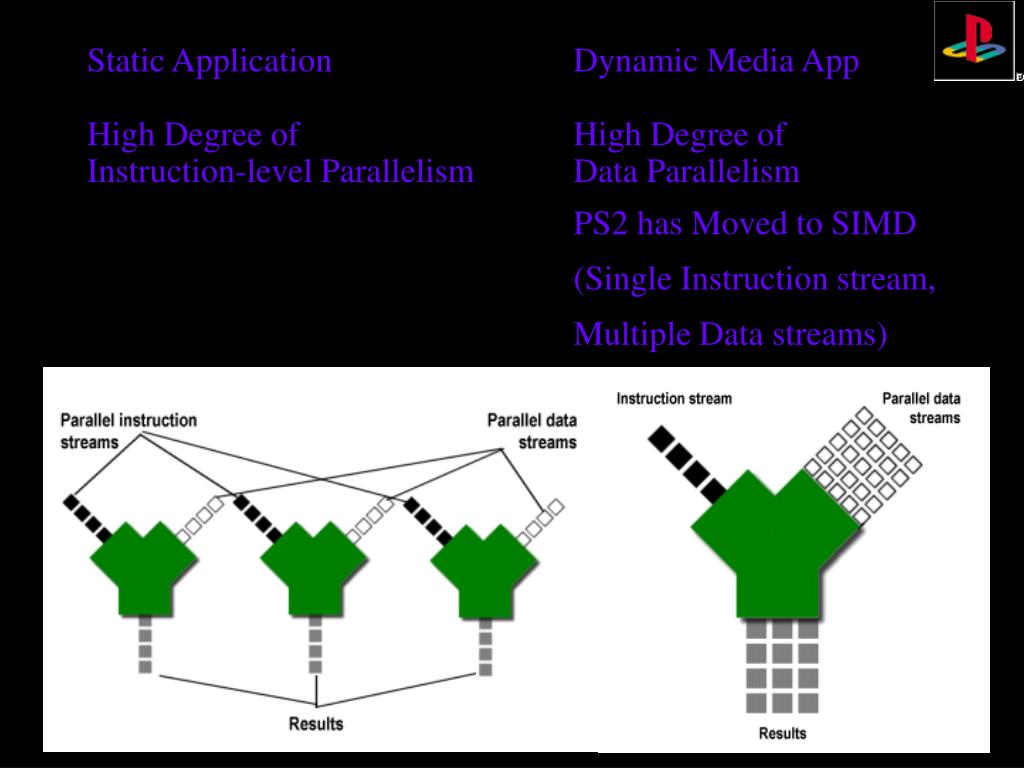

  14. Static Application High Degree of Instruction-level Parallelism Dynamic Media App High Degree of Data Parallelism PS2 has Moved to SIMD (Single Instruction stream, Multiple Data streams)

  15. Caching on the PS2 DMAC Coordinates Transfers on the 128 and 64-bit Data Paths L1 Cache: 16K Ins. 32K Data SPRAM: 16K VU0 Cache: 32K VU1 Cache: 32K PIII has 3X the Amount of Cache as the PS2

  16. Busting Out All Over VU Caches Too Small to Hold Models PS2 Code & Data Constantly Streamed Over Wide Internal Buses Results in 10 Channel DMAC Being Used at Near Capacity

  17. Two Independent Vector Processing Units CPU + FPU: Basic Program Control and Housekeeping CPU + FPU + VU0: Behavior Synthesis and Physics Calculations VU1: Generates Display Lists IPU: Image Decompression FPU and VU0: Coprocessors for CPU Core GS and VU1: Tied Together with GIF

  18. Parallel Connection Both Groups Sending Display Lists to GIF Main Memory VPU1 VPU0 Rendering Engine SPRAM CPU

  19. Serial Connection CPU/FPU/VU0 Acting as a Preprocessor for VU1 VPU0 SPRAM VPU1 CPU Rendering Engine

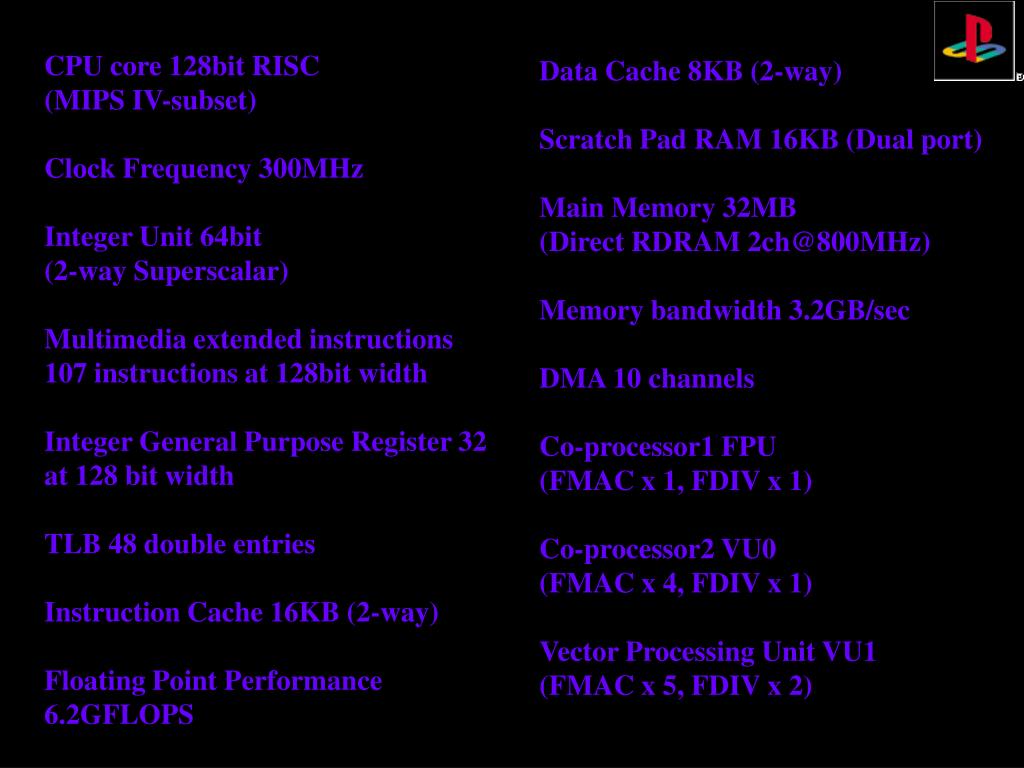

  20. CPU core 128bit RISC (MIPS IV-subset) Clock Frequency 300MHz Integer Unit 64bit (2-way Superscalar) Multimedia extended instructions 107 instructions at 128bit width Integer General Purpose Register 32 at 128 bit width TLB 48 double entries Instruction Cache 16KB (2-way) Floating Point Performance 6.2GFLOPS Data Cache 8KB (2-way) Scratch Pad RAM 16KB (Dual port) Main Memory 32MB (Direct RDRAM 2ch@800MHz) Memory bandwidth 3.2GB/sec DMA 10 channels Co-processor1 FPU (FMAC x 1, FDIV x 1) Co-processor2 VU0 (FMAC x 4, FDIV x 1) Vector Processing Unit VU1 (FMAC x 5, FDIV x 2)

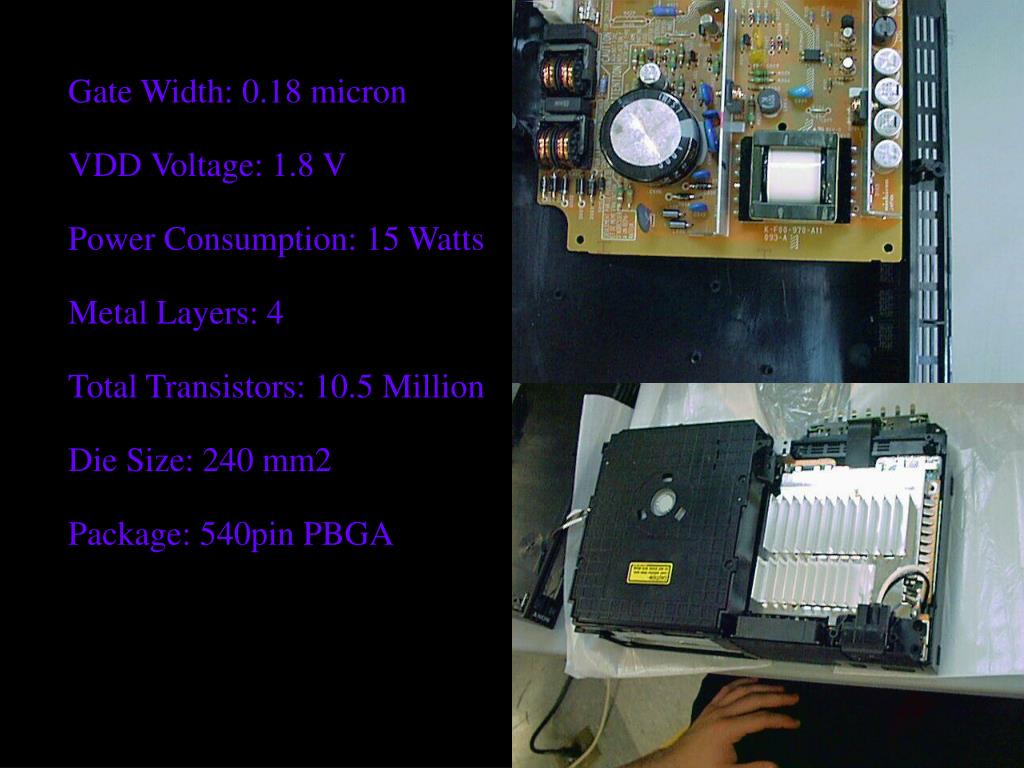

  21. Gate Width: 0.18 micron VDD Voltage: 1.8 V Power Consumption: 15 Watts Metal Layers: 4 Total Transistors: 10.5 Million Die Size: 240 mm2 Package: 540pin PBGA

  22. Sound ProcessorSpecifications At A Glance: • Sound "SPU2+CPU" • Number of Voices ADPCM: 48ch on SPU2 plus definable, software programmable voices (Adaptive Differential Pulse Code Modulation) • Sound Memory 2MB • Output Frequency Variable up to 48 KHz (DAT quality) “Speech processing is important, sir!”

  23. Graphics SynthesizerSpecifications At A Glance: ON DIE MAIN MEMORY! • Clock Frequency 147.456MHz • DRAM Bus bandwidth *Very High Throughput* • Pixel Configuration RGB:Alpha:Z Buffer (24:8:32) • Polygon Drawing Rate 75 Million Polygons Per Second • Screen Resolution Variable from 256x224 to 1280x1024 “With Z-buffering, textures, lighting and alpha blending (transparency), a sustained rate of 20 Million polygons per second can be drawn continuously.” -Ars Technica Redundancy for smoothness/error correction

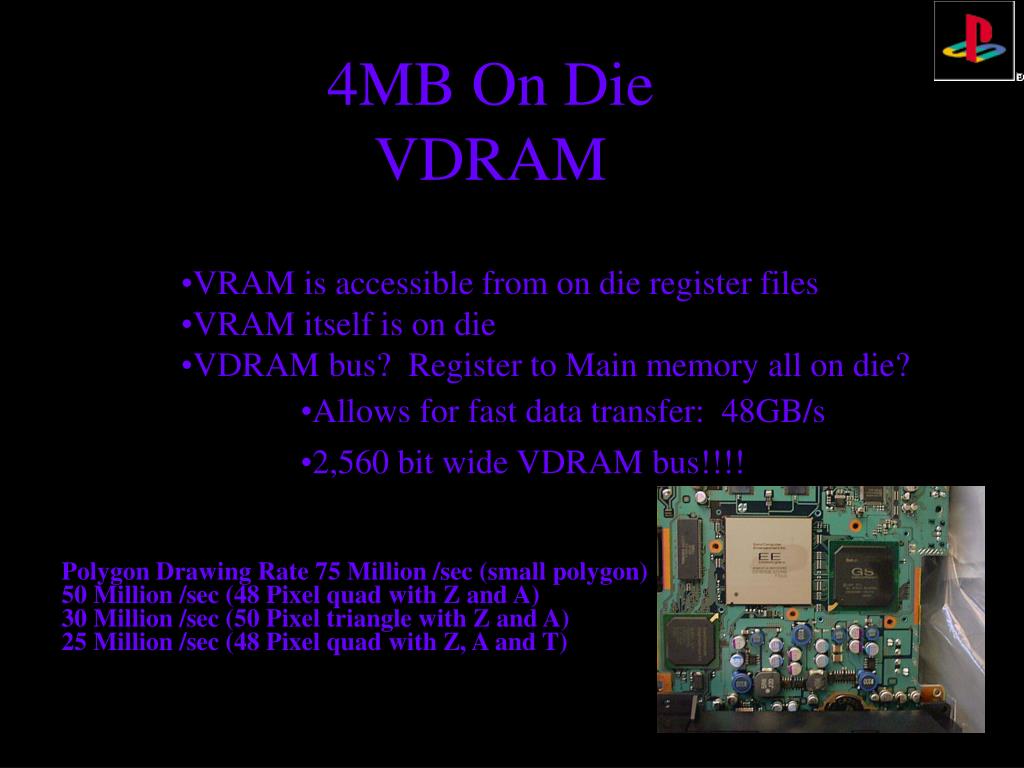

  24. 4MB On Die VDRAM • VRAM is accessible from on die register files • VRAM itself is on die • VDRAM bus? Register to Main memory all on die? • Allows for fast data transfer: 48GB/s • 2,560 bit wide VDRAM bus!!!! Polygon Drawing Rate 75 Million /sec (small polygon) 50 Million /sec (48 Pixel quad with Z and A) 30 Million /sec (50 Pixel triangle with Z and A) 25 Million /sec (48 Pixel quad with Z, A and T)

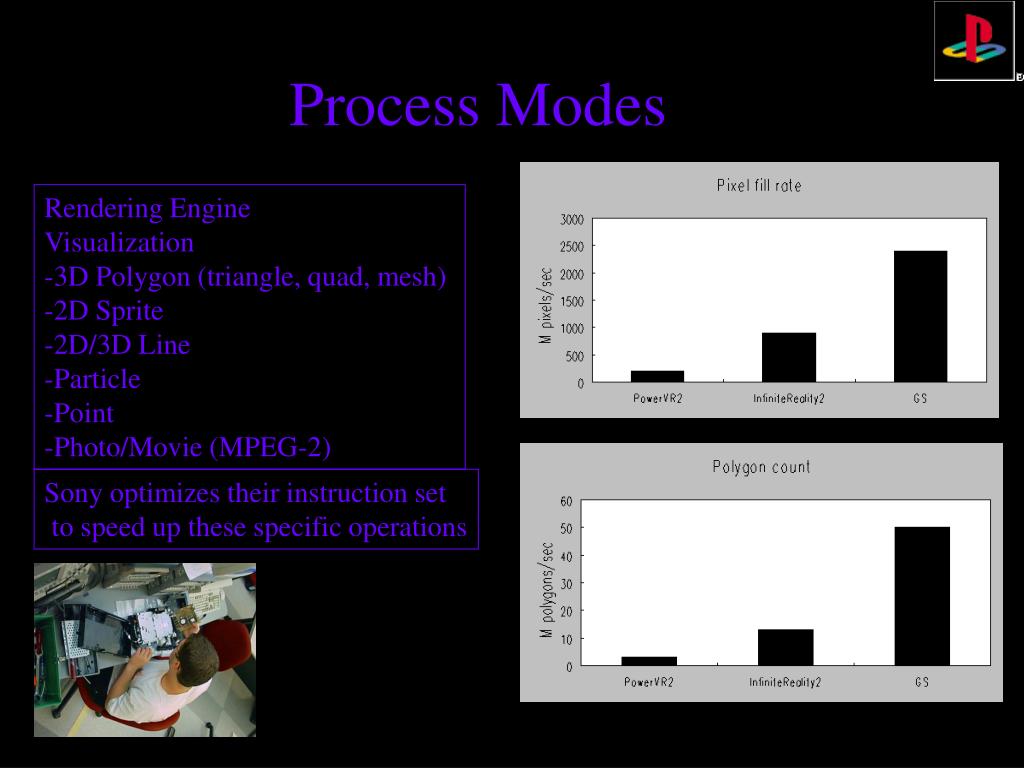

  25. Process Modes Rendering Engine Visualization -3D Polygon (triangle, quad, mesh) -2D Sprite -2D/3D Line -Particle -Point -Photo/Movie (MPEG-2) Sony optimizes their instruction set to speed up these specific operations

  26. Inside the Beast PE PE PE PE PE PE PE PE PE PE PE PE PE PE PE PE • No. of Pixel Engines 16 (in Parallel) • Display output NTSC/PAL • Silicon process technology 0.25 µ 4-level metal • Total number of transistors 43 Million • Die size 279mm2 • Embedded DRAM 4 MB of multi-port DRAM Input: Highly Parallel Pixel Proccess Instructions n=2,560 Output: Geometry Engine

  27. Talking Shop:Pixel Configuration Pixel Configuration:64-Bit (RGB, Alpha, Z-Buffer (24,8,32)24-Bits are used for RGB colors, 8-Bits are used for transparency effects, and 32-Bits are saved for the Z-Buffer which keeps track of everything in the 3D environment.) • Geometry engine: • Alpha channel • Anti-aliasing • Bezier surfacing • Gouraud shading • Mip mapping • Z-buffer

  28. Talking Shop:GEOMETRY ENGINE – Alpha Channel/Aliasing • Alpha Channel/Aliasing: • Alpha channel • Transparency effects are created using • high density dark gray Alpha bits. • Anti-aliasing • Aliasing: The jagged “stair steps” that • occur when images are painted from • pixels in straight lines. • Anti-aliasing: Drawing gray pixels • around the lines of an image, • “blurring” the lines, minimizes • the stair steps and makes • an object appear more realistic.

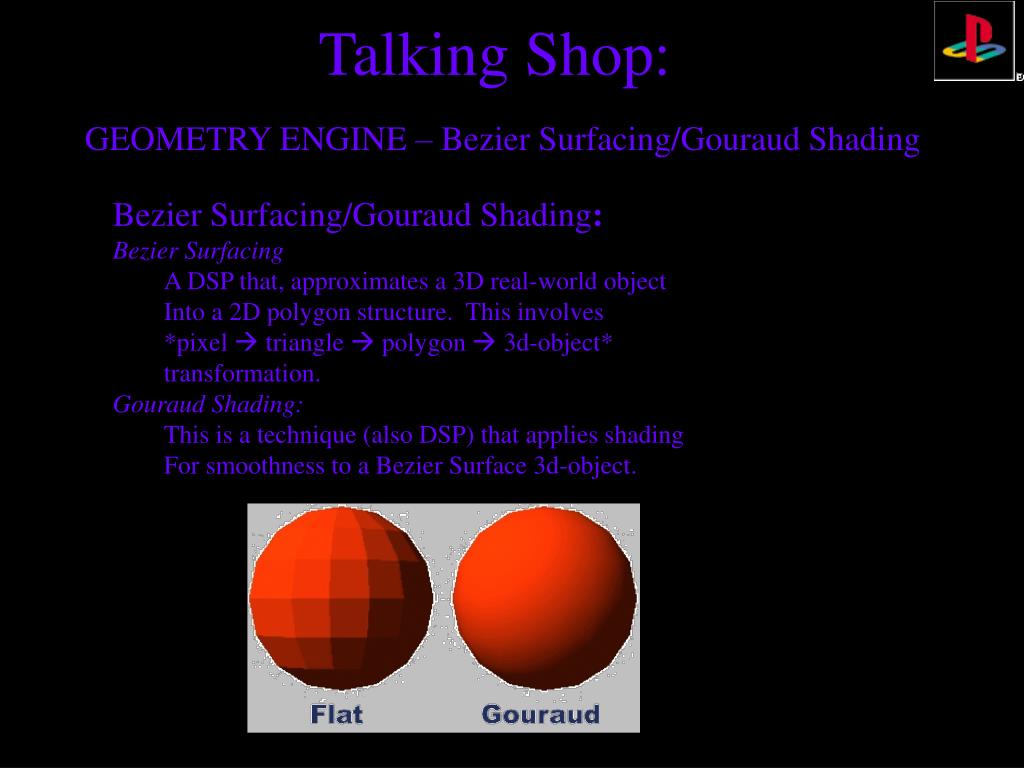

  29. Talking Shop:GEOMETRY ENGINE – Bezier Surfacing/Gouraud Shading • Bezier Surfacing/Gouraud Shading: • Bezier Surfacing • A DSP that, approximates a 3D real-world object • Into a 2D polygon structure. This involves • *pixel  triangle  polygon  3d-object* • transformation. • Gouraud Shading: • This is a technique (also DSP) that applies shading • For smoothness to a Bezier Surface 3d-object.

  30. Talking Shop:GEOMETRY ENGINE – Mip Mapping Mip Mapping: When it doesn’t look the same up close as it does from far away, you’re using MIP Mapping!

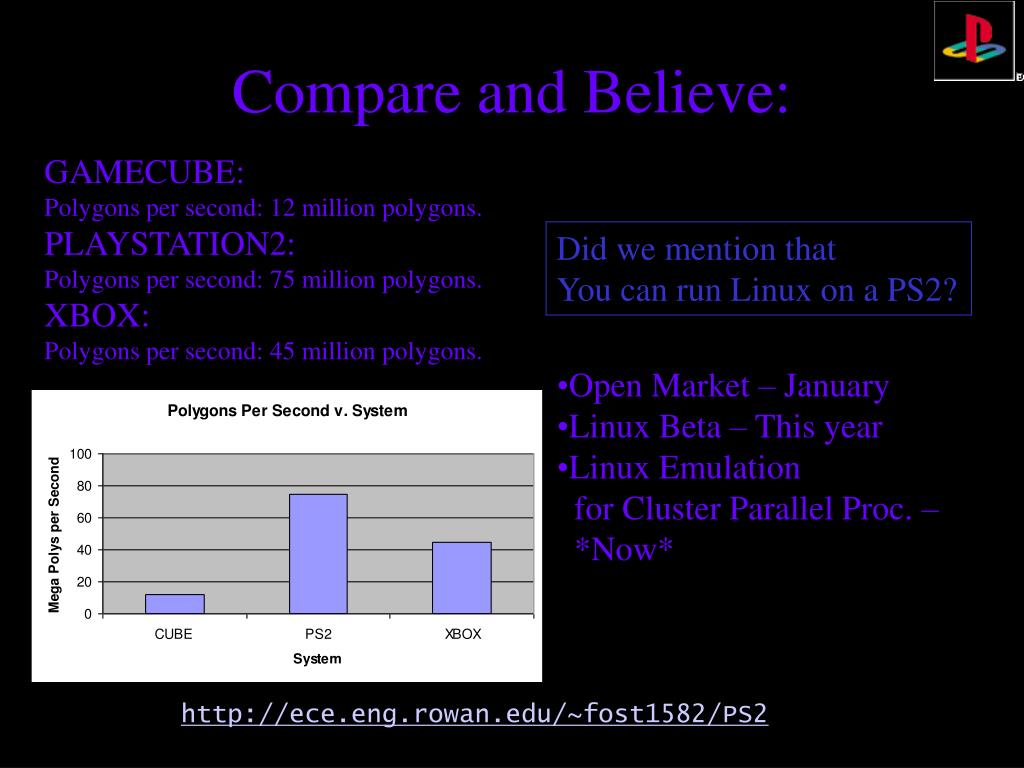

  31. Compare and Believe: GAMECUBE: Polygons per second: 12 million polygons. PLAYSTATION2: Polygons per second: 75 million polygons. XBOX: Polygons per second: 45 million polygons. Did we mention that You can run Linux on a PS2? • Open Market – January • Linux Beta – This year • Linux Emulation • for Cluster Parallel Proc. – • *Now* http://ece.eng.rowan.edu/~fost1582/PS2
