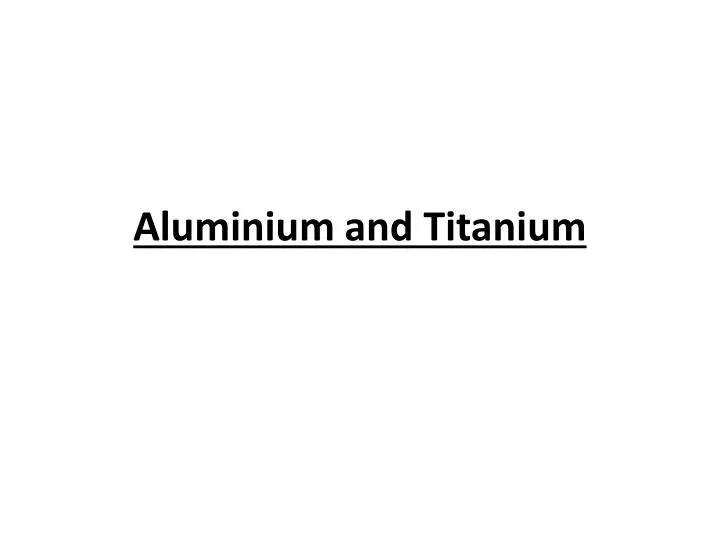

  1. Aluminium and Titanium

  2. Learning Objectives • To be able to recall properties and uses of aluminium and titanium • To be able to describe the process of aluminium extraction • To be able to explain why the extraction of aluminium and titanium are so expensive

  3. Starter Activity – Key Word Bingo Reduction Reactivity Series Ore Electrolysis Carbon Hydrogen Native State Haematite Bauxite Alloy Blast Furnace Steel

  4. Al2O3– Bauxite (Aluminium oxide) • What is the chemical name for Bauxite? • How many elements are in Bauxite- name them? • How many atoms in Bauxite? • How is Bauxite bonded? (Ionic, Covalent or Metallic) • What do we call compounds such as Bauxite, where there is a decent amount of the metal to make it worth extracting? 5 minutes

  5. Extraction of Aluminium • We extract aluminium using electrolysis as it is more reactive than carbon • An electric current is passed through MOLTEN aluminium oxide at high temperatures to break it down • Electrolysis is very expensive • High temperatures are required so a great deal of electricity is required • Environmental issues arise due to the amount of energy required • Referring to the reactivity series, how do we extract aluminium?

  6. Extraction of Titanium • We can displace it from its oxide using carbon, it reacts with titanium making it very brittle • Therefore we use a more reactive metal for extraction, Sodium or Magnesium • However sodium and magnesium have to be extracted using electrolysis • Before titanium displacement can occur, titanium oxide is converted to titanium chloride • Chloride is distilled to purify it, then titanium can be displaced using sodium or magnesium • This is a very costly process due to all the steps Titanium is not a very reactive metal, how do you think we extract this?

  7. http://www.youtube.com/watch?v=RX14rA-tylo&list=PLD2C43638C526D33F&index=6http://www.youtube.com/watch?v=RX14rA-tylo&list=PLD2C43638C526D33F&index=6 Video Highest recycling potential of all recyclable materials 1kg of recycled Aluminium saves 8kg of bauxite, 4kg chemical products, 14 kilowatt-hours electricity Recycling 1 aluminium can will run a TV for 3 hours Recycling rate of 90% Watch the video and write down key data relating to the recycling of aluminium

  8. Activity • Complete ‘Uses and Properties’ Worksheet • Produce a PERSUASIVE poster encouraging people to recycle aluminium EXTENSION Question 5 set Exam Questions (You may need a textbook)

  9. Plenary Sort into Aluminium and Titanium Bicycles Racing Bikes Replacement Joints Drinks Cans Saucepans Jet Engines Aeroplanes Cooking Foil High Performance Aircrafts Nuclear Reactors
