  1. CYCLES OF MATTER • The Water Cycle • Nutrient Cycles • The Carbon Cycle • The Nitrogen Cycle • The Phosphorus

  2. The Water Cycle

  3. + + H H o - Water Chemical Properties • Two atoms of hydrogen • One atom of oxygen

  4. Evaporation

  5. Evaporation • The process by which water changes from liquid form to an atmospheric gas

  6. Transpiration

  7. Transpiration • The process by which water enters the atmosphere by evaporating from leaves

  8. Condensation

  9. Condensation • Heat from the sun changes water into water vapor • Water vapor produces droplets of water that form clouds

  10. Precipitation

  11. Precipitation • Results when the water droplets are large enough and the water returns to Earth’s surface • The form may consist of rain, snow, sleet, or hail

  12. Rain or snow falls from clouds

  13. Condensation The movement through plants The Clouds form Transpiration Precipitation The rain falls Evaporation The vapor rises

  14. Water Cycle Song(to the tune of “She’ll Be Coming Around the Mountain”) Water travels in a cycle, yes it does. Use pointer finger to draw large circle in air. Water travels in a cycle, yes it does. Repeat above motion. It goes up as evaporation, Raise arms at side with palms up. Forms clouds as condensation, Brings hands together above head, forming large cloud shape with arms. Then falls down as precipitation, yes it does. Slowly lower arms at side with palms down, fingers moving.

  15. The Carbon Cycle

  16. Carbon Cycle

  17. Importance of Carbon • Found in all living organisms • Found in the oceans, air, and certain types of rocks • Less than 1 % circulates within the biosphere

  18. Four Process of the Carbon Cycle • Photosynthesis and Cellular Respiration; decomposition of plants and animals • Release of CO2 into the atmosphere by volcanoes • Burial of carbon rich remains of organisms, their conversion into coal and petroleum (fossil fuels) through the pressure of overlying earth • Human Activity: mining, burning of fossil fuels, cutting and burning down of forests

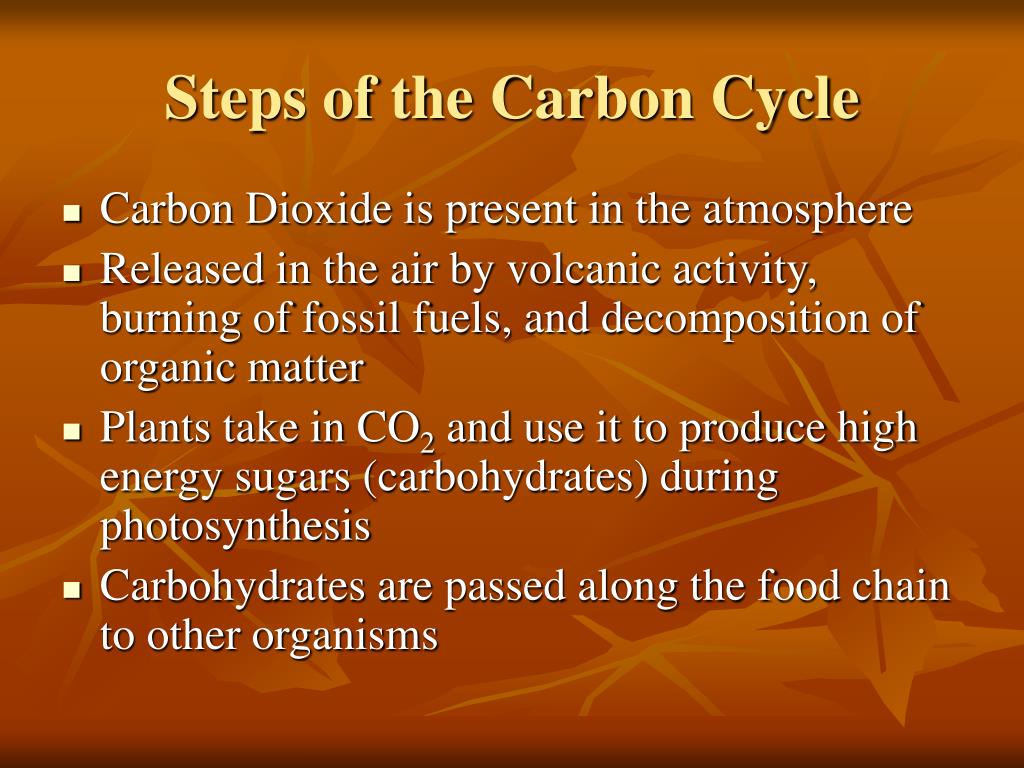

  19. Steps of the Carbon Cycle • Carbon Dioxide is present in the atmosphere • Released in the air by volcanic activity, burning of fossil fuels, and decomposition of organic matter • Plants take in CO2 and use it to produce high energy sugars (carbohydrates) during photosynthesis • Carbohydrates are passed along the food chain to other organisms

  20. Steps of the Carbon Cycle • Carbon is found in the oceans, along with calcium and oxygen, in calcium carbonate (CaCO3), which is produced by many marine organisms • Calcium carbonate can also be formed chemically in certain marine environments; it accumulates in marine sediments and in the bones and shells of organisms • They eventually breakdown and the carbon returns to the atmosphere

  21. References • Missouri Science Teaching and Education Partnerships • Prentice Hall Biology by Miller and Levine

  22. Phosphorus Cycle

  23. Component Input to soil Loss from soil Atmospheric deposition Crop harvest Animal manures and biosolids Mineral fertilizers The Phosphorus Cycle Plant residues Runoff and erosion Primary minerals (apatite) • Organic phosphorus • Microbial • Plant residue • Humus Mineral surfaces (clays, Fe and Al oxides, carbonates) Plant uptake Weathering Adsorption Immobilization Mineralization Desorption • Soil solution • phosphorus • HPO4-2 • H2PO4-1 Secondary compounds (CaP, FeP, MnP, AlP) Dissolution Leaching (usually minor) Precipitation

  24. Phosphorus Cycle

  25. Importance of Phosphorus • Components of nucleic acids (DNA and RNA); life sustaining molecules • Part of biological membranes • Absorbed by plants from the soil or water and bind the phosphate into organic compounds

  26. Phosphorus Facts • Not common in the biosphere • Remains mostly on land in rock and soil minerals, and in ocean sediments • Exists in the form of inorganic phosphates • Released by the breakdown of rocks and sediments • Some is washed into rivers and streams, where it dissolves

  27. Eventually ends up in oceans where it is used by marine organisms • Some phosphates stay on land and cycle between organisms and the soil • Organic phosphates move through the food web, from producers to consumers, and to the rest of the ecosystem

  28. Graphic courtesy of www.cst.cmich.edu/centers/mwrc/ phosphorus%20cycle.htm

  29. The Nitrogen Cycle

  30. Importance of Nitrogen • All organisms need nitrogen to make amino acids, the building blocks of proteins • Several different forms of nitrogen occur naturally in the atmosphere • Nitrogen gas (N2) makes up about 78% of the Earth’s atmosphere • Nitrogen-containing substances are found in wastes produced by many organisms as well as dead or decaying ones; examples are ammonia (NH3), nitrate ions (NO3), and nitrite ions (NO2)

  31. Importance of Nitrogen • Nitrogen also exists in different forms in the oceans and other large bodies of water • Human activity adds nitrogen to the biosphere in the form of nitrate (a major component of plant fertilizers)

  32. Steps of the Nitrogen Cycle • Only certain types of bacteria can use the form of nitrogen gas • Bacteria that live in the soil, on the roots of plants called legumes, can convert nitrogen gas into ammonia (NH3): process is called nitrogen fixation • Other bacteria convert ammonia into nitrates and nitrites

  33. Steps of the Nitrogen Cycle • Once nitrates and nitrites are available, producers use them to make their own proteins • Upon death, decomposers return the nitrogen back to the soil as ammonia • The ammonia is taken back up by the producers • Other bacteria convert the nitrates back into nitrogen gas: process is called denitrification • Denitrification releases nitrogen back into the atmosphere
