  1. FANCOILS CONTROLSELECTRONIC BOARD - KCMS CMS - KCMS/PCM CMSPCMNEW WIRED CONTROL PANEL- KPCM

  2. FUNCTIONS

  3. CONTROLLI CONTROLLI IDROWALL FREND KICM KTCM KPCM NEW YARDYEV IDROWALL FREND BRIOEV UTNC-EV BRIOEV UTNC-EV UTNB UTNA

  4. CONTROLS CMS KCMS CMSPCM KCMS/PCM KICM KPCM KTCM RI-KRI STIKSTI MVRKMVR

  5. CONTROLS New codes for electrical board and panel CMSPCM KCMS/PCM CMS KCMS KPCM

  6. New electronic board KCMS CMS • SCR ECO digital input don’t change, SIC EIR change their position • New digital input DI5 (not available for Frend and Idrowall) for new function: • OCCUPANCY function (NC) only for KICM panel, (by modifying board parameters (P45=8;P93=3) trough installer password on the KPCM control panel) NEW OLD mario

  7. NEW NEW New electronic board KCMS CMS • New digital output CCH CCA OLD OLD

  8. FUNCTIONS SETTING FUNCTIONS COMFORT FUNCTIONS

  9. FUNCTIONS KICM KPCM KTCM • NOVELTY • Full AUTO: the desired temperature is showed on the display. The unit, according to the room temperature and the setting temperature, sets the working mode (cool/heat). User set temperature Legend mode room temperature HEAT OFF COOL P02=2°C P03=2°C P04=0,5°C P04=0,5°C

  10. FUNCTIONS KICM KPCM KTCM • ATTENTION • The following functions aren’t available with KICM control panel: • Orienting/swing - Clock - Timer - Continuous ventilation (by key) – Keybord stop • Probe IN/OUT function is available for: • KICM trough DIP SWITCH (DIP6) setting • KPCM trough key on the panel • Not used with the remote control KTCM (the probe is always set in the unit) • The periodic ventilation is always disabled with KPCM and KICM with Probe In function activated (probe into the unit) • Confort control (by modifying board parameters P36=1 trough installer password on the KPCM control panel).

  11. COMFORT CONTROL FUNCTION Comfort control (by parameters) When the set-point is decided by a system manager (supervision), the Comfort Control function gives the possibility to increase or reduce the Set-point (+-3°C) in the room with the UP-DOWN bottoms. (The function have to be enable modifying board parameters P36=1 trough installer password on the KPCM control panel.) The set value is 22 °C 22°C User set temperature Legend mode room temperature HEAT OFF COOL P02=2°C P03=2°C P04=0,5°C P04=0,5°C

  12. LOCK FUNCTION FUNCTION Attention: to obtain the changing set-point ±3°C must be set the Confort Control Function

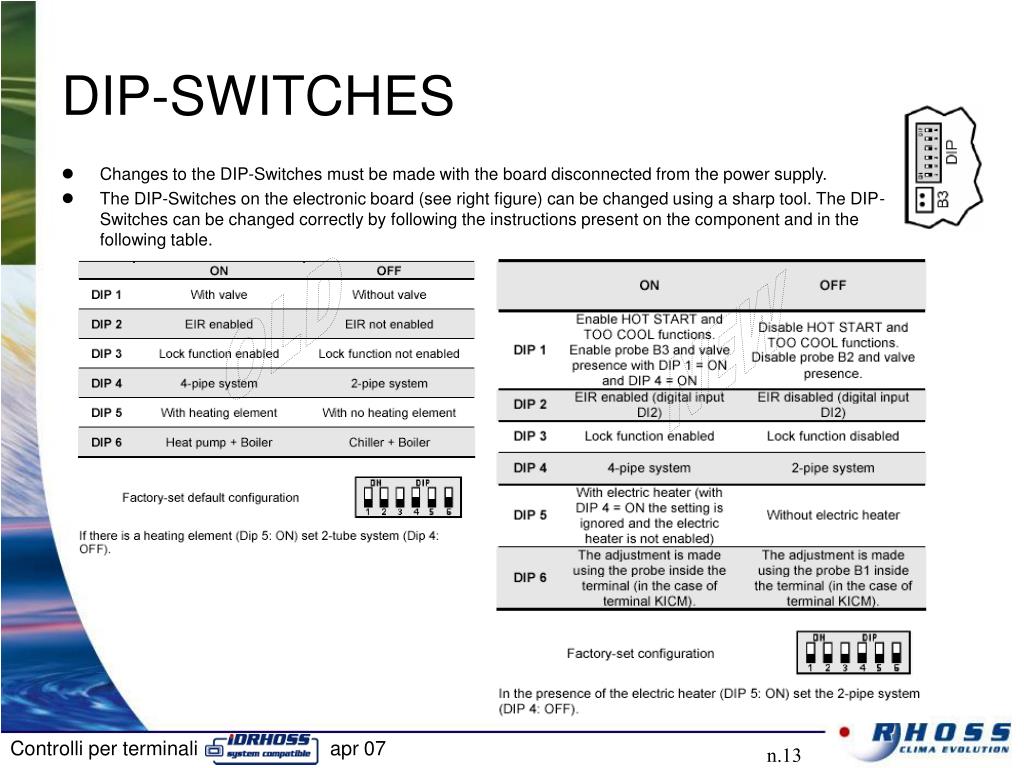

  13. DIP-SWITCHES • Changes to the DIP-Switches must be made with the board disconnected from the power supply. • The DIP-Switches on the electronic board (see right figure) can be changed using a sharp tool. The DIP-Switches can be changed correctly by following the instructions present on the component and in the following table. OLD NEW

  14. DIGITAL OUTPUT: FUNCTION CCH Chiller input, chilled water required from the thermostat (NO) CCH –Chiller input

  15. DIGITAL OUTPUT: FUNCTION CCA Boiler input, hot water required from the thermostat (NO) CCA – Boiler input
