  1. Seeing Things Viewing Images in Plane Mirrors

  2. When we look in the mirror, we see an image of the object.

  3. In the previous slide show, you saw that the image appears to be the same distance behind the mirror as the object is in front of it. You also saw that a line connecting the object and image intersects the mirror at 90 °.

  4. The image appears to be behind the mirror. But the light rays cannot come through the mirror since mirrors are opaque.

  5. Question 2)How can the light rays appear to go through an opaque mirror?

  6. Get this graphic from your notes .

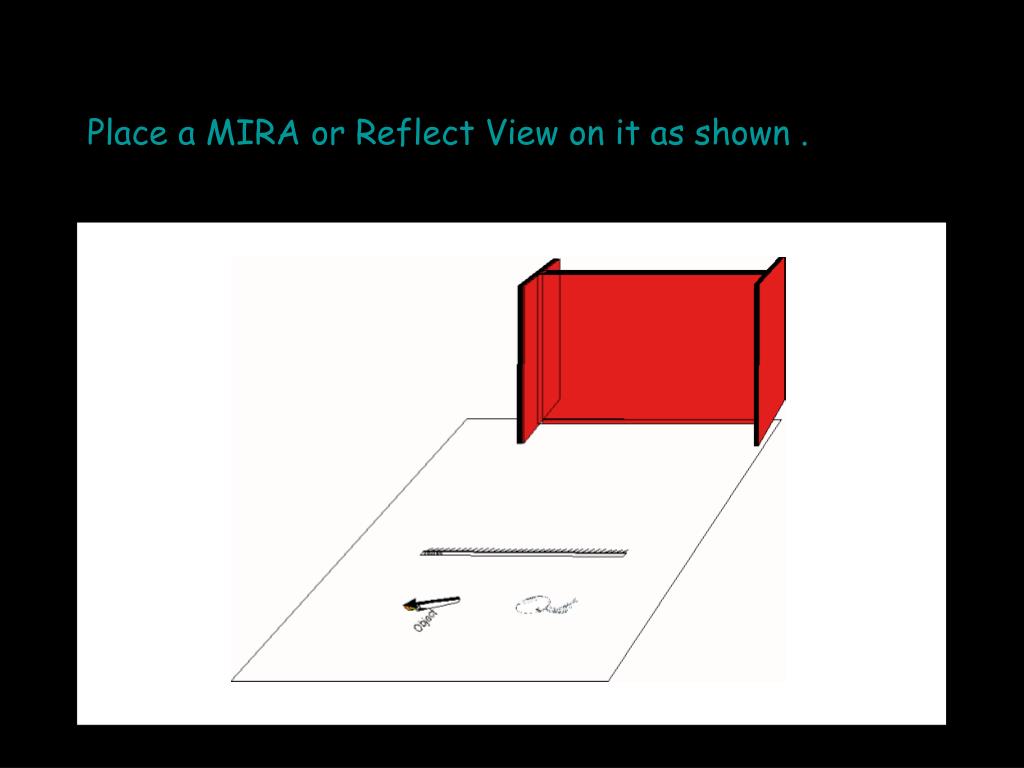

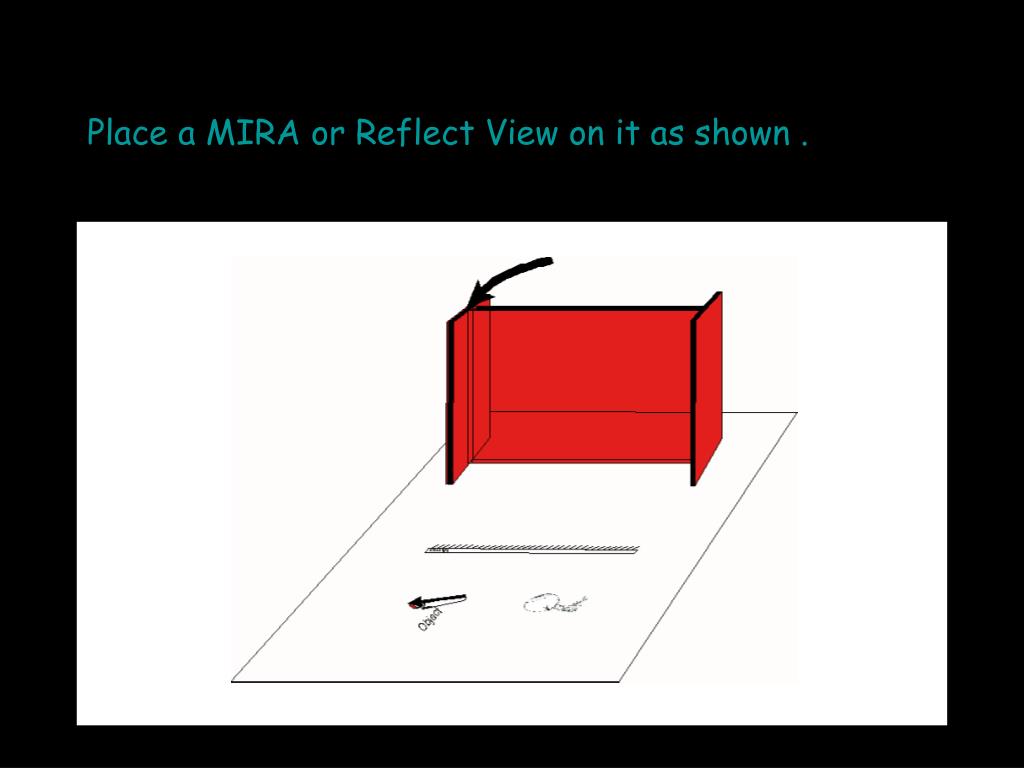

  7. Place a MIRA or Reflect View on it as shown .

  8. Place a MIRA or Reflect View on it as shown .

  9. Place a MIRA or Reflect View on it as shown .

  10. Notice that you can see an image in the “mirror”. If you look over the top, there is no image behind the mirror. The light rays must come from the object and reflect off the mirror . How do they do this?

  11. On the graphic in your notes, the back of the mirror is identified by diagonal lines. This is where light is reflected on glass mirrors.

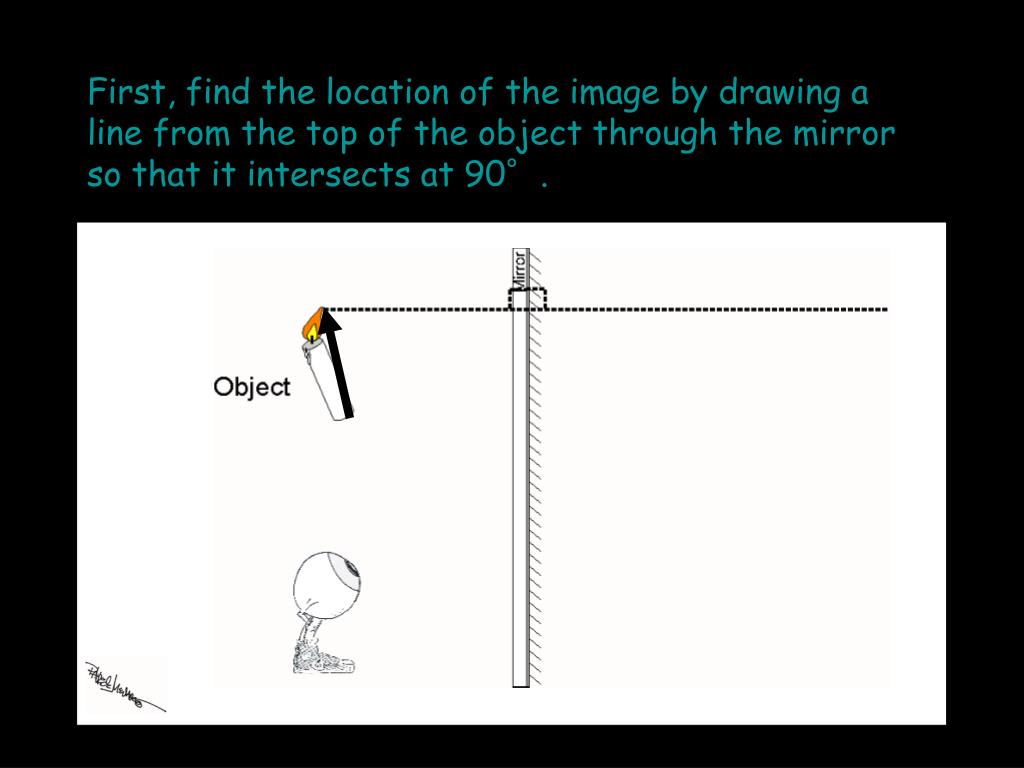

  12. First, find the location of the image by drawing a line from the top of the object through the mirror so that it intersects at 90°.

  13. Measure the distance from the top of the object to the mirror (dO).

  14. Copy this distance (dOtop) to the other side of the mirror. It becomes (dItop).

  15. Repeat this process for the bottom of the object.

  16. These two points give the location of the top and bottom of the image. For any point dO = dI.

  17. To make the diagram less cluttered, I’ve removed the unneeded part of the dotted line

  18. Rays of light must be entering the eye as if they had come straight from the image. That is the way the eye sees things.

  19. The line is dotted behind the mirror because light rays cannot go through an opaque mirror. They travel in this direction but could not come from the image’s location.

  20. The light rays that appear to come from the top of the image really came from the top of the object and reflect off the mirror into the eye.

  21. The light rays that appear to come from the bottom of the image really came from the bottom of the object and reflect off the mirror into the eye.

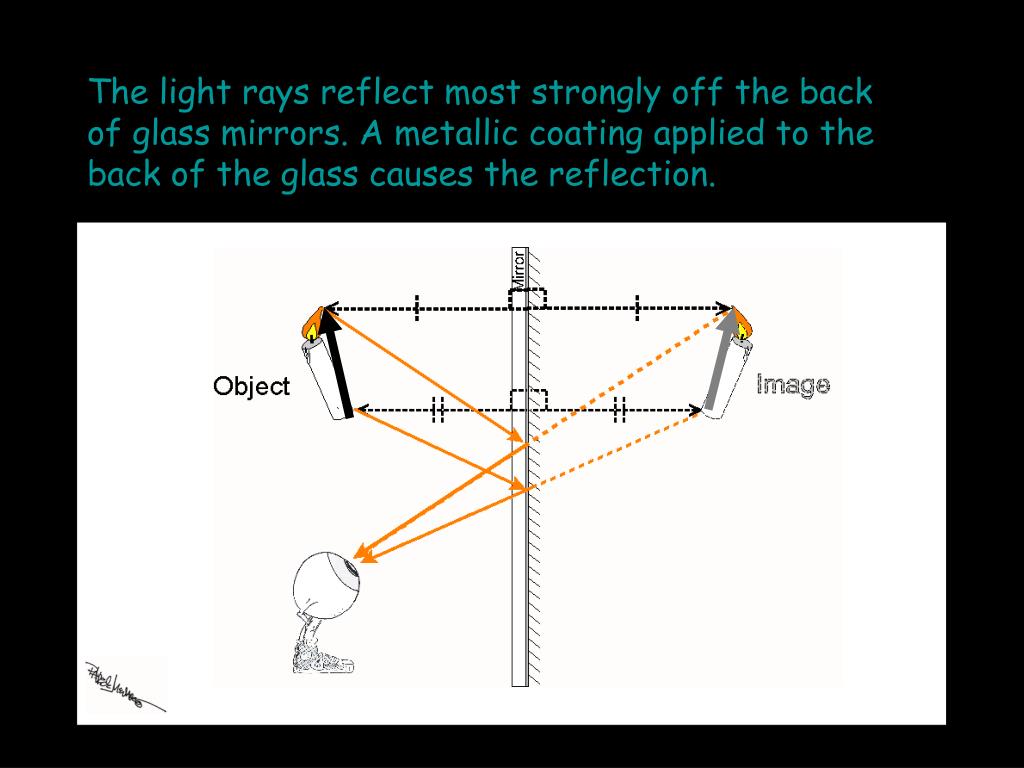

  22. The light rays reflect most strongly off the back of glass mirrors. A metallic coating applied to the back of the glass causes the reflection.

  23. Reality CheckUse a MIRA or Reflect View to see if the predicted image that you drew and the real image overlap. If they do, the light rays must reflect as predicted.

  24. Your Turn Answer the questions in your notes.

  25. Your Turn Answer the questions in your notes.

  26. Question answers follow.

  27. Your Turn • In your notes, show how light is reflected from the mirror so that the eye sees the image behind it.

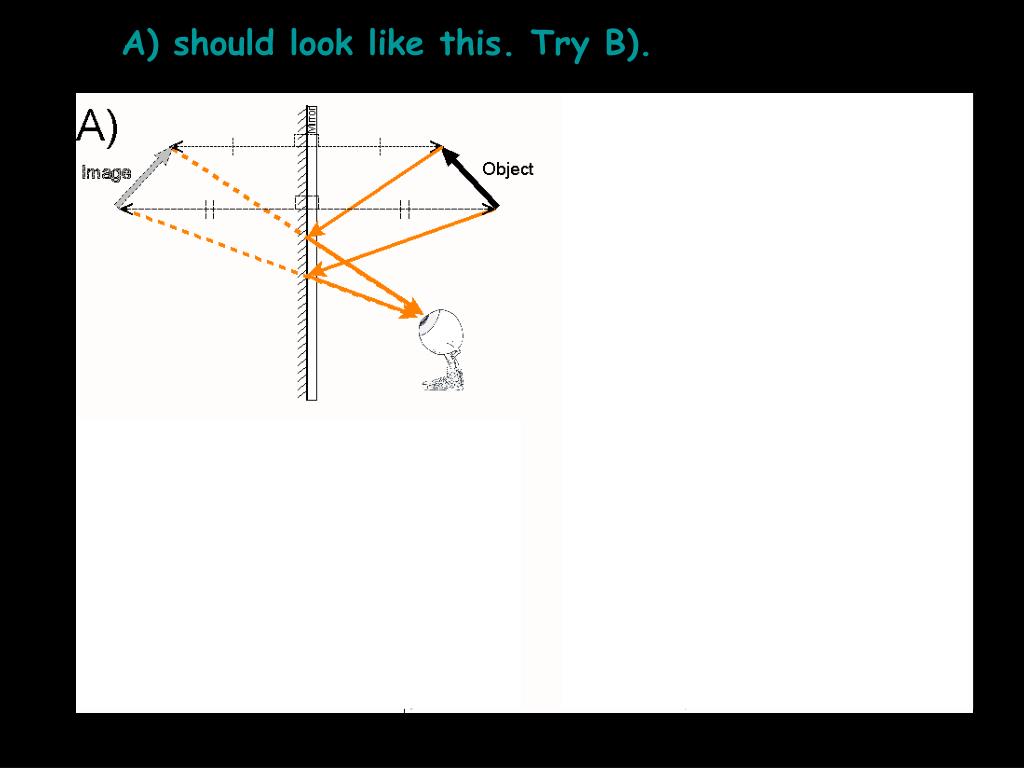

  28. A) should look like this. Try B).

  29. B) should look like this. Try C).

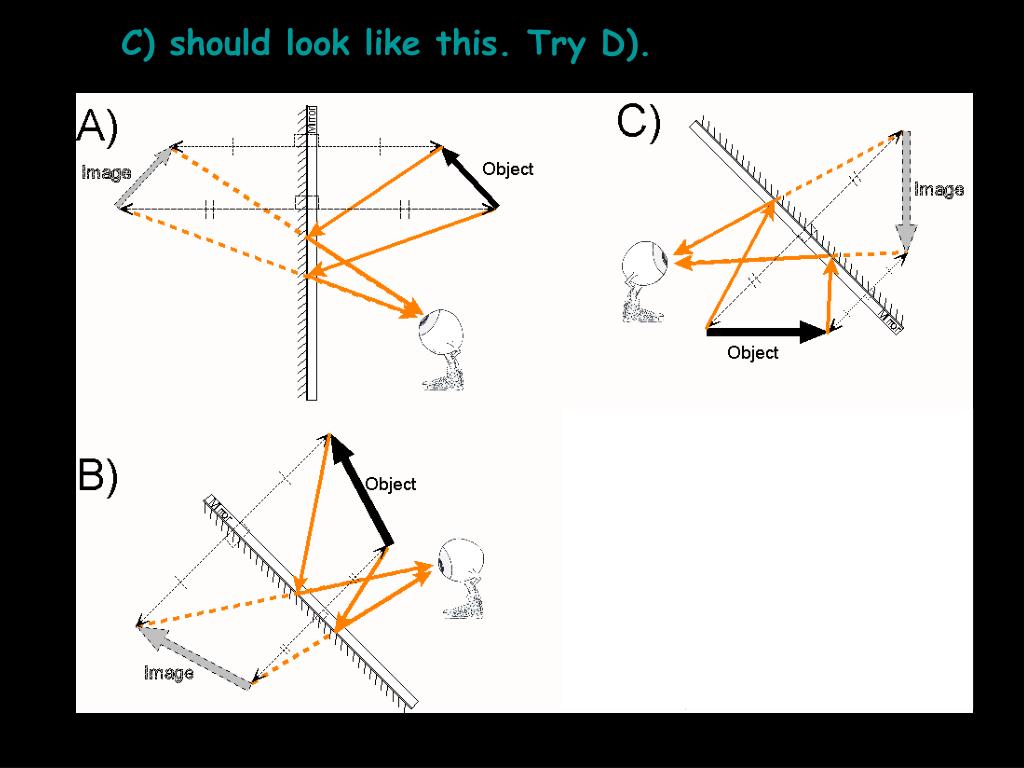

  30. C) should look like this. Try D).

  31. D) should look like this. Try the next questions.

  32. Which Eye-Brains can see the object?

  33. Which Eye-Brains can see the object? C) and D) only. Light travels in a straight line from the object to the Eye-Brain. Rectilinear Propagation is the term for this.

  34. Which Eye-Brains can see the image in the mirror?

  35. Which Eye-Brains can see the image in the mirror? A) C) and D) only. Light appears to travel in a straight line from the image to the Eye-Brain. Rectilinear Propagation is the term for this.

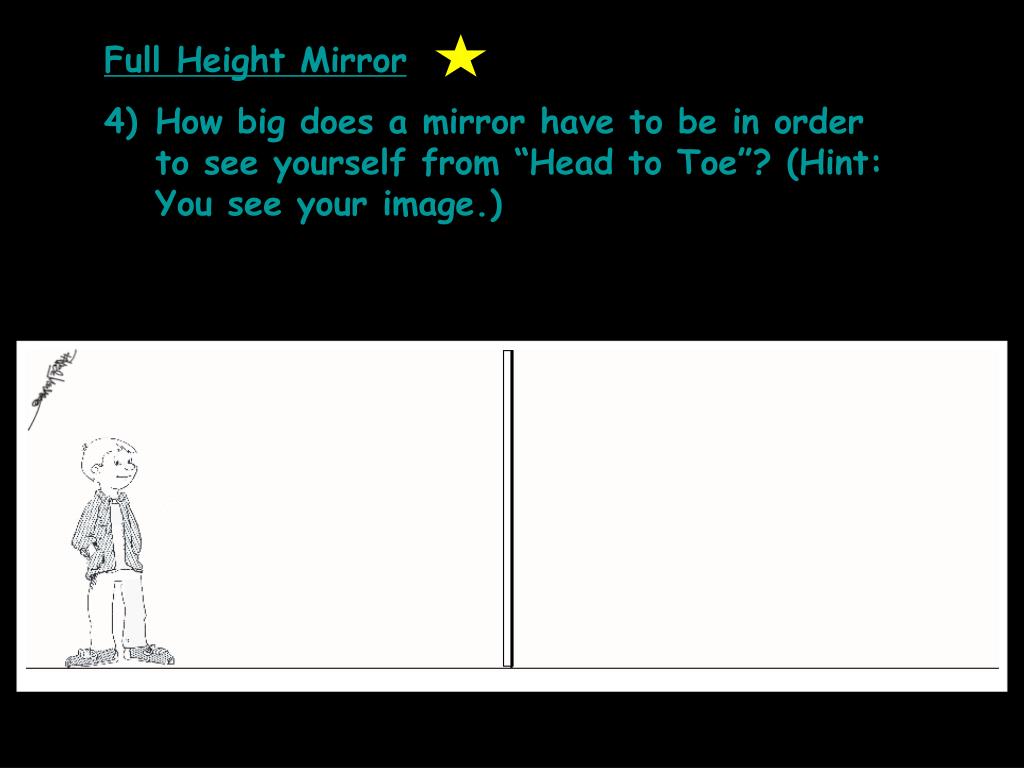

  36. Full Height Mirror How big does a mirror have to be in order to see yourself from “Head to Toe”? (Hint: You see your image.)

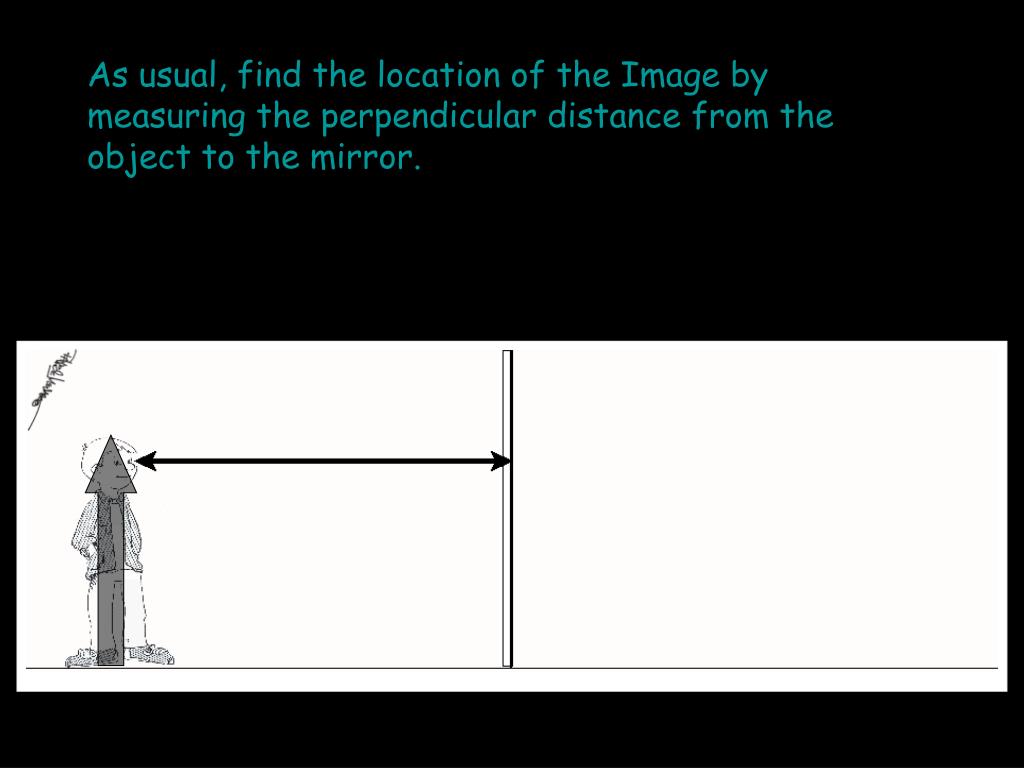

  37. As usual, find the location of the Image by measuring the perpendicular distance from the object to the mirror.

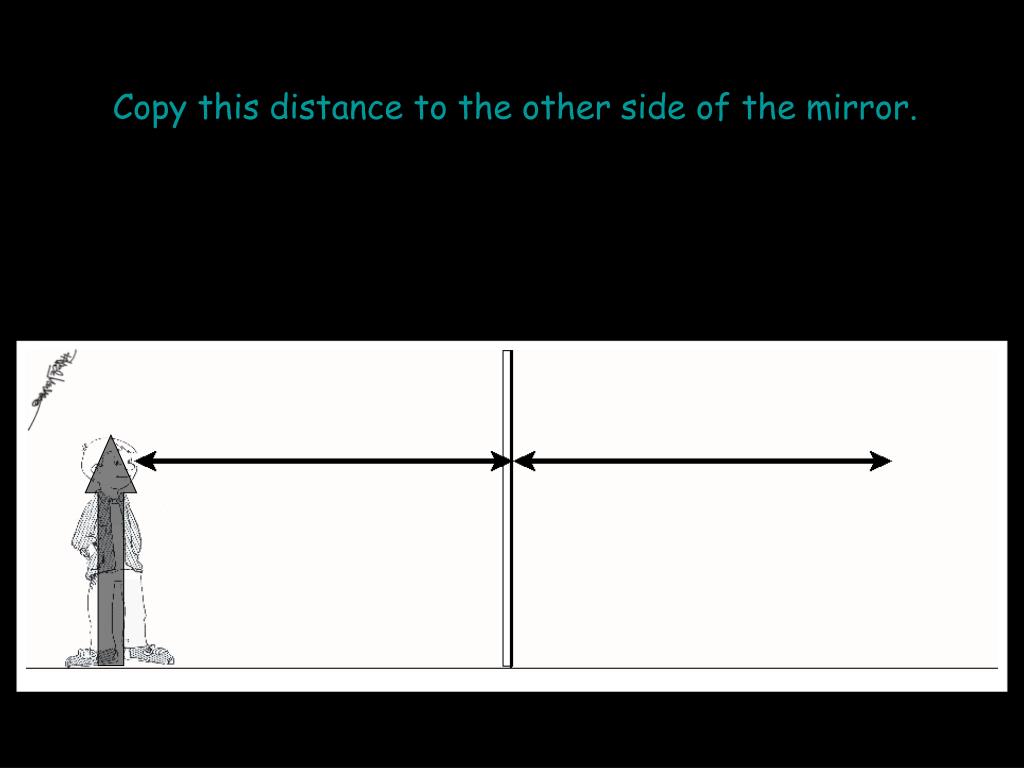

  38. Copy this distance to the other side of the mirror.

  39. This gives the location of the image.

  40. Draw a ray of light entering the eye as if it had come straight from the top of the image.

  41. This light ray really came from the top of the object.

  42. Draw a ray of light entering the eye as if it had come straight from the bottom of the image.

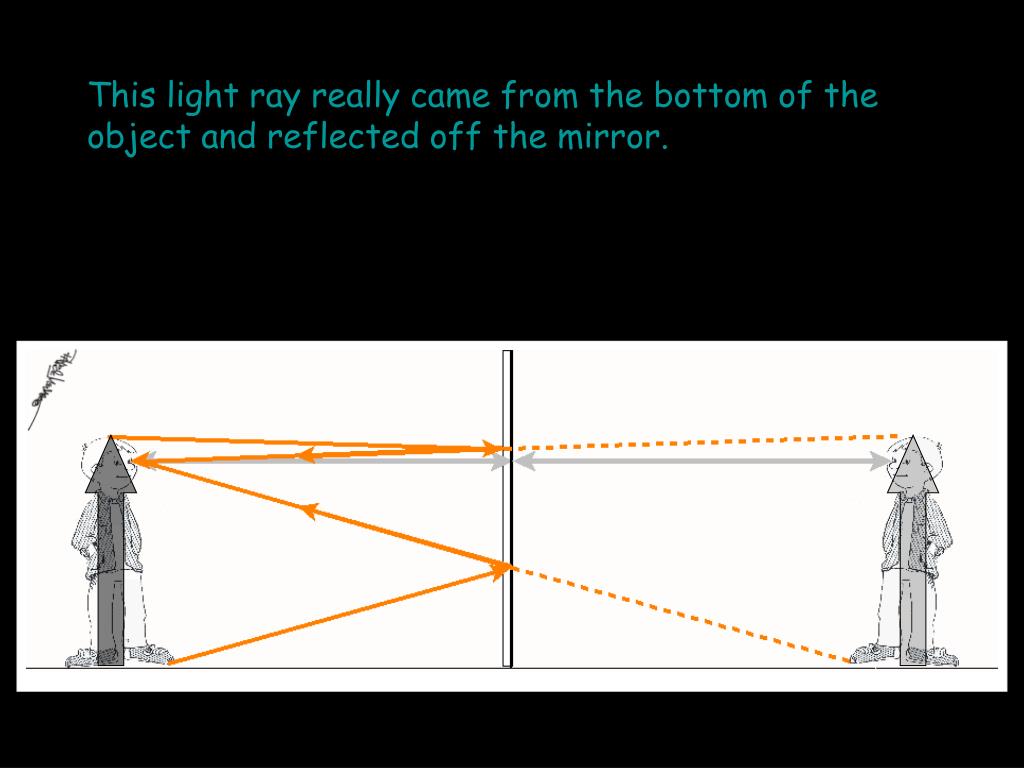

  43. This light ray really came from the bottom of the object and reflected off the mirror.

  44. The large orange triangle has a height which is the distance from the object to the image (dI+dO = 2dO ). Its base is the height of the person (two arrows).

  45. The smaller light orange triangle has a height which is the distance from the object to the mirror (1 dO ) or half the height of the larger triangle.From similar triangles, the size of the mirror is half the height of the person.

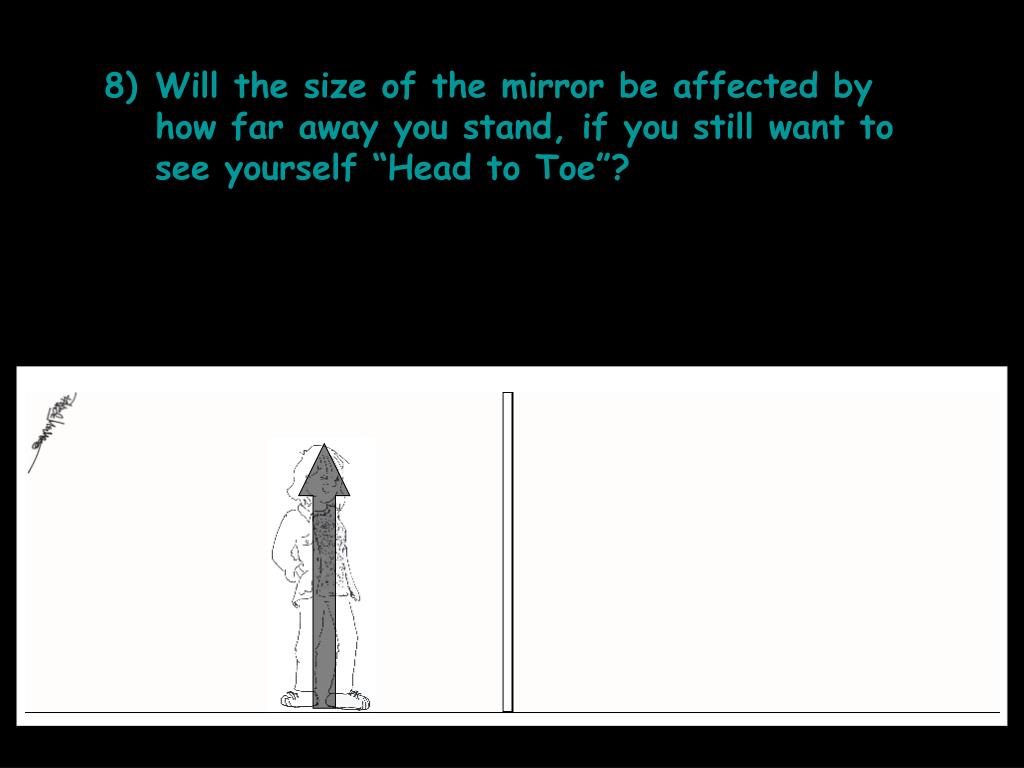

  46. Will the size of the mirror be affected by how far away you stand, if you still want to see yourself “Head to Toe”?

  47. As usual, find the location of the image by measuring the perpendicular distance from the object to the mirror.

  48. Copy this distance to the other side of the mirror.
