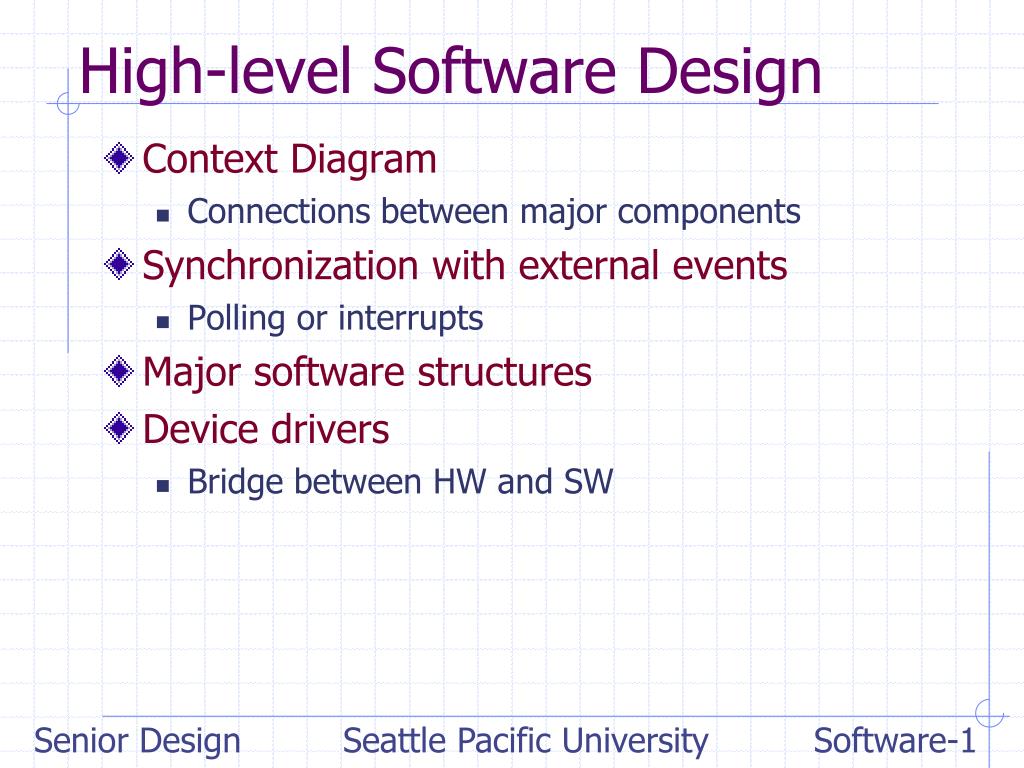

  1. High-level Software Design • Context Diagram • Connections between major components • Synchronization with external events • Polling or interrupts • Major software structures • Device drivers • Bridge between HW and SW

  2. DataControl Context Diagram • Show software connections between components • Indicate which drivers are needed • Indicate where interrupt handlers are needed Example for logging meter(Interrupt Driven) Buttons RS232 MCU I/H Driver Send Data toPC RTC Change Mode Set Clock LCD Driver Driver I/H Display Data Read Data A/D Driver EEROM Store Data Driver Reset(To all Drivers) Main Loop(Do nothing)

  3. External Synchronization • External events may be discovered in two ways • Polling • Check for new data on a regular basis • Main program has to integrate polls into the main loop • Interrupts • External events announce themselves • Must carefully write interrupt handlers • Main program doesn’t have to be aware of what is going on with interrupts • Choices • If your product is driven mostly by external events, use interrupt-driven • If your produce systematically goes through processes, use polling

  4. Device Drivers • Interface between hardware and software • Provide a package of easy-to-use subroutines to control and transfer data to external device • Main software never “touches” I/O ports – instead uses device driver subroutines • Benefits • If hardware changes, only the device driver changes, not the main software • Programmers don’t have to understand the details of all of the hardware • Consistent methods of accessing and controlling external devices

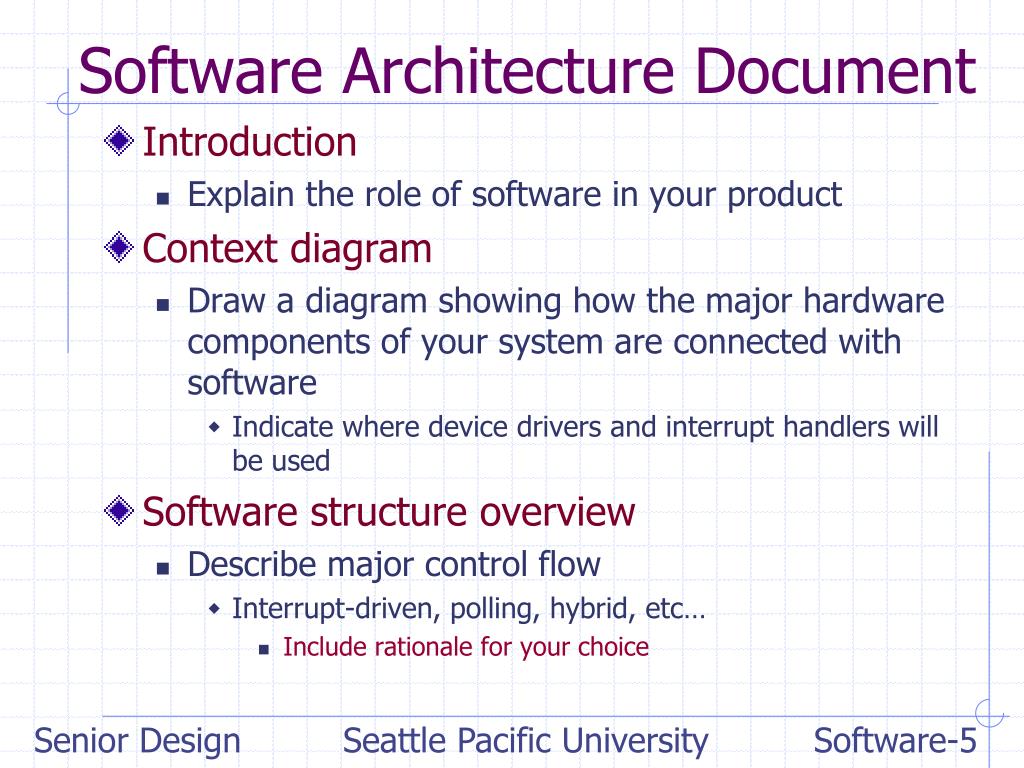

  5. Software Architecture Document • Introduction • Explain the role of software in your product • Context diagram • Draw a diagram showing how the major hardware components of your system are connected with software • Indicate where device drivers and interrupt handlers will be used • Software structure overview • Describe major control flow • Interrupt-driven, polling, hybrid, etc… • Include rationale for your choice

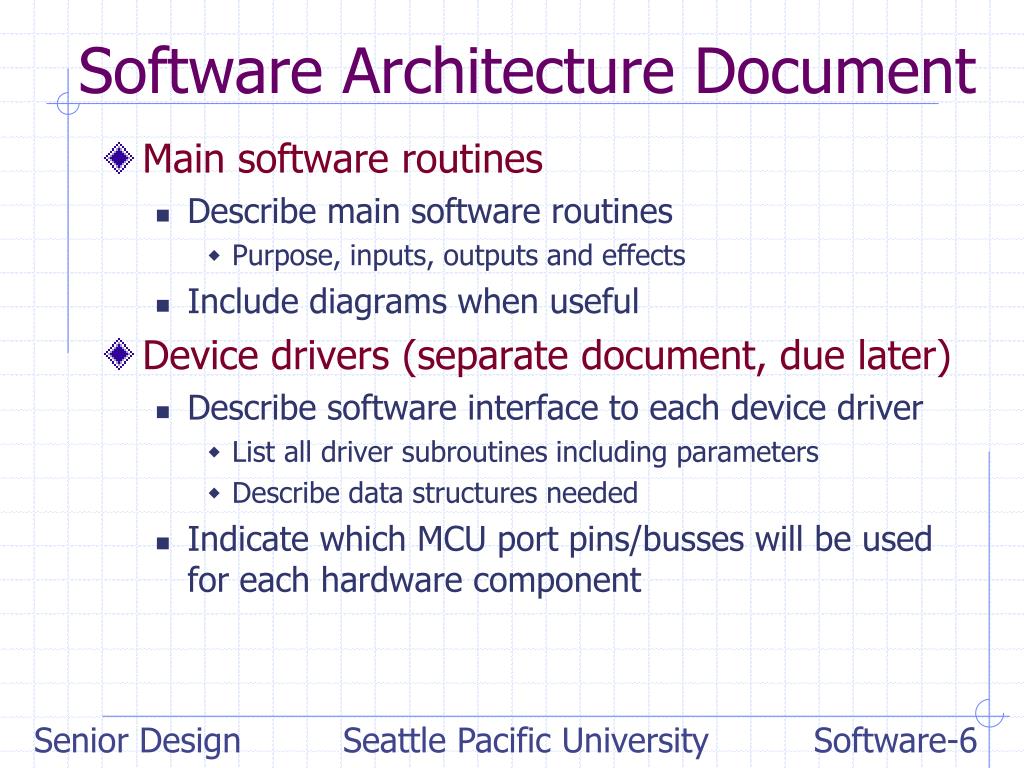

  6. Software Architecture Document • Main software routines • Describe main software routines • Purpose, inputs, outputs and effects • Include diagrams when useful • Device drivers (separate document, due later) • Describe software interface to each device driver • List all driver subroutines including parameters • Describe data structures needed • Indicate which MCU port pins/busses will be used for each hardware component
