  1. The Role of Asia in Mitigating Climate Change: Results from the Asia Modeling Exercise Kate Calvin, Leon Clarke, Volker Krey, Geoff Blanford, Jiang Kejun, MikikoKainuma, ElmarKriegler, Gunnar Luderer, P.R. Shukla International Energy Workshop 2012 Cape Town, South Africa June 21, 2012 PNWD-SA-9886

  2. Goals of AME • Objective:to better articulate the role of Asia in addressing climate change. • Goal: To bring together global modelers that commonly participate in efforts to explore international policy architectures with regional modelers and experts with Asia-specific knowledge, understanding, data, and analysis. • Method: A coordinated modeling exercise that attempts to link these communities to provide more effective modeling and analysis of Asia within a global context.

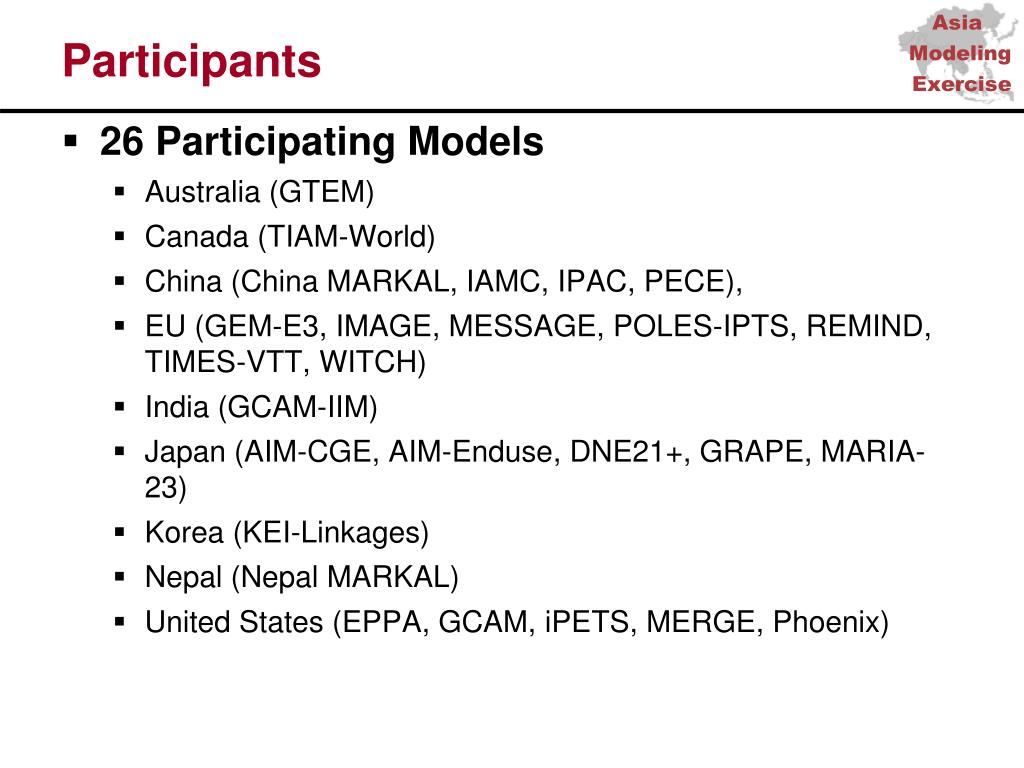

  3. Participants • 26 Participating Models • Australia (GTEM) • Canada (TIAM-World) • China (China MARKAL, IAMC, IPAC, PECE), • EU (GEM-E3, IMAGE, MESSAGE, POLES-IPTS, REMIND, TIMES-VTT, WITCH) • India (GCAM-IIM) • Japan (AIM-CGE, AIM-Enduse, DNE21+, GRAPE, MARIA-23) • Korea (KEI-Linkages) • Nepal (Nepal MARKAL) • United States (EPPA, GCAM, iPETS, MERGE, Phoenix)

  4. The Models • Models differ with respect to: • Regional scope (Global, China only, Nepal Only) • Time horizon (through 2100, through 2050) • Degree of foresight (myopic, intertemporally optimizing) • Underlying structure (market-equilibrium, cost minimization) • Sectoral coverage (Energy only, Energy & Agriculture/Land-Use, Full Economy) • Emissions included (CO2 only, Kyoto gases only, all species) • Climate representation (No representation, GHG concentrations only, all radiative forcing agents)

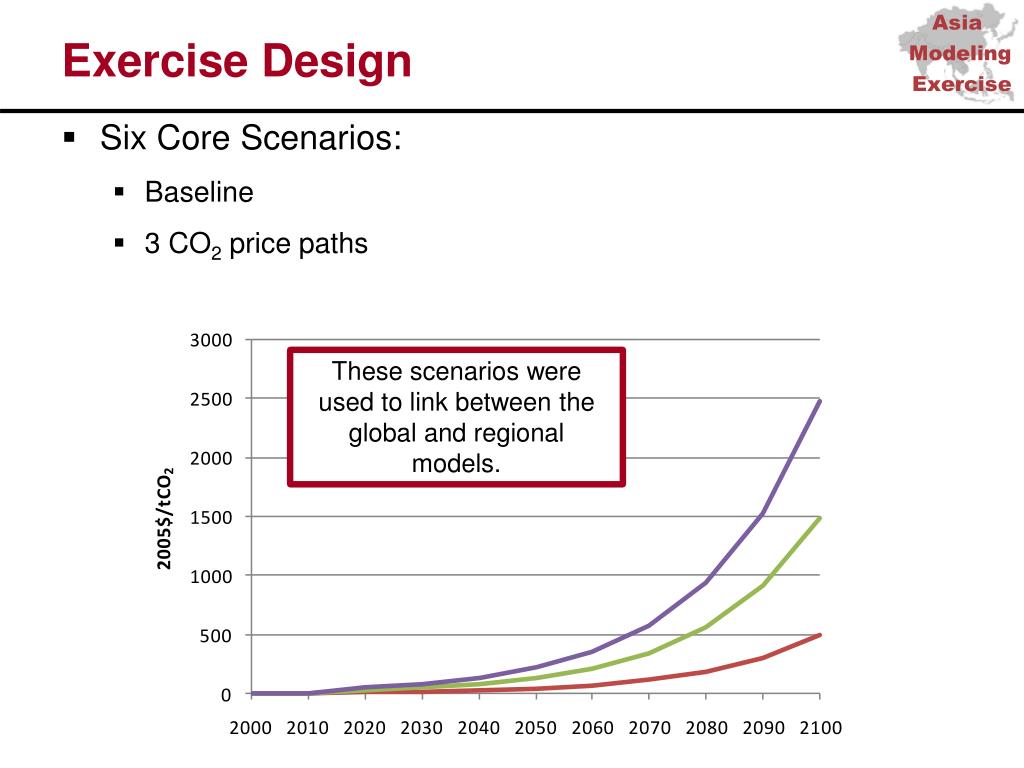

  5. Exercise Design • Six Core Scenarios: • Baseline • 3 CO2 price paths These scenarios were used to link between the global and regional models.

  6. Exercise Design • Six Core Scenarios: • Baseline • 3 CO2 price paths • 2 Stabilization paths (global models only) • 550 CO2-e stabilization (total forcing) • 450 CO2-e overshoot (total forcing) • For models without all forcing agents, we provided exogenous paths that they could use.

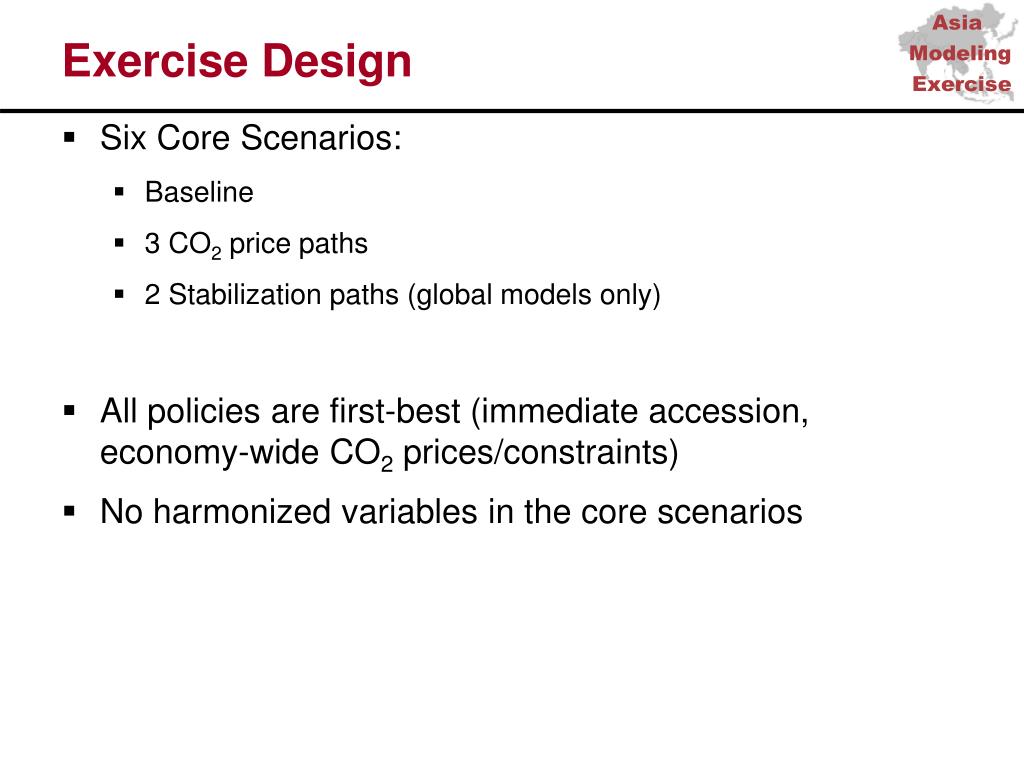

  7. Exercise Design • Six Core Scenarios: • Baseline • 3 CO2 price paths • 2 Stabilization paths (global models only) • All policies are first-best (immediate accession, economy-wide CO2 prices/constraints) • No harmonized variables in the core scenarios

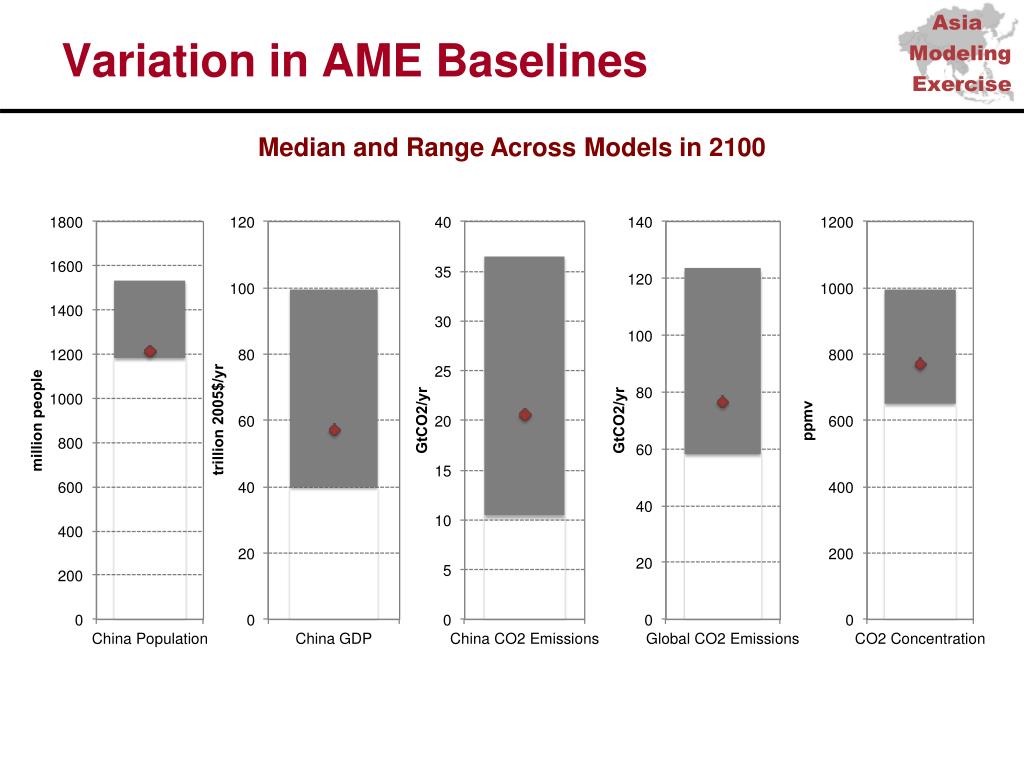

  8. Variationin AME Baselines Median and Range Across Models in 2100

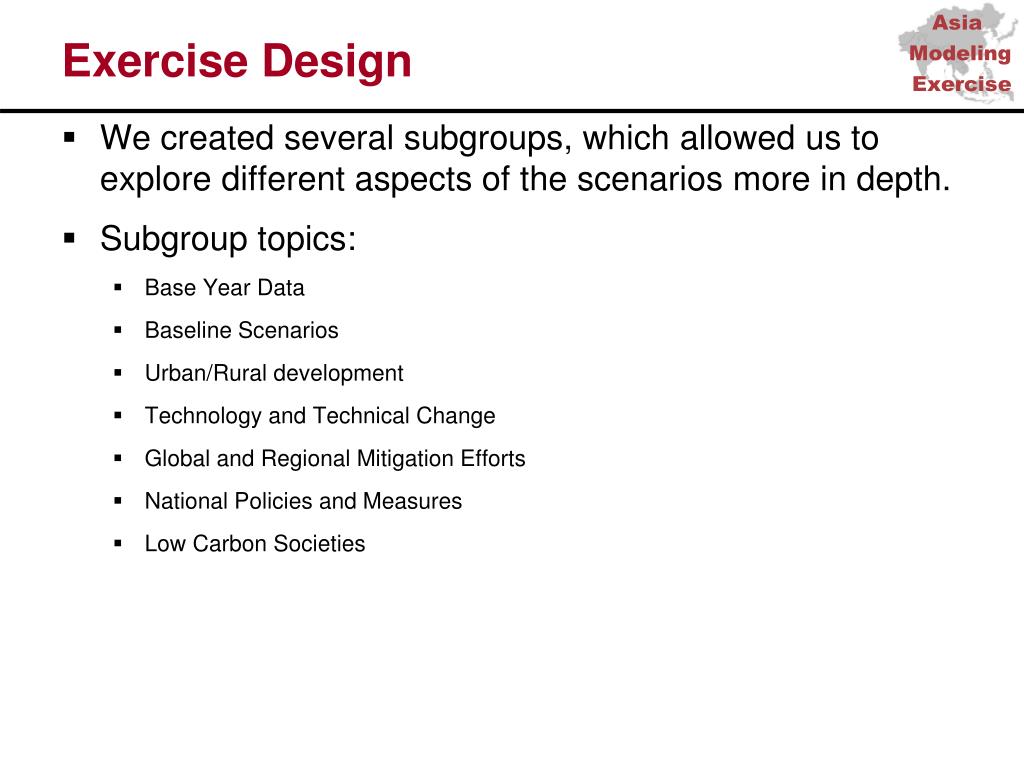

  9. Exercise Design • We created several subgroups, which allowed us to explore different aspects of the scenarios more in depth. • Subgroup topics: • Base Year Data • Baseline Scenarios • Urban/Rural development • Technology and Technical Change • Global and Regional Mitigation Efforts • National Policies and Measures • Low Carbon Societies

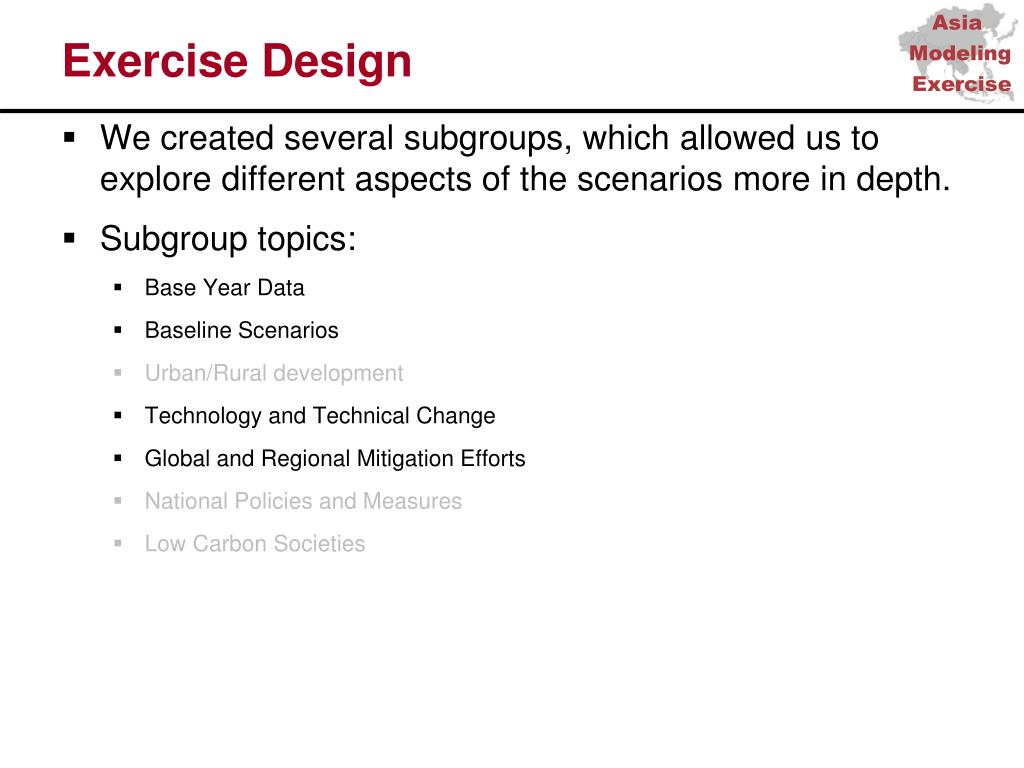

  10. Exercise Design • We created several subgroups, which allowed us to explore different aspects of the scenarios more in depth. • Subgroup topics: • Base Year Data • Baseline Scenarios • Urban/Rural development • Technology and Technical Change • Global and Regional Mitigation Efforts • National Policies and Measures • Low Carbon Societies

  11. RESULTS

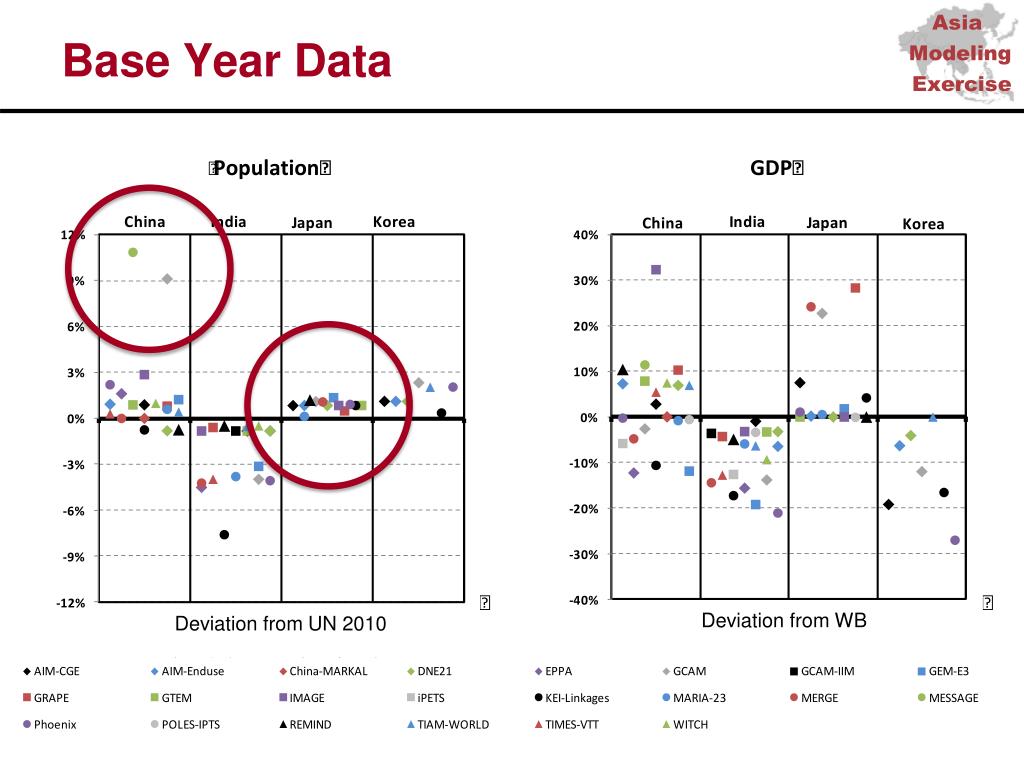

  12. Base Year Data Deviation from WB Deviation from UN 2010

  13. Base Year Data

  14. Base Year Data Deviation from WB Deviation from UN 2010

  15. Base Year Data Deviation from CDIAC Deviation from IEA

  16. Base Year Data • Key findings: • There are some good reasons why base year data differs across models. Examples include: • Differences in region definition • Differences in data sources • Differences in modeled base year • Differences in calibration method • While differences in base year data do affect future growth projections, differences in assumed growth rates have a much larger impact on the future.

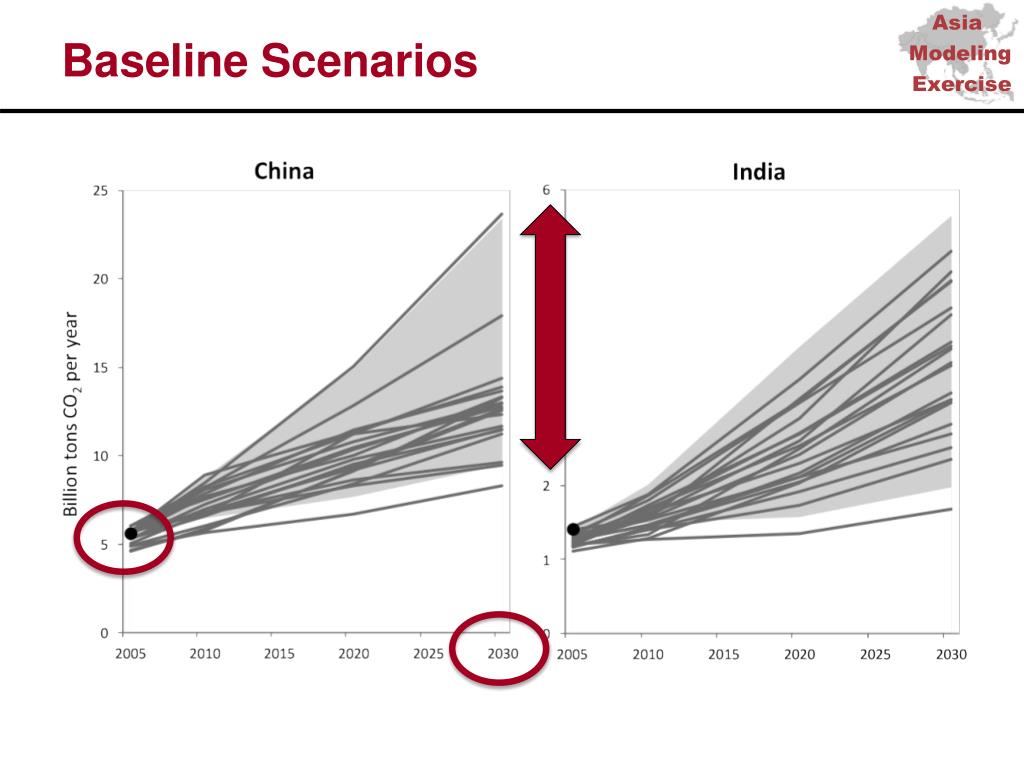

  17. Baseline Scenarios

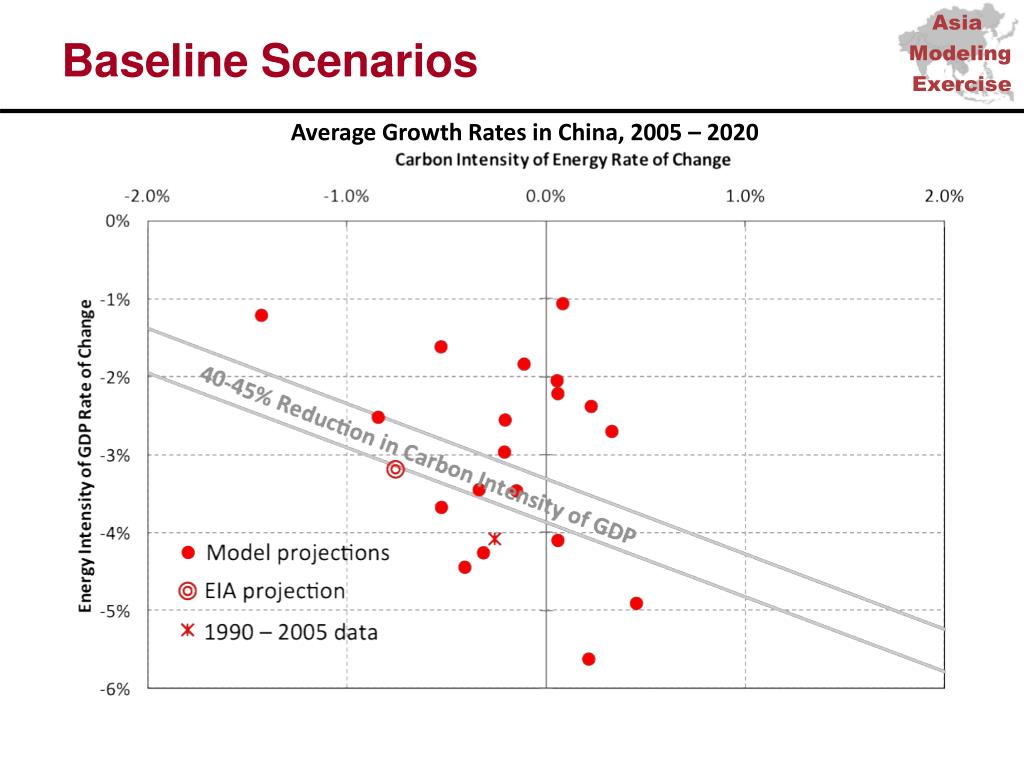

  18. Baseline Scenarios Average Growth Rates in China, 2005 – 2020 with comparison to Asian history Korea 1977-1992 Japan 1959-1974 Malaysia 1979-1994 Taiwan 1973-1988 PC TPE = 0% PC TPE = 3% PC TPE = 4% PC TPE = 5% PC TPE = 1% PC TPE = 2% PC TPE = -1% PC TPE = -2% Model projections EIA projection 1990 – 2005 data

  19. Baseline Scenarios Average Growth Rates in China, 2005 – 2020

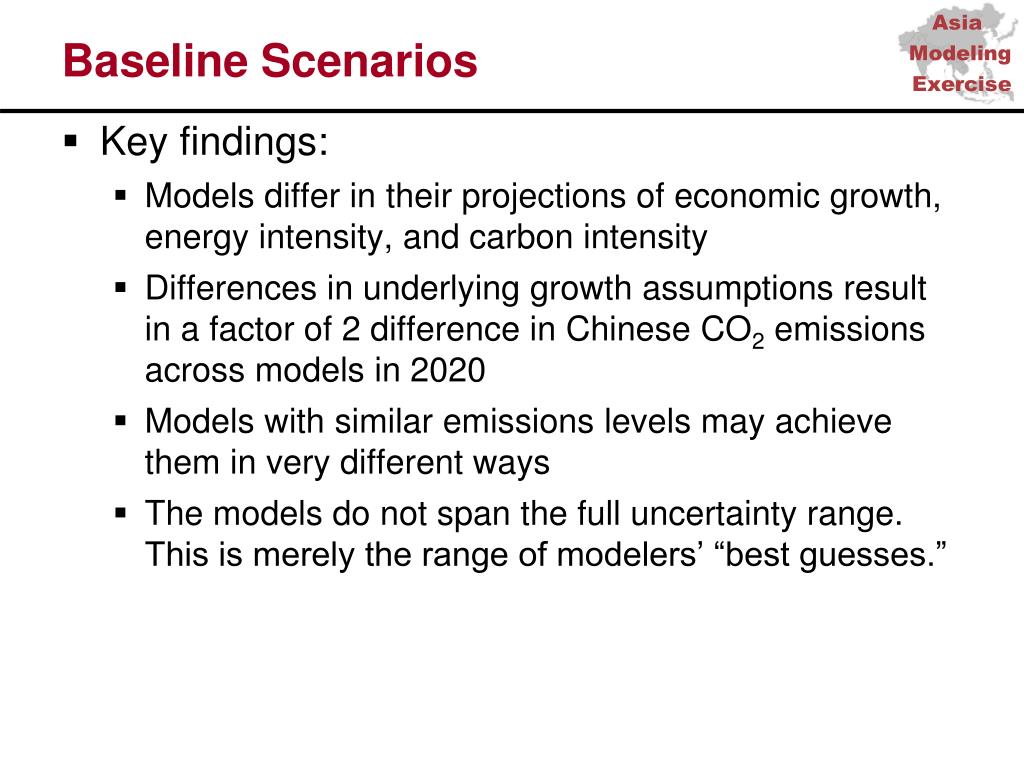

  20. Baseline Scenarios • Key findings: • Models differ in their projections of economic growth, energy intensity, and carbon intensity • Differences in underlying growth assumptions result in a factor of 2 difference in Chinese CO2 emissions across models in 2020 • Models with similar emissions levels may achieve them in very different ways • The models do not span the full uncertainty range. This is merely the range of modelers’ “best guesses.”

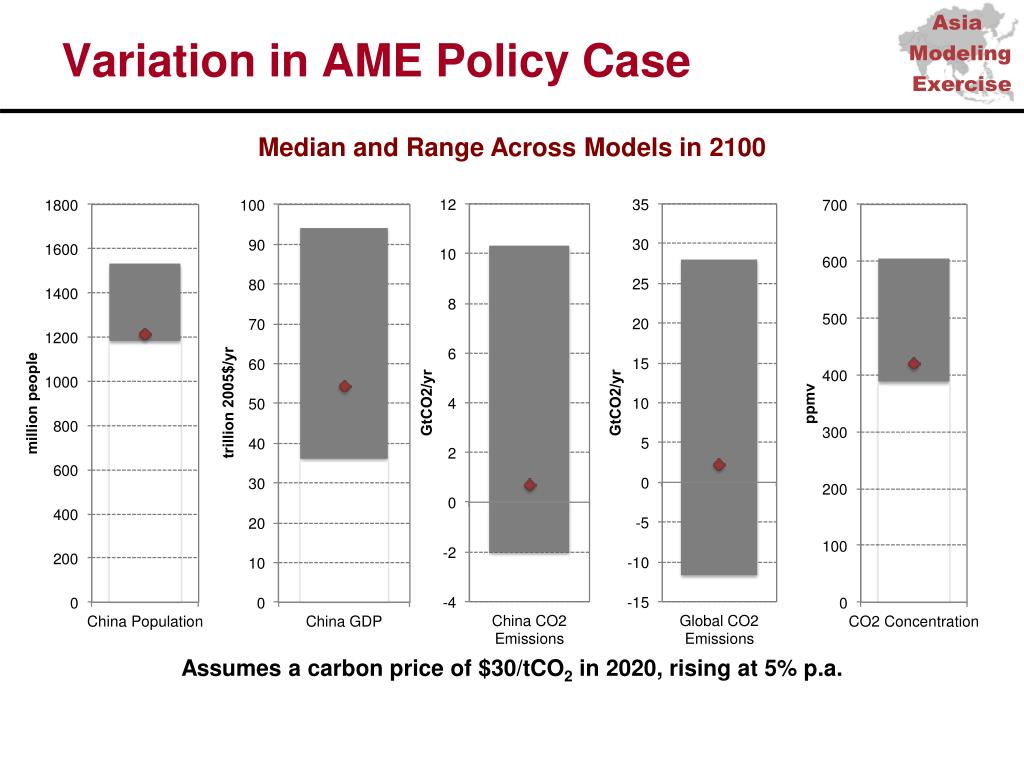

  21. Variation in AME Policy Case Median and Range Across Models in 2100 Assumes a carbon price of $30/tCO2 in 2020, rising at 5% p.a.

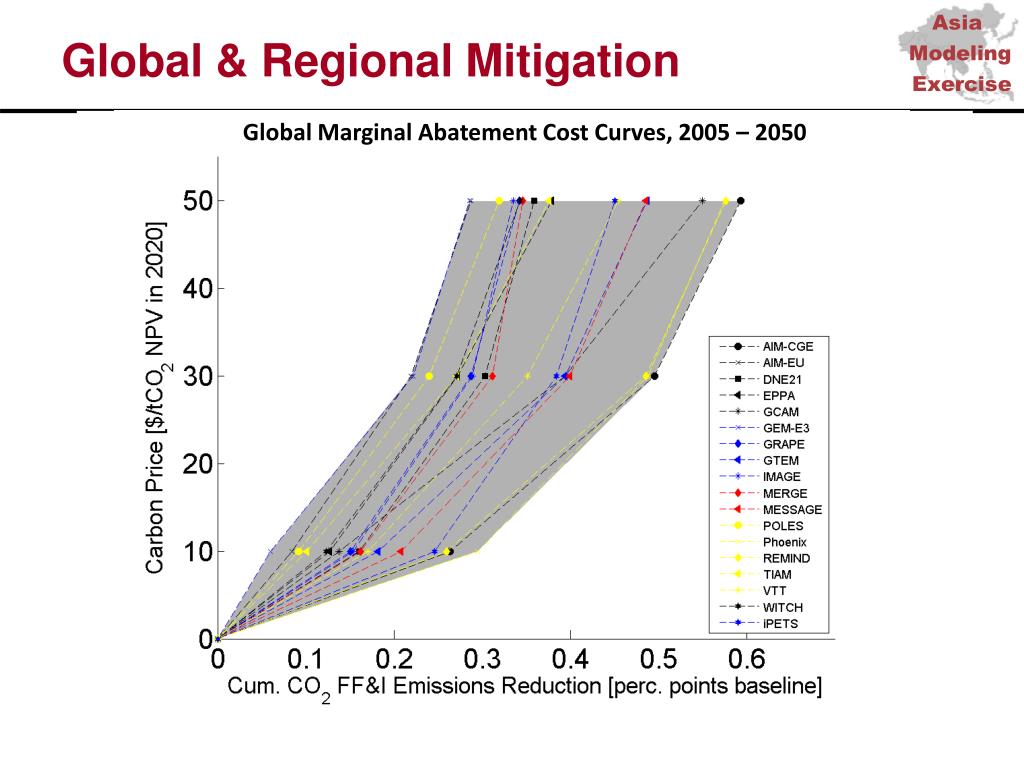

  22. Global & Regional Mitigation Global Marginal Abatement Cost Curves, 2005 – 2050

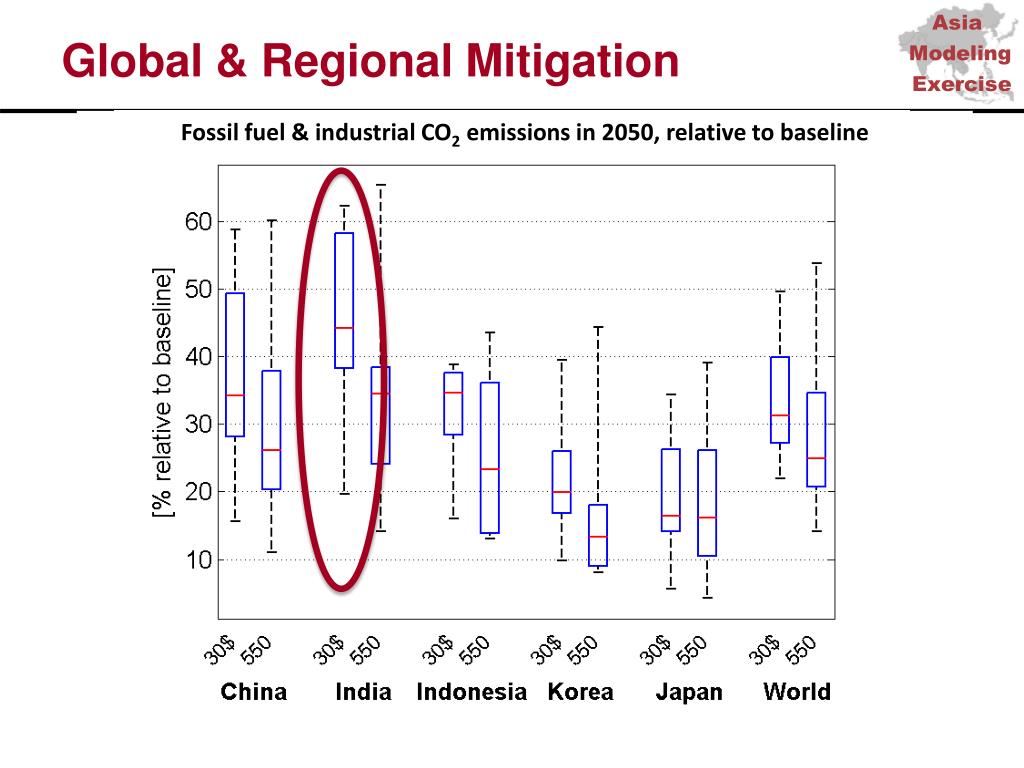

  23. Global & Regional Mitigation Fossil fuel & industrial CO2 emissions in 2050, relative to baseline

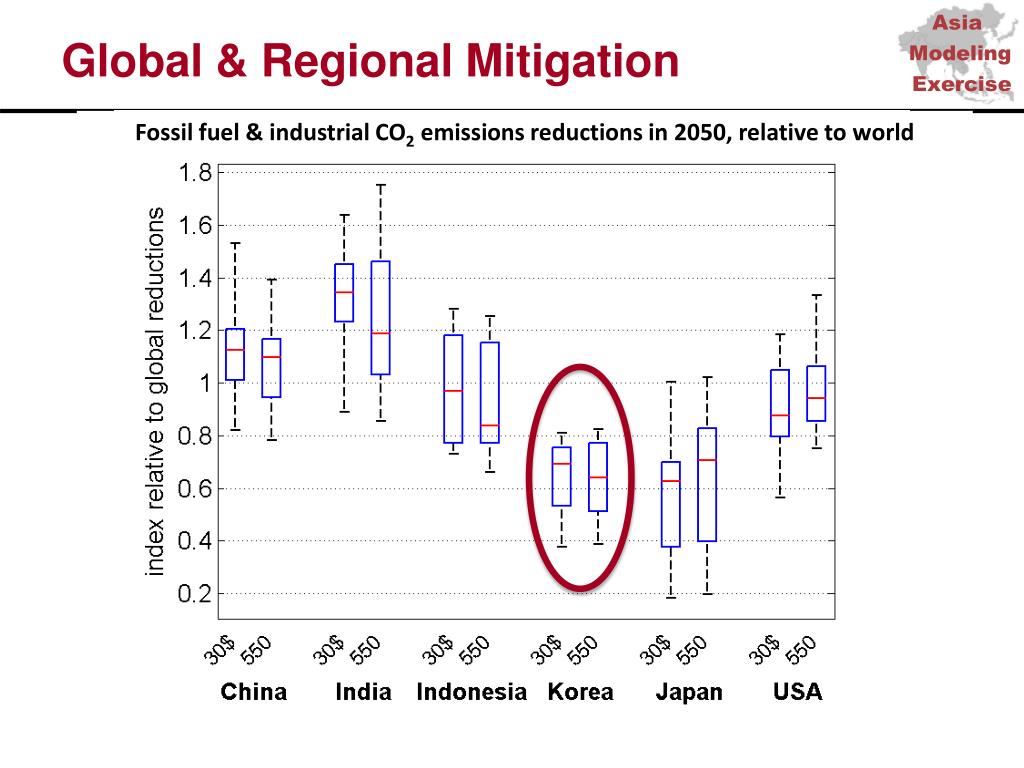

  24. Global & Regional Mitigation Fossil fuel & industrial CO2 emissions reductions in 2050, relative to world

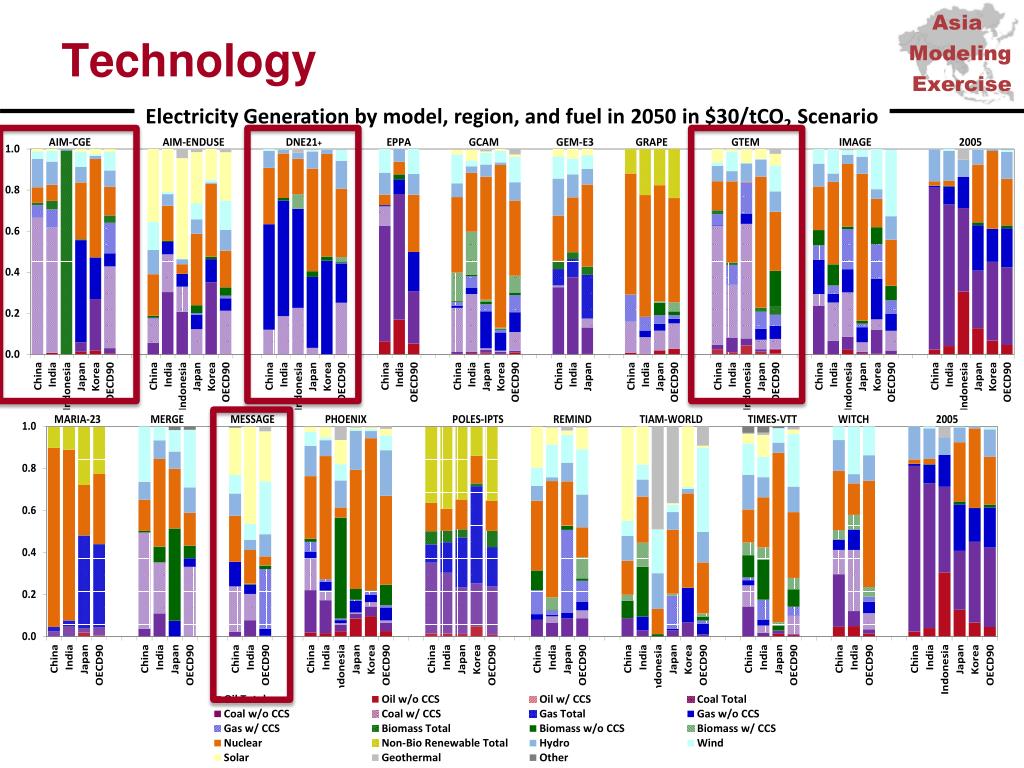

  25. Technology Electricity Generation by model, region, and fuel in 2050 in $30/tCO2 Scenario

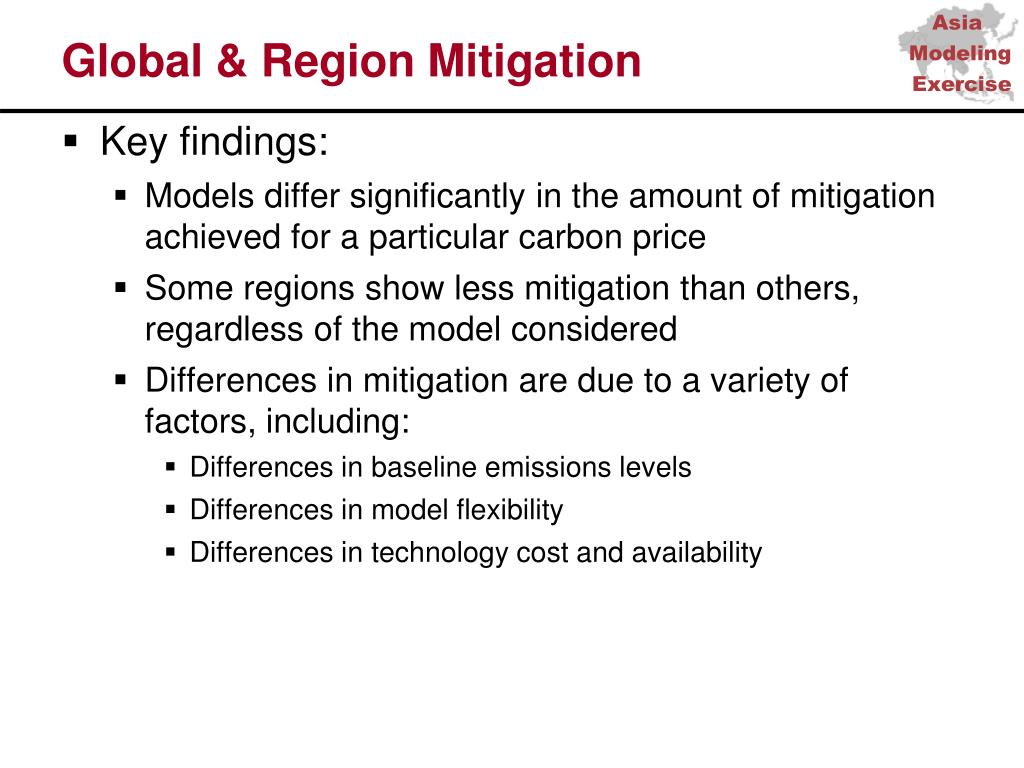

  26. Global & Region Mitigation • Key findings: • Models differ significantly in the amount of mitigation achieved for a particular carbon price • Some regions show less mitigation than others, regardless of the model considered • Differences in mitigation are due to a variety of factors, including: • Differences in baseline emissions levels • Differences in model flexibility • Differences in technology cost and availability

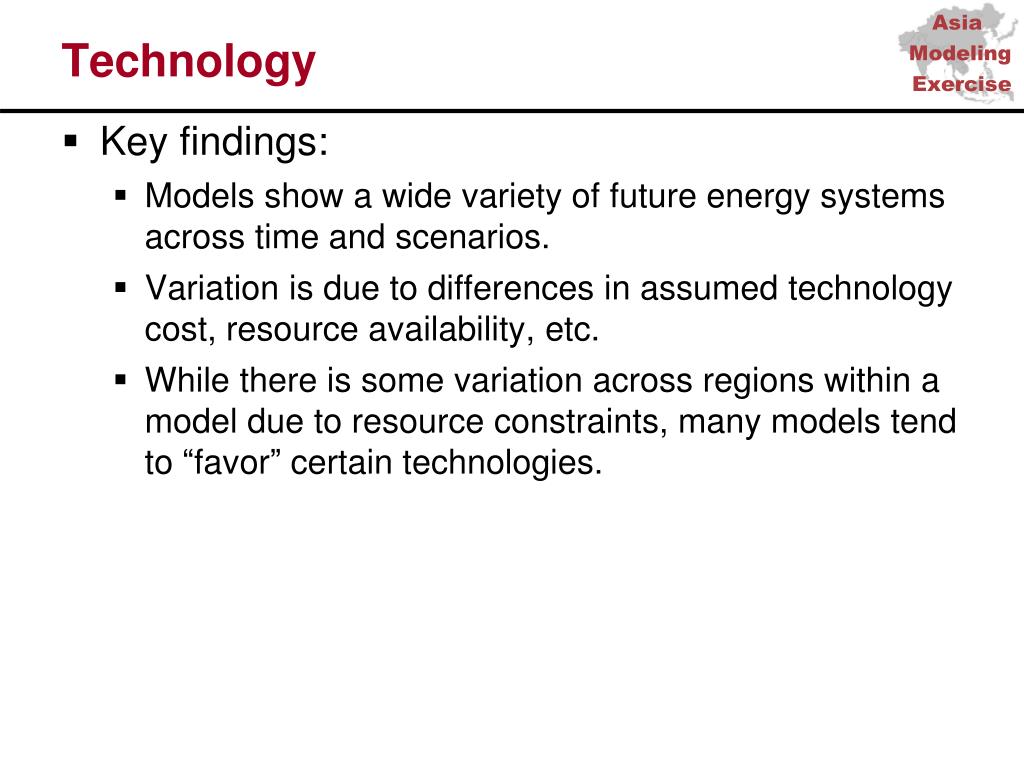

  27. Technology • Key findings: • Models show a wide variety of future energy systems across time and scenarios. • Variation is due to differences in assumed technology cost, resource availability, etc. • While there is some variation across regions within a model due to resource constraints, many models tend to “favor” certain technologies.

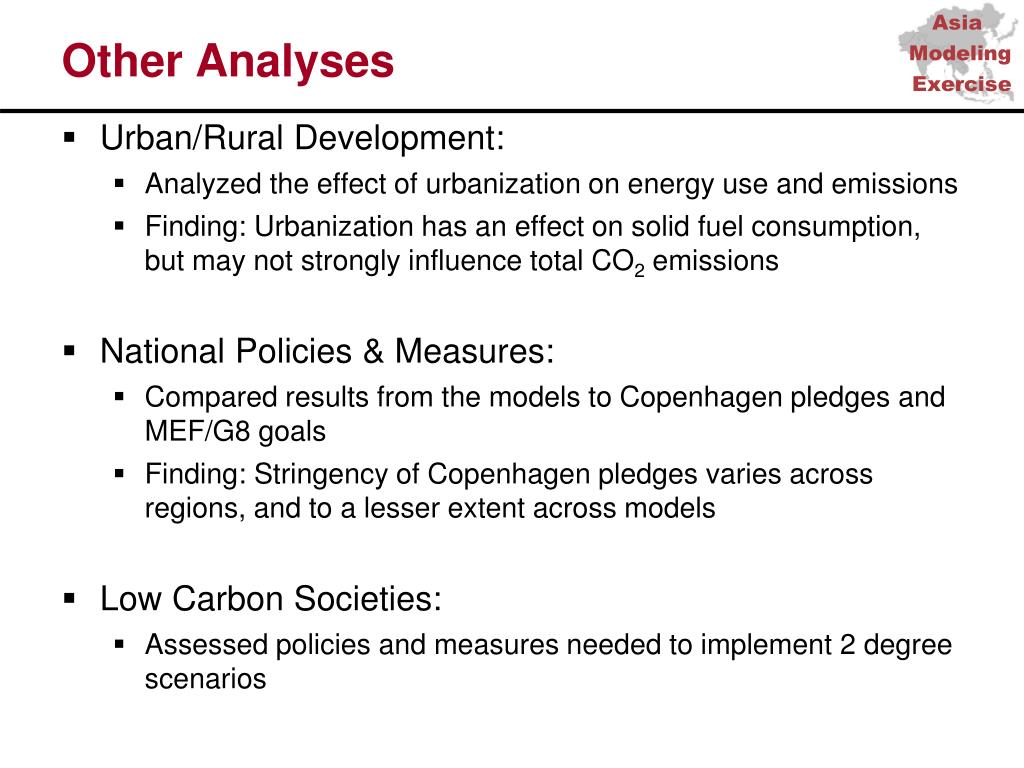

  28. Other Analyses • Urban/Rural Development: • Analyzed the effect of urbanization on energy use and emissions • Finding: Urbanization has an effect on solid fuel consumption, but may not strongly influence total CO2 emissions • National Policies & Measures: • Compared results from the models to Copenhagen pledges and MEF/G8 goals • Finding: Stringency of Copenhagen pledges varies across regions, and to a lesser extent across models • Low Carbon Societies: • Assessed policies and measures needed to implement 2 degree scenarios

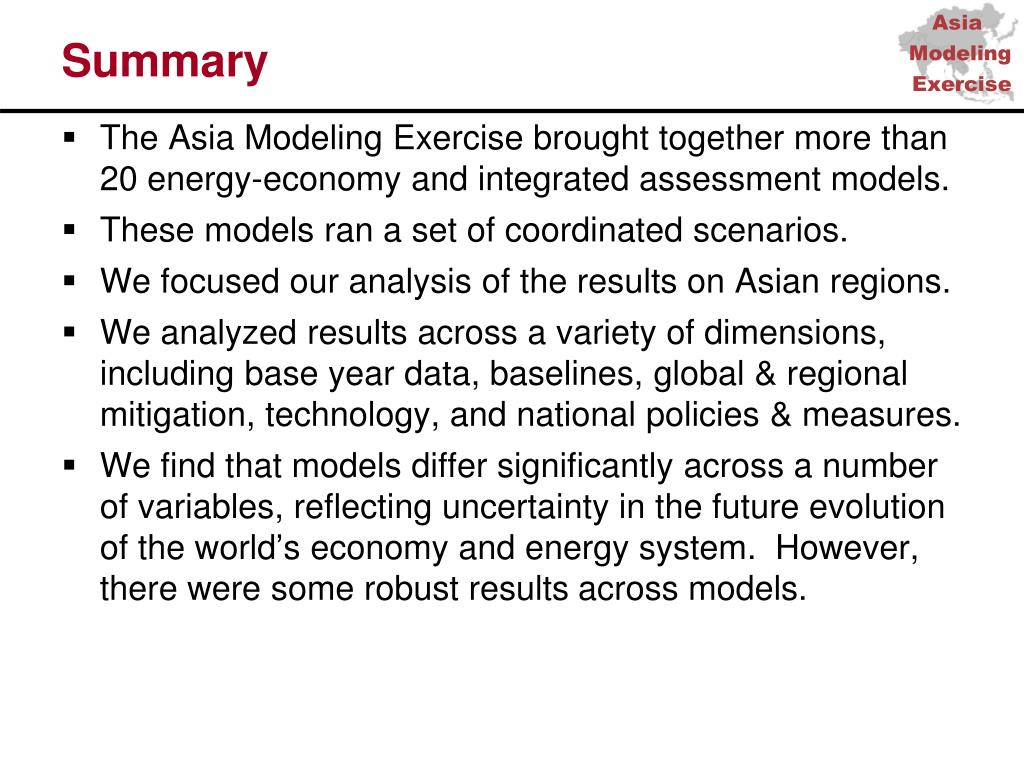

  29. Summary • The Asia Modeling Exercise brought together more than 20 energy-economy and integrated assessment models. • These models ran a set of coordinated scenarios. • We focused our analysis of the results on Asian regions. • We analyzed results across a variety of dimensions, including base year data, baselines, global & regional mitigation, technology, and national policies & measures. • We find that models differ significantly across a number of variables, reflecting uncertainty in the future evolution of the world’s economy and energy system. However, there were some robust results across models.

  30. THANK YOU!
