XACML for RBAC and CADABRA Constrained Delegation and Attribute-Based Role Assignment

1. XACML for RBAC and CADABRAConstrained Delegation and Attribute-Based Role Assignment Brian Garback © Brian Garback 2005

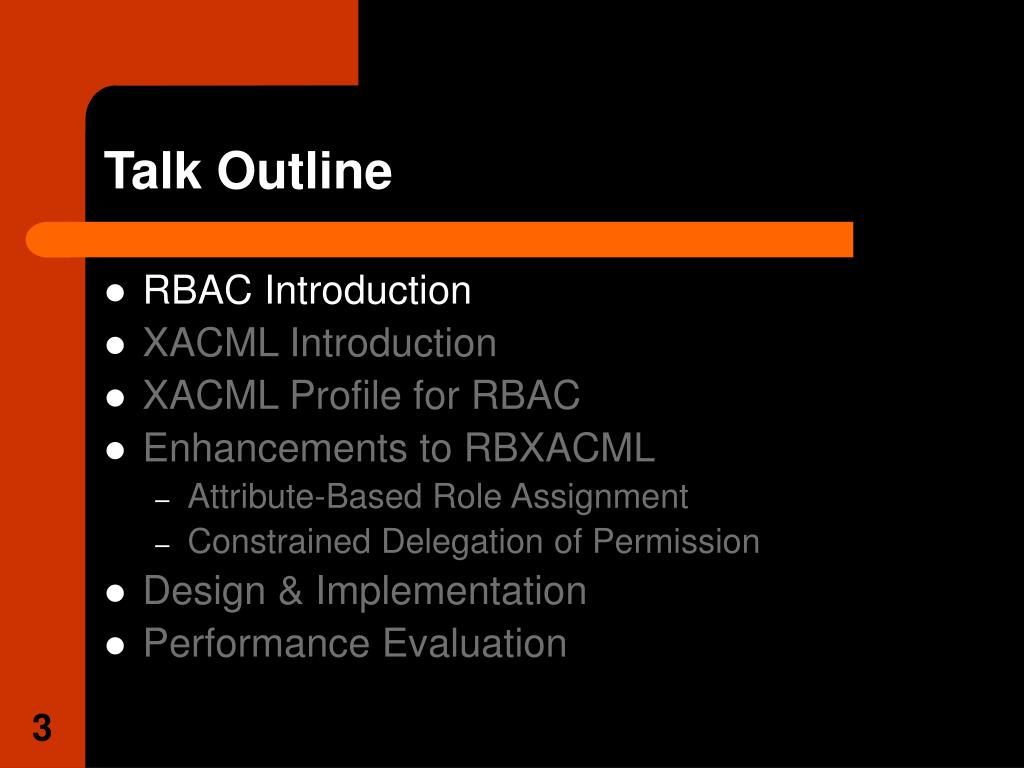

3. Talk Outline • RBAC Introduction • XACML Introduction • XACML Profile for RBAC • Enhancements to RBXACML • Attribute-Based Role Assignment • Constrained Delegation of Permission • Design & Implementation • Performance Evaluation

4. Role-Based Access Control Users • Formalized by Sandhu et al. in 1996 Roles Permissions Read Prescription Physician Write Prescription Nurse Read Medical Record Patient Write Medical Record Admin ⋮

5. Hierarchical RBAC Users Roles Permissions Surgeon Operate Radiologist Interpret X-Ray Physician Write Prescription Patient Read Prescription Read Demographics Universal ⋮

6. Talk Outline • RBAC Introduction • XACML Introduction • XACML Profile for RBAC • Enhancements to RBXACML • Attribute-Based Role Assignment • Constrained Delegation of Permission • Design & Implementation • Performance Evaluation

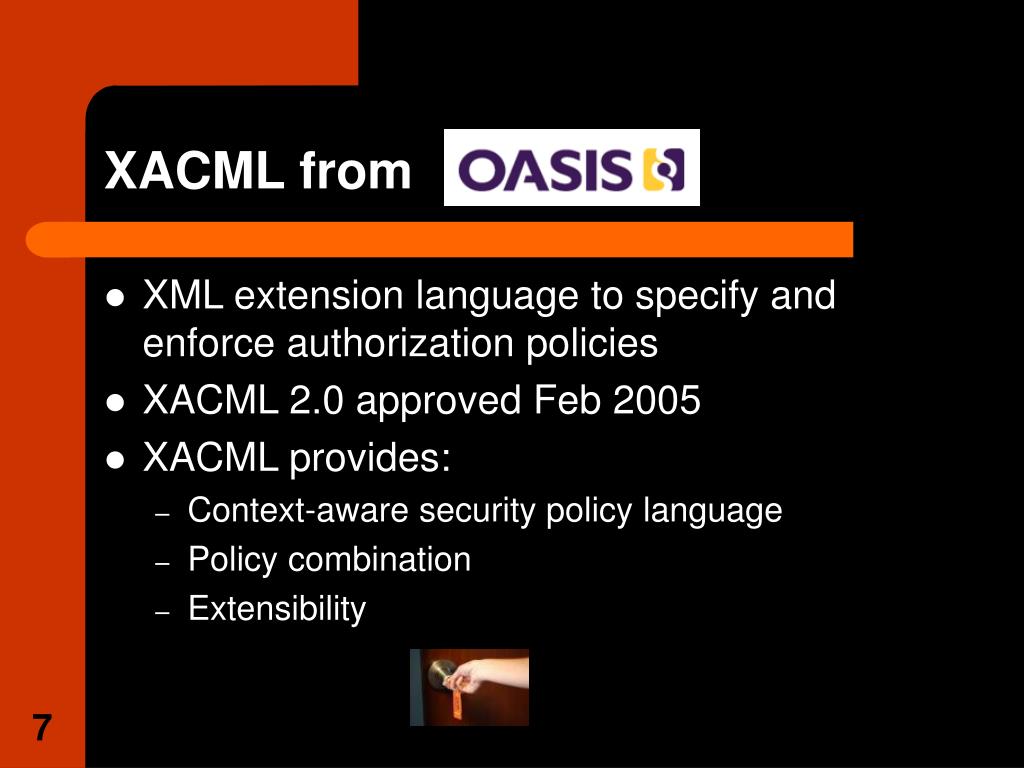

7. XACML from • XML extension language to specify and enforce authorization policies • XACML 2.0 approved Feb 2005 • XACML provides: • Context-aware security policy language • Policy combination • Extensibility

8. XACML System Design

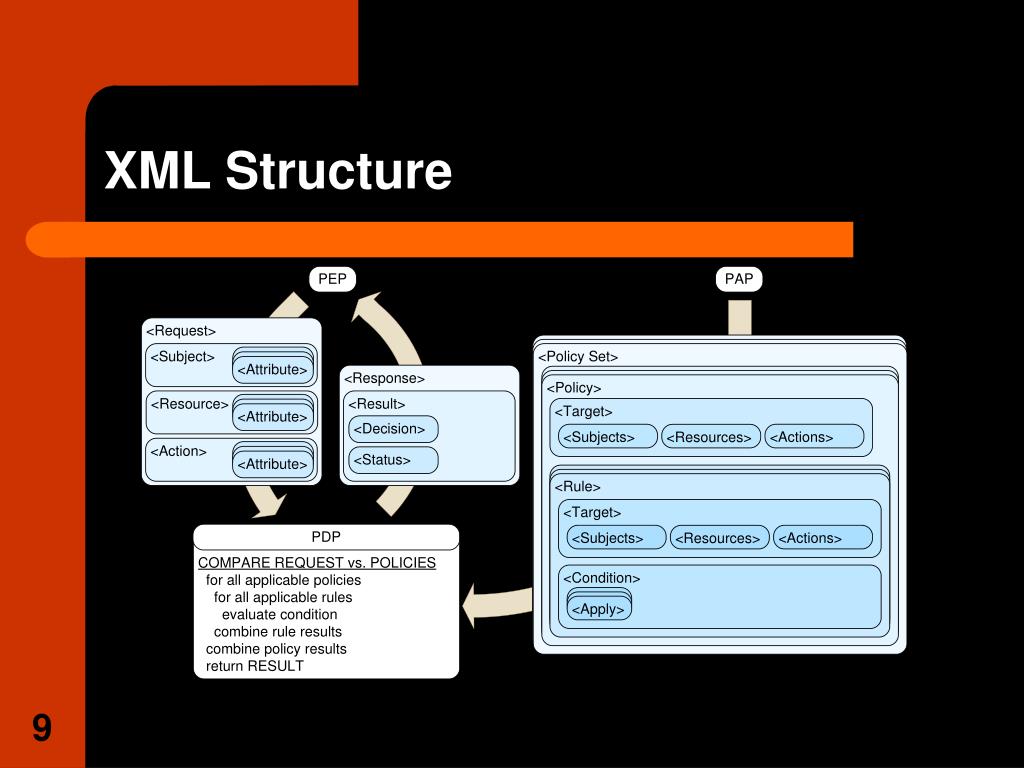

9. XML Structure

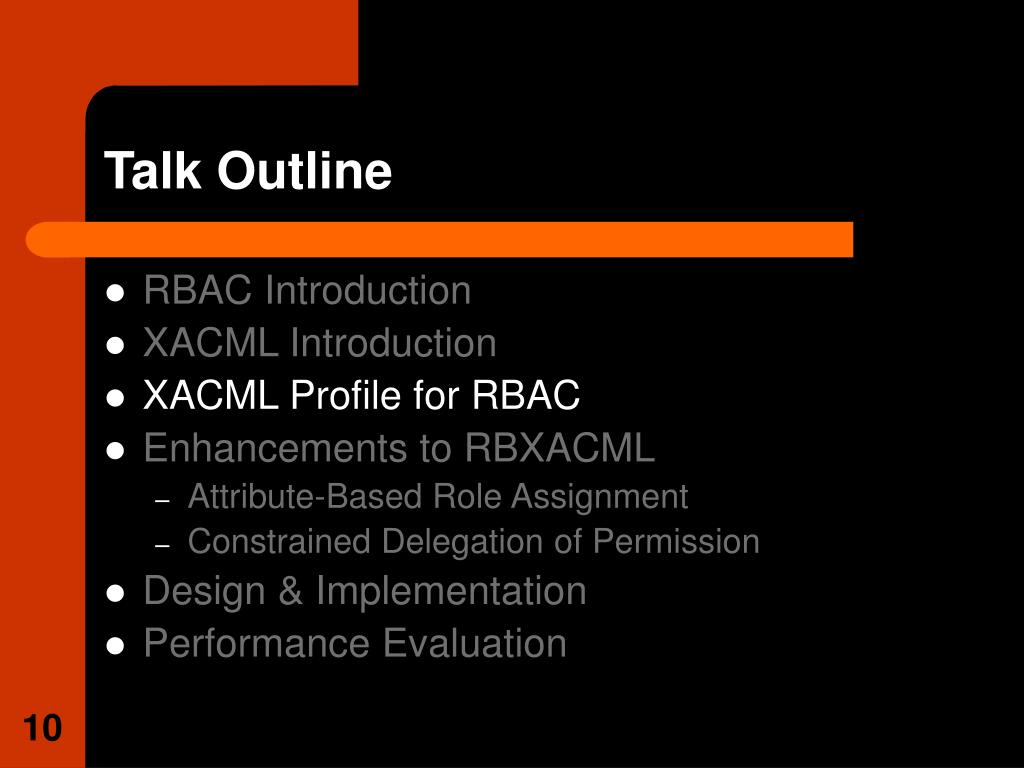

10. Talk Outline • RBAC Introduction • XACML Introduction • XACML Profile for RBAC • Enhancements to RBXACML • Attribute-Based Role Assignment • Constrained Delegation of Permission • Design & Implementation • Performance Evaluation

11. XACML Profile for RBAC • Draft v2.0 approved Sept. 2004 contains • Assigning Role Attributes • Core and Hierarchical RBAC implementation • Two Shortcomings: • Lacks a clear role assignment specification • No mention of permission delegation

12. RBXACML Implementation • Role Assignment Policy • Defines which roles are assigned to which subjects • Permission Policy Set • Contains all the permissions associated with a role • Role Policy Set • Associates a role with a PPS • Hierarchy is formed by PPS referencing other PPS’s

13. Talk Outline • RBAC Introduction • XACML Introduction • XACML Profile for RBAC • Enhancements to RBXACML • Attribute-Based Role Assignment • Constrained Delegation of Permission • Design & Implementation • Performance Evaluation

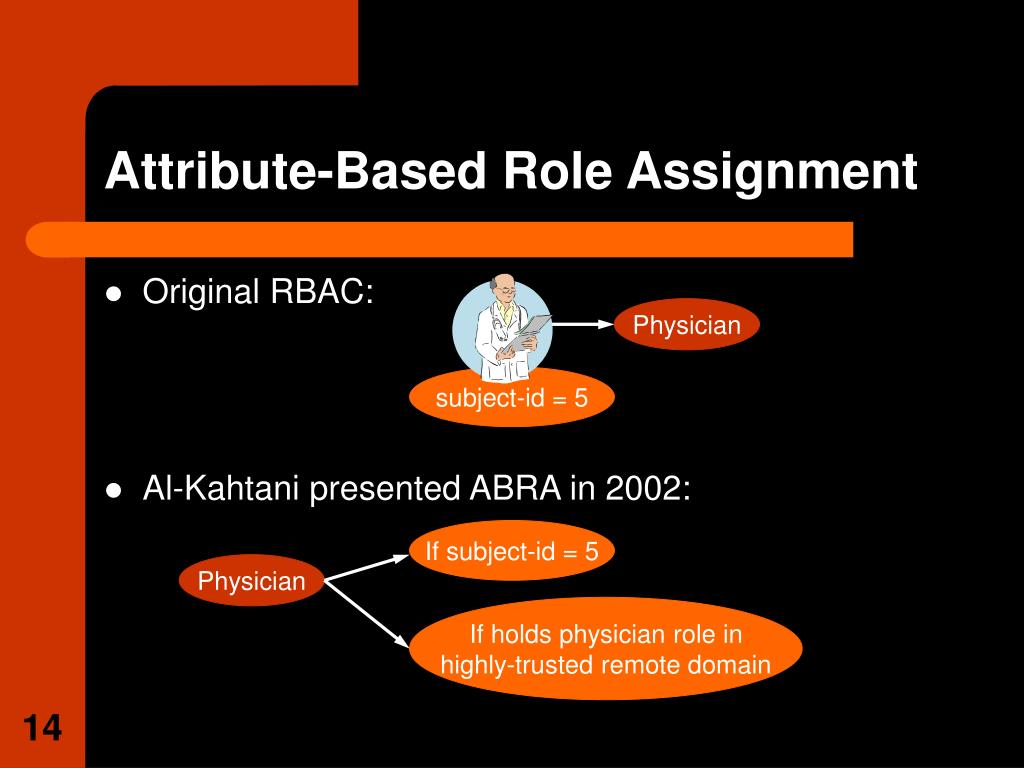

14. Attribute-Based Role Assignment • Original RBAC: • Al-Kahtani presented ABRA in 2002: Physician subject-id = 5 If subject-id = 5 Physician If holds physician role in highly-trusted remote domain

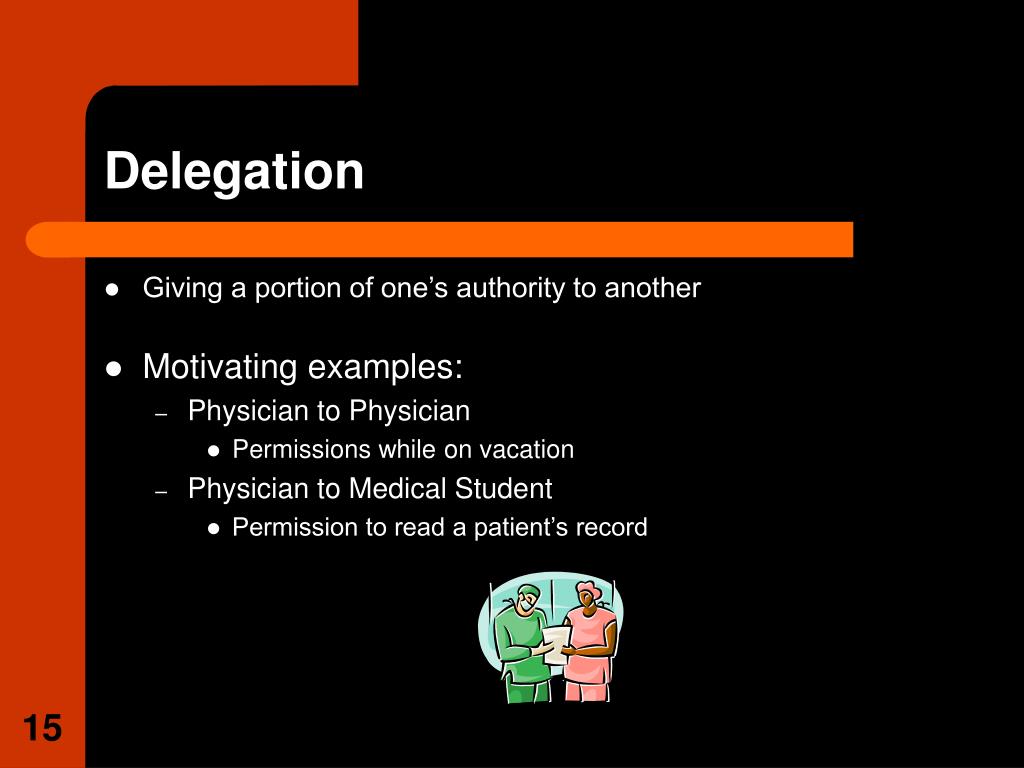

15. Delegation • Giving a portion of one’s authority to another • Motivating examples: • Physician to Physician • Permissions while on vacation • Physician to Medical Student • Permission to read a patient’s record

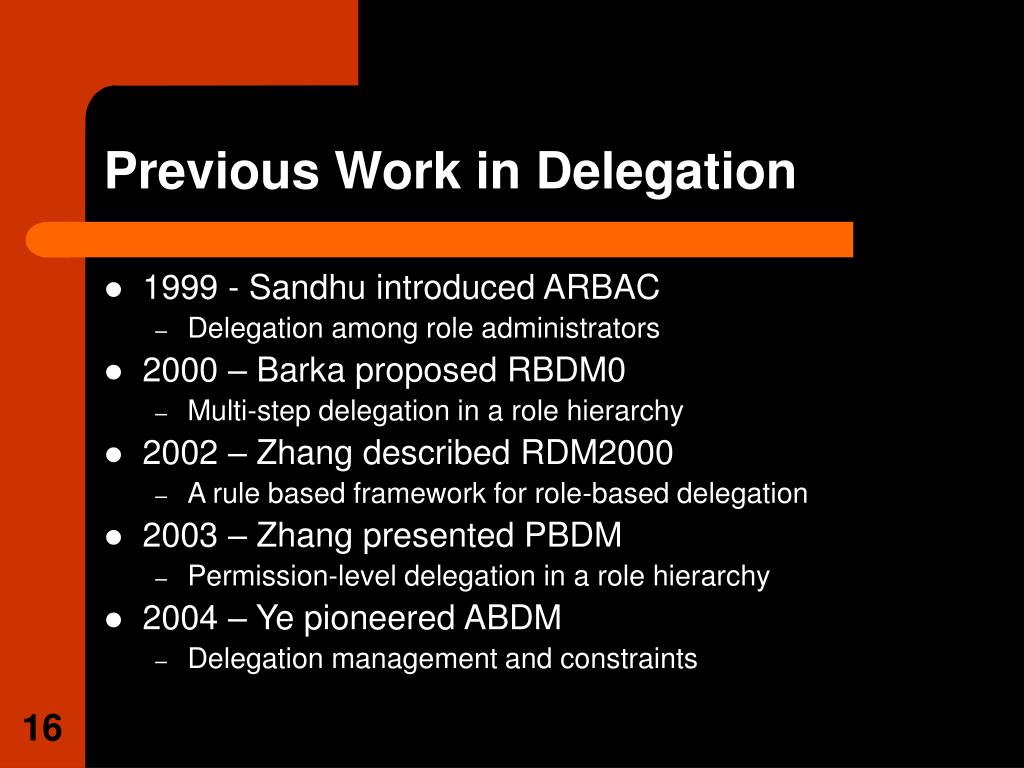

16. Previous Work in Delegation • 1999 - Sandhu introduced ARBAC • Delegation among role administrators • 2000 – Barka proposed RBDM0 • Multi-step delegation in a role hierarchy • 2002 – Zhang described RDM2000 • A rule based framework for role-based delegation • 2003 – Zhang presented PBDM • Permission-level delegation in a role hierarchy • 2004 – Ye pioneered ABDM • Delegation management and constraints

17. Constraining Delegation • Which permissions are delegatable • Allow some subset within a role to be delegatable • How permissions can be delegated • Delegation condition • Fulfilled by delegator before he can delegate a permission • Delegate assignment condition • Fulfilled by delegate before a delegated permission can be assigned to him

18. Maintaining Hierarchical RBAC • Delegation must conform to RBAC requirements • Use standard role definition and assignment • Delegation role assignments are contingent on the delegator’s assignment to the regular role • No user may alter the role hierarchy • Multi-step Delegation • Delegation constraints are inherited by all delegation roles • Hierarchical Delegation • A delegator may delegate a subset of a role’s inherited roles

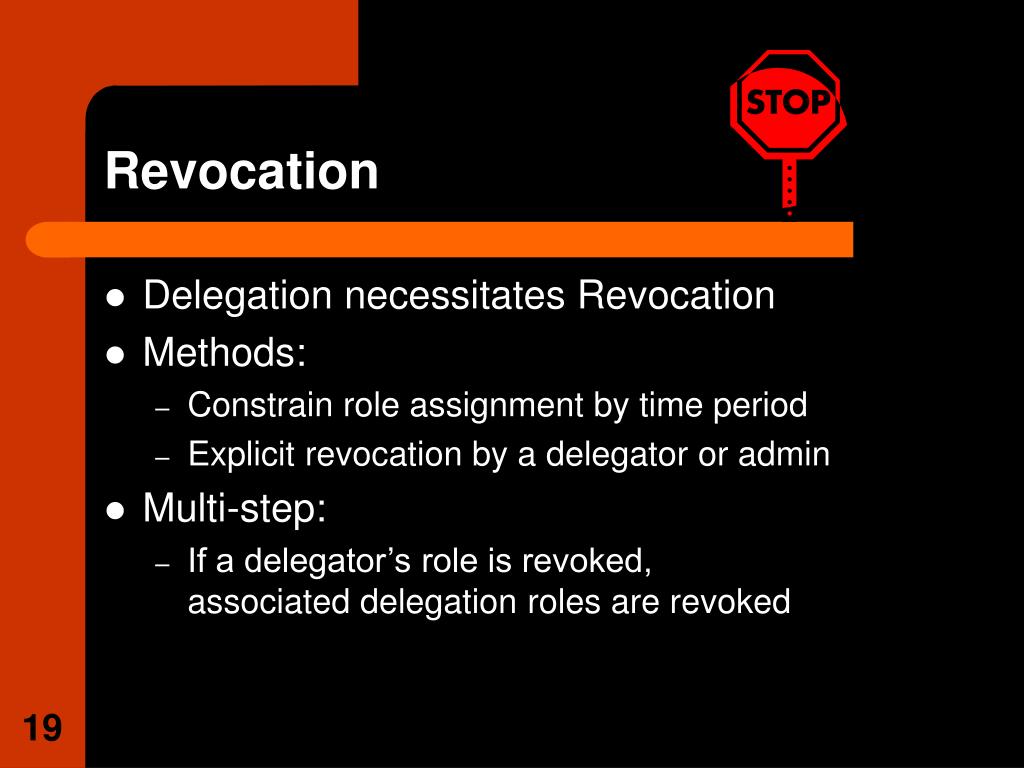

19. Revocation • Delegation necessitates Revocation • Methods: • Constrain role assignment by time period • Explicit revocation by a delegator or admin • Multi-step: • If a delegator’s role is revoked, associated delegation roles are revoked

20. Talk Outline • RBAC Introduction • XACML Introduction • XACML Profile for RBAC • Enhancements to RBXACML • Attribute-Based Role Assignment • Constrained Delegation of Permission • Design & Implementation • Performance Evaluation

21. RBAC & CADABRA Implementation • Two policy types: • Role Assignment Policy (RAP): rules to assign roles to subjects • Permission Policy (PP): permissions associated with a role • Role = { RAP, PP }

22. XACML for CADABRA

23. Authorization Architecture

24. Physician to Medical Student

25. Talk Outline • RBAC Introduction • XACML Introduction • XACML Profile for RBAC • Enhancements to RBXACML • Attribute-Based Role Assignment • Constrained Delegation of Permission • Design & Implementation • Performance Evaluation

26. Performance Evaluation • XML: expressiveness vs. efficiency • Compare role assignment time and authorization time to access time • Hospital Scenario: • Users: 50,000 patients, 5,000 staffers • Resources: 50 resource types, 5 actions • Roles: 15 regular roles, 2,000 delegation roles

27. Performance Evaluation • Pentium 4 3GHz, 1 GB RAM tAuthorization = 71 ms tRole Assignment = 983 ms / 10 = 98 ms tAuthorization + tRole Assignment = 169 ms tPortal Access = 703 ms ( tAuth + tRole Assign ) / ( tAccess + tAuth + tRole Assign ) = 19 % • Analysis: • The additional time for authorization is easily tolerated. • Role-to-User ABRA is not always necessary

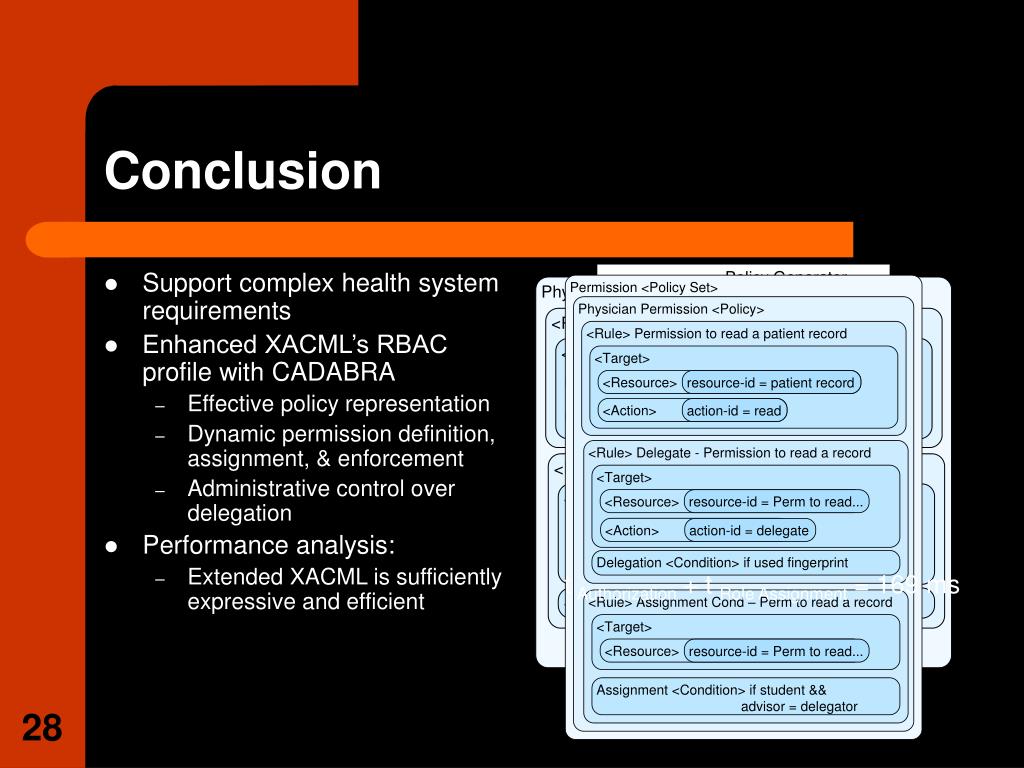

28. Conclusion • Support complex health system requirements • Enhanced XACML’s RBAC profile with CADABRA • Effective policy representation • Dynamic permission definition, assignment, & enforcement • Administrative control over delegation • Performance analysis: • Extended XACML is sufficiently expressive and efficient t Authorization + t Role Assignment = 169 ms

29. Future Work • Research Directions: • Formalize web-based enterprise request generation • Refine delegation constraints specification and aggregation • Access logging and auditing • Decompose ABRA into user-to-role & role-to-user • Research Documentation: • “XACML for RBAC and CaDABRA: Constrained Delegation and Attribute-Based Role Assignment” submitted to SACMAT 2006
