  1. OSP215 Microsoft Office 365: Identity and Access Solutions Ross Adams Senior Program Manager Microsoft

  2. Session Objectives • Describe the different Identity Options • Explain the Identity Architecture and Features • Describe how federated authentication works • Describe the various deployment scenarios • Questions

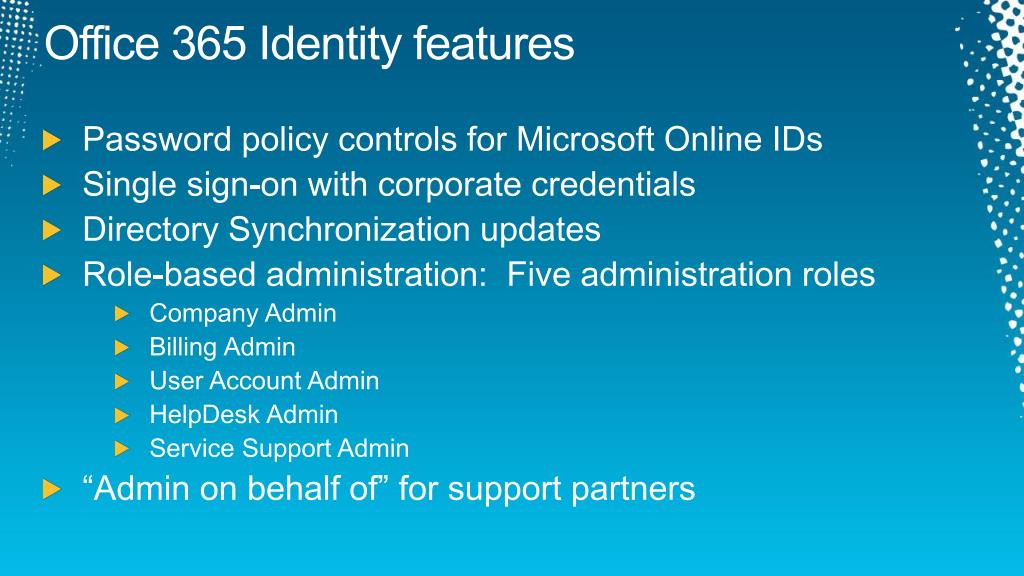

  3. Office 365 Identity features • Password policy controls for Microsoft Online IDs • Single sign-on with corporate credentials • Directory Synchronization updates • Role-based administration: Five administration roles • Company Admin • Billing Admin • User Account Admin • HelpDesk Admin • Service Support Admin • “Admin on behalf of” for support partners

  4. Identity Options • Microsoft Online IDs • Microsoft Online IDs + Microsoft Online Services Directory Synchronization • Single Sign On + Directory Synchronization Microsoft Online Services Identity Services Exchange Online Authentication platform Trust Contoso customer premises Active Directory Federation Server 2.0 Admin Portal/ PowerShell IdP SharePoint Online IdP Directory Store Provisioning platform MS Online Directory Sync AD Lync Online Office 365 Desktop Setup

  5. Identity options comparison 1. MS Online IDs 2. MS Online IDs + Dir Sync 3. Federated IDs + Dir Sync • Appropriate for • Smaller orgs without AD on-premise • Pros • No servers required on-premise • Cons • No SSO • No 2FA • 2 sets of credentials to manage with differing password policies • IDs mastered in the cloud • Appropriate for • Medium/Large orgs with AD on-premise • Pros • Users and groups mastered on-premise • Enables co-existence scenarios • Cons • No SSO • No 2FA • 2 sets of credentials to manage with differing password policies • Single server deployment • Appropriate for • Larger enterprise orgs with AD on-premise • Pros • SSO with corporate cred • IDs mastered on-premise • Password policy controlled on-premise • 2FA solutions possible • Enables co-existence scenarios • Cons • High availability server deployments required

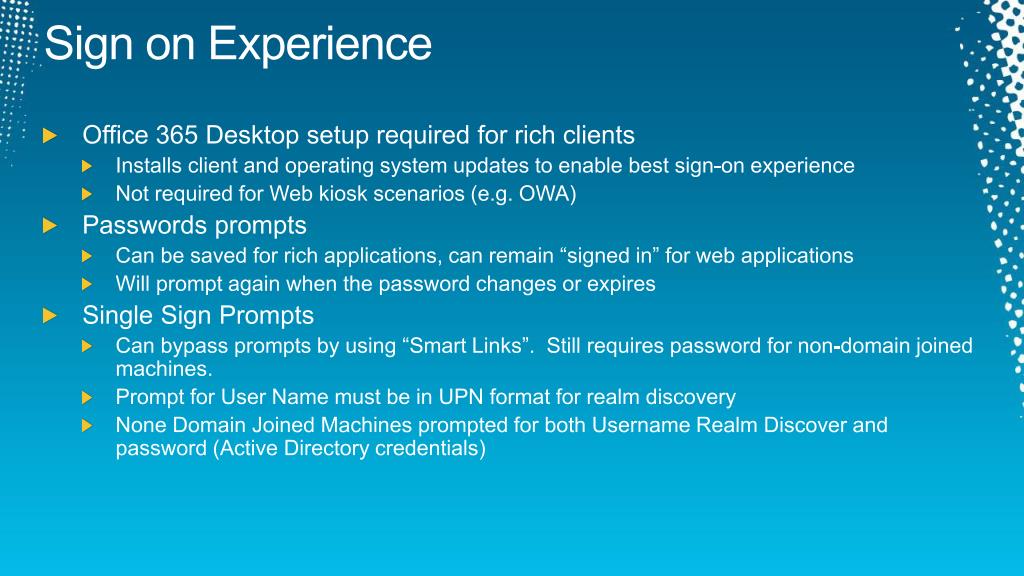

  6. Sign on Experience • Office 365 Desktop setup required for rich clients • Installs client and operating system updates to enable best sign-on experience • Not required for Web kiosk scenarios (e.g. OWA) • Passwords prompts • Can be saved for rich applications, can remain “signed in” for web applications • Will prompt again when the password changes or expires • Single Sign Prompts • Can bypass prompts by using “Smart Links”. Still requires password for non-domain joined machines. • Prompt for User Name must be in UPN format for realm discovery • None Domain Joined Machines prompted for both Username Realm Discover and password (Active Directory credentials)

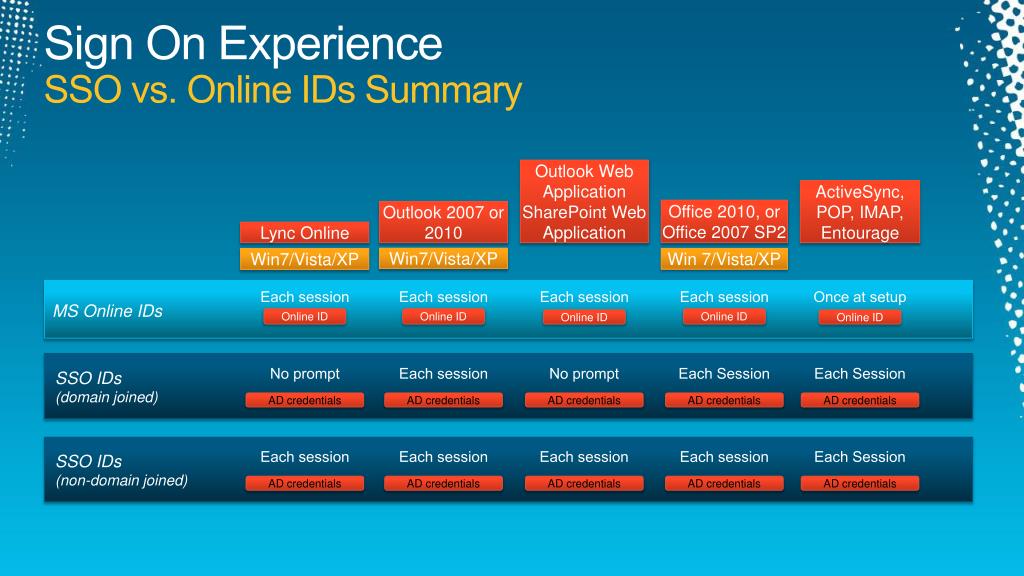

  7. Sign On ExperienceSSO vs. Online IDs Summary Outlook Web Application SharePoint Web Application ActiveSync, POP, IMAP, Entourage Office 2010, or Office 2007 SP2 Outlook 2007 or 2010 Lync Online Win7/Vista/XP Win 7/Vista/XP Win7/Vista/XP Each session Each session Each session Each session Once at setup MS Online IDs Online ID Online ID Online ID Online ID Online ID SSO IDs (domain joined) No prompt Each session No prompt Each Session Each Session AD credentials AD credentials AD credentials AD credentials AD credentials SSO IDs (non-domain joined) Each session Each session Each session Each session Each Session AD credentials AD credentials AD credentials AD credentials AD credentials

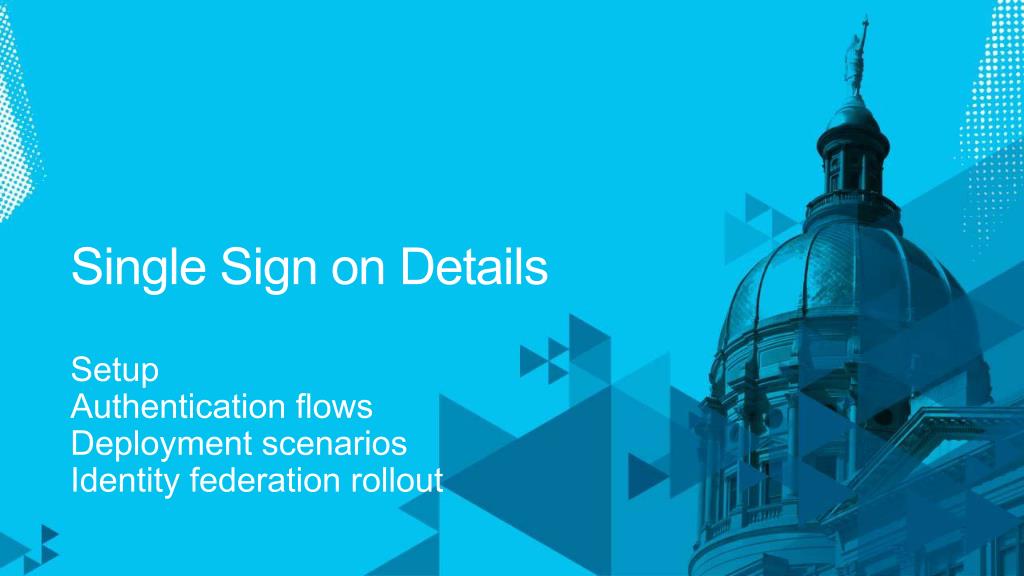

  8. Single Sign on Details Setup Authentication flows Deployment scenarios Identity federation rollout

  9. Single Sign on Setup for New domains • Microsoft Online PowerShell Module for Windows • Connect to AD FS 2.0 and Microsoft Office 365 • Add Domain (returns details for proof of ownership) • Add Domain Microsoft Online Services Identity Services Contoso customer premises Authentication platform Trust Active Directory Federation Server 2.0 Admin Portal/ PowerShell Update • Add Trust • Claim Rules • User Source ID = AD ObjectGUID Directory Store Provisioning platform Required Cname MSOL PowerShell Module Add Domain • Verify-Domain • Active/Mex/Passive • Token certs Current/Next • Brand URI etc

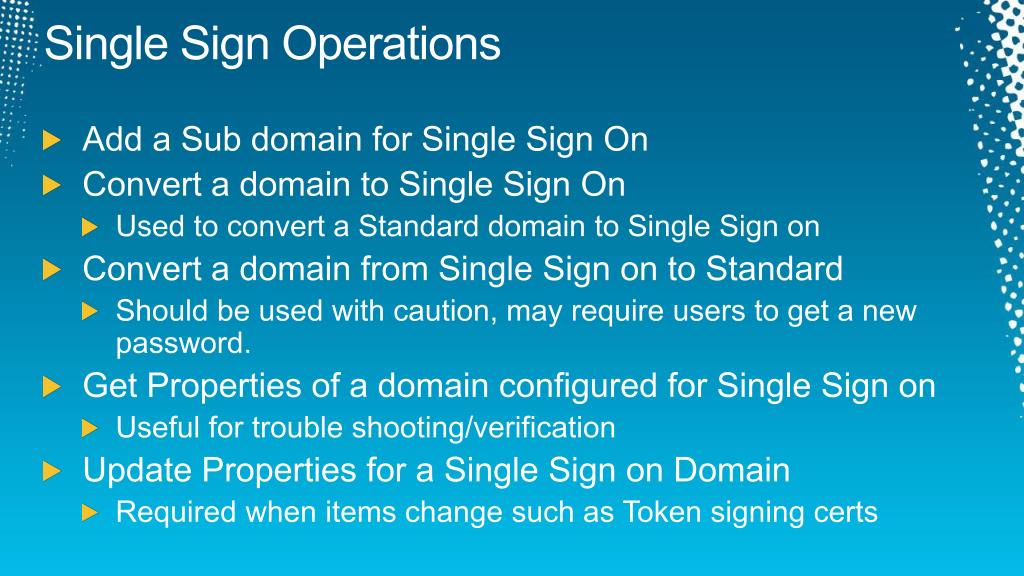

  10. Single Sign Operations • Add a Sub domain for Single Sign On • Convert a domain to Single Sign On • Used to convert a Standard domain to Single Sign on • Convert a domain from Single Sign on to Standard • Should be used with caution, may require users to get a new password. • Get Properties of a domain configured for Single Sign on • Useful for trouble shooting/verification • Update Properties for a Single Sign on Domain • Required when items change such as Token signing certs

  11. DEMO: Federation Tool

  12. Identity FederationAuthentication flow (Passive/Web profile) Customer Microsoft Online Services User Source ID Logon (SAML 1.1) Token UPN:user@contoso.com Source User ID: ABC123 Auth Token UPN:user@contoso.com Unique ID: 254729

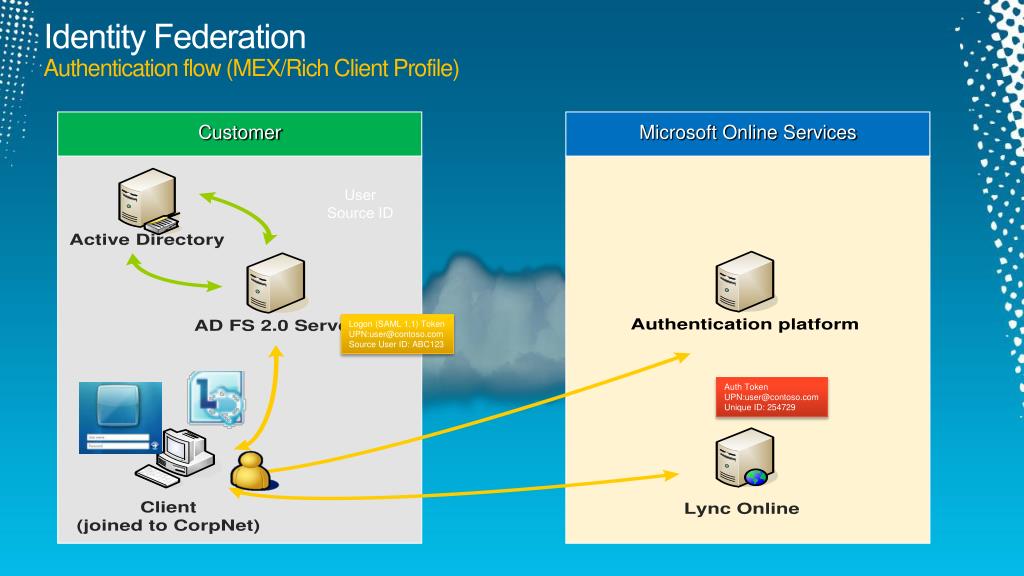

  13. Identity FederationAuthentication flow (MEX/Rich Client Profile) Customer Microsoft Online Services User Source ID Logon (SAML 1.1) Token UPN:user@contoso.com Source User ID: ABC123 Auth Token UPN:user@contoso.com Unique ID: 254729

  14. Identity FederationActive flow (Outlook/Active Sync) Customer Microsoft Online Services User Source ID Logon (SAML 1.1) Token UPN:user@contoso.com Source User ID: ABC123 Auth Token UPN:user@contoso.com Unique ID: 254729 Basic AuthCredentilas Username/Password

  15. DEMO: SSO in Action

  16. Identity Details • Microsoft Online Services requirements • MS Online business scenarios always use WS-* • WS-Trust provides support for rich client authentication • Identity federation supported initially only through AD FS 2.0 • Protocols supported • WS-*, SAML1.1 • SAML-P coming later • Strong authentication (2FA) solutions • Web applications via ADFS Proxy sign in page or other proxies (UAG/TMG) • Rich Clients dependent on configuration

  17. AD FS 2.0 deployment options • Single server configuration • AD FS 2.0 server farm and load-balancer • AD FS 2.0 proxy server or UAG/TMG (External Users, Active Sync, Outlook) External user Active Directory AD FS 2.0 Server Proxy AD FS 2.0Server AD FS 2.0 Server AD FS 2.0 Server Proxy Internal user Enterprise DMZ

  18. Preparing for Identity Federation • High availability design for AD FS 2.0 • Every User must have a UPN • UPN suffix must match a validated domain in Office 365 • UPN Character restrictions • Letters, numbers, dot, underscore or dash • No dot before @ symbol • Users may need to understand that they must use UPN to logon to Office 365 Apps • Can be hidden from users with smart links from domain machines

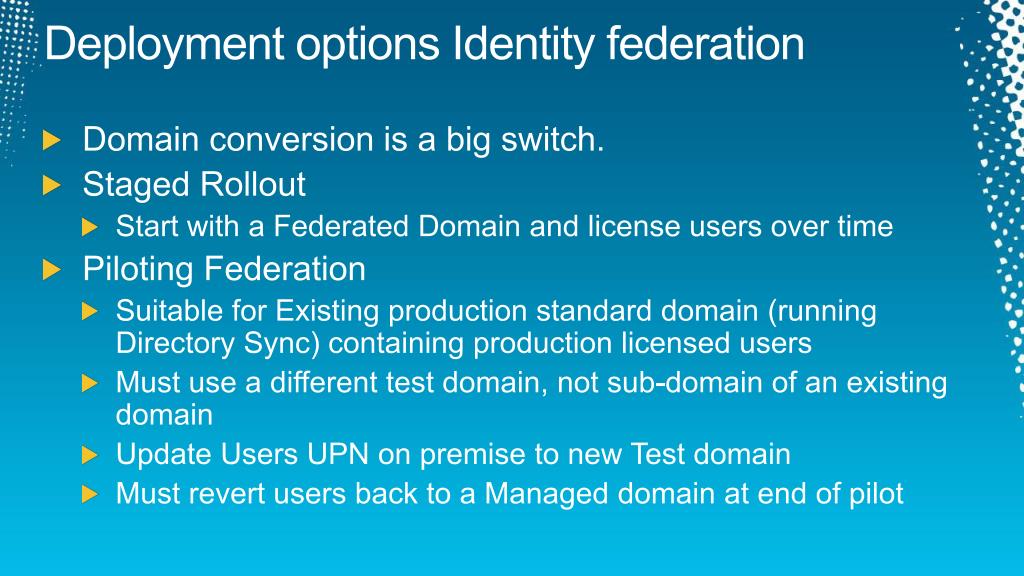

  19. Deployment options Identity federation • Domain conversion is a big switch. • Staged Rollout • Start with a Federated Domain and license users over time • Piloting Federation • Suitable for Existing production standard domain (running Directory Sync) containing production licensed users • Must use a different test domain, not sub-domain of an existing domain • Update Users UPN on premise to new Test domain • Must revert users back to a Managed domain at end of pilot

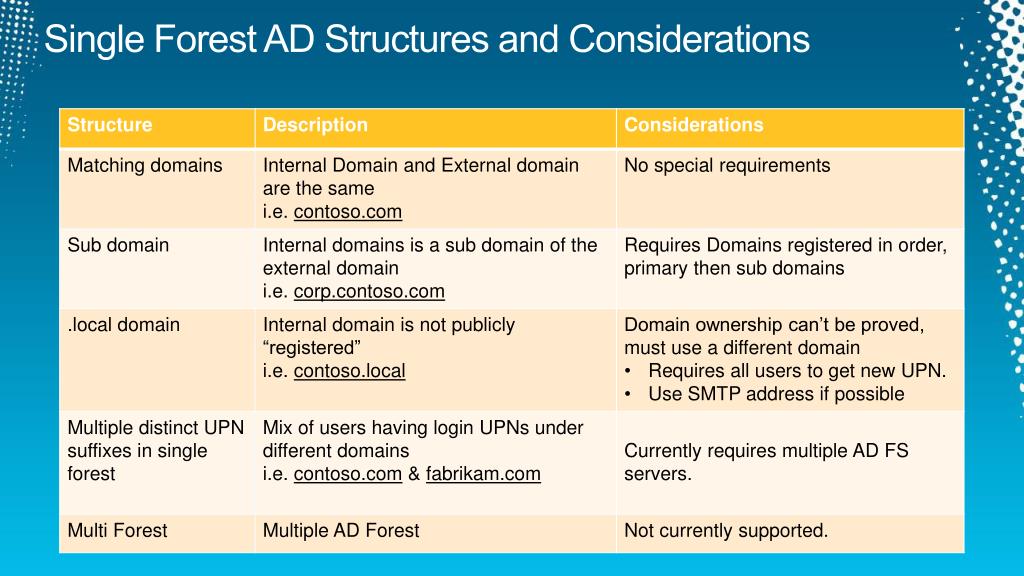

  20. Single Forest AD Structures and Considerations

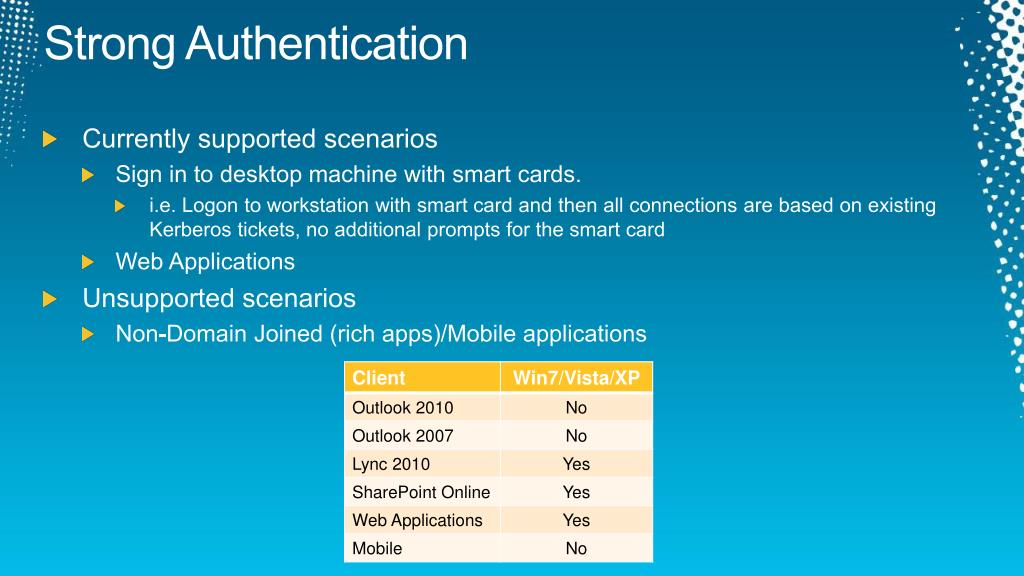

  21. Strong Authentication • Currently supported scenarios • Sign in to desktop machine with smart cards. • i.e. Logon to workstation with smart card and then all connections are based on existing Kerberos tickets, no additional prompts for the smart card • Web Applications • Unsupported scenarios • Non-Domain Joined (rich apps)/Mobile applications

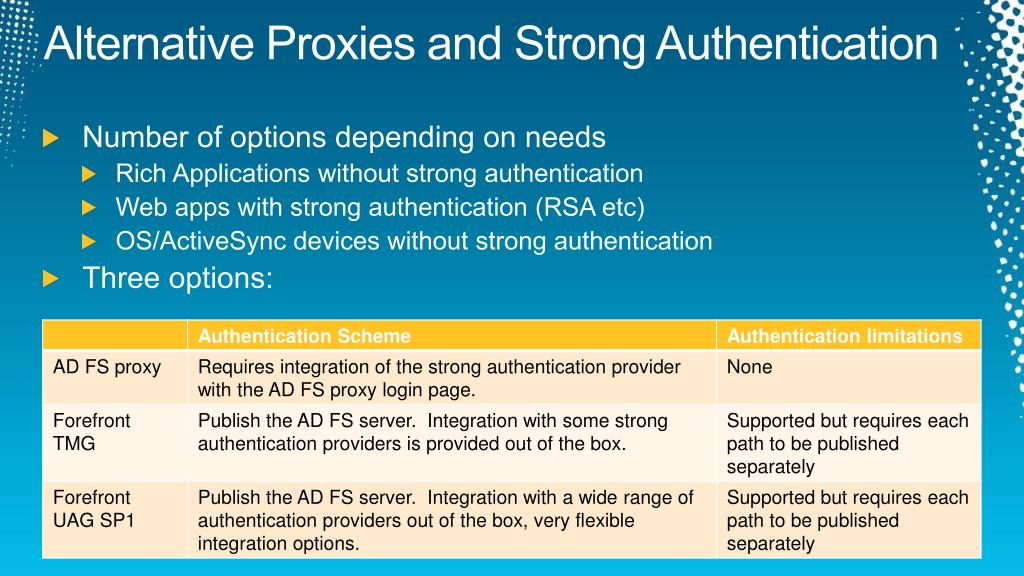

  22. Alternative Proxies and Strong Authentication • Number of options depending on needs • Rich Applications without strong authentication • Web apps with strong authentication (RSA etc) • OS/ActiveSync devices without strong authentication • Three options:

  23. Get questions answered (and get a beta account): http://www.microsoft.com/en-us/office365/online-software.aspx Office 365 Community (incl. blogs) http://community.office365.com/en-us/default.aspx Continue the conversation: Office 365 Facebook Site: https://www.facebook.com/office365?v=app_177440328974903 Office 365 Twitter Site: http://twitter.com/#!/office365 Office 365 Linked In Site: http://www.linkedin.com/groups/Microsoft-Office-365-3724282 Office 365 You Tube: http://www.youtube.com/microsoftoffice365 Office 365 Beta Service Descriptions: http://www.microsoft.com/downloads/en/details.aspx?FamilyID=6C6ECC6C-64F5-490A-BCA3-8835C9A4A2EA Office 365 Developer Training: http://msdn.microsoft.com/en-us/hh181605 SharePoint Online for Office 365 Developer Guide: http://www.microsoft.com/downloads/en/details.aspx?FamilyID=4387e030-73dc-48e7-ac95-abc043b9335a Office 365 Marketplace: http://office365.pinpoint.microsoft.com/en-US/default.aspx Office 365 Track Go Do’s

  24. Microsoft Office 365 for IT Professionals May 24-26, 2011 Week after TechEd Tailored for IT Pros Learn from the Best Three-Day Jump Start Course May 24: “Office 365 Platform” May 25: “Exchange Online” May 26: “Lync & SharePoint Online” Jump Start Microsoft Productivity, Email & Collaboration in the Cloud. Training designed for experienced technologists and IT leaders whose jobs demand they know how to best leverage new, emerging Microsoft technologies. REGISTER NOW: http://bit.ly/Office365-JUMP

  25. Monday, May 16 OSP212: Microsoft Office 365: The Future of Productivity (Room 307 | 1:15 PM) OSP216: Microsoft Office 365: Deployment Overview (Room B313 | 3:00 PM) Tuesday, May 17 OSP273-INT: Microsoft Office 365 Administration and Automation Using Windows PowerShell (Room B301 | 8:30 AM) OSP213: What Do Existing BPOS Customers Need to Do to Prepare for Microsoft Office 365? (Room C201 | 1:30 PM) OSP276-INT: Microsoft Office 365 Client Connectivity (Room B304 | 1:30PM) OSP215: Microsoft Office 365: Identity and Access Solutions (Room B314 | 3:15 PM) OSP324: The Taming of the Clouds: Integrating SaaS with Your On-Premise Environment (Room C211 | 5:00 PM) Wednesday, May 18 OSP272-INT: Licensing Microsoft Online Services (Room B302| 10:15 AM) OSP274-INT: What Do Existing BPOS Customers Need to Do to Prepare for Microsoft Office 365? Q&A Follow Up (Room B304 | 3:15 PM) OSP 325: Microsoft Office 365: Directory Synchronization (Room B313 | 3:15 PM) Thursday, May 19 OSP381-INT: Microsoft Office 365: Identity and Access Solutions - Q&A Follow Up (Room B301 | 10:15 AM) OSP219: Deploying Microsoft Office Professional Plus Subscription (Room B314 | 2:45 PM) OSP214: Security and Compliance on the Microsoft Business Productivity Online Standard Suite and Microsoft Office 365 Platforms (Room B313 | 4:30 PM) Office 365 Track Sessions

  26. Monday, May 16 EXL202: Microsoft Lync 2010: In the Cloud (Room B206 | 3:00 PM) OSP210: Microsoft SharePoint Online Overview (Room B402 | 3:00 PM) Tuesday, May 17 OSP309: Integrating Microsoft SharePoint 2010 and Microsoft Dynamics CRM Online (Room C302 | 1:30 PM) EXL319: Microsoft Lync 2010: Setup, Deployment, Upgrade and Coexistence Scenarios (Room B206 | 3:15 PM) OSP301: Integrating Microsoft SharePoint 2010 with Windows Azure (Room C203 | 5:00PM) Wednesday, May 18 EXL302: Archiving and Discovery in Microsoft Exchange 2010 SP1 and Exchange Online (Room B207| 10:15 AM) OSP308: Claims Identity in Microsoft SharePoint 2010 (Room B314 | 10:15 AM) OSP372-INT: Building Cloud Apps Using Microsoft Dynamics CRM Online and Windows Azure (Room B303 | 10:15 AM) OSP305: Developing Collaboration Solutions in the Cloud with Microsoft SharePoint Online (Room B314 | 1:30 PM) EXL311: Microsoft Exchange Server & Microsoft Office 365: How to Set Up a Hybrid Deployment (Room B206 | 3:15 PM) Thursday, May 19 EXL375-INT: Understanding Archiving and Compliance in Microsoft Exchange Online (Room B302 | 8:30 AM) EXL322: Microsoft Exchange Online: Unified Messaging in Microsoft Office 365 (Room B207 | 1:00 PM) EXL309: Microsoft Exchange Online in Microsoft Office 365: Migration Case Study (Room B207 | 2:45 PM) OSP306: Developing Powerful Workflows in the Cloud with Microsoft SharePoint Online (Room C208 | 2:45 PM) Related Office 365 Sessions

  27. Questions?

  28. Resources • Connect. Share. Discuss. http://northamerica.msteched.com Learning • Sessions On-Demand & Community • Microsoft Certification & Training Resources www.microsoft.com/teched www.microsoft.com/learning • Resources for IT Professionals • Resources for Developers • http://microsoft.com/technet • http://microsoft.com/msdn
