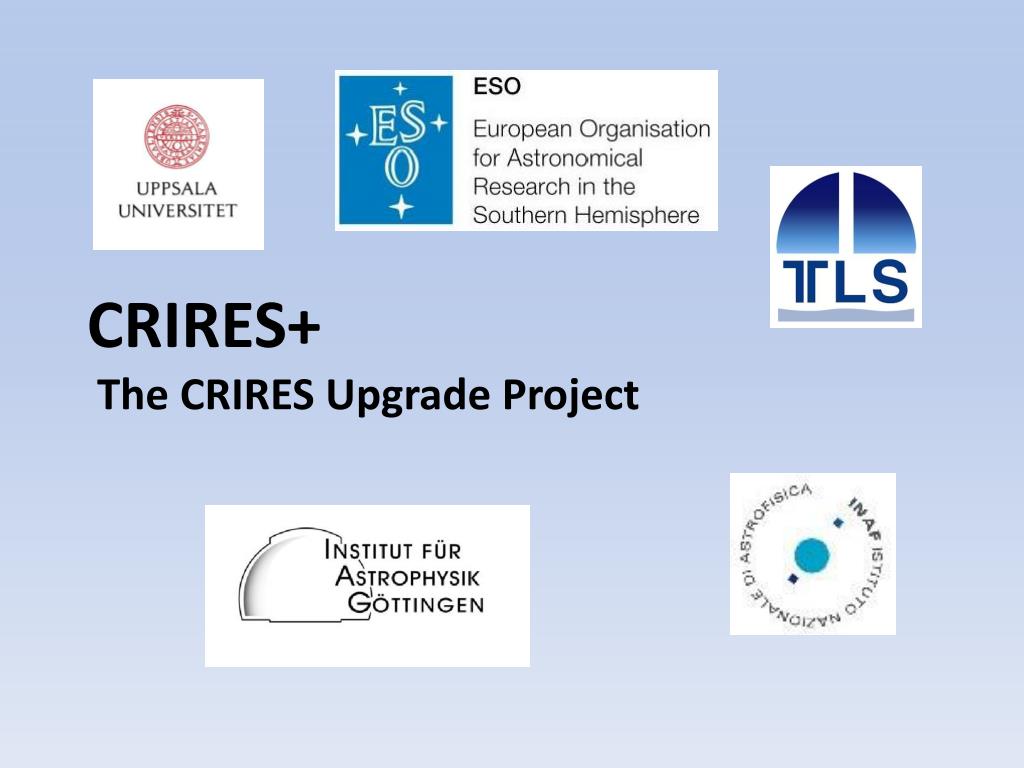

  1. CRIRES+The CRIRES Upgrade Project

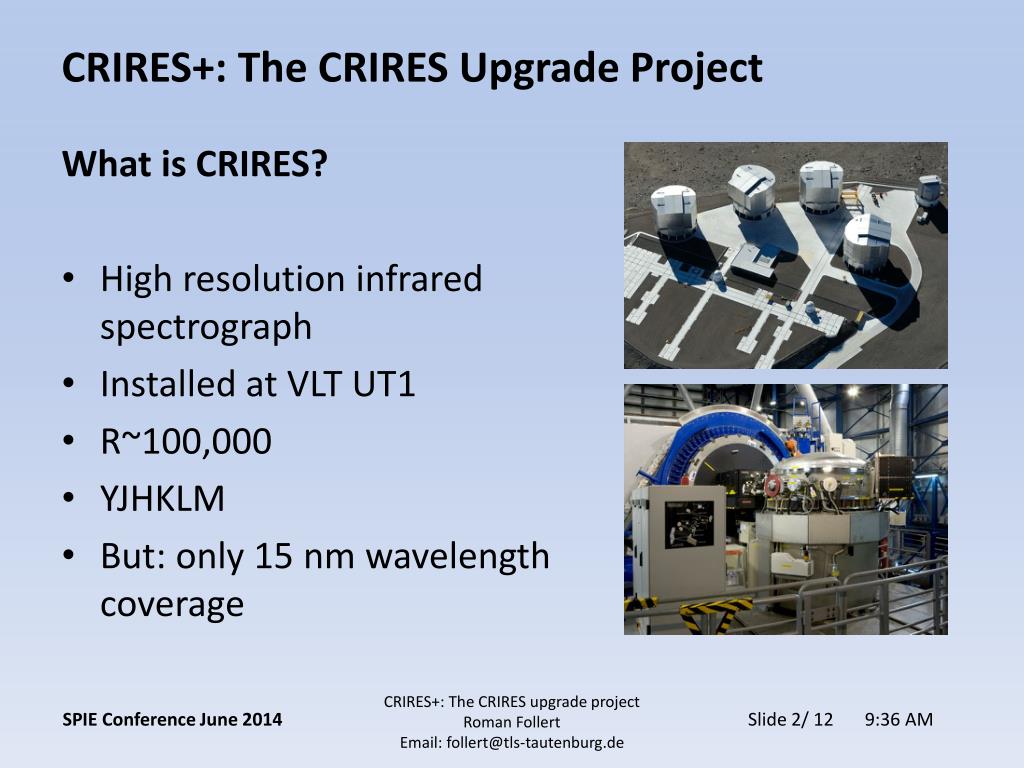

  2. CRIRES+: The CRIRES Upgrade Project Whatis CRIRES? • High resolutioninfraredspectrograph • Installedat VLT UT1 • R~100,000 • YJHKLM • But: only 15 nmwavelengthcoverage CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

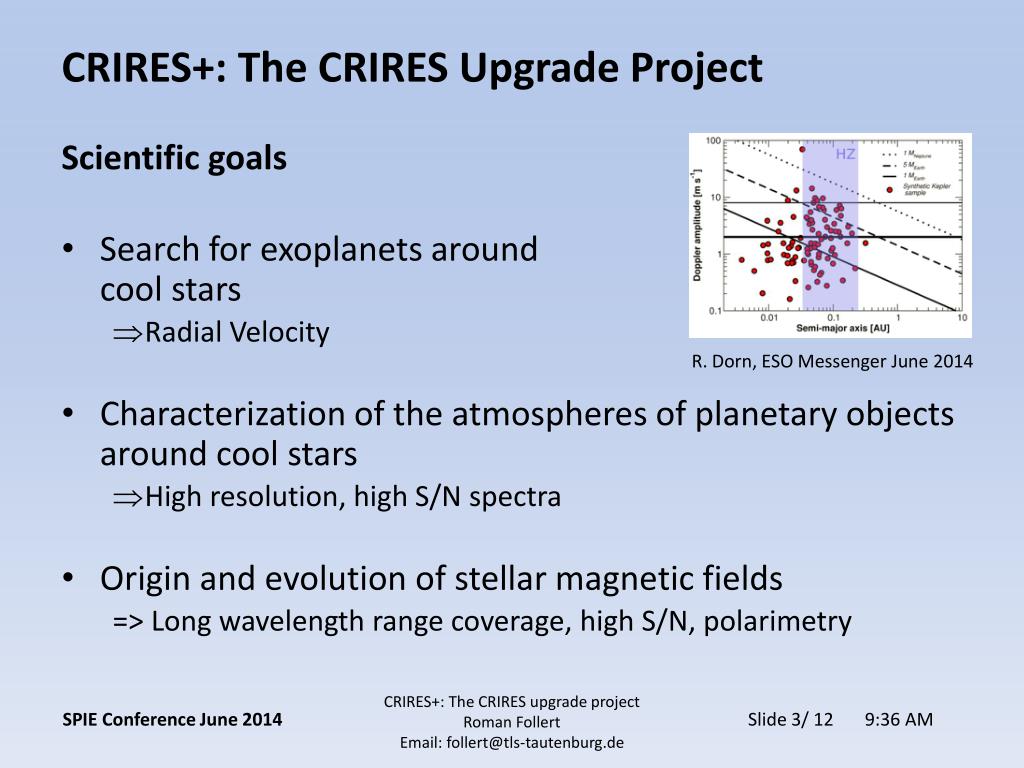

  3. CRIRES+: The CRIRES Upgrade Project Scientific goals • Searchforexoplanetsaround cool stars • Radial Velocity • Characterizationoftheatmospheresofplanetaryobjectsaround cool stars • High resolution, high S/N spectra • Origin and evolution of stellar magnetic fields => Long wavelengthrangecoverage, high S/N, polarimetry R. Dorn, ESO Messenger June 2014 CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

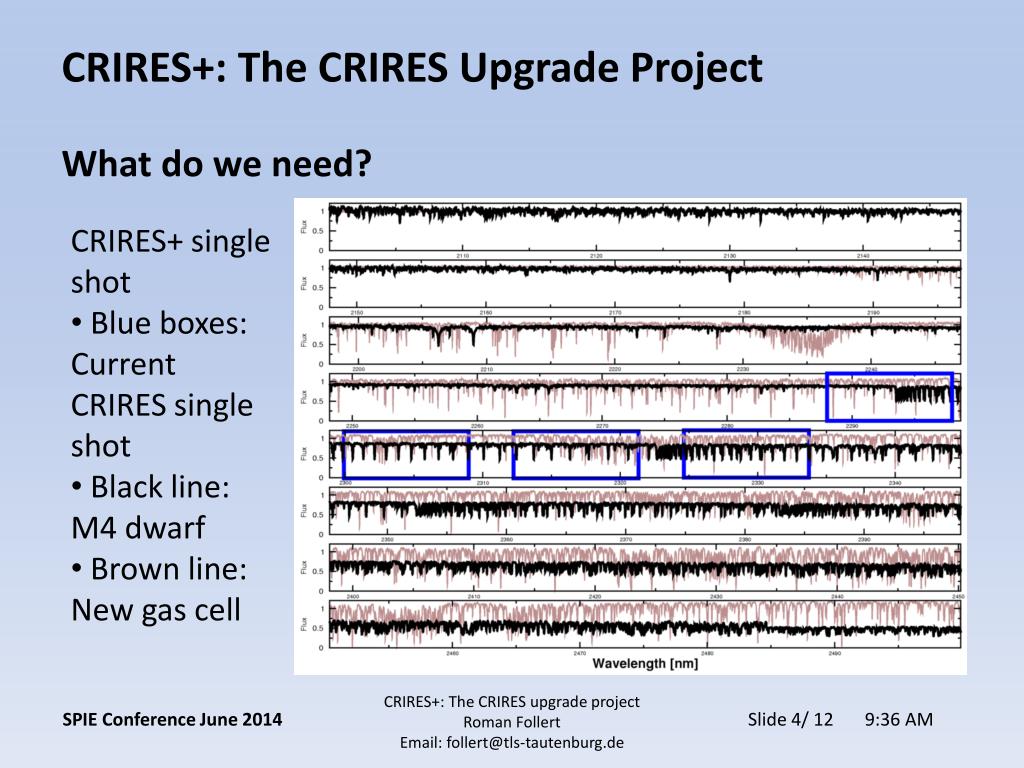

  4. CRIRES+: The CRIRES Upgrade Project What do weneed? • CRIRES+ single shot • Blue boxes: Current CRIRES single shot • Black line: M4 dwarf • Brown line: New gas cell CRIRES+: The CRIRES upgradeproject Roman Follert Email: follert@tls-tautenburg.de

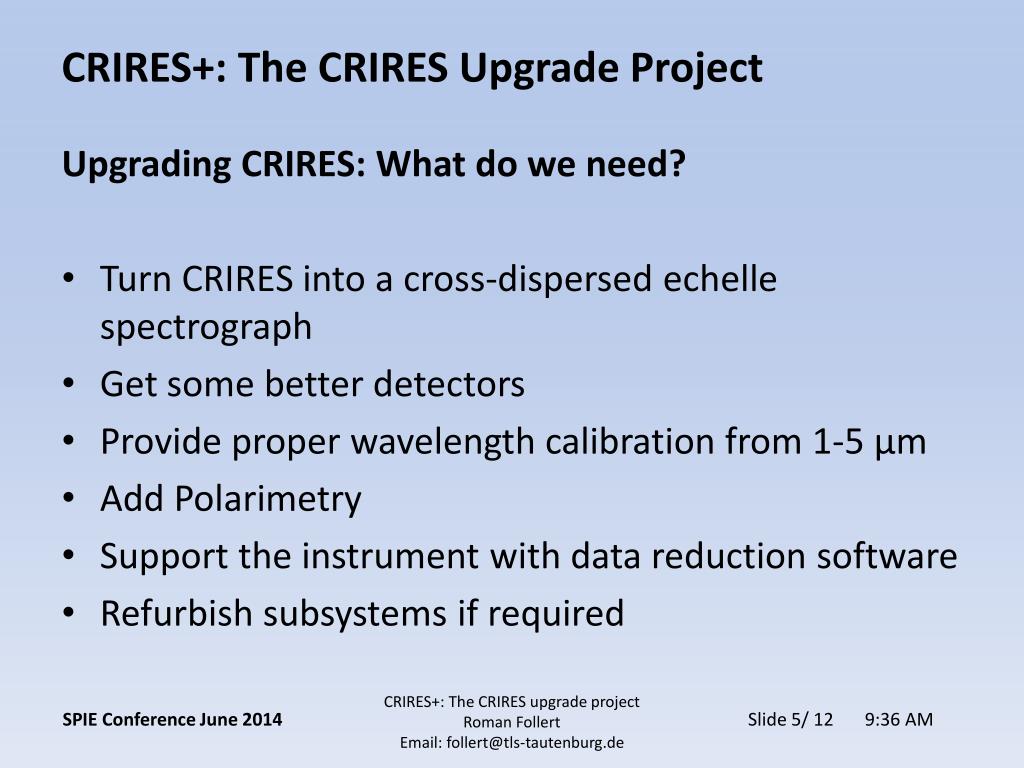

  5. CRIRES+: The CRIRES Upgrade Project Upgrading CRIRES: What do weneed? • Turn CRIRES into a cross-dispersedechellespectrograph • Getsomebetterdetectors • Provide proper wavelengthcalibrationfrom 1-5 μm • Add Polarimetry • Support theinstrumentwithdatareductionsoftware • Refurbishsubsystemsifrequired CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

  6. CRIRES+: The CRIRES Upgrade Project CRIRES+: A cross-dispersedechellespectrograph • Gratingwheelwith 6 gratings (YJHKLM) • New CDU Camera 1-5 μm • New slitassembly (0.2 and 0.4 arcsec) andslitviewer • Upgrade metrologysystem CRIRES+ optical design, R. Dorn, ESO Messenger June 2014 CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

  7. CRIRES+: The CRIRES Upgrade Project The moreyouknow “Opto-mechanical design of a new cross dispersion unit for the CRIRES+ high resolution spectrograph for the VLT” Presentedby Jean-Louis Lizon Poster 9147-290 atWednesday, June 25th, 6-8 pm “Concept and optical design of the cross-disperser module for CRIRES+” PresentedbyErnesto Oliva Poster 9147-289 atWednesday, June 25th, 6-8 pm CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

  8. CRIRES+: The CRIRES Upgrade Project The newscientificfocal plane detectorarray • HAWAII2RG detectorswith 5.5 μm cutoff • Increasestheusablefocal plane byfactor 2.7 • Supportedby ESO NGC detectorsystem Comparisonpriorandfuturefocal plane array, R. Dorn, ESO Messenger June 2014 CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

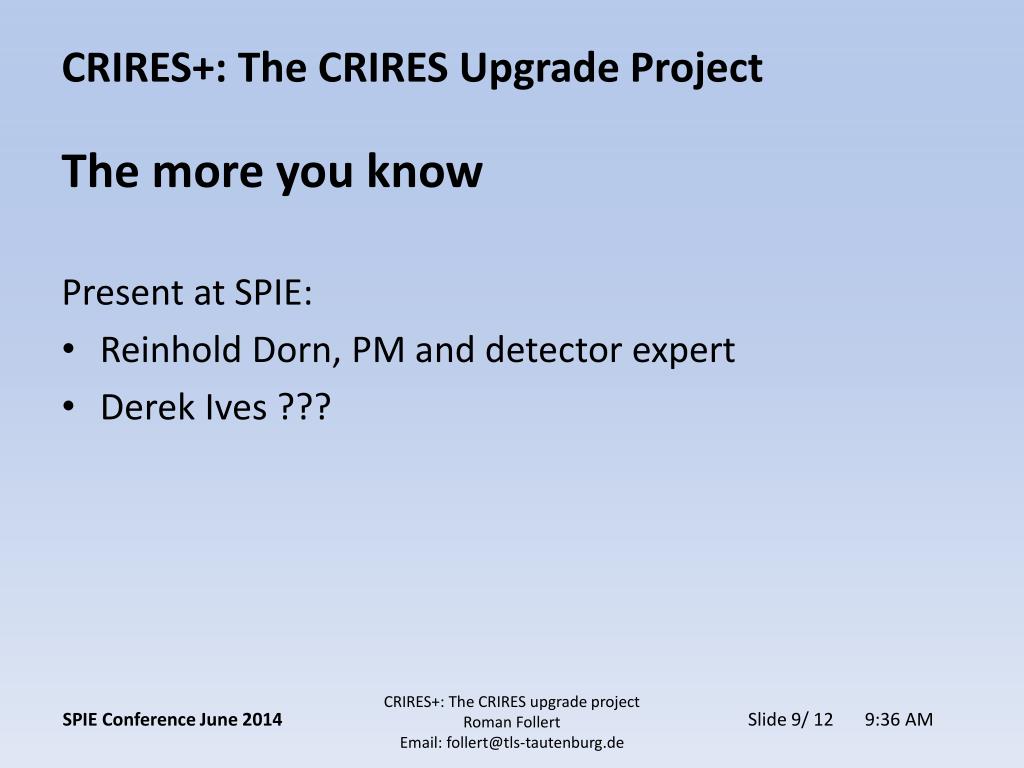

  9. CRIRES+: The CRIRES Upgrade Project The moreyouknow Presentat SPIE: • Reinhold Dorn, PM anddetector expert • Derek Ives ??? CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

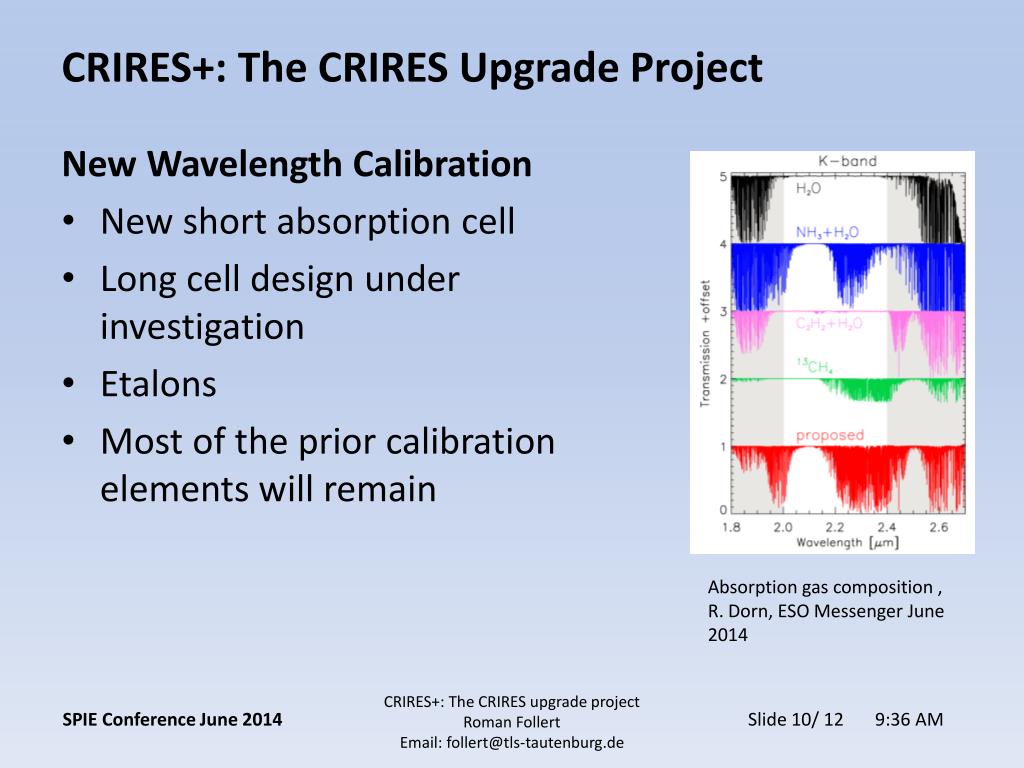

  10. CRIRES+: The CRIRES Upgrade Project New Wavelength Calibration • New shortabsorptioncell • Long cell design underinvestigation • Etalons • Most ofthepriorcalibrationelements will remain Absorption gas composition , R. Dorn, ESO Messenger June 2014 CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

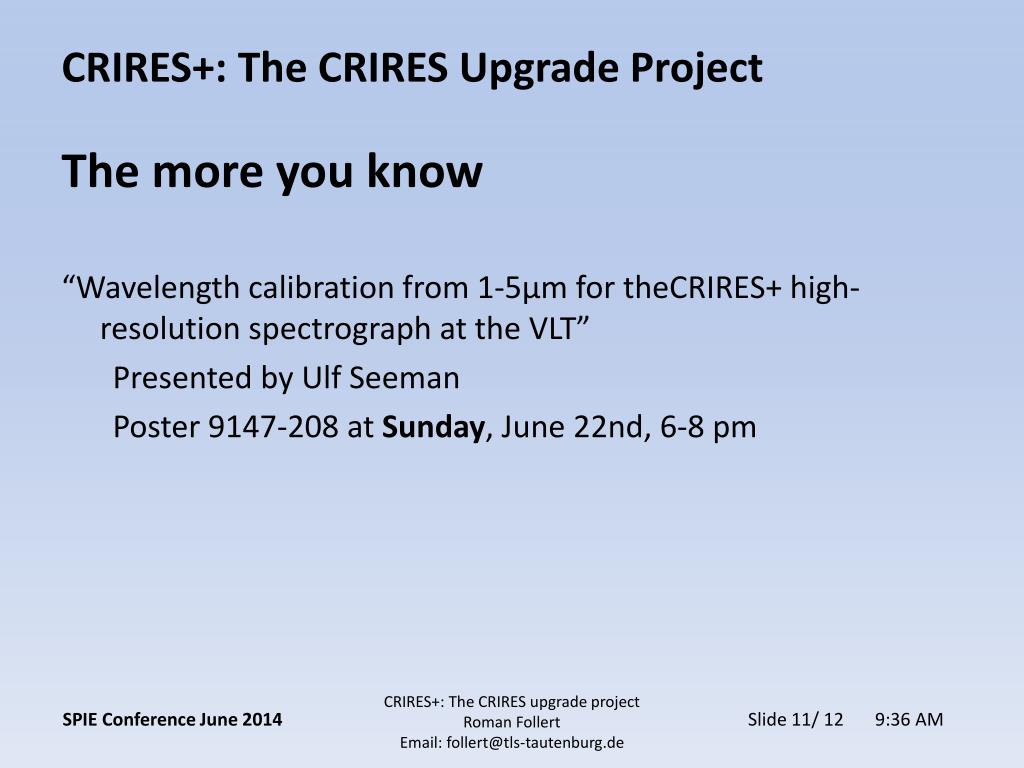

  11. CRIRES+: The CRIRES Upgrade Project The moreyouknow “Wavelength calibration from 1-5μm for theCRIRES+ high-resolution spectrograph at the VLT” Presentedby Ulf Seeman Poster 9147-208 atSunday, June 22nd, 6-8 pm CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

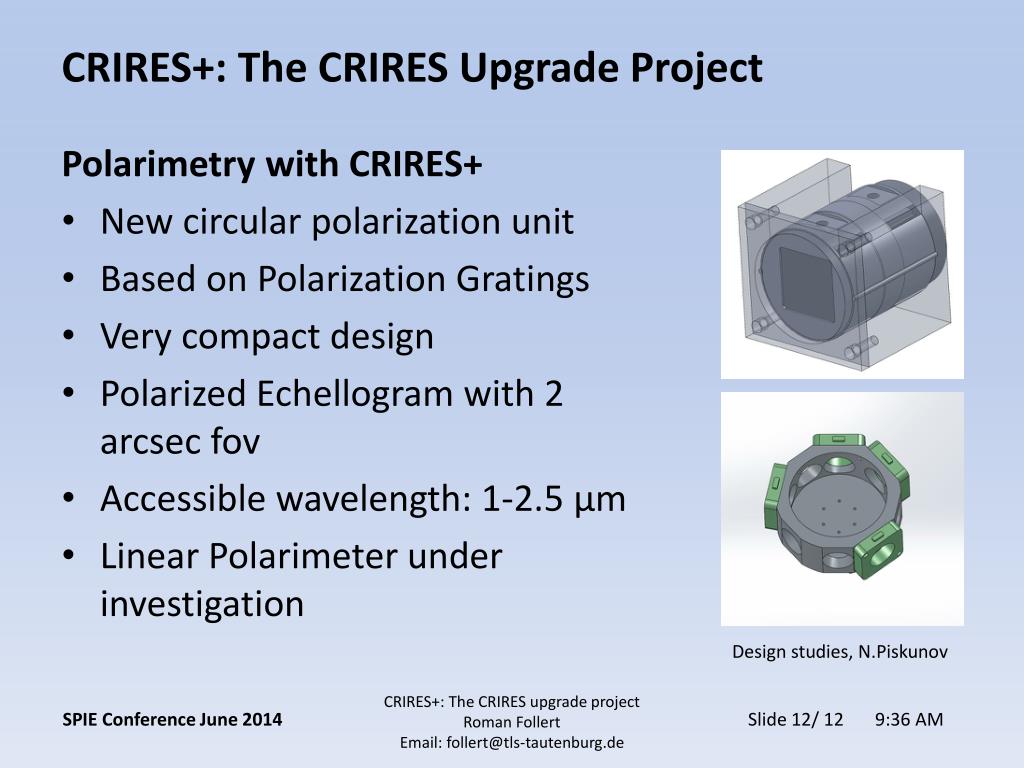

  12. CRIRES+: The CRIRES Upgrade Project Polarimetry with CRIRES+ • New circularpolarizationunit • Based on PolarizationGratings • Verycompact design • PolarizedEchellogramwith 2 arcsecfov • Accessiblewavelength: 1-2.5 μm • Linear Polarimeter underinvestigation Design studies, N.Piskunov CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

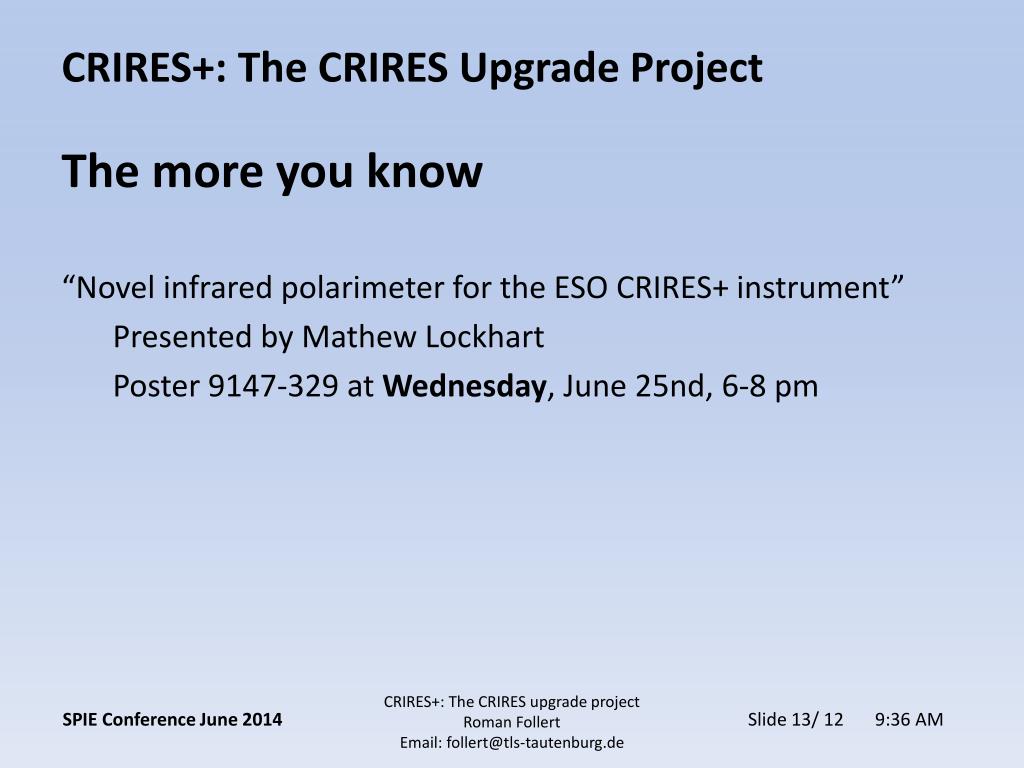

  13. CRIRES+: The CRIRES Upgrade Project The moreyouknow “Novel infrared polarimeter for the ESO CRIRES+ instrument” Presentedby Mathew Lockhart Poster 9147-329 atWednesday, June 25nd, 6-8 pm CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

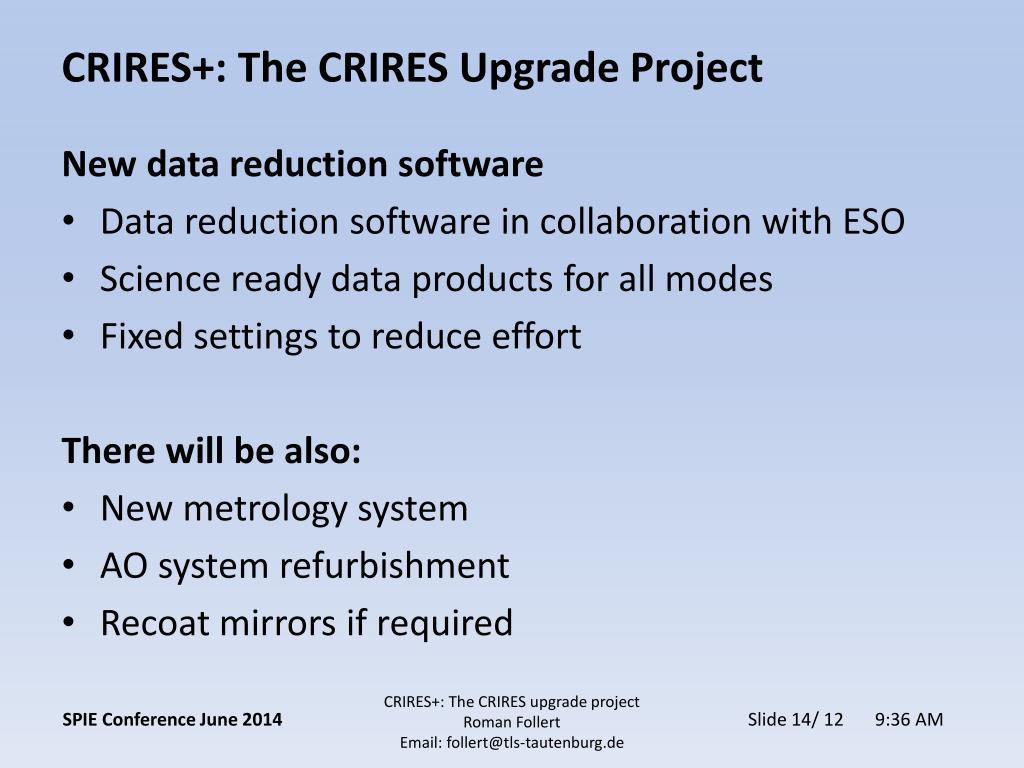

  14. CRIRES+: The CRIRES Upgrade Project New data reduction software • Data reductionsoftware in collaborationwith ESO • Science readydataproductsfor all modes • Fixed settingstoreduceeffort There will be also: • New metrologysystem • AO systemrefurbishment • Recoatmirrorsifrequired CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

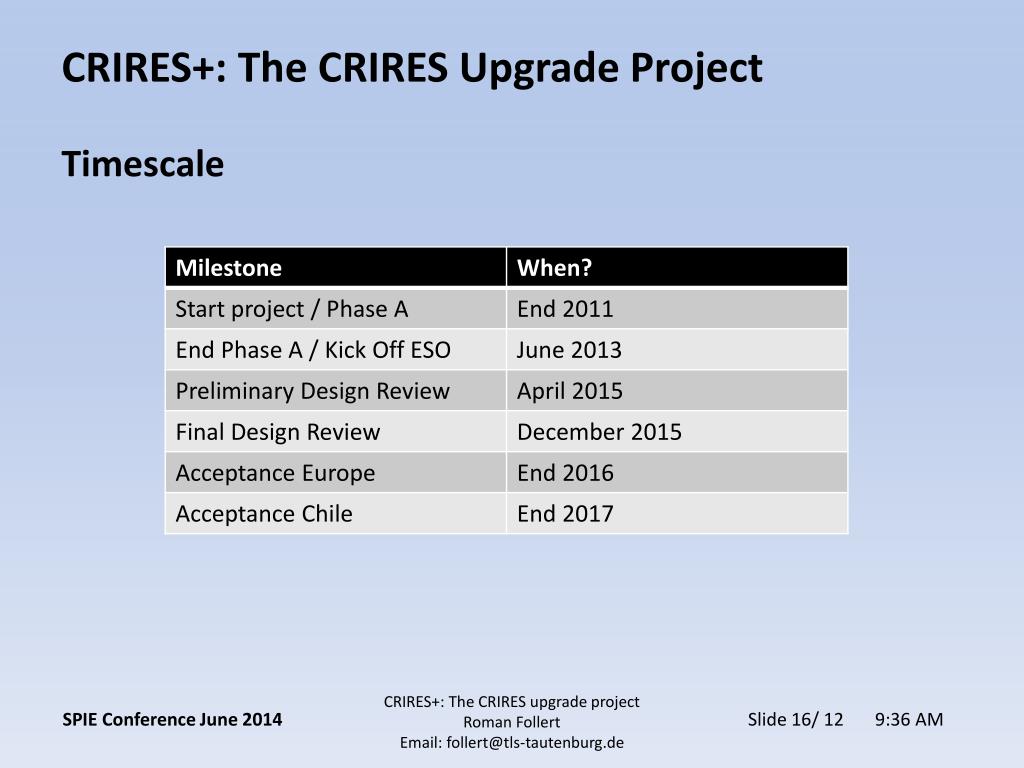

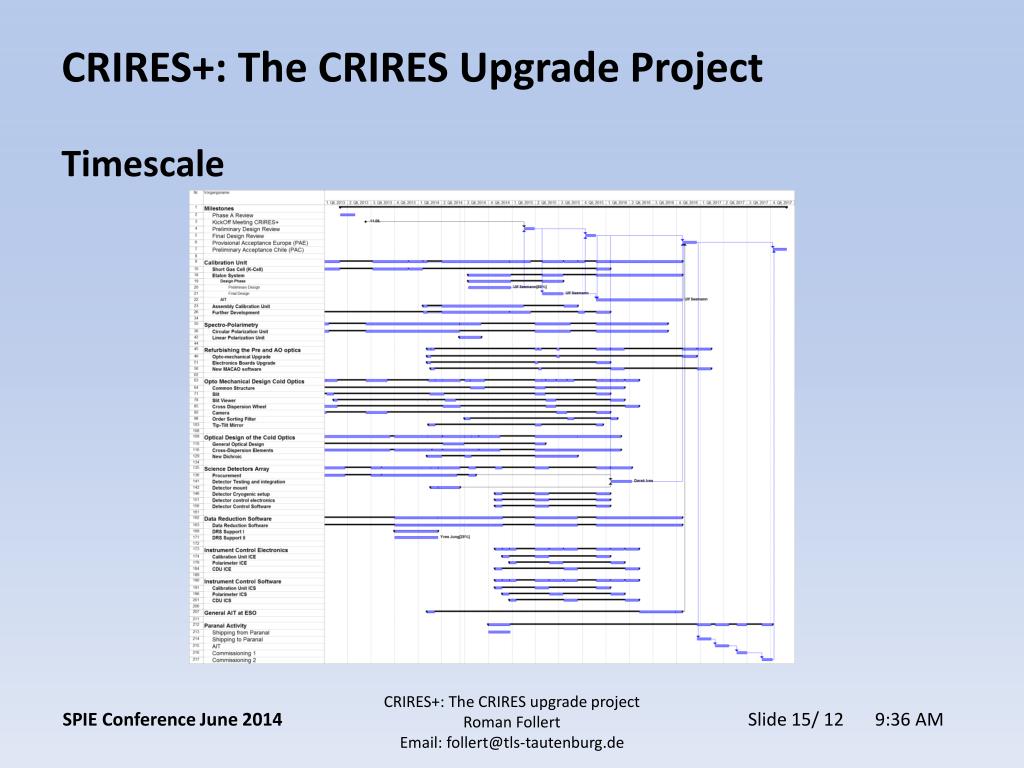

  15. CRIRES+: The CRIRES Upgrade Project Timescale CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

  16. CRIRES+: The CRIRES Upgrade Project Timescale CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de

  17. CRIRES+: The CRIRES Upgrade Project Conclusion/ What to remember from this talk • CRIRES+ firstinfraredechellespectrographat ESO facility • Unique combinationofcharacteristics (mainaperture, accessibleandinstantanouswavelenghtrange, resolution) • New calibrationanddatareductionsoftwaretoreachinstrumentlimit • Polarimetry! • Ready in end of 2017 (We‘refullyfinanced) CRIRES+: The CRIRES upgrade project Roman Follert Email: follert@tls-tautenburg.de
