  1. Product Presentation

  2. Product Presentation WHAT IS IT?

  3. Product Presentation The SuperTooth Buddy is a portable Bluetooth hands-free car kit. Main features:- Full Auto Pairing - Multipoint- Auto connect- Outstanding autonomy- Audio enhancing soft microphone WHAT IS IT?

  4. Product Presentation WHAT IS IT? 1 Speaker 2 Volume up 3 Volume down 4 Bluetooth indicator / Charge indicator 5 Audio enhancing soft microphone 6 MFB or Multi-Function Button (answer / end / reject / voice dial / redial / audio transfer) 7 End / Reject button 8 On / Off Button (On / Off / Pairing) 1 2 8 3 7 6 4 5

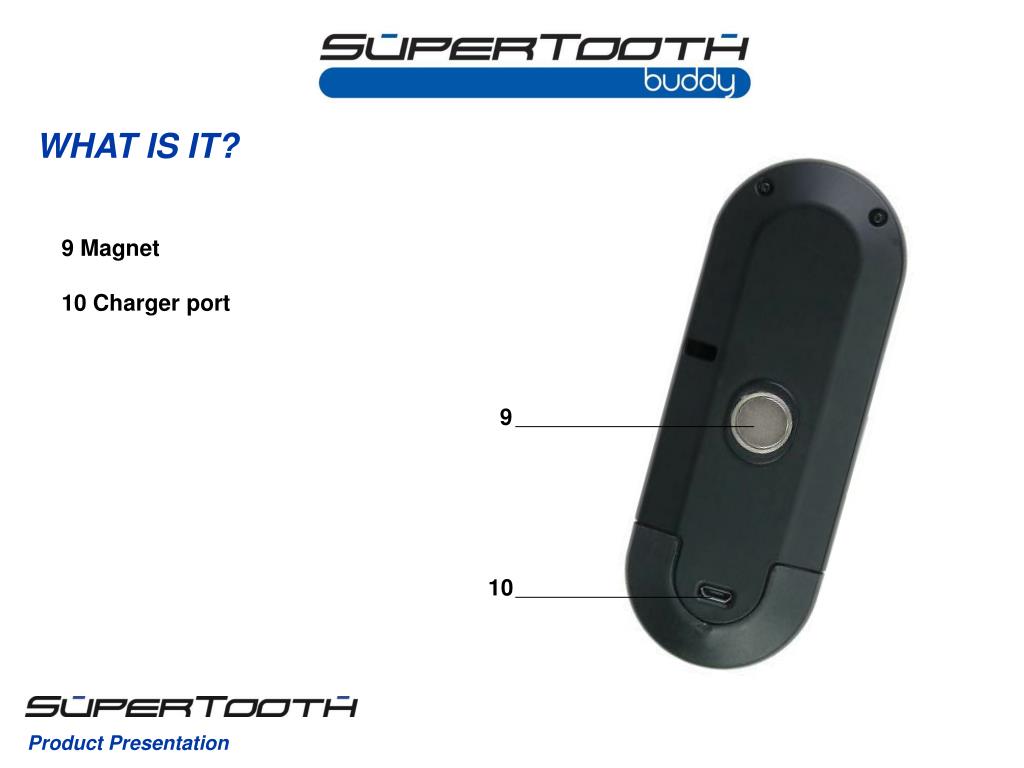

  5. Product Presentation WHAT IS IT? 9 Magnet 10 Charger port 9 10

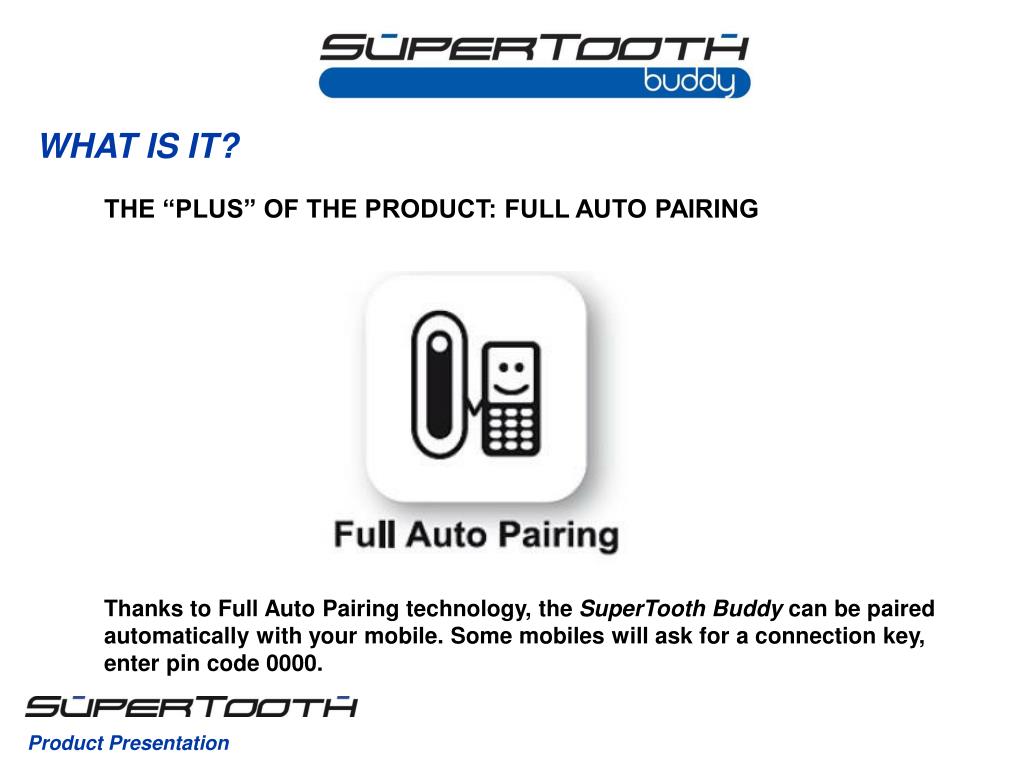

  6. Product Presentation WHAT IS IT? THE “PLUS” OF THE PRODUCT: FULL AUTO PAIRING Thanks to Full Auto Pairing technology, the SuperTooth Buddy can be paired automatically with your mobile. Some mobiles will ask for a connection key, enter pin code 0000.

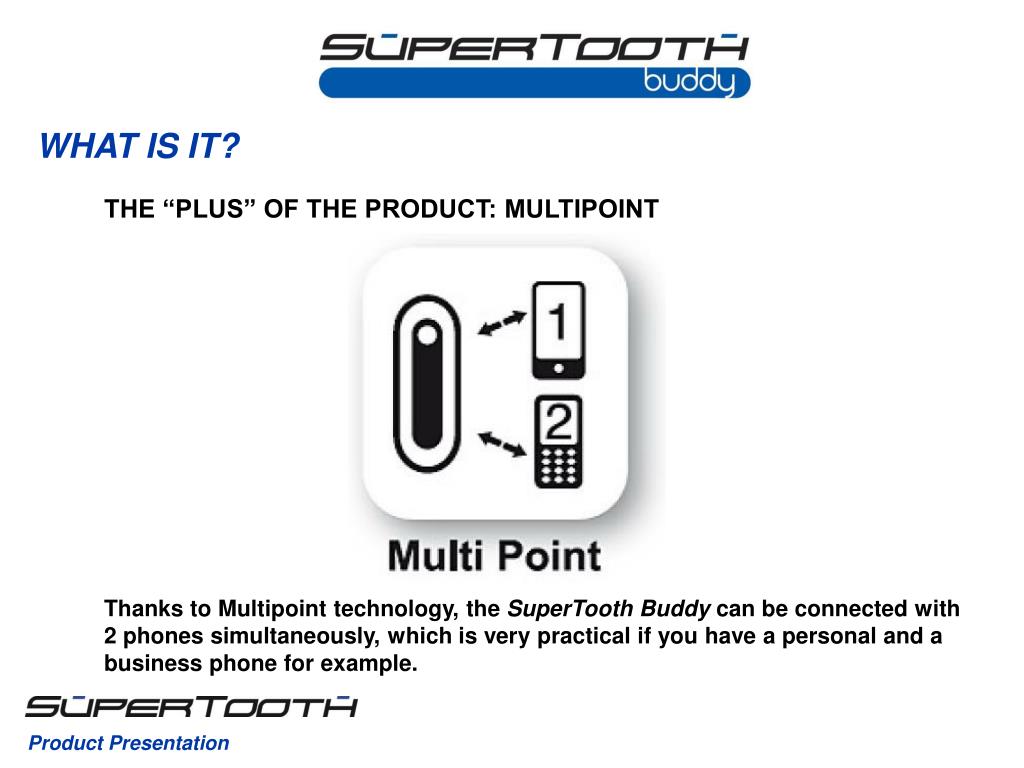

  7. Product Presentation WHAT IS IT? THE “PLUS” OF THE PRODUCT: MULTIPOINT Thanks to Multipoint technology, the SuperTooth Buddy can be connected with 2 phones simultaneously, which is very practical if you have a personal and a business phone for example.

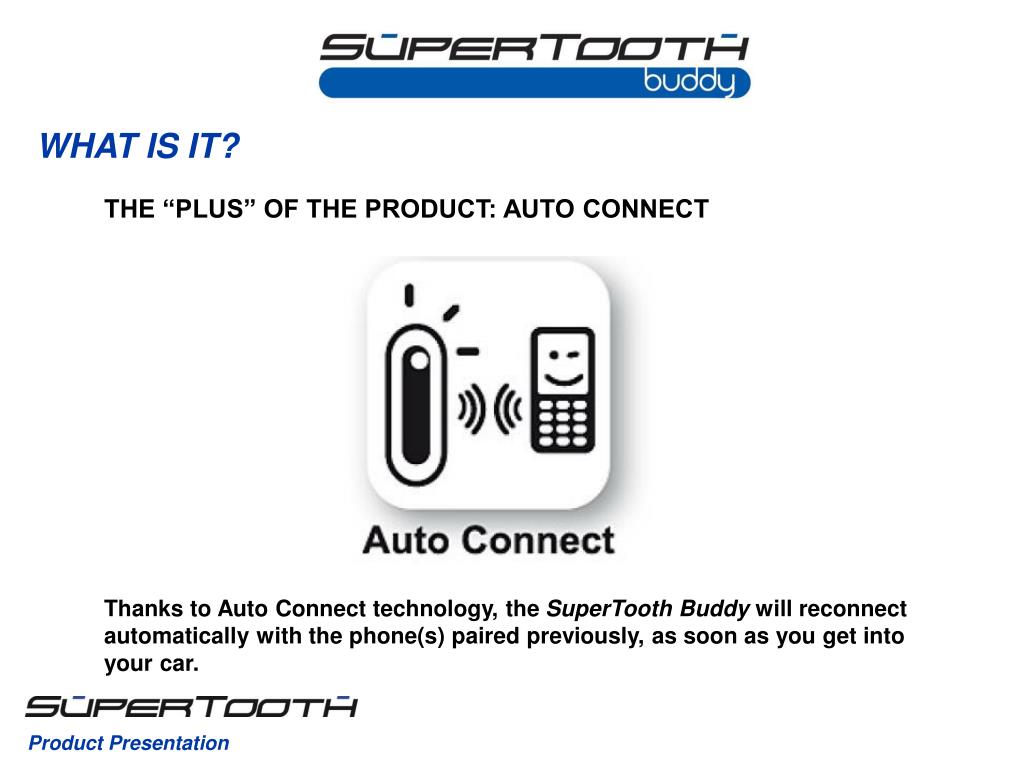

  8. Product Presentation WHAT IS IT? THE “PLUS” OF THE PRODUCT: AUTO CONNECT Thanks to Auto Connect technology, the SuperTooth Buddy will reconnect automatically with the phone(s) paired previously, as soon as you get into your car.

  9. Product Presentation WHAT IS IT? THE “PLUS” OF THE PRODUCT: AUDIO ENHANCING SOFT MICROPHONE Thanks to its audio enhancing soft microphone and to its powerful speaker, the SuperTooth Buddy ensures crystal clear sound quality, for both emission and reception.

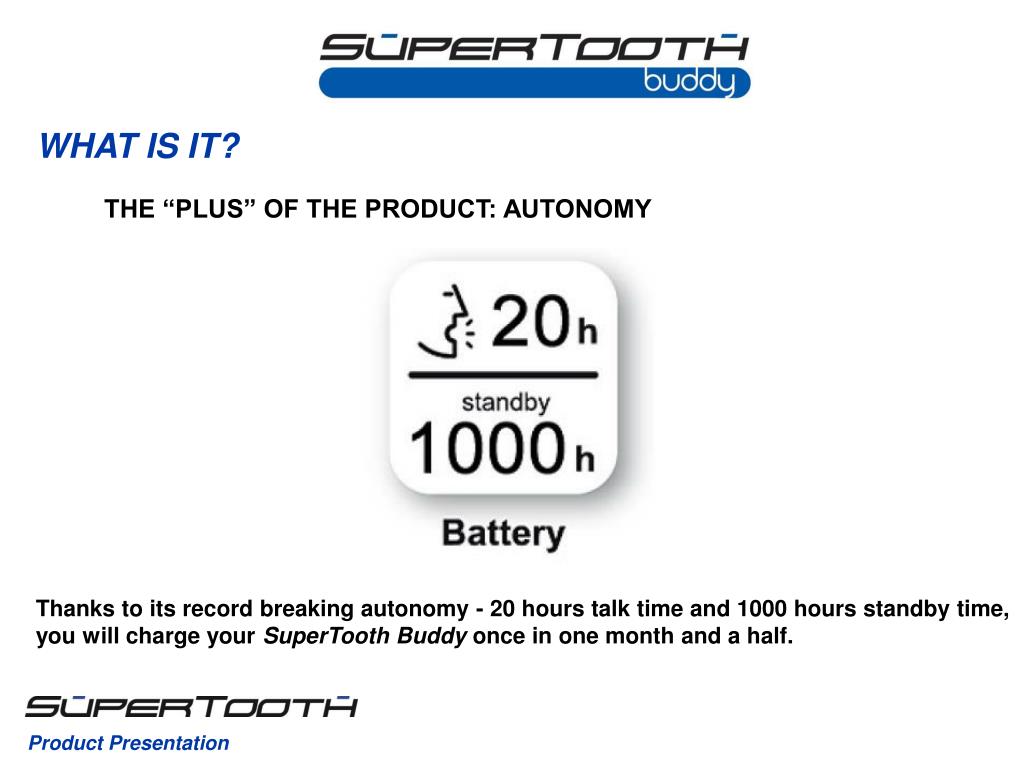

  10. Product Presentation WHAT IS IT? THE “PLUS” OF THE PRODUCT: AUTONOMY Thanks to its record breaking autonomy - 20 hours talk time and 1000 hours standby time, you will charge your SuperTooth Buddy once in one month and a half.

  11. Product Presentation WHAT IS IT? • A PRACTICAL PRODUCT • Safe driving – keep your hands on the wheel • Legal driving – prevents you from being fined • No installation – instant fixing on the sun visor (no screw, nor glue, nor wire) • Portable product – easy to move from one vehicle to another. Can be used in the car, at the office or at home • Competitive price: £49 (including VAT), whereas an average fix installation costs about £300 • Excellent audio quality thanks to the DSP unit (Digital Signal Processing), which cancels echo and background noise • Full Duplex – both parties can talk simultaneously

  12. Product Presentation WHAT IS IT? • GENERALITIES • Supplied with a USB car charger and a USB-micro USB cable • Bluetooth version 2.1 technology • Compatible with any Bluetooth-enabled mobile phone • Light and small (14,6 x 49 x 129 mm – 64 grams) • Operating range: 10 meters • Charging time: 3 hours • RechargeableLithium Ion battery

  13. Product Presentation HOW DOES IT WORK?

  14. Product Presentation To switch on the SuperTooth Buddy, press the On / Off Button (8) for one second until the Bluetooth Indicator (4) blinks blue. HOW DOES IT WORK? SWITCH ON

  15. Product Presentation To put the SuperTooth Buddy in manual pairing mode: from Off, press and hold the On / Off Button (8) until the Bluetooth Indicator (4) turns blinking red / blue. HOW DOES IT WORK? MANUAL PAIRING

  16. Product Presentation For the first time use, if you want to put the SuperTooth Buddy in Full Auto Pairing mode:- Bluetooth must be enabled and discoverable on your mobile- Put your mobile at 10 cm from the SuperTooth Buddy, switch on the SuperTooth Buddy- Make sure that there is no Bluetooth mobile or device less than one meter away from the SuperTooth Buddy- Press the green button and follow the instructions displayed on the screen of your mobileNote: some phones will ask for a code, enter 0000. HOW DOES IT WORK? FULL AUTO PAIRING – AUTOMATIC PAIRING

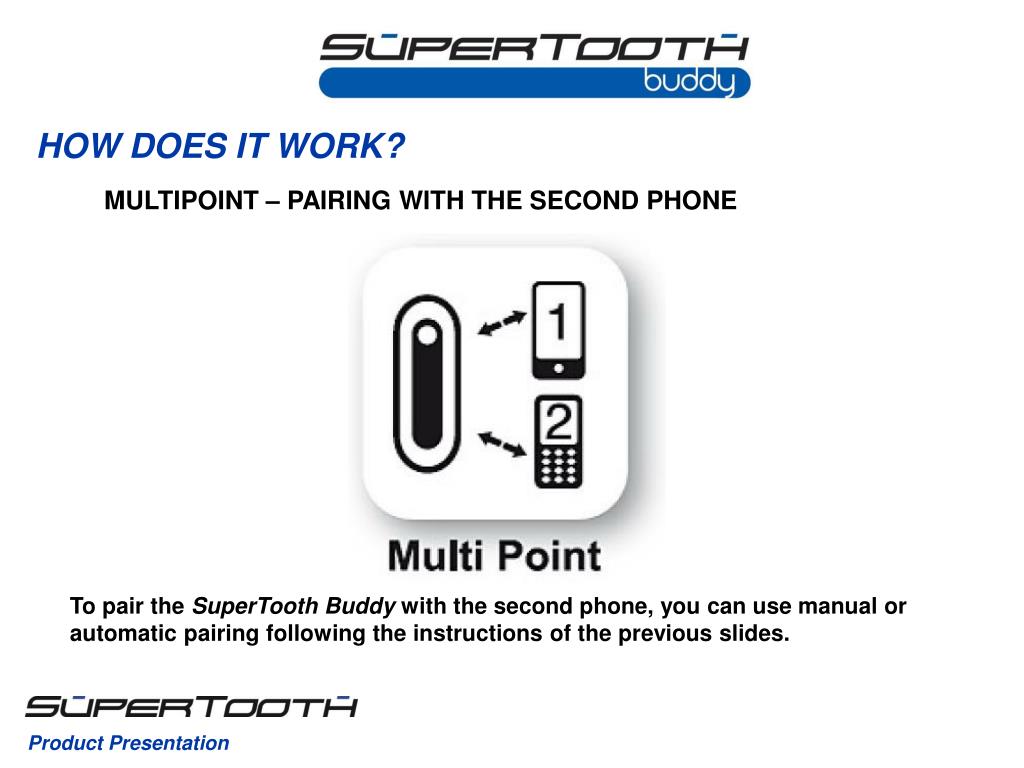

  17. Product Presentation To pair the SuperTooth Buddy with the second phone, you can use manual or automatic pairing following the instructions of the previous slides. HOW DOES IT WORK? MULTIPOINT – PAIRING WITH THE SECOND PHONE

  18. Product Presentation The SuperTooth Buddy doesn’t need any installation: no screw, nor glue, nor wire. Its metal clip and magnet allow a quick and easy fixing… HOW DOES IT WORK? INSTALLATION

  19. Product Presentation …on the sun visor. HOW DOES IT WORK? INSTALLATION (2)

  20. Product Presentation To pick up an incoming call, press the MFB (6) for one second. HOW DOES IT WORK? PICK UP

  21. Product Presentation Press the End / Reject Button (7) for one second to hang up or a reject an incoming call. HOW DOES IT WORK? HANG UP / REJECT A CALL

  22. Product Presentation Press “+” or “-” buttons to adjust the volume. HOW DOES IT WORK? VOLUME CONTROL

  23. Product Presentation THE PACK

  24. Product Presentation THE PACK

  25. Product Presentation THE PACK CONTENTS 1 SuperTooth Buddy 1 car charger with USB plug 1 USB – Micro USB cable 1 clip 1 user manual

  26. Product Presentation THE PACK • FEATURES • Dimensions: 210 x 170 x 60 mm • Weight: 250 grams

  27. Product Presentation THE PACK • FEATURES (2) • 24 units per box • Dimensions of the box: 410 x 360 x 470 mm • Volume of the box: 0,0693 m3 • Weight of the box: 8 kg • 18 boxes per pallet
