  1. Phishing Information Recycling from Spam Mails 許富皓 資訊工程學系 中央大學

  2. OUTLINE • Introduction • System Overview • Evaluation • Discussionand Conclusion

  3. Statistics of Spam Mails • The global spam rate for Q3 2009 is 88.1%, equating to around 151 billion emails a day. • The major purpose of these spam mails is for advertising. • In Q3 2009, phishing activity was 1 in 368.6 emails.

  4. Phishing • Aims to steal sensitive information from users. • A phishing attack usually comprises two steps: • Prepare a forged web page • Send spoofed e-mails

  5. Phishing E-mail Example • Phishing e-mails would fool users to visit a forged web page. • An example of a phishing e-mail.

  6. Phishing Web Page Example • A phishing web page would look like a real service web page. • An example of a phishing page

  7. Anti-Phishing Methods • Email level solution • Filters and content-analysis • Browser-integrated solution • SpoofGuard • PwdHash • AntiPhish • Keeps track of sensitive information • DOMAntiPhish • Compared the DOMs of the pages

  8. Most Popular Phishing Solutions • The most popular and widely-deployed solutions are based on blacklists. • IE 7 browser • Google Safe Browsing • NetCraft tool bar • eBay tool bar • ..etc

  9. Drawbacks of Current Solutions • APWG detected more than 40,000 unique phishing URLs in Aug. 2009. • On average, a phishing domain lasts 3 days. • Many e-mail receivers trust the e-mails that have passed the examination of an e-mail filter.

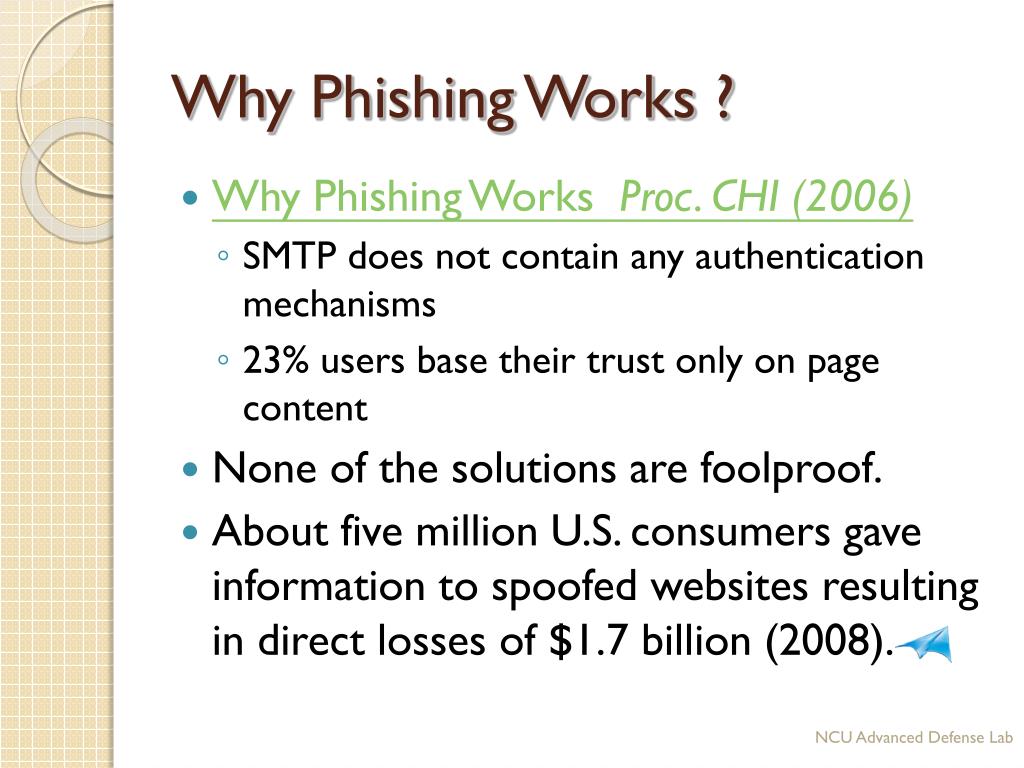

  10. Why Phishing Works ? • Why Phishing Works Proc. CHI (2006) • SMTP does not contain any authentication mechanisms • 23% users base their trust only on page content • None of the solutions are foolproof. • About five million U.S. consumers gave information to spoofed websites resulting in direct losses of $1.7 billion (2008).

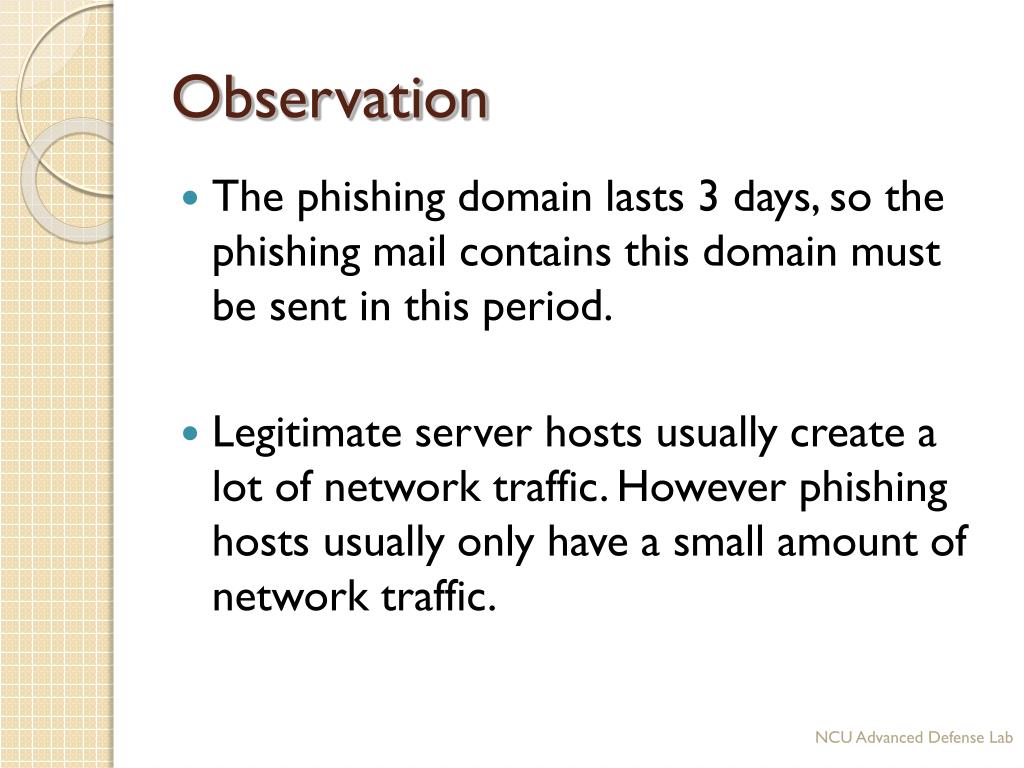

  11. Observation • The phishing domain lasts 3 days, so the phishing mail contains this domain must be sent in this period. • Legitimate server hosts usually create a lot of network traffic. However phishing hosts usually only have a small amount of network traffic.

  12. Our Method - Shark • Actively counterattack phishers, not just passively defend. • The goal is to overload phishing web sites with large forged data. • Collect phishing information from spam mails. • Detect Botnet from spam mails

  13. System Components • Agent Host • Collect phishing URLs from spam mails • Send large amount of forged data to forged websites • SQL Server • Handling the suspect URLs • Camouflage Router • Allow the agent host to use various IP addresses to establish TCP connections.

  14. System Overview

  15. Information Recycling Components • Agent host • Simply sniffs the URLs in e-mails which pass through our camouflage router. • SQL server • Collect those URLs • Record their arrival time

  16. Information Recycling • Classify URLs according to their domains. • Record the number of URLs appearing in each domain. • Collect suspect URLs • A URL whose domain contains more URLs than a threshold in a short period (normally 3 days) is deemed as a phishing URL.

  17. Recognize Phishing Web Sites • Suspect web site • Parse html content • Check form tag, input tag… • type=password • Combine Google API • Check if the website has enough traffic flow • Could combines other phishing detection

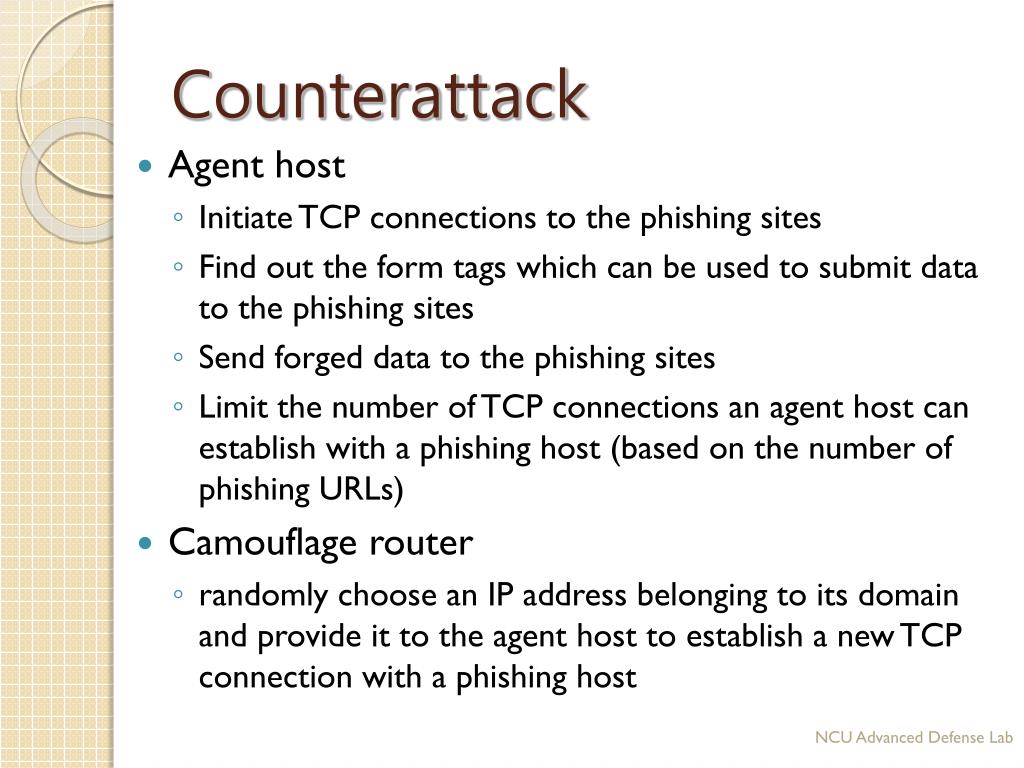

  18. Counterattack • Agent host • Initiate TCP connections to the phishing sites • Find out the form tags which can be used to submit data to the phishing sites • Send forged data to the phishing sites • Limit the number of TCP connections an agent host can establish with a phishing host (based on the number of phishing URLs) • Camouflage router • randomly choose an IP address belonging to its domain and provide it to the agent host to establish a new TCP connection with a phishing host

  19. Effects of Counterattack • Phishers would not be able to distinguish victim data and forged data. • Login pages of legal web sites can record the IPs of hosts that use bait (forged) data to login • Hosts sent phishing e-mails or using bait data to login are usually the bots of some botnets.

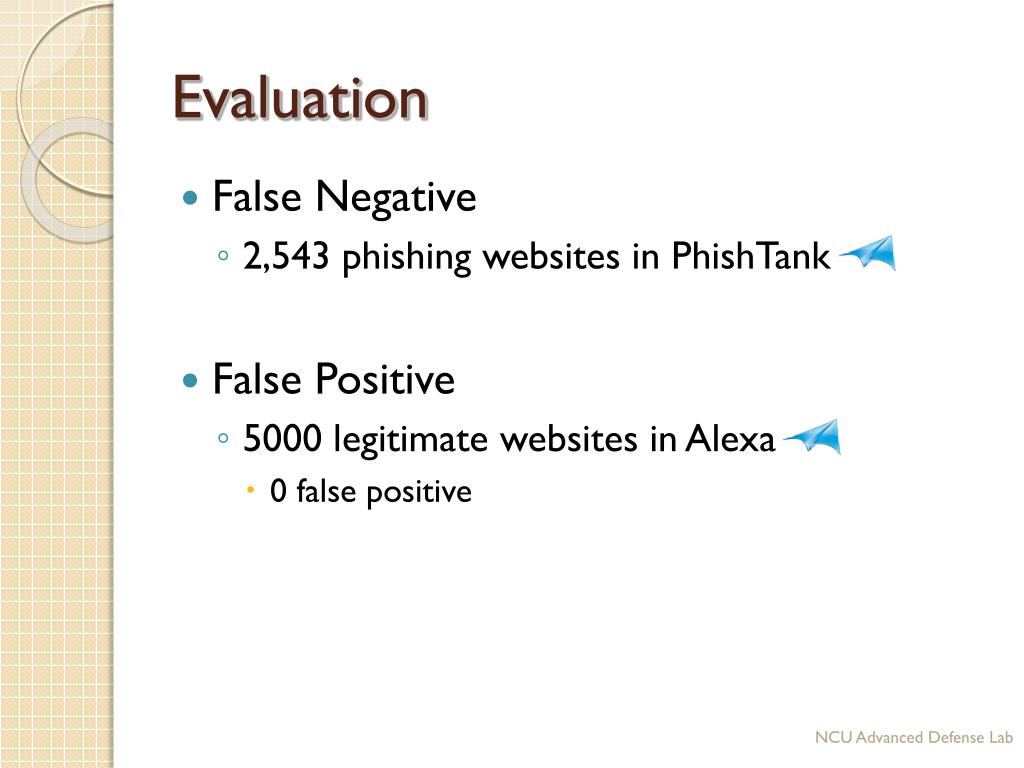

  20. Evaluation • False Negative • 2,543 phishing websites in PhishTank • False Positive • 5000 legitimate websites in Alexa • 0 false positive

  21. Evaluation • Phishing websites in PhishTank (Total 2,543)

  22. Contribution • A novel counterattack solution for phishing • Confuse the phishers with large forged data • Protect users even if they have been tricked to leak their private information to phishers • Botnet detection

  23. Future Work • JavaScript • win32com.client

  24. Thank You • Q&A
