  1. CPSC 668Distributed Algorithms and Systems Fall 2006 Prof. Jennifer Welch Set 12: Causality

  2. p0 p0 m0 m1 m0 m1 p1 p1 Logical Clocks Motivation • In an asynchronous system, often cannot tell which of two events occurred before the other: Example A Example B Set 12: Causality

  3. Logical Clocks Motivation • In Example A, processors cannot tell which message was sent first. Probably not important. • In Example B, processors can tell which message was sent first. Might be important. • Let's try to determine relative ordering of some (not all)events. Set 12: Causality

  4. Happens Before Partial Order • Given an execution, computation event ahappens before computation event b, denoted a  b, if • a and b occur at same processor and a precedes b • a results in sending m and b includes receipt of m • there exists computation event c such that a  c and c  b (transitive closure) Set 12: Causality

  5. p0 m0 m1 p1 Happens Before Partial Order • Happens before means that information can flow from a to b, i.e., that a might cause b. a b a a Set 12: Causality

  6. Concurrent Events • If a does not happen before b, and b does not happen before a, then a and b are concurrent, denoted a || b. Set 12: Causality

  7. Happens Before Example Rule 1: a  b, c  d  e  f, g  h i Rule 2: a  d, g  e, f  i h || e, … Rule 3: a  e, c  i, … Set 12: Causality

  8. Logical Clocks • Logical clocks are values assigned to events to provide some information about the order in which events happen. • Goal is to assign an integer L(e) to each computation event e in an execution such that if a  b, then L(a) < L(b). Set 12: Causality

  9. Logical Timestamps Algorithm • Each pi keeps a counter (logical timestamp) Li, initially 0 • Every message pi sends is timestamped with current value of Li • Li is incremented at each step to be greater than • its current value • the timestamps on all messages received at this step • If a is an event at pi, then assign L(a) to be the value of Liat the end of a. Set 12: Causality

  10. 1 2 1 2 3 4 1 2 5 Logical Timestamps Example a  b : L(a) = 1 < 2 = L(b) f  i : L(f) = 4 < 5 = L(i) a  e : L(a) = 1 < 3 = L(e) etc. Set 12: Causality

  11. Getting a Total Order • If a total order is required, break ties using ids. • In the example, L(a) = (1,0), L(c) = (1,1), etc. • Timestamps are ordered lexicographically. • In the example, L(a) < L(c). Set 12: Causality

  12. Drawback of Logical Clocks • a  b implies L(a) < L(b), but L(a) < L(b) does not necessarily imply a  b. • In previous example, L(g) = 1 and L(b) = 2, but g does not happen before b. • Reason is that "happens before" is a partial order, but logical clock values are integers, which are totally ordered. Set 12: Causality

  13. Vector Clocks • Generalize logical clocks to provide non-causality information as well as causality information. • Implement with values drawn from a partially ordered set instead of a totally ordered set. • Assign a value V(e) to each computation event e in an execution such that a  b if and only if V(a) < V(b). Set 12: Causality

  14. Vector Timestamps Algorithm • Each pi keeps an n-vector Vi, initially all 0's • Entry j in Vi is pi 's estimate of how many steps pj has taken • Every msg pi sends is timestamped with current value of Vi • At every step, increment Vi[i] by 1 • When receiving a message with vector timestamp T, update Vi 's components j ≠ i so that Vi[j] = max(T[j],Vi[j]) • If a is an event at pi, then assign V(a) to be value of Vi at end of a. Set 12: Causality

  15. Manipulating Vector Timestamps Let V and W be two n-vectors of integers. Equality:V = W iff V[i] = W[i] for all i. Example: (3,2,4) = (3,2,4) Less than or equal:V ≤ W iff V[i] ≤ W[i] for all i. Example: (2,2,3) ≤ (3,2,4) and (3,2,4) ≤ (3,2,4) Less than: V < W iff V ≤ W but V ≠ W. Example: (2,2,3) < (3,2,4) Incomparable:V || W iff !(V ≤ W) and !(W ≤ V). Example:(3,2,4) || (4,1,4) Set 12: Causality

  16. Manipulating Vector Timestamps • The partial order on n-vectors just defined is not the same as lexicographic ordering. • Lexicographic ordering is a total order on vectors. • Consider (3,2,4) vs. (4,1,4) in the two approaches. Set 12: Causality

  17. Vector Timestamps Example (1,0,0) (2,0,0) (0,1,0) (1,2,0) (1,3,1) (1,4,1) (0,0,1) (0,0,2) (1,4,3) V(g) = (0,0,1) and V(b) = (2,0,0), which are incomparable. Compare with logical clocks L(g) = 1 and L(b) = 2. Set 12: Causality

  18. Correctness of Vector Timestamps Theorem (6.5 & 6.6): Vector timestamps implement vector clocks. Proof: First, show a  b implies V(a) < V(b). Case 1:a and b both occur at pi, a first. Since Vi increases at each step, V(a) < V(b). Set 12: Causality

  19. Correctness of Vector Timestamps Case 2:a occurs at pi and causes m to be sent, while b occurs at pj and includes the receipt of m. • During b, pj updates its vector timestamp in such a way that V(a) ≤ V(b). • pi 's estimate of number of steps taken by pj is never an over-estimate. Since m is not received before it is sent, pi 's estimate of the number of steps taken by pj when a occurs is less than the number of steps taken by pj when b occurs. So V(a)[j] < V(b)[j]. • Thus V(a) < V(b). Set 12: Causality

  20. Correctness of Vector Timestamps Case 3: There exists c such that a  c and c  b. By induction (from Cases 1 and 2) and transitivity of <, V(a) < V(b). Next show V(a) < V(b) implies a  b. Equivalent to showing !(a  b) implies !(V(a) < V(b)) Set 12: Causality

  21. Correctness of Vector Timestamps • Suppose a occurs at pi, b occurs at pj, and a does not happen before b. • Let V(a)[i] = k. • Since a does not happen before b, there is no chain of messages from pi to pjoriginating at pi 's k-th step or later and ending at pj before b. • Thus V(b)[i] < k. • Thus !(V(a) < V(b)). Set 12: Causality

  22. Size of Vector Timestamps • Vector timestamps are big: • n components in each one • values in the components grow without bound • Is there a more efficient way to implement vector clocks? • Answer is NO, at least under some conditions. Set 12: Causality

  23. Vector Clock Size Lower Bound Theorem (6.9): Any implementation of vector clocks using vectors of real numbers requires vectors of length n (number of processors). Proof: For any value of n, consider this execution: Set 12: Causality

  24. Example Bad Execution For n = 4: Set 12: Causality

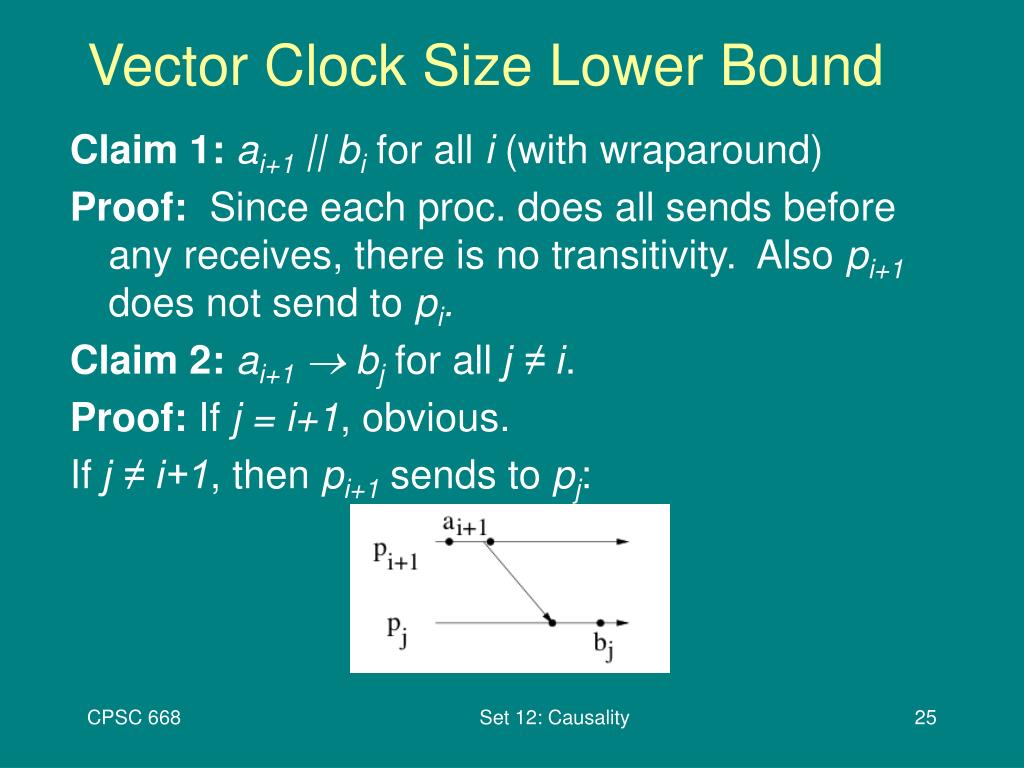

  25. Vector Clock Size Lower Bound Claim 1:ai+1 || bi for all i (with wraparound) Proof: Since each proc. does all sends before any receives, there is no transitivity. Also pi+1 does not send to pi. Claim 2:ai+1 bj for all j ≠ i. Proof: If j = i+1, obvious. If j ≠ i+1, then pi+1 sends to pj: Set 12: Causality

  26. Vector Clock Size Lower Bound • Suppose in contradiction, there is a way to implement vector clocks with k-vectors of reals, where k < n. • By Claim 1, ai+1 || bi => V(ai+1) and V(bi) are incomparable => V(ai+1) is larger than V(bi) in some coordinate h(i) => h : {0,…,n-1}  {0,…,k} Set 12: Causality

  27. Vector Clock Size Lower Bound • Since k < n, the function h is not 1-1. So there exist distinct i and j such that h(i) = h(j). Let r be this common value of h. • So V(ai+1) is larger than V(bi) in coordinate r and V(aj+1) is larger than V(bj) in coordinate r also. • V(aj+1)[r] > V(bj)[r] by def. of r ≥ V(ai+1)[r] by Claim 2 (ai+1bj) & correct. ≥ V(bi)[r] by def. of r • Thus V(aj+1) !< V(bi), contradicting Claim 2 (aj+1bj) and assumed correctness of V. Set 12: Causality

  28. Application of Causality: Consistent Cuts • Consider an asynchronous message passing system with • FIFO message delivery per channel • at most one msg received per computation step • Number the computation steps of each processor 1,2,3,… • A cut of an execution is K = (k0,…,kn-1), where ki indicates number of computation steps taken by pi Set 12: Causality

  29. Consistent Cuts some cuts In a consistent cut K = (k0,…,kn-1), if step s of pj happens before step ki of pi, then s ≤ pj. (1,3) and (1,4) are consistent. (3,6) is inconsistent: step 4 by p0 happens before step 6 of p1. Set 12: Causality

  30. Finding a Recent Consistent Cut Problem Version 1: Processors all given a cut K and must find a maximal consistent cut that is ≤ K. Application: Logging-based crash recovery. • Procs periodically write their state to stable storage • When a proc recovers from a crash, it tries to recover to latest logged state, but needs to coordinate with other procs Set 12: Causality

  31. Vector Clocks Solution • Implement vector clocks using vector timestamps appended to application msgs. • Store the vector clock of each computation step in a local array store when pi is given input cut K: for x := K[i] downto 1 do if store[x] ≤ K then return x return x (entry i of global answer) Set 12: Causality

  32. What About Channel State? • Processor states are not sufficient to capture entire system state. • Messages in transit must be calculated. • Solution here requires • additional storage (number of messages) • additional computation at recovery time (involving replaying original execution to capture messages sent but not received) Set 12: Causality

  33. Another Take on Recent Consistent State Problem Version 2: A subset of procs initiate (at arbitrary times) trying to find a consistent cut that includes the state of at least one of the initiators when it started. Called a distributed snapshot. Application: termination detection Set 12: Causality

  34. Marker Algorithm • Instead of adding extra information on each application message, insert control messages ("markers") into the channels. initially answer = -1 and num = 0 when app msg arrives: num++; do app action when marker arrives or start: if answer = -1 then answer := num (part of final answer) send marker to all neighbors Set 12: Causality

  35. What About Channel States? • pi records sequence of msgs received from pj between the time pi records its answer and the time pi gets the marker from pj • These are the msgs in transit from pj to pi in the cut returned by the algorithm. Set 12: Causality
