Distributed Sleep Transistor Network for Power Reduction*

1. Distributed Sleep Transistor Network for Power Reduction* Changbo Long ECE Department, UW-Madison clong@cae.wisc.edu Lei He EDA Research Group EE Department, UCLA lhe@ee.ucla.edu *Partially sponsored by NSF CAREER Award 0093273, SRC grant HJ-1008 and Intel Corporation

2. Outline • Motivation • Background • Distributed sleep transistor network (DSTN) • Structure, advantages, modeling and sizing algorithm • Experiment results • Conclusion and future work

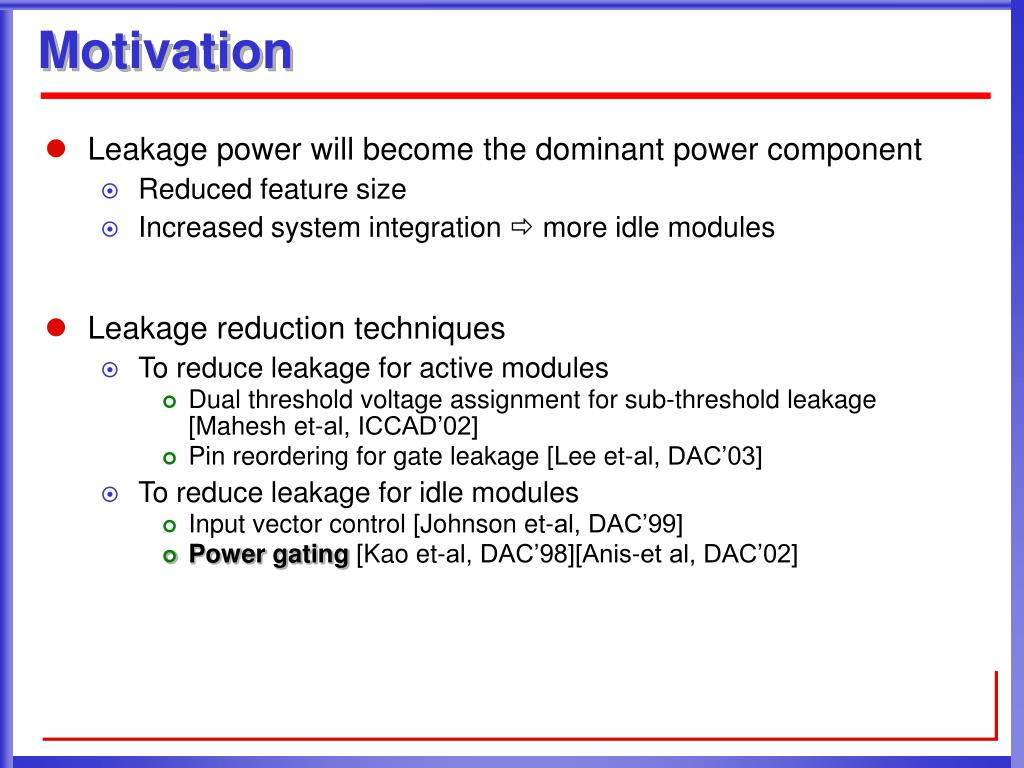

3. Leakage power will become the dominant power component Reduced feature size Increased system integration  more idle modules Leakage reduction techniques To reduce leakage for active modules Dual threshold voltage assignment for sub-threshold leakage [Mahesh et-al, ICCAD’02] Pin reordering for gate leakage [Lee et-al, DAC’03] To reduce leakage for idle modules Input vector control [Johnson et-al, DAC’99] Power gating [Kao et-al, DAC’98][Anis-et al, DAC’02] Motivation

4. System level: use power management processor (PMP) to generate control signals [Mutoh et-al, JSSC’96] PMP can be distributed Gate level: use sleep transistors to turns off power supply Concerned with performance loss and area overhead Motivation Vdd Sleeptr. gn g1 Virtual GND Sleep Sleep Sleep tr. PMP

5. Performance Loss • Performance loss  Increase in the propagation delay • Performance loss is proportional to Vst • ist  Maximum Simultaneous Switching Current (MSSC) Vdd ist g1 gn ist

6. MSSC • MSSC: maximum current in the time domain and the input vector domain Time MSSC g1 g3 g2 t t t t g1 g3 g2 t t t t Input vector ig2 ig1 ig3 + + itotal =

7. Area Overhead • Area overhead: the sleep transistor area and the routing area of virtual ground wires • Design convention: given performance loss , minimize area overhead Vdd g1 gn MSSC

8. Related Work • Module-based design methodology [Mutoh-et al, JSSC’95 ’96] [Kao-et al, DAC’98] • A single and large sleep transistor accommodates entire module [JSSC’96] • Manual sizing automatic sizing considering dischargepatterns [Kao-et al, DAC’98] • Voltage drop on long virtual ground wires is nontrivial, and results in large area

9. Related Work • Module-based design methodology [Mutoh-et al, JSSC’95 ’96] [Kao-et al, DAC’98] • A single and large sleep transistor accommodates entire module [JSSC’96] • Manual sizing automatic sizing considering dischargepatterns [Kao-et al, DAC’98] • Voltage drop on long virtual ground wires is nontrivial, and results in large area • Cluster-based design methodology [Anis-et al, DAC’02] • Group gates into clusters and minimize peak current in clusters by clustering algorithms • Insert a sleep transistor for each cluster to avoid long virtual ground wires • Clustering may conflict with time-driven placement

10. Sleep transistor area • Area*: the sleep transistor area ignoring the resistance of virtual ground wires • MSSCmodule < ∑iMSSCcluster_i  area*module<area*cluster

11. Sleep transistor area • Area*: the sleep transistor area ignoring the resistance of virtual ground wires • MSSCmodule < ∑iMSSCcluster_i  area*module<area*cluster • Considering the resistance of virtual ground wires, Areamod > Areaclu [Anis-et al, DAC’02] • DSTN has the smallest area • AreaDSTN≈ Area*mod

12. DSTN: Distributed Sleep Transistor Network • DSTN enhancescluster-based design by connecting clusters with extra virtual ground wires DSTN Cluster-based design

13. Current Discharging Balance Reduces Size DSTN Cluster-based design • Cluster-based design • Current discharges by its private sleep transistor  large transistor size • DSTN • Current discharges by bothprivate and neighboring sleep transistors  small transistor size

14. Additional Advantages of DSTN • DSTN introduces NO constraint on placement • Wire overhead of DSTN is small Additionalwires Sleeptr. Sleeptr. Cluster Cluster-based design DSTN

15. Modeling of DSTN • Entire module  resistance network plus current source Switching current Ri Rst

16. DSTN Sizing Problem • DSTN Sizing Problem (DSTN/SP) • Given DSTN topology, DSTN/SP finds the size for every sleep transistor such that the total transistor area of DSTN is minimized and the performance loss constraint is satisfied for every cluster Switching current PL< W=? W=? Rst=? Rst=? Vst<ε Vst<ε PL< Rst=? Rst=? W=? W=? Vst<ε Vst<ε

17. Difficulties of DSTN/SP • Primary challenge: current source • Dependency between the current sources • Current varies w.r.t. time • Secondary challenge: resistance network • Given current source, size Rst to minimize transistor area while satisfy performance loss constraints • Does any algorithms exist in the literature? • No exact solution • Close solution for Power/Ground network sizing [Boyd, et-al ISPD’01] • We have developed an algorithm based on special properties of DSTN/SP

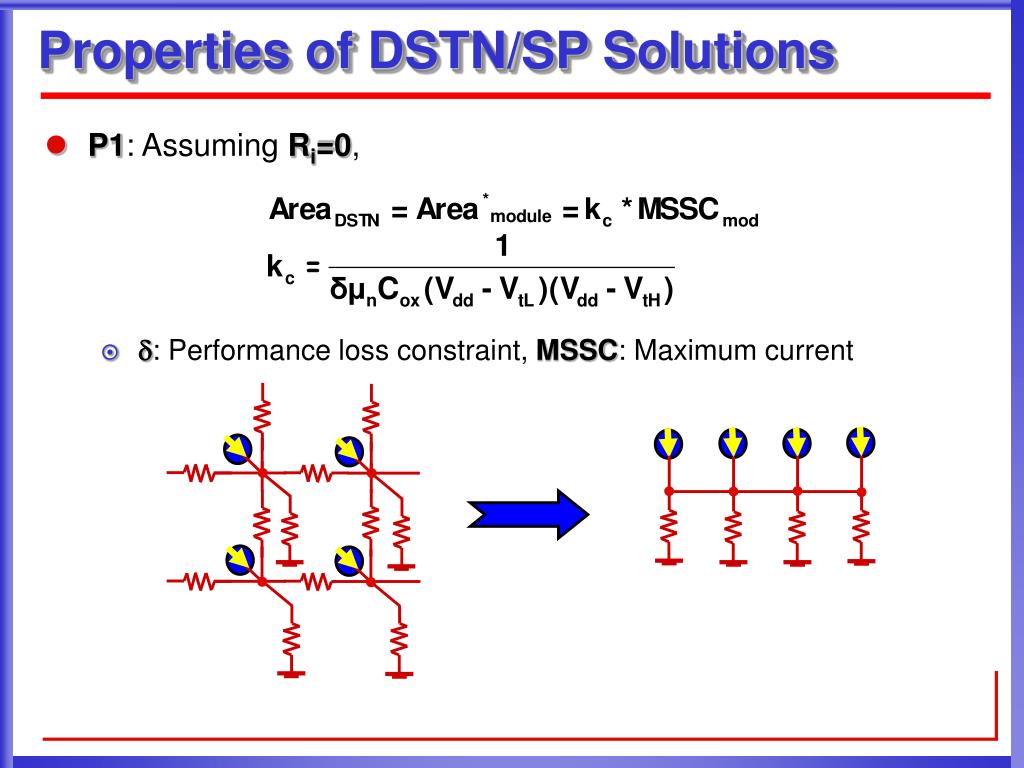

18. Properties of DSTN/SP Solutions • P1: Assuming Ri=0, • : Performance loss constraint,MSSC: Maximum current

19. Properties of DSTN/SP Solutions • P2: given current source, AreaDSTN increases when Ri increases • The increase is limited because Ri << Rst • Ri=∞, AreaDSTN=Areacluster

20. Properties of DSTN/SP Solutions • P3: Assuming cluster current and AreaDSTN to be constant, to achieve minimum performance loss,

21. Algorithm for DSTN/SP • P1, P2: Total sleep transistor area of DSTN is determined by •  [0.05, 0.5], empirical parameter increases when Ri increases • P3: Size of each individual sleep transistor is • Key is to estimate MSSCmodule and MSSCcluster

22. Maximum Current Estimation • Estimate MSSCmodule • Circuit current strongly depends on input vector • The space of input vector increase exponentially with the number of primary input • Genetic algorithm (GA) based algorithm is used [Jiang et-al, TVLSI’00] • Efficient algorithm to estimate MSSCcluster has been proposed in the paper

23. Base-line Case: Cluster-based Design • Cluster-based design without considering placement constraint • Given a circuit and cluster size, partition gates into clusters such that ∑i MSSCcluster_i is minimized and Areacluster is minimized in turn • Clustering algorithm • Simulated Annealing (SA) • Sizing algorithm • Each individual sleep transistor • Total area

24. Experiment Setup • Gate level synthesis • Sizing • Estimate maximum current for clusters and the entire module • Apply the sizing algorithms • Verification • Simulate the circuit and obtain the current source by 10,000 random input vectors • Obtain performance loss by solving the resistance network with circuit KCL and KVL equations • Find the maximum performance loss among the performance loss for each input vector • Custom layout • Implement a four-bit CLA using 0.35μm technology • Determine size by SPICE simulation • Cluster-based design: each cluster satisfy the performance loss constraint • DSTN: the entire module satisfy the performance loss constraint

25. Result of Gate Level Synthesis Cluster-based DSTN • On average, DSTN reduces total W/L by 49.8% with smaller performance loss Maximum Performance Loss W/L of Sleep Transistors C880 C432 C499 C880 C432 C1355 C499 C5315 C1908 C7552 C3540 C2670 C6288 C1355 C5315 C1908 C7552 C3540 C2670 C6288

26. Cluster-based design Custom Layout in 0.35μm Sleep transistors Each cluster is accommodated by a sleep transistor • DSTN Sleep transistors Sleep transistors are connected by virtual ground wires Virtual ground wires

27. Custom Layout Comparison No sleep transistor Cluster-based DSTN Leakage current delay Sleep tr. Area Total area • DSTN reduces runtime leakage by 50x and 5x • compared to no sleep transistor and cluster-based design, respectively • DSTN reduces sleep transistor area by 6.83x with 6.6% smaller performance degradation • compared to the cluster-based design

28. Conclusion and Future Work • We have proposed DSTN and the sizing algorithm • DSTN has reduced area, less leakage current and supply voltage drop • Future work • Ideal power/ground network is assumed in this paper • Investigate the co-design of DSTN and the power/ground network
