  1. Who is CIMCO Integration? What is Mastercam HSM Performance Pack? Why use Mastercam HSM Performance Pack? Technical overview Plans for the future Reference sites

  2. Who is CIMCO Integration? - CIMCO Integration was founded in 1991 - CIMCO Integration is the national Mastercam reseller in Denmark - has developed a wide range of products, including : * CNC-Editors * DNC-Servers * software for rapid NC-program simulation * database applications for managing NC- programs * 5 axis post-processors

  3. What is Mastercam HSM Performance Pack? • Mastercam HSM Performance Pack is: • a C-Hook integrated to Mastercam - a High Speed Machining CAM software - a solution for gaining time on: * calculation (calculation time can be significantly reduced on large parts) * machining (because of the quality of the toolpaths, feedrates on the machine are more constant) - a cost-effective solution to leverage the power of your existing Mastercam system

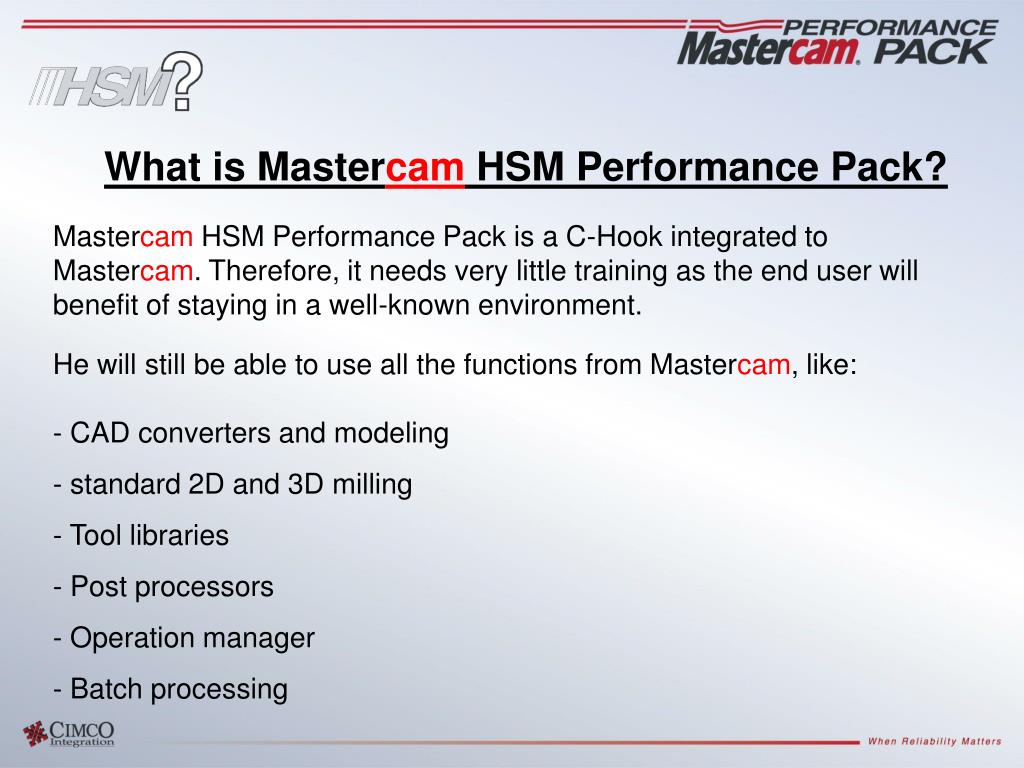

  4. What is Mastercam HSM Performance Pack? Mastercam HSM Performance Pack is a C-Hook integrated to Mastercam. Therefore, it needs very little training as the end user will benefit of staying in a well-known environment. He will still be able to use all the functions from Mastercam, like:- CAD converters and modeling - standard 2D and 3D milling - Tool libraries - Post processors - Operation manager - Batch processing

  5. Why use Mastercam HSM Performance Pack? What are workshops lookingfor today? How do we answer to these requests?

  6. What are workshops looking for today? Today’s modern workshop has to look for maximum productivity to maintain profitability. Therefore, toolmakers need a tool which would fulfil the following conditions: • Reduction in both calculation and machining time!

  7. What are workshops looking for today? Today’s modern workshop has to look for maximum productivity to maintain profitability. Therefore, toolmakers need a tool which would fulfil the following conditions: • Increased surface quality!

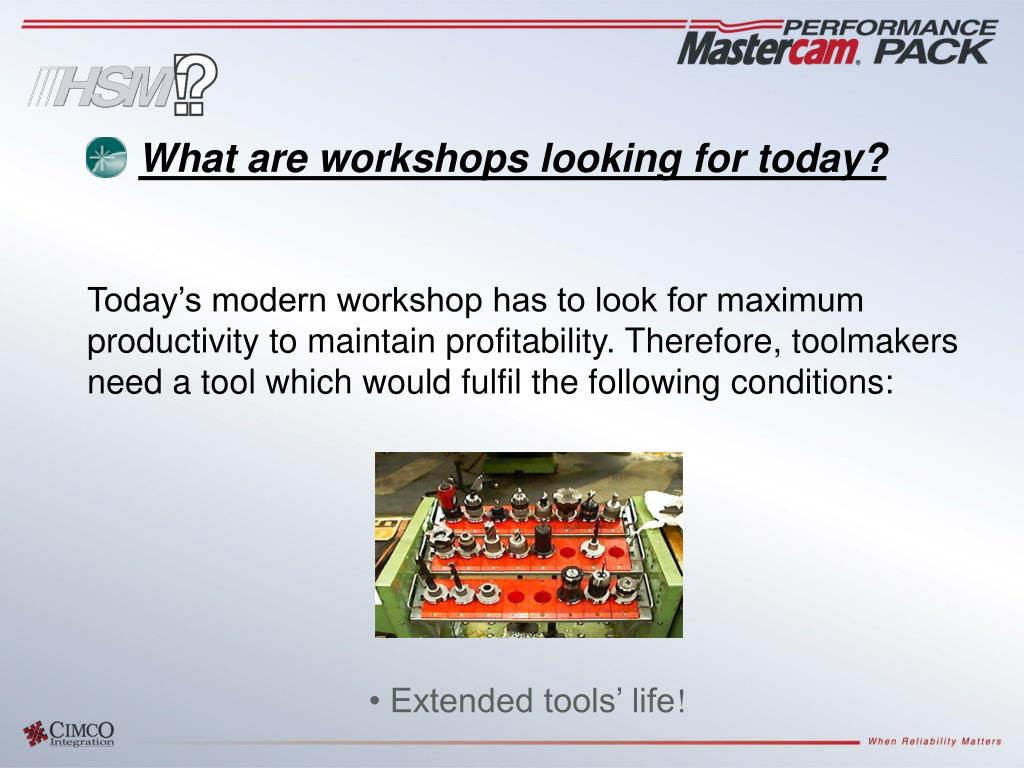

  8. What are workshops looking for today? Today’s modern workshop has to look for maximum productivity to maintain profitability. Therefore, toolmakers need a tool which would fulfil the following conditions: • Extended tools’ life!

  9. What are workshops looking for today? Today’s modern workshop has to look for maximum productivity to maintain profitability. Therefore, toolmakers need a tool which would fulfil the following conditions: • Ease of use!

  10. How do we answer to these requests? Mastercam HSM Performance Pack will fulfil these conditions by:

  11. How do we answer to these requests? Mastercam HSM Performance Pack will fulfil these conditions by: Avoiding sharp angles Even on 3D toolpaths !

  12. How do we answer to these requests? Mastercam HSM Performance Pack will fulfil these conditions by: Ensuring that the tool stays in contactwith the part as much as possible Only 5 retracts going from a pocket(in red) to another No retracts on acontour toolpath

  13. How do we answer to these requests? Mastercam HSM Performance Pack will fulfil these conditions by: Optimizing non-machining moves

  14. How do we answer to these requests? Mastercam HSM Performance Pack will fulfil these conditions by: Generating smoothand tangential leads in and leads out

  15. How do we answer to these requests? Mastercam HSM Performance Pack will fulfil these conditions by: Ease of use of the software • Intergrated to Mastercam,an "already known" environment • Windows compliant • Quick training

  16. Technical overview Toolpaths available Pocket Horizontal

  17. Technical overview Toolpaths available Contour Parallel

  18. Technical overview Toolpaths available Scallop Rest mill

  19. Technical overview Toolpaths available Pencil Pencil leftover

  20. Technical overview AND MORE… • significantly reduced calculation time for large CAD files • 3 + 2 axis machining • tool holder collision protection • taper tool support beyond the usual flat, spherical and bull end mills • steep/shallow machining option for all toolpaths

  21. Plans for the future • Improved rest milling • Improved calculation time on finishing toolpaths • Core roughing from outside/in • Seperate stock allowance on XY and Z • Support for multi-processors allowing multi-threading!

  22. Reference sites B&J Specialties, Inc PDC Tooling Aps National Machine Tools Dexterous Mold & Tool Inc Michael Lundbech A/S Rick Cole Enterprices Kellpo A/S Aishin AW Co., Ltd. Dencker Værktøj Aps Preferred Tool Company, Inc.
