  1. Innovator in HD Convergence EYECoder 서울특별시 마포구 합정동 196-1 ㈜디엠에스시스템

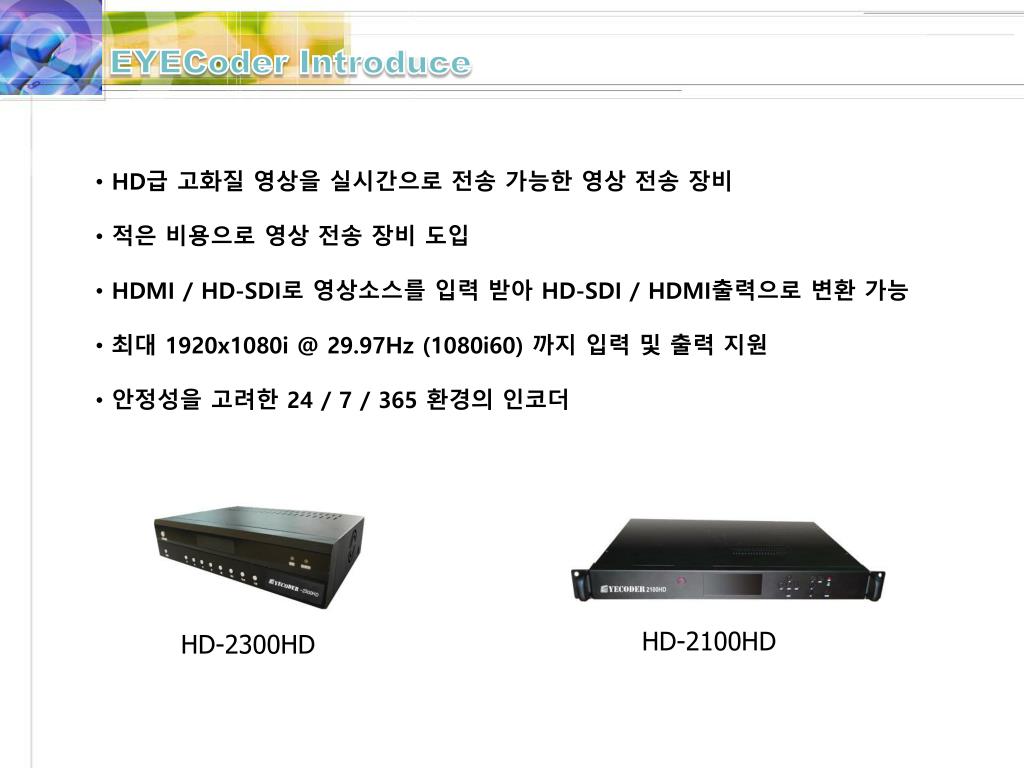

  2. EYECoder Introduce • HD급 고화질 영상을 실시간으로 전송 가능한 영상 전송 장비 • 적은 비용으로 영상 전송 장비 도입 • HDMI/HD-SDI로 영상소스를 입력 받아 HD-SDI /HDMI출력으로 변환 가능 • 최대 1920x1080i @ 29.97Hz (1080i60) 까지 입력 및 출력 지원 • 안정성을 고려한 24 / 7 / 365 환경의 인코더 HD-2100HD HD-2300HD

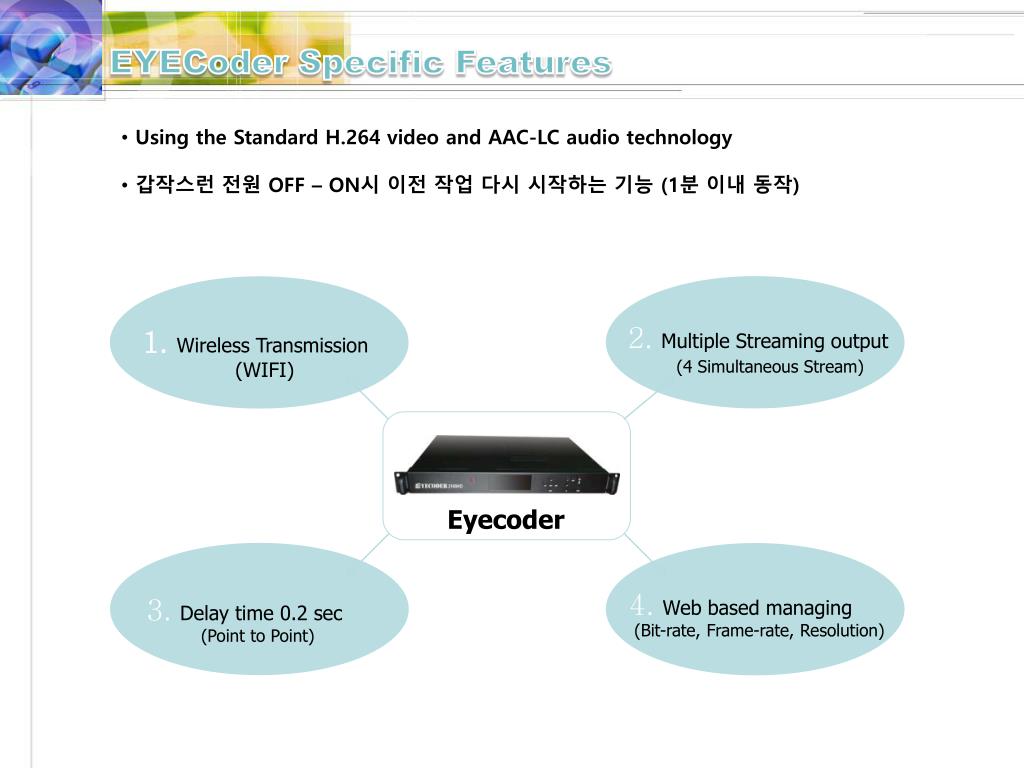

  3. EYECoder Specific Features • Using the Standard H.264 video and AAC-LC audio technology • 갑작스런 전원 OFF – ON시 이전 작업 다시 시작하는 기능 (1분 이내 동작) 2.Multiple Streaming output (4 Simultaneous Stream) 1. Wireless Transmission (WIFI) Eyecoder 4.Web based managing (Bit-rate, Frame-rate, Resolution) 3.Delay time 0.2 sec (Point to Point)

  4. EYECoder Functional Structure Control Part LCD Key Internet HD-SDI GbE HDMI ARM SoC H.264/AAC En/TX/RX Bypass HD-SDI SD SATA Wireless Modem USB HDMI CVBS Card HDD Media Interface Part Storage Part Communication Part

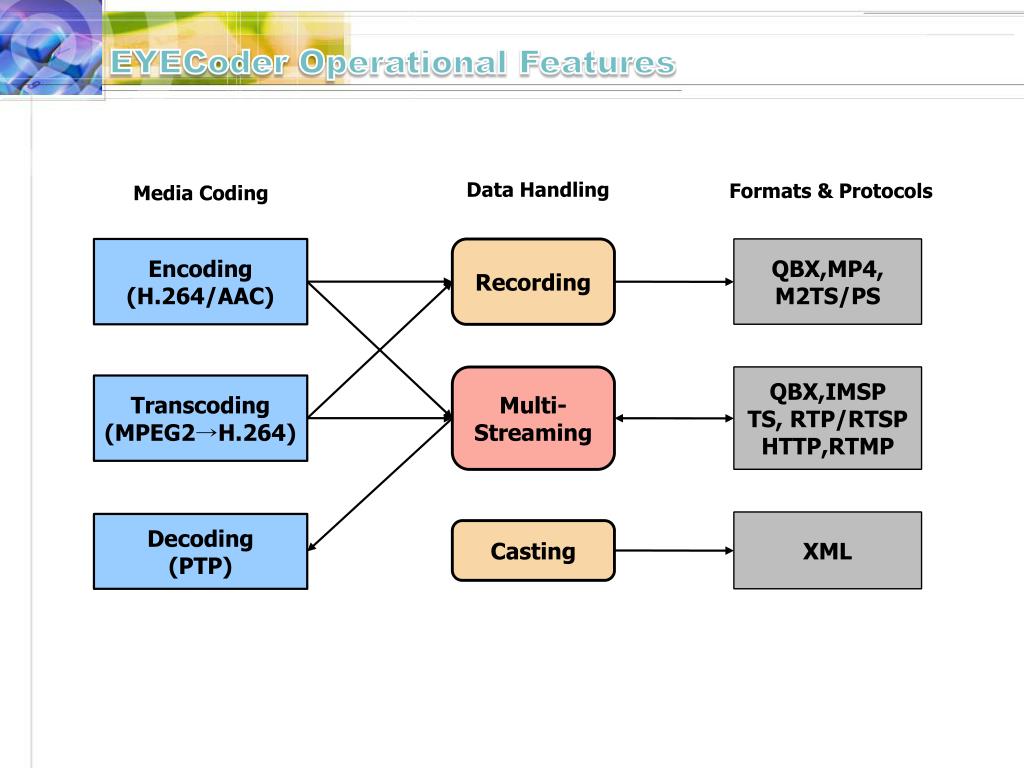

  5. EYECoder Operational Features Data Handling Formats & Protocols Media Coding Encoding (H.264/AAC) Recording QBX,MP4, M2TS/PS Multi- Streaming QBX,IMSP TS, RTP/RTSP HTTP,RTMP Transcoding (MPEG2→H.264) XML Decoding (PTP) Casting

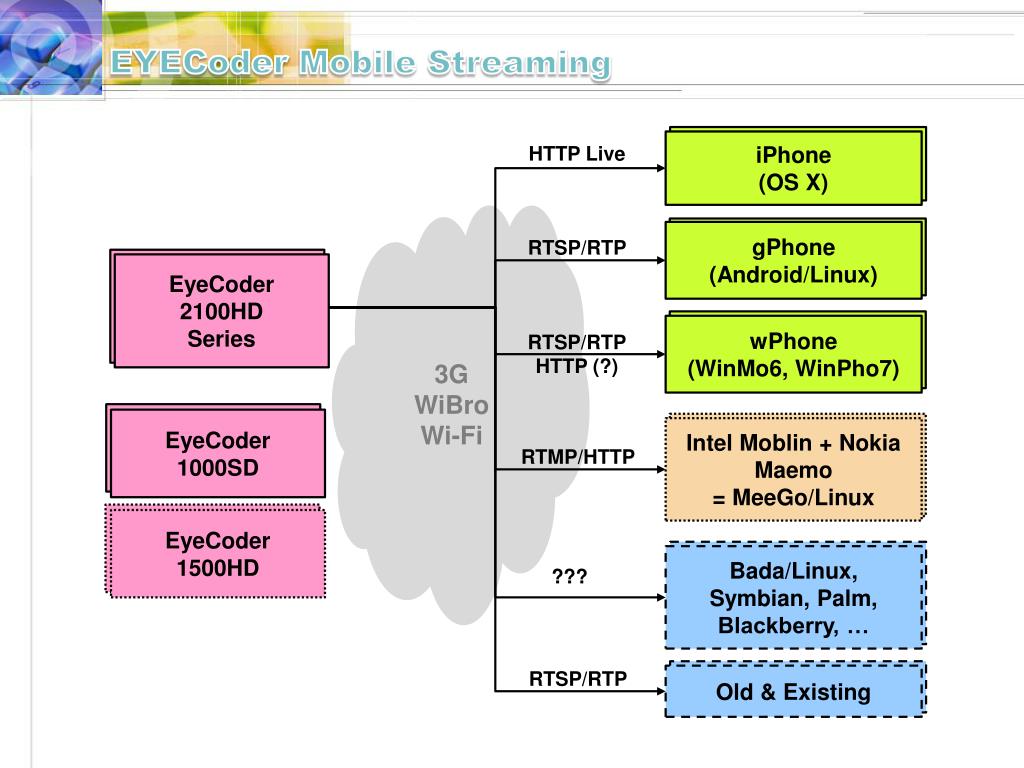

  6. EYECoder Mobile Streaming iPhone (OS X) HTTP Live iPhone (OS X) 3G WiBro Wi-Fi RTSP/RTP gPhone (Android/Linux) EyeCoder 2100HD Series wPhone (WinMo6, WinPho7) RTSP/RTP HTTP (?) EyeCoder 1000SD Intel Moblin + Nokia Maemo = MeeGo/Linux RTMP/HTTP EyeCoder 1500HD Bada/Linux, Symbian, Palm, Blackberry, … ??? RTSP/RTP Old & Existing

  7. EYECoder Functional Features Key Features ▶ stream up to 1080i @ 29.97Hz (1080i60). ▶ 4 simultaneous streams in multiple resolutions, bit rates, frame rates, streaming protocol, and recording format. ▶ PTP(point to point) communication between devices (optional). ▶ web based managing interface. ▶ auto restarting at unexpected power outage. Video Compression ▶ AVC (H.264, MPEG-4 Part 10) ▶ High/Main/Baseline profile ▶ Frame/Field/MBAFF/PAFF coding ▶ CBR/VBR rate control ▶ level from 1.0 up to 5.1 ▶ Bit rate up to 10Mbps ▶ down scaling ▶ down frame rate (14.985Hz ~ Input Hz) ▶ low latency mode Audio Compression ▶ AAC LC / LD(Low Delay) Video Resolutions & Frame Rates ▶ 1080i : 30/29.97Hz ▶ 720p : 60/59.94Hz ▶ 576i : 25Hz ▶ 480i : 30/29.97Hz Streaming Protocol ▶ MPEG2-TS over UDP/IP, RTP/UDP/IP (Multicast/Unicast) ▶ RTSP/RTP ▶ RTP ▶ Apple HTTP Streaming Protocol ▶ Microsoft IIS Smooth Streaming Protocol ▶ QBXX (nonstandard, for low delay) Recording Container Format ▶ MPEG2-TS , MP4 (ISO/IEC 14496-14) ▶ QBXX (nonstandard)

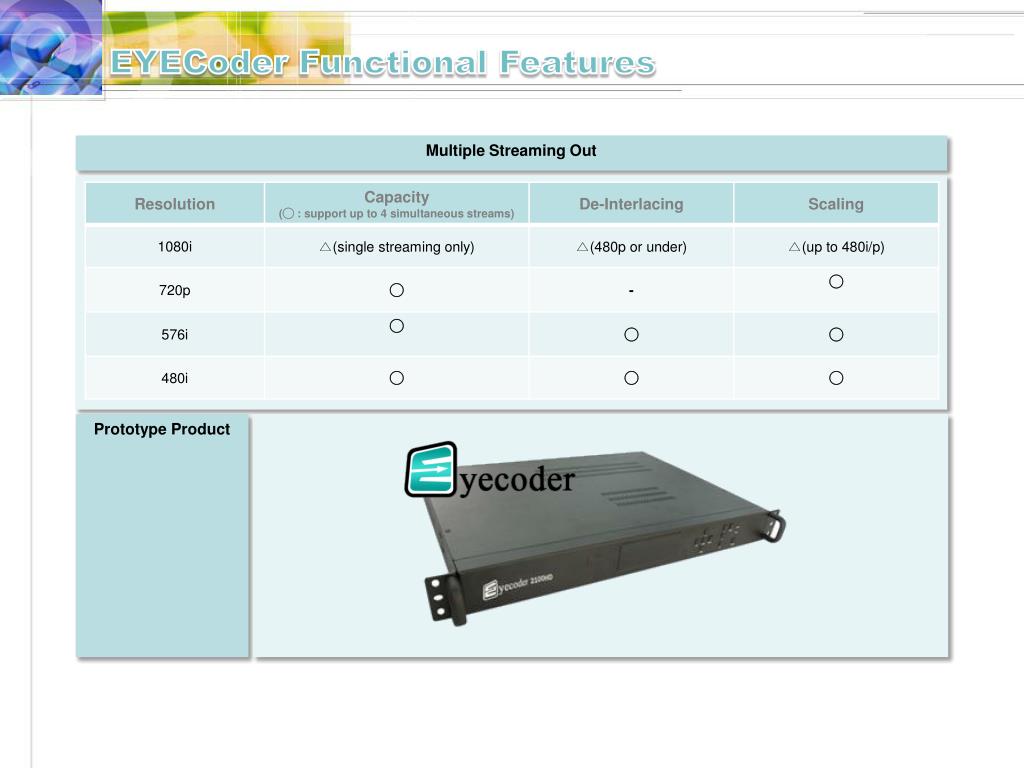

  8. EYECoder Functional Features Multiple Streaming Out Prototype Product

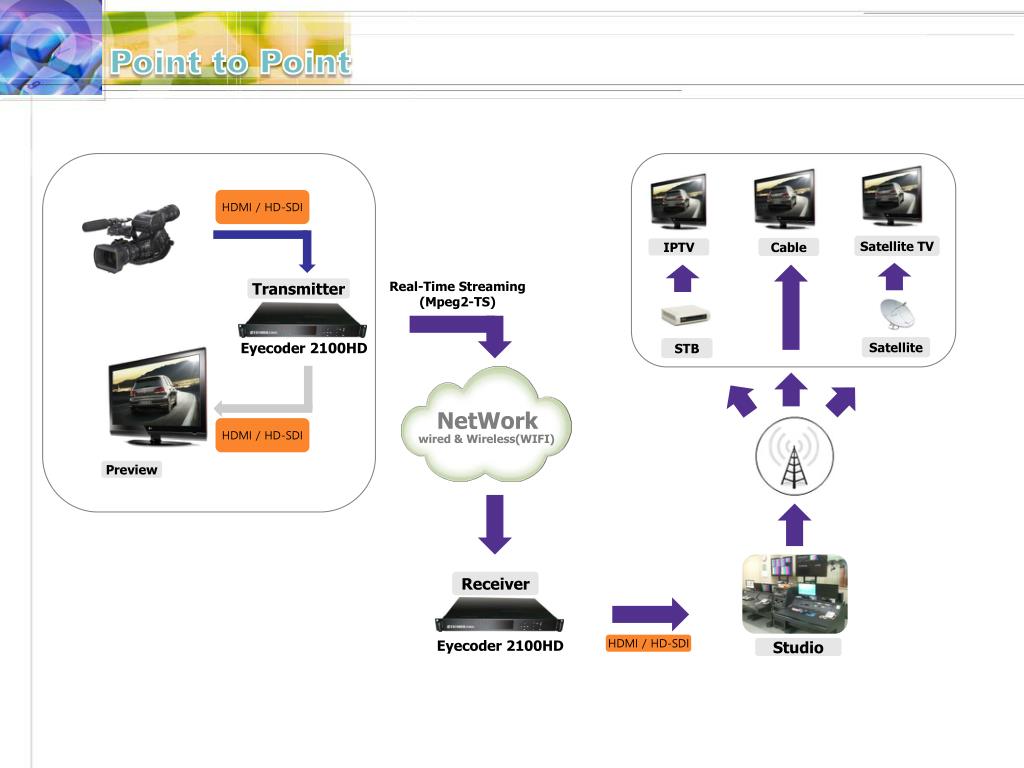

  9. Point to Point HDMI / HD-SDI Satellite TV Cable IPTV Real-Time Streaming (Mpeg2-TS) Transmitter Eyecoder 2100HD Satellite STB NetWork HDMI / HD-SDI wired & Wireless(WIFI) Preview Receiver Eyecoder 2100HD HDMI / HD-SDI Studio

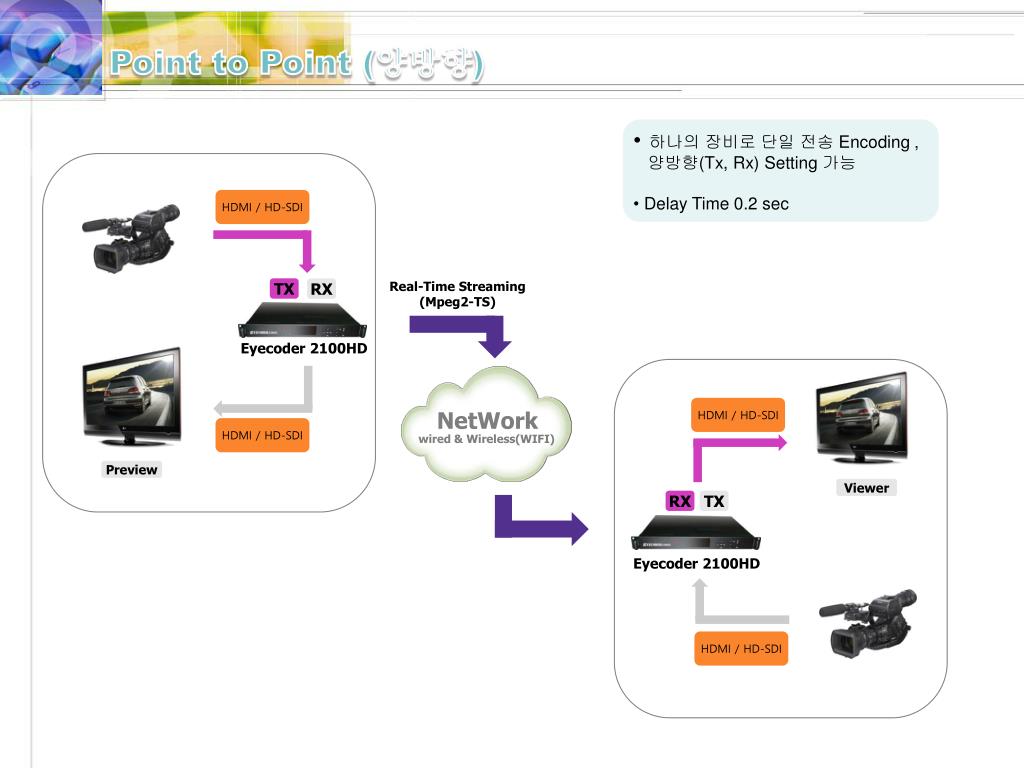

  10. Point to Point (양방향) • 하나의 장비로 단일 전송 Encoding , • 양방향(Tx, Rx) Setting 가능 • Delay Time 0.2 sec HDMI / HD-SDI Real-Time Streaming (Mpeg2-TS) TX RX Eyecoder 2100HD HDMI / HD-SDI NetWork HDMI / HD-SDI wired & Wireless(WIFI) Preview Viewer RX TX Eyecoder 2100HD HDMI / HD-SDI

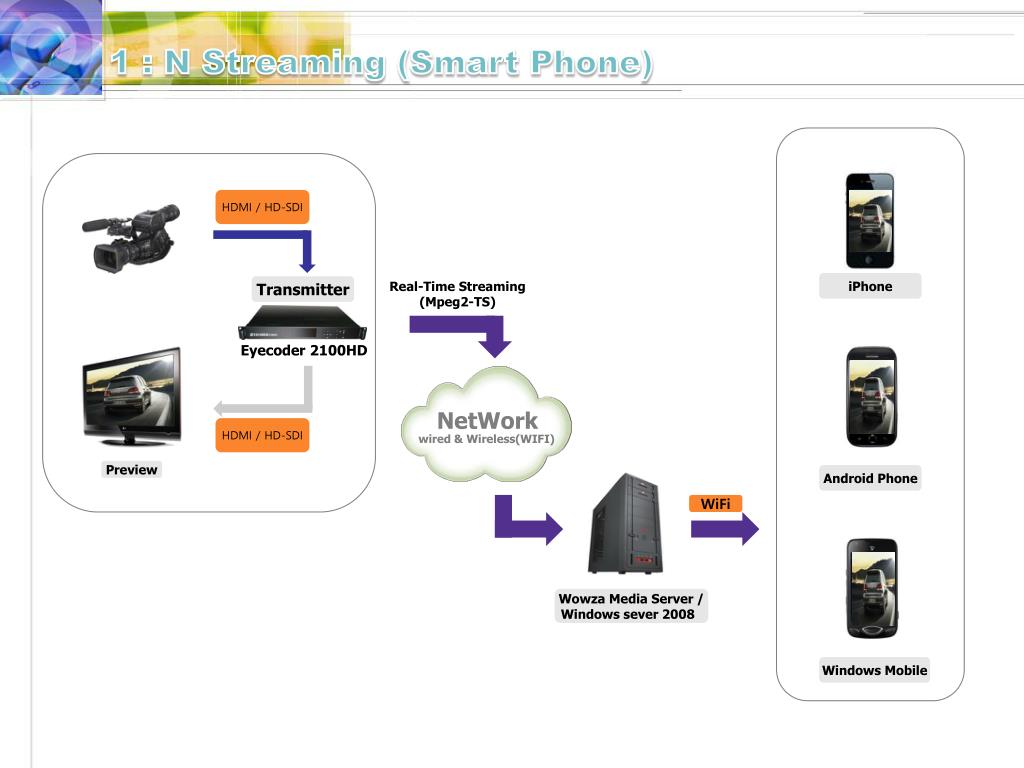

  11. 1 : N Streaming (Smart Phone) HDMI / HD-SDI Real-Time Streaming (Mpeg2-TS) iPhone Transmitter Eyecoder 2100HD NetWork HDMI / HD-SDI wired & Wireless(WIFI) Preview Android Phone WiFi Wowza Media Server / Windows sever 2008 Windows Mobile

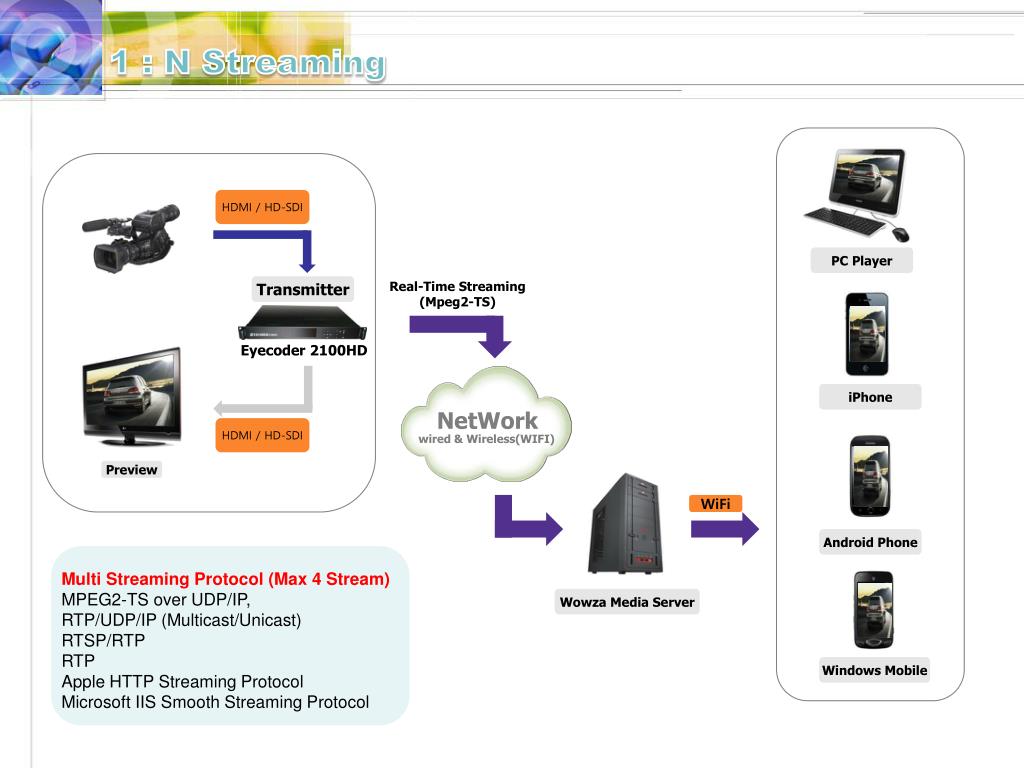

  12. 1 : N Streaming HDMI / HD-SDI PC Player Real-Time Streaming (Mpeg2-TS) Transmitter Eyecoder 2100HD iPhone NetWork HDMI / HD-SDI wired & Wireless(WIFI) Preview WiFi Android Phone Multi Streaming Protocol (Max 4 Stream) MPEG2-TS over UDP/IP, RTP/UDP/IP (Multicast/Unicast) RTSP/RTP RTP Apple HTTP Streaming Protocol Microsoft IIS Smooth Streaming Protocol Wowza Media Server Windows Mobile

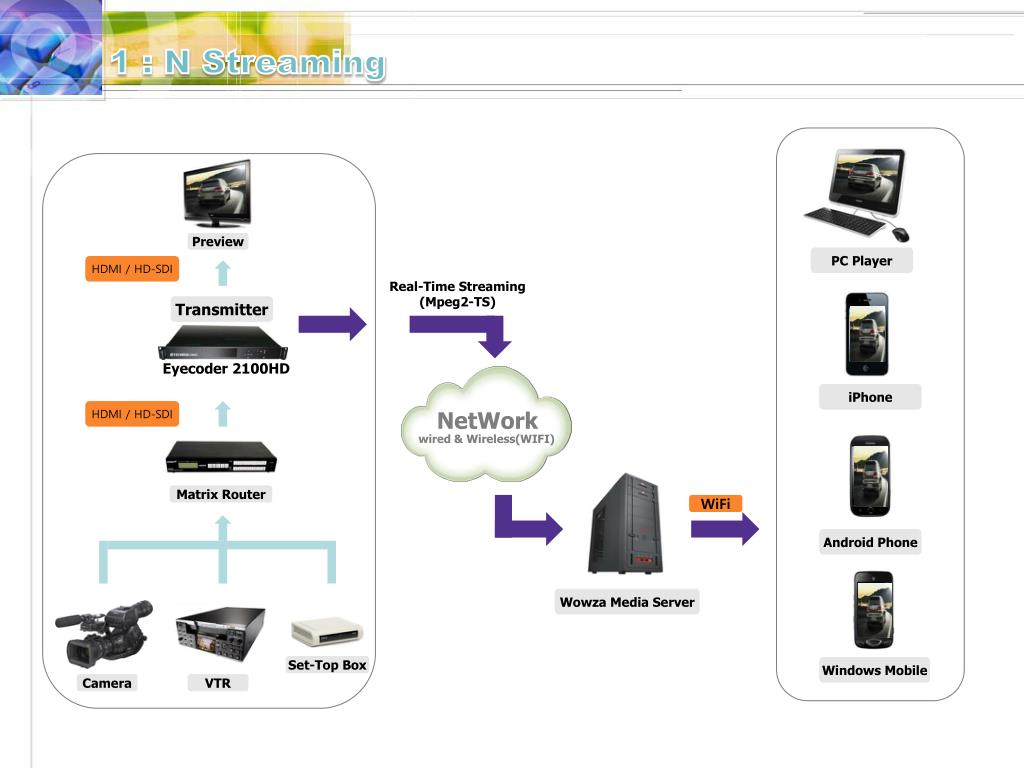

  13. 1 : N Streaming Preview PC Player HDMI / HD-SDI Real-Time Streaming (Mpeg2-TS) Transmitter Eyecoder 2100HD iPhone HDMI / HD-SDI NetWork wired & Wireless(WIFI) Matrix Router WiFi Android Phone Wowza Media Server Set-Top Box Windows Mobile Camera VTR

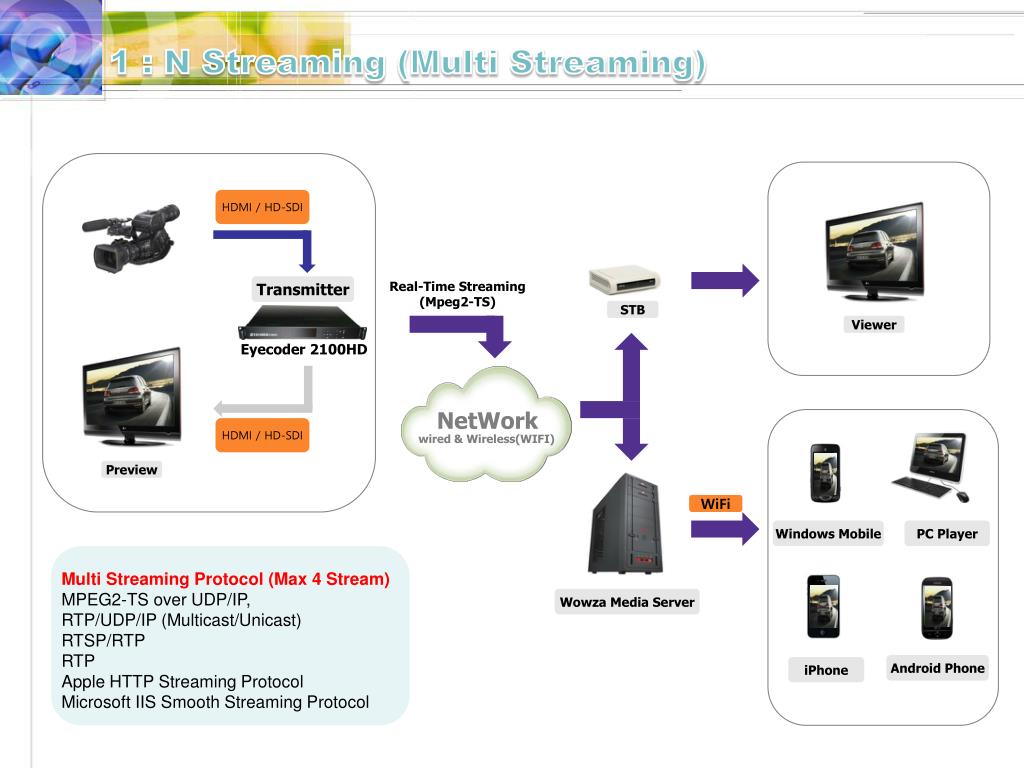

  14. 1 : N Streaming (Multi Streaming) HDMI / HD-SDI Real-Time Streaming (Mpeg2-TS) Transmitter STB Viewer Eyecoder 2100HD NetWork HDMI / HD-SDI wired & Wireless(WIFI) Preview WiFi Windows Mobile PC Player Multi Streaming Protocol (Max 4 Stream) MPEG2-TS over UDP/IP, RTP/UDP/IP (Multicast/Unicast) RTSP/RTP RTP Apple HTTP Streaming Protocol Microsoft IIS Smooth Streaming Protocol Wowza Media Server Android Phone iPhone

  15. 데모 사례 (2010)
