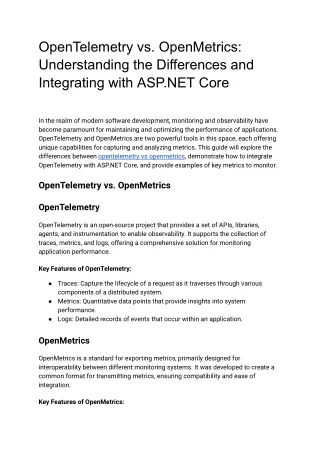

  1. OpenTelemetry vs. OpenMetrics: Understanding the Differences and Integrating with ASP.NET Core In the realm of modern software development, monitoring and observability have become paramount for maintaining and optimizing the performance of applications. OpenTelemetry and OpenMetrics are two powerful tools in this space, each offering unique capabilities for capturing and analyzing metrics. This guide will explore the differences between opentelemetry vs openmetrics, demonstrate how to integrate OpenTelemetry with ASP.NET Core, and provide examples of key metrics to monitor. OpenTelemetry vs. OpenMetrics OpenTelemetry OpenTelemetry is an open-source project that provides a set of APIs, libraries, agents, and instrumentation to enable observability. It supports the collection of traces, metrics, and logs, offering a comprehensive solution for monitoring application performance. Key Features of OpenTelemetry: ● Traces: Capture the lifecycle of a request as it traverses through various components of a distributed system. ● Metrics: Quantitative data points that provide insights into system performance. ● Logs: Detailed records of events that occur within an application. OpenMetrics OpenMetrics is a standard for exporting metrics, primarily designed for interoperability between different monitoring systems. It was developed to create a common format for transmitting metrics, ensuring compatibility and ease of integration. Key Features of OpenMetrics:

  2. ● Standardization: Provides a unified format for exporting metrics, making it easier to integrate with various monitoring systems. ● Focus on Metrics: Unlike OpenTelemetry, which also includes traces and logs, OpenMetrics is solely focused on metrics. Comparing OpenTelemetry and OpenMetrics While both asp.net core opentelemetry and OpenMetrics are crucial for observability, they serve different purposes: ● Scope: OpenTelemetry offers a broader scope by including traces and logs, whereas OpenMetrics is focused exclusively on metrics. ● Integration: OpenTelemetry provides a more comprehensive set of tools and libraries for instrumentation, while OpenMetrics ensures standardization and interoperability for metrics export. Integrating OpenTelemetry with ASP.NET Core ASP.NET Core is a popular framework for building web applications. Integrating OpenTelemetry with ASP.NET Core can provide deep insights into application performance and help in troubleshooting issues. Setting Up OpenTelemetry in ASP.NET Core 1. Install the Necessary Packages: First, add the required OpenTelemetry packages to your ASP.NET Core project. 2. shell Copy code dotnet add package OpenTelemetry dotnet add package OpenTelemetry.Exporter.Console dotnet add package OpenTelemetry.Instrumentation.AspNetCore 3.

  3. 4. Configure OpenTelemetry: In the Startup.cs file, configure OpenTelemetry to capture traces and metrics. 5. csharp Copy code public void ConfigureServices(IServiceCollection services) { services.AddOpenTelemetryTracing(builder => { builder .AddAspNetCoreInstrumentation() .AddHttpClientInstrumentation() .AddConsoleExporter(); }); services.AddControllers(); } 6. Run the Application: Start your ASP.NET Core application. OpenTelemetry will automatically instrument your application and export traces and metrics to the console. Key Metrics to Monitor When using OpenTelemetry with ASP.NET Core, several key metrics can provide valuable insights into application performance:

  4. 1. Request Latency: Measures the time taken to process HTTP requests. 2. Error Rate: Tracks the number of failed requests or exceptions. 3. Request Throughput: Monitors the number of requests handled by the application per second. 4. Dependency Duration: Measures the time taken to call external dependencies, such as databases or third-party services. Metric Examples CPU Utilization Metric examples-CPU Utilization is a critical metric that indicates how much of the CPU's processing power is being used by the application. Example (Prometheus format): plaintext Copy code # HELP process_cpu_seconds_total Total user and system CPU time spent in seconds. # TYPE process_cpu_seconds_total counter process_cpu_seconds_total{job="aspnetcore"} 12345.67 Memory Usage Memory Usage tracks the amount of memory consumed by the application, helping identify memory leaks or inefficient memory usage. Example (Prometheus format): plaintext Copy code # HELP process_resident_memory_bytes Resident memory size in bytes. # TYPE process_resident_memory_bytes gauge process_resident_memory_bytes{job="aspnetcore"} 987654321

  5. Request Latency Request Latency measures the time taken to process requests, providing insights into the responsiveness of the application. Example (OpenTelemetry format): plaintext Copy code # HELP http_server_duration_seconds The HTTP request duration. # TYPE http_server_duration_seconds histogram http_server_duration_seconds_bucket{le="0.005",method="GET",path="/api/values"} 10 http_server_duration_seconds_bucket{le="0.01",method="GET",path="/api/values"} 20 http_server_duration_seconds_bucket{le="0.025",method="GET",path="/api/values"} 30 http_server_duration_seconds_bucket{le="0.05",method="GET",path="/api/values"} 40 http_server_duration_seconds_bucket{le="0.1",method="GET",path="/api/values"} 50 http_server_duration_seconds_bucket{le="0.25",method="GET",path="/api/values"} 60 http_server_duration_seconds_bucket{le="0.5",method="GET",path="/api/values"} 70 http_server_duration_seconds_bucket{le="1",method="GET",path="/api/values"} 80 http_server_duration_seconds_bucket{le="2.5",method="GET",path="/api/values"} 90 http_server_duration_seconds_bucket{le="5",method="GET",path="/api/values"} 100 http_server_duration_seconds_bucket{le="10",method="GET",path="/api/values"} 110

  6. http_server_duration_seconds_bucket{le="+Inf",method="GET",path="/api/values"}http_server_duration_seconds_bucket{le="+Inf",method="GET",path="/api/values"} 120 http_server_duration_seconds_sum{method="GET",path="/api/values"} 6.4 http_server_duration_seconds_count{method="GET",path="/api/values"} 120 Error Rate Error Rate monitors the number of failed requests or exceptions, indicating the stability and reliability of the application. Example (OpenTelemetry format): plaintext Copy code # HELP http_server_errors_total The total number of HTTP server errors. # TYPE http_server_errors_total counter http_server_errors_total{method="GET",path="/api/values"} 5 Dependency Duration Dependency Duration measures the time taken for the application to call external dependencies, such as databases or third-party services. Example (OpenTelemetry format): plaintext Copy code # HELP dependency_call_duration_seconds The duration of external dependency calls. # TYPE dependency_call_duration_seconds histogram dependency_call_duration_seconds_bucket{le="0.005",dependency="database"} 5 dependency_call_duration_seconds_bucket{le="0.01",dependency="database"} 15

  7. dependency_call_duration_seconds_bucket{le="0.025",dependency="database"} 25 dependency_call_duration_seconds_bucket{le="0.05",dependency="database"} 35 dependency_call_duration_seconds_bucket{le="0.1",dependency="database"} 45 dependency_call_duration_seconds_bucket{le="0.25",dependency="database"} 55 dependency_call_duration_seconds_bucket{le="0.5",dependency="database"} 65 dependency_call_duration_seconds_bucket{le="1",dependency="database"} 75 dependency_call_duration_seconds_bucket{le="2.5",dependency="database"} 85 dependency_call_duration_seconds_bucket{le="5",dependency="database"} 95 dependency_call_duration_seconds_bucket{le="10",dependency="database"} 105 dependency_call_duration_seconds_bucket{le="+Inf",dependency="database"} 115 dependency_call_duration_seconds_sum{dependency="database"} 6.5 dependency_call_duration_seconds_count{dependency="database"} 115 Conclusion OpenTelemetry and OpenMetrics are both essential tools for achieving observability in modern software applications. While OpenTelemetry offers a comprehensive solution that includes traces, metrics, and logs, OpenMetrics focuses on standardizing metrics for better interoperability. Integrating OpenTelemetry with ASP.NET Core can provide deep insights into application performance, helping developers monitor, diagnose, and optimize their systems. By understanding and implementing key metrics such as CPU utilization, memory usage, request latency, error rate, and dependency duration, teams can ensure their applications run smoothly and meet user expectations. Whether you choose OpenTelemetry, OpenMetrics, or a combination of both, the goal remains the same: to achieve robust observability and maintain high-performing, reliable applications.
