The Evaluation of an Embedded System for First Responders Nicholas Brabson The University of Tennessee David Hill Computational Sciences and Engineering Division August 2009

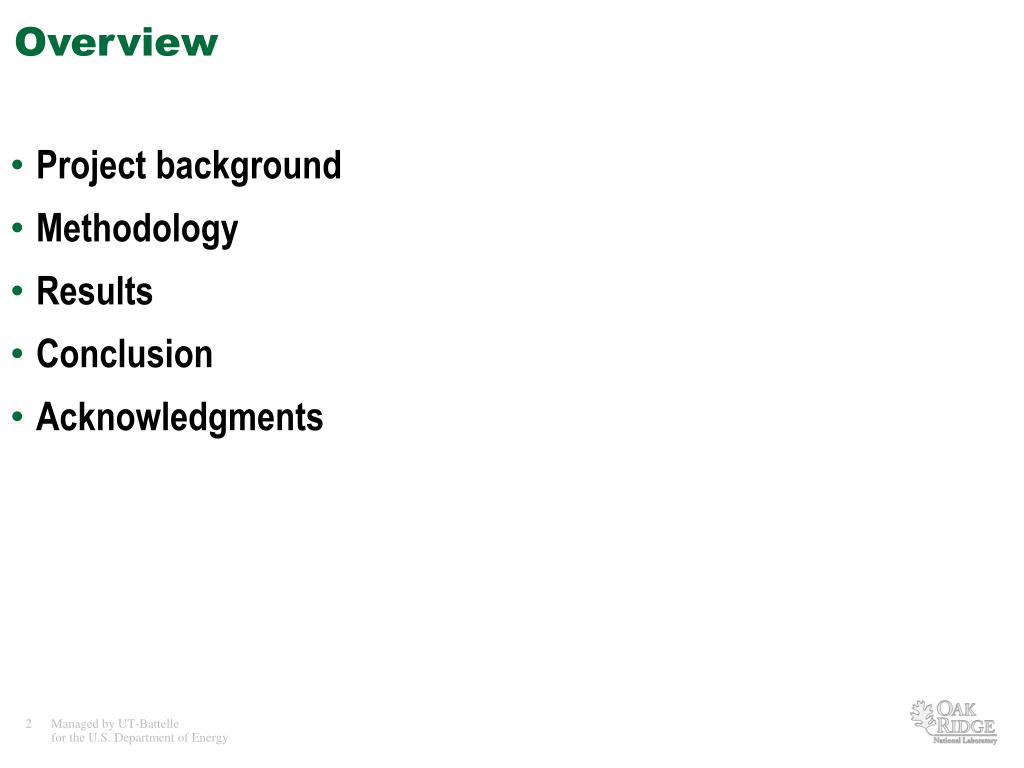

Overview • Project background • Methodology • Results • Conclusion • Acknowledgments
First Responder needs • Ways to identify hazardous materials during an emergency • Ability to enable responders to make key decisions during fire, hazard, and rescue control • Efficient ways to communicate relative data • Ability to ensure safety of firefighters and first responders handling hazardous chemicals

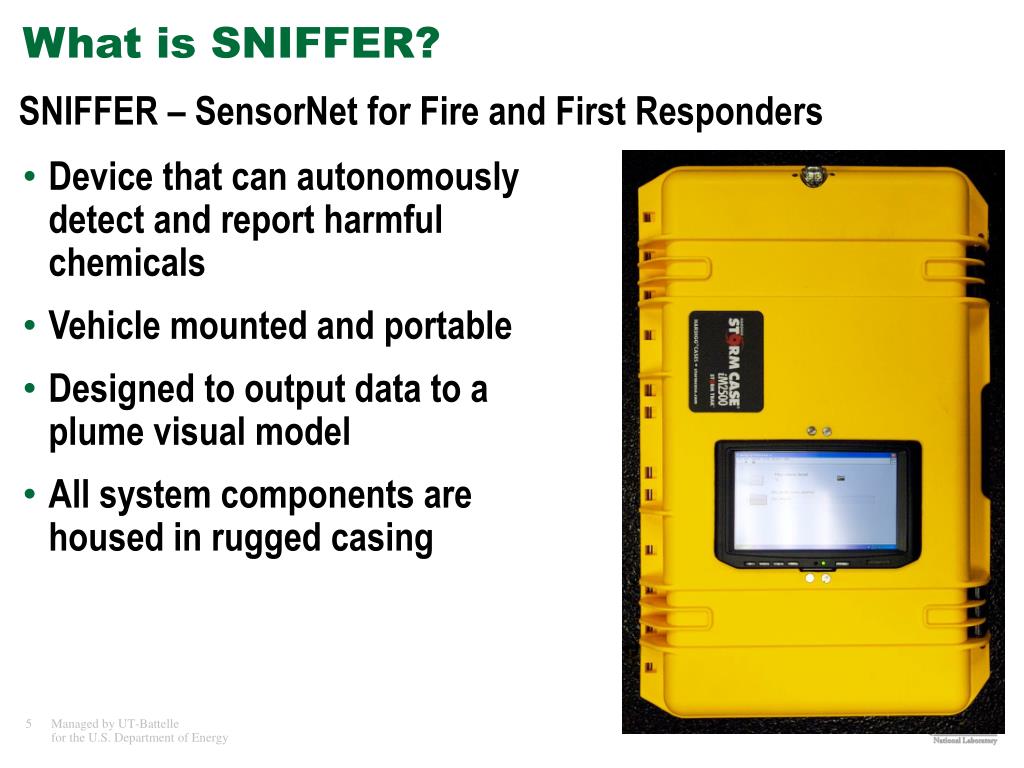

What is SNIFFER? • SNIFFER – SensorNet for Fire and First Responders • Device that can autonomously detect and report harmful chemicals • Vehicle mounted and portable • Designed to output data to a plume visual model • All system components are housed in rugged casing
What is SNIFFER? • Targeted Chemicals • Hydrogen cyanide • Chlorine • Ammonia • Arsine • Sulfur dioxide • Hydrochloric acid • Phosgene • Ethylene oxide • Bromomethane
Project goals • Identify and characterize power supply options for the system • Test lifetime of battery in changing environments • Construct PC-104s with each individual module desired
Battery selection Battery comparison Li-Ion

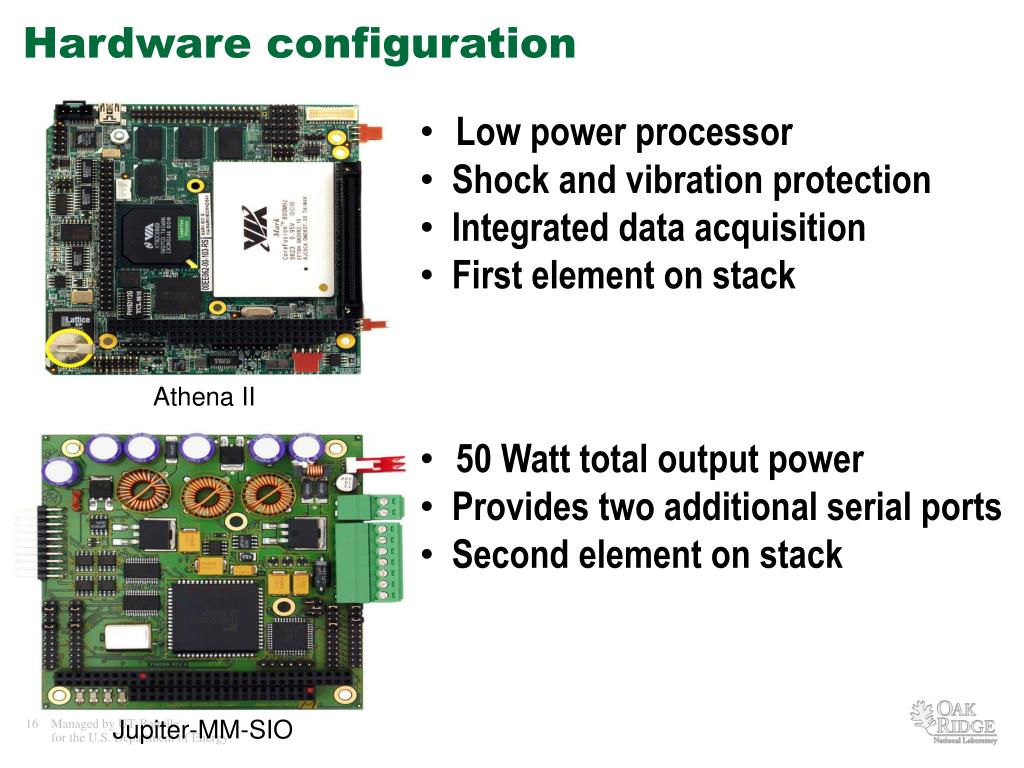

Hardware configuration • Low power processor • Shock and vibration protection • Integrated data acquisition • First element on stack Athena II • 50 Watt total output power • Provides two additional serial ports • Second element on stack Jupiter-MM-SIO

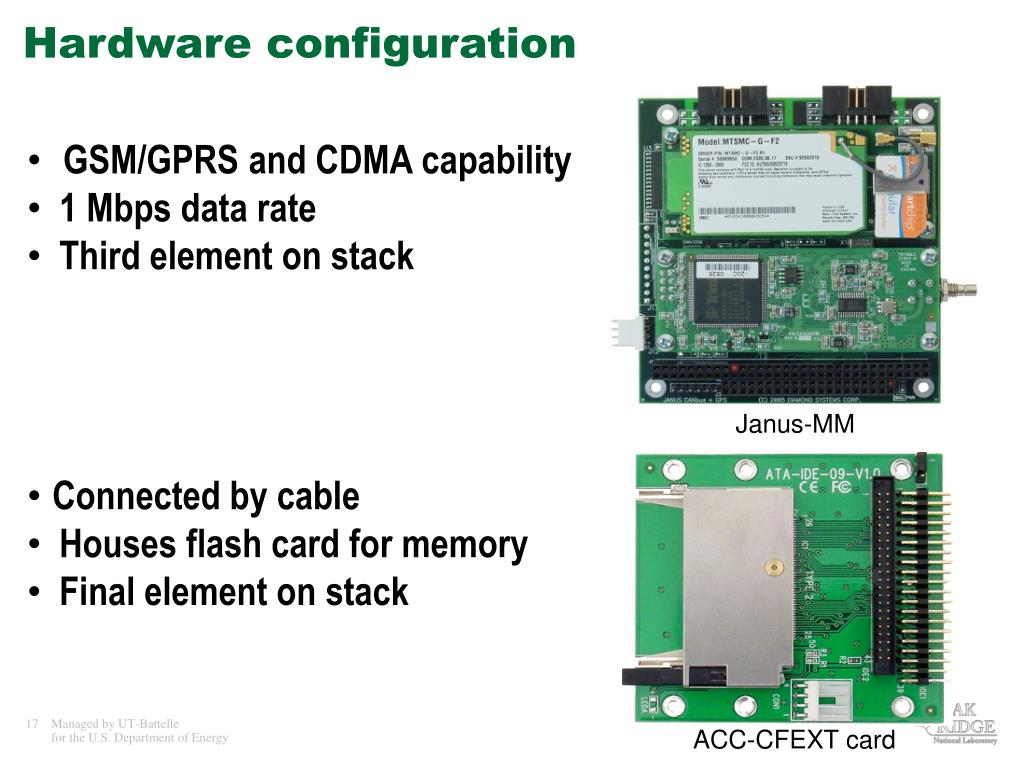

Hardware configuration • GSM/GPRS and CDMA capability • 1 Mbps data rate • Third element on stack Janus-MM • Connected by cable • Houses flash card for memory • Final element on stack ACC-CFEXT card
Final stack construction Partially constructed stack Final constructed stack with covering
Conclusions • Power supplies were successfully compared and the lithium ion battery type was chosen • Athena II computer was assembled with additional interface cards attached for desired functions • Both the power supply and PC-104 were included in the SNIFFER prototype • LabView code was reviewed and learned for future use
Future of SNIFFER • Develop a standard that all devices similar to SNIFFER could use to improve prototype • Train officials on how to effectively use the device • Continue testing and improving product in conjunction with various emergency organizations
Acknowledgments • The Research Alliance in Math and Science program is sponsored by the Office of Advanced Scientific Computing Research, U.S. Department of Energy. • The work was performed at the Oak Ridge National Laboratory, which is managed by UT-Battelle, LLC under Contract No. De-AC05-00OR22725. This work has been authored by a contractor of the U.S. Government, accordingly, the U.S. Government retains a non-exclusive, royalty-free license to publish or reproduce the published form of this contribution, or allow others to do so, for U.S. Government purposes. • Special thanks to David Hill, Debbie McCoy, and Rashida Askia
