Proportional Reasoning

Proportional Reasoning. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm , candle Q had burned 10 mm . When candle Q had burned 35 mm , how many mm would candle P have burned?.

stian
Download Presentation

Proportional Reasoning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Proportional Reasoning Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? • Strategy 1: Setting up a proportion • Strategy 2: Coordinating quantities 0 mm 56 mm 16 mm 48 mm 32 mm 8 mm 16 mm 16 mm 16 mm 30 mm 10 mm 35 mm 0 mm 20 mm 10 mm 10 mm 10 mm Which strategy demonstrates a conceptual understanding of proportional relationship? 5 mm

  2. Objective: Making Connections Proportion a x b d = What is a proportion?

  3. Objective: Making Connections Proportion Beginning Algebra y = mx + b a x b d = y = mx How can we link these two ideas?

  4. Key Ideas • Focus on Co-variation and Invariance • Identifying quantities thatchange(i.e. variables) Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? (a) Identify the quantities in this problem. These are values of quantities, not quantities! These are numbers, not quantities! mm 16 10 mm ? 35 mm The length burned for candle P at the first moment. (given) The length burned for candle P at the second moment. (unknown) The length burned for candle Q at the first moment. (given) The length burned for candle Q at the second moment. (given)

  5. Key Ideas • Focus on Co-variation and Invariance • Identifying quantities thatchange(i.e. variables) and how those quantities are related Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? (a) Identify the quantities in this problem. (b) Let p represent the number of mm that candle P had burned when candle Q had burned q mm. Write an equation to relate p and q. Mentally act out the problem situation. Draw diagrams to represent the problem situation.

  6. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? 10 mm 16 mm • Which candle is skinner? • Candle P • Candle Q • The same P Q 1st moment

  7. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? 10 mm 16 mm • Which candle is skinner? • Candle P • Candle Q • The same P Q 1st moment

  8. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? 10 mm 16 mm 35 mm ? P Q Q P 2nd moment 1st moment

  9. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What is invariant in this problem? The burning rate of each candle. 10 mm 16 mm 35 mm ? P Q Q P 2nd moment 1st moment

  10. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What is invariant in this problem? The burning rate of each candle. 10 mm 16 mm 35 mm ? P P Q Q Q P 2nd moment 1st moment Initially

  11. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What is invariant in this problem? The burning rate of each candle. 2nd moment 1st moment Initially

  12. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What is invariant in this problem? The burning rate of each candle. P Q Initially

  13. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What is invariant in this problem? The burning rate of each candle. 2nd moment Initially

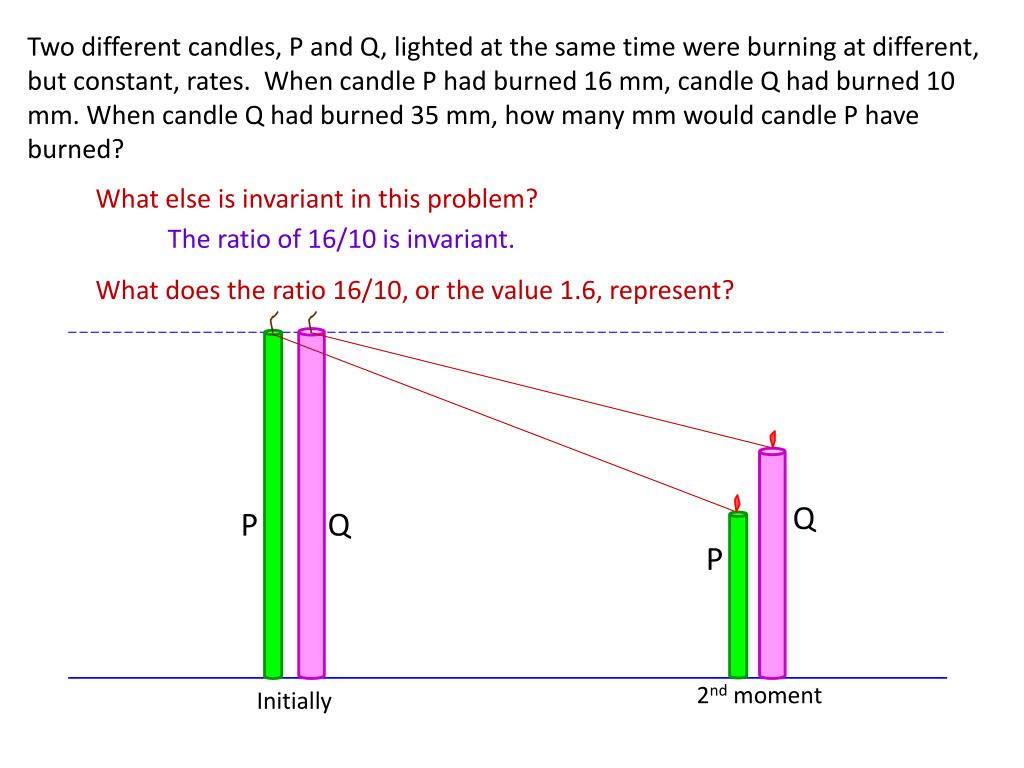

  14. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What else is invariant in this problem? The ratio of 16/10 is invariant. What does the ratio 16/10, or the value 1.6, represent? P Q Q P 2nd moment Initially

  15. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What else is invariant in this problem? The ratio of 16/10 is invariant. What does the ratio 16/10, or the value 1.6, represent?

  16. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What else is invariant in this problem? The ratio of 16/10 is invariant. What does the ratio 16/10, or the value 1.6, represent? Candle P burned 1.6 mm for every 1mm burned by Candle Q.

  17. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? What else is invariant in this problem? The ratio of 16/10 is invariant. What does the ratio 16/10, or the value 1.6, represent? Candle P burned 1.6 mm for every 1mm burned by Candle Q. p q (b) Let p represent the number of mm that candle P had burned when candle Q had burned q mm. Write an equation to relate p and q. q = p 1.6

  18. Key Ideas • Focus on Co-variation and Invariance • Focusing on quantities and relationships • Making connections among various representations

  19. Two different candles, P and Q, lighted at the same time were burning at different, but constant, rates. When candle P had burned 16 mm, candle Q had burned 10 mm. When candle Q had burned 35 mm, how many mm would candle P have burned? (c) How else can we show the relationship between the variables? Length burned (mm) x Candle P 35 Candle Q 16 10 Time 1st Moment 2nd Moment

  20. Key Ideas • Focus on Co-variation and Invariance • Focusing on quantities and relationships • Making connections among various representations • Interpreting slope meaningfully

  21. What does the slope represent of each line represent? & The burning rate for each candle (value is unknown). = How are the slopes related? Candle P burned 1.6 times as fast as Candle Q. Slope of line for Candle P is 1.6 times that of Candle Q. mP = 1.6mQ Length burned (mm) x 16 T1 Candle P 16 1.6 10 1 10 T1 16 T1 = 10 T1 35 Candle Q 16 10 16 10 Time 1st Moment 2nd Moment T1

  22. Key Ideas • Focus on Co-variation and Invariance • Focusing on quantities and relationships • Making connections among various representations • Interpreting slope meaningfully 16 x 10 35 = • Recognizing that ratio is invariant 16 p 10 q =

  23. p = 1.6q Length burned (mm) Candle P x x 35 p q 16 x 10 35 16 1.6 10 1 = = = = Candle Q 35 p x p q q 35 16 10 16 10 Time 1st Moment 2nd Moment

  24. Key Ideas • Focus on Co-variation and Invariance • Focusing on quantities and relationships • Making connections among various representations • Interpreting slope meaningfully 16 x 10 35 35 x 10 16 = = • Recognizing that ratio is invariant • Relating the meaning of ratio to the context of the problem

  25. We can solve this problem by setting up a proportion like . 35 x 10 16 = The ratio 35/10 is equal to 3.5. What is the significance of 3.5 in terms of the burning candles? Length burned (mm) ? Candle P 35 30 Candle Q 20 16 10 Time 1st Moment 2nd Moment

  26. We can solve this problem by setting up a proportion like . 35 x 10 16 = The ratio 35/10 is equal to 3.5. What is the significance of 3.5 in terms of the burning candles? Length burned (mm) ? Candle P 48 35 32 Candle Q 16 10 Time 1st Moment 2nd Moment

  27. Two different candles, P and Q, lighted at the same time were burning at different but constant rates. At 8:00pm candle P had burned 16 mm and candle Q had burned 10 mm. At 8:50pm candle Q had burned 35 mm. At what time were the two candles lighted? b. What is the burning rate for candle Q? c. Suppose the original length of candles P and Q are 200 mm. Which candle is skinnier? Length burned (mm) 200 35 16 10 Time 7:40pm 8:00pm 8:50pm ?

  28. Two different candles, P and Q, lighted at the same time were burning at different but constant rates. At 8:00pm candle P had burned 16 mm and candle Q had burned 10 mm. At 8:50pm candle Q had burned 35 mm. Let t be the # of minutes since the lighting of the candles. Let bP be the length of candle P that has burned at time t. Let bQ be the length of candle Q that has burned at time t. (mm) bP vs t graph 200 bQ vs t graph 35 16 10 t (min) 0 20 70

  29. Two different candles, P and Q, lighted at the same time were burning at different but constant rates. At 8:00pm candle P had burned 16 mm and candle Q had burned 10 mm. At 8:50pm candle Q had burned 35 mm. Let t be the # of minutes since the lighting of the candles. Let bP be the length of candle P that has burned at time t. Let bQ be the length of candle Q that has burned at time t. Let hP be the height in mm of candle P at time t. (mm) bP vs t graph 200 bQ vs t graph hP vs t graph t (min) 0

  30. Two different candles, P and Q, lighted at the same time were burning at different but constant rates. At 8:00pm candle P had burned 16 mm and candle Q had burned 10 mm. At 8:50pm candle Q had burned 35 mm. Let t be the # of minutes since the lighting of the candles. Let bP be the length of candle P that has burned at time t. Let bQ be the length of candle Q that has burned at time t. Let hP be the height in mm of candle P at time t. Let hQ be the height in mm of candle Q at time t. (mm) bP vs t graph 200 bQ vs t graph hQ vs t graph hP vs t graph t (min) 0

  31. Two different candles, P and Q, lighted at the same time were burning at different but constant rates. At 8:00pm candle P had burned 16 mm and candle Q had burned 10 mm. At 8:50pm candle Q had burned 35 mm. Write an equation to relate the variables in each pair and briefly describe the meaning of the slope and y-intercept of your equation. (i) bP and t (ii) bQ and t (iii) hP and t(iv) hQ and t (v) hP and bP (vi) bP and bQ (mm) bP vs t graph 200 bQ vs t graph hQ vs t graph hP vs t graph t (min) 0

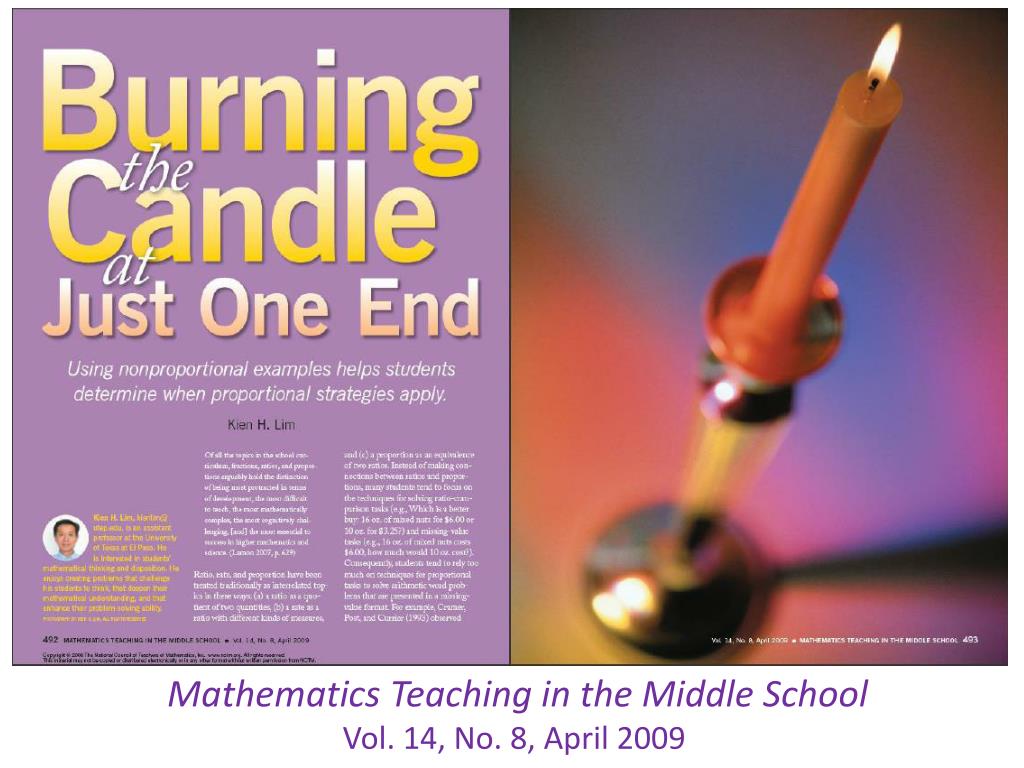

  32. All the contextualized problems in this presentation are from this article in Mathematics Teaching in the Middle School Vol. 14, No. 8, April 2009
