  1. ITU Seminar "Economic aspects of national radio frequency spectrum management” Kyiv, Ukraine, 03-05 July 2007 UWB Regulations Le Devendec Marc, ERO

  2. What is UWB? • Regulatory Framework • Regulation in the World • CEPT: • SRR at 24 GHz • UWB Systems below 10.6 GHz • Next?

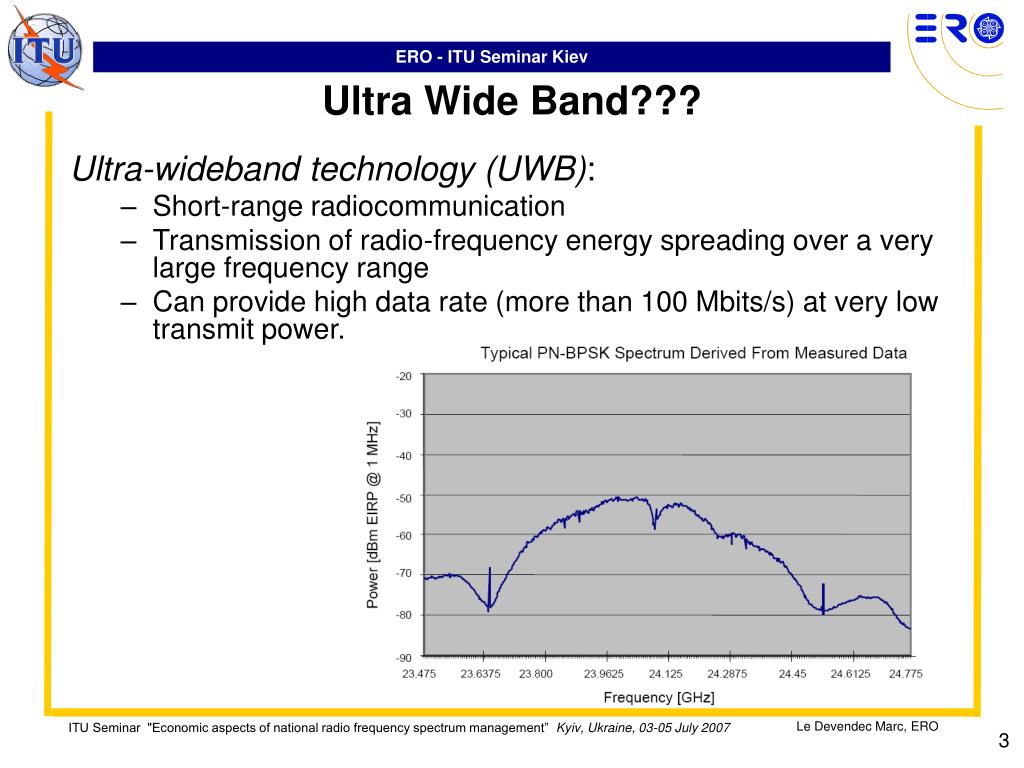

  3. Ultra-wideband technology (UWB): Short-range radiocommunication Transmission of radio-frequency energy spreading over a very large frequency range Can provide high data rate (more than 100 Mbits/s) at very low transmit power. Ultra Wide Band???

  4. Communication devices (Wireless USB) Ultra Wide Band Applications • Penetration capabilities: Radar imaging device used to obtain images of obstructed objects. This includes in-wall and through-wall detection, ground penetrating radar, construction and home repair imaging, mining, and surveillance devices. • Vehicular radar device:a radar device mounted on land transportation vehicles to detect the location and movement of persons or objects near a vehicle (road safety) • Positioning, tracking devices....

  5. intersection blind spot Collision warning Pedestrian Protection Rear crash lane change support overtake support rear collision warning side-crash Parking aid low speed back-up driving Park-aid Collision avoidance Precrash ACC with Stop&Go side-crash blind spot intersection UWB: SRR at 24 GHz Short-Range Radars (SRR) are expected to be implemented on cars (up to 10 radars) to ensure a survey of the close environment of the cars for safety purposes

  6. SRR Automotive Radar could address 88% of all causes of Rear-End Crashes Usefulness of Short Range Radar Japan + US + Europe = 682 billion Euros DRIVER INATTENTION 68%  OTHER 3% ALCOHOL INATTENTION & FOLLOWING TOO CLOSELY FOLLOWING TOO CLOSELY 9%   9% 11%

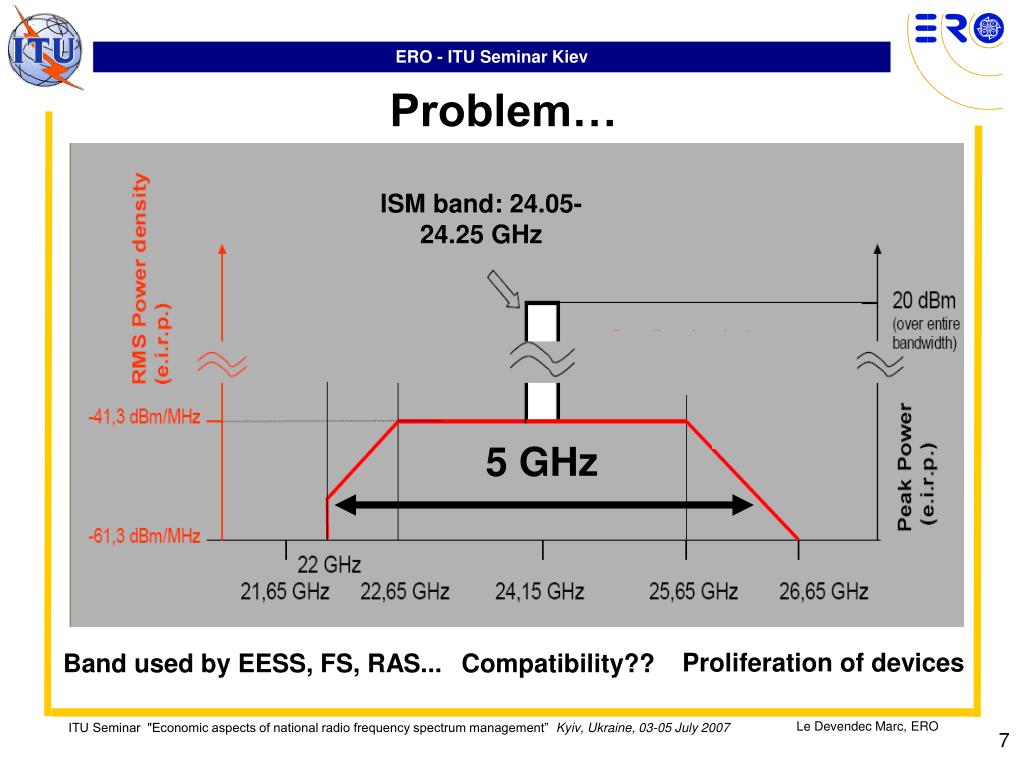

  7. Problem… ISM band: 24.05-24.25 GHz 5 GHz Proliferation of devices Band used by EESS, FS, RAS... Compatibility??

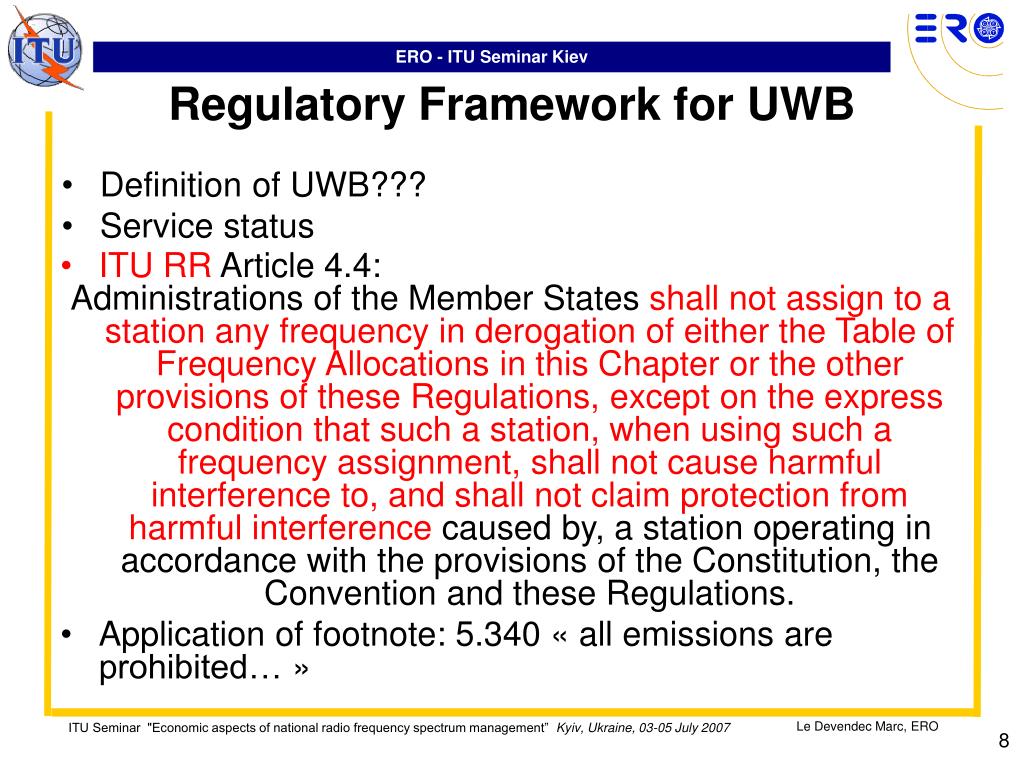

  8. Definition of UWB??? Service status Regulatory Framework for UWB • ITU RR Article 4.4: Administrations of the Member States shall not assign to a station any frequency in derogation of either the Table of Frequency Allocations in this Chapter or the other provisions of these Regulations, except on the express condition that such a station, when using such a frequency assignment, shall not cause harmful interference to, and shall not claim protection from harmful interference caused by, a station operating in accordance with the provisions of the Constitution, the Convention and these Regulations. • Application of footnote: 5.340 « all emissions are prohibited… »

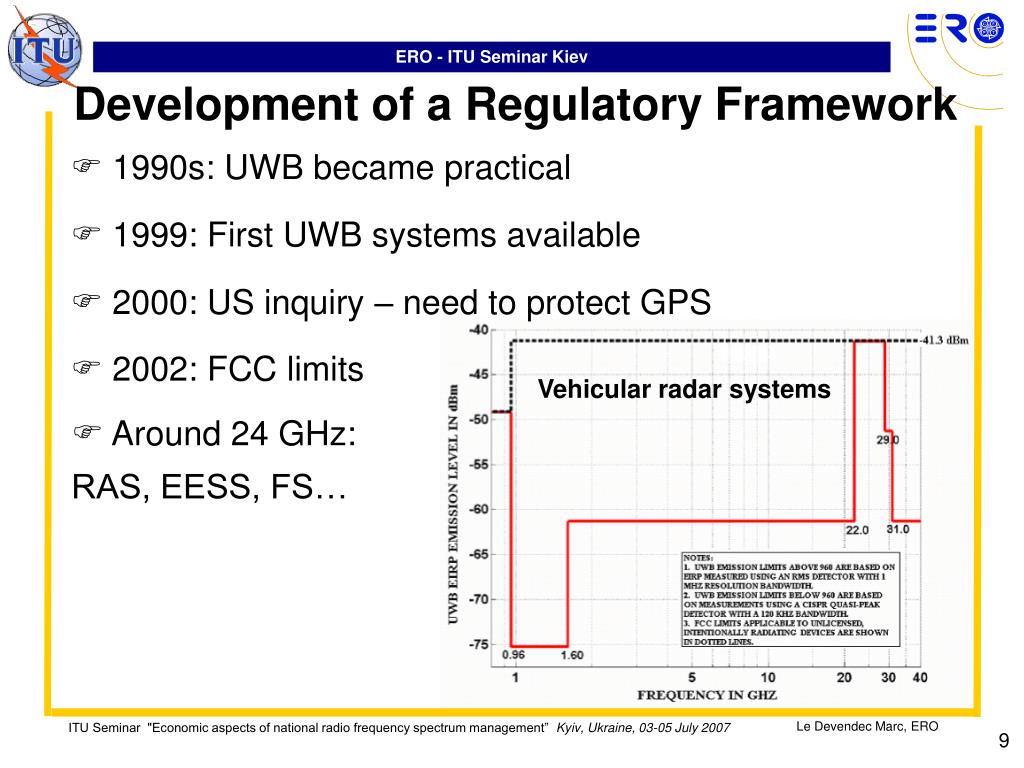

  9. Development of a Regulatory Framework • 1990s: UWB became practical • 1999: First UWB systems available • 2000: US inquiry – need to protect GPS • 2002: FCC limits Vehicular radar systems • Around 24 GHz: RAS, EESS, FS…

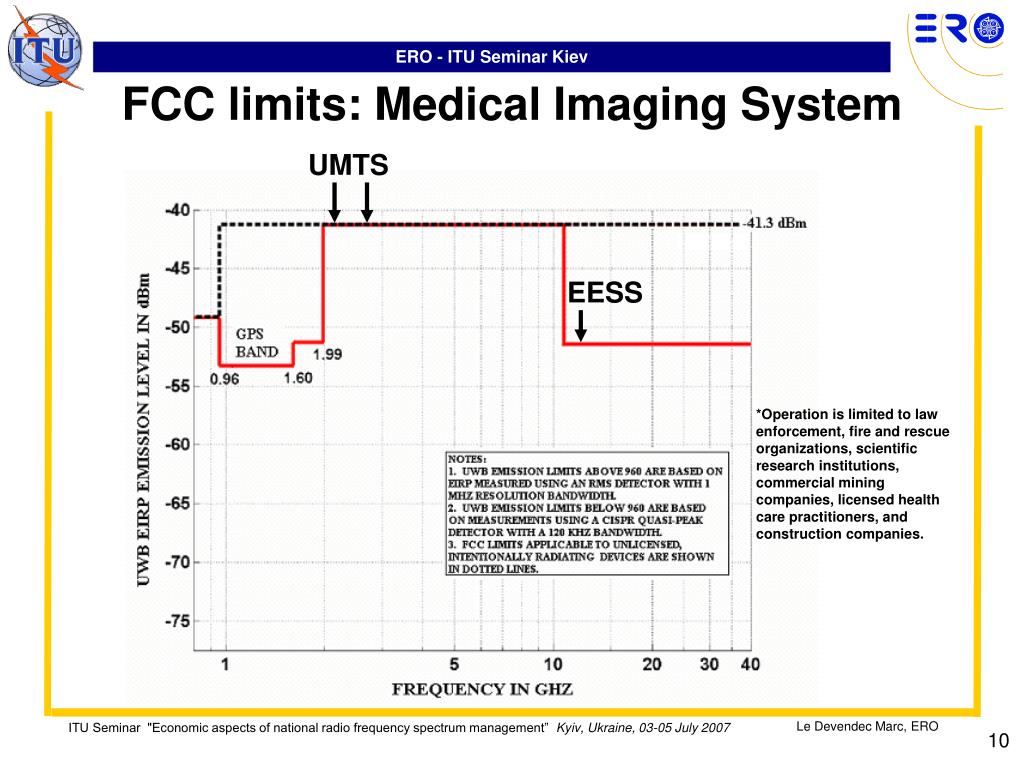

  10. FCC limits: Medical Imaging System UMTS EESS *Operation is limited to law enforcement, fire and rescue organizations, scientific research institutions, commercial mining companies, licensed health care practitioners, and construction companies.

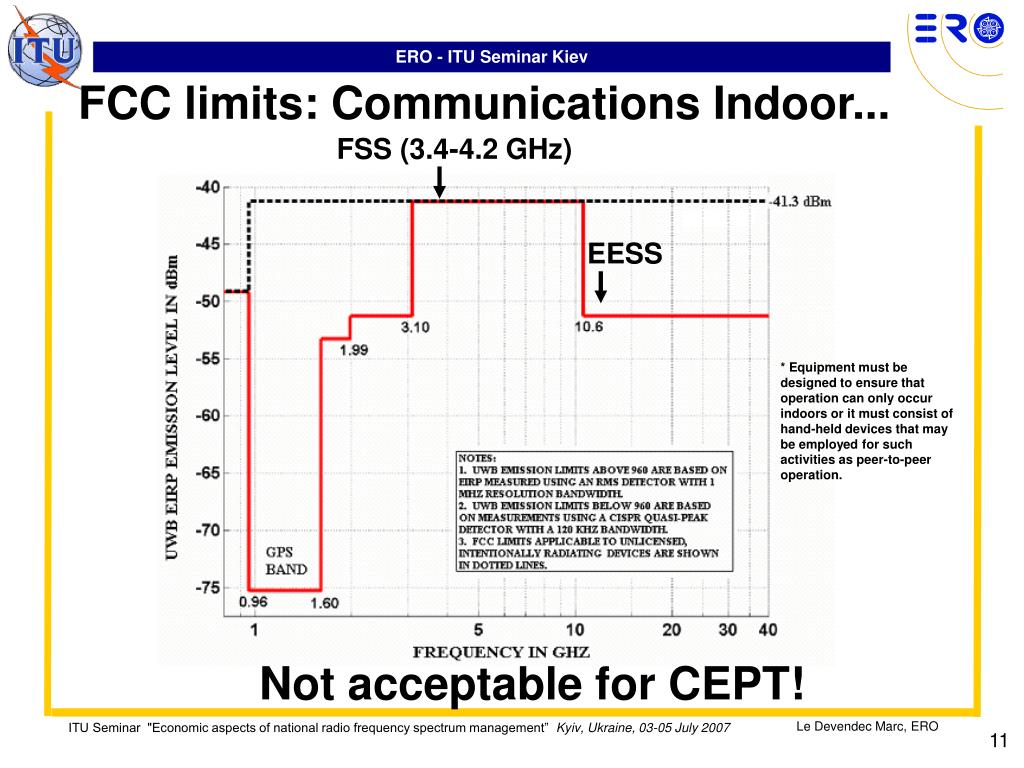

  11. FCC limits: Communications Indoor... FSS (3.4-4.2 GHz) EESS * Equipment must be designed to ensure that operation can only occur indoors or it must consist of hand-held devices that may be employed for such activities as peer-to-peer operation. Not acceptable for CEPT!

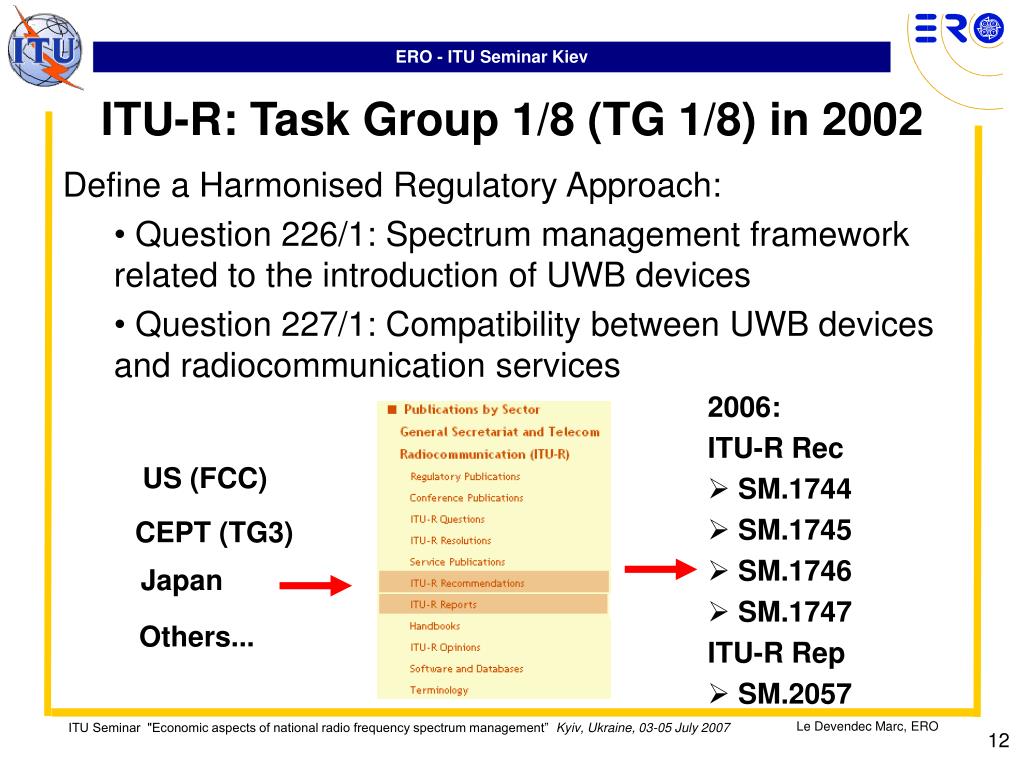

  12. ITU-R: Task Group 1/8 (TG 1/8) in 2002 • Define a Harmonised Regulatory Approach: • Question 226/1: Spectrum management framework related to the introduction of UWB devices • Question 227/1: Compatibility between UWB devices and radiocommunication services 2006: ITU-R Rec • SM.1744 • SM.1745 • SM.1746 • SM.1747 ITU-R Rep • SM.2057 US (FCC) CEPT (TG3) Japan Others...

  13. Ultra-wideband technology: technology for short-range radiocommunication, involving the intentional generation and transmission of radio-frequency energy that spreads over a very large frequency range, ... Devices using UWB technology typically have intentional radiation from the antenna with either a –10 dB bandwidth of at least 500 MHz or a –10 dB fractional bandwidth greater than 0.2. TG 1/8: Outputs • Measurement Techniques of UWB emissions • Characteristics of UWB Devices • Spectrum Management Framework for UWB • Compatibility between UWB systems and Other Services

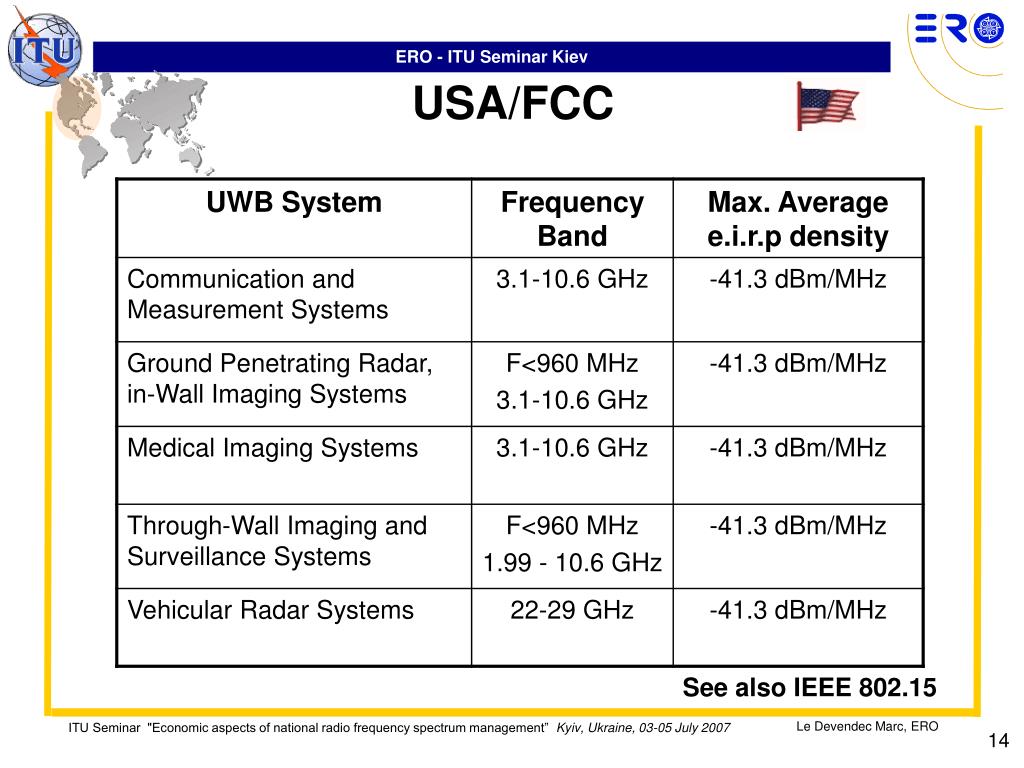

  14. USA/FCC See also IEEE 802.15

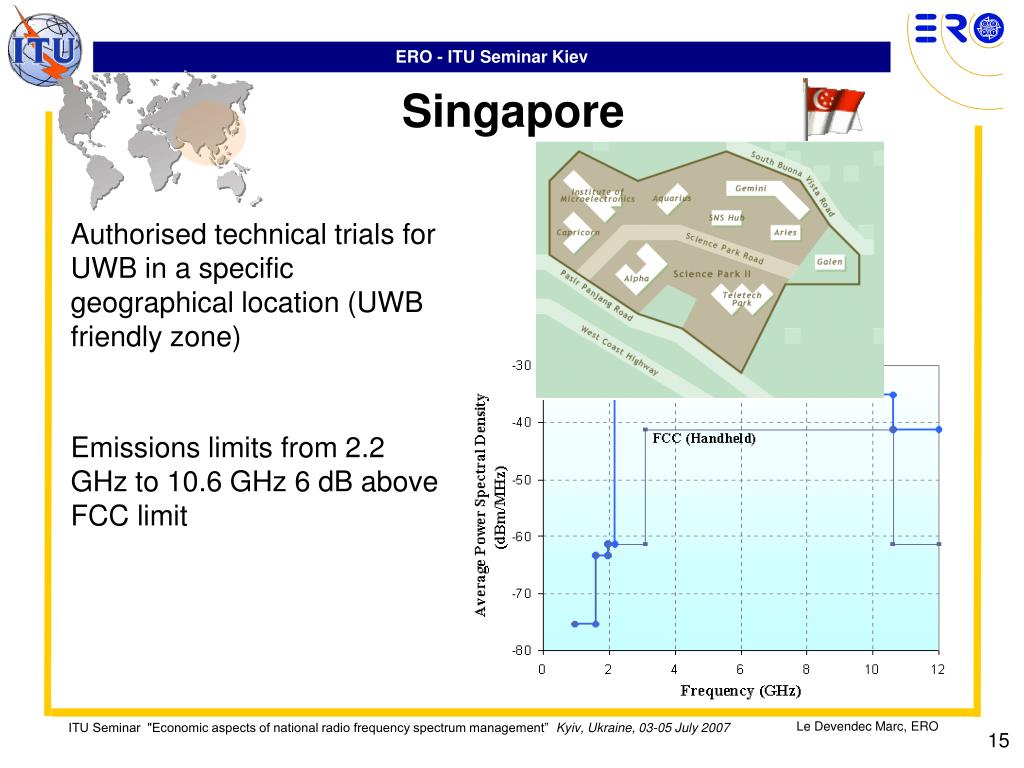

  15. Singapore Authorised technical trials for UWB in a specific geographical location (UWB friendly zone) Emissions limits from 2.2 GHz to 10.6 GHz 6 dB above FCC limit

  16. Hong Kong • 3.1 – 10.6 GHz band open for UWB trials • Eirp density limits 8 dB above the FCC limit • 3.1 – 10.6 GHz band is assigned for indoor trials • 4.2 – 10.6 GHz band is assigned for outdoor trials Japan • 3.4 – 4.8 GHz • -41.3 dBm/MHz with Detect And Avoid (DAA) or • -70dBm/MHz without DAA • 4.2 – 4.8 GHz: interim basis (2009) without restriction • 4.8 – 7.25 GHz: 29 dB more stringent than FCC limit • 7.25 – 10.25 GHz: same limit as FCC • SRR 24 GHz ongoing Ongoing in China, South Korea...

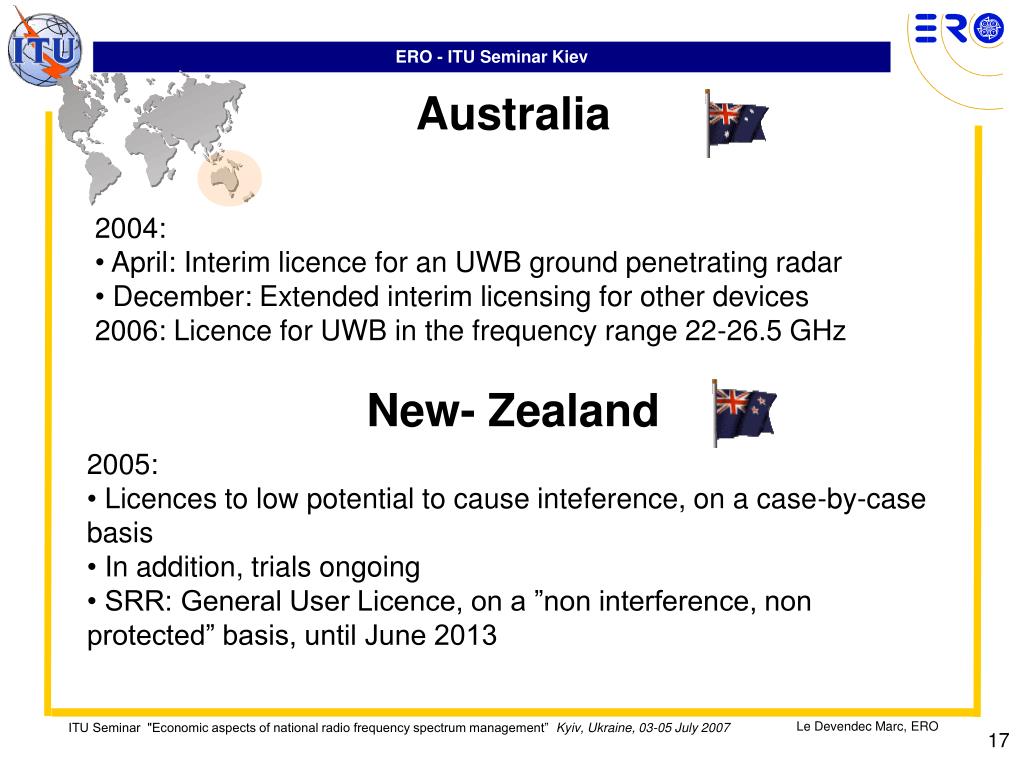

  17. Australia • 2004: • April: Interim licence for an UWB ground penetrating radar • December: Extended interim licensing for other devices • 2006: Licence for UWB in the frequency range 22-26.5 GHz New- Zealand • 2005: • Licences to low potential to cause inteference, on a case-by-case basis • In addition, trials ongoing • SRR: General User Licence, on a ”non interference, non protected” basis, until June 2013

  18. CEPT: SRR 24 GHz (1) • 2004: • ECC Report 23: Compatibility of automotive collision warning Short Range Radar operating at 24 GHz with FS, EESS and Radio Astronomy • ECC Decisions (ECC/DEC/(04)10): Frequency bands to be designated for the temporary introduction of Automotive Short Range Radars (SRR) • ECC Report 46: Immunity of 24 GHz automotive SRRs operating on a non-interference and non-protected basis from emissions of the primary Fixed Service operating in the 23 GHz and 26 GHz frequency bands • 2005: • ECC Report 085: Guidance for 24 GHz Short Range Radar (SRR) enforcement

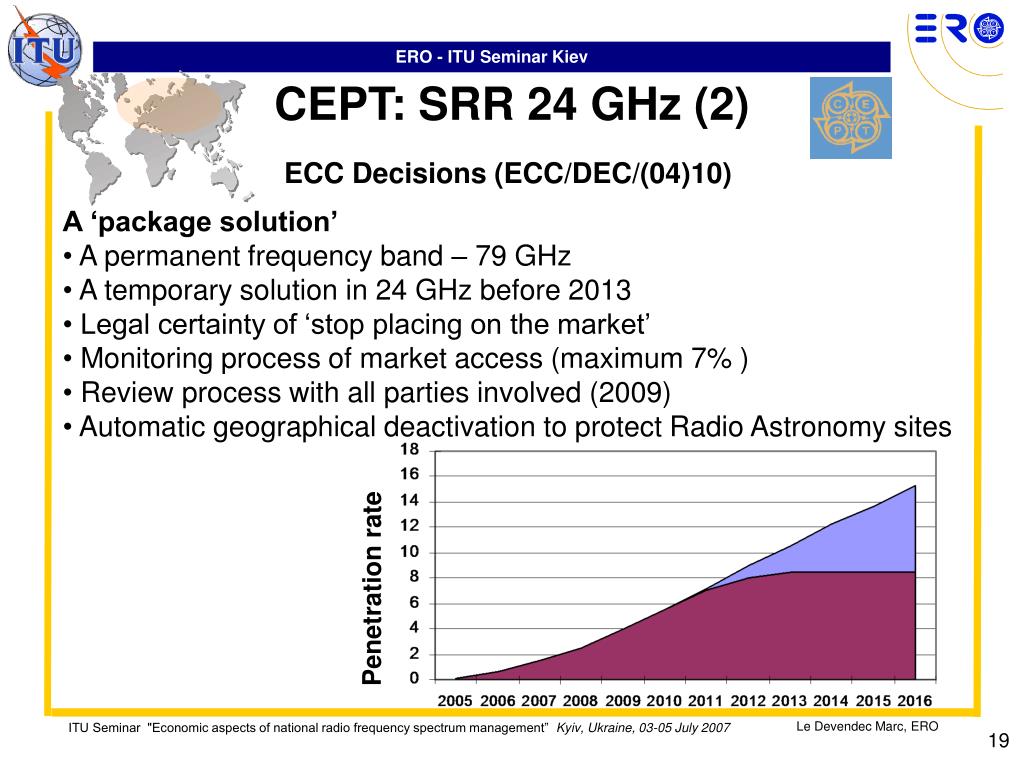

  19. ECC Decisions (ECC/DEC/(04)10) CEPT: SRR 24 GHz (2) • A ‘package solution’ • A permanent frequency band – 79 GHz • A temporary solution in 24 GHz before 2013 • Legal certainty of ‘stop placing on the market’ • Monitoring process of market access (maximum 7% ) • Review process with all parties involved (2009) • Automatic geographical deactivation to protect Radio Astronomy sites Penetration rate

  20. CEPT: SRR 24 GHz • EC • 2005/50/EC: Commission Decision of Jan 17th, 2005, on the harmonisation of the 24 GHz range radio spectrum band for the time-limited use by automotive short-range radar equipment in the Community • Implementation of SRR: Memorandum of Understanding • Next Steps: • CEPT: review in 2009 • Follow up of implementation • Implementation of ECC/EC Decision in Europe (11 countries) • Discussions are ongoing in Russia…

  21. ECC Report 64 Protection requirements of radiocommunication systems below 10.6 GHz from Generic Ultra-wide Band (UWB) applications was adopted February 2005 ECC/DEC/(06)04 Harmonised conditions for devices using Ultra-Wideband (UWB) technology in bands below 10.6 GHz CEPT: UWB below 10.6 GHz EC: UWB below 10.6 GHz • 2007/131/EC • Allowing the use of the radio spectrum for equipment using ultra-harmonised manner in the Community

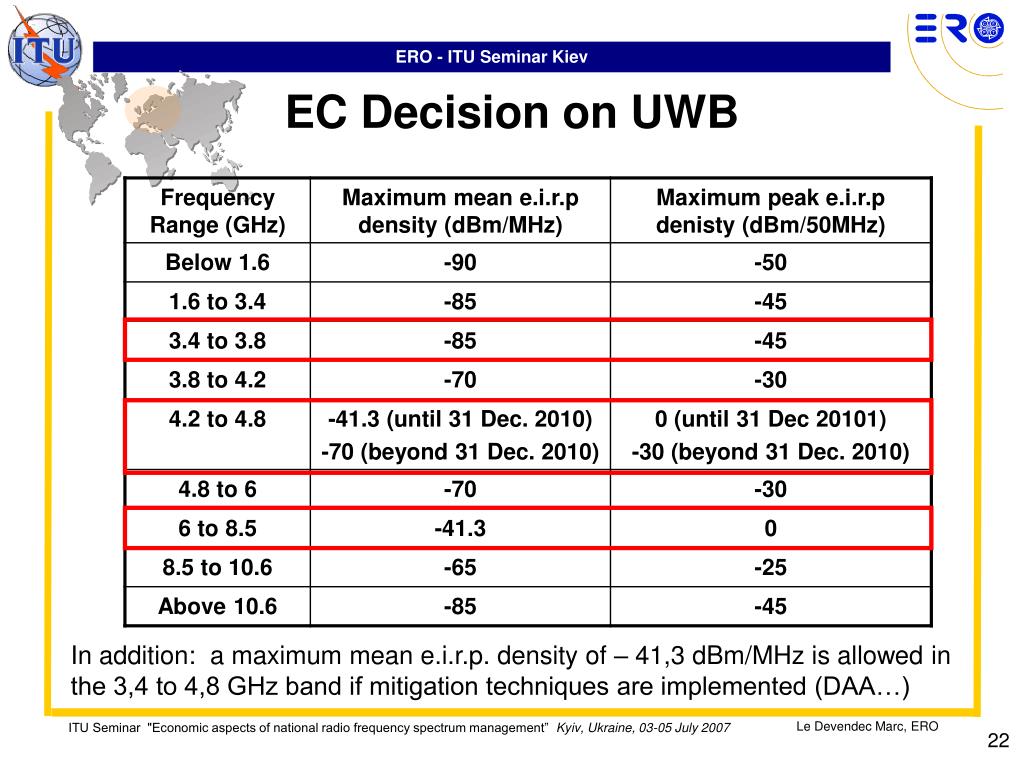

  22. EC Decision on UWB In addition: a maximum mean e.i.r.p. density of – 41,3 dBm/MHz is allowed in the 3,4 to 4,8 GHz band if mitigation techniques are implemented (DAA…)

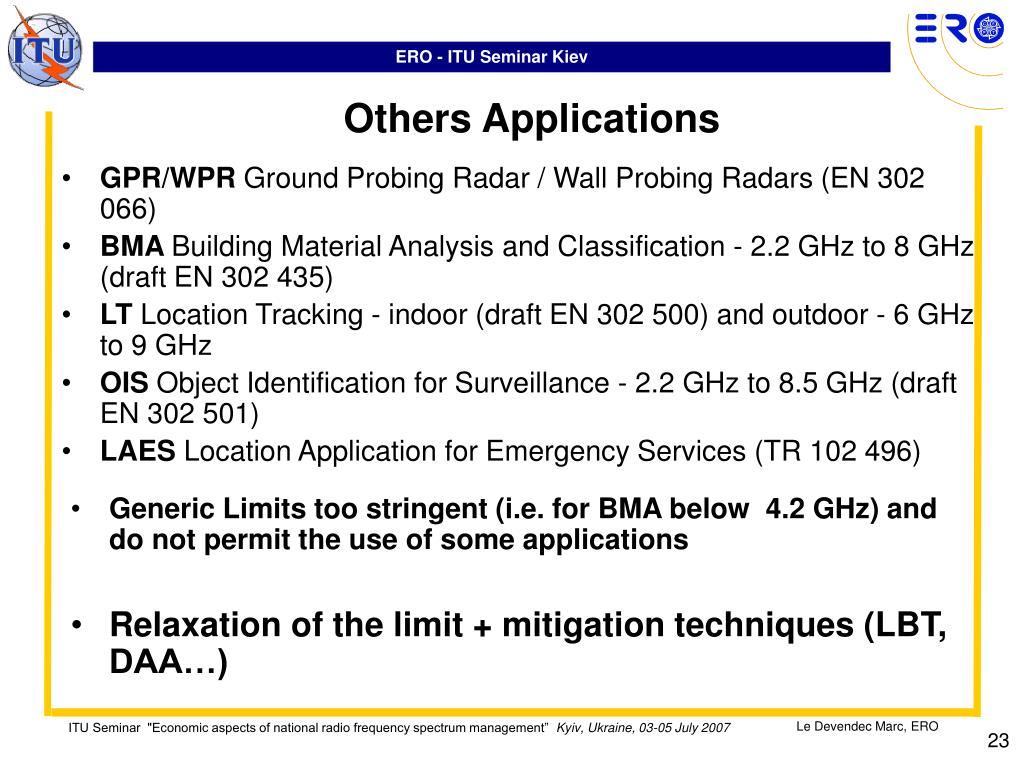

  23. GPR/WPR Ground Probing Radar / Wall Probing Radars (EN 302 066) BMA Building Material Analysis and Classification - 2.2 GHz to 8 GHz (draft EN 302 435) LT Location Tracking - indoor (draft EN 302 500) and outdoor - 6 GHz to 9 GHz OIS Object Identification for Surveillance - 2.2 GHz to 8.5 GHz(draft EN 302 501) LAES Location Application for Emergency Services (TR 102 496) Others Applications • Generic Limits too stringent (i.e. for BMA below 4.2 GHz) and do not permit the use of some applications • Relaxation of the limit + mitigation techniques (LBT, DAA…)

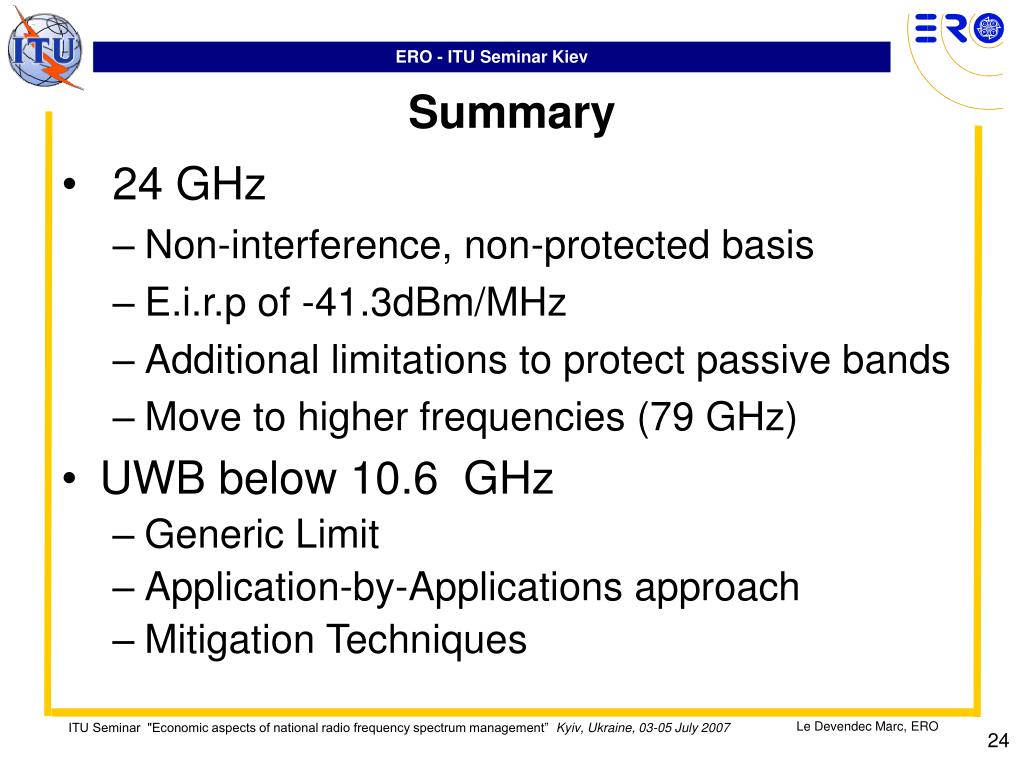

  24. 24 GHz Non-interference, non-protected basis E.i.r.p of -41.3dBm/MHz Additional limitations to protect passive bands Move to higher frequencies (79 GHz) Summary • UWB below 10.6 GHz • Generic Limit • Application-by-Applications approach • Mitigation Techniques

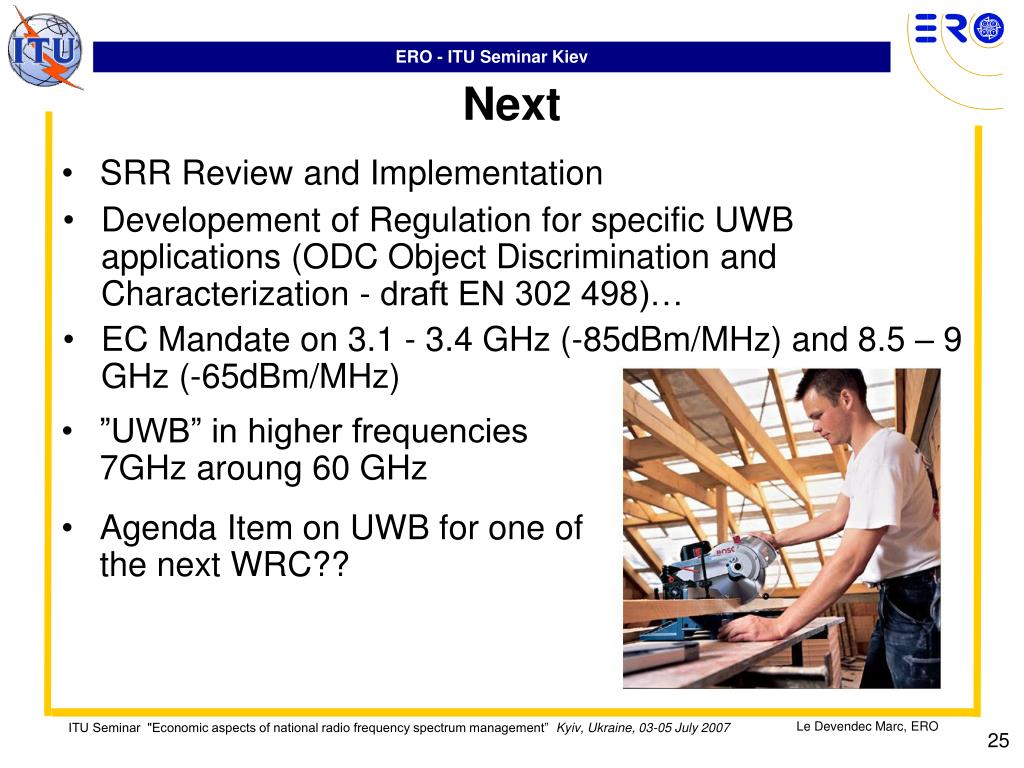

  25. SRR Review and Implementation Next • Developement of Regulation for specific UWB applications (ODCObject Discrimination and Characterization - draft EN 302 498)… • EC Mandate on 3.1 - 3.4 GHz (-85dBm/MHz) and 8.5 – 9 GHz (-65dBm/MHz) • ”UWB” in higher frequencies 7GHz aroung 60 GHz • Agenda Item on UWB for one of the next WRC??

  26. www.itu.int www.etsi.org www.ero.dk www.ec.europa.eu Looking for More information?? The end Thanks you for your attention ! European Radiocommunications OfficePeblingehus, Nansensgade 19DK-1366 CopenhagenDenmark Phone: +45 33 89 63 22Fax: +45 33 89 63 30E-mail: ledevendec@ero.dkWeb: www.ero.dk
