  1. AP Calculus BCMonday, 11 November 2013 • OBJECTIVETSW use polar equations to find derivatives and tangent lines. • ASSIGNMENT DUE • WS Parametric Equations and Vectors  wire basket • TODAY’S ASSIGNMENT • Sec. 10.4: p. 737 (59-80 all) • WS Review Sec. 10.2 – 10.4, Vectors • LOOKING AHEAD • Wednesday:TEST: Sec. 10.2 – 10.4, Vectors • Wednesday, 11/20:TEST: Indefinite Integration

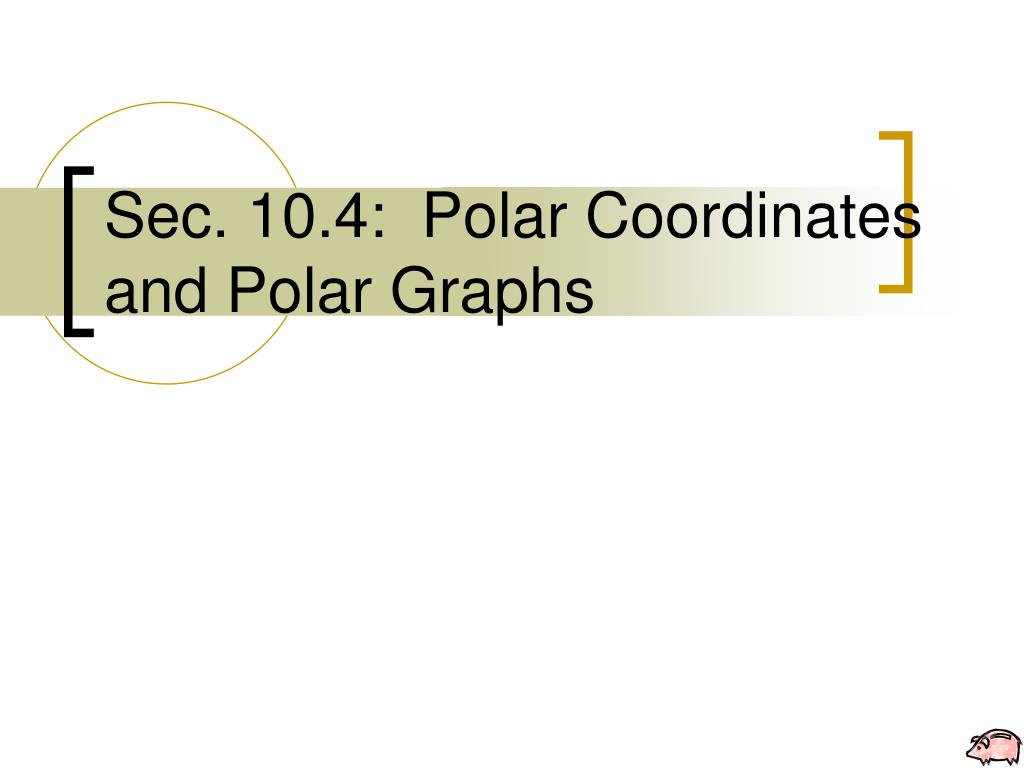

  2. Sec. 10.4: Polar Coordinates and Polar Graphs

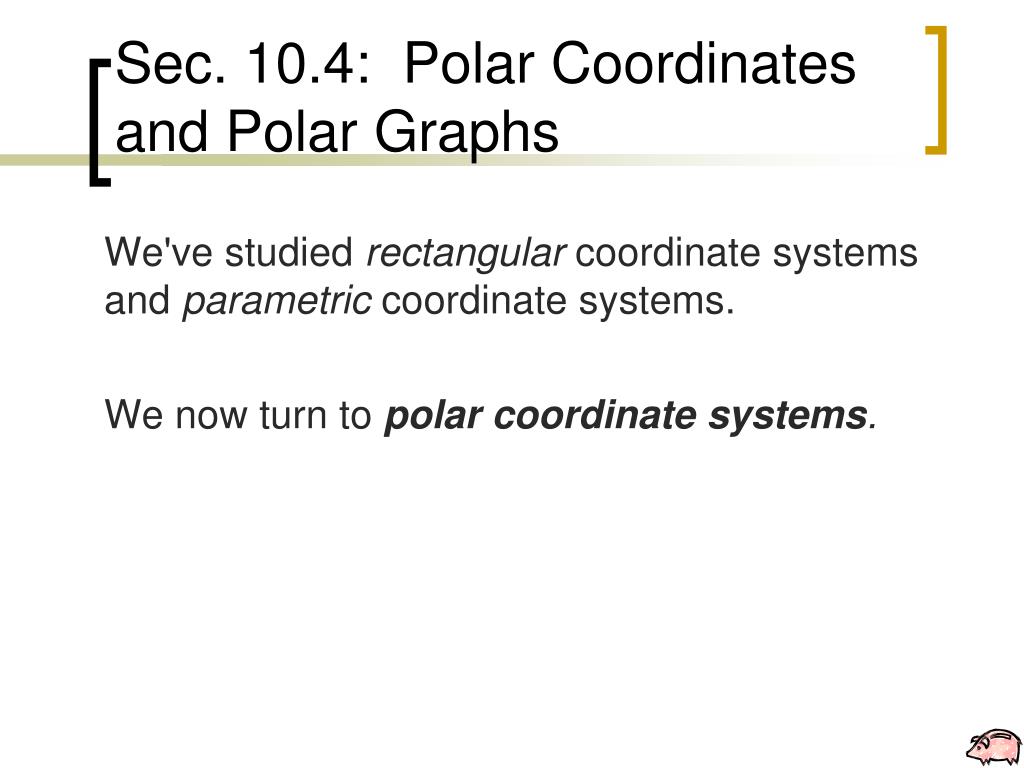

  3. Sec. 10.4: Polar Coordinates and Polar Graphs We've studied rectangular coordinate systems and parametric coordinate systems. We now turn to polar coordinate systems.

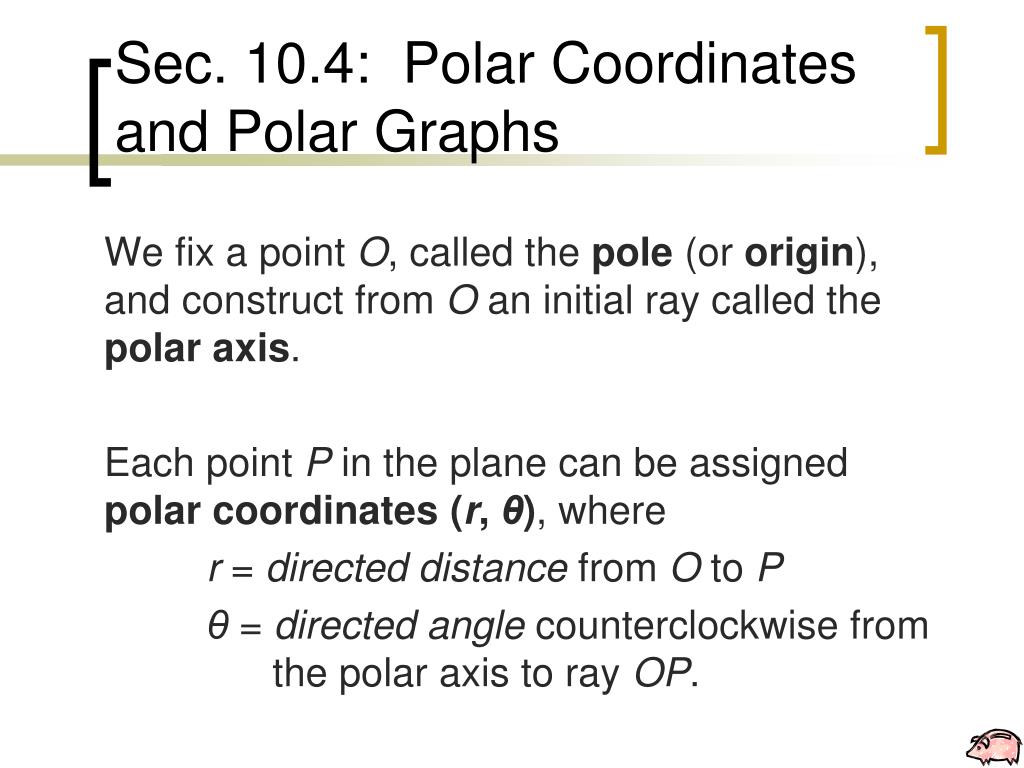

  4. Sec. 10.4: Polar Coordinates and Polar Graphs We fix a point O, called the pole (or origin), and construct from O an initial ray called the polar axis. Each point P in the plane can be assigned polar coordinates (r, θ), where r = directed distance from O to P θ = directed angle counterclockwise from the polar axis to ray OP.

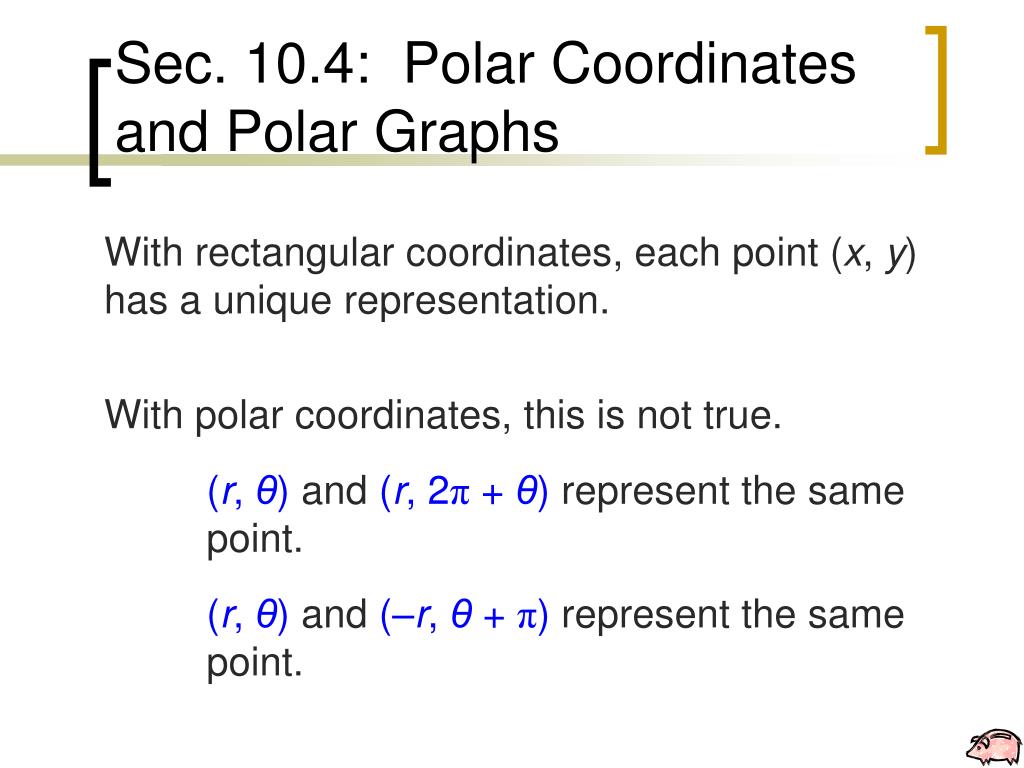

  5. Sec. 10.4: Polar Coordinates and Polar Graphs With rectangular coordinates, each point (x, y) has a unique representation. With polar coordinates, this is not true. (r, θ) and (r, 2π + θ) represent the same point. (r, θ) and (–r, θ + π) represent the same point.

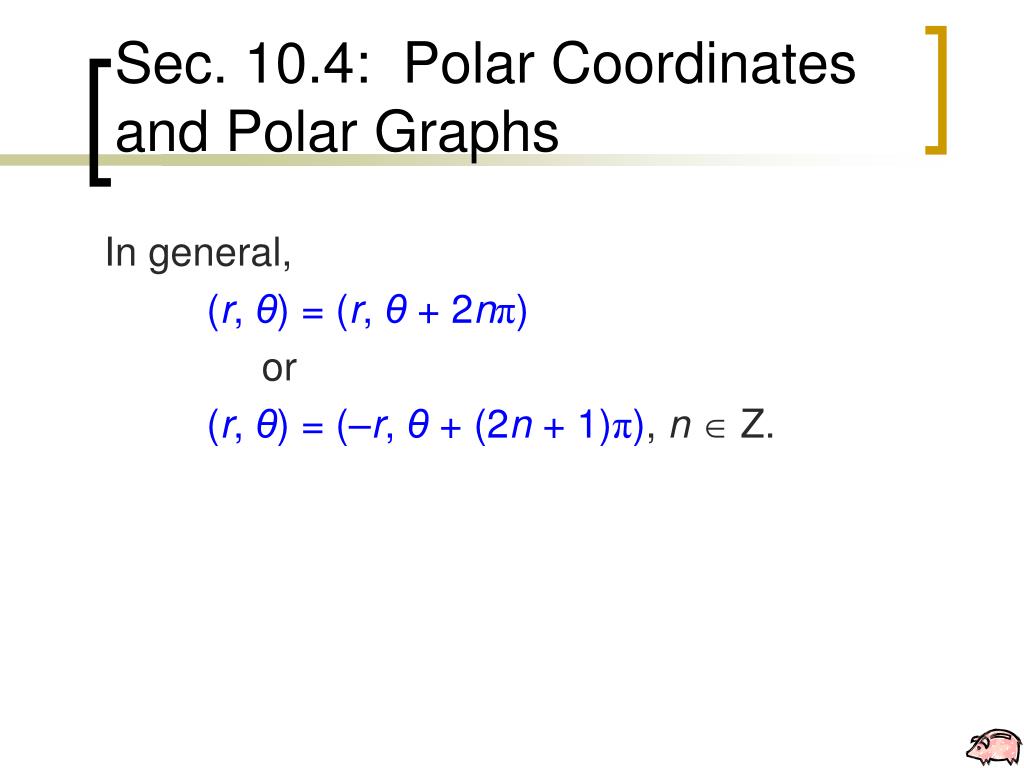

  6. Sec. 10.4: Polar Coordinates and Polar Graphs In general, (r, θ) = (r, θ + 2nπ) or (r, θ) = (–r, θ + (2n + 1)π), n Z.

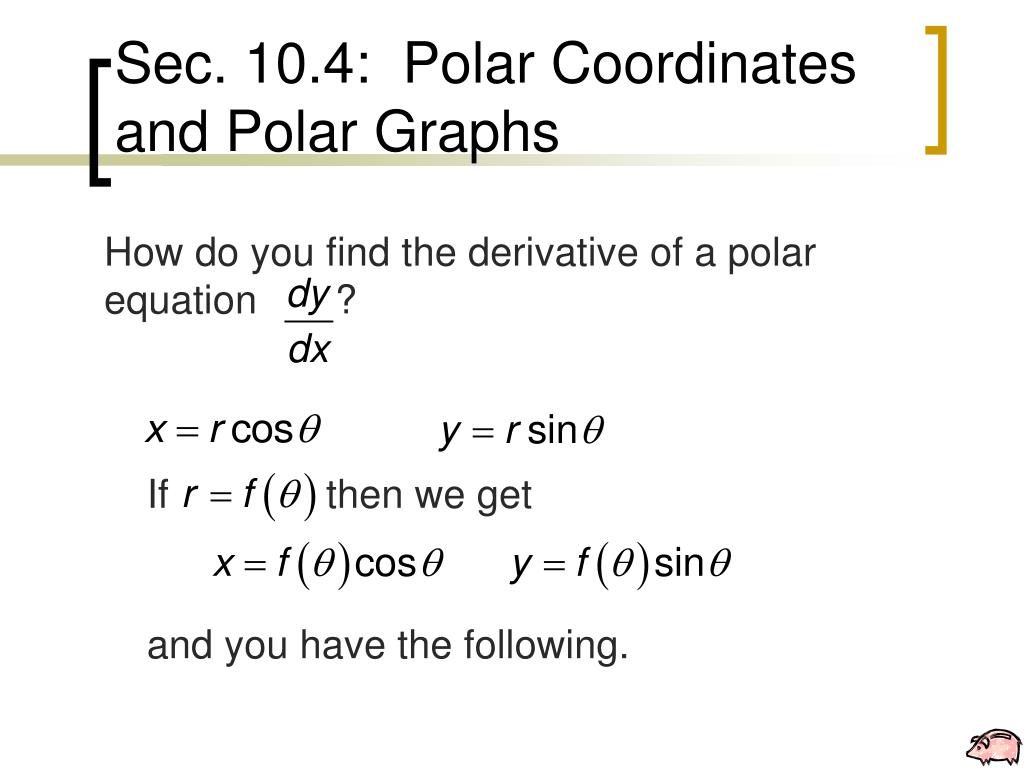

  7. Sec. 10.4: Polar Coordinates and Polar Graphs How do you find the derivative of a polar equation ? If then we get and you have the following.

  8. Sec. 10.4: Polar Coordinates and Polar Graphs

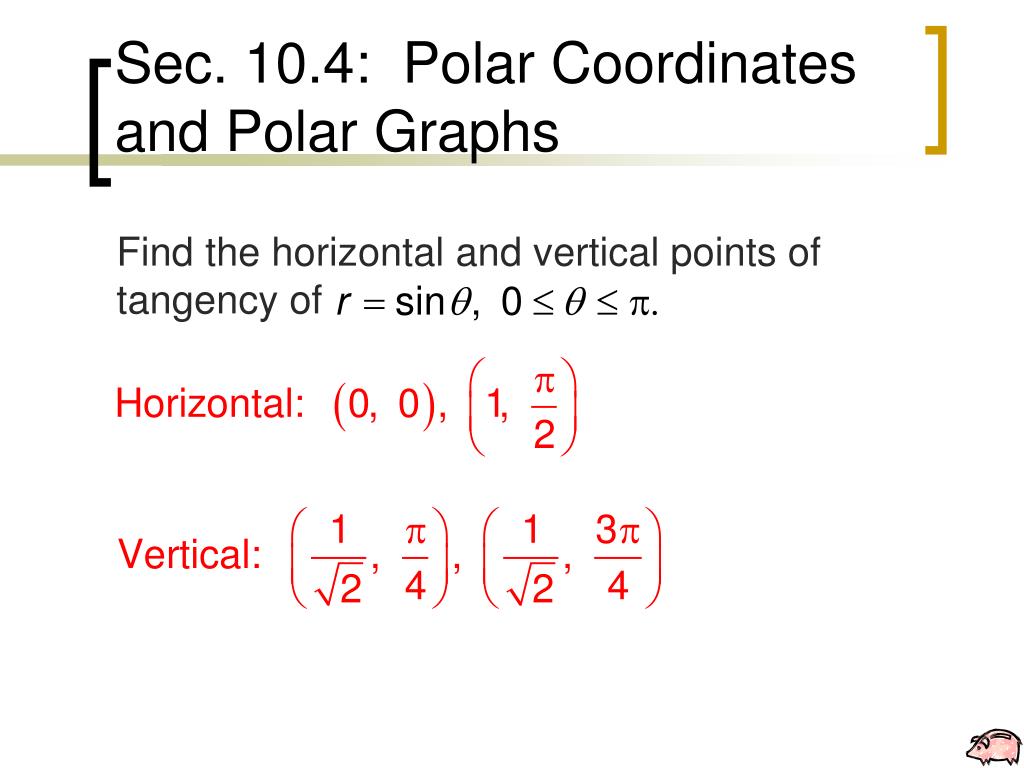

  9. Sec. 10.4: Polar Coordinates and Polar Graphs Find the horizontal and vertical points of tangency of

  10. Special Polar Graphs Special Polar Graphs • Limacons Limacon with inner loop Cardiod Dimpled limacon Convex limacon

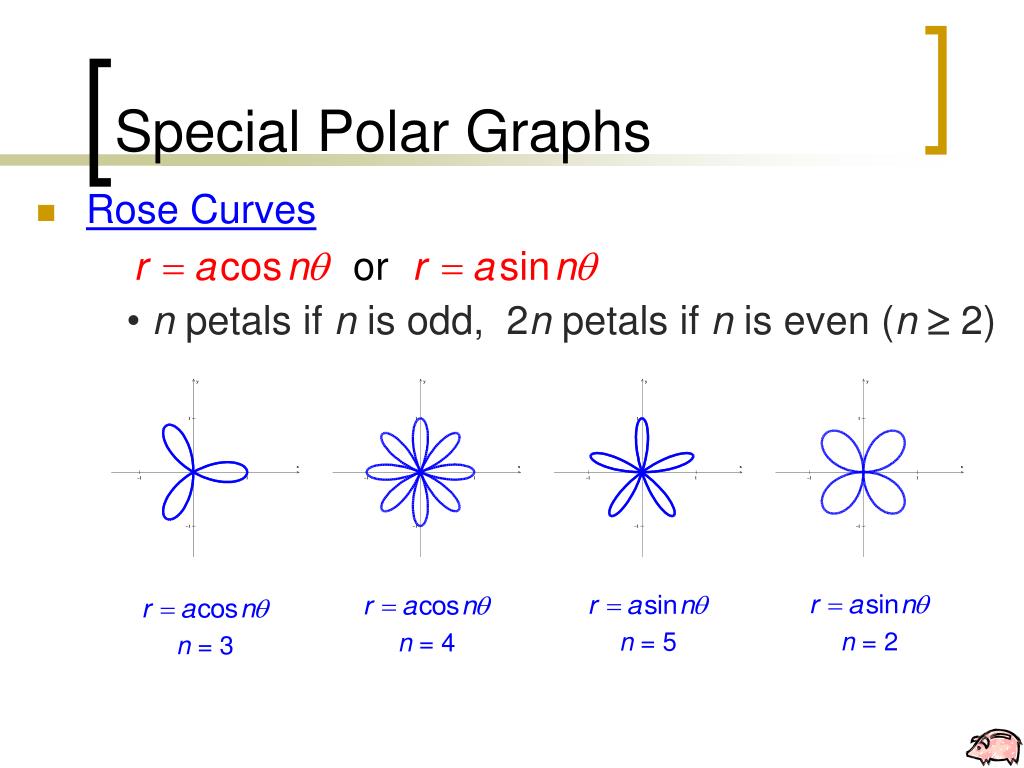

  11. Special Polar Graphs • Rose Curves • n petals if n is odd, 2n petals if n is even (n 2) n = 2 n = 5 n = 4 n = 3

  12. Special Polar Graphs Special Polar Graphs • Circles

  13. Special Polar Graphs Special Polar Graphs • Lemniscates

  14. Sec. 10.4: Polar Coordinates and Polar Graphs Find the horizontal and vertical points of tangency of

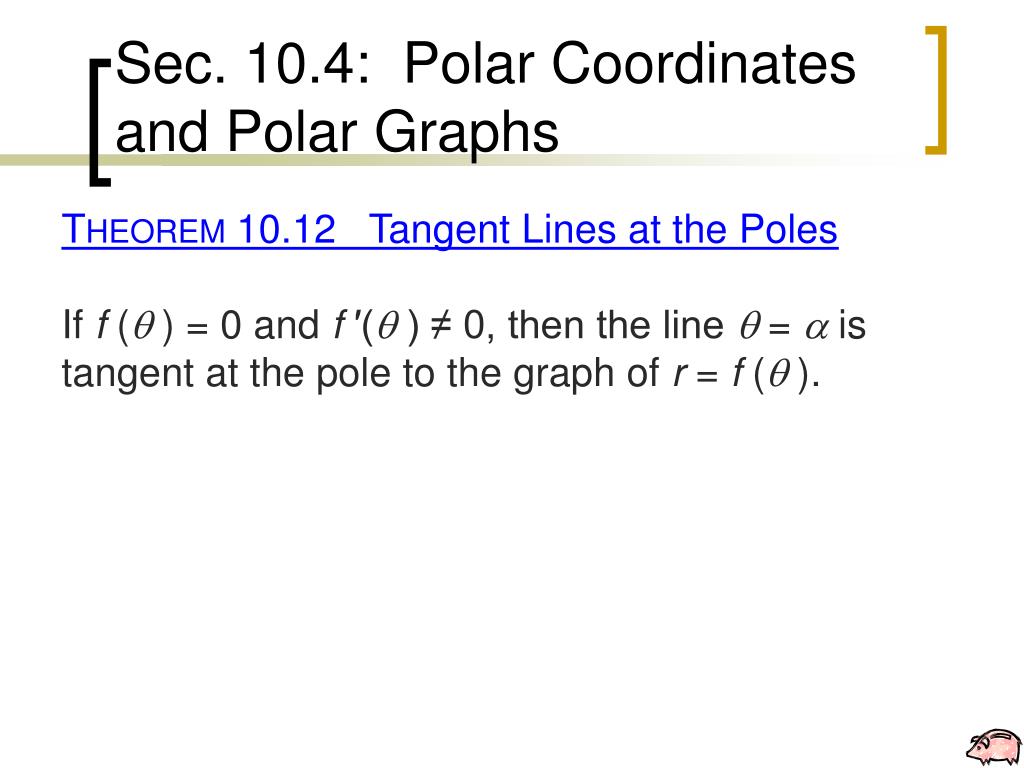

  15. Sec. 10.4: Polar Coordinates and Polar Graphs Theorem 10.12 Tangent Lines at the Poles If f ( ) = 0 and f ′( ) ≠ 0, then the line  =  is tangent at the pole to the graph of r = f ( ).

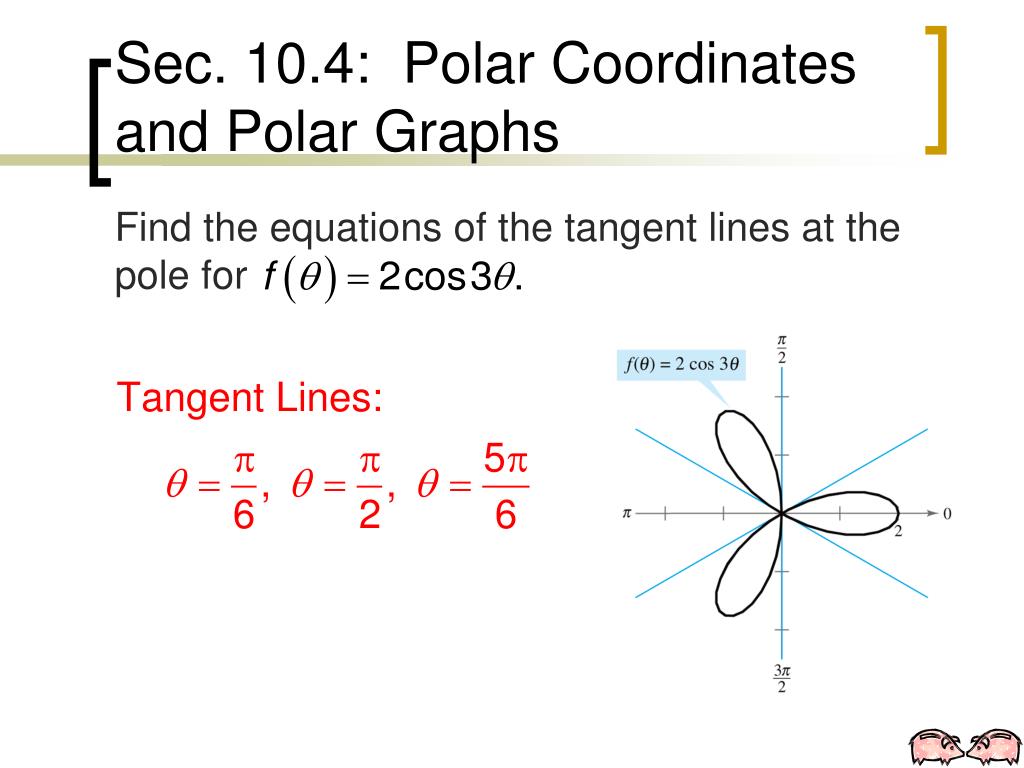

  16. Sec. 10.4: Polar Coordinates and Polar Graphs Find the equations of the tangent lines at the pole for
