2. OPC Foundation Liaison with TR-50 • OPC Unified Architecture for the Internet Of Things_0.00.01 • We've recently executed a cooperation agreement with TIA. • We have reviewed and are very interested in your recent publication TIA-4940-005, and quickly recognize the value that this potentially brings to the industrial automation space. • OPC Foundation and the OPC Foundation members are very interested in contributing to the development of standards with respect to TR – 50. I understand initial liaison opportunity with the OPC Foundation would not provide voting rights, but ultimately by participating and attending consecutive meetings, we would be able to elevate our status to being a core member with full voting rights.

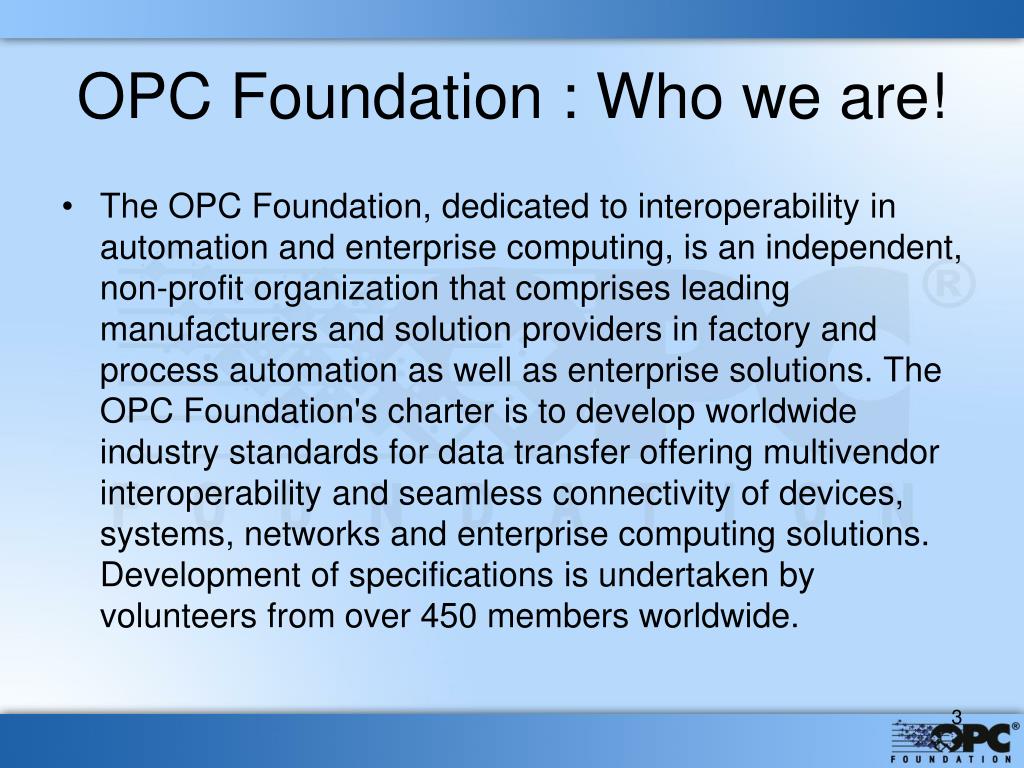

3. OPC Foundation : Who we are! • The OPC Foundation, dedicated to interoperability in automation and enterprise computing, is an independent, non-profit organization that comprises leading manufacturers and solution providers in factory and process automation as well as enterprise solutions. The OPC Foundation's charter is to develop worldwide industry standards for data transfer offering multivendor interoperability and seamless connectivity of devices, systems, networks and enterprise computing solutions. Development of specifications is undertaken by volunteers from over 450 members worldwide.

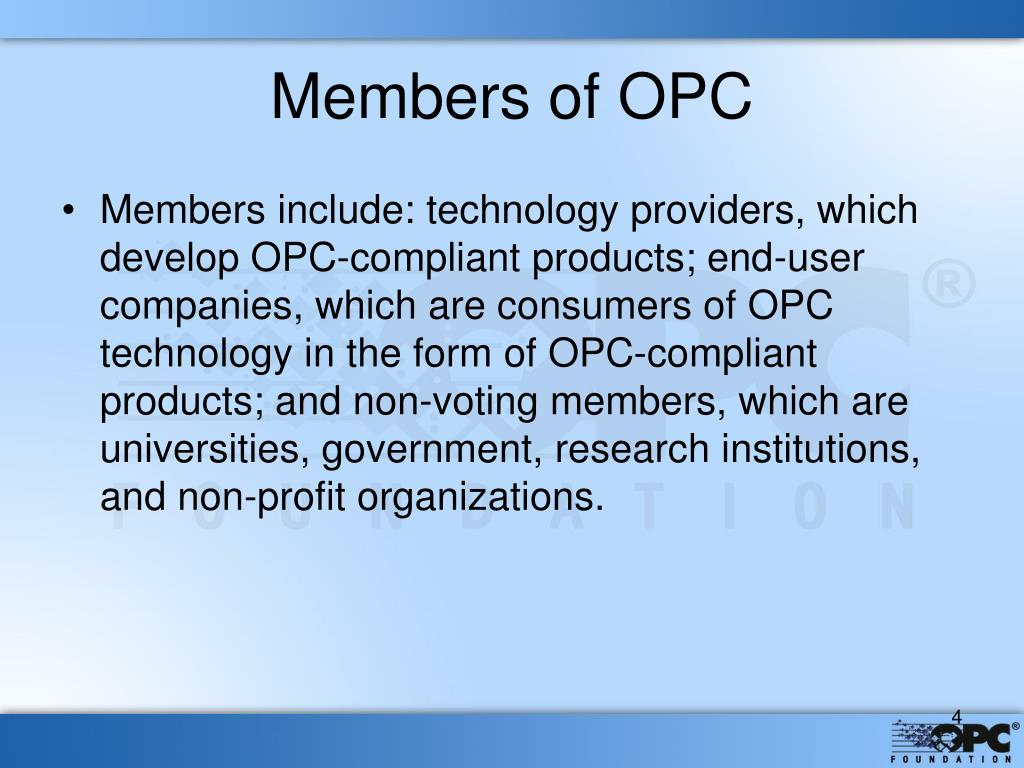

4. Members of OPC • Members include: technology providers, which develop OPC-compliant products; end-user companies, which are consumers of OPC technology in the form of OPC-compliant products; and non-voting members, which are universities, government, research institutions, and non-profit organizations.

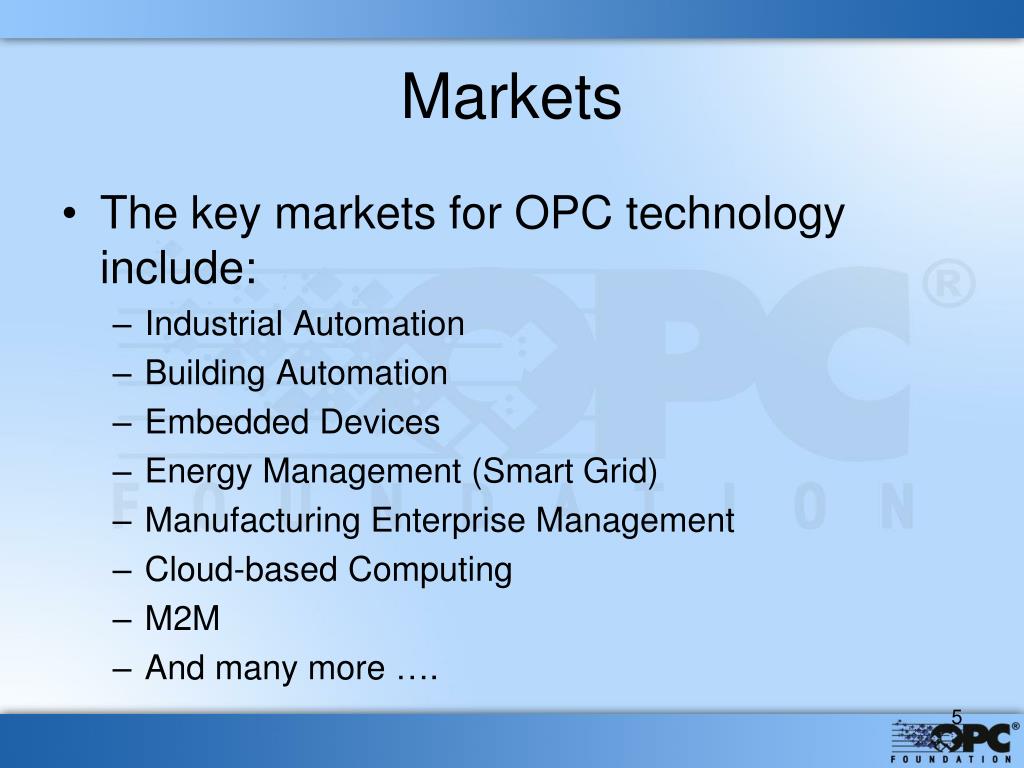

5. Markets • The key markets for OPC technology include: • Industrial Automation • Building Automation • Embedded Devices • Energy Management (Smart Grid) • Manufacturing Enterprise Management • Cloud-based Computing • M2M • And many more ….

6. OPC Board of Directors Dr. Reinhold Achatz, Siemens Russ Agrusa, ICONICS Thomas Burke, OPC Foundation David Eisner, Honeywell Ken Hall, Rockwell Konishi Nobuaki, Yokogawa Dr. Grant Wilson, Emerson

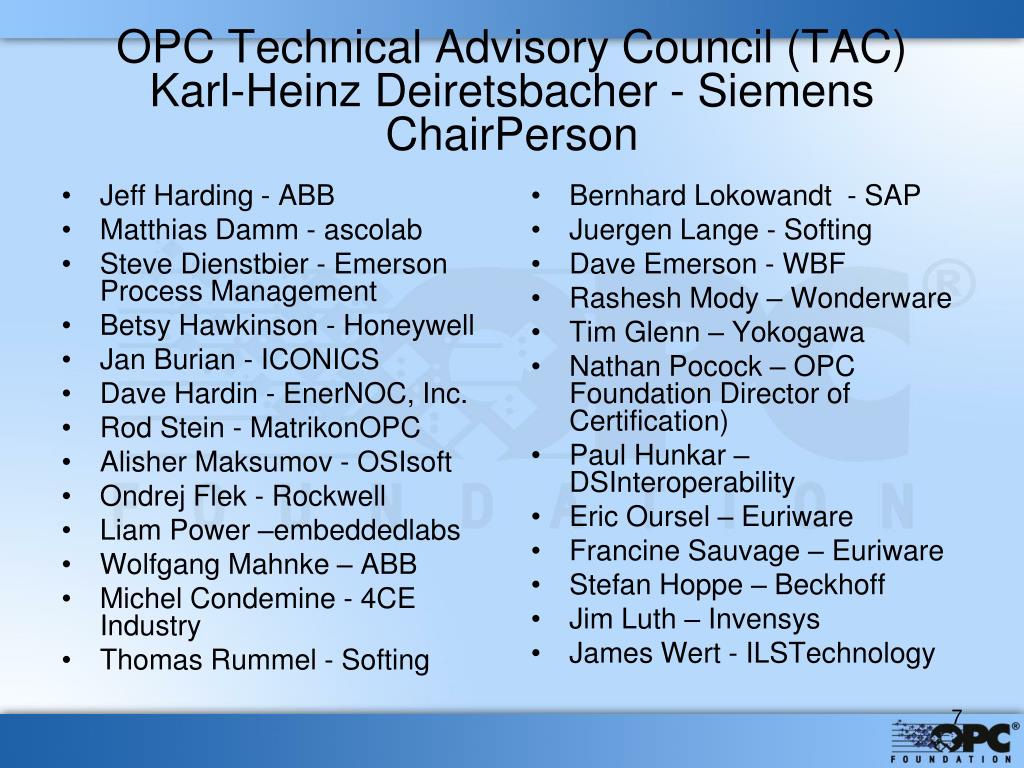

7. Jeff Harding - ABB Matthias Damm - ascolab Steve Dienstbier - Emerson Process Management Betsy Hawkinson - Honeywell Jan Burian - ICONICS Dave Hardin - EnerNOC, Inc. Rod Stein - MatrikonOPC Alisher Maksumov - OSIsoft Ondrej Flek - Rockwell Liam Power –embeddedlabs Wolfgang Mahnke – ABB Michel Condemine - 4CE Industry Thomas Rummel - Softing Bernhard Lokowandt - SAP Juergen Lange - Softing Dave Emerson - WBF Rashesh Mody – Wonderware Tim Glenn – Yokogawa Nathan Pocock – OPC Foundation Director of Certification) Paul Hunkar – DSInteroperability Eric Oursel – Euriware Francine Sauvage – Euriware Stefan Hoppe – Beckhoff Jim Luth – Invensys James Wert - ILSTechnology OPC Technical Advisory Council (TAC)Karl-Heinz Deiretsbacher - Siemens ChairPerson

8. PLC Controller DCS ... Application X Application Y OPC History • The Problem • Many different vendors • Custom made solutions • Proprietary technologies • Point-to-point Integration • Limited “real-time” information • Maintenance nightmare • Multiple dependencies • Solution • OPC Display Application Trend Application OPC OPC PLC DCS Controller

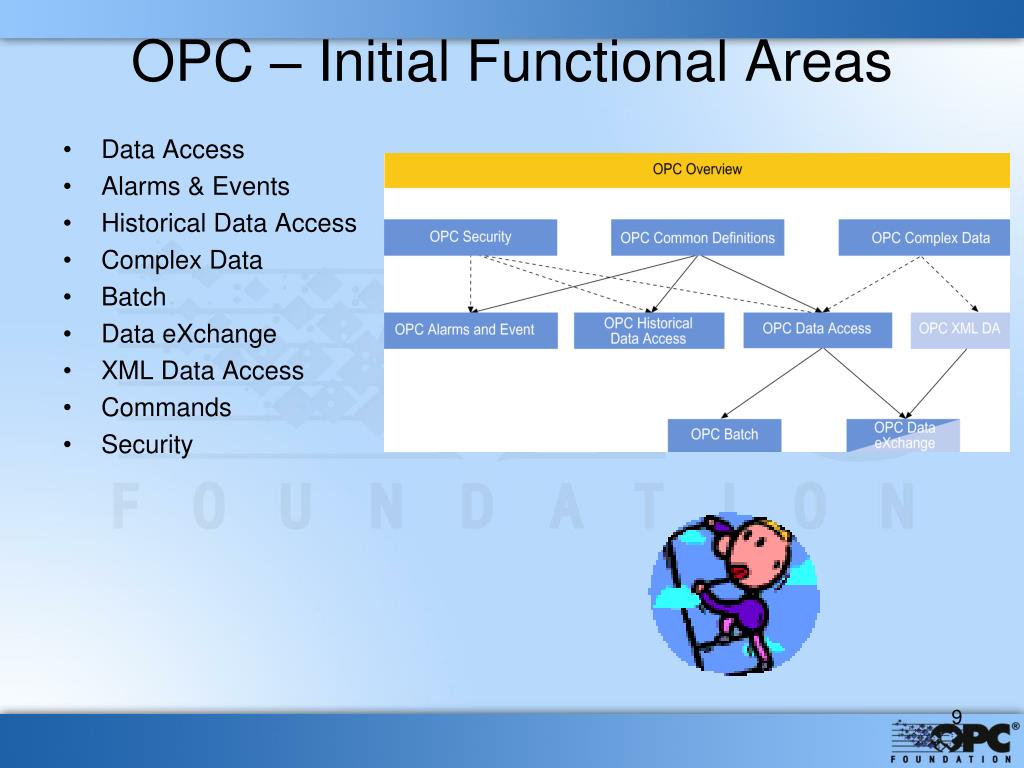

9. OPC – Initial Functional Areas • Data Access • Alarms & Events • Historical Data Access • Complex Data • Batch • Data eXchange • XML Data Access • Commands • Security

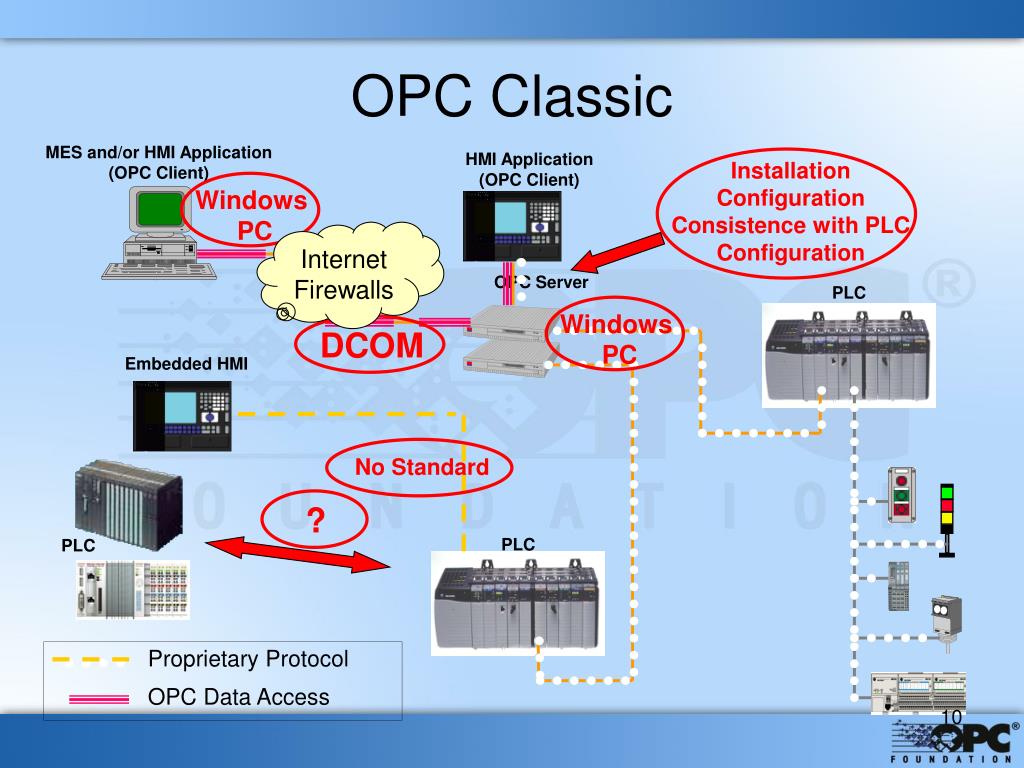

10. OPC Classic Windows PC Windows PC Installation Configuration Consistence with PLC Configuration MES and/or HMI Application (OPC Client) Embedded HMI DCOM ? No Standard PLC Proprietary Protocol OPC Data Access HMI Application (OPC Client) OPC Server Internet Firewalls PLC PLC

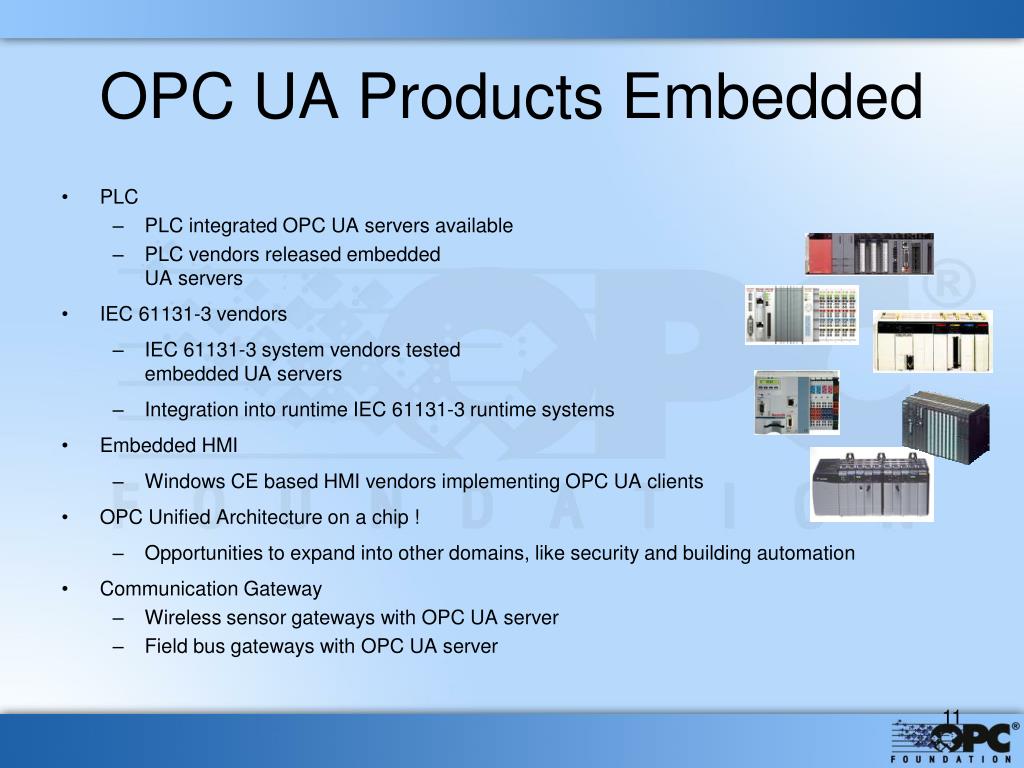

11. OPC UA Products Embedded • PLC • PLC integrated OPC UA servers available • PLC vendors released embedded UA servers • IEC 61131-3 vendors • IEC 61131-3 system vendors tested embedded UA servers • Integration into runtime IEC 61131-3 runtime systems • Embedded HMI • Windows CE based HMI vendors implementing OPC UA clients • OPC Unified Architecture on a chip ! • Opportunities to expand into other domains, like security and building automation • Communication Gateway • Wireless sensor gateways with OPC UA server • Field bus gateways with OPC UA server

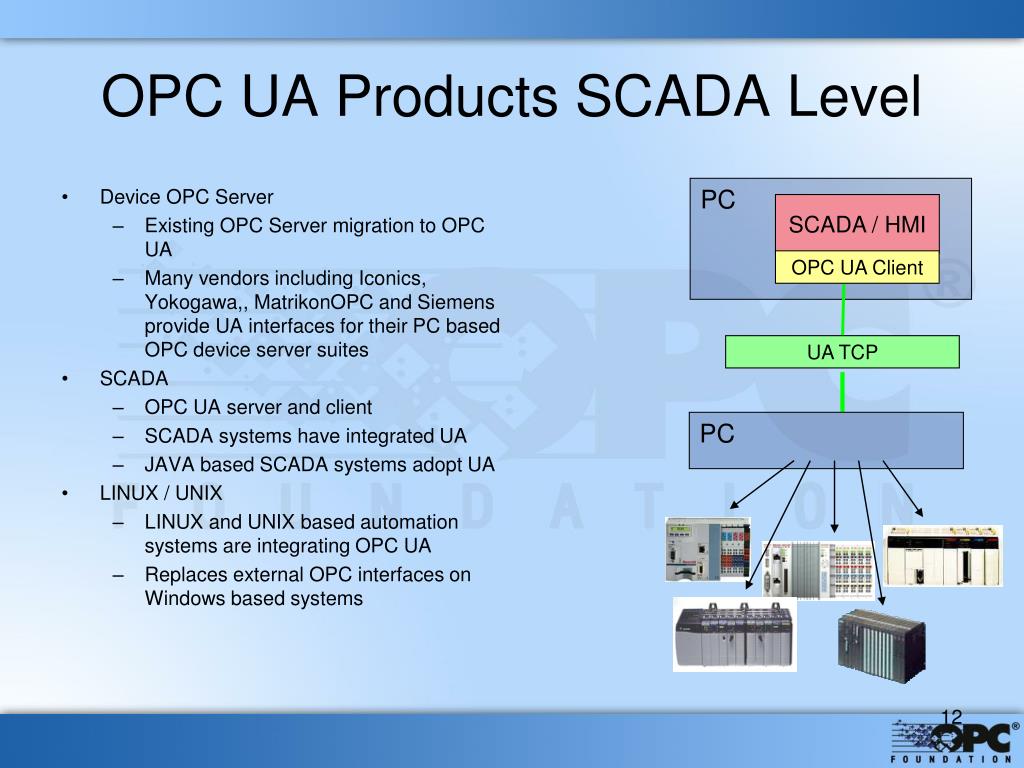

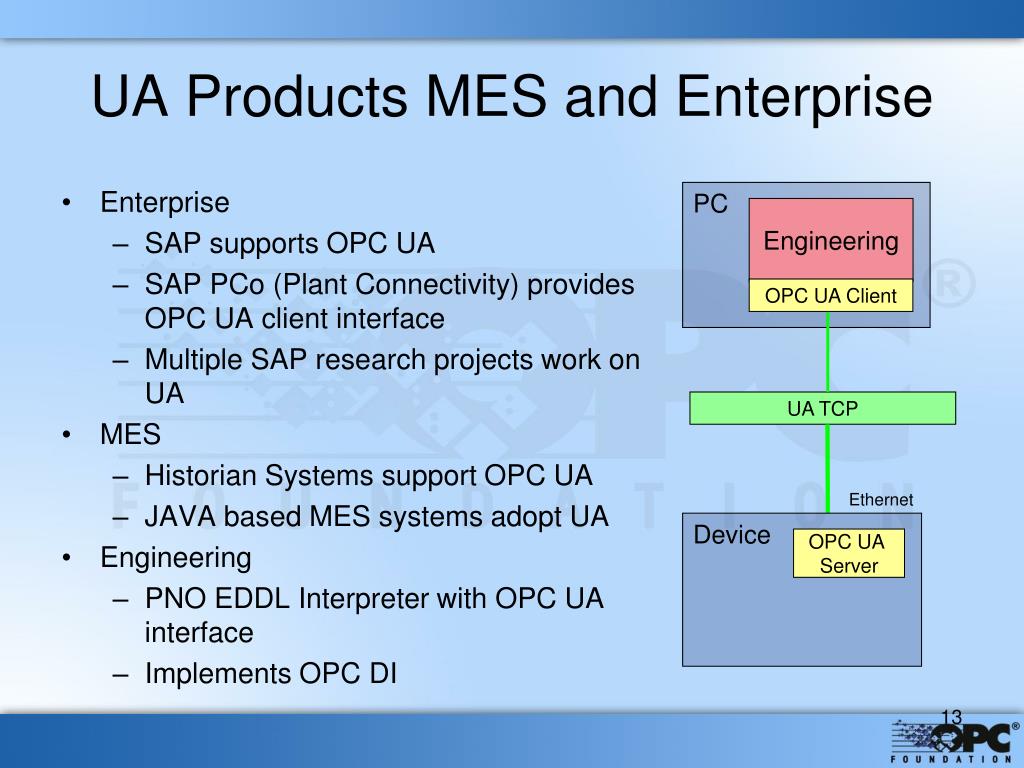

12. OPC UA Products SCADA Level PC • Device OPC Server • Existing OPC Server migration to OPC UA • Many vendors including Iconics, Yokogawa,, MatrikonOPC and Siemens provide UA interfaces for their PC based OPC device server suites • SCADA • OPC UA server and client • SCADA systems have integrated UA • JAVA based SCADA systems adopt UA • LINUX / UNIX • LINUX and UNIX based automation systems are integrating OPC UA • Replaces external OPC interfaces on Windows based systems SCADA / HMI OPC UA Client UA TCP PC

13. UA Products MES and Enterprise • Enterprise • SAP supports OPC UA • SAP PCo (Plant Connectivity) provides OPC UA client interface • Multiple SAP research projects work on UA • MES • Historian Systems support OPC UA • JAVA based MES systems adopt UA • Engineering • PNO EDDL Interpreter with OPC UA interface • Implements OPC DI PC Engineering OPC UA Client UA TCP Ethernet Device OPC UA Server

14. Compliance

15. Certification by the Numbers

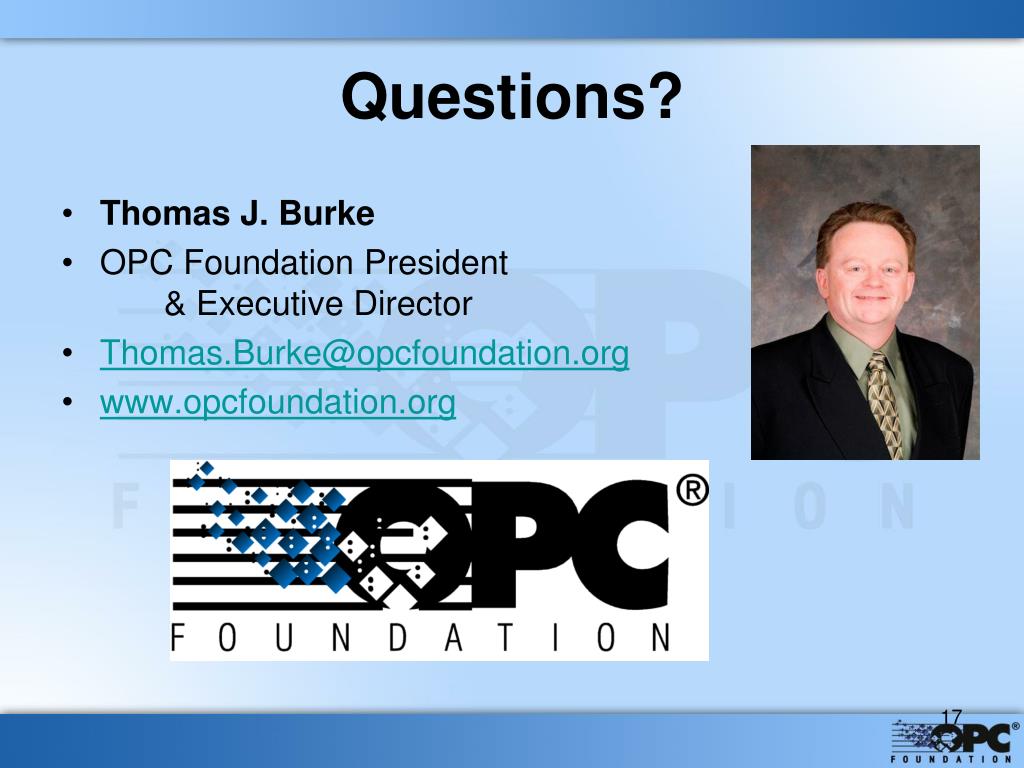

16. UA: the Evolution of OPC The Product Explosion
