  1. Good Hysteresis on die g3 SW2140 – MTJ All shown junctions haven’t been broken down, can be further measured.

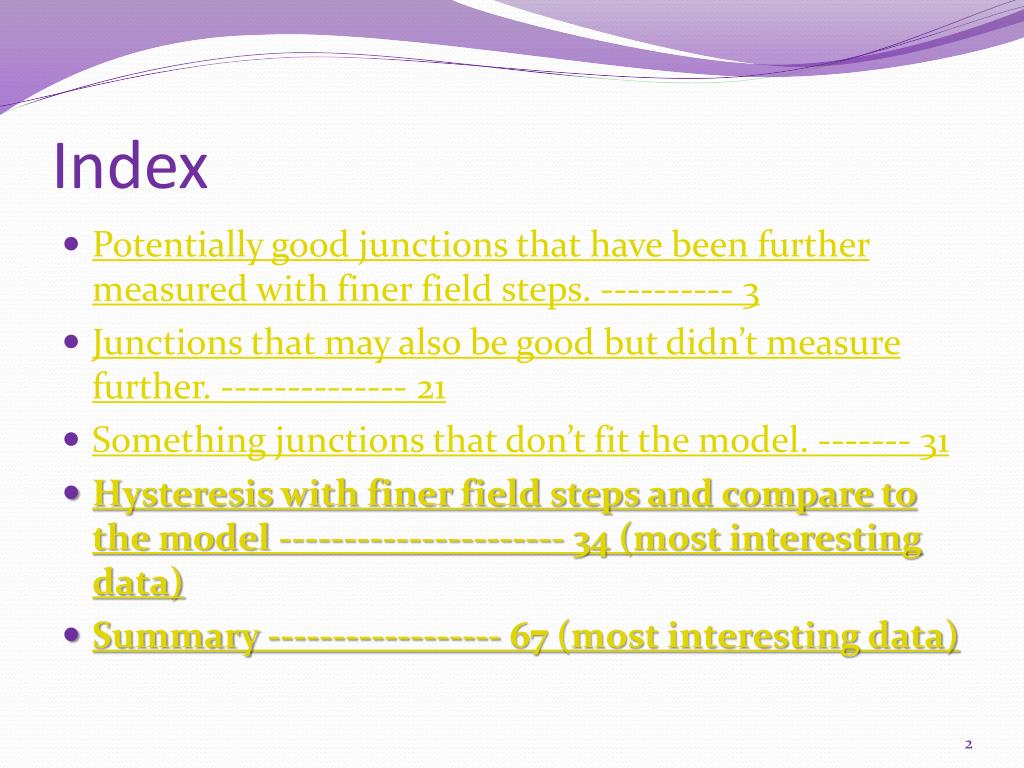

  2. Index • Potentially good junctions that have been further measured with finer field steps. ---------- 3 • Junctions that may also be good but didn’t measure further. -------------- 21 • Something junctions that don’t fit the model. ------- 31 • Hysteresis with finer field steps and compare to the model ---------------------- 34 (most interesting data) • Summary ------------------ 67 (most interesting data)

  3. Good Junctions Will be tested by finer field steps for hysteresis…

  4. C26 – 40 x 100 E

  5. C27 – 40 x 100 E

  6. E28 – 50 x 100 R

  7. I30 – 50 x 150 E

  8. J26 – 50 x 150 H

  9. L24 – 60 x 120 E

  10. O27 – 60 x 180 E

  11. O30 – 60 x 180 E

  12. P26 – 60 x 180 H

  13. P27 60 x 180 H

  14. Q30 – 80 x 160 R

  15. R25 – 80 x 160 E

  16. S28 – 80 x 160 H

  17. T29 – 80 x 240 E

  18. U27 – 80 x 240 H

  19. U28 – 80 x 240 H

  20. U30 – 80 x 240 H

  21. Also good junction… Fit the model, but may not worth further measure…

  22. C29 – 40 x 100 E Hysteresis loop not stable

  23. E25 – 50 x 100 R No sharp switching

  24. F28 – 50 x 100 E No sharp switching

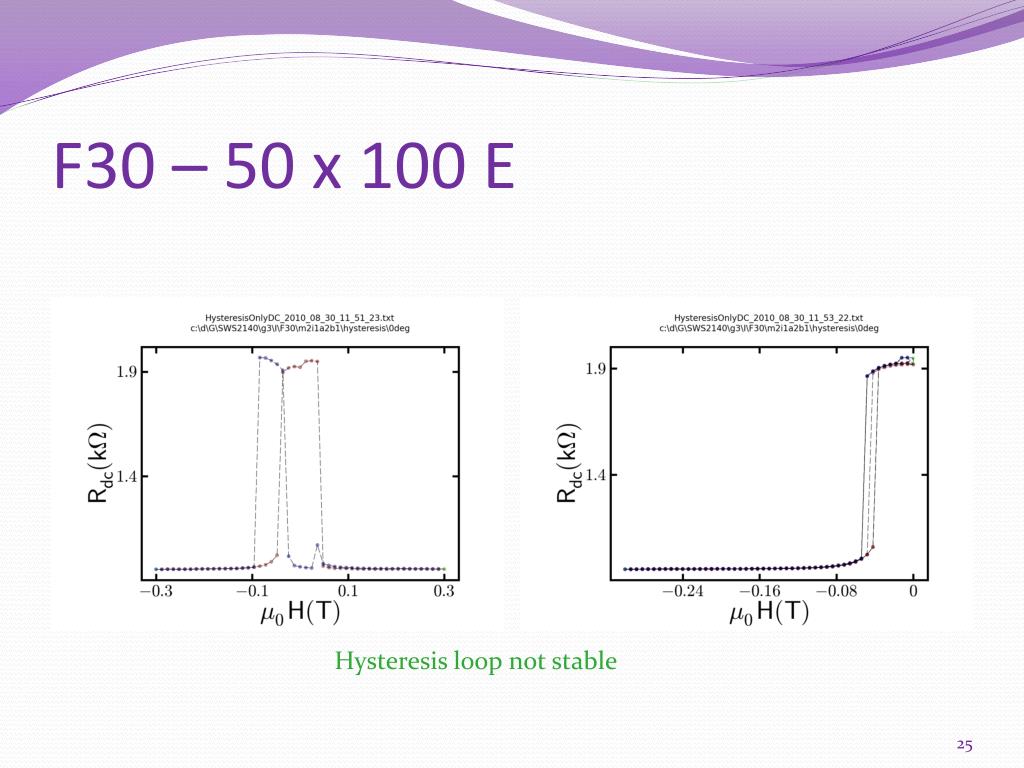

  25. F30 – 50 x 100 E Hysteresis loop not stable

  26. G25 – 50 x 100 H Peaks not even

  27. J30 – 50 x 150 H Minor loop too narrow

  28. M24 – 60 x 120 H No sharp switching

  29. M26 – 60 x 120 H Hysteresis loop not stable

  30. R28 – 80 x 160 E No sharp switching

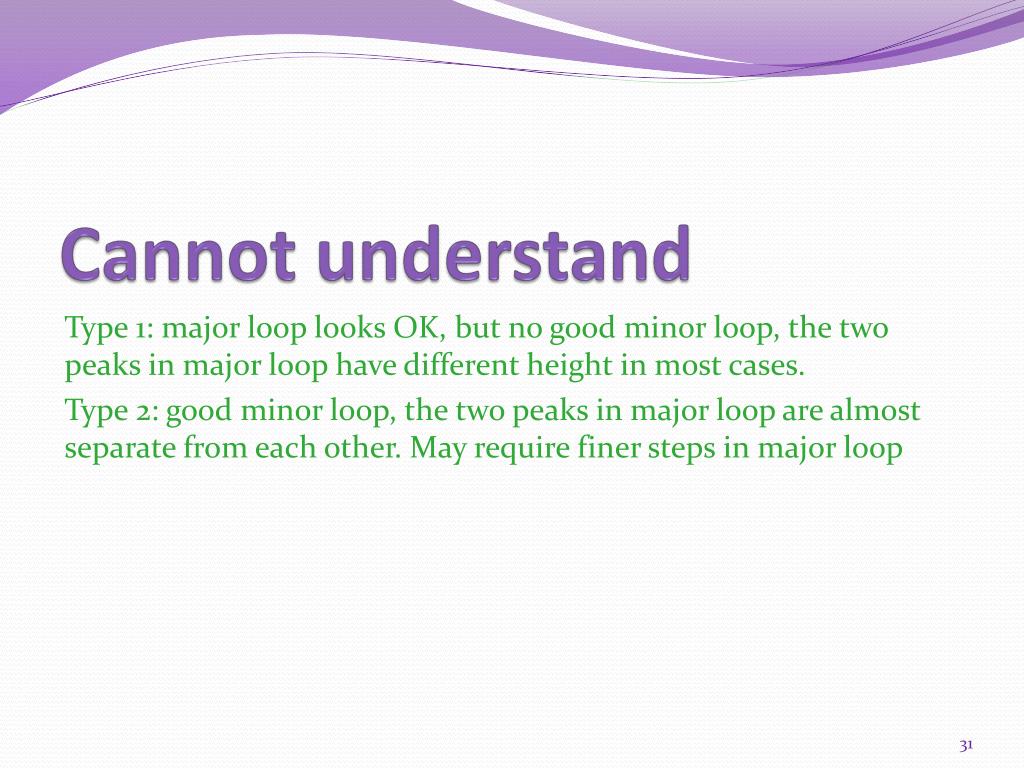

  31. Cannot understand Type 1: major loop looks OK, but no good minor loop, the two peaks in major loop have different height in most cases. Type 2: good minor loop, the two peaks in major loop are almost separate from each other. May require finer steps in major loop

  32. Type 1 B26, B27, E30, F25, F26, I26, J21, J29….

  33. Type 2 If this is only because major loop field steps are too large, then we have about 20 more possible good junctions

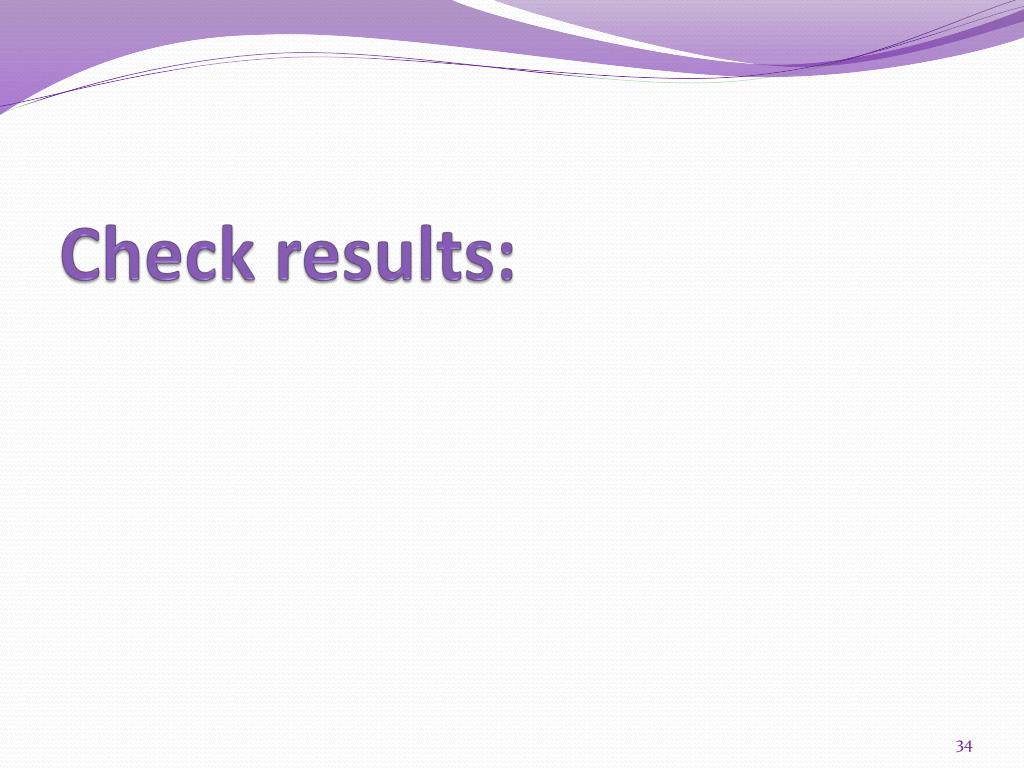

  34. Check results:

  35. C26: 40 x 100 E Rmin : 1297 Ω Rmax:2718 Ω MR: 110% AP Region : Red: ( 0.025 T, 0.069 T ) Blue: ( -0.013 T , 0.043T ) Free Layer: -0.013 T ~ 0.025 T Hc = 19 mT SAF: 0.043 T ~ 0.069 T Hc = 13 mT

  36. C26: 40 x 100 E Free: Hc = 19 mT SAF: Hc= 13 mT ( -0.013 T , 0.025 T ) ( 0.044 T , 0.070T )

  37. C27: 40 x 100 E Rmin : 1271 Ω Rmax : 2675 Ω MR: 110 % AP Region : Red: ( 0.003 T , 0.068 T ) Blue: ( -0.024 T , 0.059 T ) Free Layer: -0.024 T ~ 0.03 T Hc = 13.5 mT SAF: 0.059 T ~ 0.068 T Hc = 4.5 mT

  38. C27: 40 x 100 E Free: Hc = 14 mT SAF: Hc= 0.5 mT ( -0.025 T , 0.03 T ) ( 0.059T , 0.060T )

  39. E28: 50 x 100 R Less steps More steps Not stable

  40. I30: 50 x 150 E Rmin : 699 Ω Rmax :1433 Ω Magneto-Resistance :105% AP Region : Red: ( 0.018 T , 0.066 T ) Blue: ( -0.028 T , 0.053 T ) Free Layer: -0.028 T ~ 0.018 T Hc = 23 mT SAF: 0.053 T ~ 0.066 T Hc = 4 mT

  41. I30: 50 x 150 E Free: Hc = 9.5 mT SAF: Hc= 5.5 mT ( 0.001 T , 0.02 T ) ( 0.053T , 0.064T )

  42. J26: 50 x 150 H Rmin : 628 Ω Rmax : 1305Ω Magneto-Resistance : 108% AP Region : Red: ( 0.022 T , 0.078 T ) Blue: ( -0.029 T , 0.043 T ) Free Layer: -0.029 T ~ 0.022 T Hc = 25.5 mT SAF: 0.043 T ~ 0.078 T Hc = 17.5 mT

  43. J26: 50 x 150 H Free: Hc = 7 mT SAF: Hc= 2.5 mT ( 0.008 T , 0.022 T ) ( 0.043T , 0.048T )

  44. L24: 60 x 120 E Rmin : 645Ω Rmax : 1368Ω Magneto-Resistance : 112 % AP Region : Red: ( 0.036 T , 0.08 T ) Blue: ( -0.027 T , 0.051 T ) Free Layer: -0.027 T ~ 0.036 T Hc = 31.5 mT SAF: 0.051 T ~ 0.08 T Hc = 14.5 mT

  45. L24: 60 x 120 E Free: Hc = 27.5 mT SAF: Hc= 0.5 mT ( -0.021 T , 0.036 T ) ( 0.052T , 0.053T )

  46. O27: 60 x 180 E Rmin : 383 Ω Rmax :809 Ω Magneto-Resistance : 111 % AP Region : Red: ( 0.014 T , 0.06 T ) Blue: ( -0.024 T , 0.045 T ) Free Layer: -0.024 T ~ 0.014 T Hc = 19 mT SAF: 0.045 T ~ 0.06 T Hc = 7.5 mT

  47. O27: 60 x 180 E Free: Hc = 3.5 mT SAF: Hc= 1 mT ( 0.006 T , 0.036 T ) ( 0.045T , 0.047T )

  48. O30: 60 x 180 E Rmin : 444 Ω Rmax :860 Ω Magneto-Resistance : 94% AP Region : Red: ( -0.042 T , 0.038 T ) Blue: ( -0.041 T , 0.017 T ) Free Layer: -0.042 T ~ -0.041 T Hc = -0.5 mT SAF: 0.017 T ~ 0.038 T Hc = 10.5 mT Do not fit the model

  49. O30: 60 x 180 E Free: Hc = 3.5 mT SAF: Hc= 9 mT ( -0.049 T , -0.042 T ) ( 0.017T , 0.028T )

  50. P26: 60 x 180 H Rmin : 388 Ω Rmax :809 Ω Magneto-Resistance : 109% AP Region : Red: ( 0.013 T , 0.044 T ) Blue: ( -0.021 T , 0.038 T ) Free Layer: -0.021 T ~ -0.013 T Hc = 17mT SAF: 0.038 T ~ 0.044 T Hc = 3mT
