  1. Understanding Data Center Traffic Characteristics Theophilus Benson1, Ashok Anand1, Aditya Akella1, Ming Zhang2 University Of Wisconsin – Madison1, Microsoft Research2

  2. Data Centers Background • Built to optimize cost and performance • Tiered Architecture • 3 layers; edge, aggregation, core • Cheap devices at edges and expensive devices at core • Over-subscription of links closer to the core • Fewer links towards core reduce cost • Trade negligible loss/delay for fewer devices and links

  3. Data Centers Today Few large links Expensive and scarce Many little links Cheap and abundant Cisco Canonical DC Architecture

  4. Challenges In Designing For Data Centers • Very little is known about data centers • No models for evaluation • Lack of knowledge effects evaluation • Use properties of wide area network traffic. • Make up traffic matrixes/random traffic patterns. • Insufficient for the following reasons • Can’t accurately compare techniques • Oblivious to actual characteristics of data centers

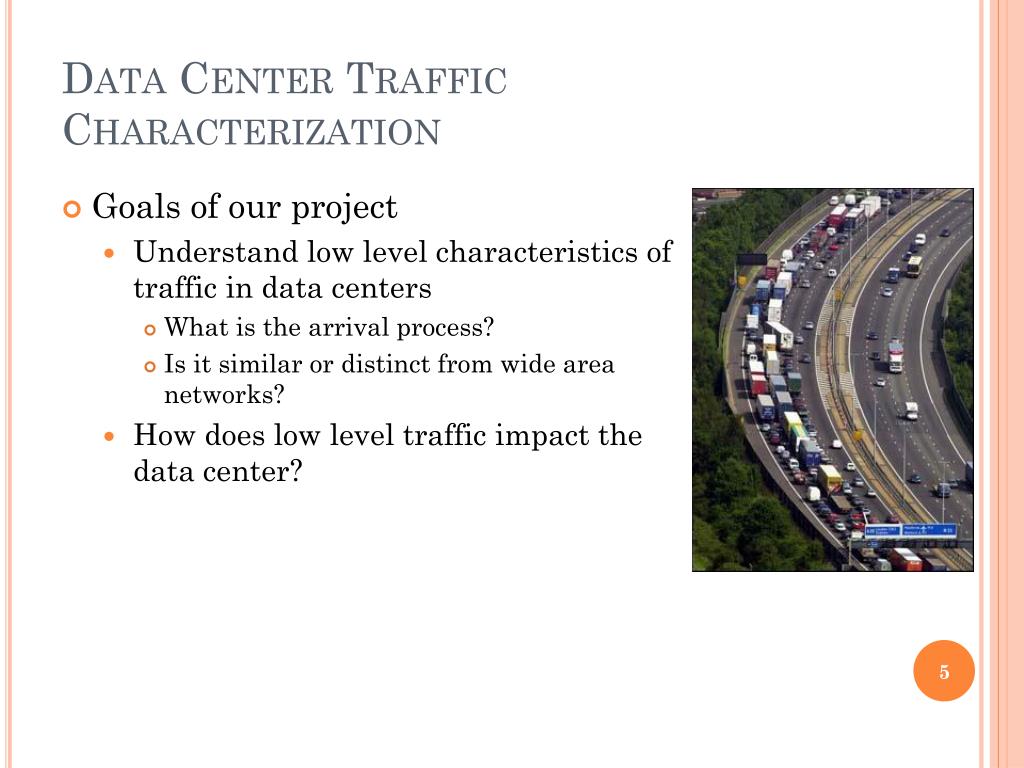

  5. Data Center Traffic Characterization • Goals of our project • Understand low level characteristics of traffic in data centers • What is the arrival process? • Is it similar or distinct from wide area networks? • How does low level traffic impact the data center?

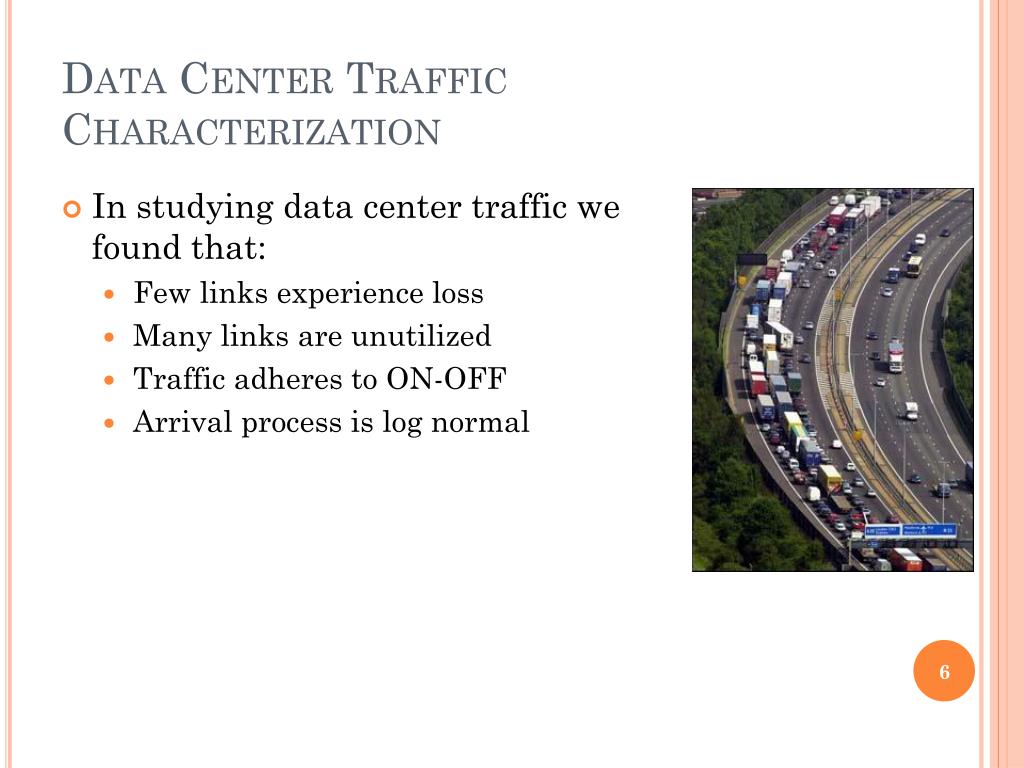

  6. Data Center Traffic Characterization • In studying data center traffic we found that: • Few links experience loss • Many links are unutilized • Traffic adheres to ON-OFF • Arrival process is log normal

  7. Outline • Background • Goals • Data set • Observations and insights • Overview of traffic generator (see paper for details) • Conclusion

  8. Data Sets • Data from 19 data centers • Differences in size and architecture • Data for intranet and extranet server farms • Applications: messaging, search, video streaming, email • Data consists of • Packet traces from edge switches in one data center • SNMP MIB of devices in all data centers • Data collected over a span of 10 days

  9. Analyzing Snmp Data • Analyze link utilization and drops • Analysis from one 5 minute interval • Lot of un-utilized links • Back-up/redundant links • Aggregation layer has the most used links • Funneling of traffic from aggregation • Very few links with losses

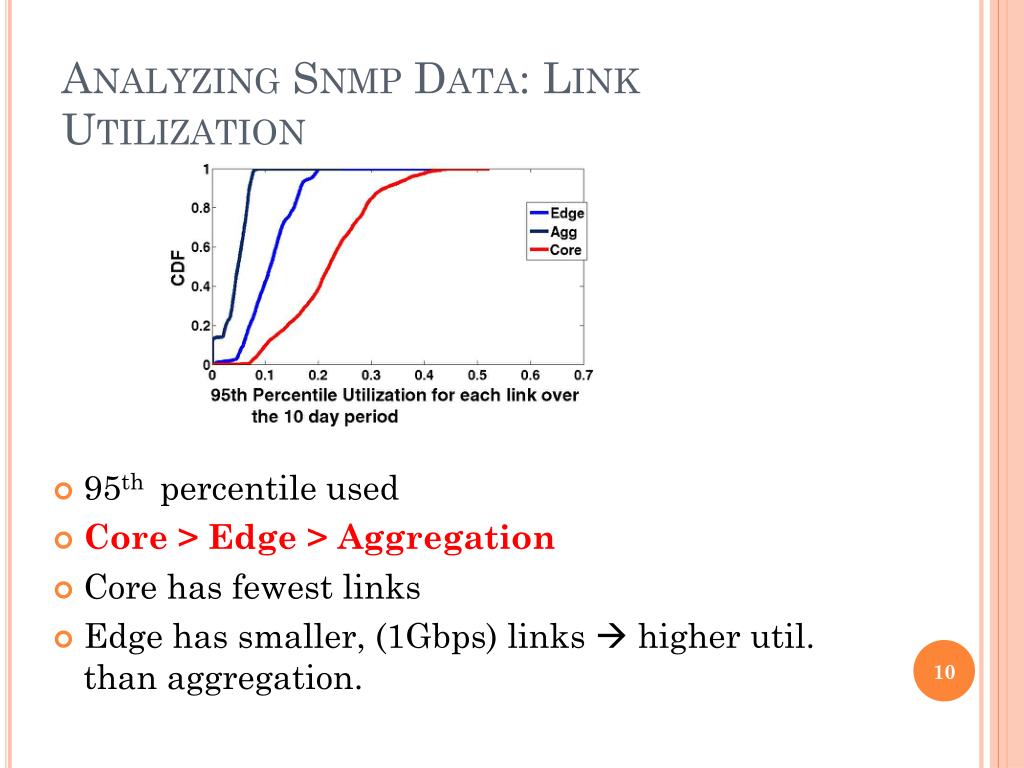

  10. Analyzing Snmp Data: Link Utilization • 95th percentile used • Core > Edge > Aggregation • Core has fewest links • Edge has smaller, (1Gbps) links  higher util. than aggregation.

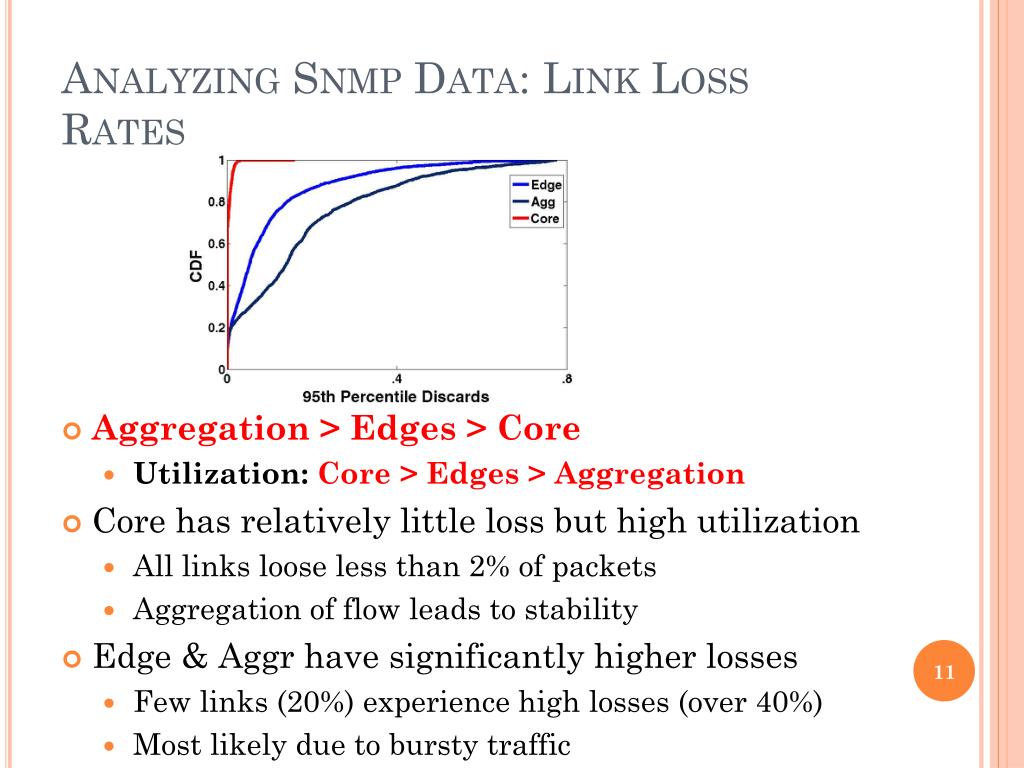

  11. Analyzing Snmp Data: Link Loss Rates • Aggregation > Edges > Core • Utilization: Core > Edges > Aggregation • Core has relatively little loss but high utilization • All links loose less than 2% of packets • Aggregation of flow leads to stability • Edge & Aggr have significantly higher losses • Few links (20%) experience high losses (over 40%) • Most likely due to bursty traffic

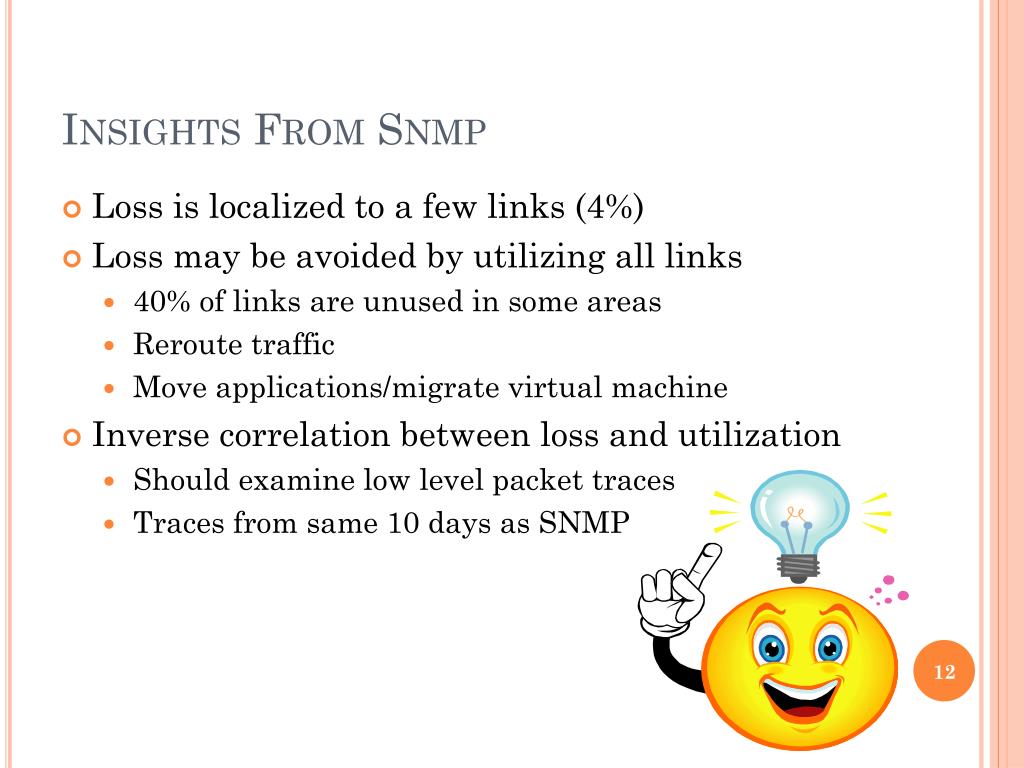

  12. Insights From Snmp • Loss is localized to a few links (4%) • Loss may be avoided by utilizing all links • 40% of links are unused in some areas • Reroute traffic • Move applications/migrate virtual machine • Inverse correlation between loss and utilization • Should examine low level packet traces • Traces from same 10 days as SNMP

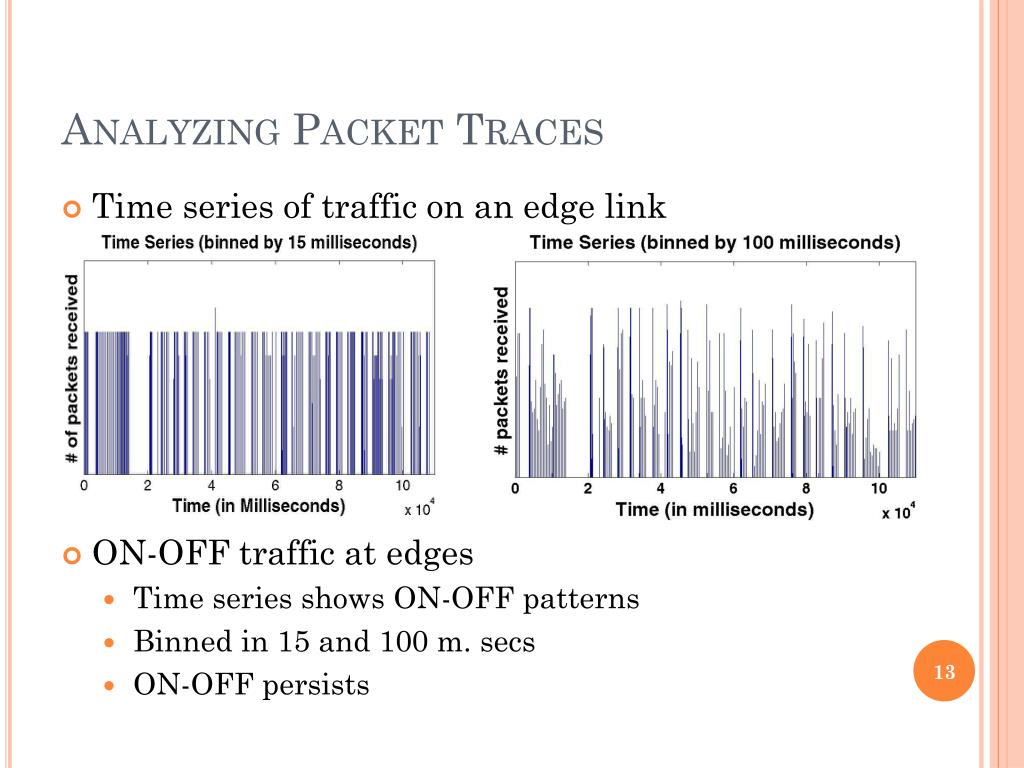

  13. Analyzing Packet Traces • Time series of traffic on an edge link • ON-OFF traffic at edges • Time series shows ON-OFF patterns • Binned in 15 and 100 m. secs • ON-OFF persists

  14. Analyzing Packet Traces • What is the arrival process? • Matlab curve-fitting (least mean square) • Weibull, log normal, pareto, exponential • Curve fits log-normal for the 3 distributions • Inter-arrival, on-times, off-times • All switches exhibit identical patterns • Different from pareto (WAN) traffic

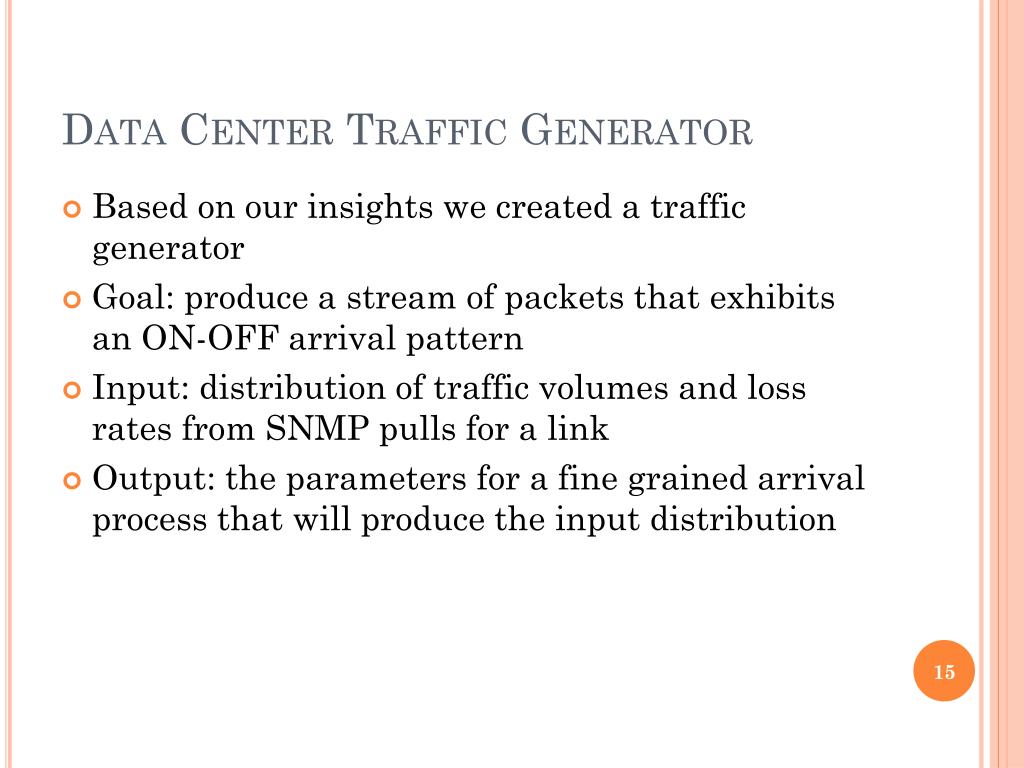

  15. Data Center Traffic Generator • Based on our insights we created a traffic generator • Goal: produce a stream of packets that exhibits an ON-OFF arrival pattern • Input: distribution of traffic volumes and loss rates from SNMP pulls for a link • Output: the parameters for a fine grained arrival process that will produce the input distribution

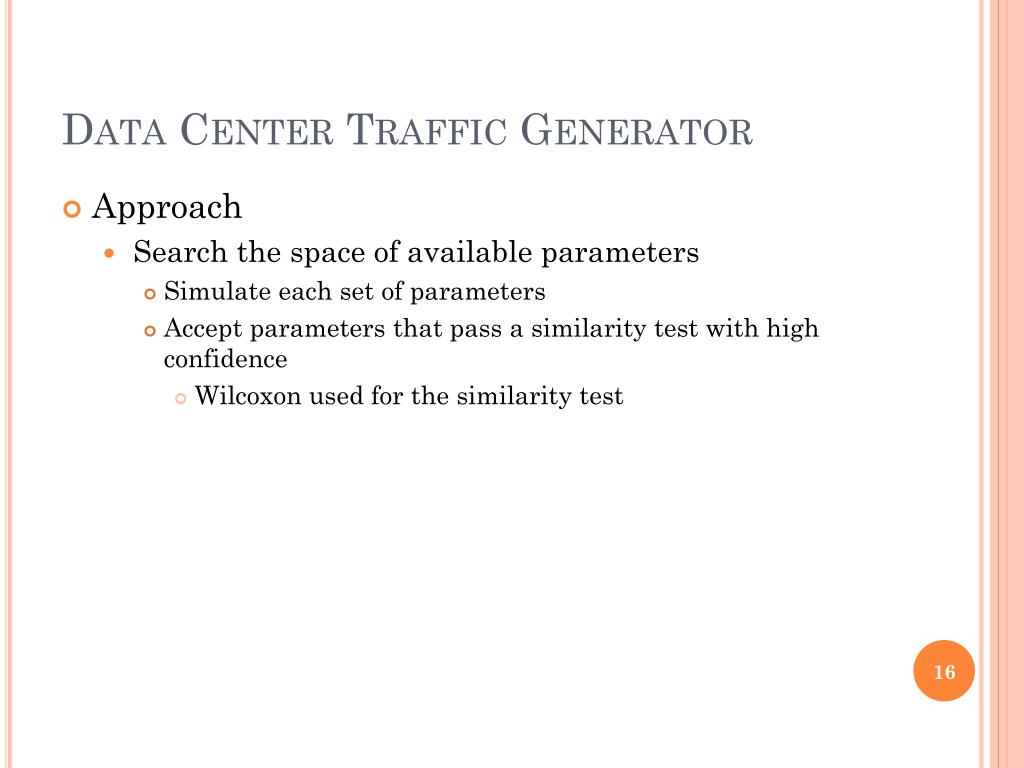

  16. Data Center Traffic Generator • Approach • Search the space of available parameters • Simulate each set of parameters • Accept parameters that pass a similarity test with high confidence • Wilcoxon used for the similarity test

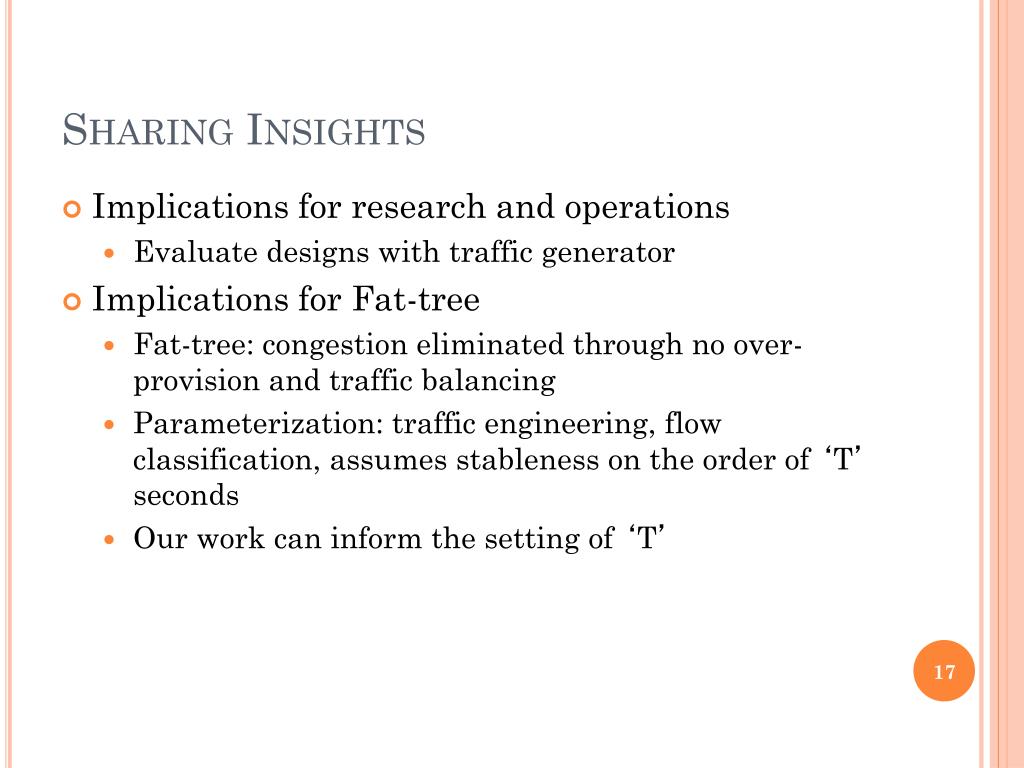

  17. Sharing Insights • Implications for research and operations • Evaluate designs with traffic generator • Implications for Fat-tree • Fat-tree: congestion eliminated through no over-provision and traffic balancing • Parameterization: traffic engineering, flow classification, assumes stableness on the order of ‘T’ seconds • Our work can inform the setting of ‘T’

  18. Conclusion • Analyzed traffic from 19 data centers • Bottle neck  aggregation layer • Characterized arrival process at edge links • Described a traffic generator for data centers • Utilized for evaluation of data center designs • Future work • Analyze packet trace • stableness of traffic matrix • ratio of inter/intra-dc communication

  19. Questions?
