  1. Where did the variogram come from? Biology? Geology? Physics? Oceanography?

  2. Actually, some of the earliest references were from 1926. A Swedish forester, A. Langsaeter, used this method to express variation when dealing with systematic sampling in forest surveys.

  3. A plea for exploratory data analysis… We shall not cease from exploration And the end of all our exploring Will be to arrive where we started And know the place for the first time. (T.S. Eliot)

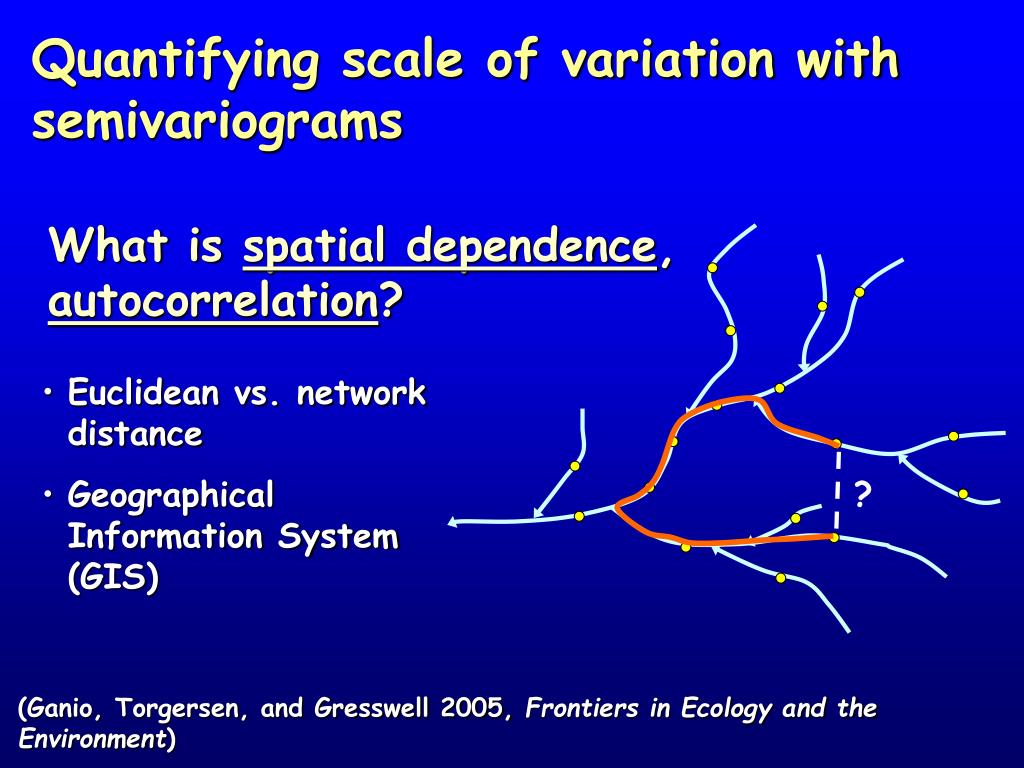

  4. ? Quantifying scale of variation with semivariograms What is spatial dependence, autocorrelation? • Euclidean vs. network distance • Geographical Information System (GIS) (Ganio, Torgersen, and Gresswell 2005, Frontiers in Ecology and the Environment)

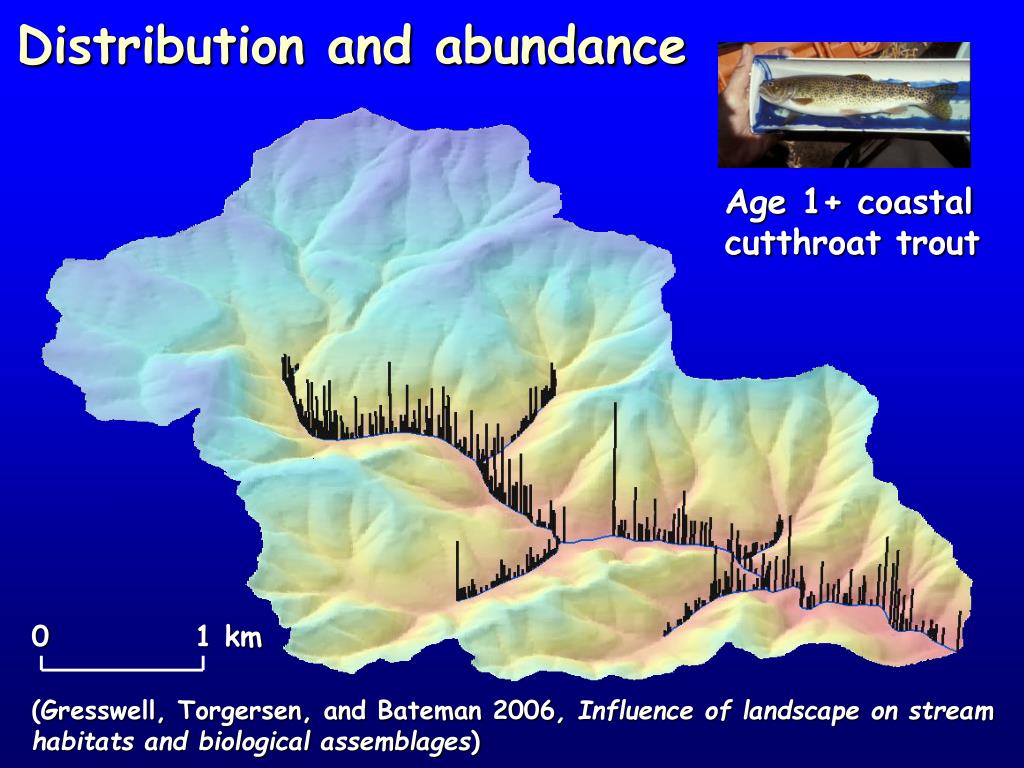

  5. Distribution and abundance Age 1+ coastal cutthroat trout 0 1 km (Gresswell, Torgersen, and Bateman 2006, Influence of landscape on stream habitats and biological assemblages)

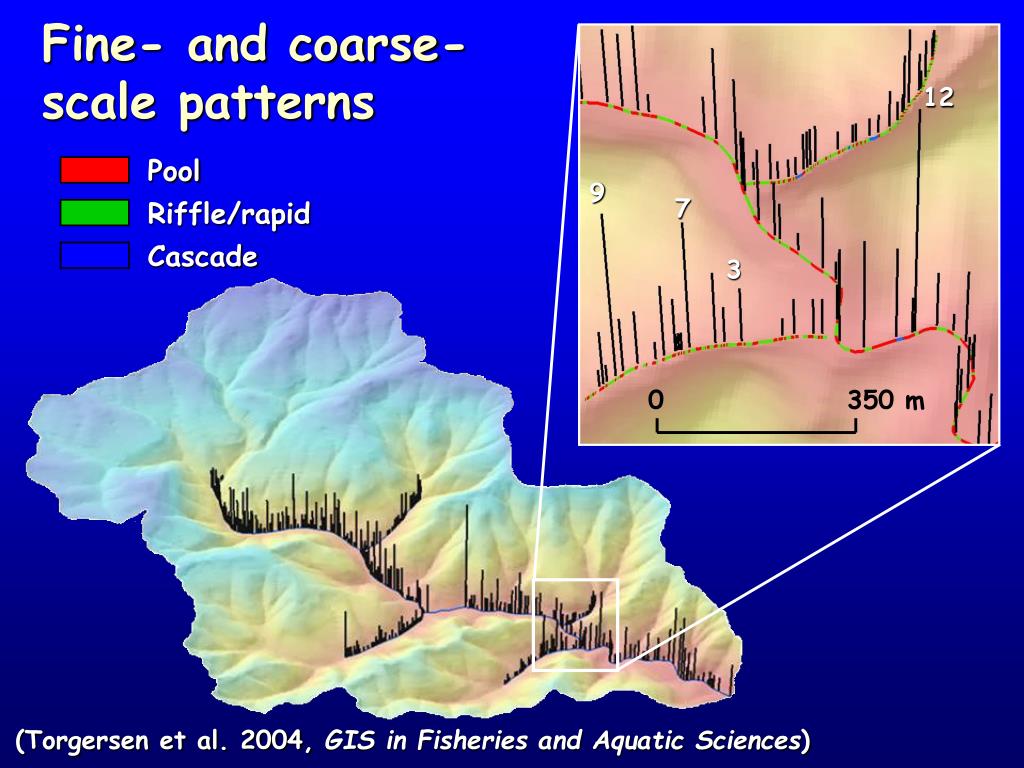

  6. Fine- and coarse-scale patterns 12 Pool 9 7 Riffle/rapid Cascade 3 0 350 m (Torgersen et al. 2004, GIS in Fisheries and Aquatic Sciences)

  7. Modeling spatial dependence with the semivariogram Yikes! But it’s only… “half the average squared difference between pairs of points separated by a given distance” for h ≠ i, where h and i are points along a line Legendre and Legendre (1983)

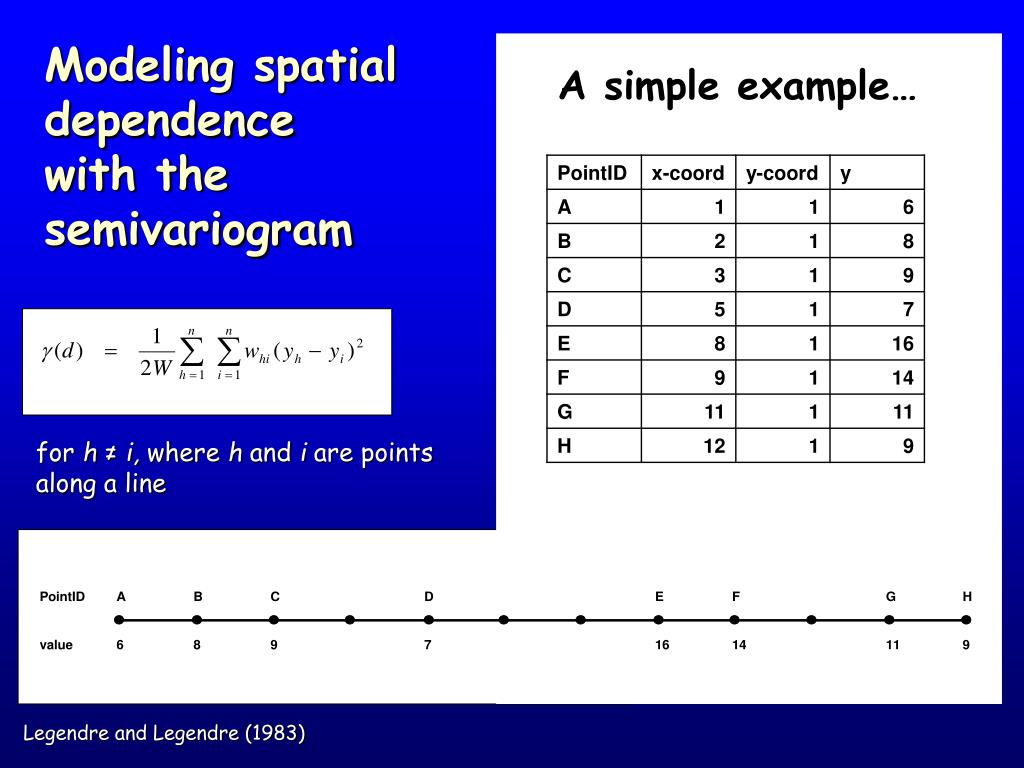

  8. Modeling spatial dependence with the semivariogram A simple example… for h ≠ i, where h and i are points along a line Legendre and Legendre (1983)

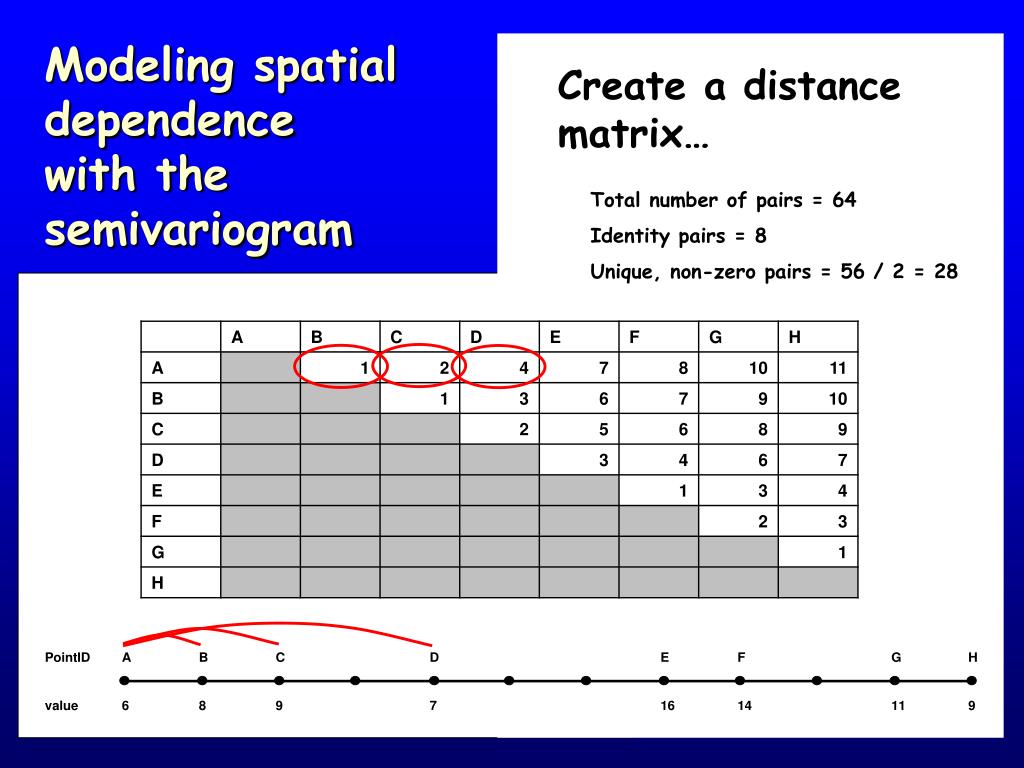

  9. Modeling spatial dependence with the semivariogram Create a distance matrix… Total number of pairs = 64 Identity pairs = 8 Unique, non-zero pairs = 56 / 2 = 28

  10. Do some simple calculations…

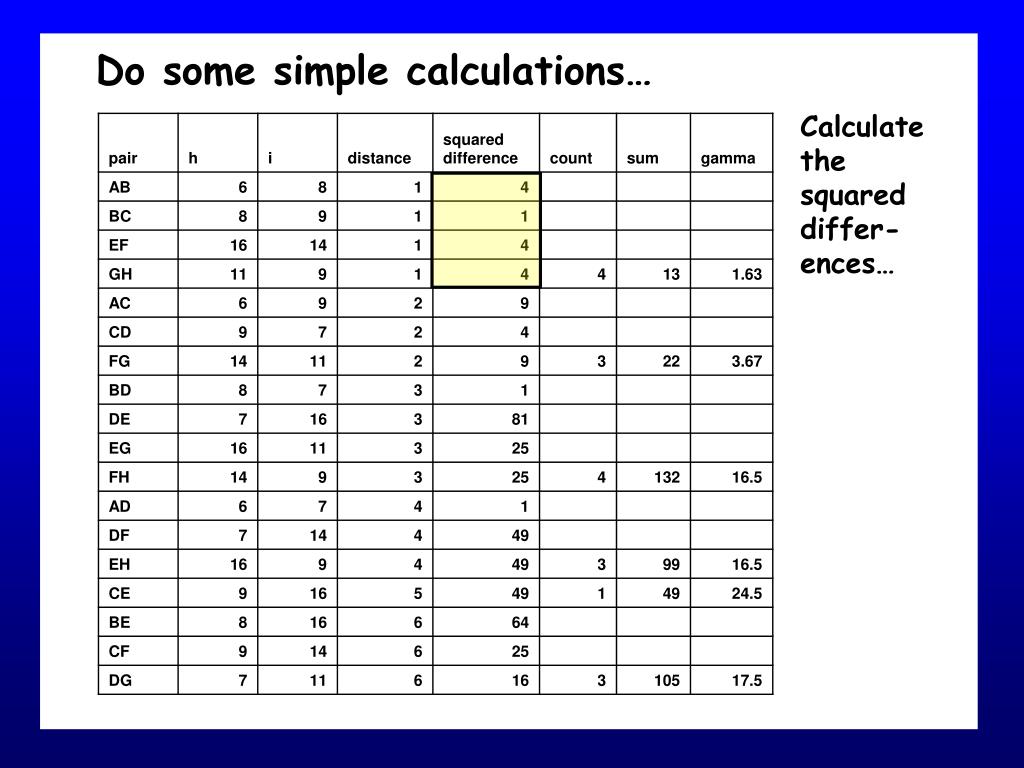

  11. Do some simple calculations… Calculate the squared differ-ences…

  12. Do some simple calculations… Count the pairs…

  13. Do some simple calculations… Sum the squared differ-ences…

  14. Do some simple calculations… Divide the sum by the count.

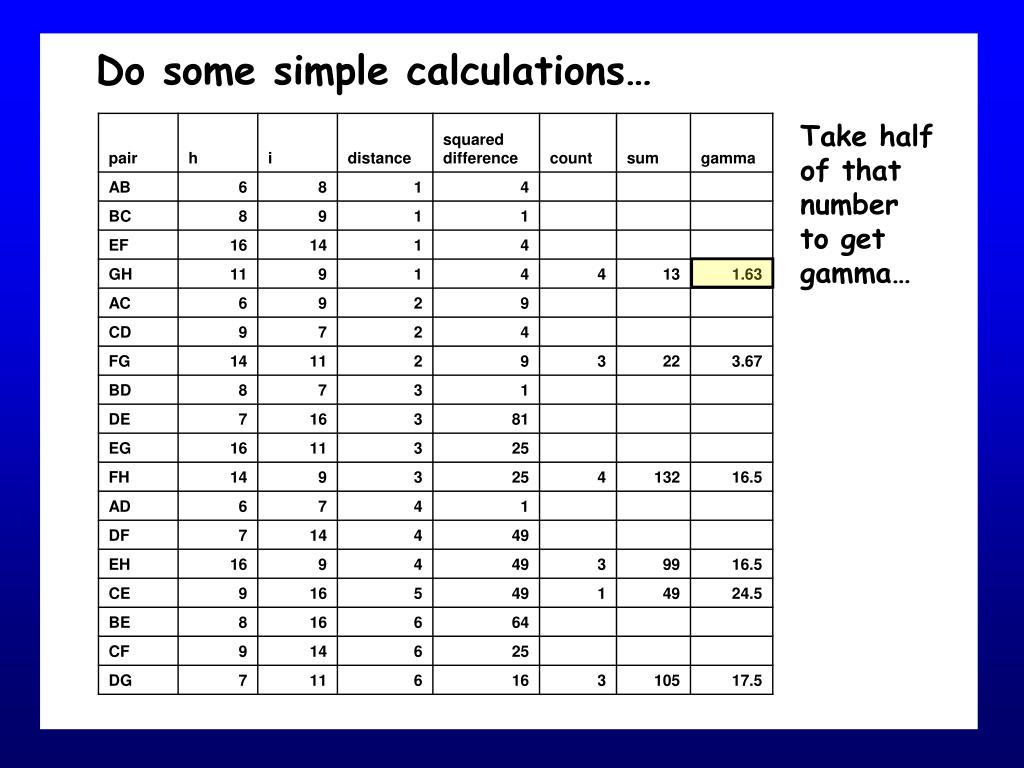

  15. Do some simple calculations… Take half of that number to get gamma…

  16. Do some simple calculations… Plot these values…

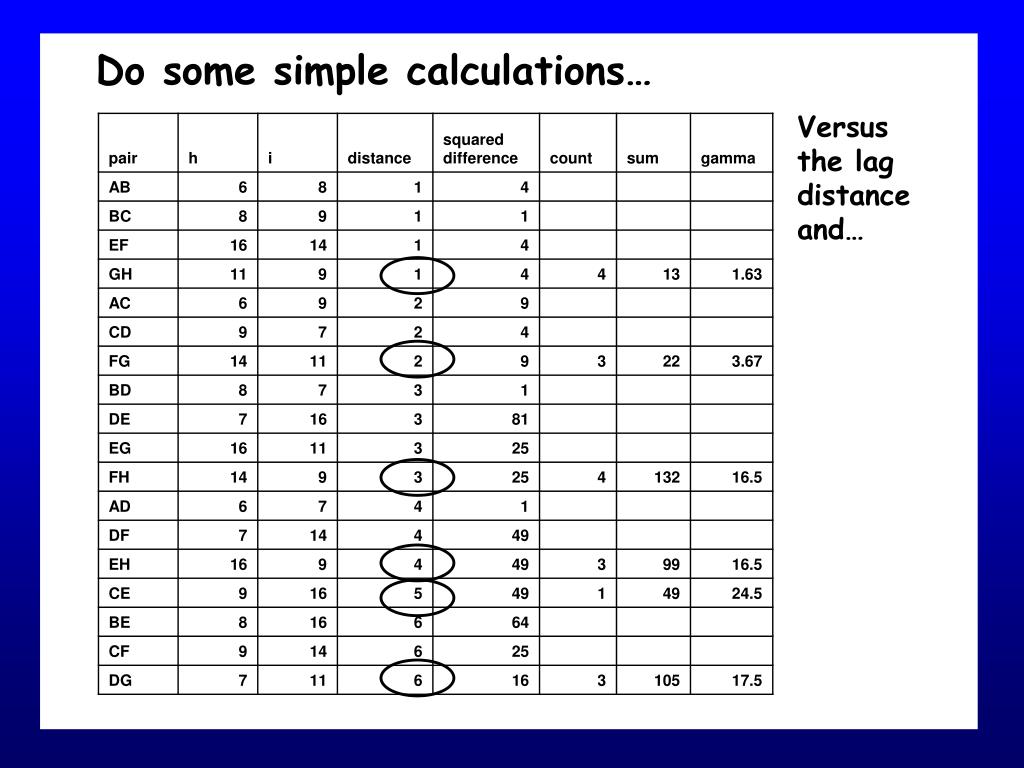

  17. Do some simple calculations… Versus the lag distance and…

  18. Voilà, the semivariogram!

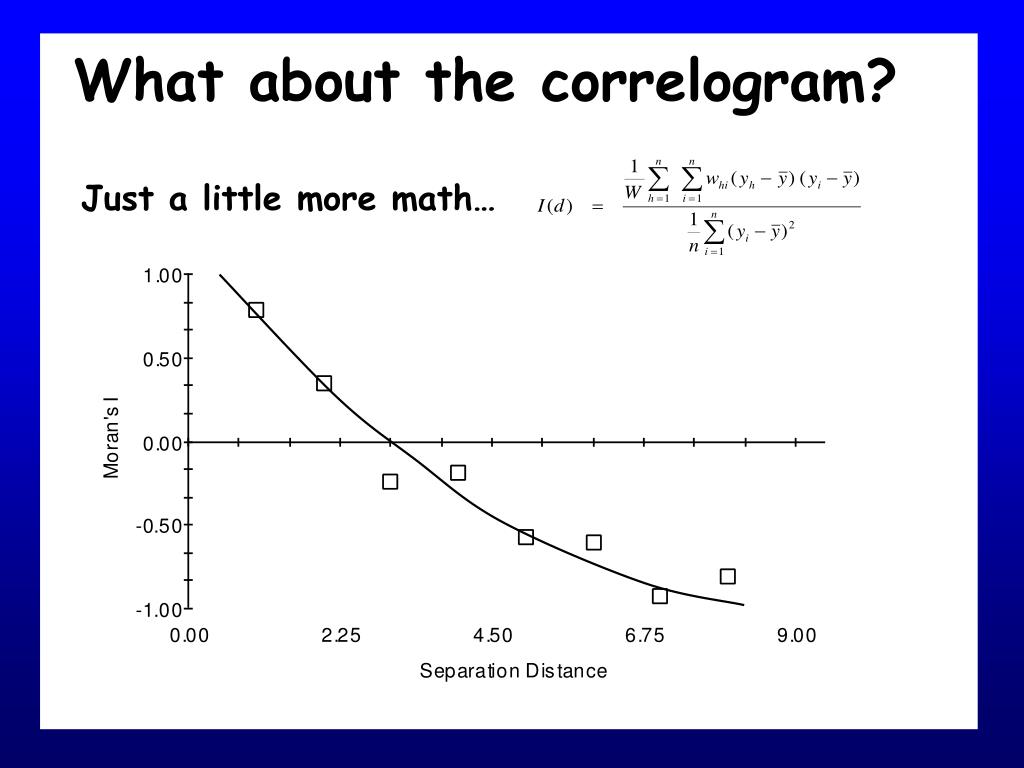

  19. What about the correlogram? Just a little more math…

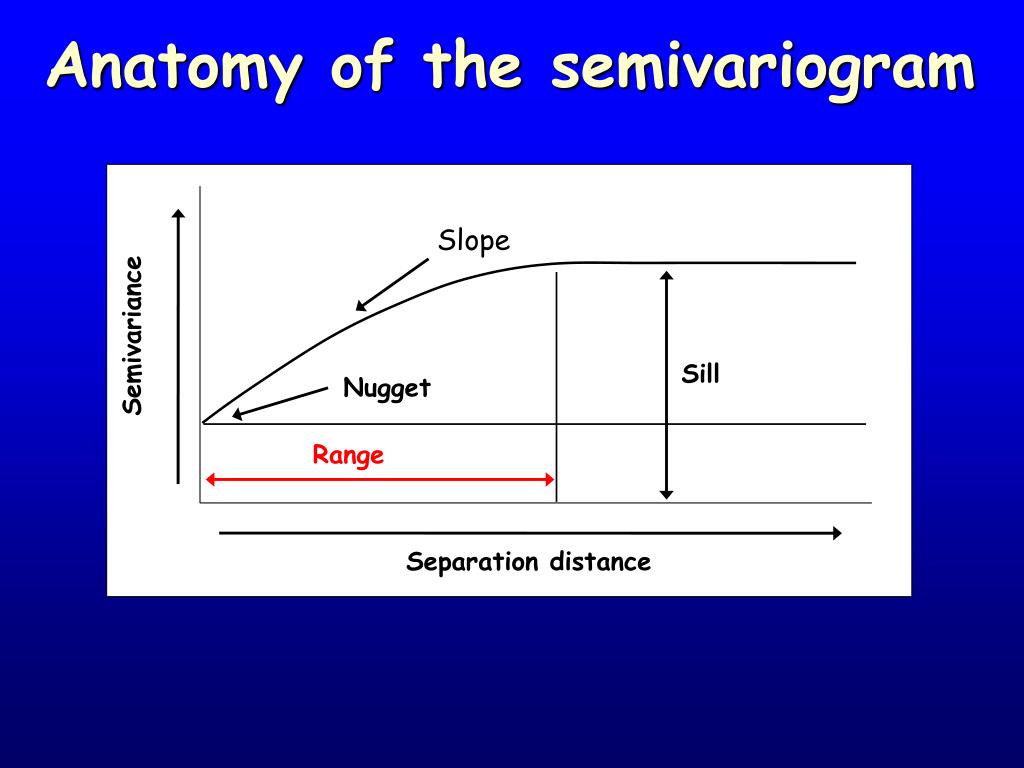

  20. Slope Sill Nugget Range Anatomy of the semivariogram Semivariance Separation distance

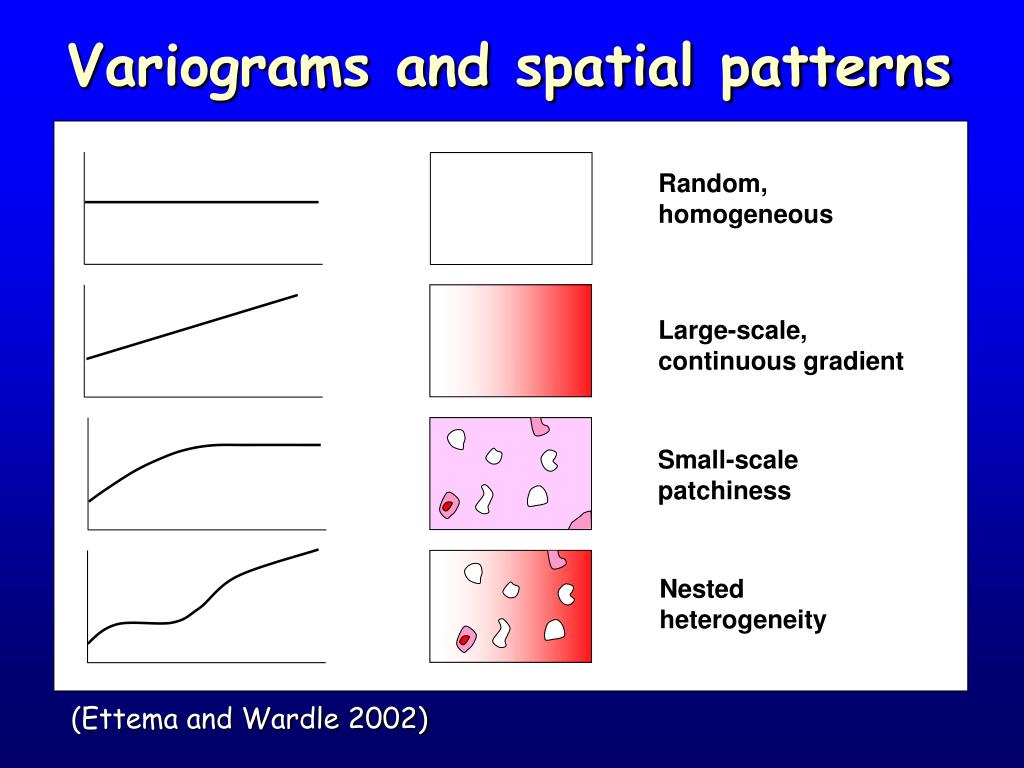

  21. Variograms and spatial patterns Random, homogeneous Large-scale, continuous gradient Small-scale patchiness Nested heterogeneity (Ettema and Wardle 2002)

  22. Back to the real data… Age 1+ coastal cutthroat trout 0 1 km

  23. Network variogram of fish counts… • Semivariogram • Fitted spherical model • Randomization • Test of spatial dependence (Torgersen et al. 2004)

  24. (Ganio et al. 2005)

  25. (Ganio et al. 2005)

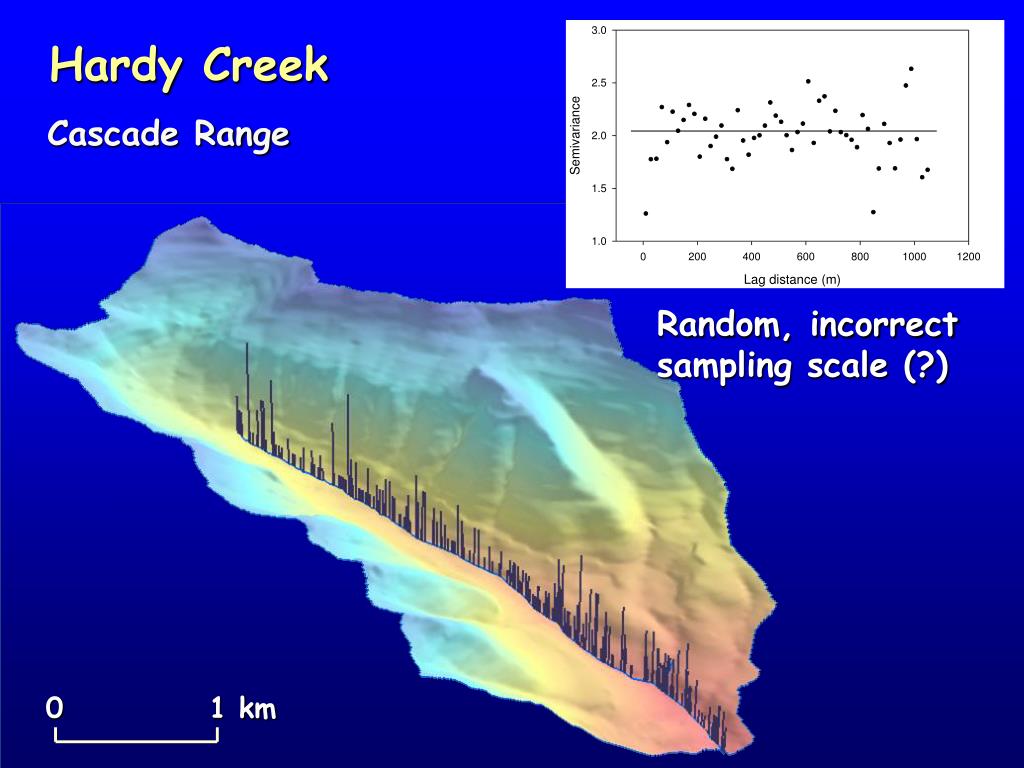

  26. Hardy Creek Cascade Range Random, incorrect sampling scale (?) 0 1 km

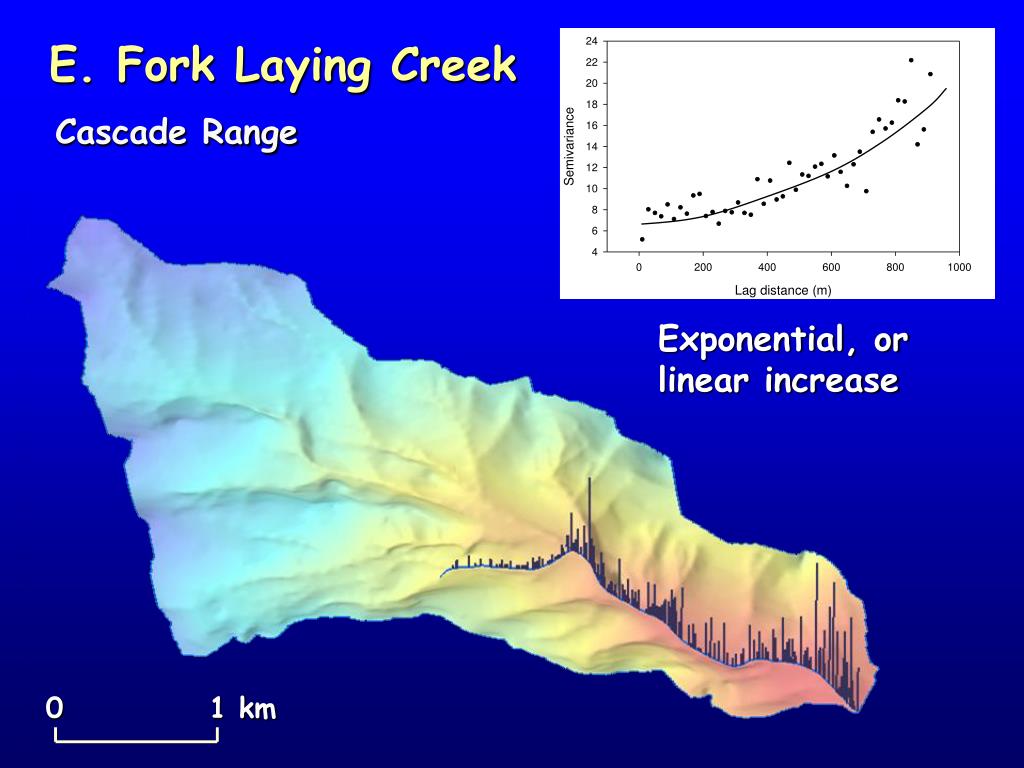

  27. E. Fork Laying Creek Cascade Range Exponential, or linear increase 0 1 km

  28. Miller Creek Cascade Range Nested - patchy with a gradient 0 1 km

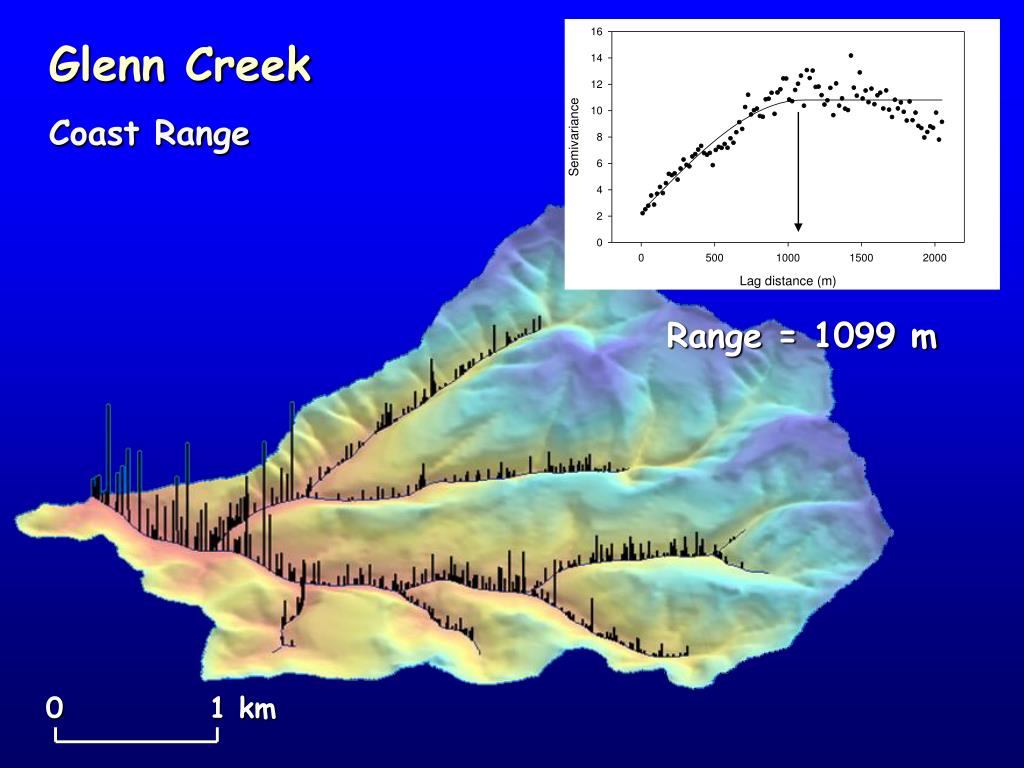

  29. Glenn Creek Coast Range Range = 1099 m 0 1 km

  30. N. Fork Ecola Coast Range Range = 272 m 0 0.5 km

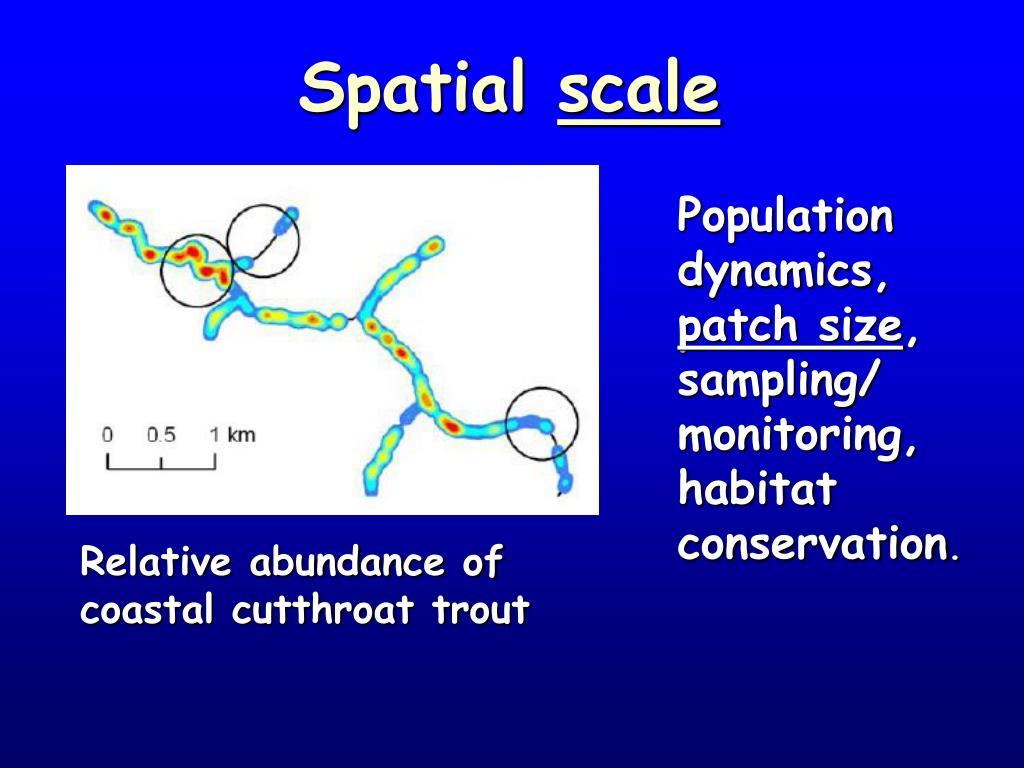

  31. Spatial scale Population dynamics, patch size, sampling/monitoring,habitat conservation. Relative abundance of coastal cutthroat trout

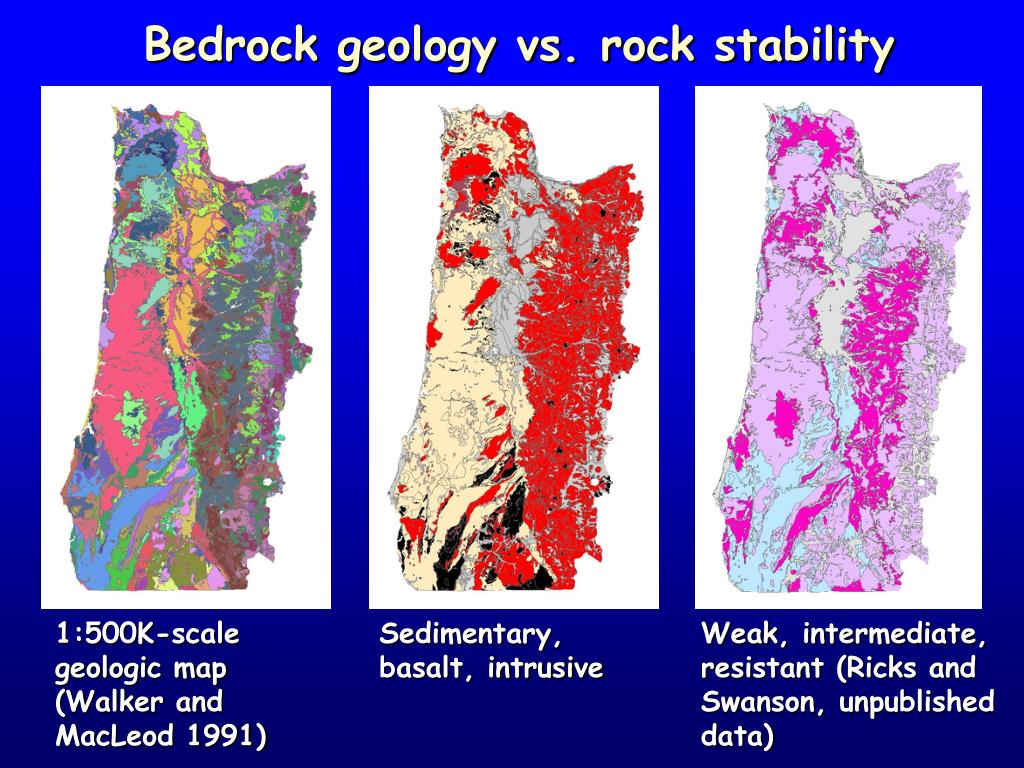

  32. Bedrock geology vs. rock stability 1:500K-scale geologic map (Walker and MacLeod 1991) Sedimentary, basalt, intrusive Weak, intermediate, resistant (Ricks and Swanson, unpublished data)

  33. Spatial variability in fish distribution and landscape characteristics Range is often inter-preted as the average patch size.

  34. Predicting the spatial scale of variation in trout distribution • Weak rock (+) • Resistantrock (-) • Mean distance between tributaries (+) Multiple linear regression Adjusted R 2 = 0.78 Predicted scale (m) Observed scale (m)

  35. Conclusions • Coastal cutthroat trout distribution exhibited strong spatial structuring at scales of 200-1000 m. • Empirical variograms provided an effective means to compare spatial structure among watersheds. • Scale of variation (patch size) in trout distribution corresponded with landscape characteristics.

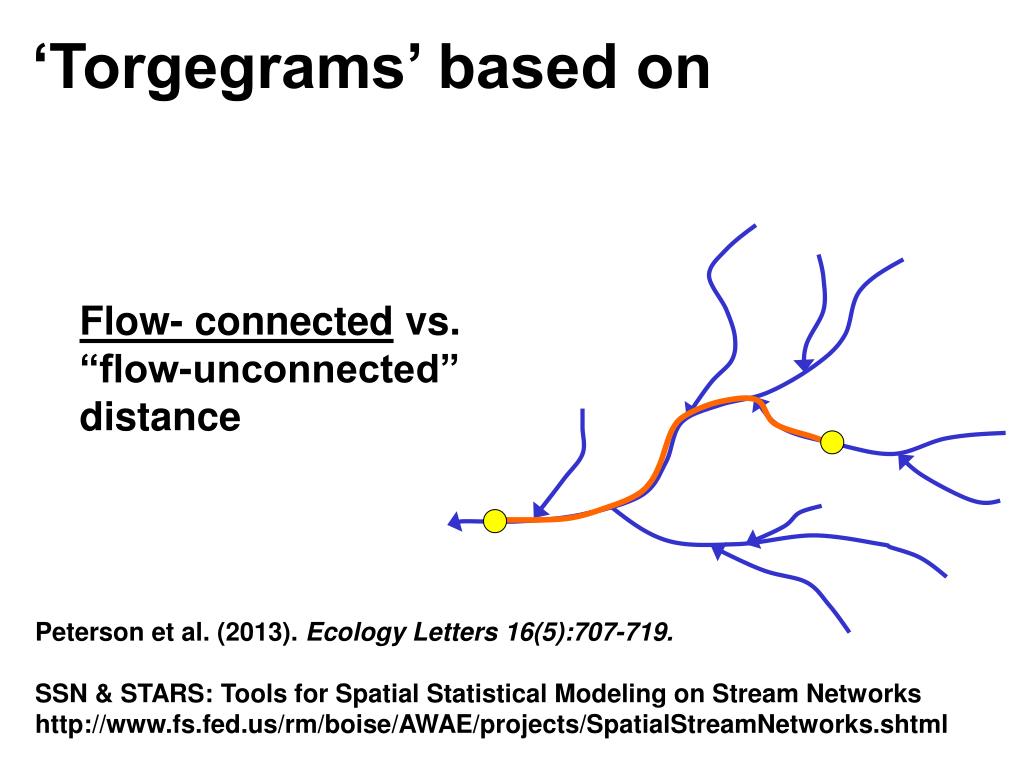

  36. ? ‘Torgegrams’ based on Flow- connected vs. “flow-unconnected” distance Peterson et al. (2013). Ecology Letters 16(5):707-719. SSN & STARS: Tools for Spatial Statistical Modeling on Stream Networks http://www.fs.fed.us/rm/boise/AWAE/projects/SpatialStreamNetworks.shtml

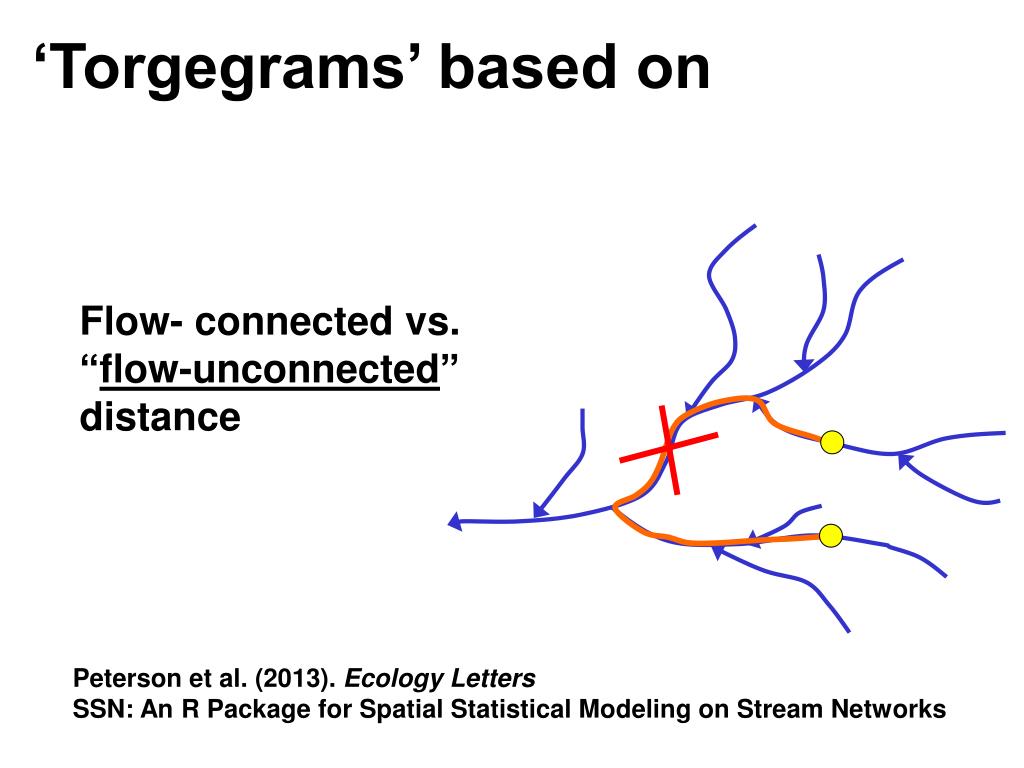

  37. ? ‘Torgegrams’ based on Flow- connected vs. “flow-unconnected” distance Peterson et al. (2013). Ecology Letters SSN: An R Package for Spatial Statistical Modeling on Stream Networks

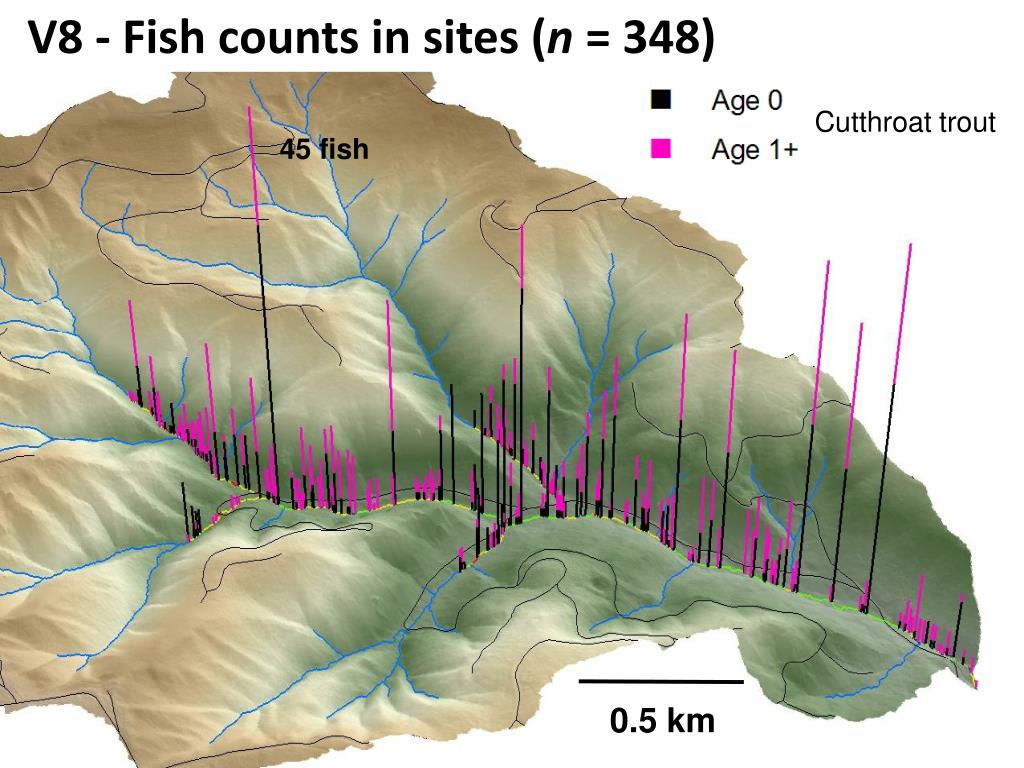

  38. V8 - Fish counts in sites (n = 348) Cutthroat trout 45 fish 0.5 km

  39. VA 8 – All sites (n = 348) Lag class interval = 60 m Flow connected Flow unconnected Semivariance Stream distance (km)

  40. Broader implications • Geostatistical analysis can be applied in stream networks but requires specific statistical considerations. • Existing geospatial and statistical software can be used (with minor modifications) to describe spatial pattern in networks. • Explicit incorporation of network spatial structure has much to offer ecology and hydrology.

  41. The bottom line about geostatistics… Use semivariograms and correlograms to: • Evaluate spatial autocorrelation before conducting standard statistical analysis (ANOVA, etc.) • Describe spatial structure after conducting descriptive studies. • Develop spatially explicit predictive models (e.g., kriging and spatial regression.

  42. Spatial statistics in landscape ecology Spectral analysis Kriging Wavelets Fractals Nearestneighbors Spatial regression Cross-correlation
