  1. MEKANIKA FLUIDA DISUSUN OLEH : ARDI FIRMANSAH 20110110088 JURUSAN TEKNIK SIPIL FAKULTAS TEKNIK UNIVERSITAS MUHAMMADIYAH YOGYAKARTA

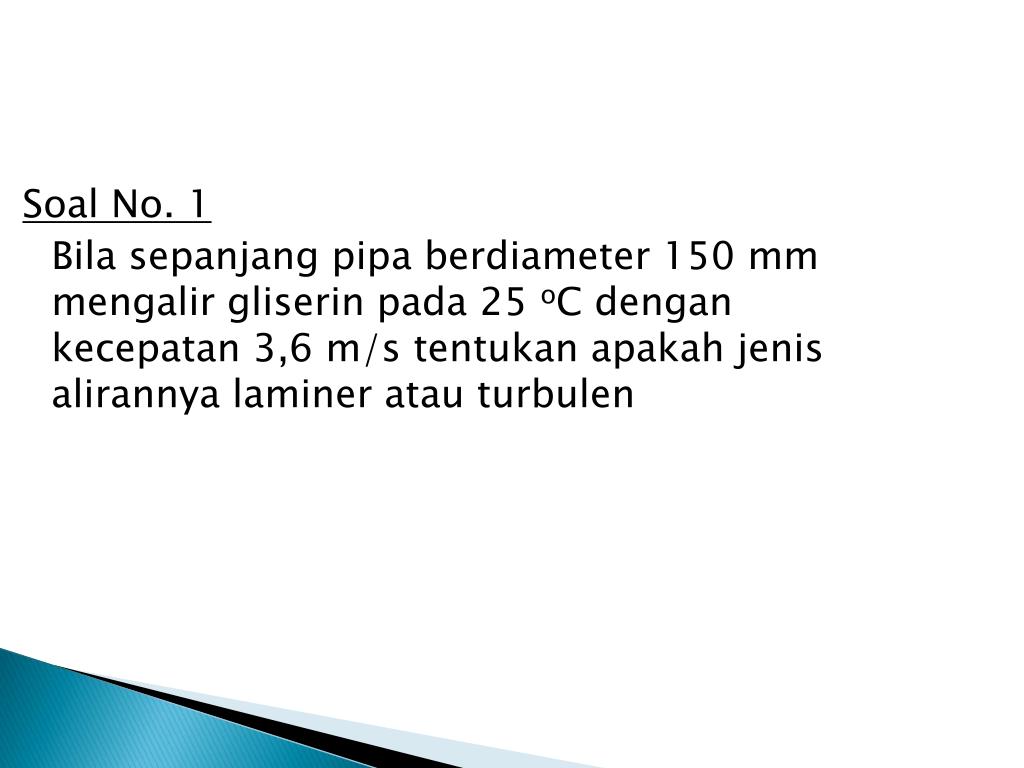

  2. Soal No. 1 Bilasepanjangpipaberdiameter 150 mm mengalirgliserinpada 25 oCdengankecepatan 3,6 m/s tentukanapakahjenisalirannyalamineratauturbulen

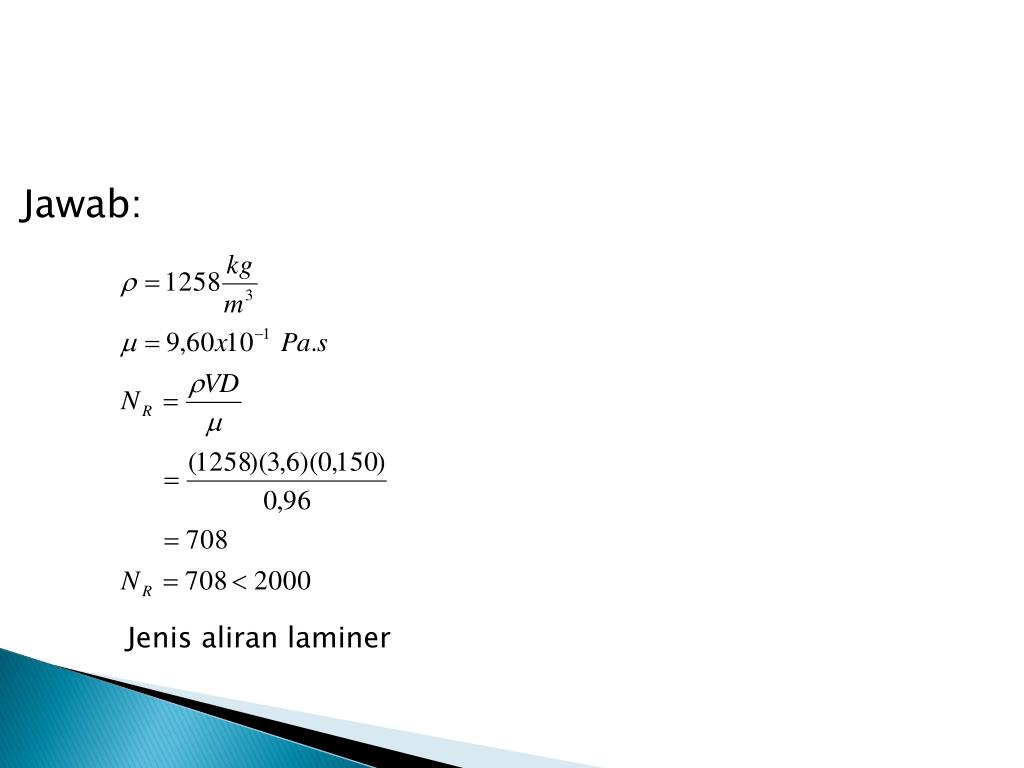

  3. Jenisaliranlaminer Jawab:

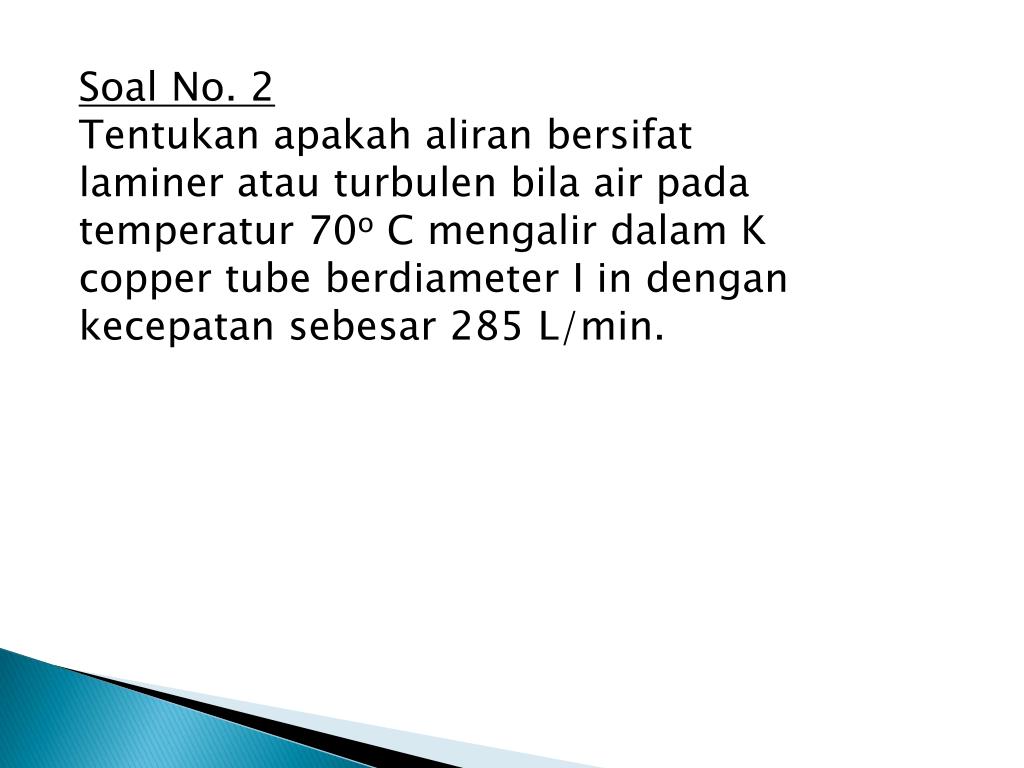

  4. Soal No. 2 Tentukanapakahaliranbersifatlamineratauturbulenbila air padatemperatur 70o C mengalirdalam K copper tube berdiameter I in dengankecepatansebesar 285 L/min.

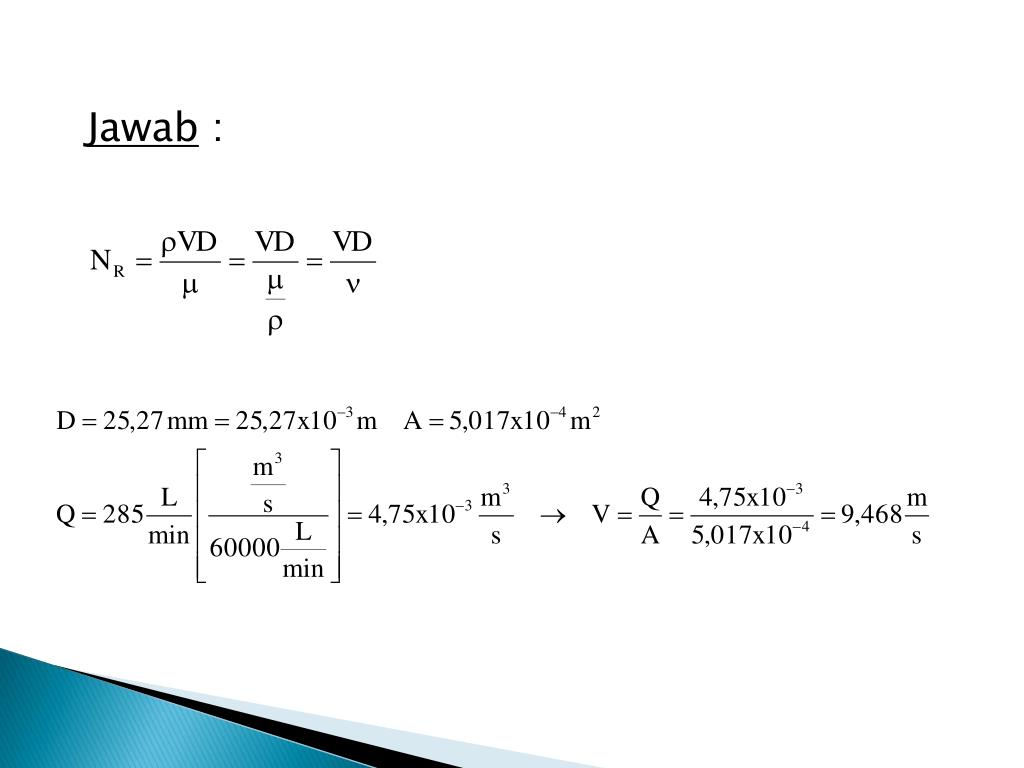

  5. Jawab :

  6. Aliran turbulen

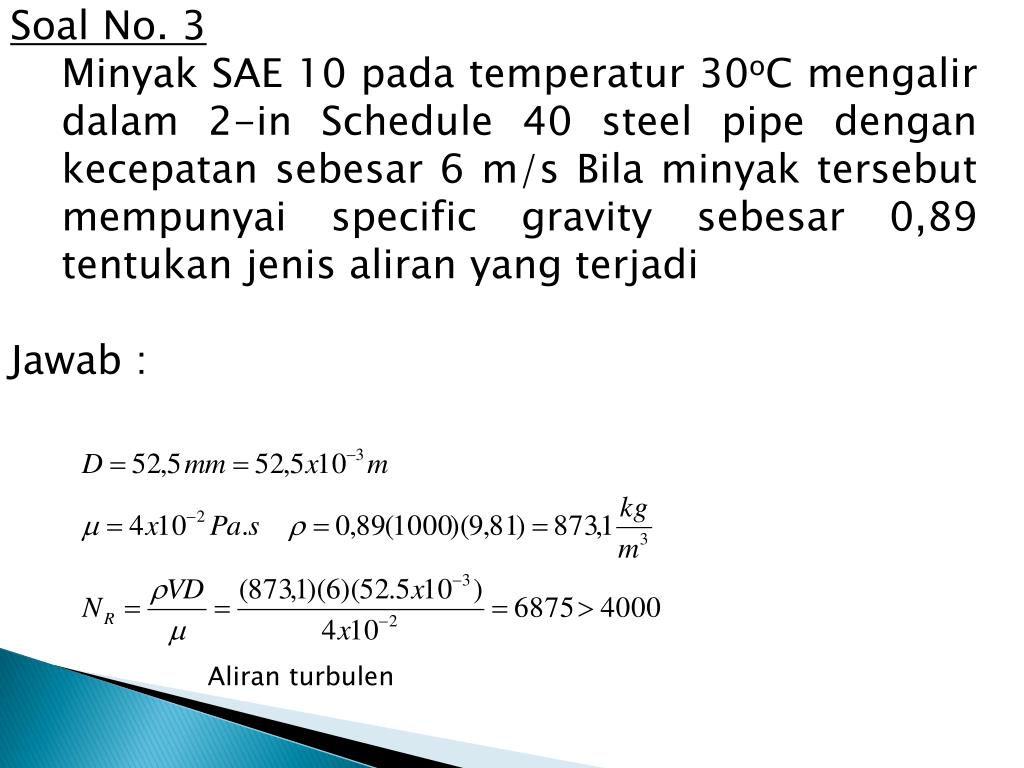

  7. SoalNo. 3 • Minyak SAE 10 padatemperatur 30oC mengalirdalam 2-in Schedule 40 steel pipe dengankecepatansebesar 6 m/s Bilaminyaktersebutmempunyai specific gravity sebesar 0,89 tentukanjenisaliran yang terjadi • Jawab : Aliranturbulen
