  1. Litostroj Ravne Ltd. Koroška cesta 15 2390 Ravne na Koroškem Slovenia TRADITION, POWER QUALITY , INNOVATION LITOSTROJ RAVNE IS A MEMBER OF LITOSTROJ GROUP

  2. Litostroj Group

  3. Litostroj Ravne – Historyandcompany profile • Is located in Ravne na Koroškem (townhas more than 380 yearsindustrialhistory). Presses(Brand Name „RAVNE“) have 45 years long history. • 1620 Beginningofsteelmaking in Ravne. • 1969 Constructionoffirstpress. • 1970-71 CooperationwithWeingarten. • 1971 First presswasexported to Germany. • 1985 First presswasexported to U.S. • 2008 Became part of Litostroj Group • 2010 First Preciseblankingpress. • 2011 First Servodrive press. • Number of employees : 200 • Representatives on the markets • 18 km to highway, 60 km from airport • Port : Luka Koper Experienceofgenerations

  4. RAVNE Presses– Worldwidebrand • MORE THAN 1.500 REFERENCES, MORE THAN 150 CUSTOMERS • TARGET INDUSTRIES • AUTOMOTIVE INDUSTRY ; • HOME APPLIANCE INDUSTRY; • TOOL AND DIE INDUSTRY; • ELECTRO INDUSTRY.

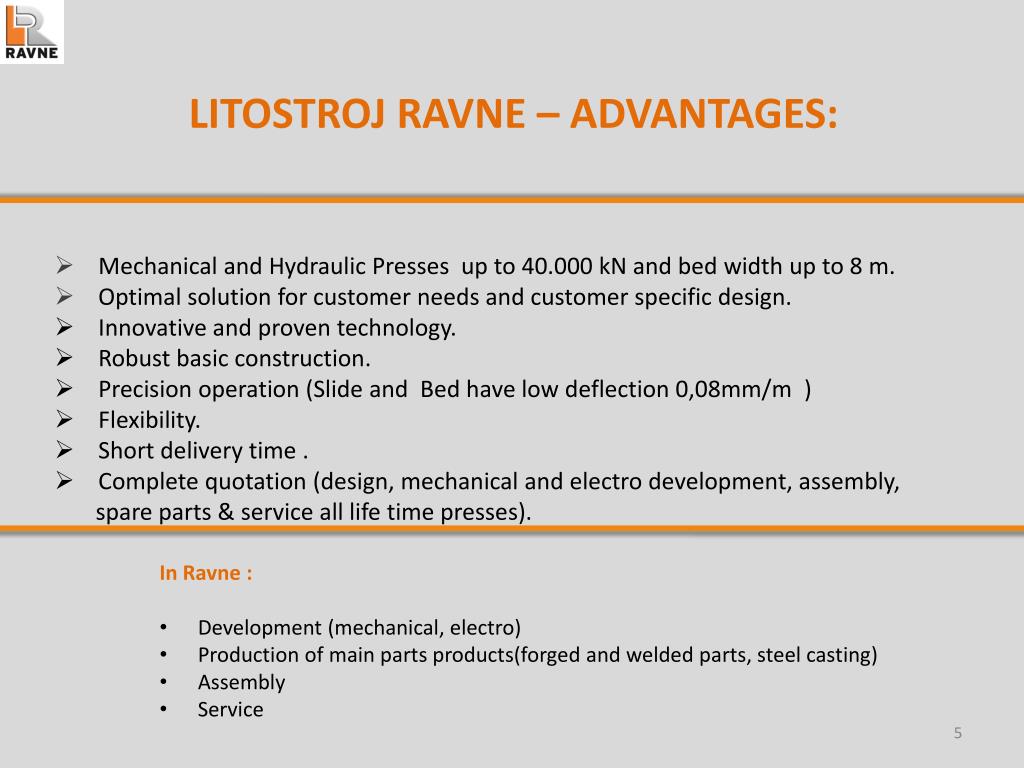

  5. LITOSTROJ RAVNE – ADVANTAGES: • MechanicalandHydraulicPresses up to 40.000 kNand bed width up to 8 m. • Optimalsolutionforcustomerneedsandcustomerspecificdesign. • Innovative andproventechnology. • Robustbasicconstruction. • Precisionoperation(Slide and Bed have low deflection 0,08mm/m ) • Flexibility. • Short delivery time . • Complete quotation (design, mechanical and electro development, assembly, • spare parts & service all life time presses). • In Ravne : • Development (mechanical, electro) • Productionofmainpartsproducts(forgedandweldedparts, steelcasting) • Assembly • Service

  6. MAIN PRODUCTION PROGRAM • Custom made Mechanical and Hidraulic Presses RAVNE Single Presses RAVNE Transfer Presses RAVNE Tandem Press Line SC, SE, SL RAVNE Progressive Die Presses RAVNE Blanking Line Presses RAVNE Forging Presses

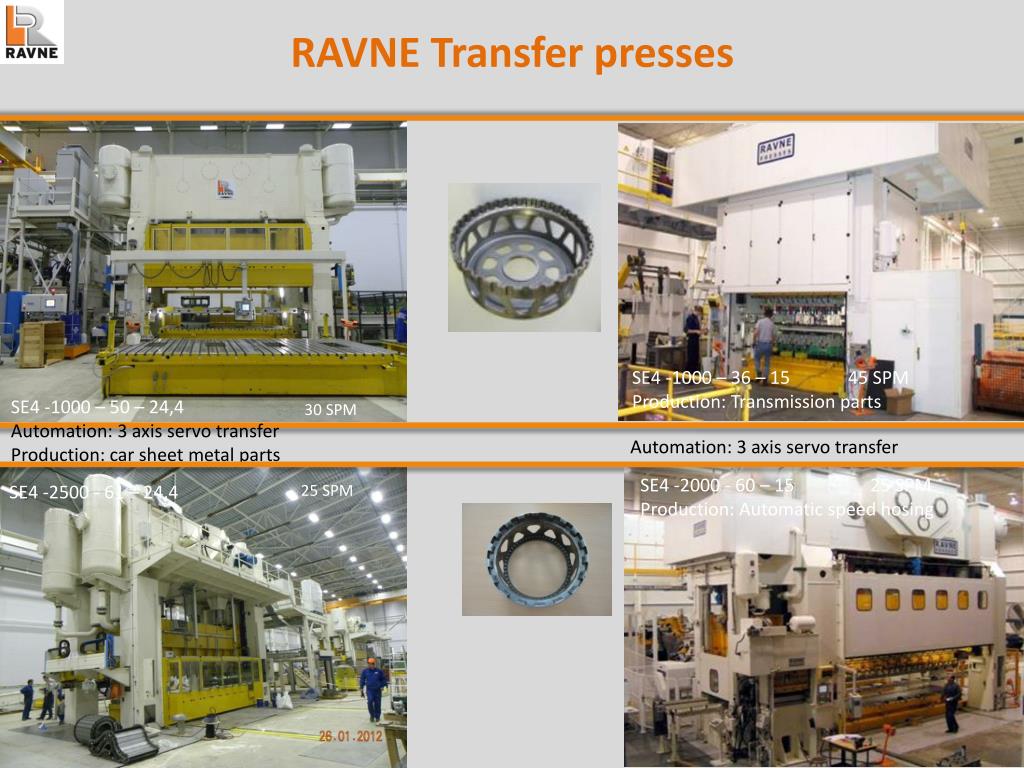

  7. RAVNE Transferpresses SE4 -1000 – 36 – 15 45 SPM Production: Transmission parts SE4 -1000 – 50 – 24,4 Automation: 3 axis servo transfer Production: car sheet metal parts 30SPM Automation: 3 axis servo transfer SE4 -2000 - 60 – 15 25 SPM Production: Automatic speed hosing SE4 -2500 - 61 – 24,4 25 SPM

  8. RAVNE Tandem press line SE2 1000-27-15, SE2 800-27-15, SE2 500-27-15, SE2 400-27-15 Production: Gas tanks SE2 800-27-15, SE2 500-27-15, SE2 400-27-15 Production: Suspension parts Automation: Robots 16 SPM SE4-1500-144-96 SE4-1000-144-84 , SE4-800-144-84 Automation: Robots Production: Outer car parts 12 SPM

  9. RAVNE Blanking lines PressSC2-600-24-16 with line (decoiler, double straighteener, components for material flow, line for fast die change) • Theadvantages: • Achievedstraighteness • Highlevelofproductivity: up to 140 pcs/min • One cutting operation is less –fewer presses

  10. RAVNE Progressive die presses SC2 -500-20-14 Automation: Feeding line PSN 400 Production: Structure parts 80 SPM SE4 -1600-240-108 Production: Structure parts 44 SPM • Progressive Die presses by Litostroj Ravne achieve stroking rates up to 90 SPM • They are available as link drive presses in capacities from 3.000 to 30.000 kN.

  11. Ravne references

  12. ADDITIONAL PRODUCTION PROGRAM DisassemblingRelocation Upgrade /Refurbishmentanypresses AssemblingSpareparts& Service

  13. UPGRADES – Quickdiechange • is suitable for TANDEM LINES without rolling bolsters. • With specially designed system the dies are changed in one interval on all presses. • Die change time can be lowered under three minutes. • The system was developed for companies that CHANGE DIES MANY TIMES PER SHIFT.

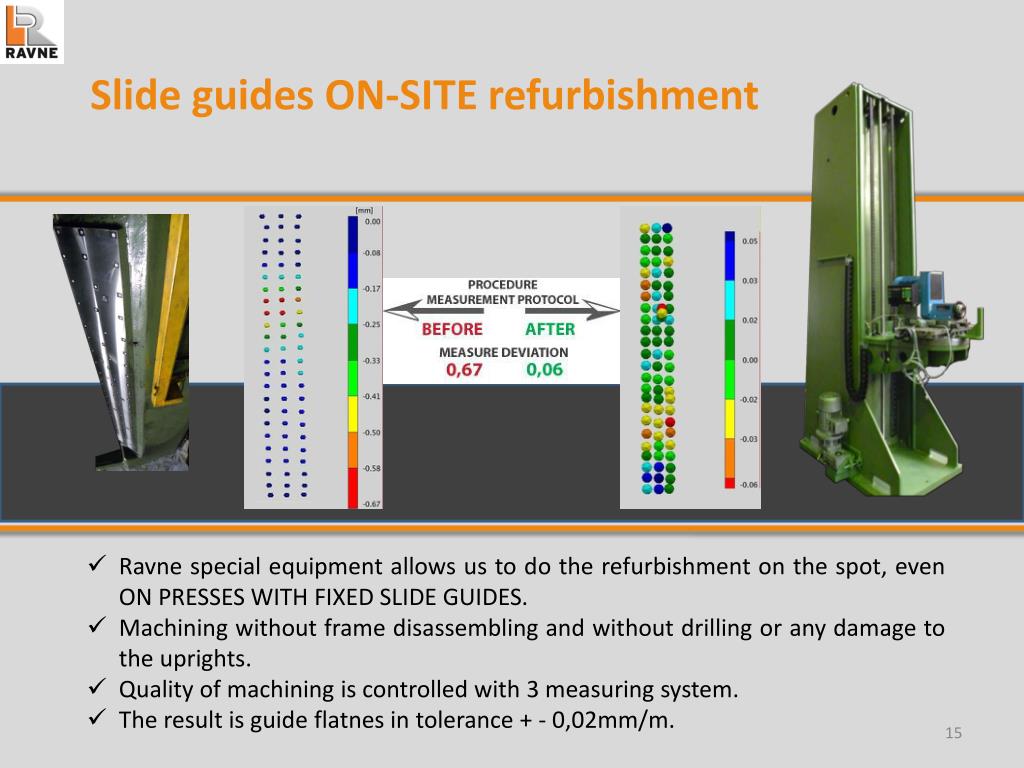

  14. Slide guides ON-SITE refurbishment • Ravne special equipment allows us to do the refurbishment on the spot, even on presses with FIXED SLIDE GUIDES. • Machiningwithoutframedisassemblingandwithoutdrilling or anydamage to theuprights. • Qualityofmachining is controlledwith 3 measuringsystem. • Theresultis guideflatnes in tolerance + - 0,02mm/m.

  15. RAVNE Presses „Bestprice/performance“ THANK YOU FOR ATTENTION! www.litostrojravne.com
