  1. Oracle 10.2RAC New Features Julian Dyke Independent Consultant Web Version juliandyke.com

  2. CLUVFY

  3. CLUVFY • Introduced in Oracle 10.2 • Read-only utility that verifies configuration of cluster at each stage of cluster installation • Detects many common configuration errors • Eliminates time-consuming troubleshooting • Supplied with Oracle Clusterware • Can be installed separately • Can also be used with Oracle 10.1 • Requires -r 10gR1 switch

  4. CLUVFY • Written in Java - requires JRE • Supplied with JRE • Alternatively can use existing JRE • Must set CV_JDKHOME environment variable • On Red Hat Linux also requires cvuqdisk package • Supplied on Oracle Clusterware CD rpm --Uvh cvuqdisk-1.0.1-1.rpm

  5. CLUVFY • Checks • stages • components • Stage checks • Verify all steps for specified stage have been completed • Component checks • Verify specified component has been correctly installed sh runcluvfy.sh -helpsh runcluvfy.sh stage -helpsh runcluvfy.sh comp -help

  6. CLUVFY • Stages include:

  7. CLUVFY • Components include:

  8. CLUVFY • For example, to check configuration before installing Oracle Clusterware on node1 and node2 use: sh runcluvfy.sh stage -pre crsinst -n node1,node2 • Checks: • node reachability • user equivalence • administrative privileges • node connectivity • shared stored accessibility • If any checks fail append -verbose to display more information

  9. OracleClusterwareFile Mirroring

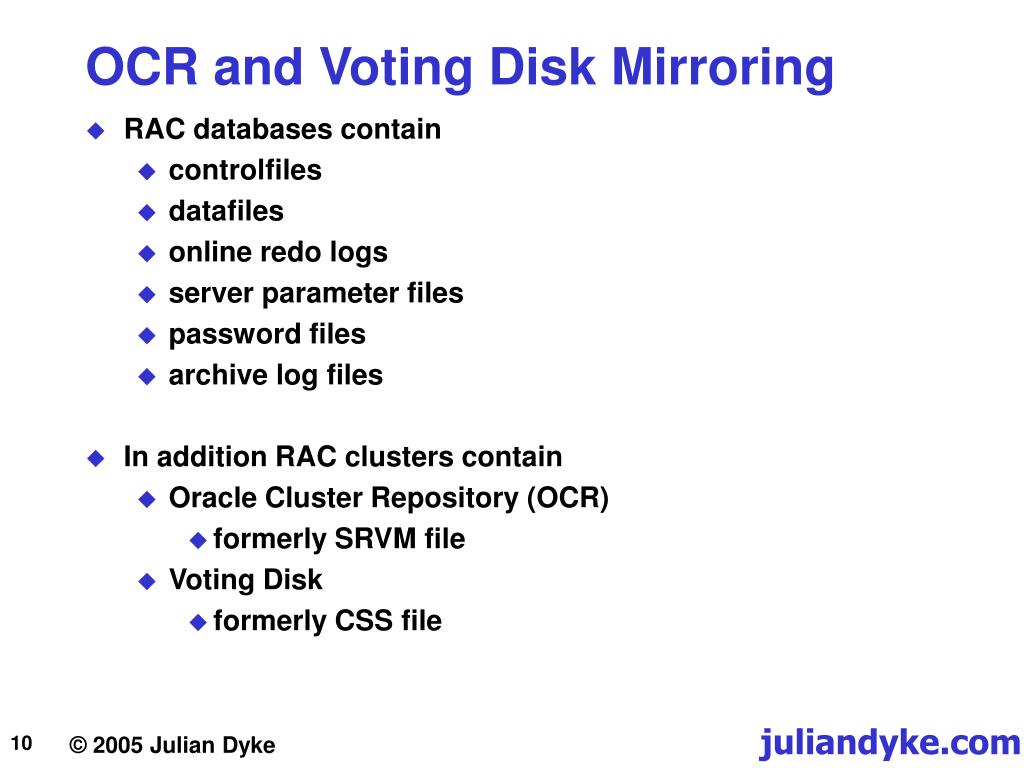

  10. OCR and Voting Disk Mirroring • RAC databases contain • controlfiles • datafiles • online redo logs • server parameter files • password files • archive log files • In addition RAC clusters contain • Oracle Cluster Repository (OCR) • formerly SRVM file • Voting Disk • formerly CSS file

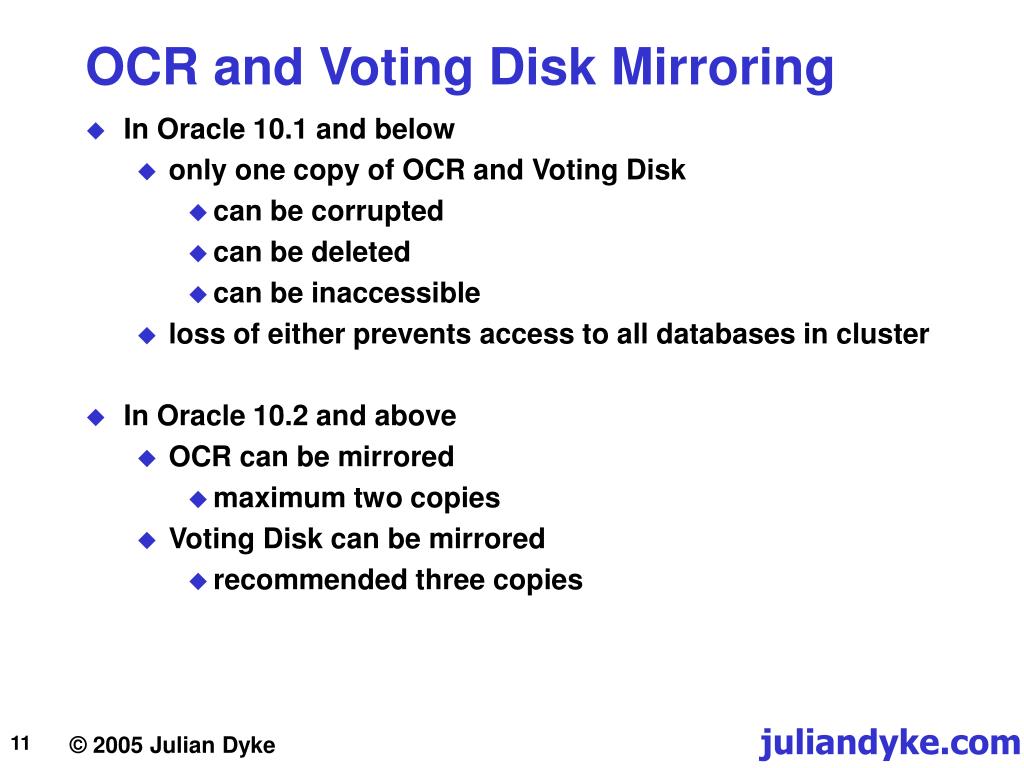

  11. OCR and Voting Disk Mirroring • In Oracle 10.1 and below • only one copy of OCR and Voting Disk • can be corrupted • can be deleted • can be inaccessible • loss of either prevents access to all databases in cluster • In Oracle 10.2 and above • OCR can be mirrored • maximum two copies • Voting Disk can be mirrored • recommended three copies

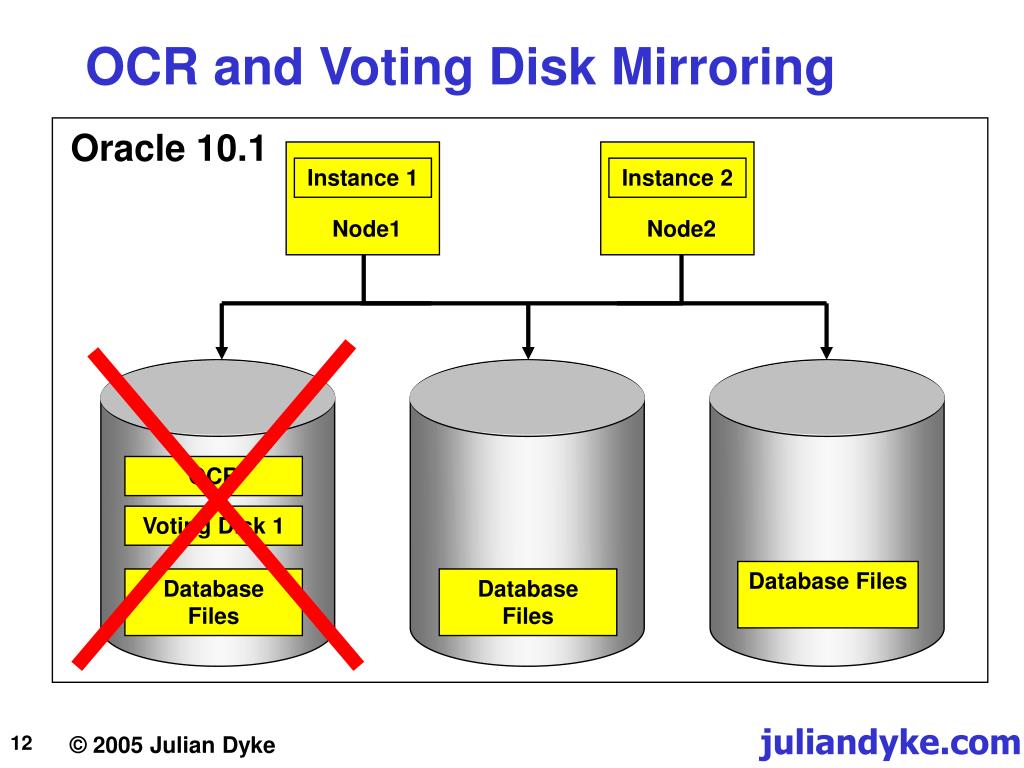

  12. Instance 1 Instance 2 Node1 Node2 OCR and Voting Disk Mirroring Oracle 10.1 OCR Voting Disk 1 Database Files Database Files Database Files

  13. Instance 1 Instance 2 Node1 Node2 OCR and Voting Disk Mirroring Oracle 10.2 OCR OCR Mirror Voting Disk 1 Voting Disk 2 Voting Disk 3 Database Files Database Files Database Files

  14. DBCADatabaseCloning

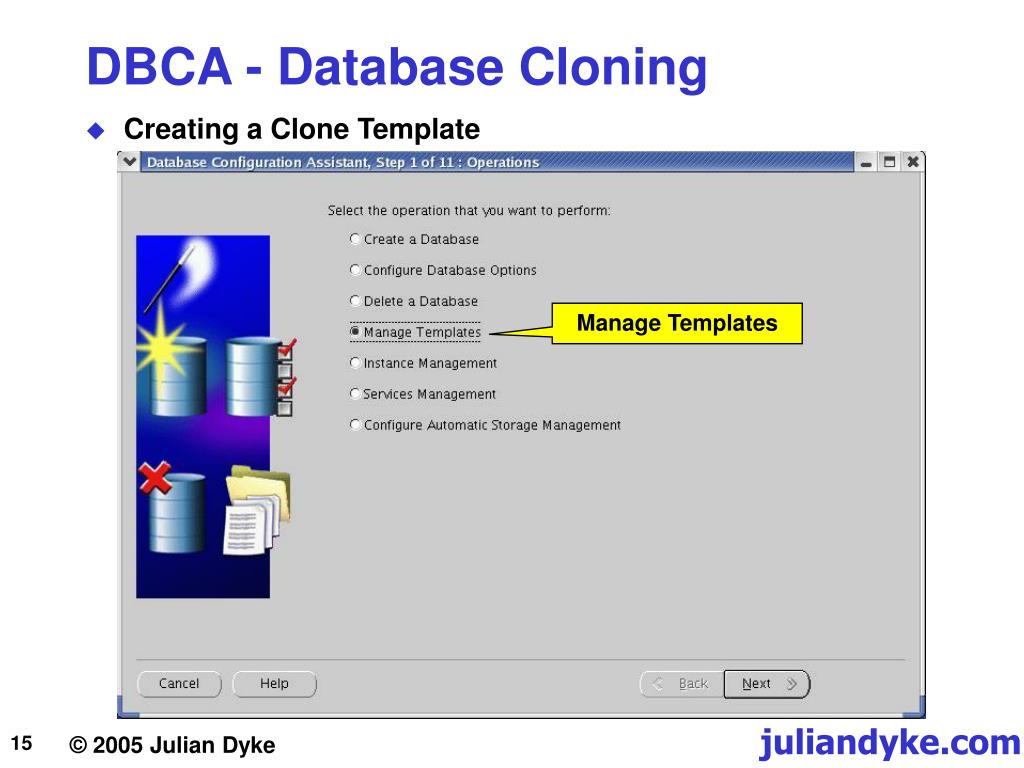

  15. DBCA - Database Cloning • Creating a Clone Template Manage Templates

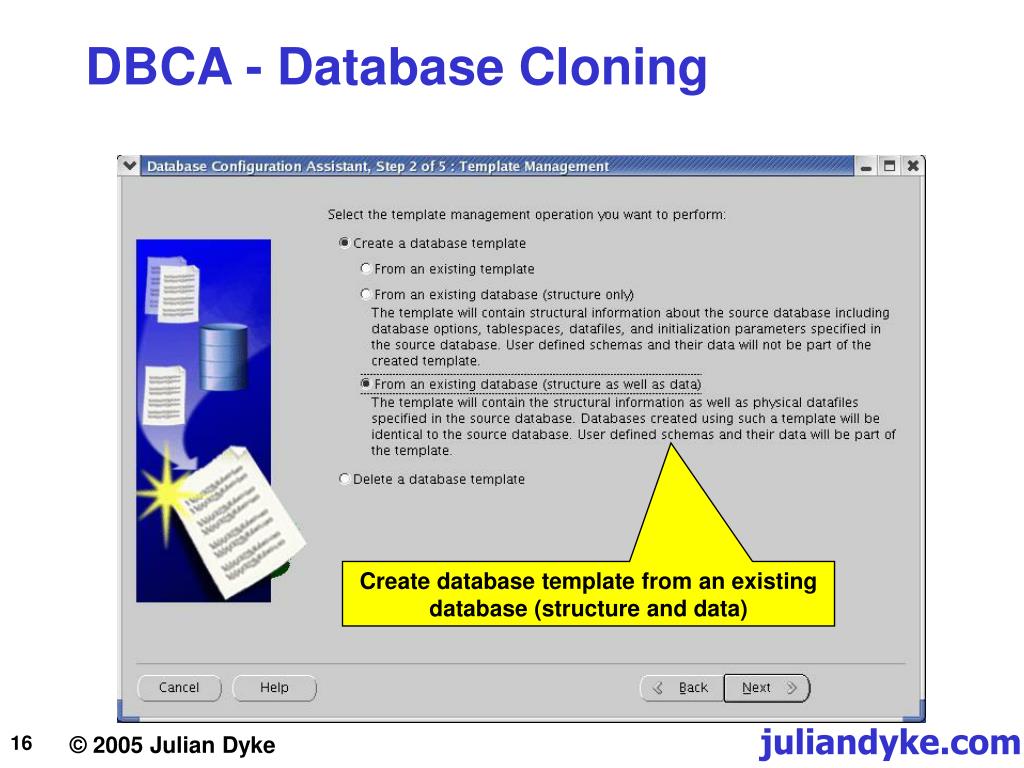

  16. DBCA - Database Cloning Create database template from an existing database (structure and data)

  17. DBCA - Database Cloning Choose database from which to create the template

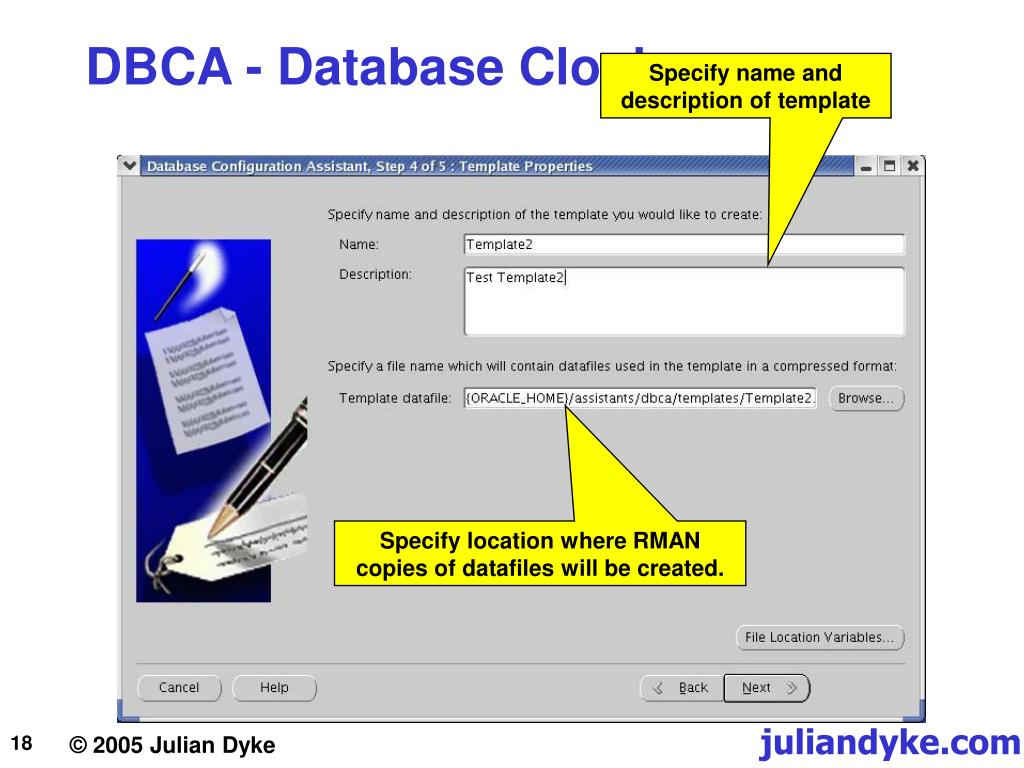

  18. DBCA - Database Cloning Specify name and description of template Specify location where RMAN copies of datafiles will be created.

  19. DBCA - Database Cloning Choose locations of database files

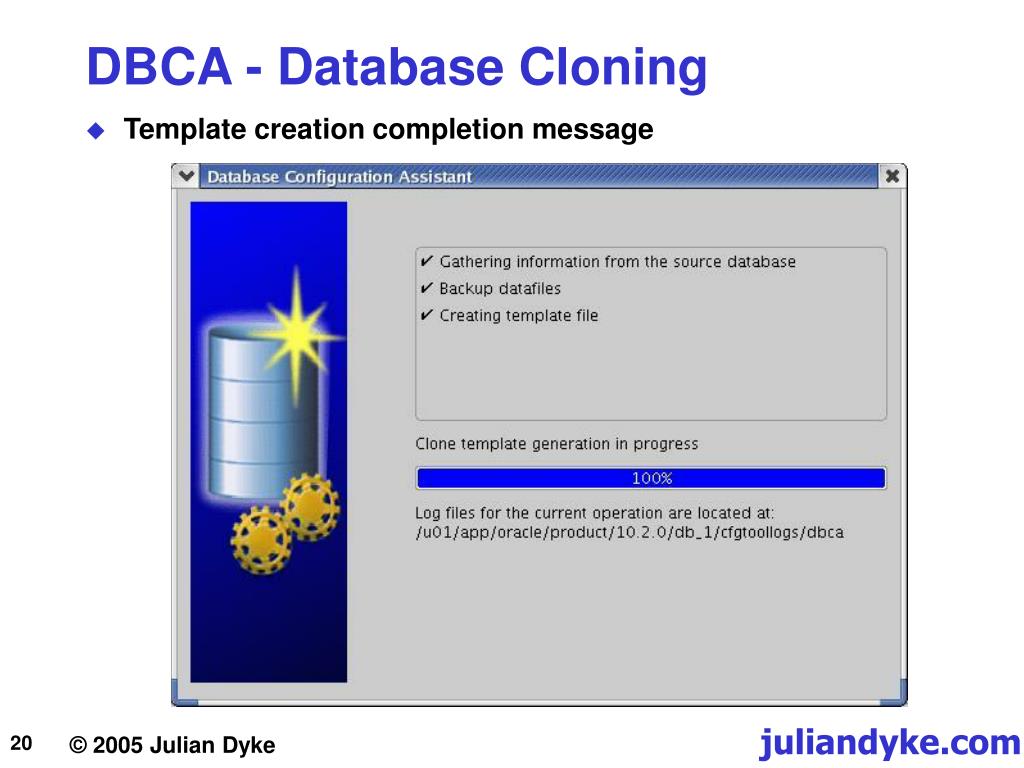

  20. DBCA - Database Cloning • Template creation completion message

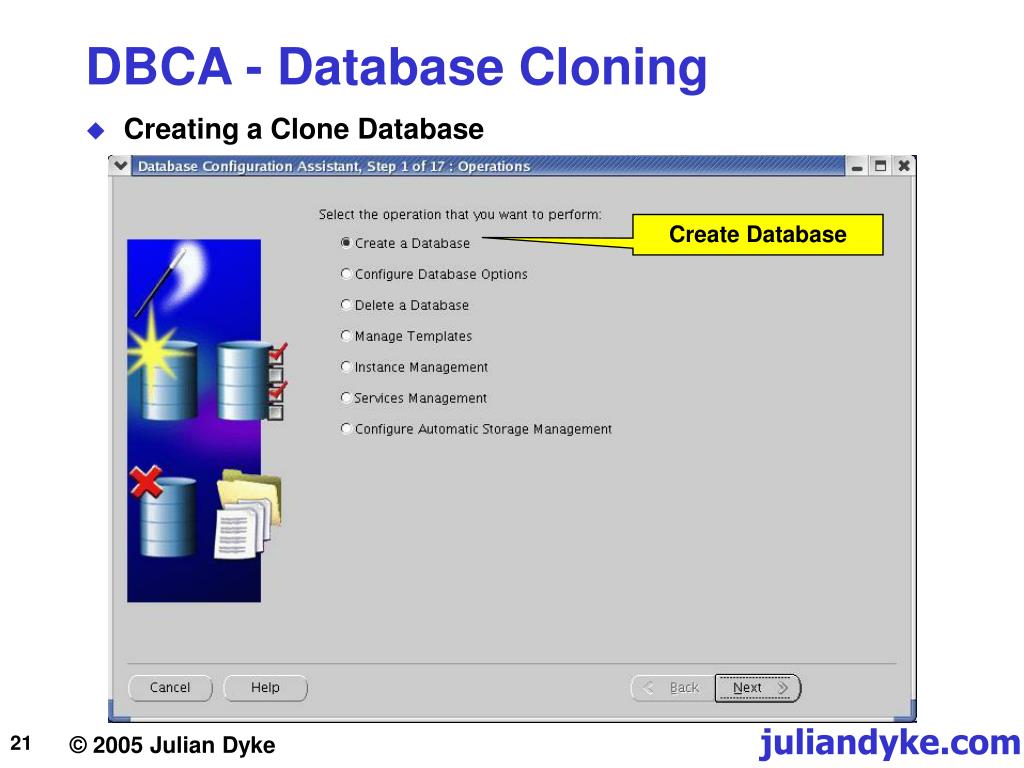

  21. DBCA - Database Cloning • Creating a Clone Database Create Database

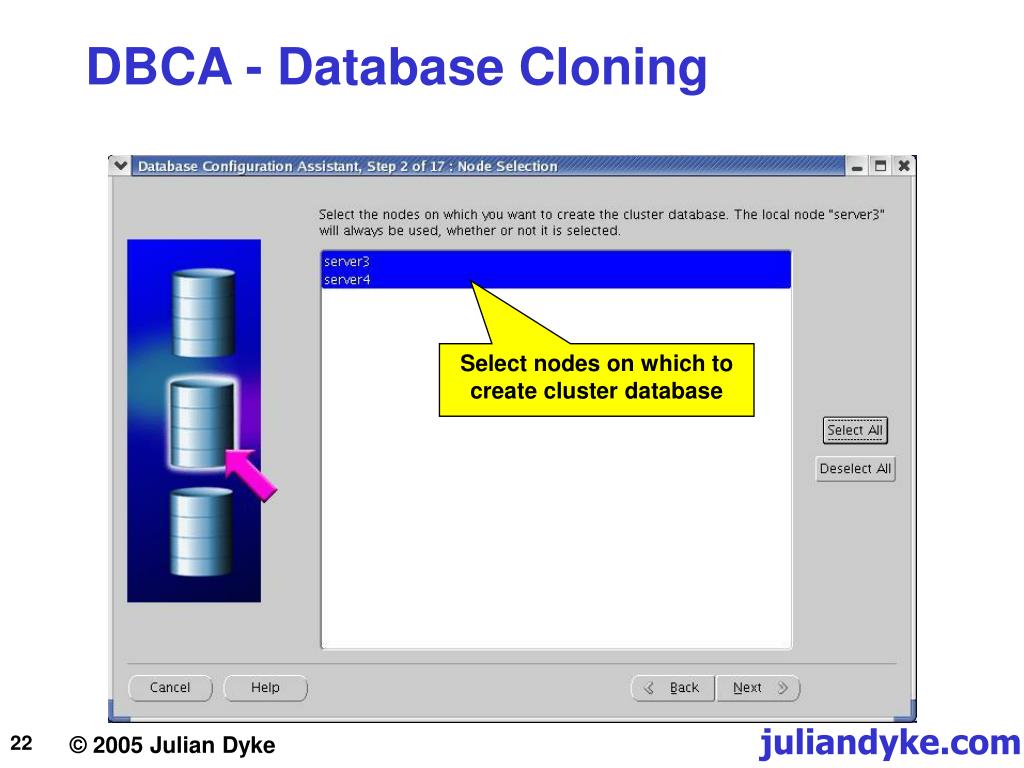

  22. DBCA - Database Cloning Manage Templates Select nodes on which to create cluster database

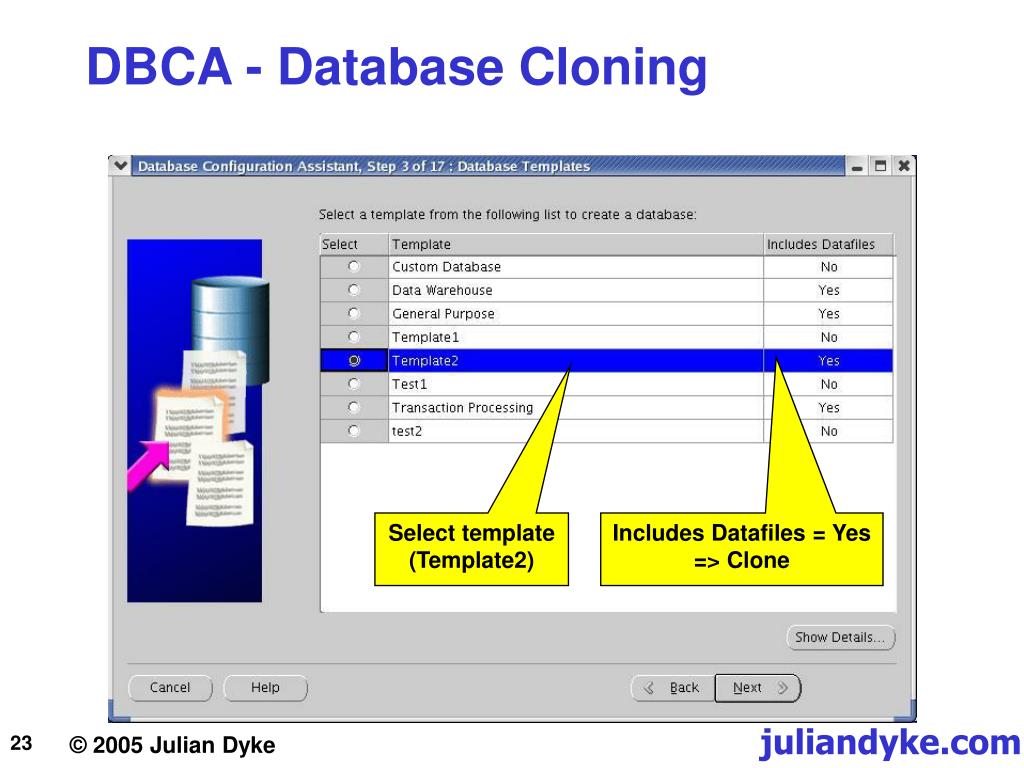

  23. DBCA - Database Cloning Select template(Template2) Includes Datafiles = Yes=> Clone

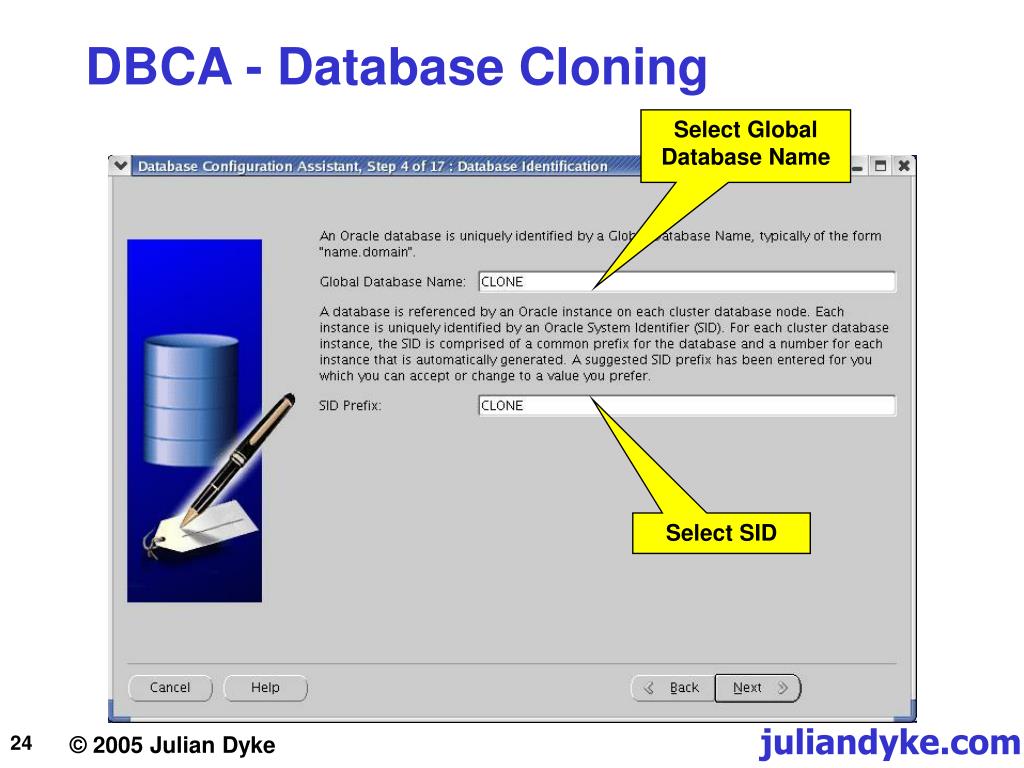

  24. DBCA - Database Cloning Select Global Database Name Select SID

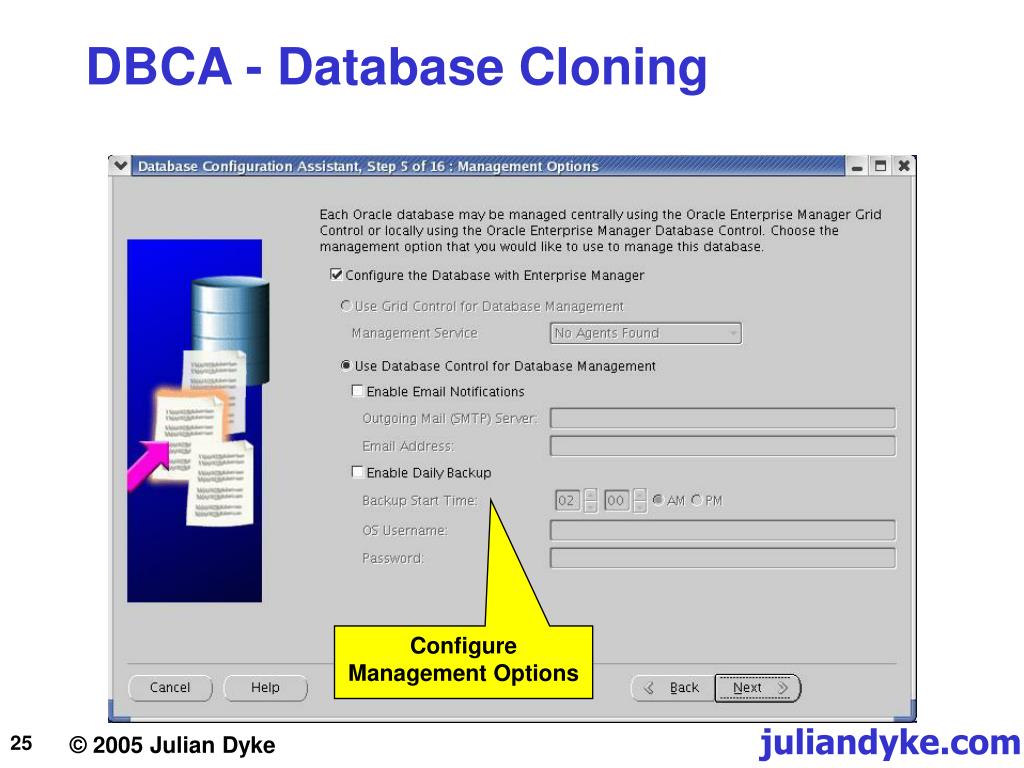

  25. DBCA - Database Cloning Select SID Configure Management Options

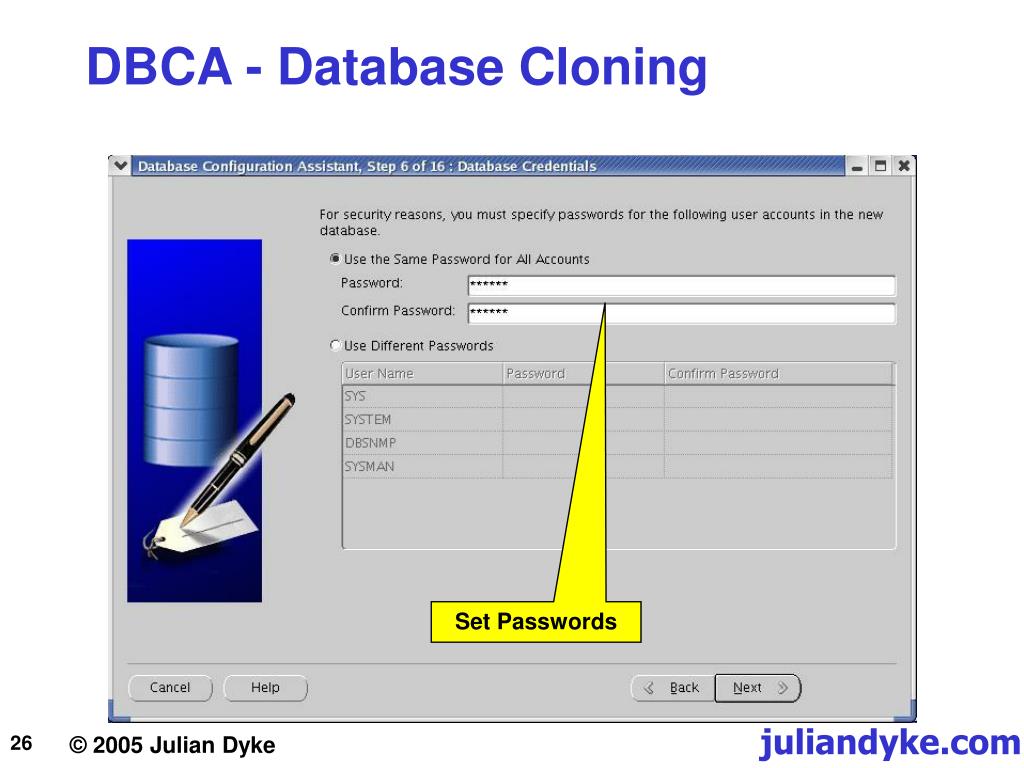

  26. DBCA - Database Cloning Select SID Set Passwords

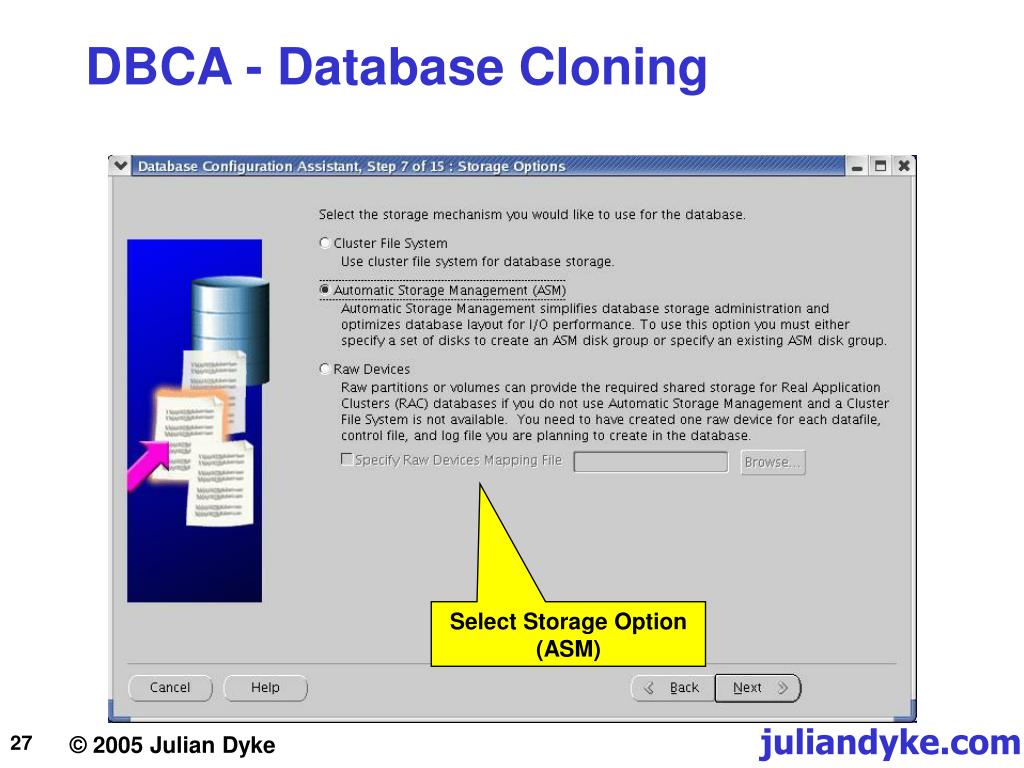

  27. DBCA - Database Cloning Select Storage Option(ASM)

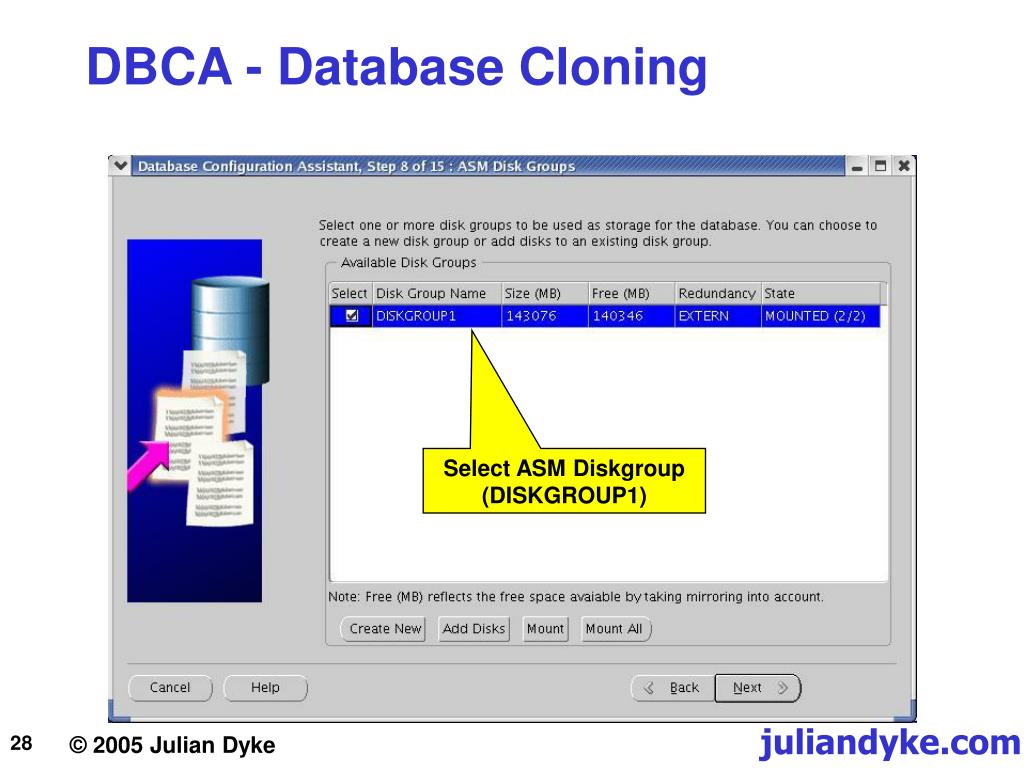

  28. DBCA - Database Cloning Select ASM Diskgroup(DISKGROUP1)

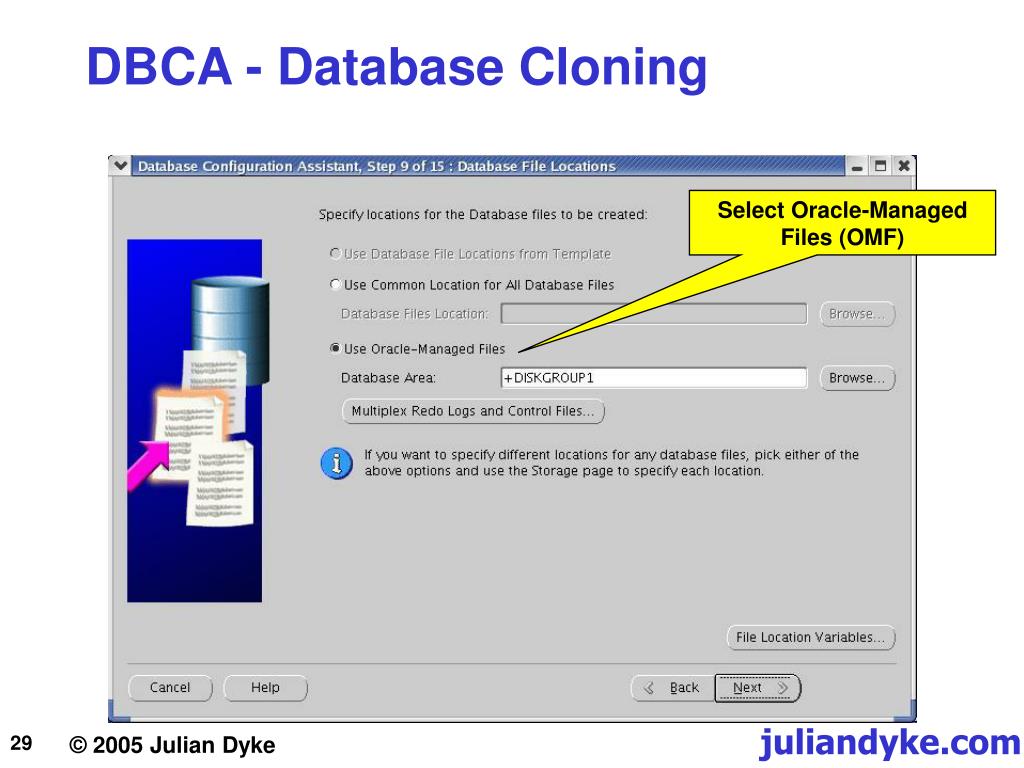

  29. DBCA - Database Cloning Select Oracle-Managed Files (OMF)

  30. DBCA - Database Cloning Optionally enable Flash Recovery Area and Archiving

  31. DBCA - Database Cloning Specify optional; custom initialization scripts Optionally enable Flash Recovery Area and Archiving

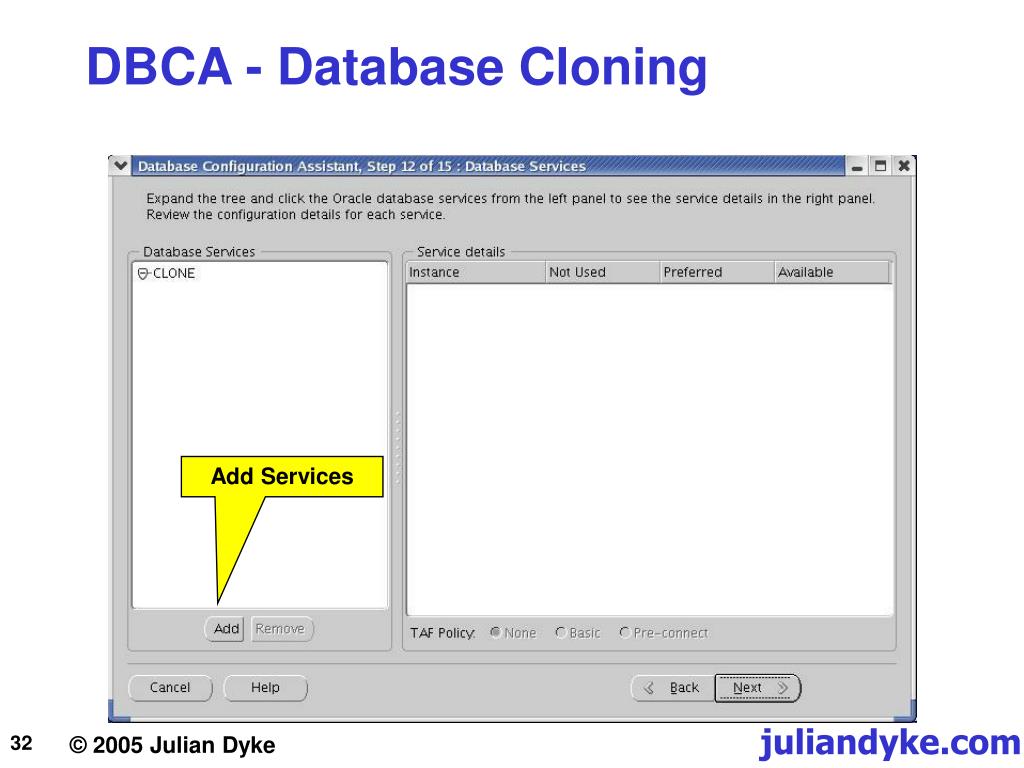

  32. DBCA - Database Cloning Add Services

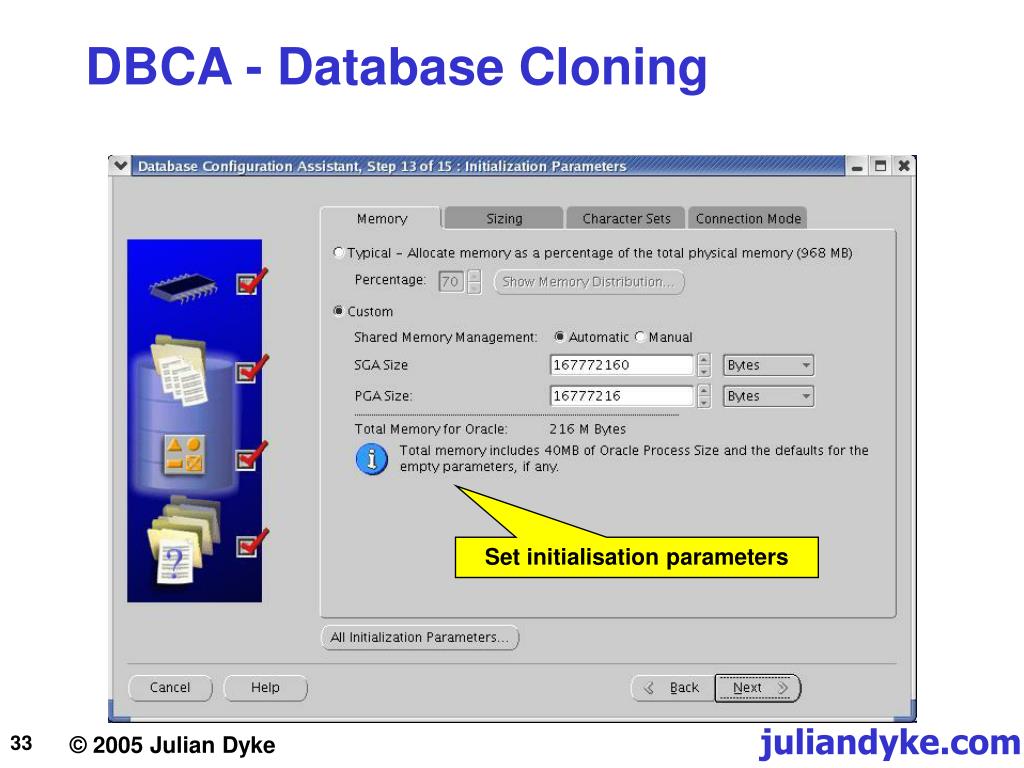

  33. DBCA - Database Cloning Set initialisation parameters

  34. DBCA - Database Cloning Configure storage

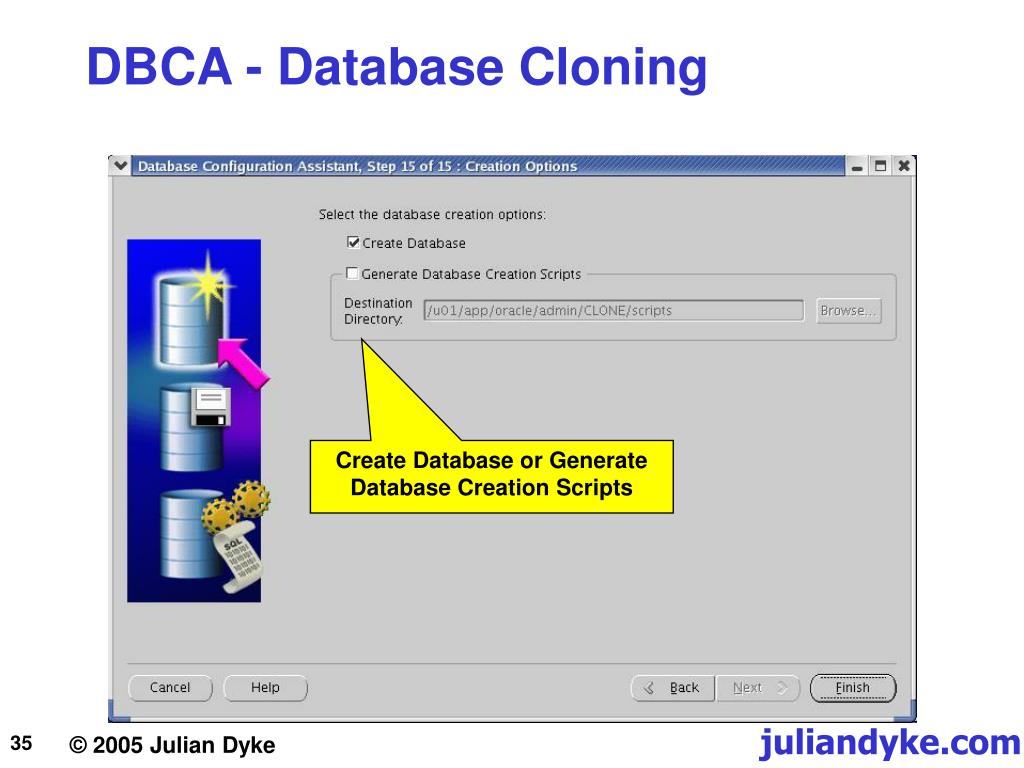

  35. DBCA - Database Cloning Create Database or Generate Database Creation Scripts

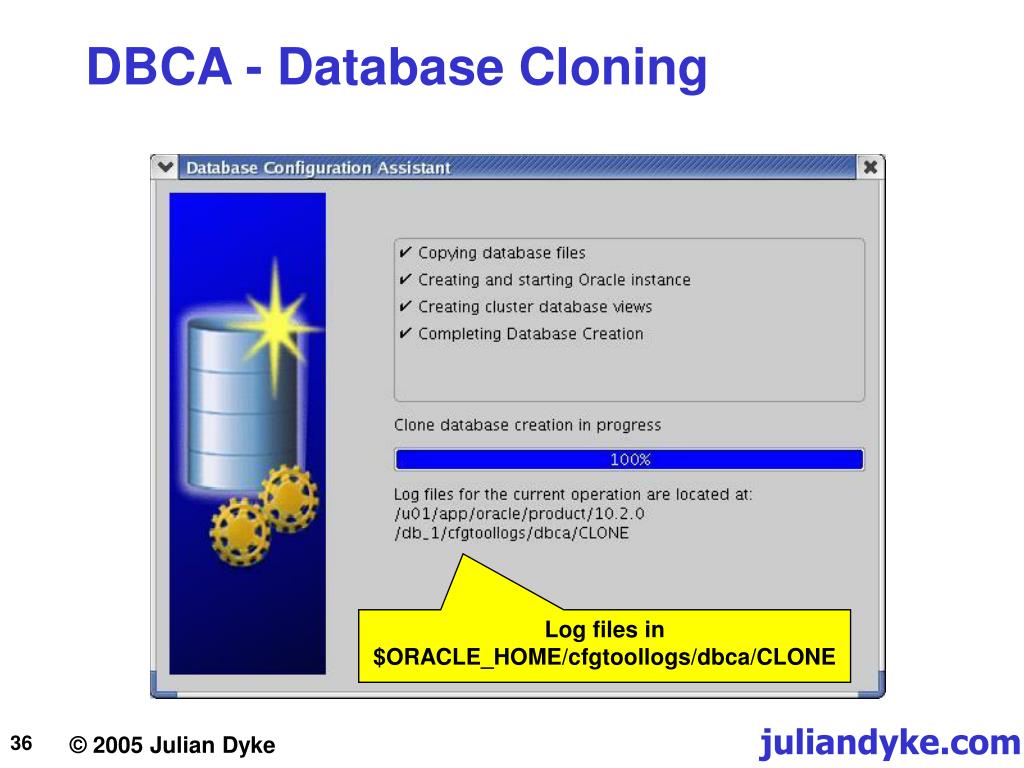

  36. DBCA - Database Cloning Create Database or Generate Database Creation Scripts Log files in $ORACLE_HOME/cfgtoollogs/dbca/CLONE

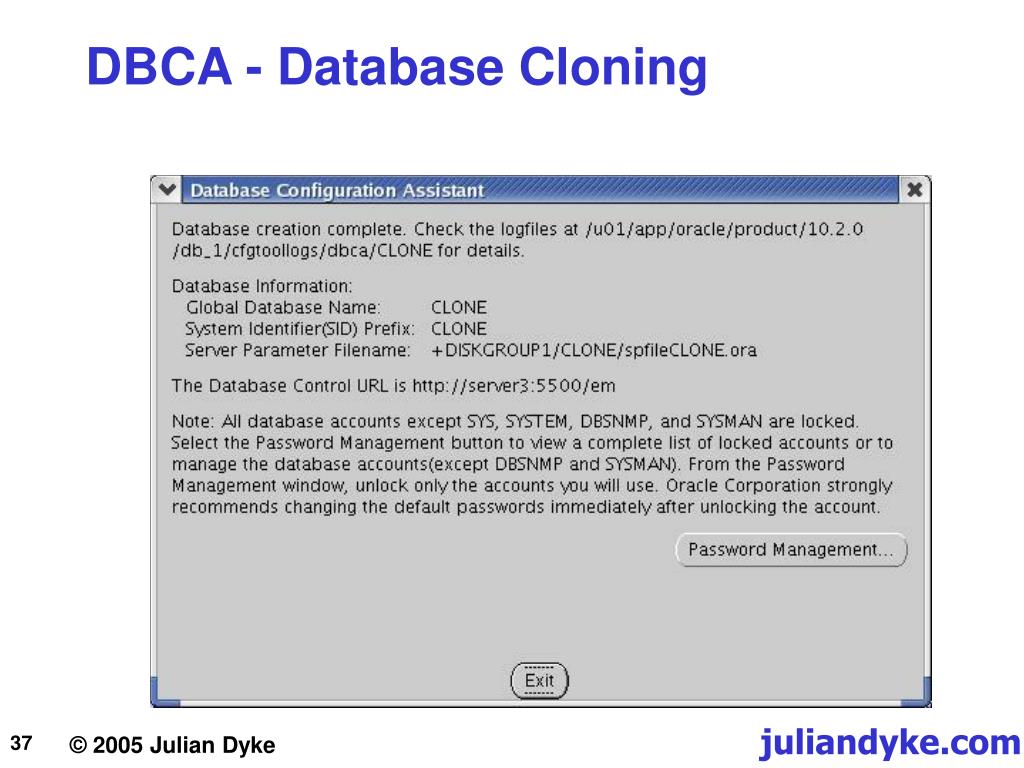

  37. DBCA - Database Cloning Create Database or Generate Database Creation Scripts

  38. Thank you for listening info@juliandyke.com
