  1. Structure-Property RelationshipDiscotic Liquid Crystals CHM3T1 Lecture-3 M. Manickam School of Chemistry The University of Birmingham M.Manickam@bham.ac.uk

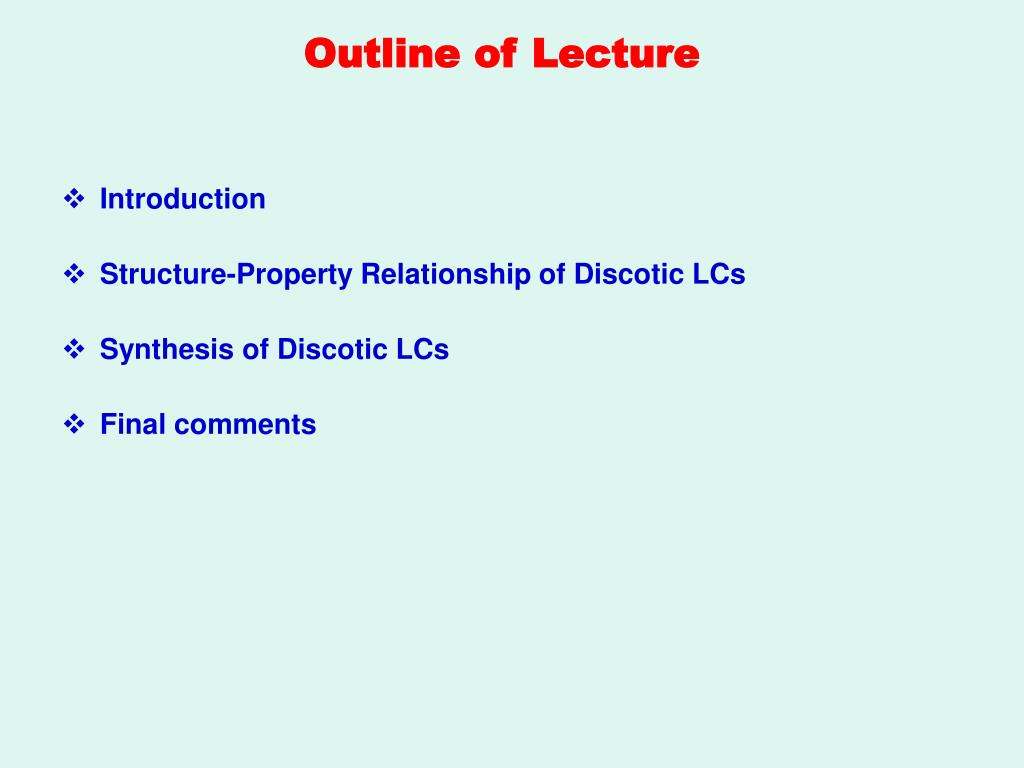

  2. Outline of Lecture • Introduction • Structure-Property Relationship of Discotic LCs • Synthesis of Discotic LCs • Final comments

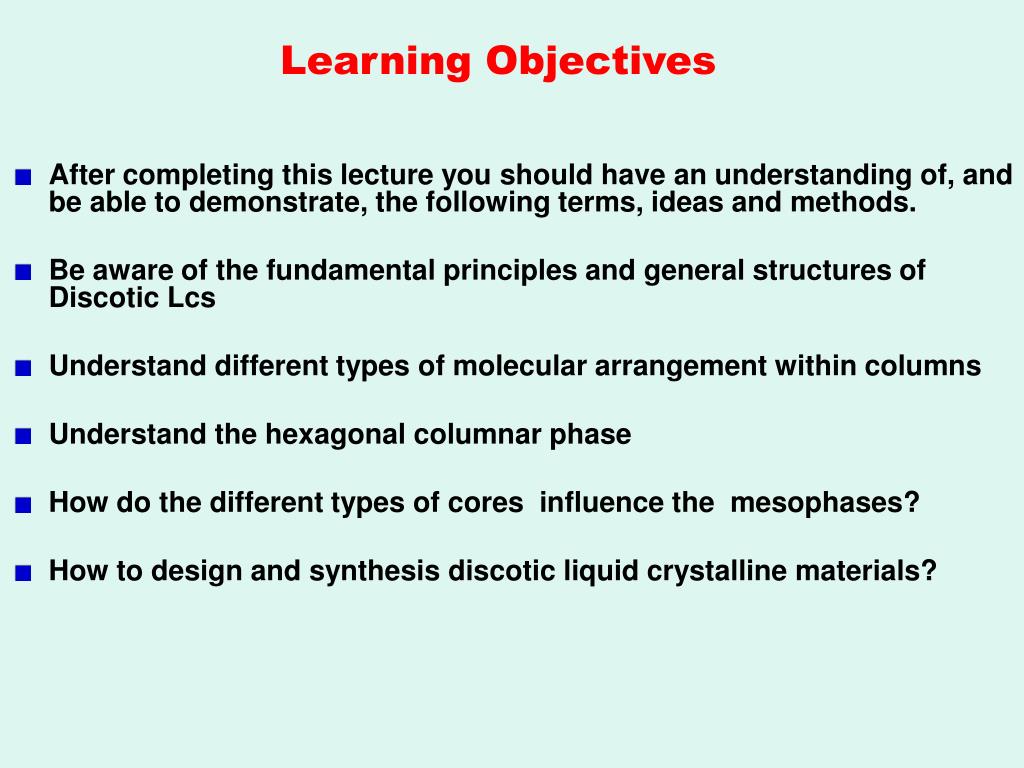

  3. Learning Objectives • After completing this lecture you should have an understanding of, and be able to demonstrate, the following terms, ideas and methods. • Be aware of the fundamental principles and general structures of Discotic Lcs • Understand different types of molecular arrangement within columns • Understand the hexagonal columnar phase • How do the different types of cores influence the mesophases? • How to design and synthesis discotic liquid crystalline materials?

  4. Nomenclature Dho: discotic hexagonal ordered phase Dhd: discotic hexagonal disordered phase Drd: discotic rectangular disordered phase Dob.d: oblique n: director ND: nematic discotic phase Colh: hexagonal discotic

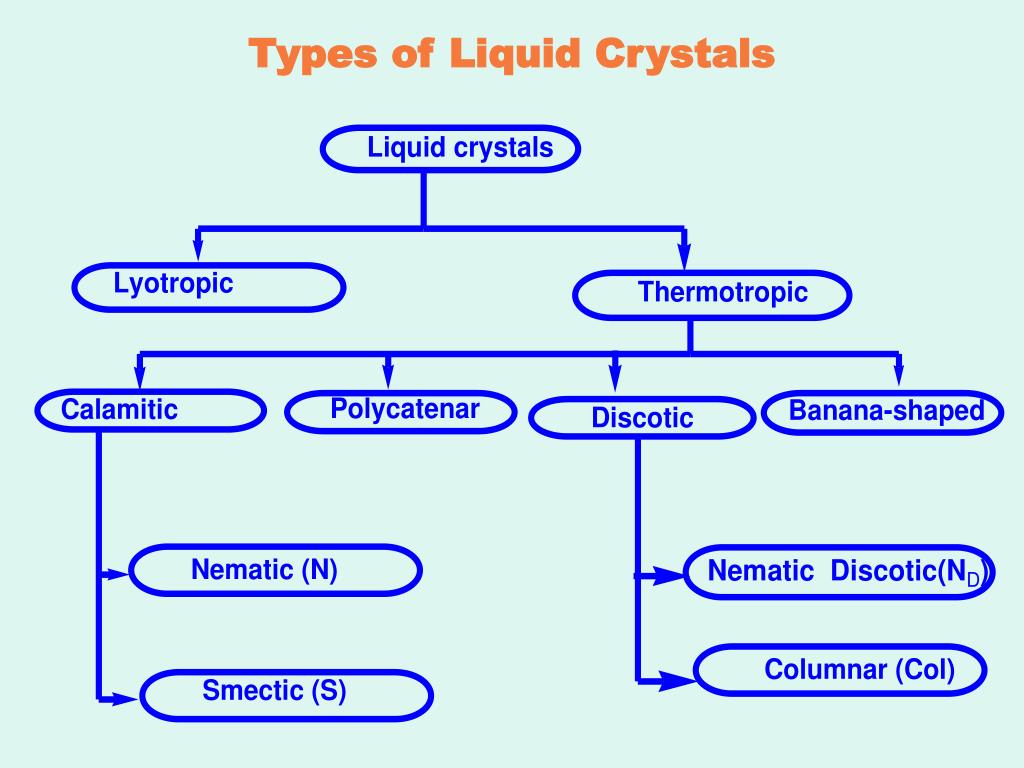

  5. Types of Liquid Crystals

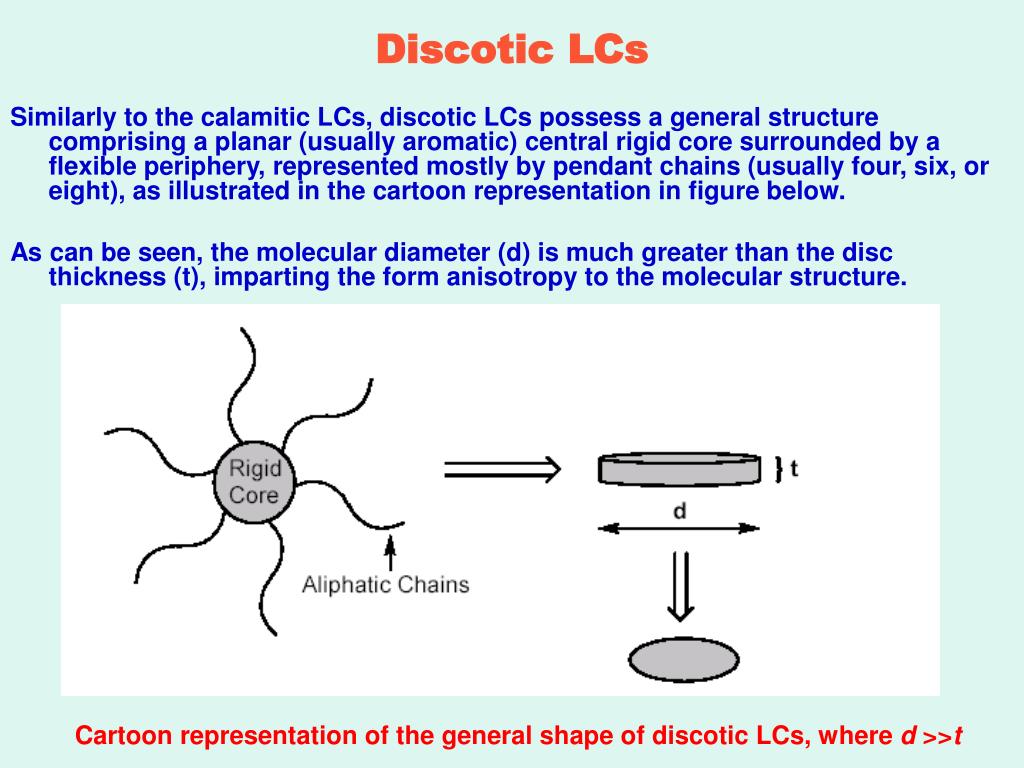

  6. Discotic LCs Similarly to the calamitic LCs, discotic LCs possess a general structure comprising a planar (usually aromatic) central rigid core surrounded by a flexible periphery, represented mostly by pendant chains (usually four, six, or eight), as illustrated in the cartoon representation in figure below. As can be seen, the molecular diameter (d) is much greater than the disc thickness (t), imparting the form anisotropy to the molecular structure. Cartoon representation of the general shape of discotic LCs, where d >>t

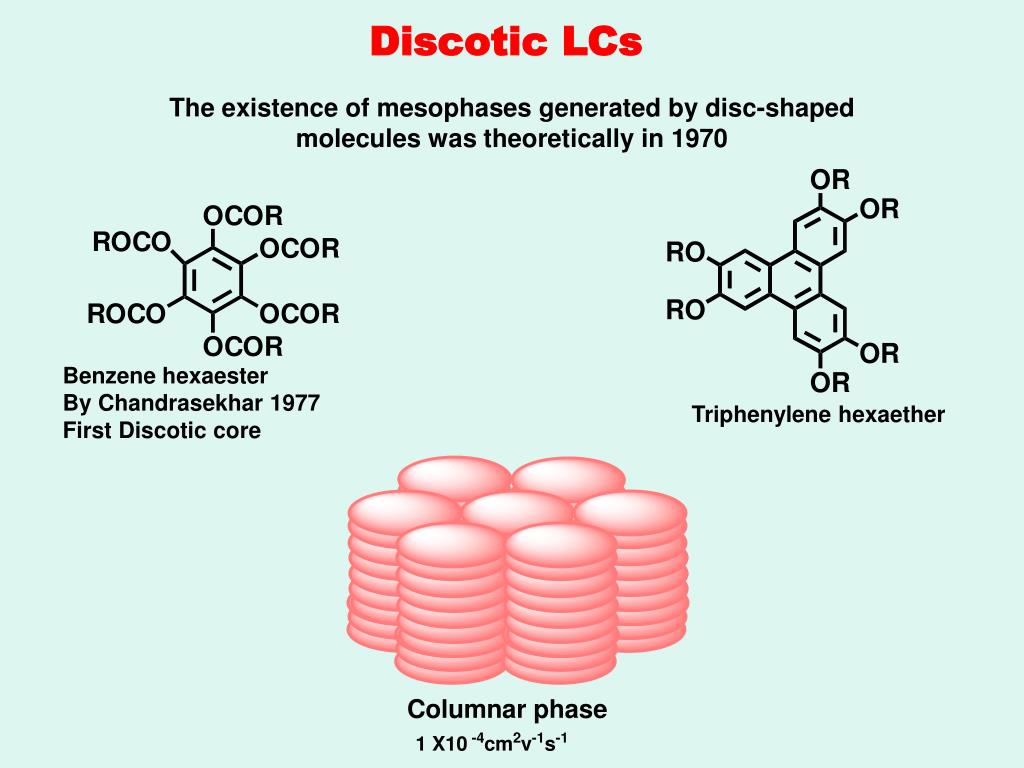

  7. Discotic LCs The existence of mesophases generated by disc-shaped molecules was theoretically in 1970 Benzene hexaester By Chandrasekhar 1977 First Discotic core Triphenylene hexaether

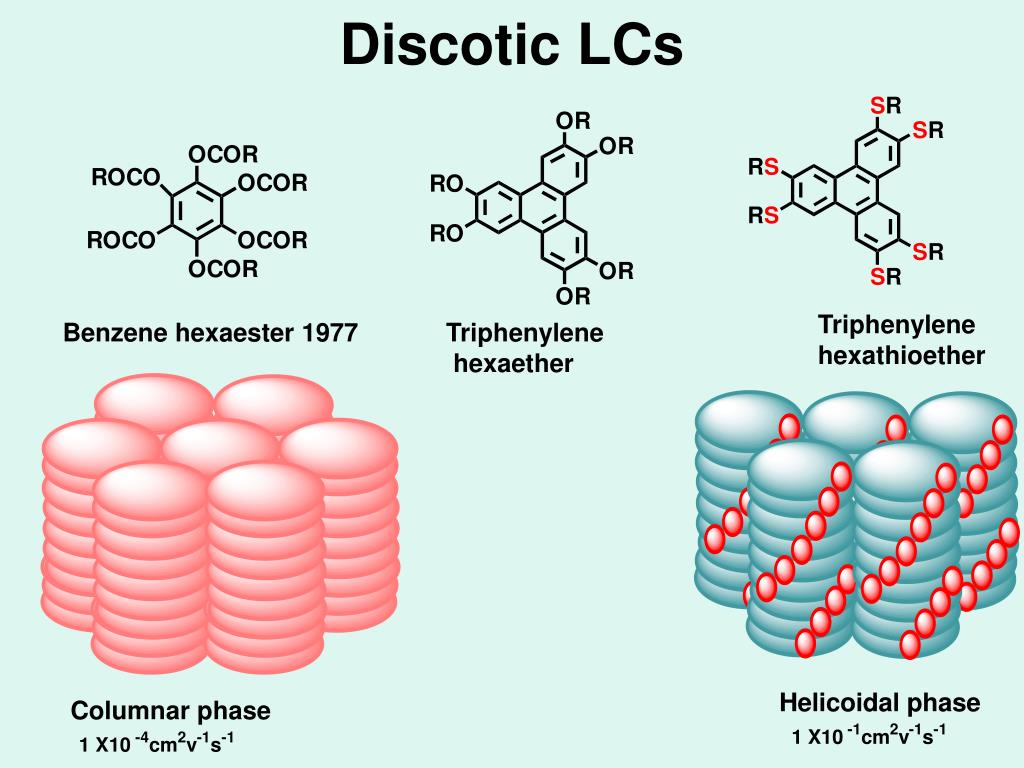

  8. Discotic LCs Triphenylene hexathioether Triphenylene hexaether Benzenehexaester1977

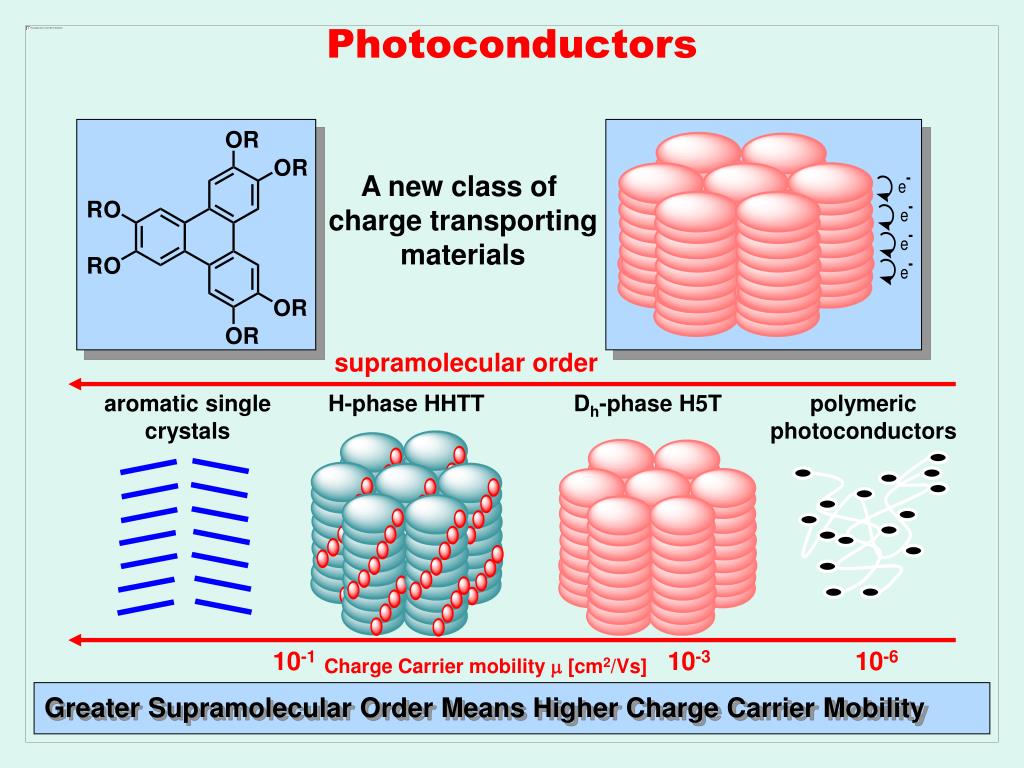

  9. Photoconductors A new class of charge transporting materials supramolecular order aromatic single crystals H-phase HHTT Dh-phase H5T polymeric photoconductors 10-1 10-3 10-6 Charge Carrier mobility  [cm2/Vs] Greater Supramolecular Order Means Higher Charge Carrier Mobility

  10. Applications of Discotic Liquid Crystals Columnar phases as electron transport system • One-dimensional conductors • Photo-conducting systems • One-dimensional energy transfer properties • Electro luminescence • Light emitting diodes • Optoelectrical switching • Photovoltaic • Electrically tuneable cholesteric mirrors Molecular wires

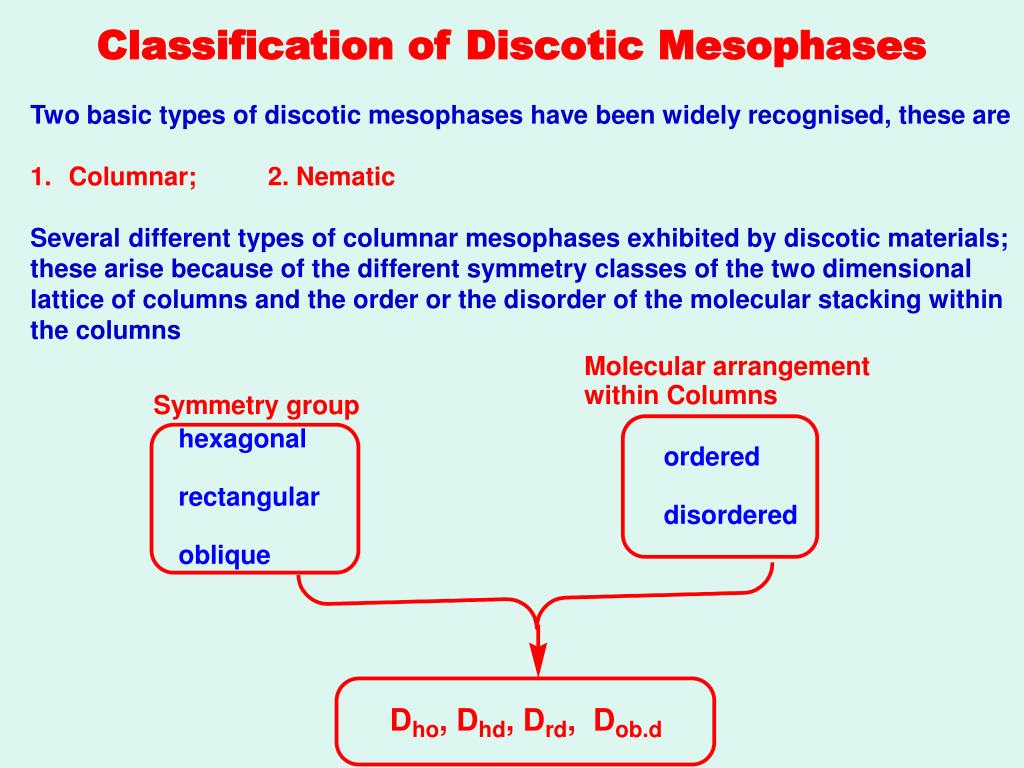

  11. Classification of Discotic Mesophases • Two basic types of discotic mesophases have been widely recognised, these are • Columnar; 2. Nematic • Several different types of columnar mesophases exhibited by discotic materials; • these arise because of the different symmetry classes of the two dimensional • lattice of columns and the order or the disorder of the molecular stacking within • the columns

  12. Discotic nematic phase Figure: Representation of the ND phase, where the molecules are aligned in the same orientation, with no additional positional ordering Nematic discotic (ND) is the least ordered mesophase, where the molecules have only orientational order being aligned on average with the director as illustrated in the figure. There is no positional order.

  13. Columnar phases (b) (a) (c) Representation of (a) the general structure of Col phases, where the molecules are aligned in the same orientation and, in addition, form columns, (b) representation of Colr, (c) representation of Colh Columnar (Col) phases are more ordered. Here the disc-shaped cores have a tendency to stack one on the top of another, forming columns. Arrangement of these columns into different lattice patterns gives rise to a number of columnar mesophases, namely columnar rectangular (Colr) and columnar hexagonal (Colh) in the fashion described in the above figure.

  14. A General Structural Template A general structural template for discotic liquid crystals

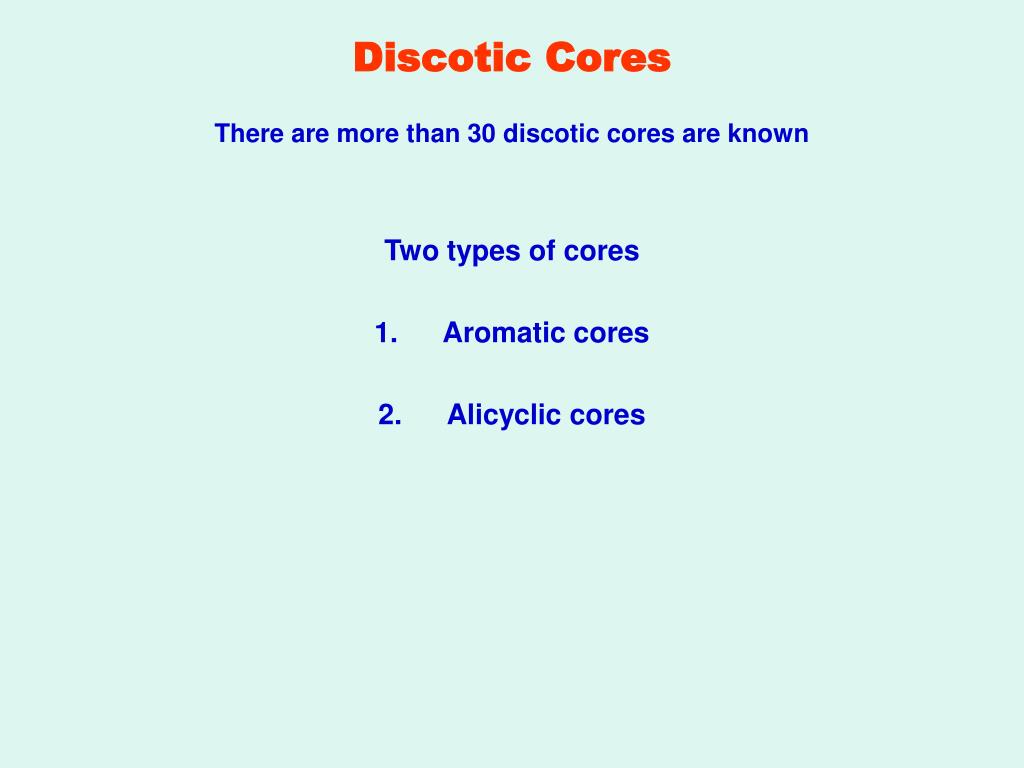

  15. Discotic Cores There are more than 30 discotic cores are known Two types of cores • Aromatic cores • Alicyclic cores

  16. Linking Groups Linking groups are normally those structural units, other than a direct bond, that connect one part of a core to another Selected examples of linking groups in liquid crystals ester dimethylene methyleneoxy cinnamate acetylene ethylene Imine (Schiff’s base) azo

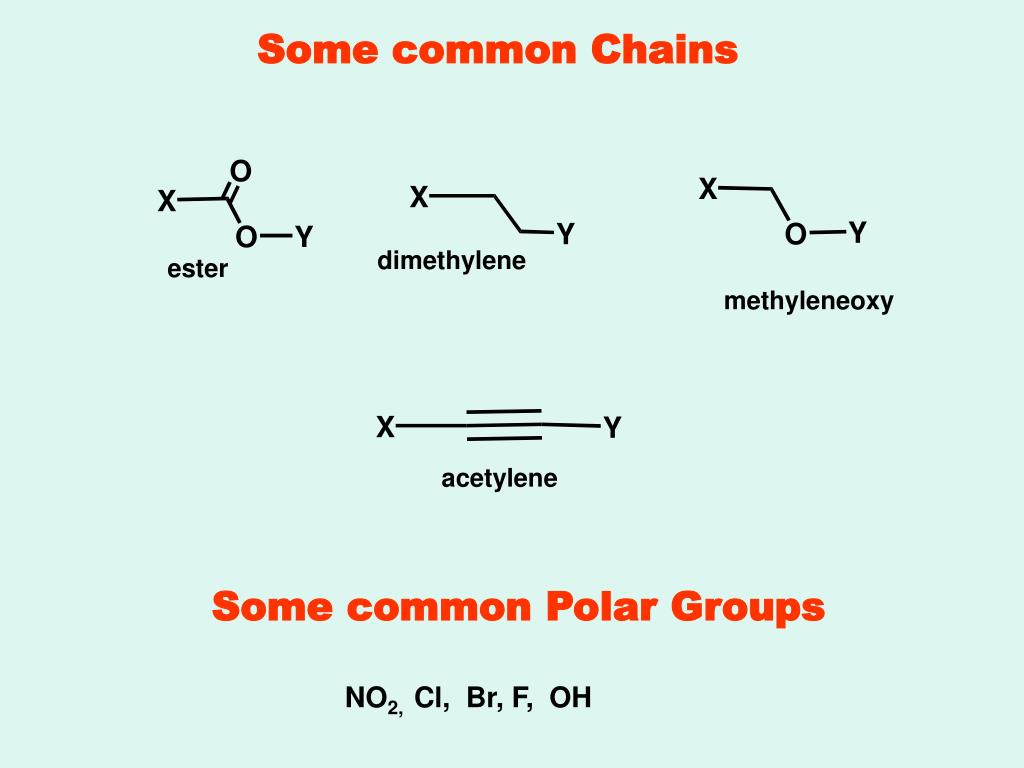

  17. Some common Chains dimethylene ester methyleneoxy acetylene Some common Polar Groups NO2, Cl, Br, F, OH

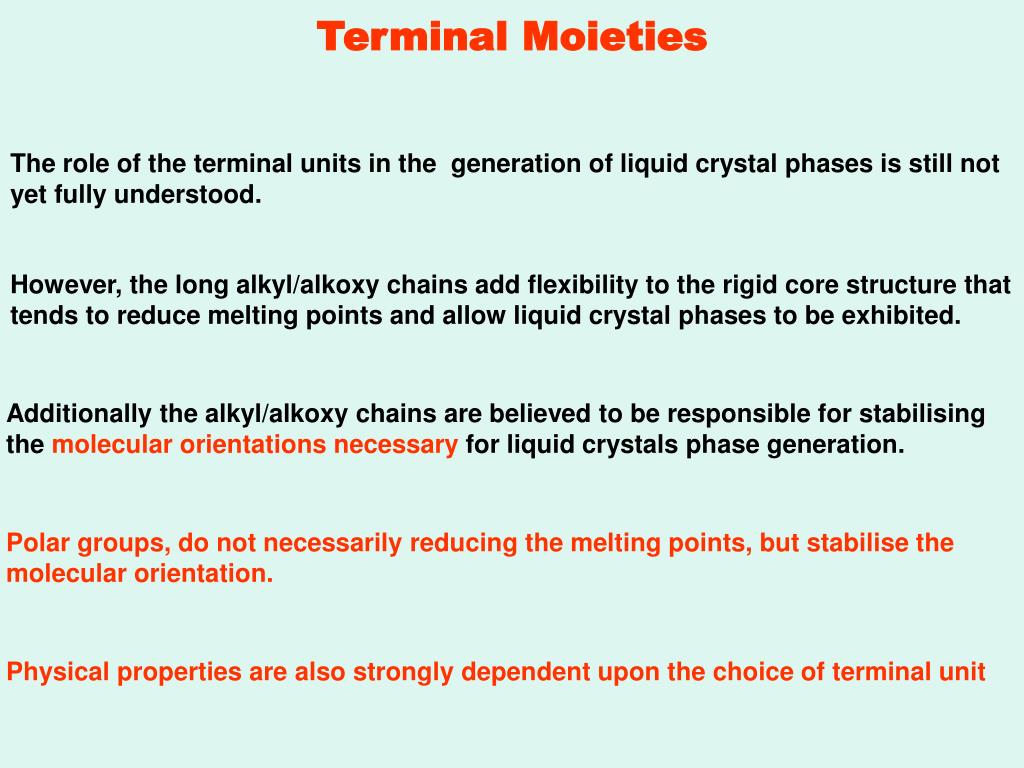

  18. Terminal Moieties The role of the terminal units in the generation of liquid crystal phases is still not yet fully understood. However, the long alkyl/alkoxy chains add flexibility to the rigid core structure that tends to reduce melting points and allow liquid crystal phases to be exhibited. Additionally the alkyl/alkoxy chains are believed to be responsible for stabilising the molecular orientations necessary for liquid crystals phase generation. Polar groups, do not necessarily reducing the melting points, but stabilise the molecular orientation. Physical properties are also strongly dependent upon the choice of terminal unit

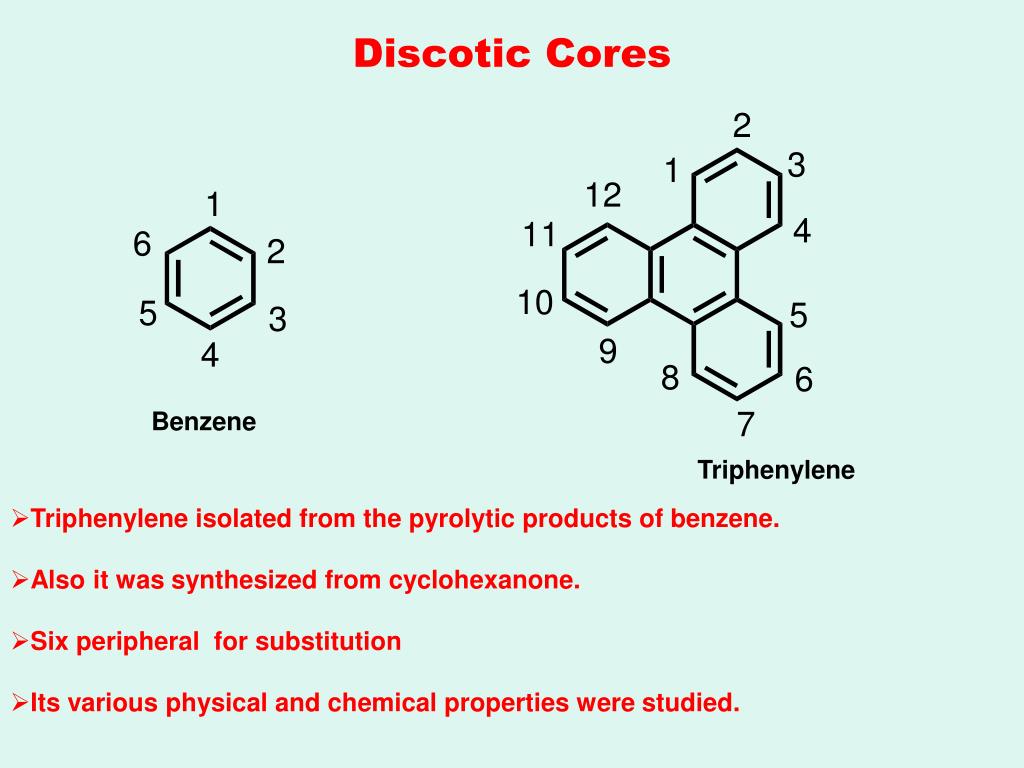

  19. Discotic Cores Benzene Triphenylene • Triphenylene isolated from the pyrolytic products of benzene. • Also it was synthesized from cyclohexanone. • Six peripheral for substitution • Its various physical and chemical properties were studied.

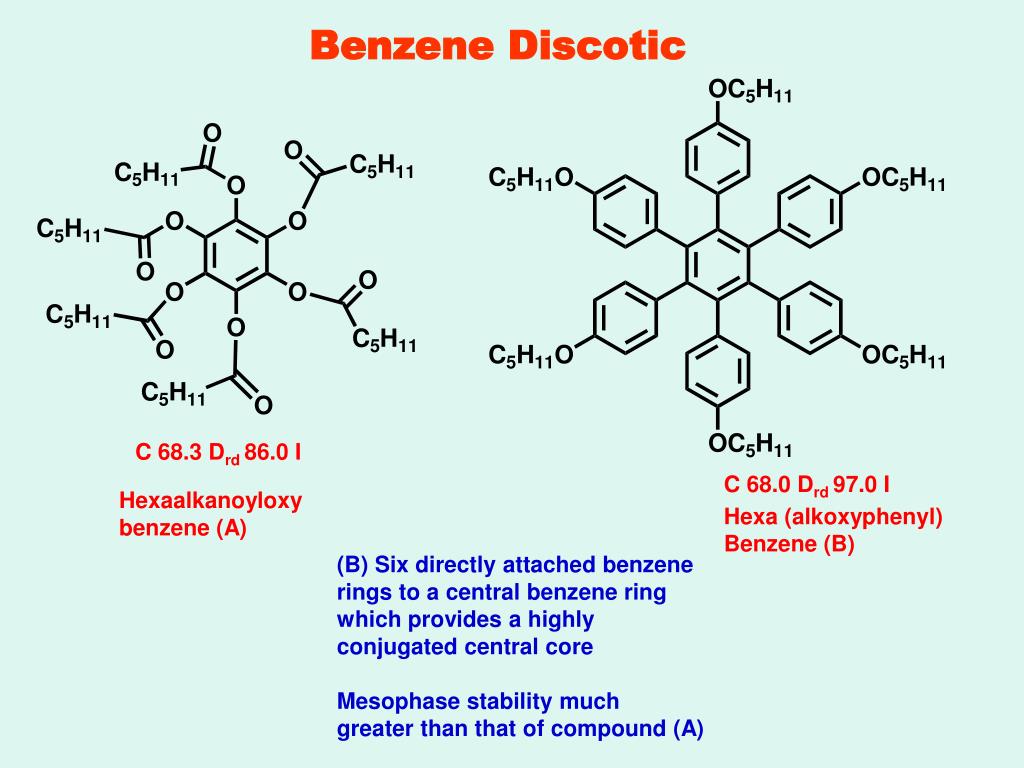

  20. Benzene Discotic C 68.3 Drd 86.0 I C 68.0 Drd 97.0 I Hexaalkanoyloxy benzene (A) Hexa (alkoxyphenyl) Benzene (B) (B) Six directly attached benzene rings to a central benzene ring which provides a highly conjugated central core Mesophase stability much greater than that of compound (A)

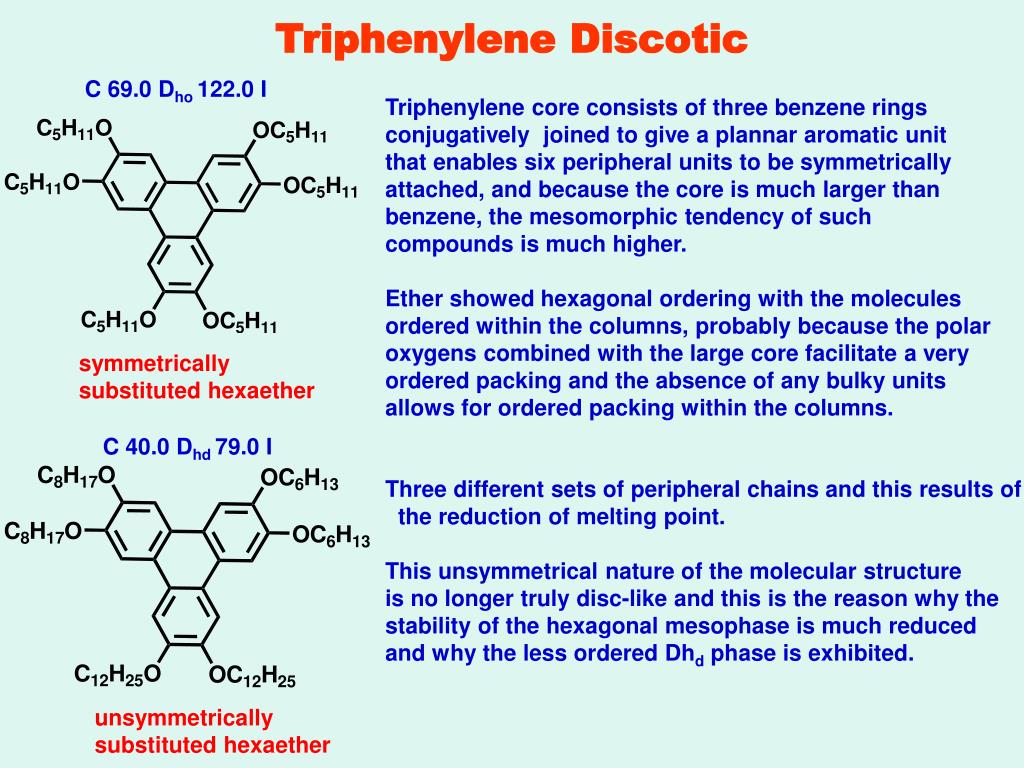

  21. Triphenylene Discotic C 69.0 Dho 122.0 I Triphenylene core consists of three benzene rings conjugatively joined to give a plannar aromatic unit that enables six peripheral units to be symmetrically attached, and because the core is much larger than benzene, the mesomorphic tendency of such compounds is much higher. Ether showed hexagonal ordering with the molecules ordered within the columns, probably because the polar oxygens combined with the large core facilitate a very ordered packing and the absence of any bulky units allows for ordered packing within the columns. symmetrically substituted hexaether C 40.0 Dhd 79.0 I Three different sets of peripheral chains and this results of the reduction of melting point. This unsymmetrical nature of the molecular structure is no longer truly disc-like and this is the reason why the stability of the hexagonal mesophase is much reduced and why the less ordered Dhd phase is exhibited. unsymmetrically substituted hexaether

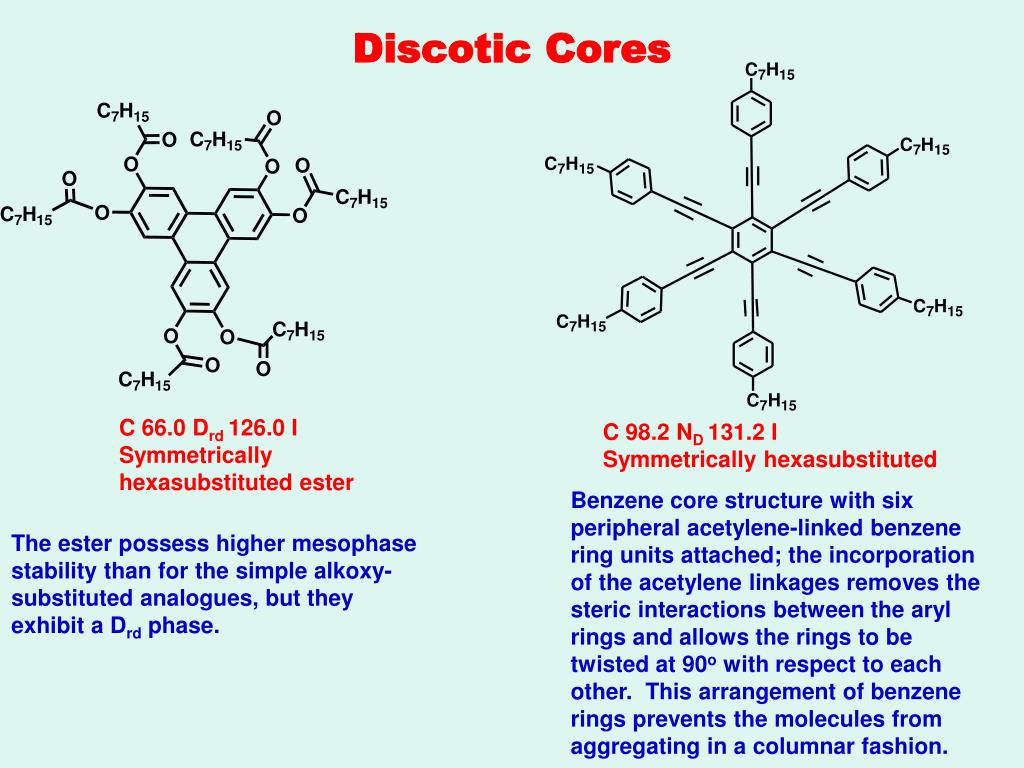

  22. Discotic Cores C 66.0 Drd 126.0 I Symmetrically hexasubstituted ester C 98.2 ND 131.2 I Symmetrically hexasubstituted Benzene core structure with six peripheral acetylene-linked benzene ring units attached; the incorporation of the acetylene linkages removes the steric interactions between the aryl rings and allows the rings to be twisted at 90o with respect to each other. This arrangement of benzene rings prevents the molecules from aggregating in a columnar fashion. The ester possess higher mesophase stability than for the simple alkoxy- substituted analogues, but they exhibit a Drd phase.

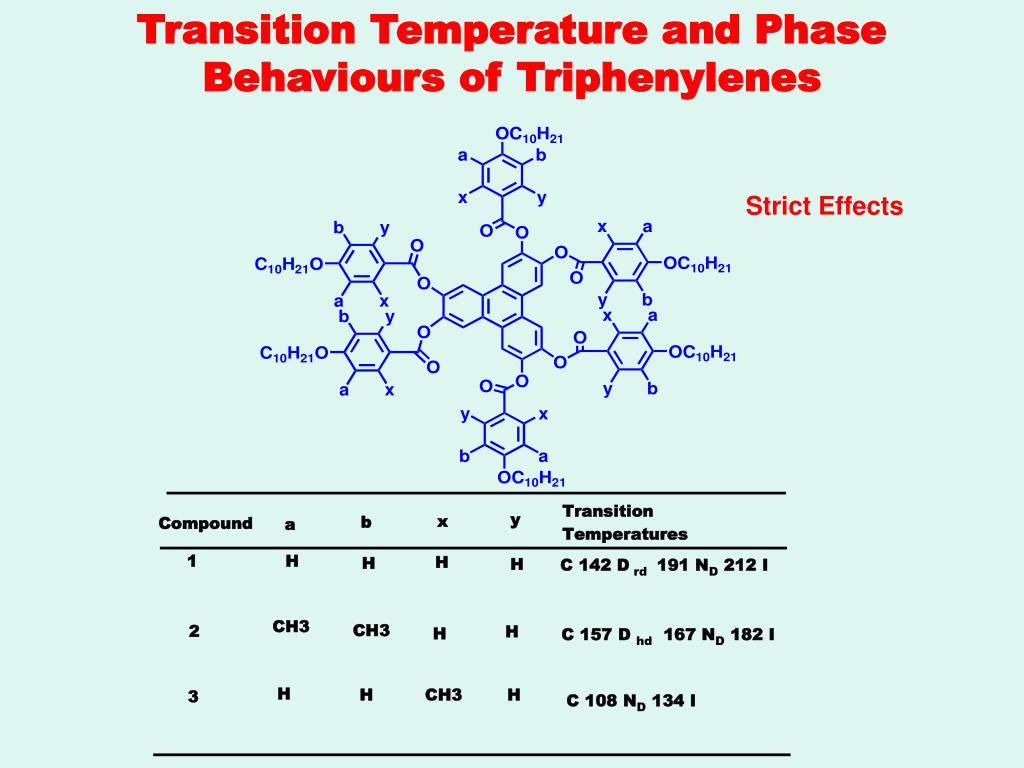

  23. Transition Temperature and Phase Behaviours of Triphenylenes Strict Effects

  24. Truxene Discotic Truxene hexaether Truxene core is even larger than the triphenylene core and consists of four benzene rings. Three radial rings are symmetrically attached to the central ring in two ways; firstly by a conjugative single bond, and secondly through a methylene spacer that locks in an approximately planar structure by preventing inter-annular twisting. The mesomorphic tendency of the compouns based on the hexa-substituted truxene core is very high. Simple ether exhibits a wide-range Dho phase up to 260 0C Ester compounds exhibits an inverted phase sequence where the ND phase is exhibited at a lower temperature than the Drd and the Dho mesophases. Normally this type of behaviour relates to a changing molecular packing ability with temperature, often caused by the conformational arrangements of the peripheral chains. C 67.0 Dho 260.0 I Truxene hexaester C 68.0 ND 85.0 Drd 138.0 Dho 280.0 I

  25. Phthalocyanines Discotic • Phthalocyanines have been targeted for a wide variety of applications including colour, dyes. • Electrochromics, detection of conductivity changes (sensors), • nonlinear optic and photodynamic therapy for the destruction of cancer cells.

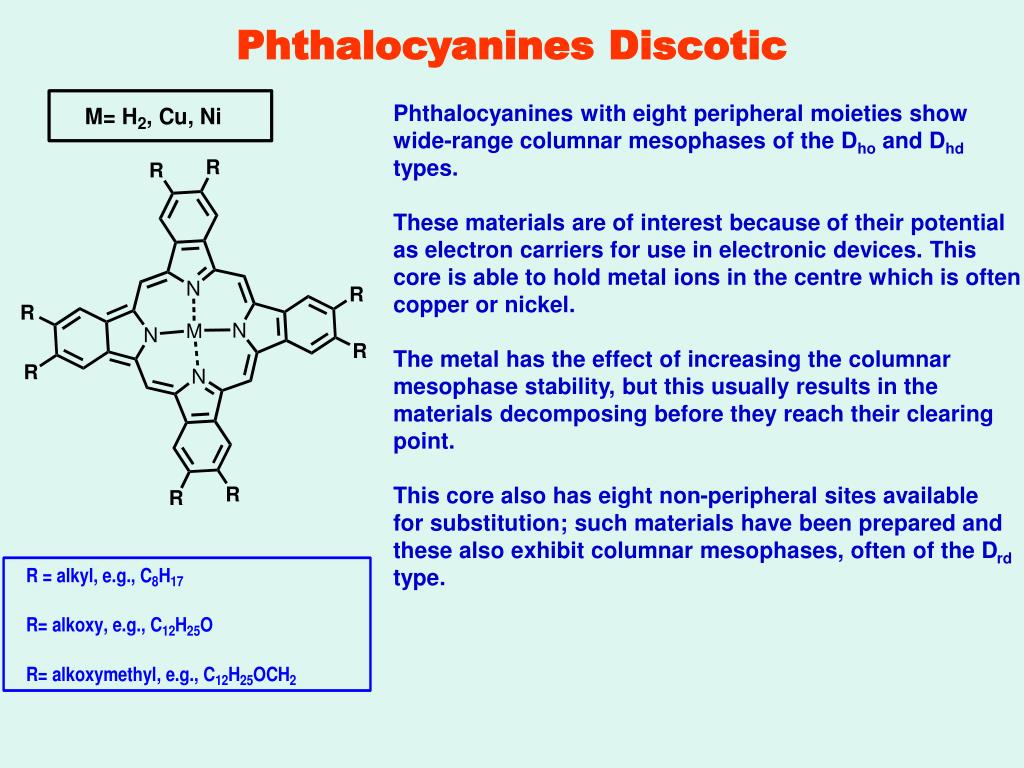

  26. Phthalocyanines Discotic Phthalocyanines with eight peripheral moieties show wide-range columnar mesophases of the Dho and Dhd types. These materials are of interest because of their potential as electron carriers for use in electronic devices. This core is able to hold metal ions in the centre which is often copper or nickel. The metal has the effect of increasing the columnar mesophase stability, but this usually results in the materials decomposing before they reach their clearing point. This core also has eight non-peripheral sites available for substitution; such materials have been prepared and these also exhibit columnar mesophases, often of the Drd type.

  27. Unusual Discotic R= C9H19 C 53.5 D 171.5 I This compound unusually exhibited columnar mesophase over a wide temperature range despite the presence of only four peripheral units. The presence of oxygens in the high polarisable central core is probably an important factor which, in part, offsets the small number of peripheral units R= C7H15COO2 C 107.5 (D 95) D 127 .5 I This compund is also unusual because it exhibits columnar mesophases even though the molecular structure is not quite disc-like; again the high polarity of the oxygen units (carbonyl in this case) within the central core aid in the generation of the necessary intermolecular forces of attraction

  28. Alicyclic Discotic Disc-shaped molecules can be generated from alicyclic core structures. A cyclohexane ring is a simple example and this compound shows that mesophases are exhibited by such systems. The transition temperatures of this compound reveal the cyclohexane core to be better at generating columnar mesophases that the analogous benzene systems. C 68.5 D 199.5 I

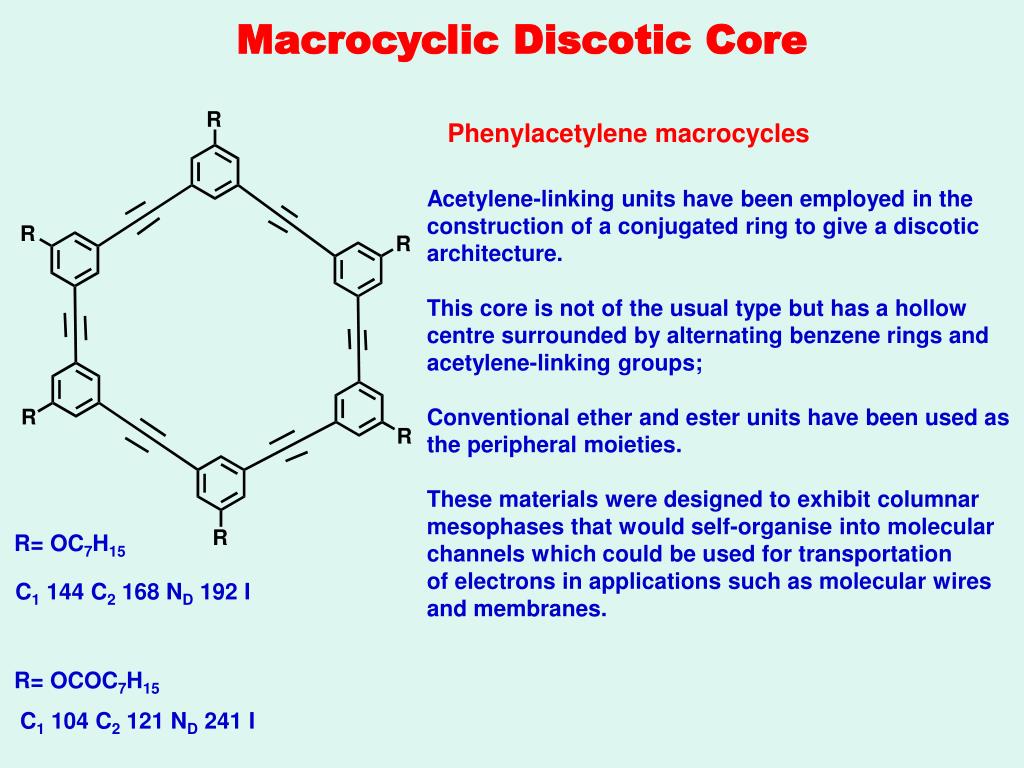

  29. Macrocyclic Discotic Core Phenylacetylene macrocycles Acetylene-linking units have been employed in the construction of a conjugated ring to give a discotic architecture. This core is not of the usual type but has a hollow centre surrounded by alternating benzene rings and acetylene-linking groups; Conventional ether and ester units have been used as the peripheral moieties. These materials were designed to exhibit columnar mesophases that would self-organise into molecular channels which could be used for transportation of electrons in applications such as molecular wires and membranes. R= OC7H15 C1 144 C2 168 ND 192 I R= OCOC7H15 C1 104 C2 121 ND 241 I

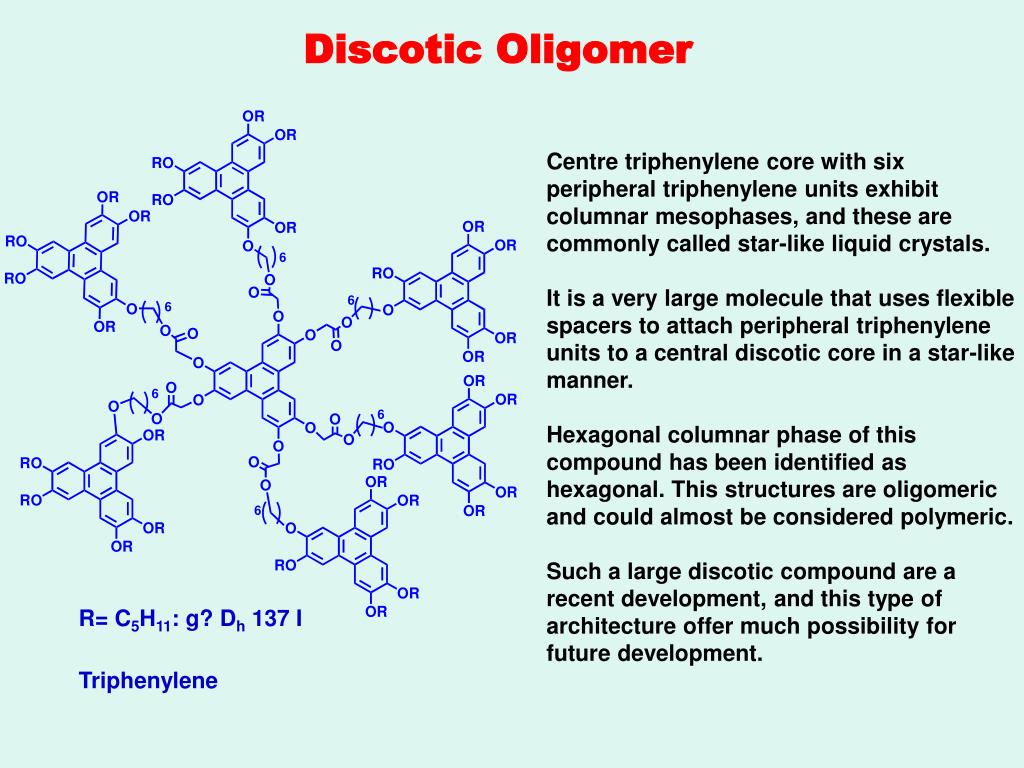

  30. Discotic Oligomer Centre triphenylene core with six peripheral triphenylene units exhibit columnar mesophases, and these are commonly called star-like liquid crystals. It is a very large molecule that uses flexible spacers to attach peripheral triphenylene units to a central discotic core in a star-like manner. Hexagonal columnar phase of this compound has been identified as hexagonal. This structures are oligomeric and could almost be considered polymeric. Such a large discotic compound are a recent development, and this type of architecture offer much possibility for future development. R= C5H11: g? Dh 137 I Triphenylene

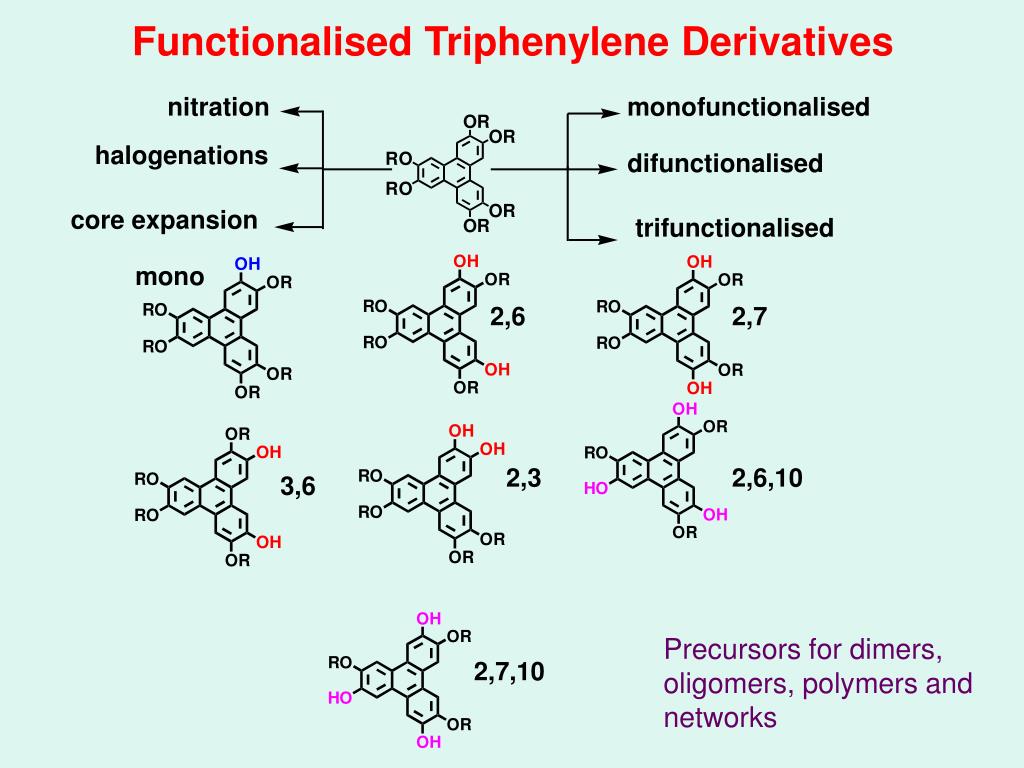

  31. Functionalised Triphenylene Derivatives nitration monofunctionalised halogenations difunctionalised core expansion trifunctionalised mono 2,6 2,7 2,3 2,6,10 3,6 Precursors for dimers, oligomers, polymers and networks 2,7,10

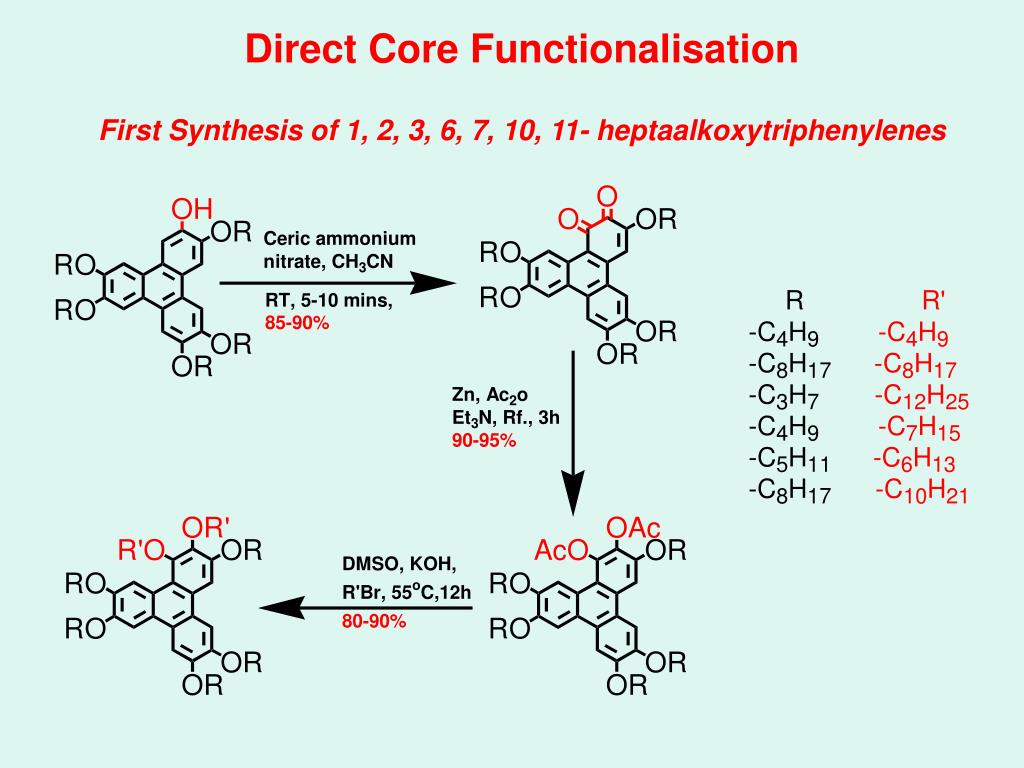

  32. Direct Core FunctionalisationFirst Synthesis of 1, 2, 3, 6, 7, 10, 11- heptaalkoxytriphenylenes

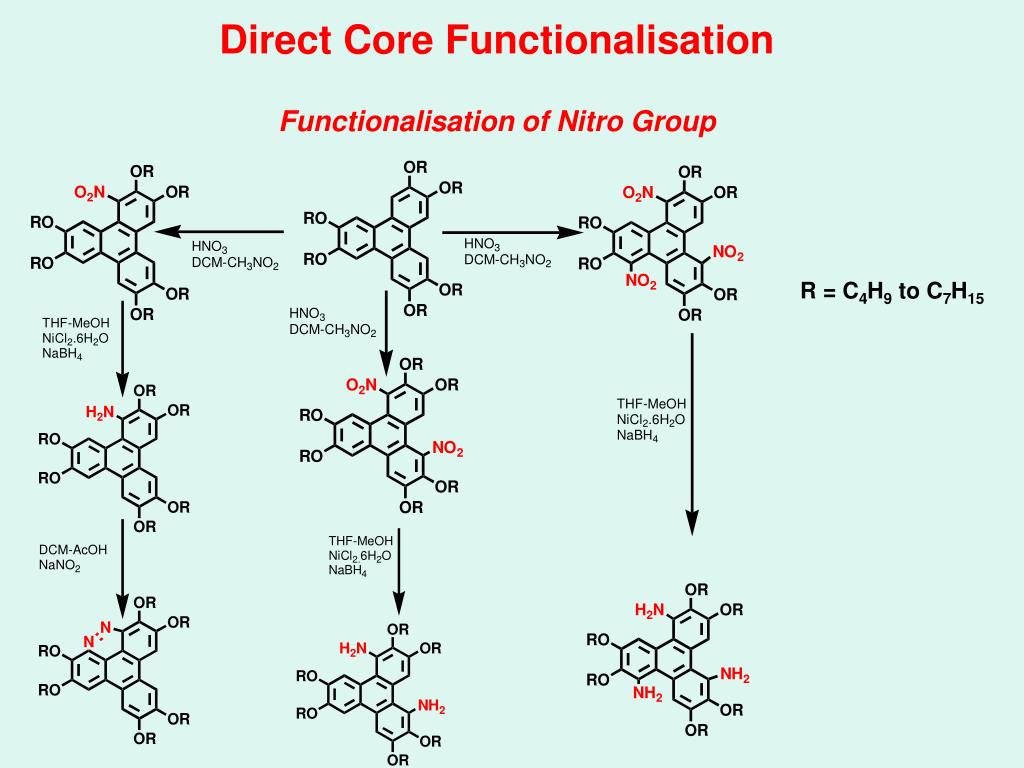

  33. Direct Core Functionalisation Functionalisation of Nitro Group R = C4H9 to C7H15

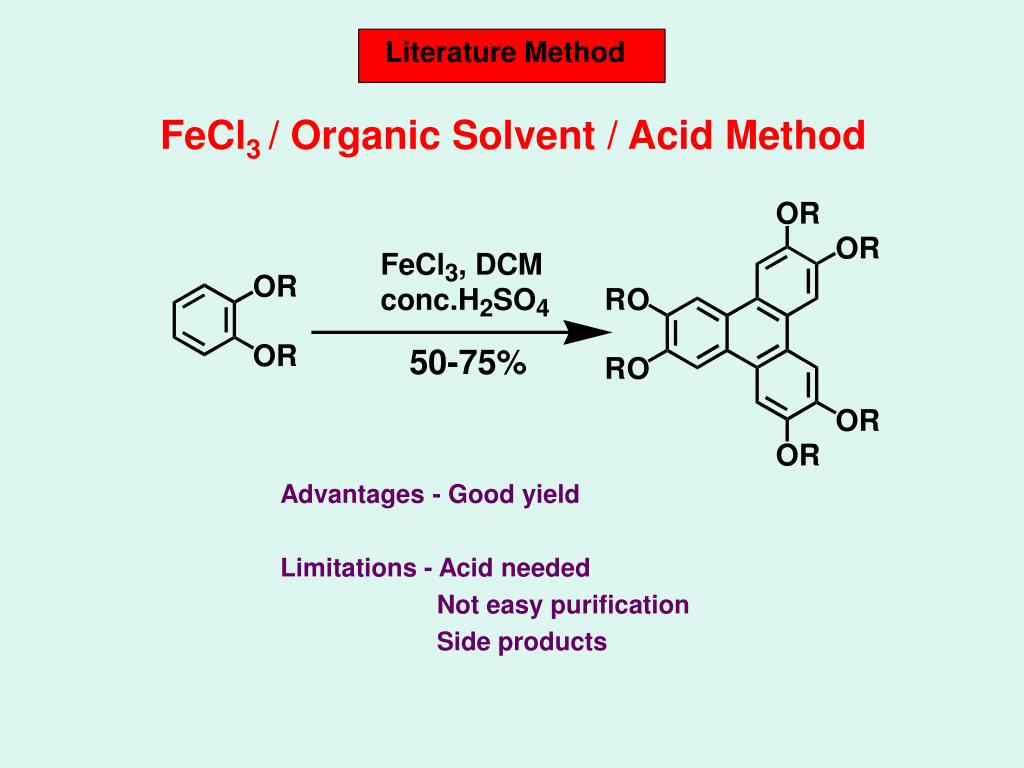

  34. Literature Method FeCl3 / Organic Solvent / Acid Method 50-75% Advantages - Good yield Limitations - Acid needed Not easy purification Side products

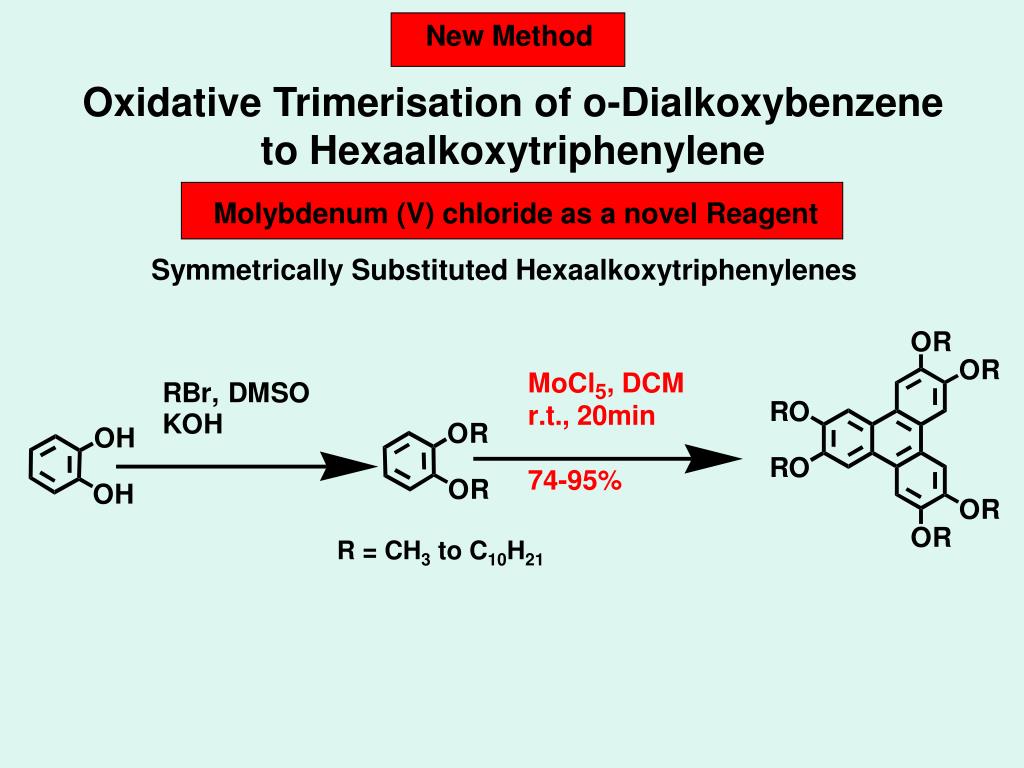

  35. New Method Oxidative Trimerisation of o-Dialkoxybenzene to Hexaalkoxytriphenylene Molybdenum (V) chloride as a novel Reagent Symmetrically Substituted Hexaalkoxytriphenylenes R = CH3 to C10H21

  36. Unsymmetrical mono hepta Unsymmetrical and Monofunctionalised Triphenylenes Advantages: No acid Easy purification High yield 74-95% Selective derivatisation

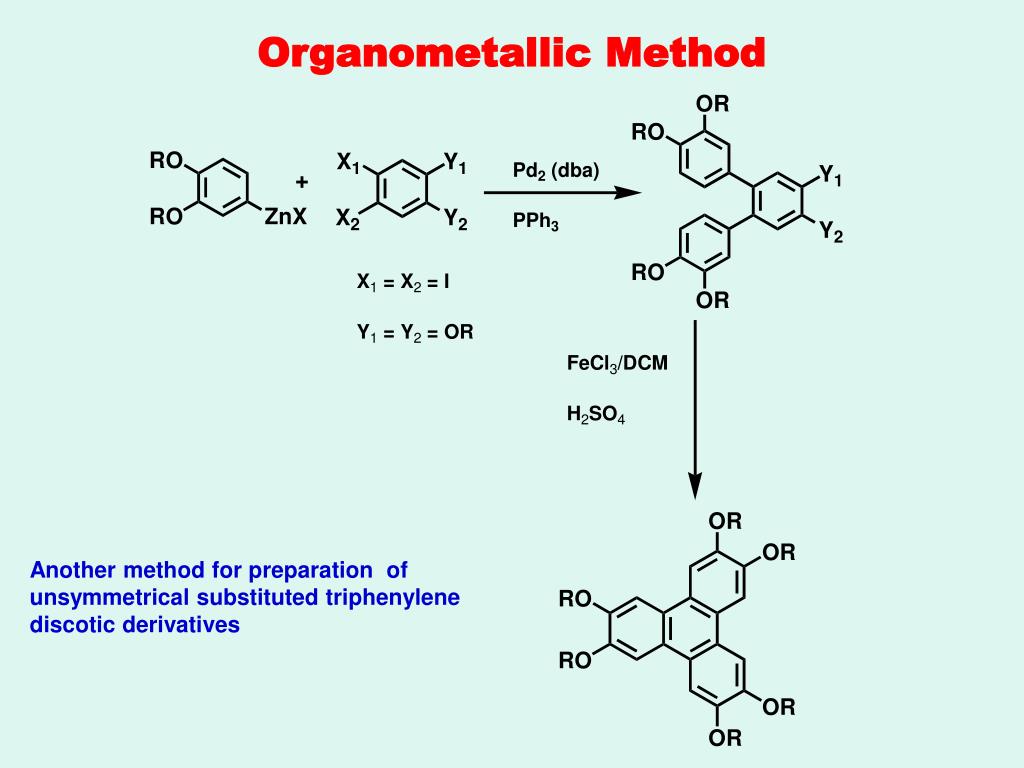

  37. Organometallic Method Another method for preparation of unsymmetrical substituted triphenylene discotic derivatives

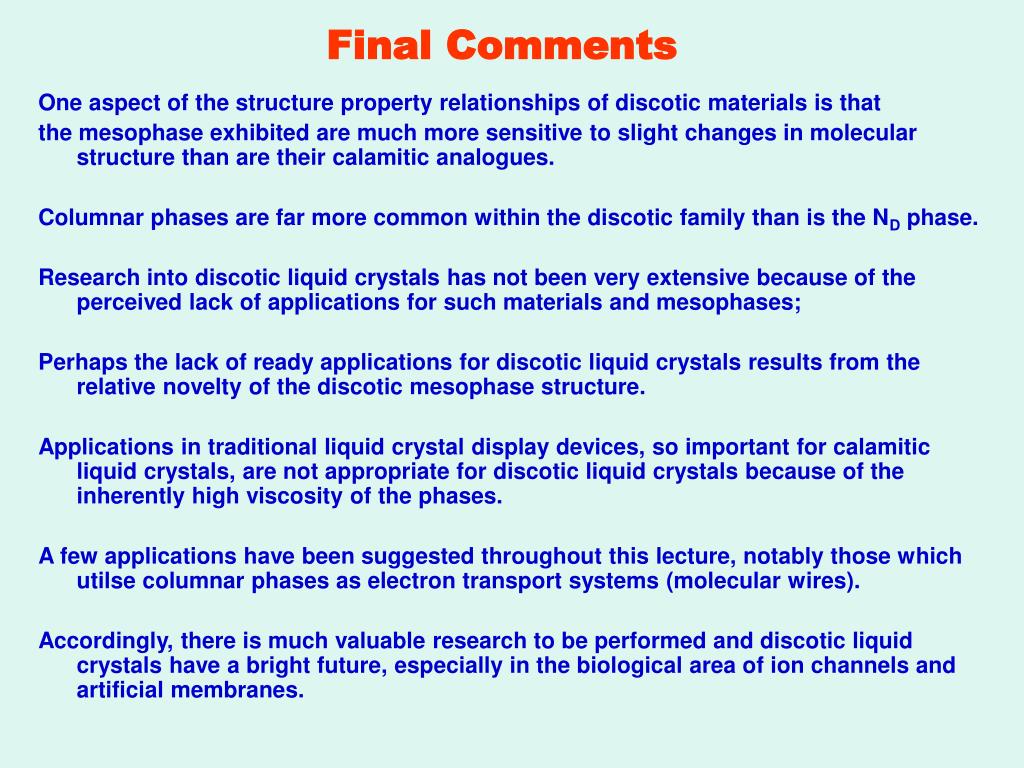

  38. Final Comments One aspect of the structure property relationships of discotic materials is that the mesophase exhibited are much more sensitive to slight changes in molecular structure than are their calamitic analogues. Columnar phases are far more common within the discotic family than is the ND phase. Research into discotic liquid crystals has not been very extensive because of the perceived lack of applications for such materials and mesophases; Perhaps the lack of ready applications for discotic liquid crystals results from the relative novelty of the discotic mesophase structure. Applications in traditional liquid crystal display devices, so important for calamitic liquid crystals, are not appropriate for discotic liquid crystals because of the inherently high viscosity of the phases. A few applications have been suggested throughout this lecture, notably those which utilse columnar phases as electron transport systems (molecular wires). Accordingly, there is much valuable research to be performed and discotic liquid crystals have a bright future, especially in the biological area of ion channels and artificial membranes.

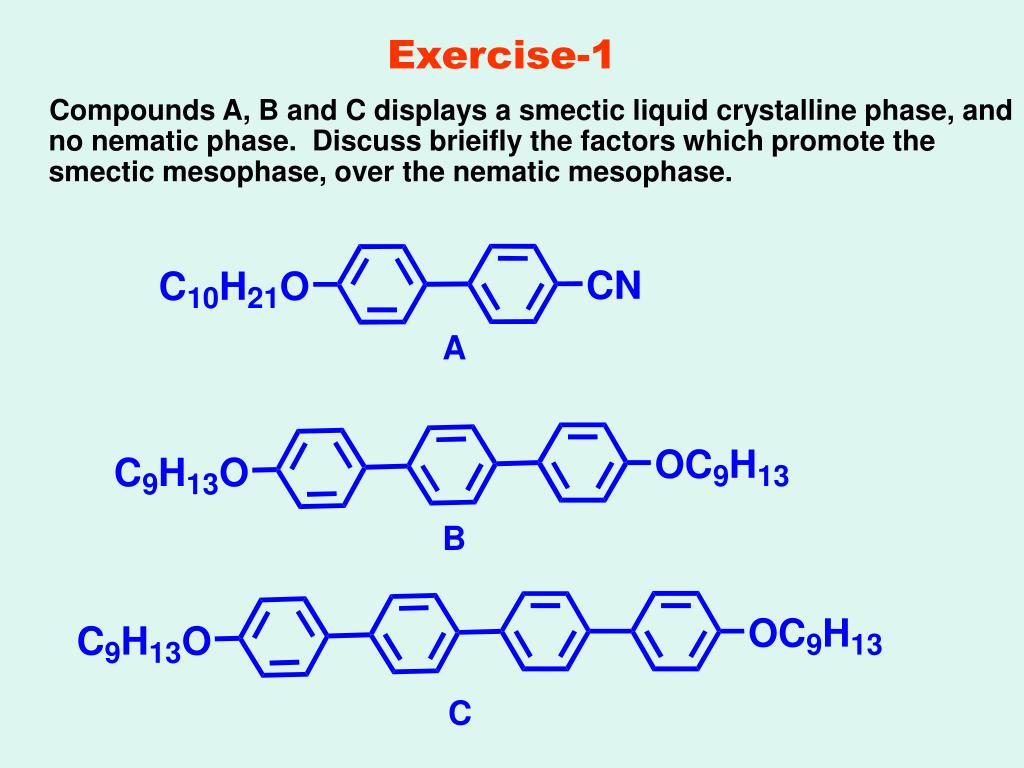

  39. Exercise-1 Compounds A, B and C displays a smectic liquid crystalline phase, and no nematic phase. Discuss brieifly the factors which promote the smectic mesophase, over the nematic mesophase.

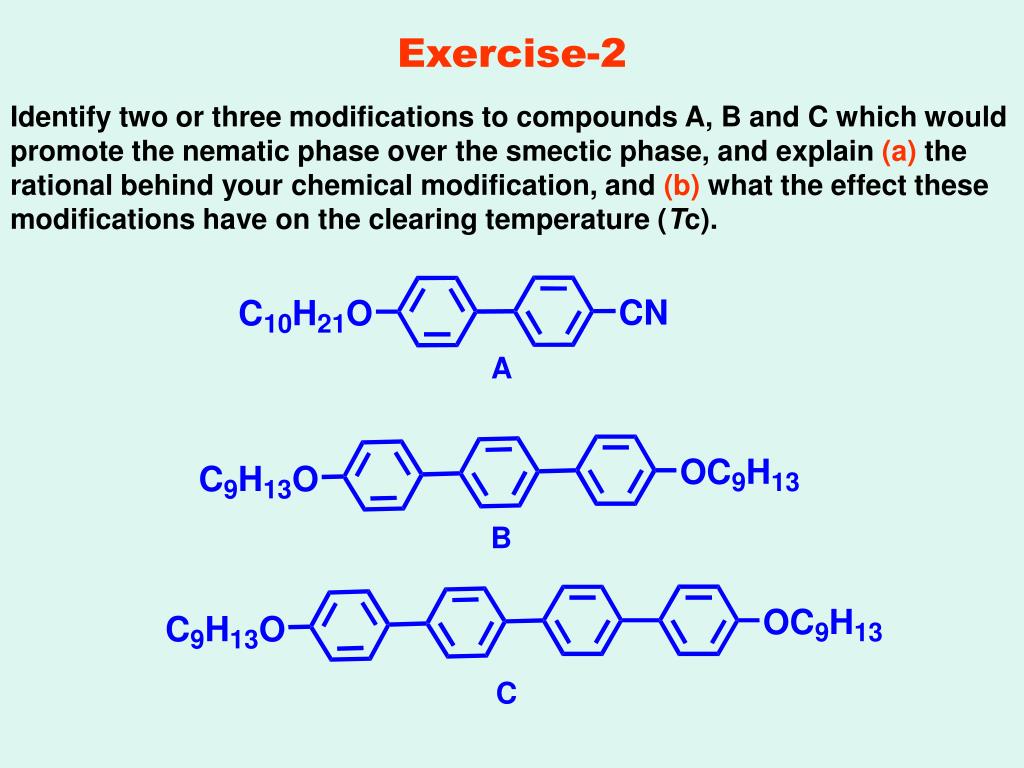

  40. Exercise-2 Identify two or three modifications to compounds A, B and C which would promote the nematic phase over the smectic phase, and explain (a) the rational behind your chemical modification, and (b) what the effect these modifications have on the clearing temperature (Tc).

  41. Exercise-1 Write down a detailed mechanism for the reaction below?
