  1. Graph impedance against Er with the Si6000b polarinstruments.com

  2. This tutorial covers: • Graphing Zo Vs Er • How to change axes in Excelso you can graph any variable you choose polarinstruments.com

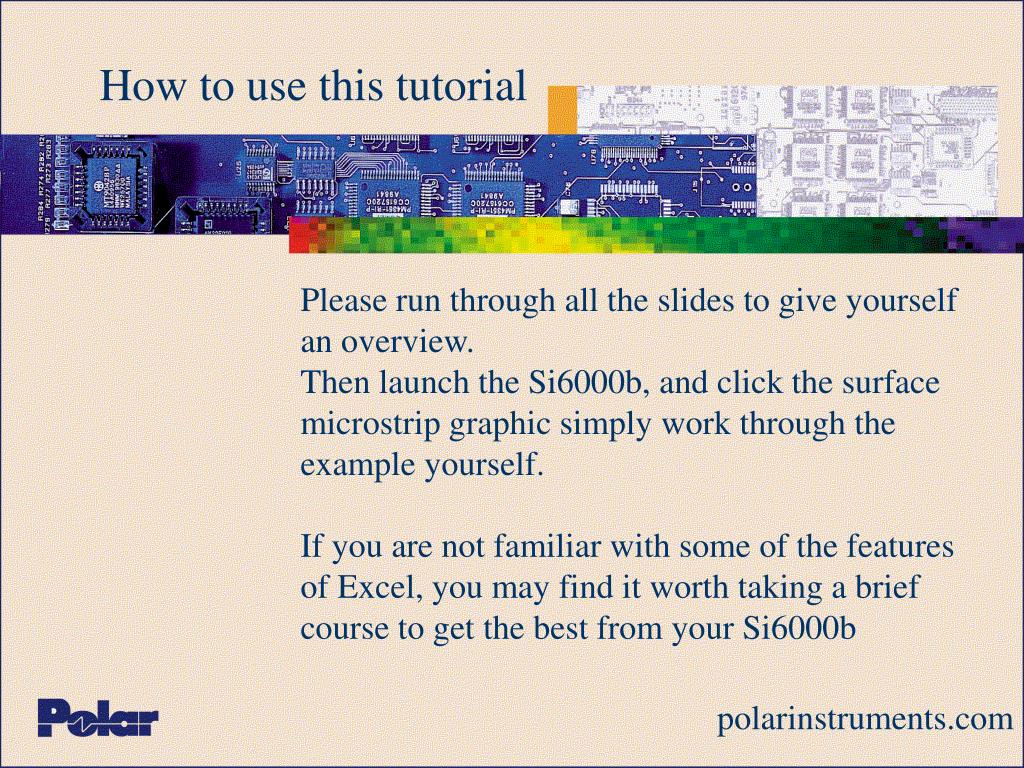

  3. How to use this tutorial Please run through all the slides to give yourself an overview.Then launch the Si6000b, and click the surface microstrip graphic simply work through the example yourself. If you are not familiar with some of the features of Excel, you may find it worth taking a brief course to get the best from your Si6000b polarinstruments.com

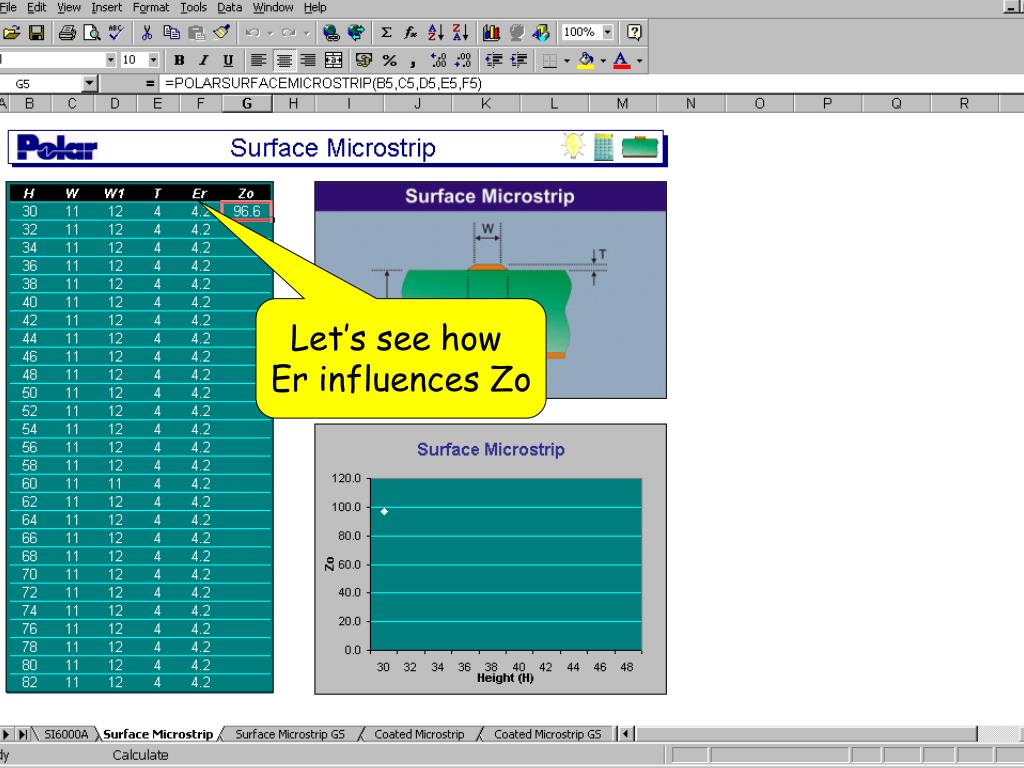

  4. Let’s see how Er influences Zo

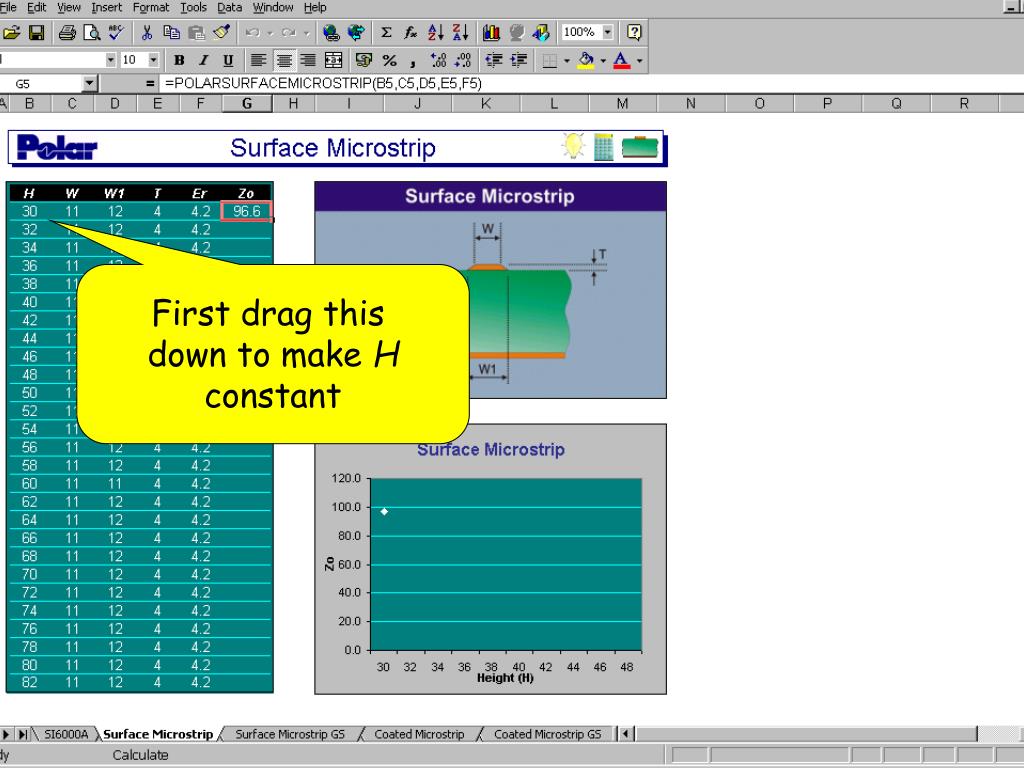

  5. First drag this down to make H constant

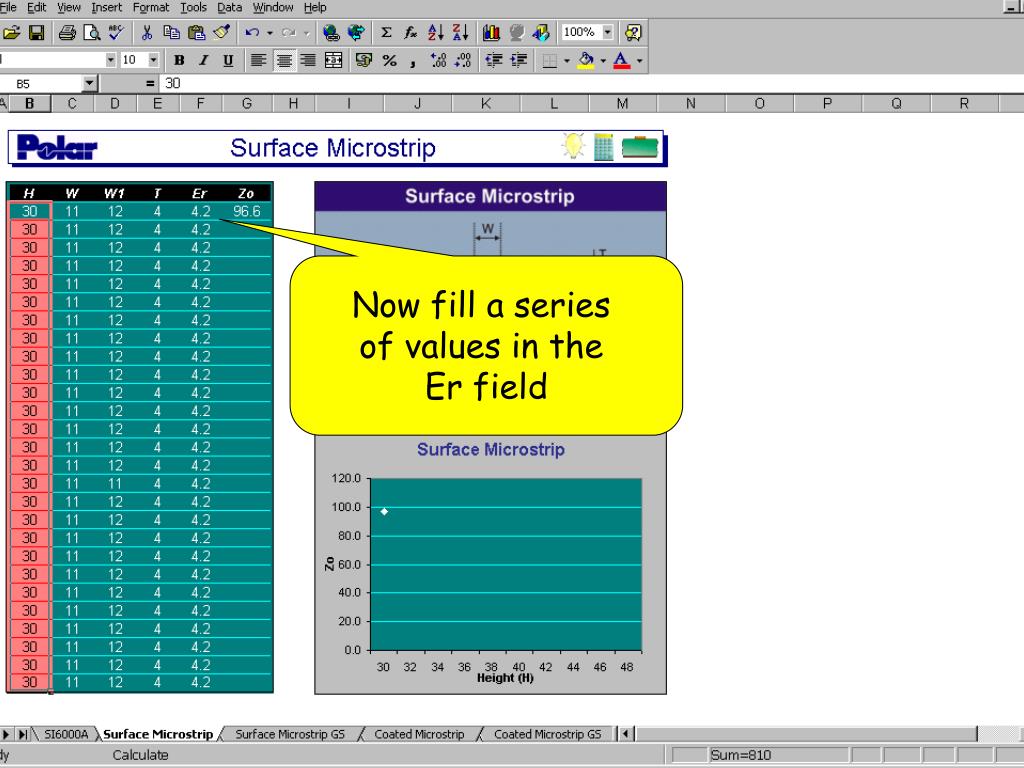

  6. Now fill a series of values in the Er field

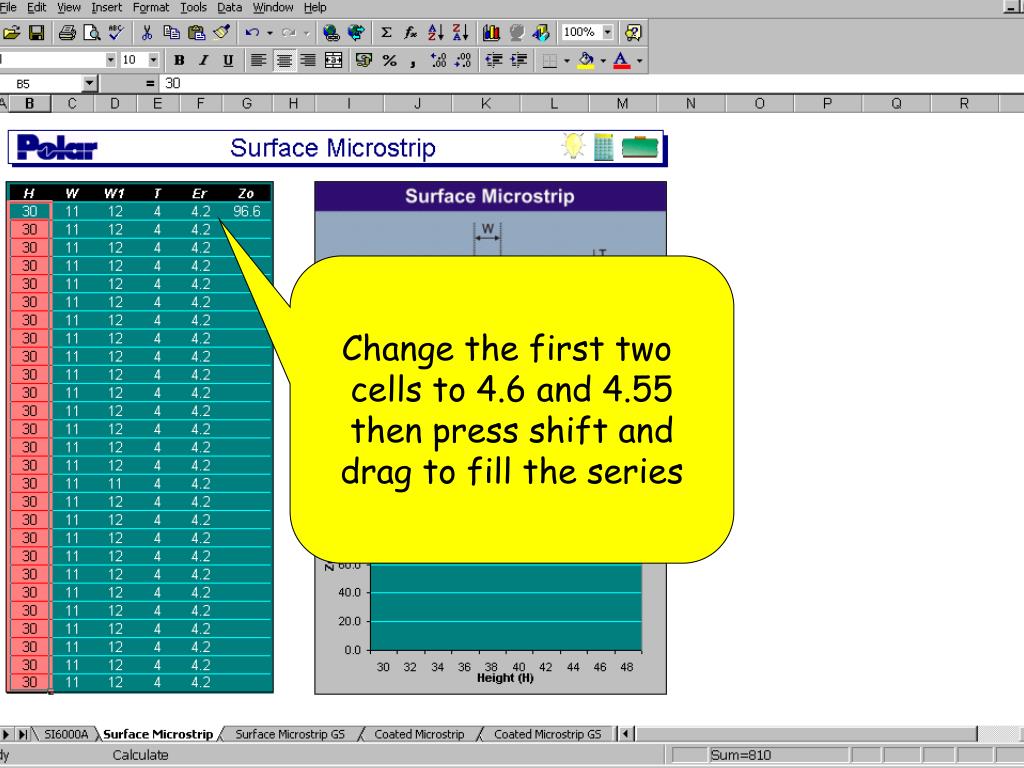

  7. Change the first two cells to 4.6 and 4.55then press shift anddrag to fill the series

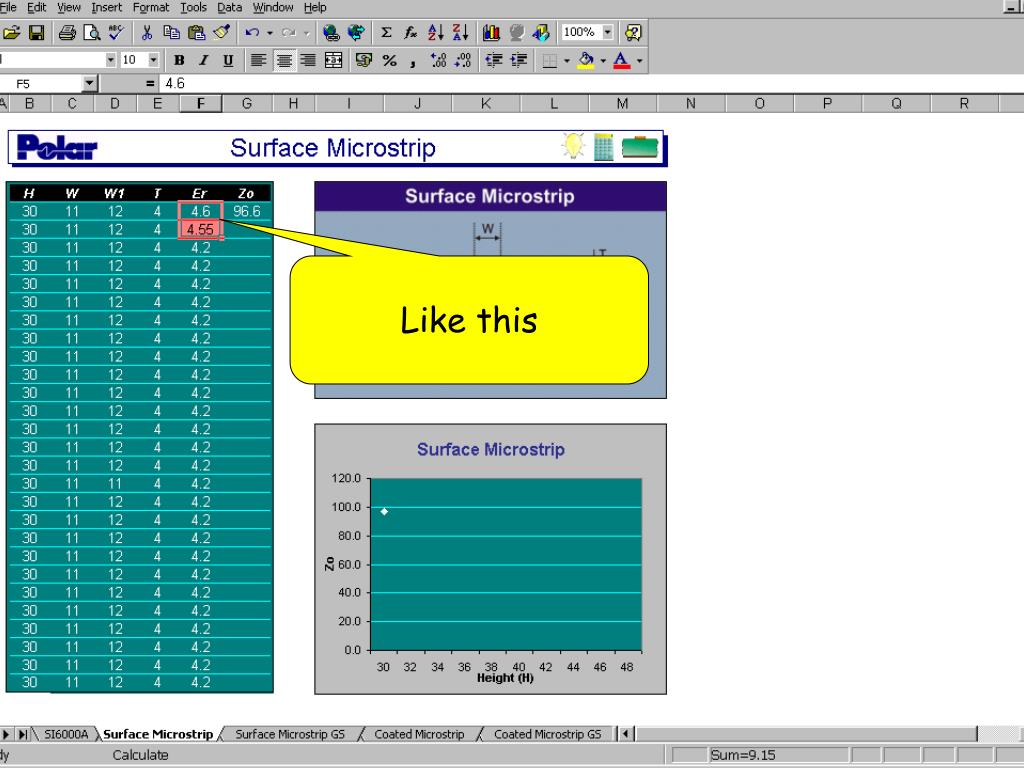

  8. Like this

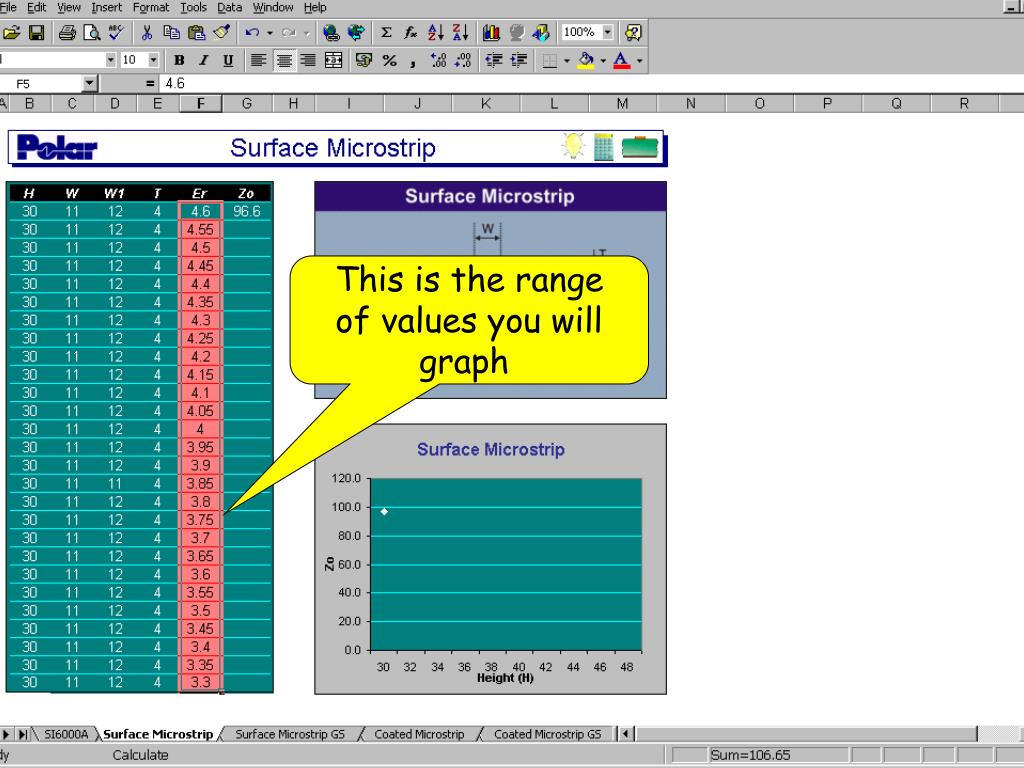

  9. This is the rangeof values you willgraph

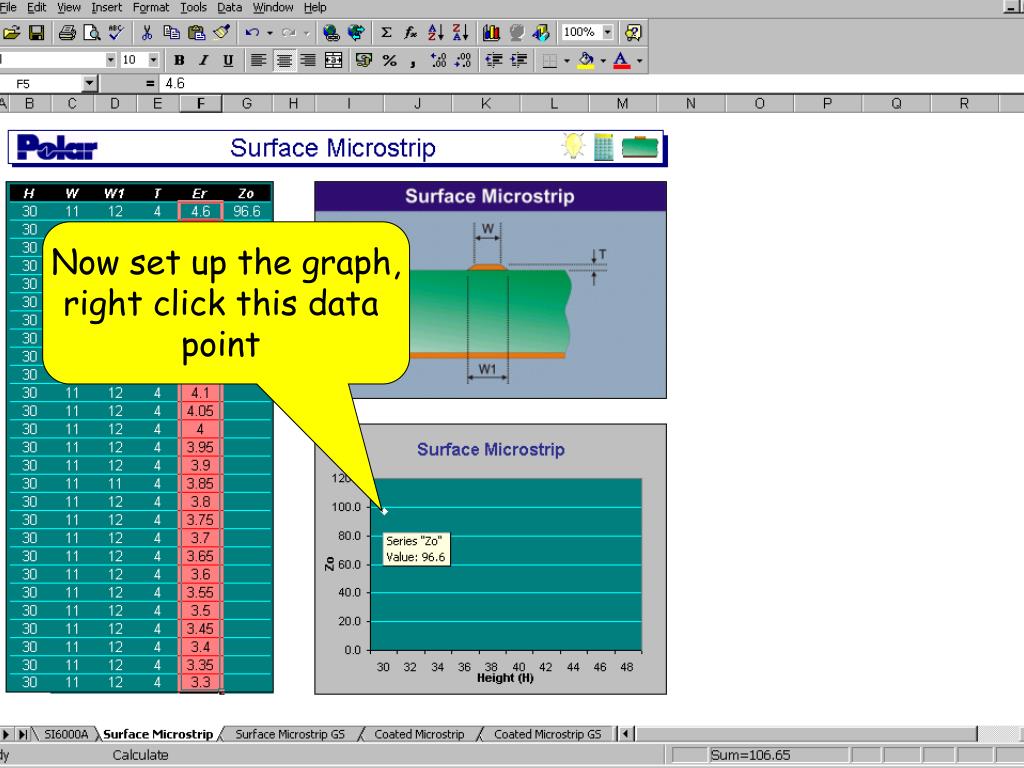

  10. Now set up the graph,right click this data point

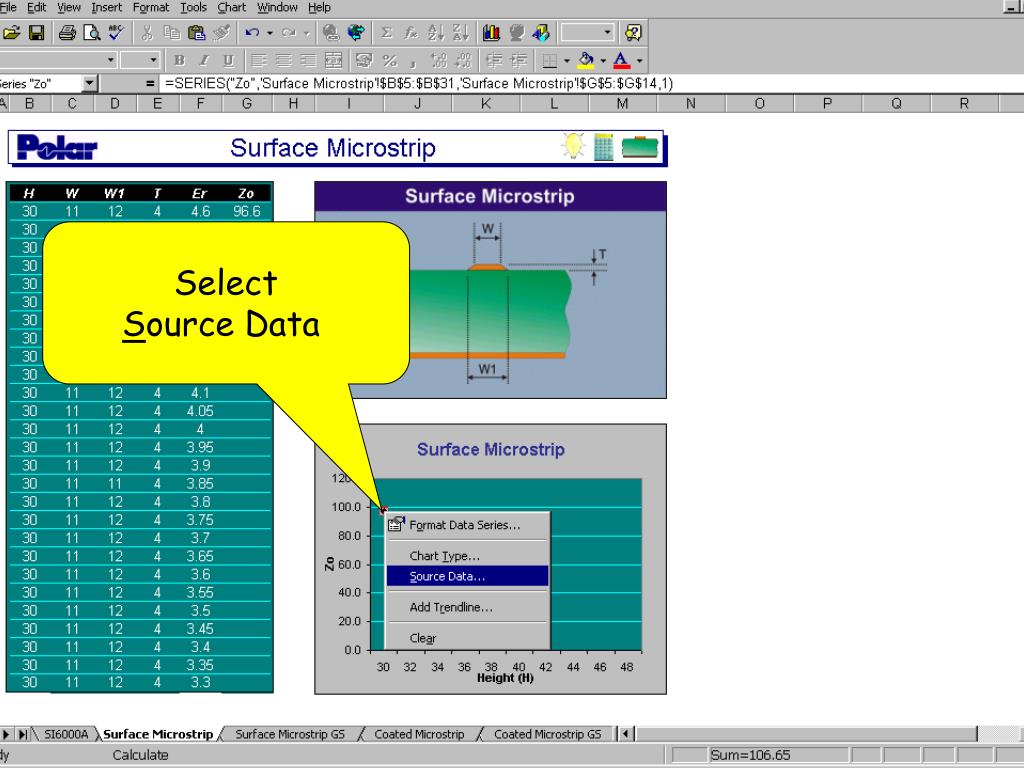

  11. SelectSource Data

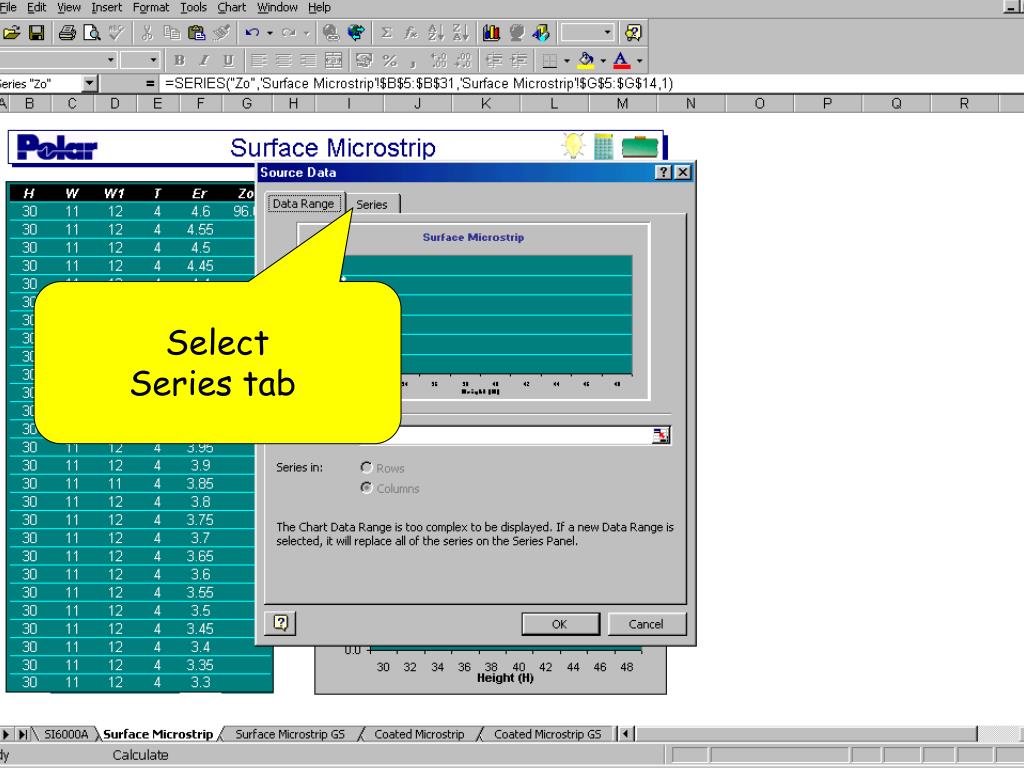

  12. SelectSeries tab

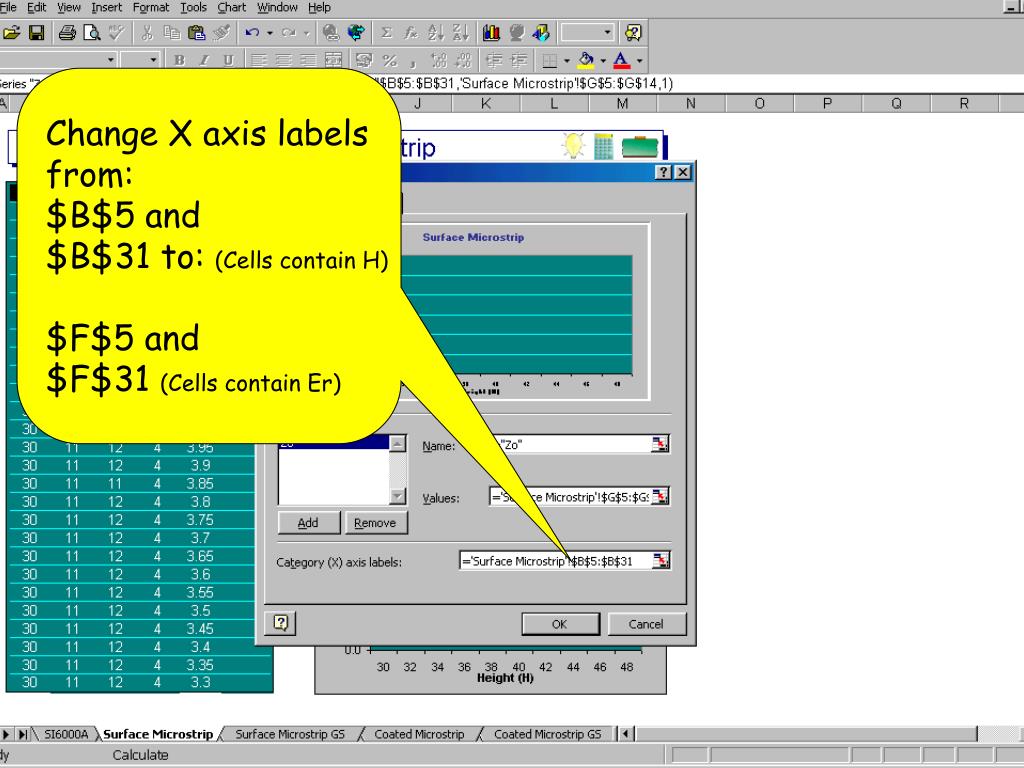

  13. Change X axis labelsfrom:$B$5 and$B$31 to: (Cells contain H)$F$5 and$F$31 (Cells contain Er)

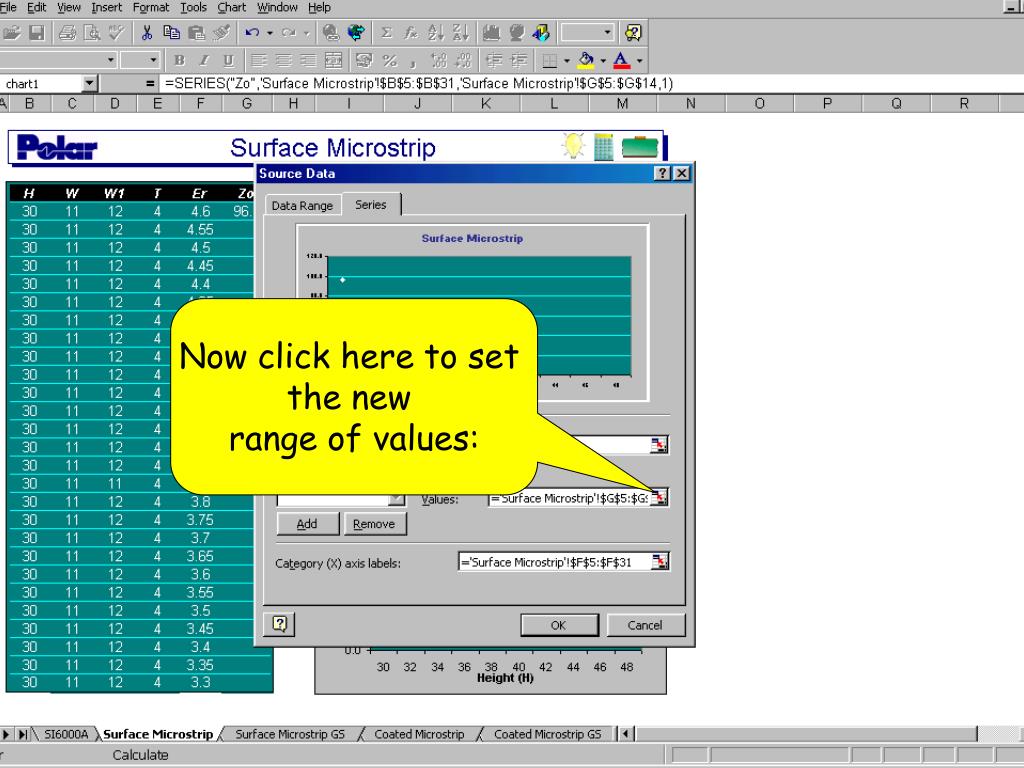

  14. Now click here to set the new range of values:

  15. Edit the box that appears.To show the full graph youneed to enter: $G$5:$G$31Hint- look at column G andacross at the rows containingthe Data ( 5 to 31!)

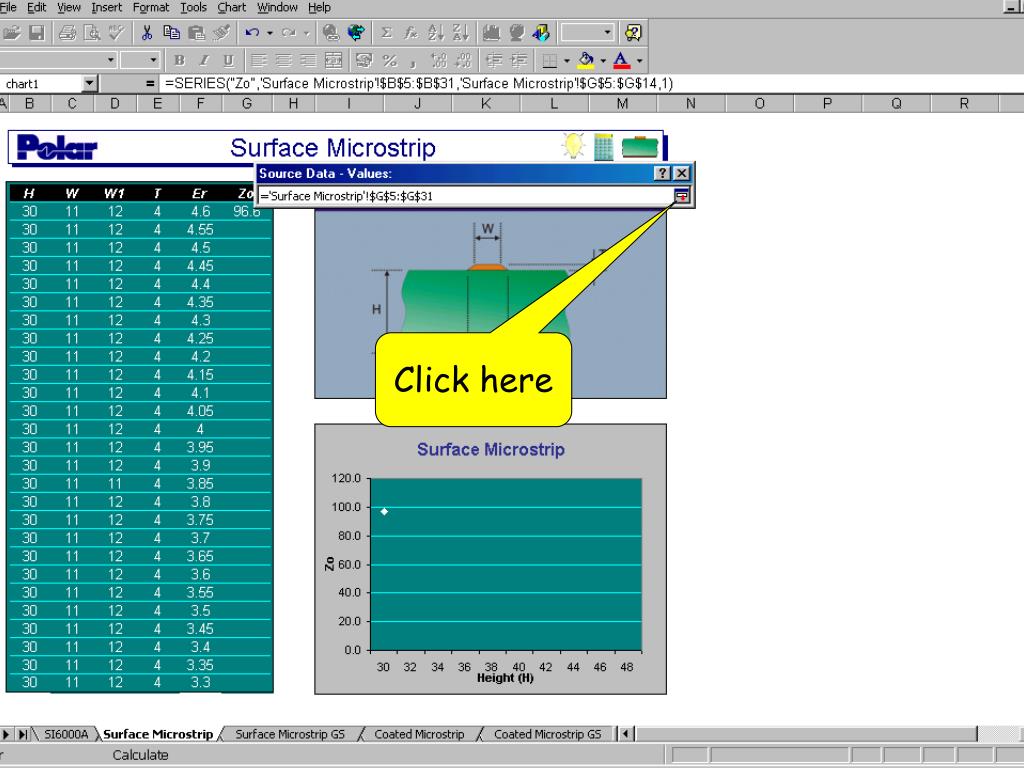

  16. Click here

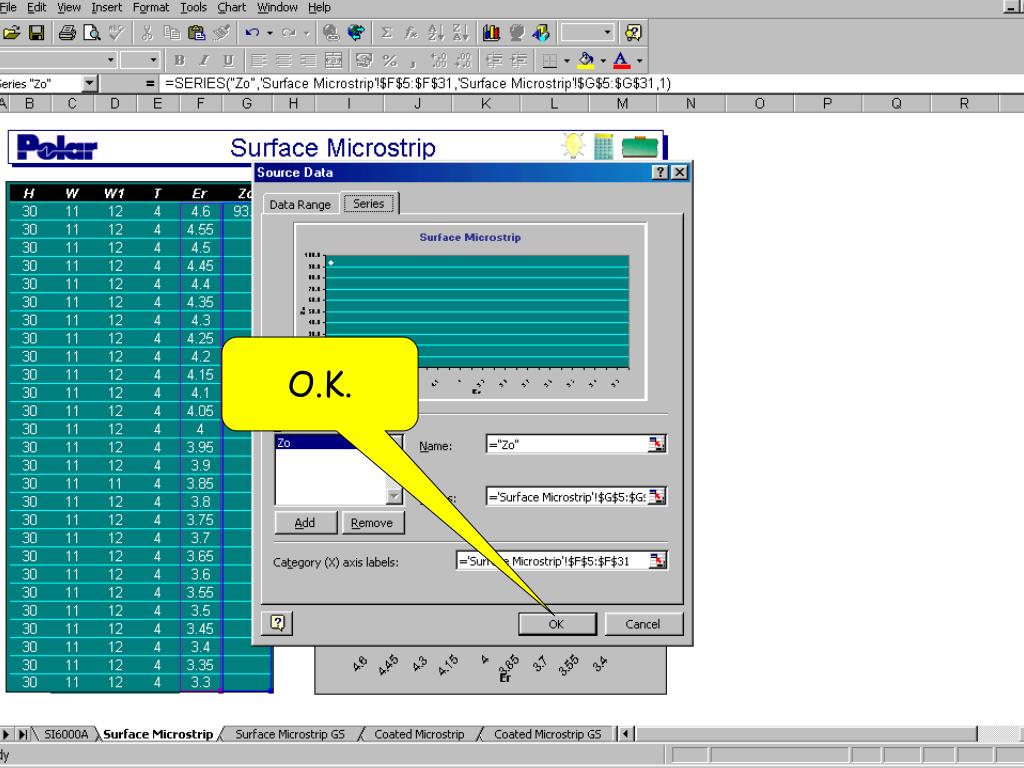

  17. O.K.

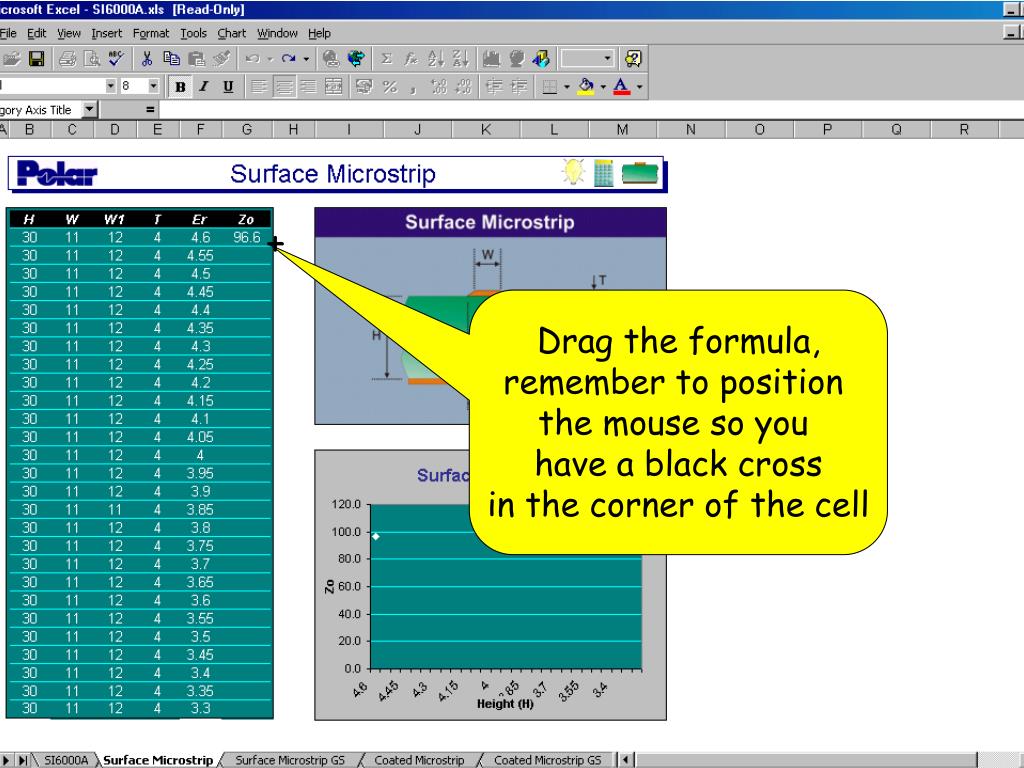

  18. + Drag the formula,remember to position the mouse so you have a black crossin the corner of the cell

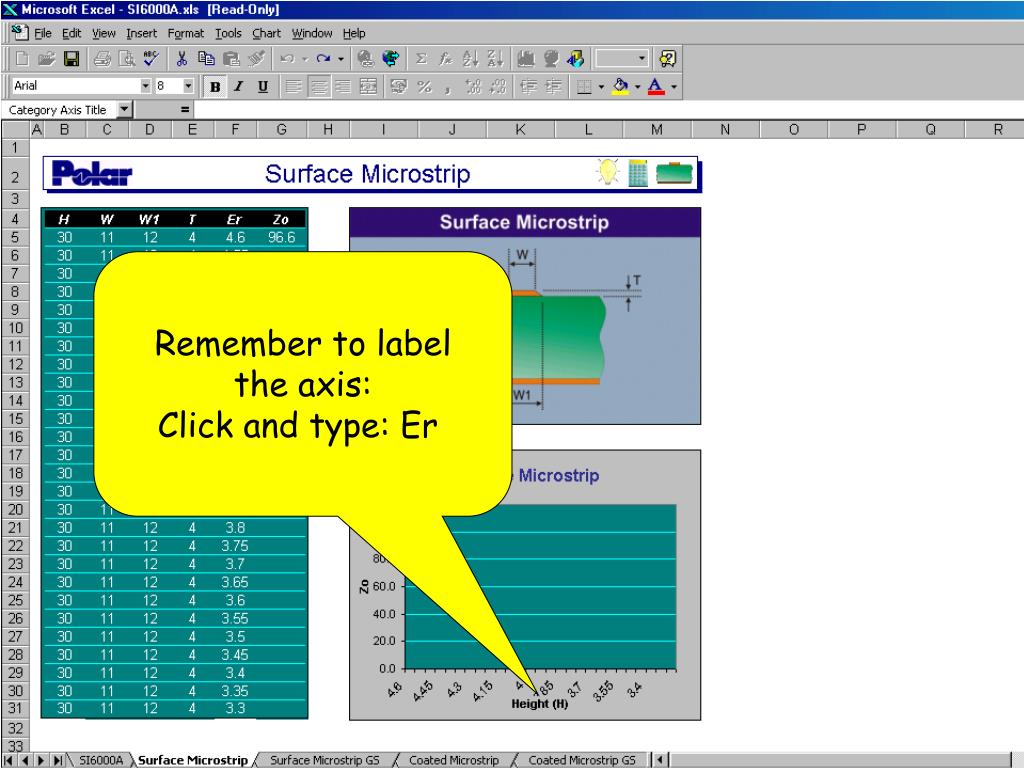

  19. Remember to labelthe axis:Click and type: Er

  20. Now calculate and wait for the graph

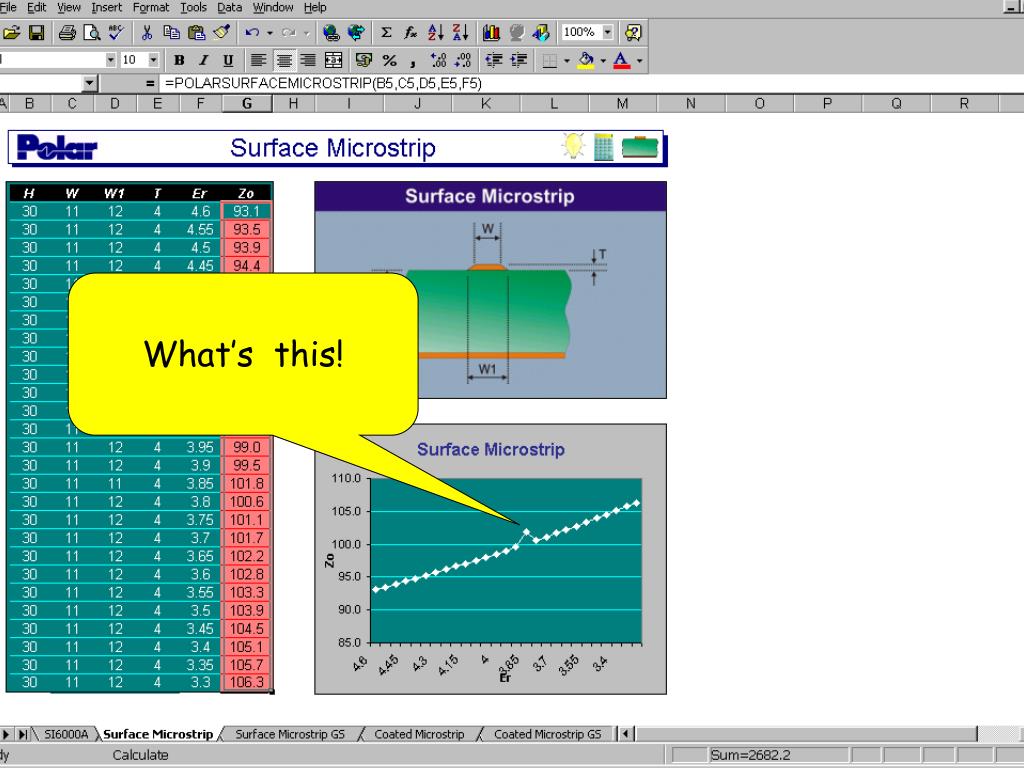

  21. What’s this!

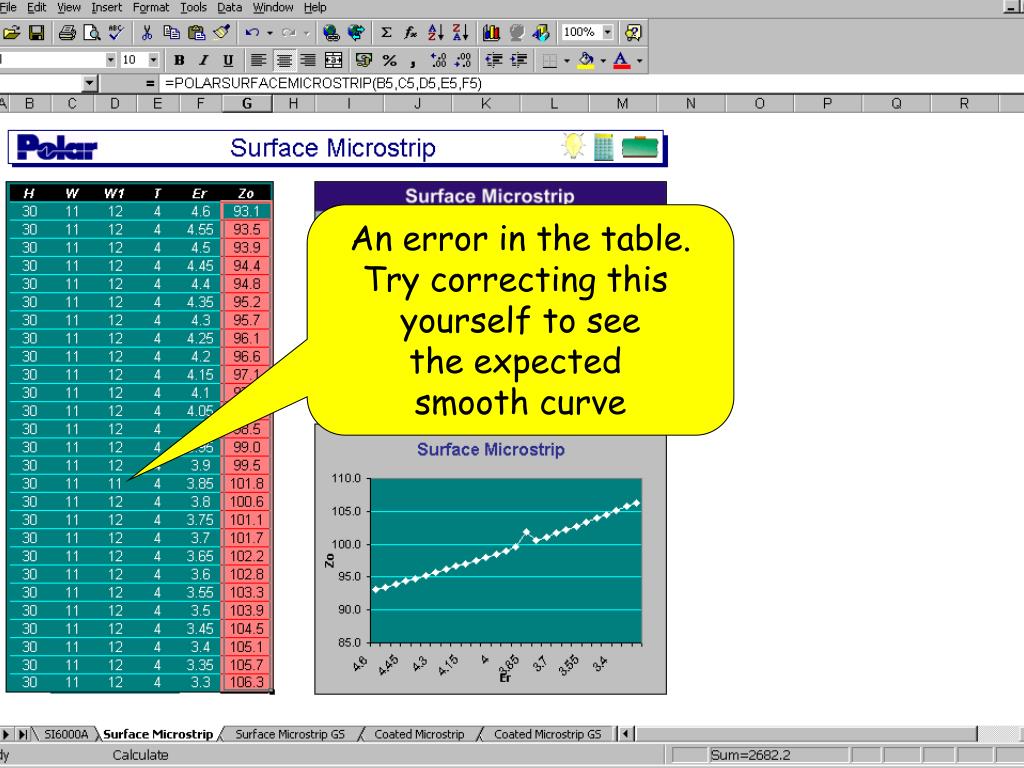

  22. An error in the table.Try correcting this yourself to seethe expected smooth curve

  23. Thank you for taking the time to study this presentation.Please look at Si6000 for your application.ppt ifyou would like to learn more about buildingapplications with the Si6000b ken.taylor@polarinstruments.com polarinstruments.com
