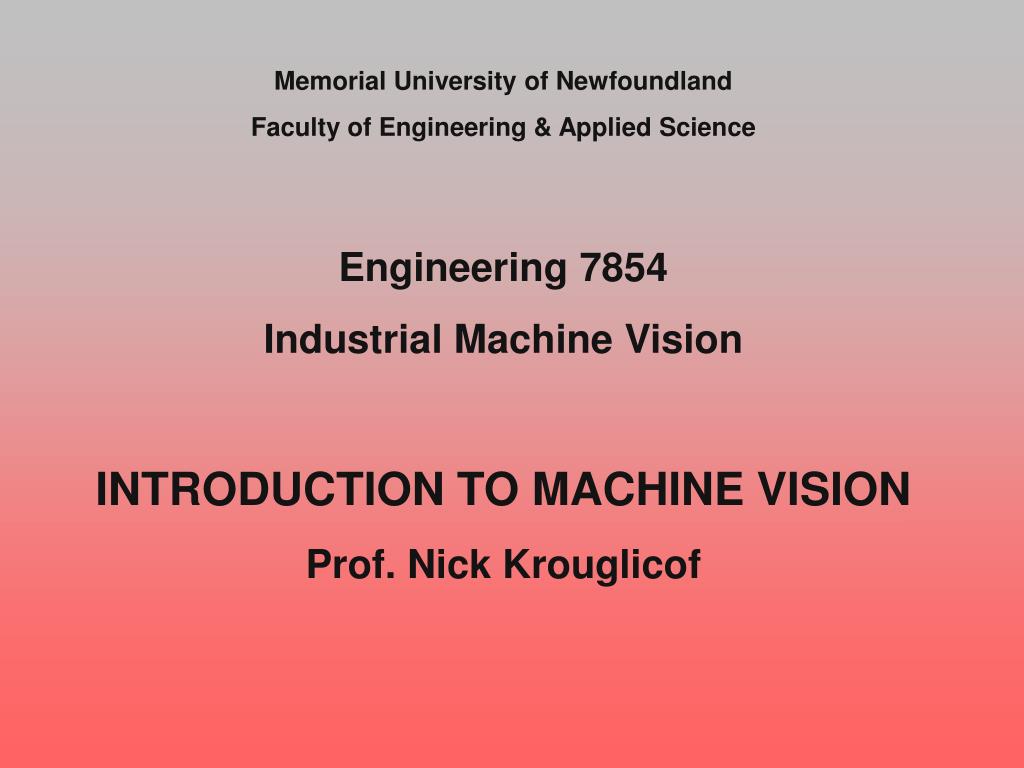

  1. Memorial University of Newfoundland Faculty of Engineering & Applied Science Engineering 7854 Industrial Machine Vision INTRODUCTION TO MACHINE VISION Prof. Nick Krouglicof

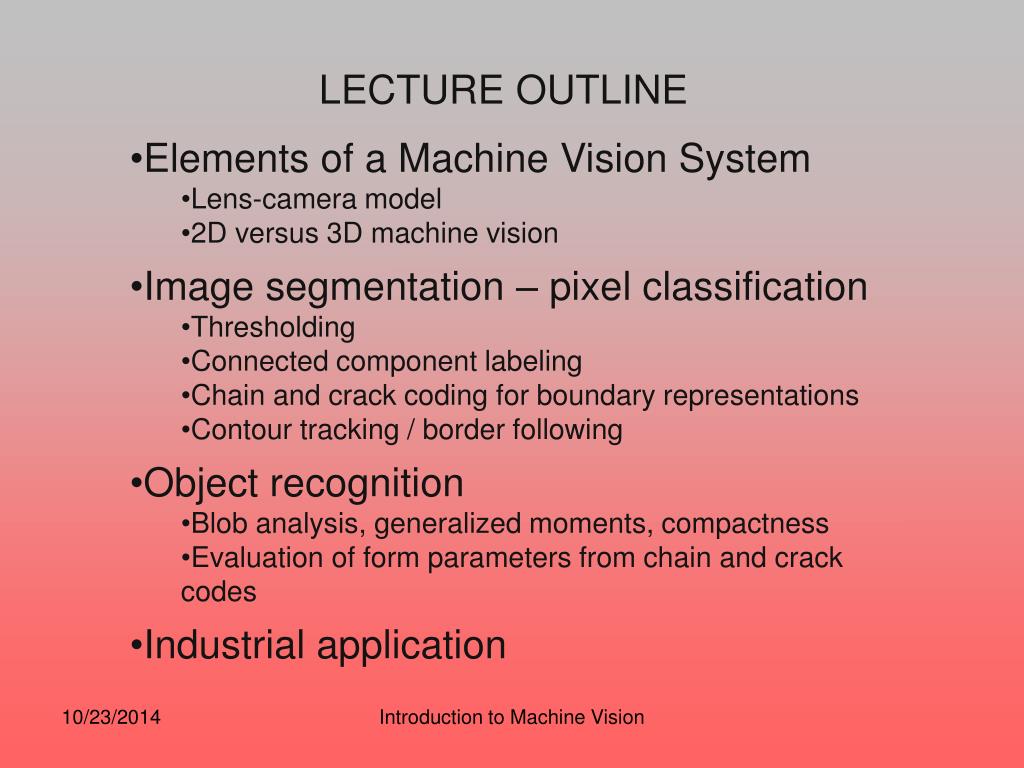

  2. LECTURE OUTLINE • Elements of a Machine Vision System • Lens-camera model • 2D versus 3D machine vision • Image segmentation – pixel classification • Thresholding • Connected component labeling • Chain and crack coding for boundary representations • Contour tracking / border following • Object recognition • Blob analysis, generalized moments, compactness • Evaluation of form parameters from chain and crack codes • Industrial application Introduction to Machine Vision

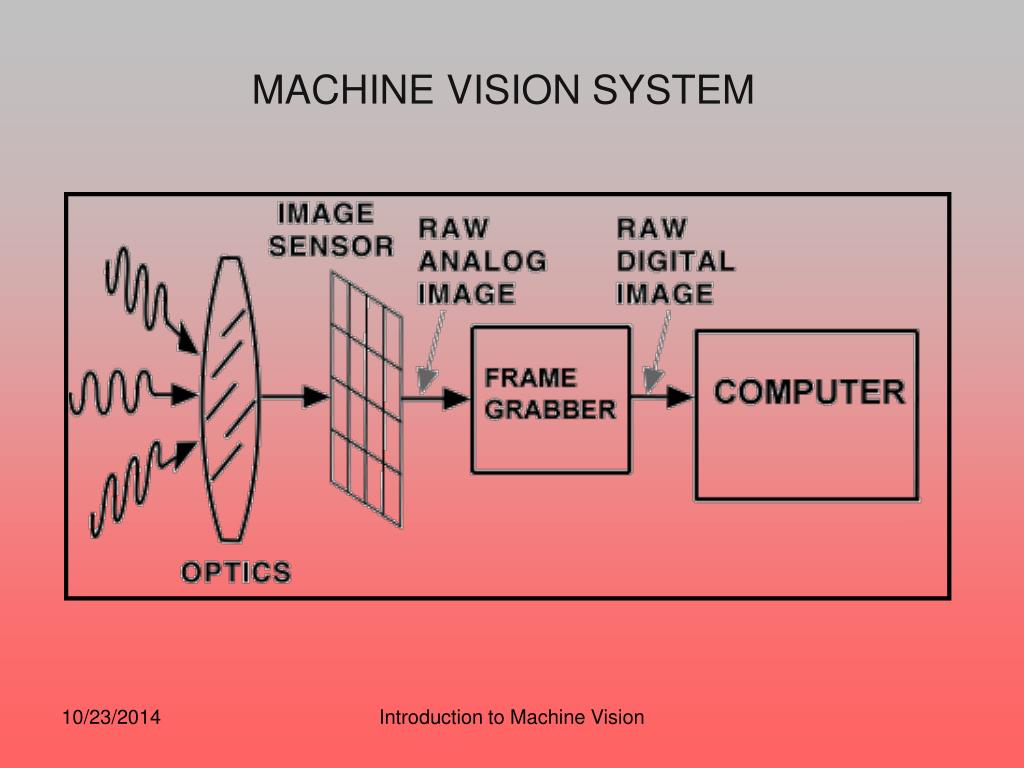

  3. MACHINE VISION SYSTEM Introduction to Machine Vision

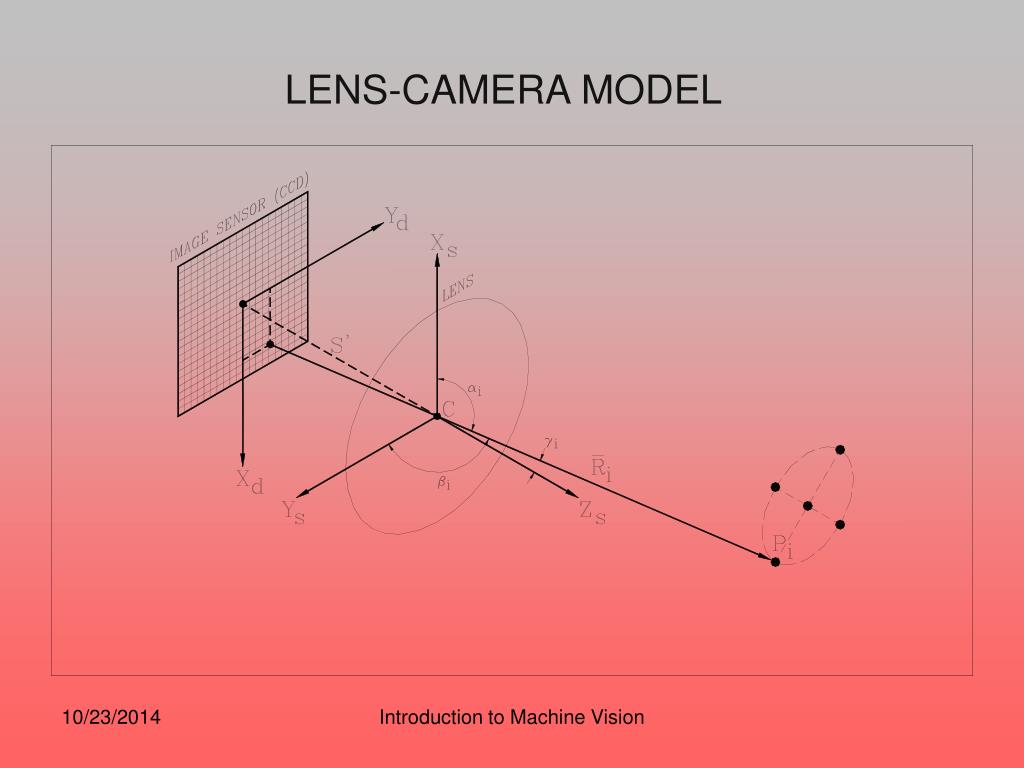

  4. LENS-CAMERA MODEL Introduction to Machine Vision

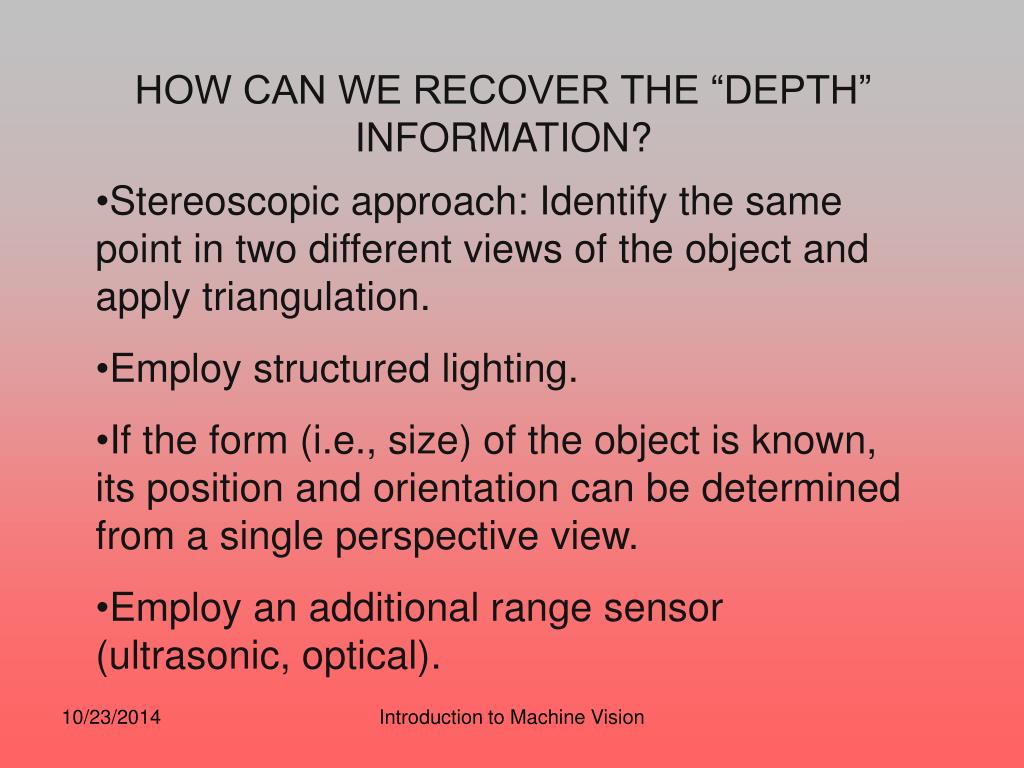

  5. HOW CAN WE RECOVER THE “DEPTH” INFORMATION? • Stereoscopic approach: Identify the same point in two different views of the object and apply triangulation. • Employ structured lighting. • If the form (i.e., size) of the object is known, its position and orientation can be determined from a single perspective view. • Employ an additional range sensor (ultrasonic, optical). Introduction to Machine Vision

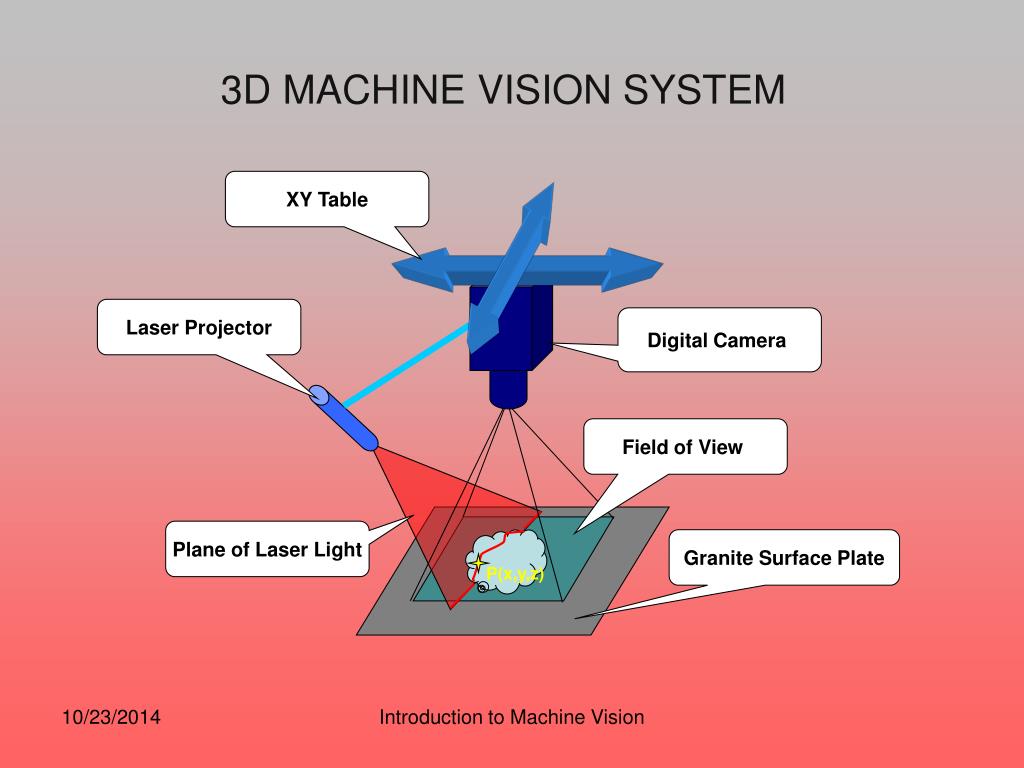

  6. 3D MACHINE VISION SYSTEM XY Table Laser Projector Digital Camera Field of View Plane of Laser Light Granite Surface Plate P(x,y,z) Introduction to Machine Vision

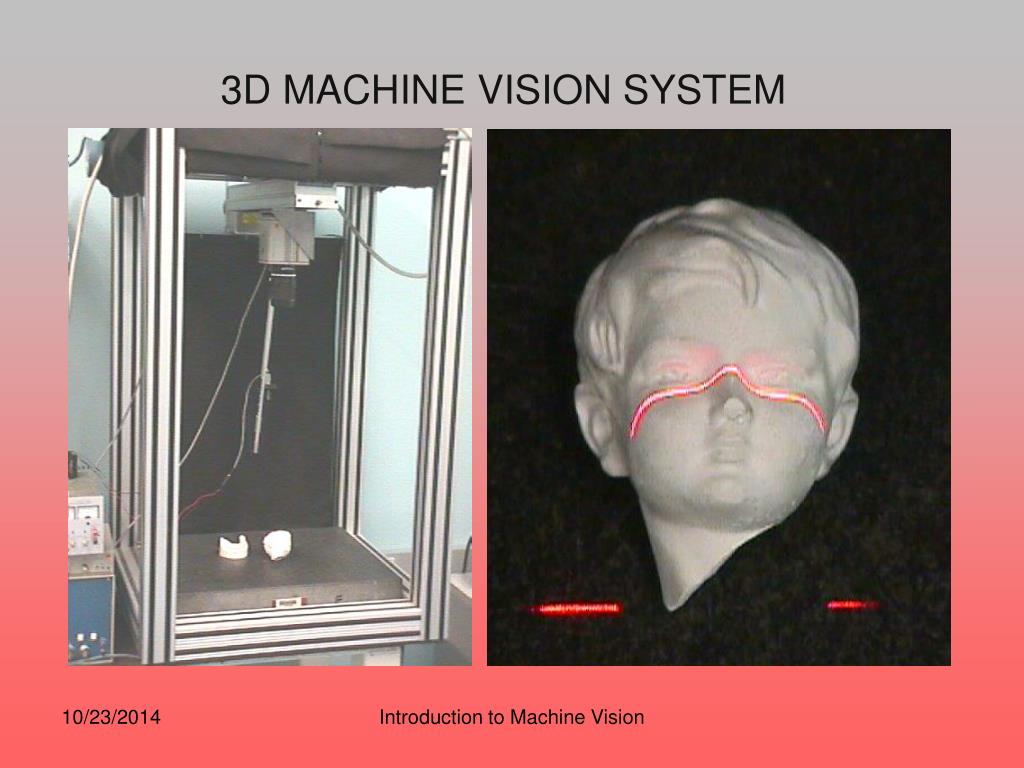

  7. 3D MACHINE VISION SYSTEM Introduction to Machine Vision

  8. 3D MACHINE VISION SYSTEM Introduction to Machine Vision

  9. 3D MACHINE VISION SYSTEM Introduction to Machine Vision

  10. 3D MACHINE VISION SYSTEM Introduction to Machine Vision

  11. 2D MACHINE VISION SYSTEMS • 2D machine vision deals with image analysis. • The goal of this analysis is to generate a high level description of the input image or scene that can be used (for example) to: • Identify objects in the image (e.g., character recognition) • Determine the position and orientation of the objects in the image (e.g., robot assembly) • Inspect the objects in the image (e.g., PCB inspection) • In all of these examples, the description refers to specific objects or regions in the image. • To generate the description of the image, it is first necessary to segment the image into these regions. Introduction to Machine Vision

  12. IMAGE SEGMENTATION • How many “objects” are there in the image below? • Assuming the answer is “4”, what exactly defines an object? Zoom In Introduction to Machine Vision

  13. 8 BIT GRAYSCALE IMAGE Introduction to Machine Vision

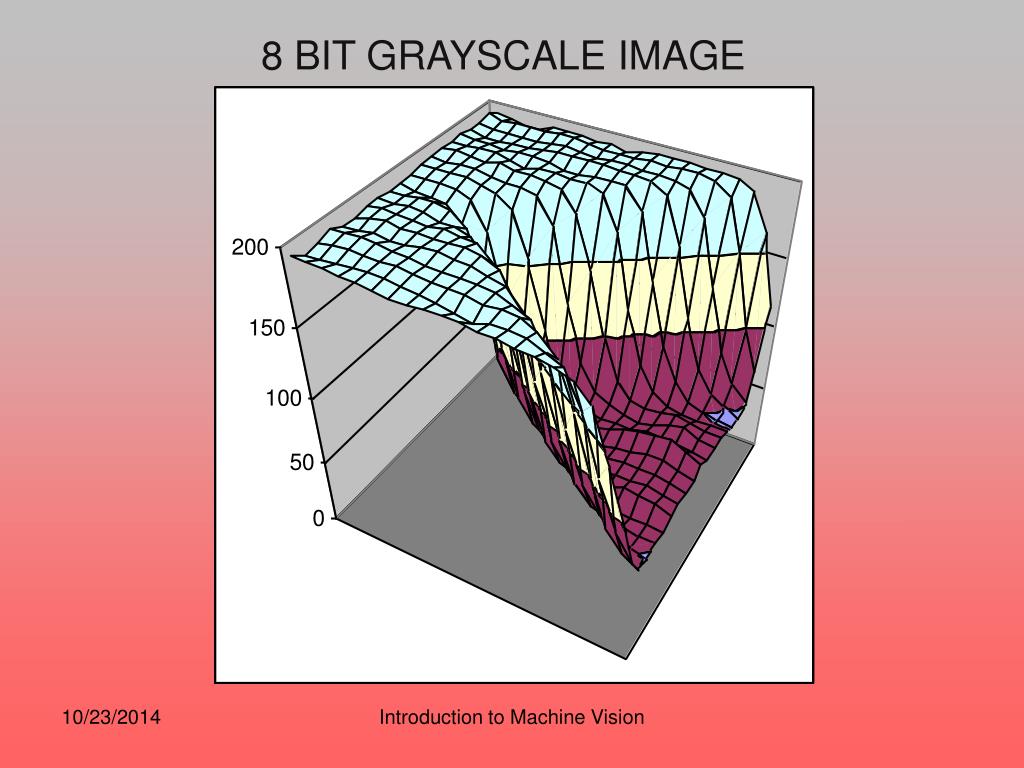

  14. 8 BIT GRAYSCALE IMAGE Introduction to Machine Vision

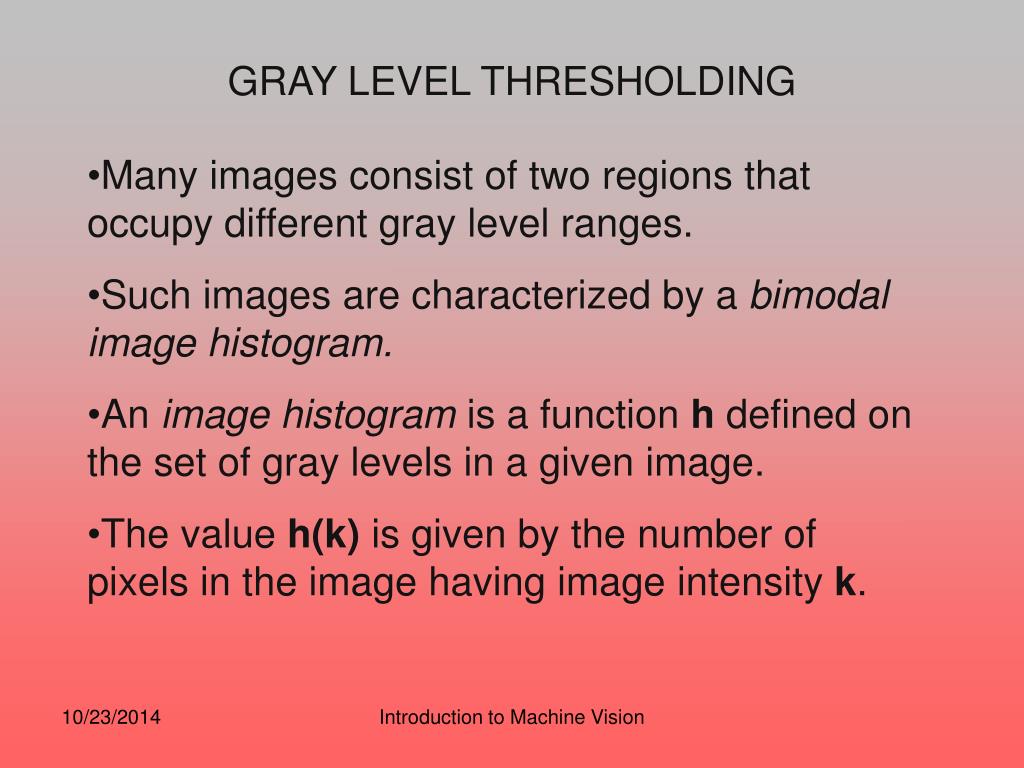

  15. GRAY LEVEL THRESHOLDING • Many images consist of two regions that occupy different gray level ranges. • Such images are characterized by a bimodal image histogram. • An image histogram is a function h defined on the set of gray levels in a given image. • The value h(k) is given by the number of pixels in the image having image intensity k. Introduction to Machine Vision

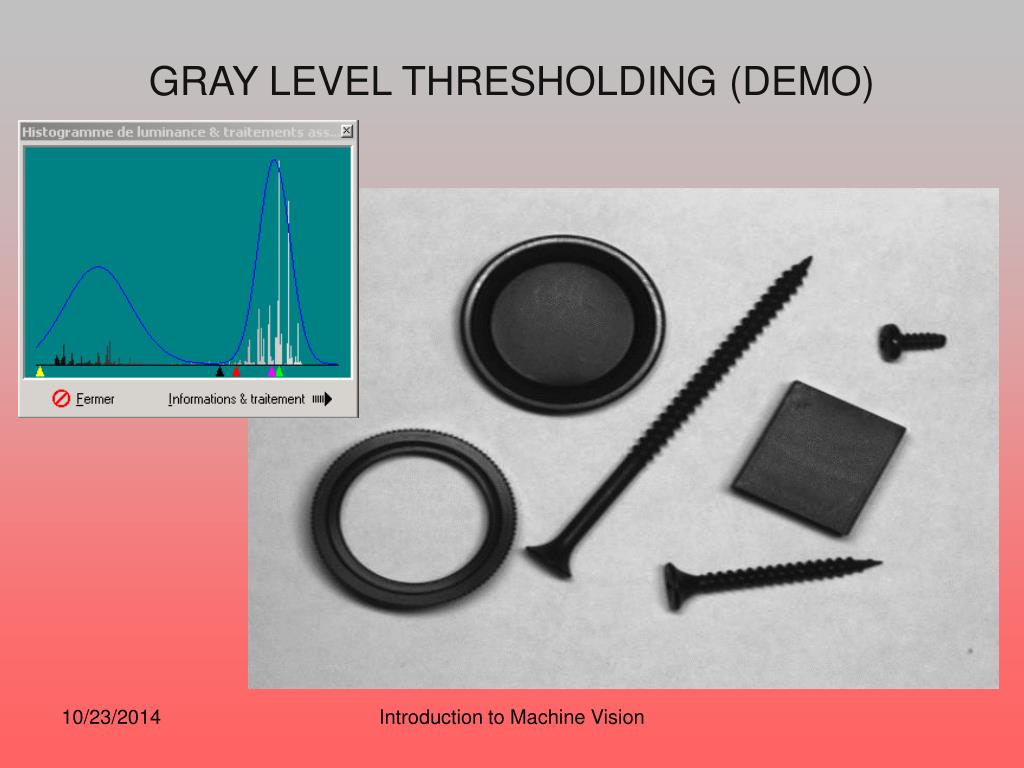

  16. GRAY LEVEL THRESHOLDING (DEMO) Introduction to Machine Vision

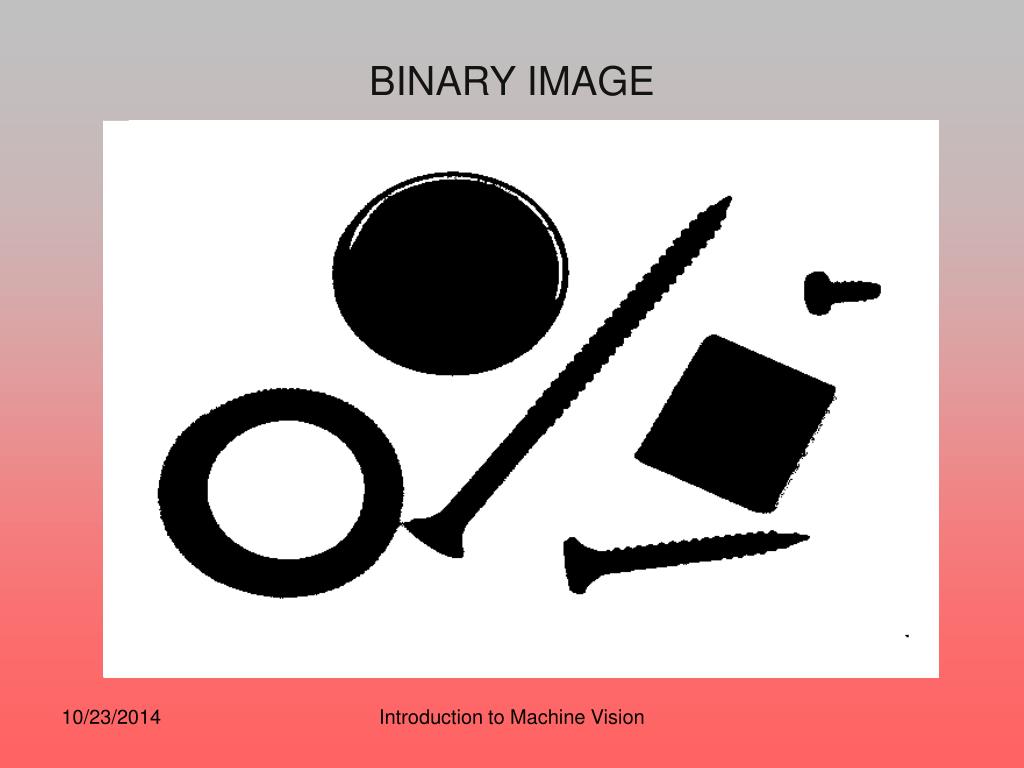

  17. BINARY IMAGE Introduction to Machine Vision

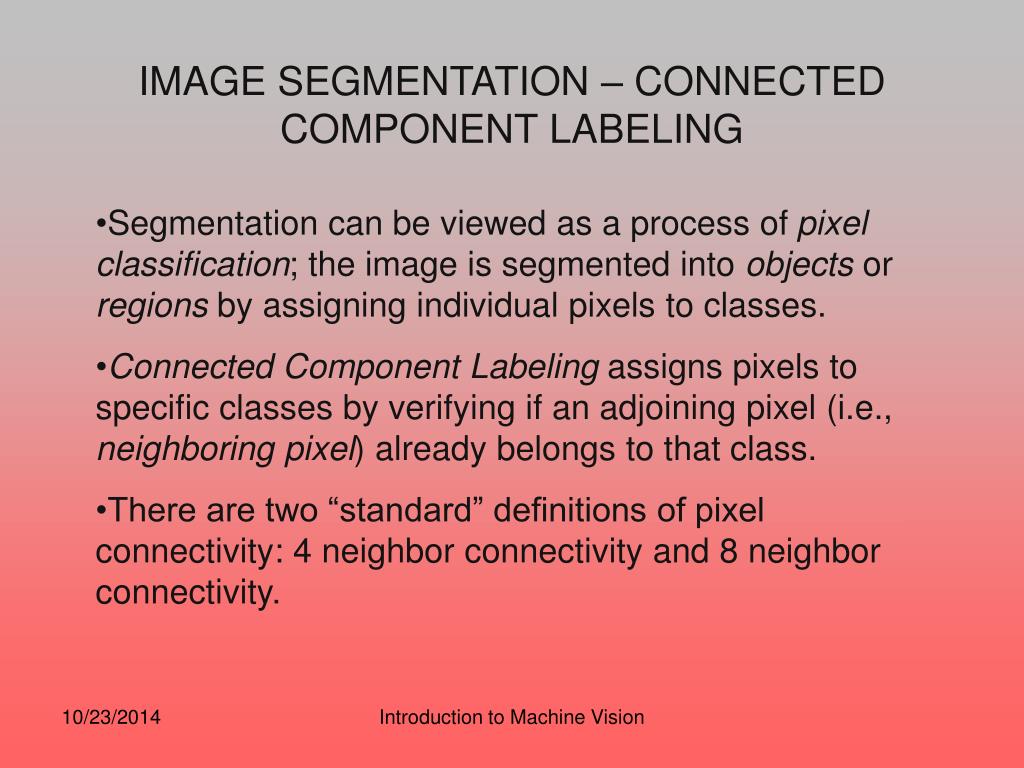

  18. IMAGE SEGMENTATION – CONNECTED COMPONENT LABELING • Segmentation can be viewed as a process of pixel classification; the image is segmented into objects or regions by assigning individual pixels to classes. • Connected Component Labeling assigns pixels to specific classes by verifying if an adjoining pixel (i.e., neighboring pixel) already belongs to that class. • There are two “standard” definitions of pixel connectivity: 4 neighbor connectivity and 8 neighbor connectivity. Introduction to Machine Vision

  19. IMAGE SEGMENTATION – CONNECTED COMPONENT LABELING 4 Neighbor Connectivity 8 Neighbor Connectivity Introduction to Machine Vision

  20. CONNECTED COMPONENT LABELING: FIRST PASS A A EQUIVALENCE: B=C A A A B B C C B B B C C B B B B B B Introduction to Machine Vision

  21. CONNECTED COMPONENT LABELING: SECOND PASS A A TWO OBJECTS! A A A B B C B C B B B B B C B C B B B B B B Introduction to Machine Vision

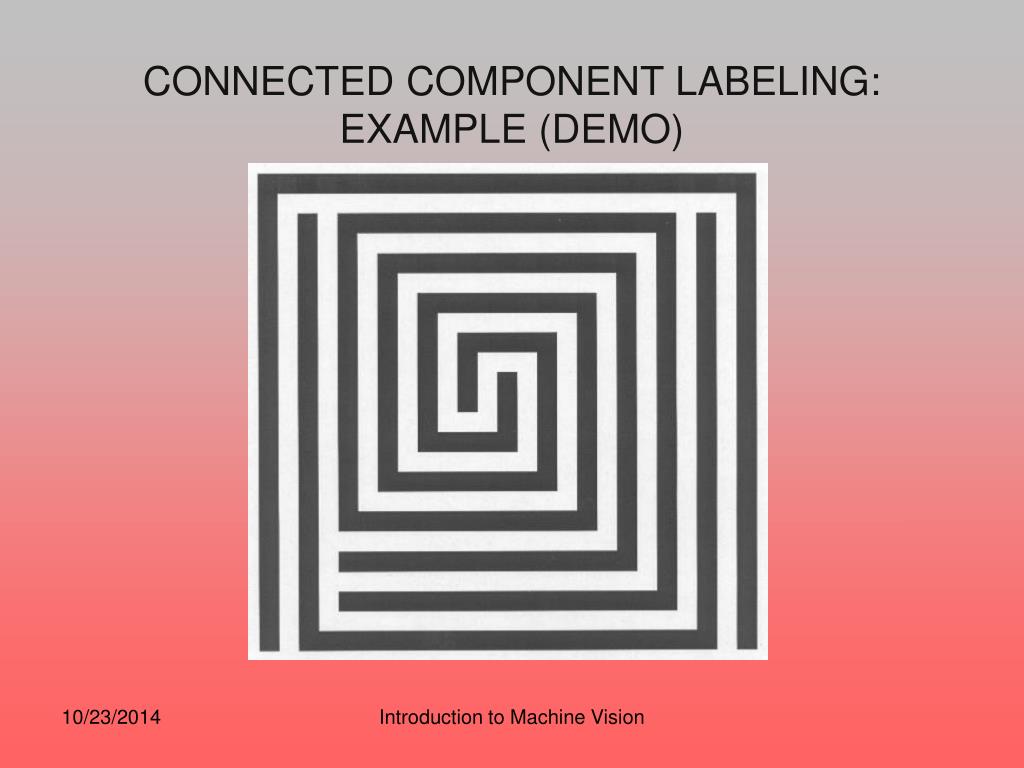

  22. CONNECTED COMPONENT LABELING: EXAMPLE (DEMO) Introduction to Machine Vision

  23. CONNECTED COMPONENT LABELING: TABLE OF EQUIVALENCES Introduction to Machine Vision

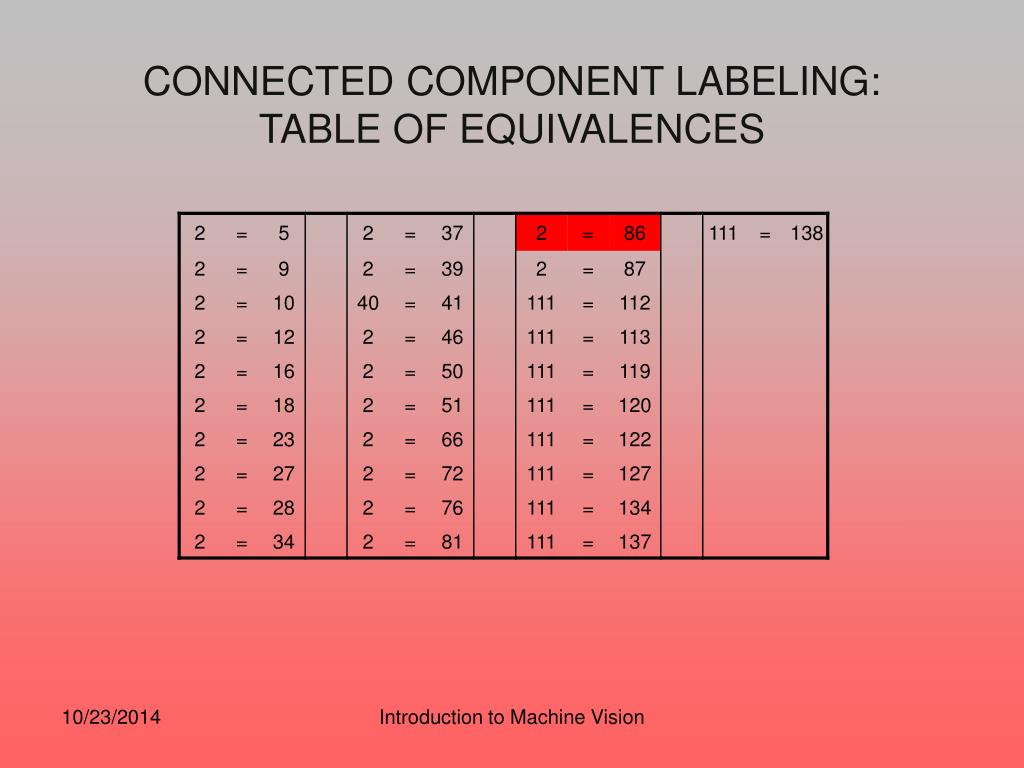

  24. CONNECTED COMPONENT LABELING: TABLE OF EQUIVALENCES Introduction to Machine Vision

  25. IS THERE A MORE COMPUTATIONALLY EFFICIENT TECHNIQUE FOR SEGMENTING THE OBJECTS IN THE IMAGE? • Contour tracking/border following identify the pixels that fall on the boundaries of the objects, i.e., pixels that have a neighbor that belongs to the background class or region. • There are two “standard” code definitions used to represent boundaries: code definitions based on 4-connectivity (crack code) and code definitions based on 8-connectivity (chain code). Introduction to Machine Vision

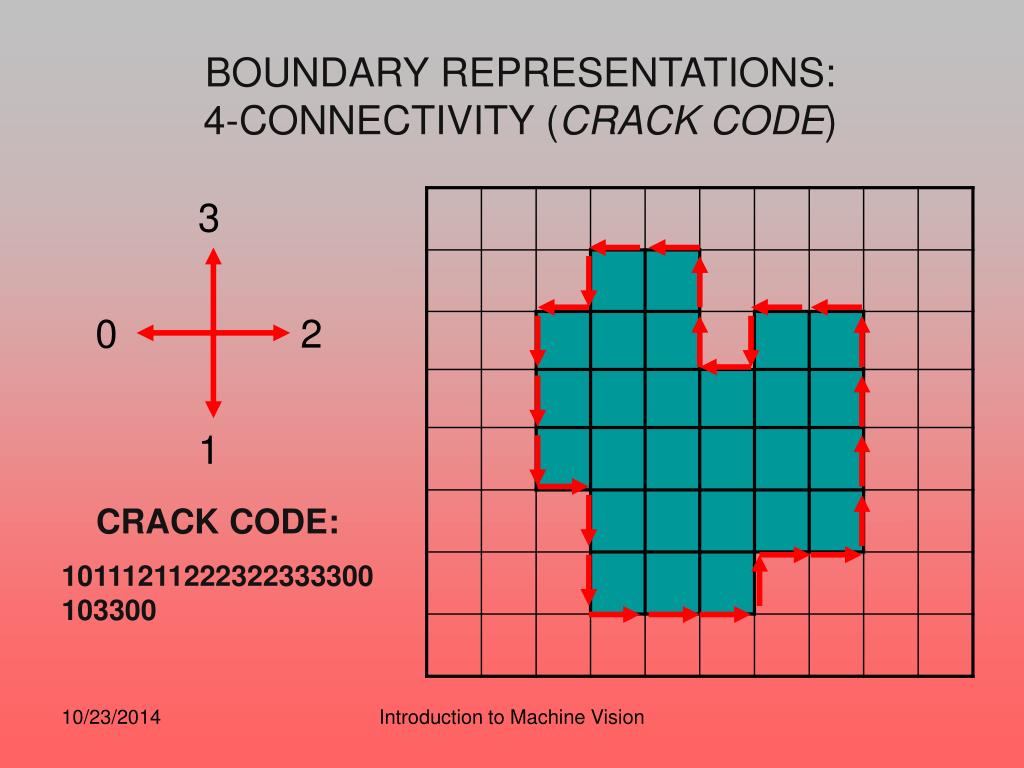

  26. BOUNDARY REPRESENTATIONS: 4-CONNECTIVITY (CRACK CODE) CRACK CODE: 10111211222322333300103300 Introduction to Machine Vision

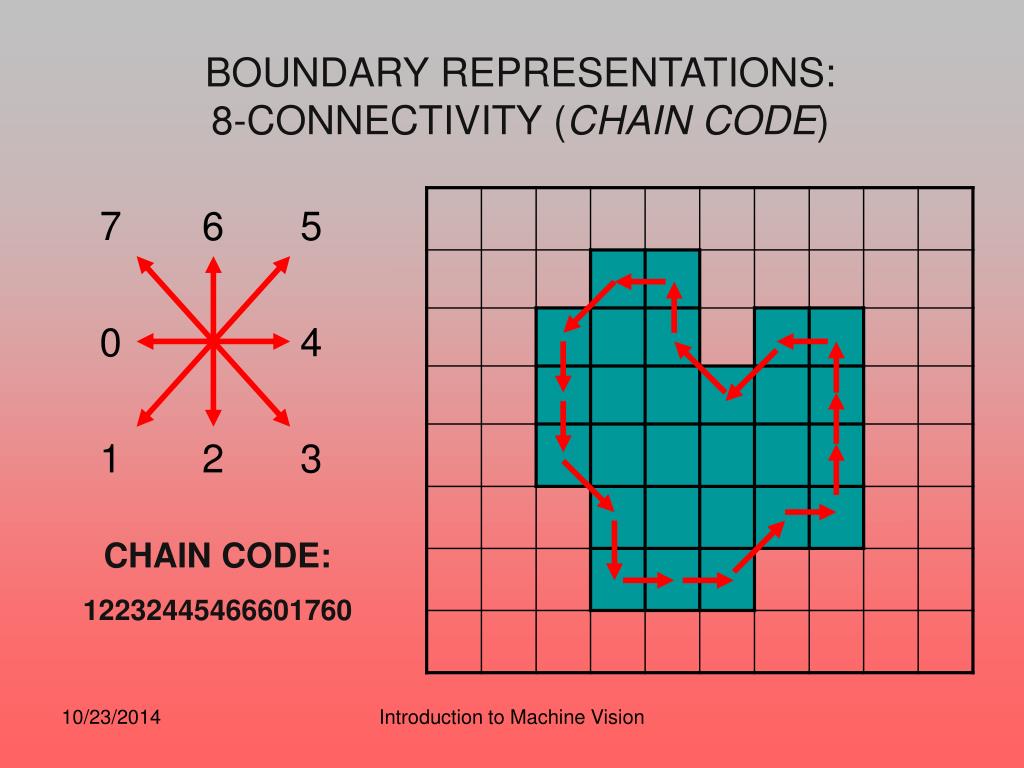

  27. BOUNDARY REPRESENTATIONS: 8-CONNECTIVITY (CHAIN CODE) CHAIN CODE: 12232445466601760 Introduction to Machine Vision

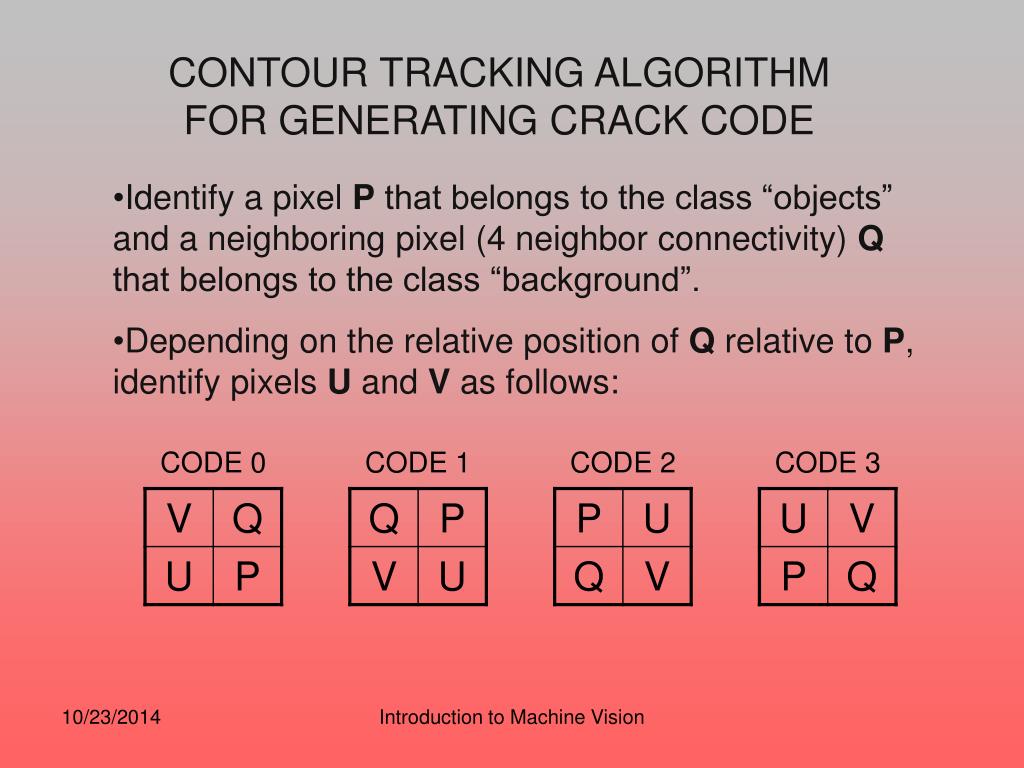

  28. CONTOUR TRACKING ALGORITHM FOR GENERATING CRACK CODE • Identify a pixel P that belongs to the class “objects” and a neighboring pixel (4 neighbor connectivity) Q that belongs to the class “background”. • Depending on the relative position of Q relative to P, identify pixels U and V as follows: Introduction to Machine Vision

  29. CONTOUR TRACKING ALGORITHM • Assume that a pixel has a value of “1” if it belongs to the class “object” and “0” if it belongs to the class “background”. • Pixels U and V are used to determine the next “move” (i.e., the next element of crack code) as summarized in the following truth table: Introduction to Machine Vision

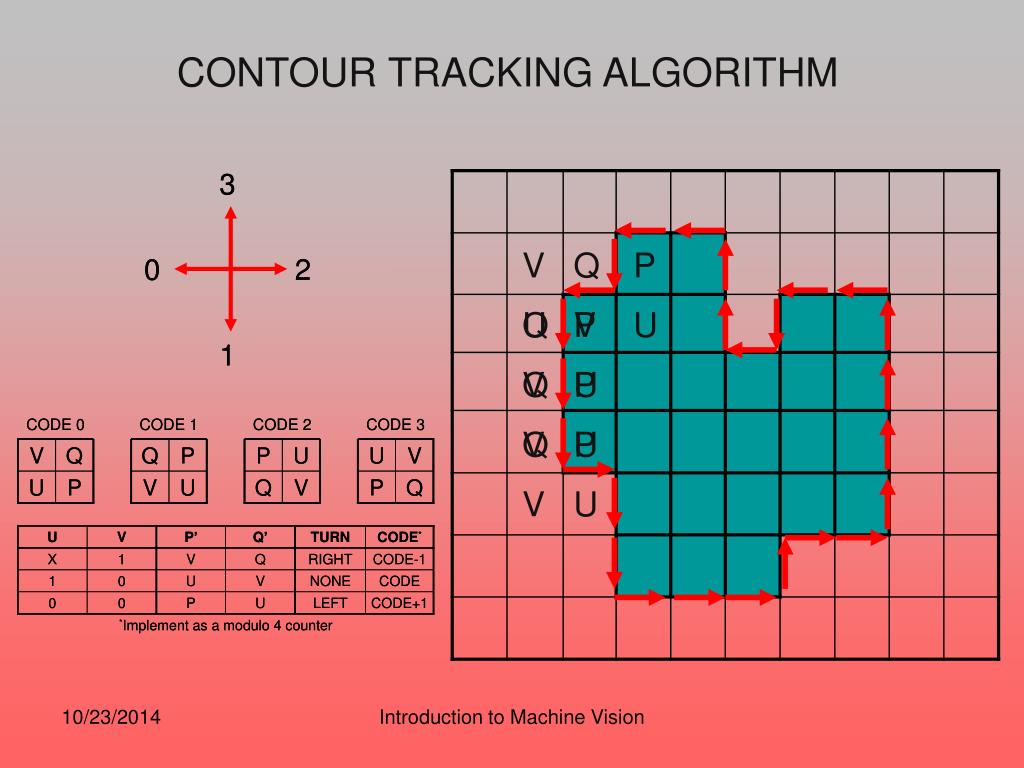

  30. CONTOUR TRACKING ALGORITHM V Q P Q U V P U V Q U P Q V U P V U Introduction to Machine Vision

  31. CONTOUR TRACKING ALGORITHM FOR GENERATING CRACK CODE • Software Demo! Introduction to Machine Vision

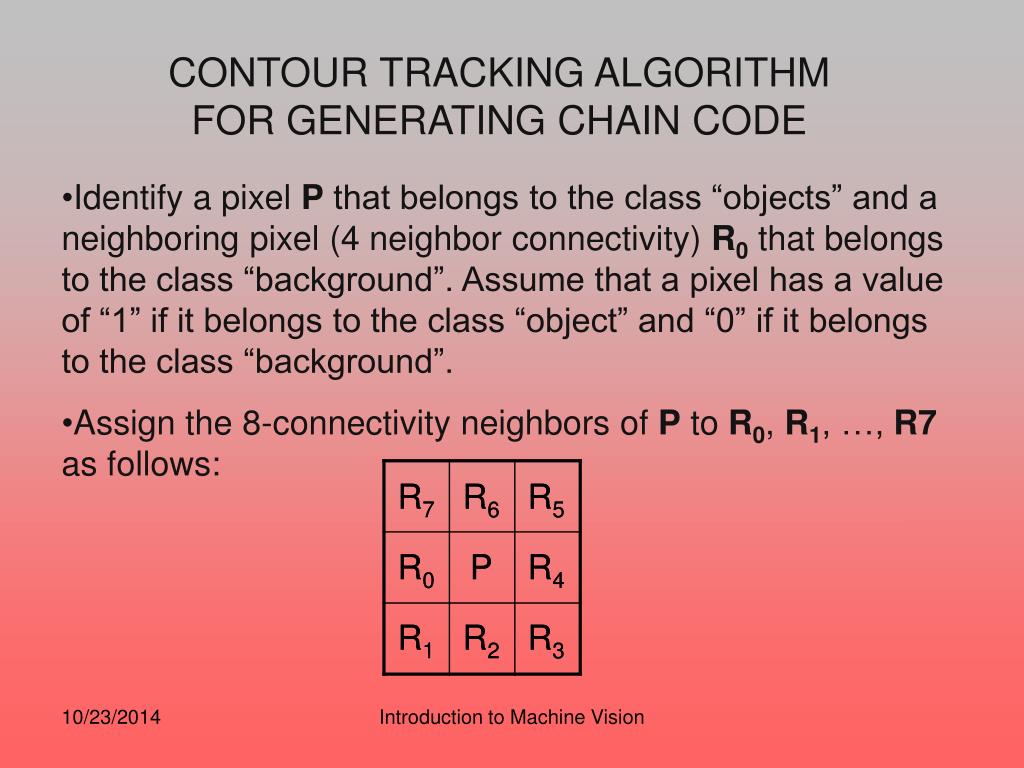

  32. CONTOUR TRACKING ALGORITHM FOR GENERATING CHAIN CODE • Identify a pixel P that belongs to the class “objects” and a neighboring pixel (4 neighbor connectivity) R0 that belongs to the class “background”. Assume that a pixel has a value of “1” if it belongs to the class “object” and “0” if it belongs to the class “background”. • Assign the 8-connectivity neighbors of P to R0, R1, …, R7 as follows: Introduction to Machine Vision

  33. CONTOUR TRACKING ALGORITHM FOR GENERATING CHAIN CODE • ALGORITHM: • i=0 • WHILE (Ri==0) { i++ } • Move P to Ri • Set i=6 for next search Introduction to Machine Vision

  34. OBJECT RECOGNITION – BLOB ANALYSIS • Once the image has been segmented into classes representing the objects in the image, the next step is to generate a high level description of the various objects. • A comprehensive set of form parameters describing each object or region in an image is useful for object recognition. • Ideally the form parameters should be independent of the object’s position and orientation as well as the distance between the camera and the object (i.e., scale factor). Introduction to Machine Vision

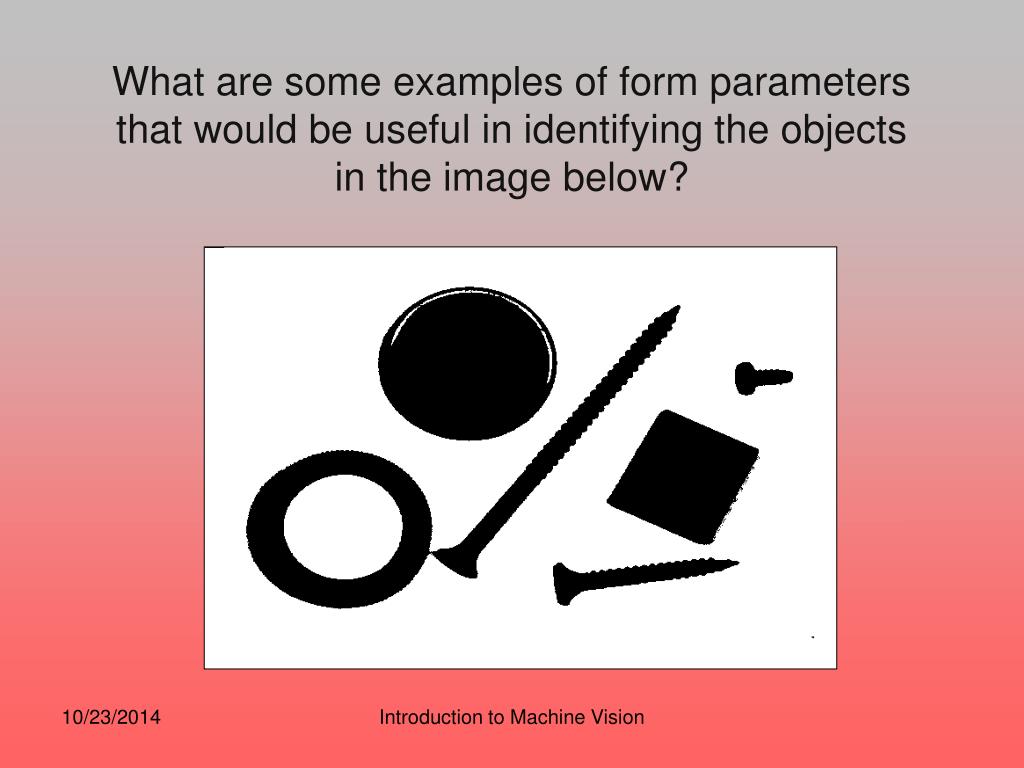

  35. What are some examples of form parameters that would be useful in identifying the objects in the image below? Introduction to Machine Vision

  36. OBJECT RECOGNITION – BLOB ANALYSIS • Examples of form parameters that are invariant with respect to position, orientation, and scale: • Number of holes in the object • Compactness or Complexity: (Perimeter)2/Area • Moment invariants • All of these parameters can be evaluated during contour following. Introduction to Machine Vision

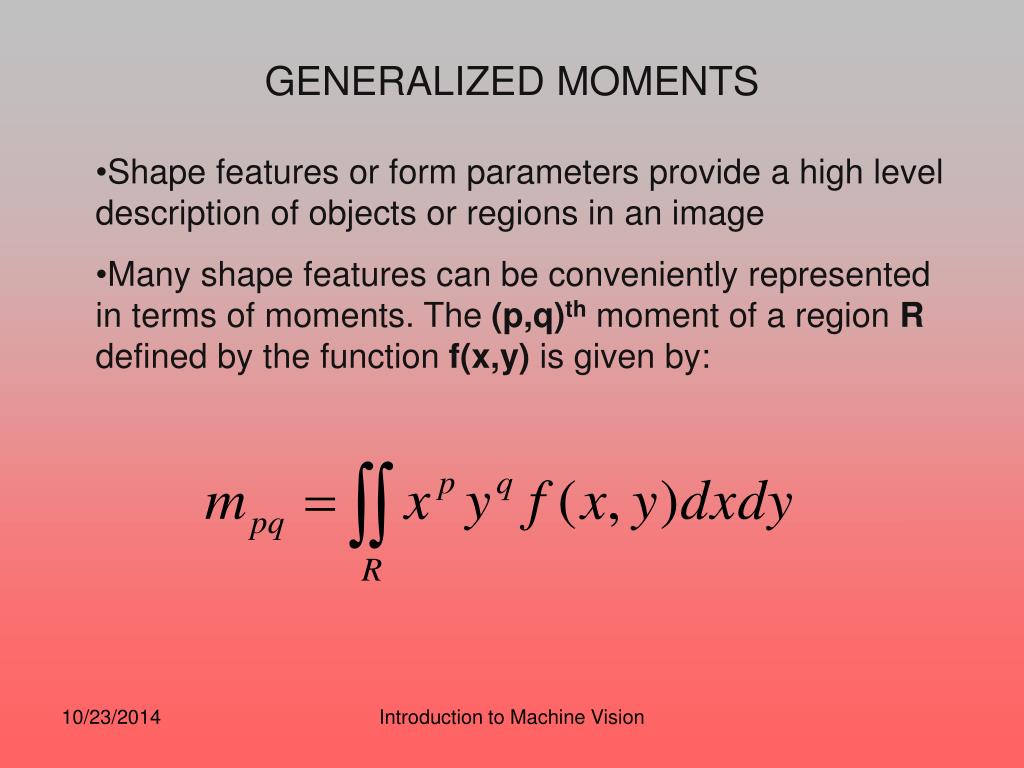

  37. GENERALIZED MOMENTS • Shape features or form parameters provide a high level description of objects or regions in an image • Many shape features can be conveniently represented in terms of moments. The (p,q)th moment of a region R defined by the function f(x,y) is given by: Introduction to Machine Vision

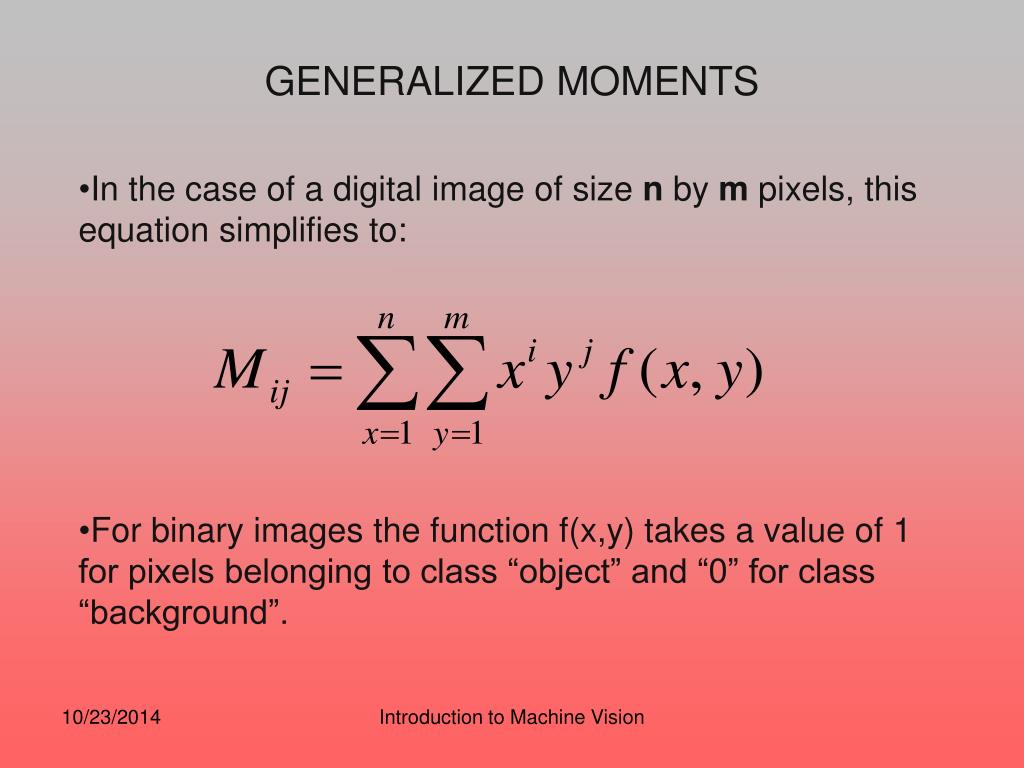

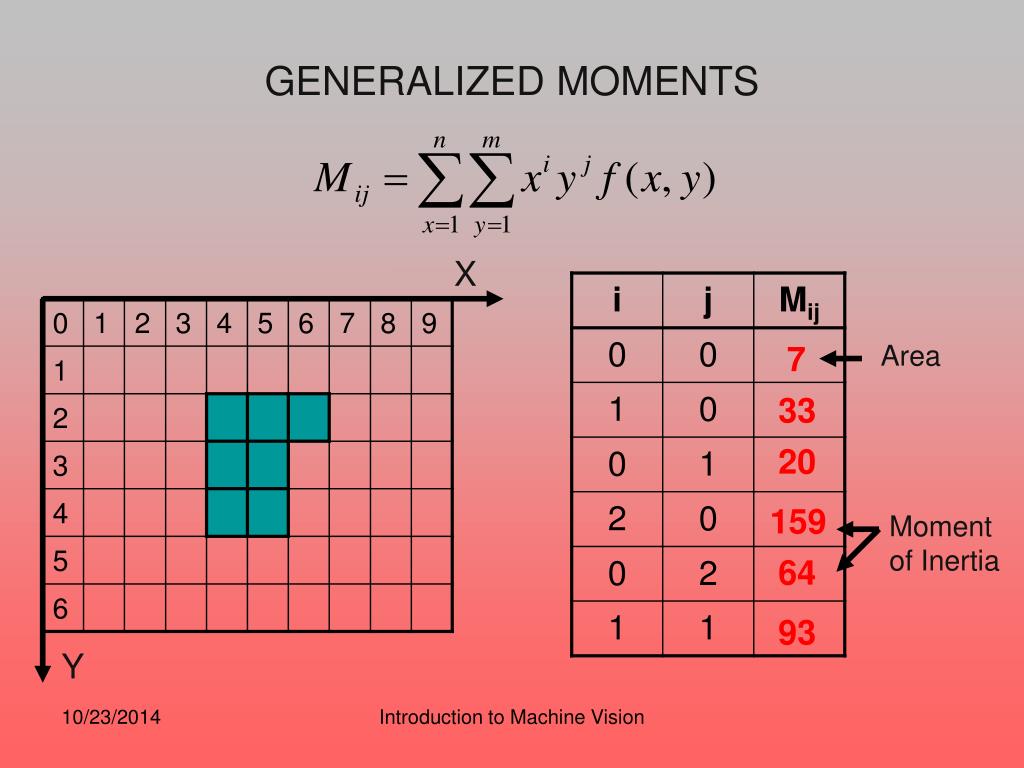

  38. GENERALIZED MOMENTS • In the case of a digital image of size n by m pixels, this equation simplifies to: • For binary images the function f(x,y) takes a value of 1 for pixels belonging to class “object” and “0” for class “background”. Introduction to Machine Vision

  39. GENERALIZED MOMENTS X 7 Area 33 20 159 Moment of Inertia 64 93 Y Introduction to Machine Vision

  40. SOME USEFUL MOMENTS • The center of mass of a region can be defined in terms of generalized moments as follows: Introduction to Machine Vision

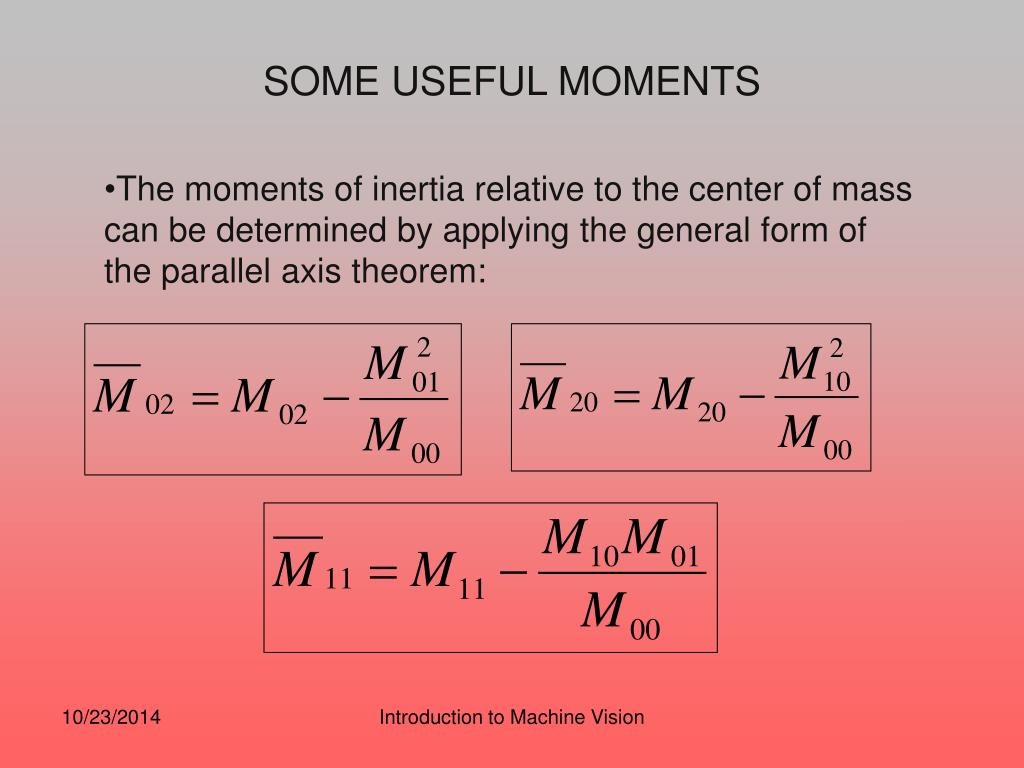

  41. SOME USEFUL MOMENTS • The moments of inertia relative to the center of mass can be determined by applying the general form of the parallel axis theorem: Introduction to Machine Vision

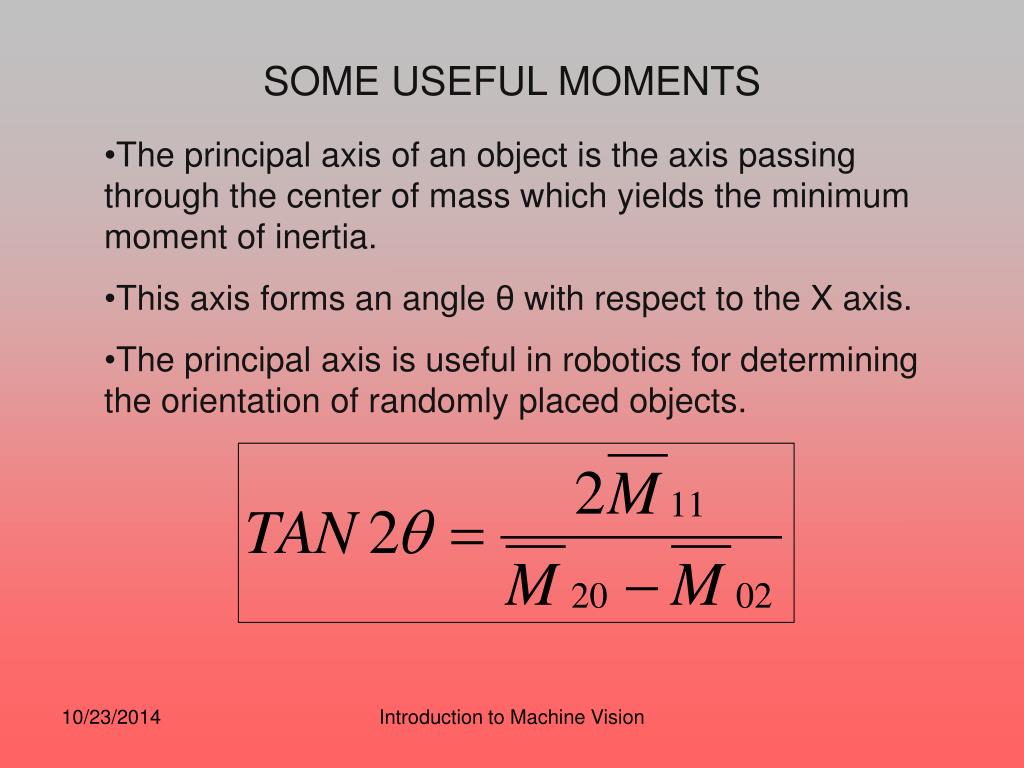

  42. SOME USEFUL MOMENTS • The principal axis of an object is the axis passing through the center of mass which yields the minimum moment of inertia. • This axis forms an angle θ with respect to the X axis. • The principal axis is useful in robotics for determining the orientation of randomly placed objects. Introduction to Machine Vision

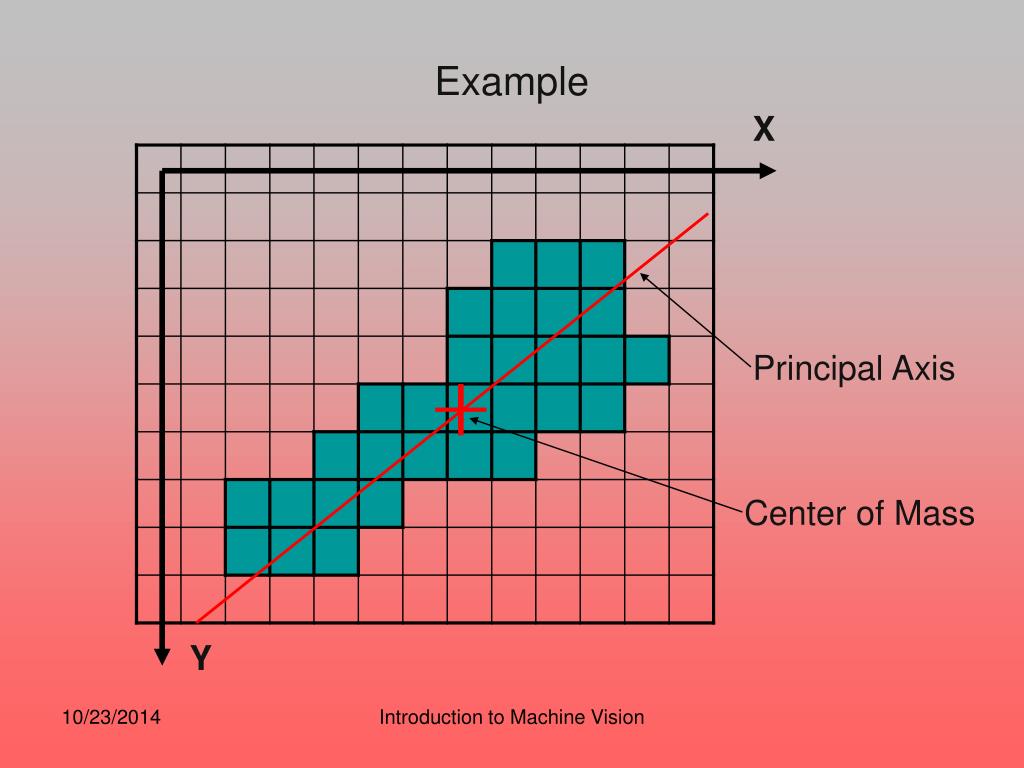

  43. Example X Principal Axis Center of Mass Y Introduction to Machine Vision

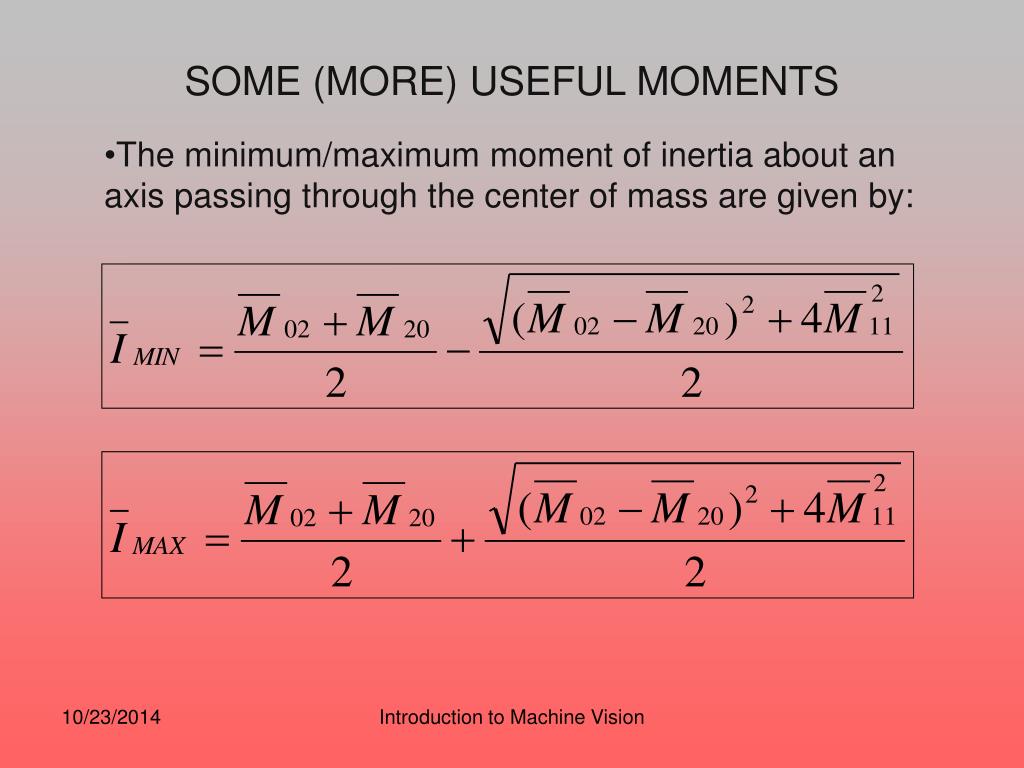

  44. SOME (MORE) USEFUL MOMENTS • The minimum/maximum moment of inertia about an axis passing through the center of mass are given by: Introduction to Machine Vision

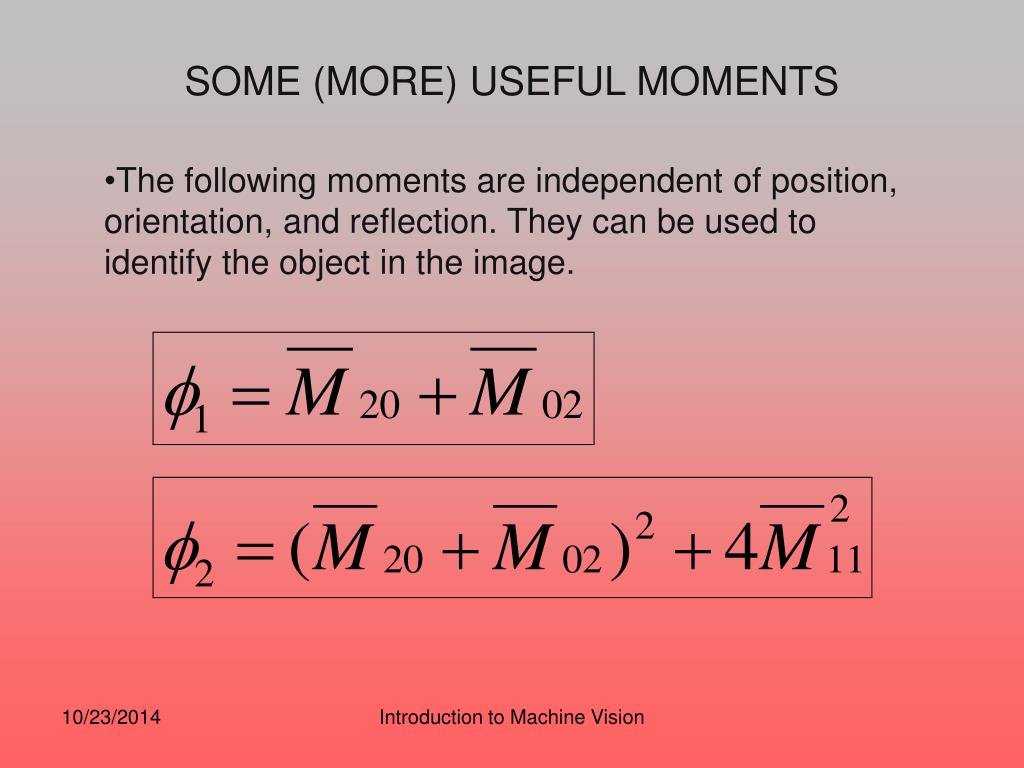

  45. SOME (MORE) USEFUL MOMENTS • The following moments are independent of position, orientation, and reflection. They can be used to identify the object in the image. Introduction to Machine Vision

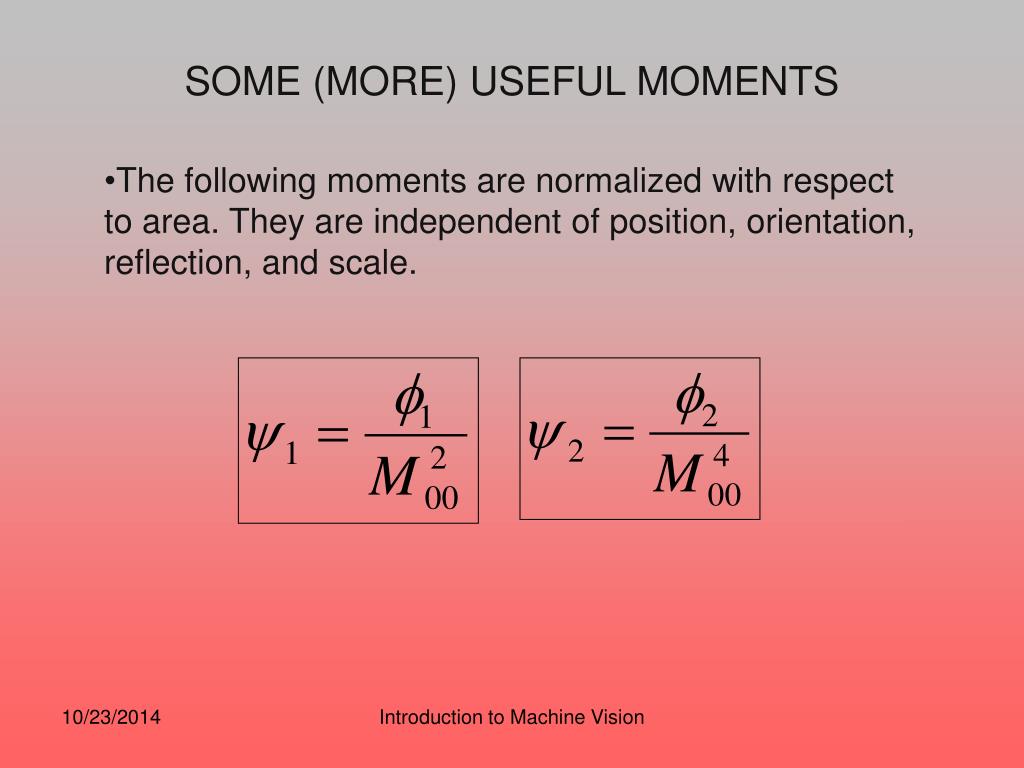

  46. SOME (MORE) USEFUL MOMENTS • The following moments are normalized with respect to area. They are independent of position, orientation, reflection, and scale. Introduction to Machine Vision

  47. EVALUATING MOMENTS DURING CONTOUR TRACKING • Generalized moments are computed by evaluating a double (i.e., surface) integral over a region of the image. • The surface integral can be transformed into a line integral around the boundary of the region by applying Green’s Theorem. • The line integral can be easily evaluated during contour tracking. • The process is analogous to using a planimeter to graphically evaluate the area of a geometric figure. Introduction to Machine Vision

  48. EVALUATING MOMENTS DIRECTLY FROM CRACK CODE DURING CONTOUR TRACKING { switch ( code [i] ) { case 0: m00 = m00 - y; m01 = m01 - sum_y; m02 = m02 - sum_y2; x = x - 1; sum_x = sum_x - x; sum_x2 = sum_x2 - x*x; m11 = m11 - (x*sum_y); break;  case 1: sum_y = sum_y + y; sum_y2 = sum_y2 + y*y; y = y + 1; m10 = m10 - sum_x; m20 = m20 - sum_x2; break; Introduction to Machine Vision

  49. EVALUATING MOMENTS DIRECTLY FROM CRACK CODE DURING CONTOUR TRACKING case 2: m00 = m00 + y; m01 = m01 + sum_y; m02 = m02 + sum_y2; m11 = m11 + (x*sum_y); sum_x = sum_x + x; sum_x2 = sum_x2 + x*x; x = x + 1; break; case 3: y = y - 1; sum_y = sum_y - y; sum_y2 = sum_y2 - y*y; m10 = m10 + sum_x; m20 = m20 + sum_x2; break; } } Introduction to Machine Vision

  50. QUESTIONS? Introduction to Machine Vision
