  1. Alkali and sulfur balances in the blast furnace Mikko Helle Åbo Akademi

  2. Alkali IN and OUT flows (BF1) • Inputs: sinter (incl. pellets), coke, scrap (BF1), other • Outputs: slag, dust • Alkali analysis, daily values, interpolated if missing

  3. Alkali IN and OUT flows (BF2) • Inputs: sinter (incl. pellets), coke, other • Outputs: slag, dust

  4. Alkali balance • Cumulative balances • Contain errors • Inaccurate massflows and analysis  Similar trends can be seen

  5. Alkali input and output • Filtered sums of in- and outflows • Explains the drifting in cumulative balances

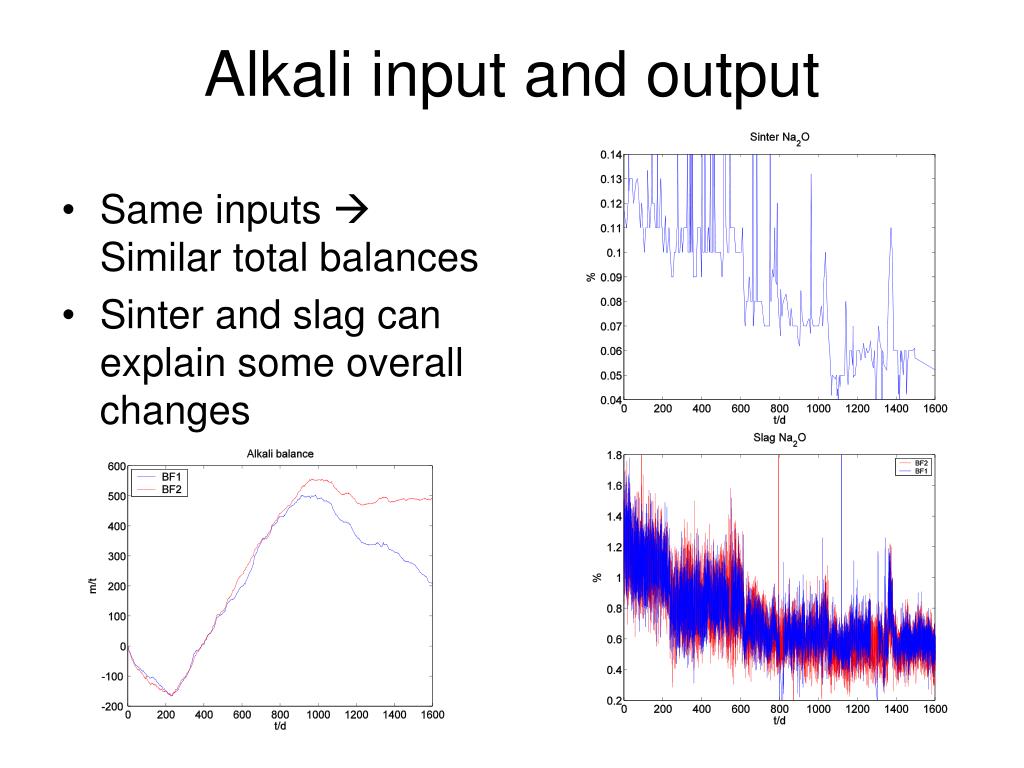

  6. Alkali input and output • Same inputs  Similar total balances • Sinter and slag can explain some overall changes

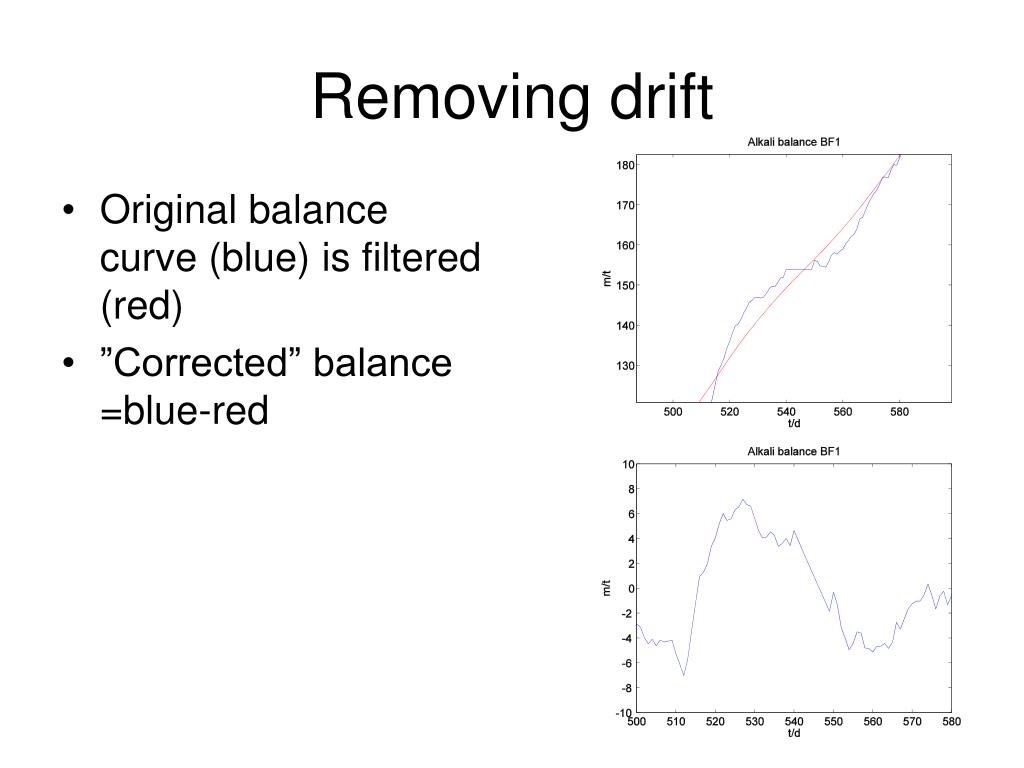

  7. Removing drift • Original balance curve (blue) is filtered (red) • ”Corrected” balance =blue-red

  8. Corrected balances • Similar behavior can be seen between BF1 & BF2 • Errors in analysis of input materials? • Note the scale, ±15t

  9. Influence of filtering on correction • Differences can be seen better when using less filtering, but real changes should not be eliminated

  10. Sulfur IN and OUT flows (BF1) • Inputs: coke, oil, sinter (incl. pellets), scrap, other • Outputs: slag, iron, dust, (gas 40 ppm)

  11. Sulfur IN and OUT flows (BF2) • Inputs: coke, oil, sinter (incl. pellets), other (very little) • Outputs: slag, iron, dust, (gas 100 ppm)

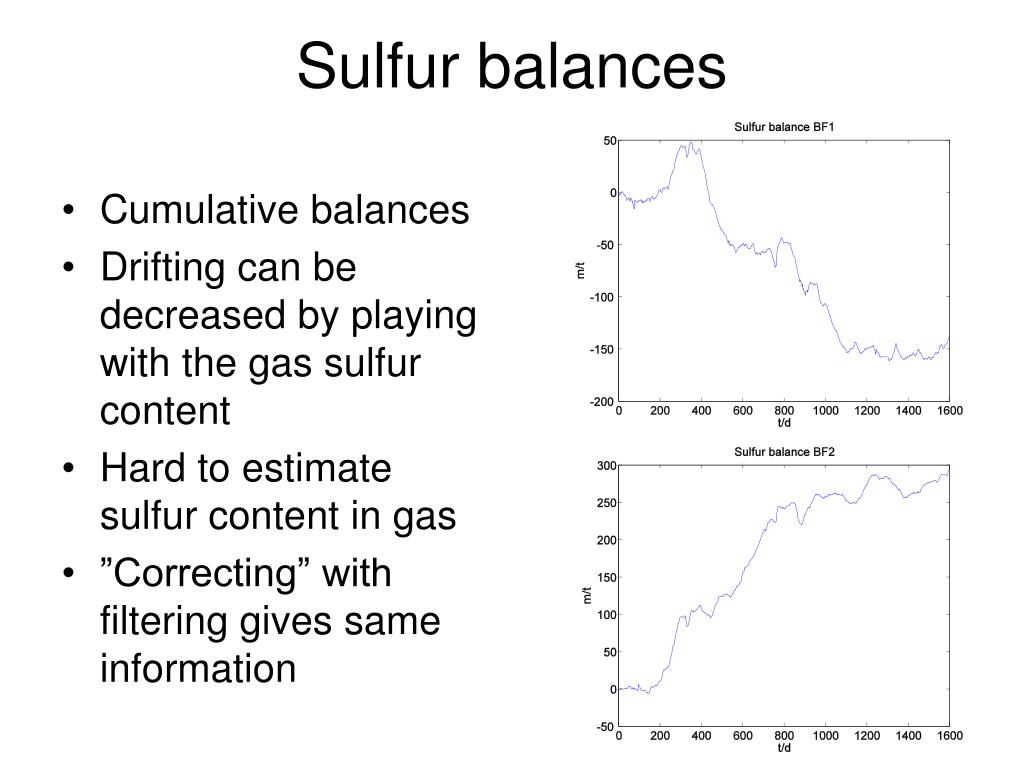

  12. Sulfur balances • Cumulative balances • Drifting can be decreased by playing with the gas sulfur content • Hard to estimate sulfur content in gas • ”Correcting” with filtering gives same information

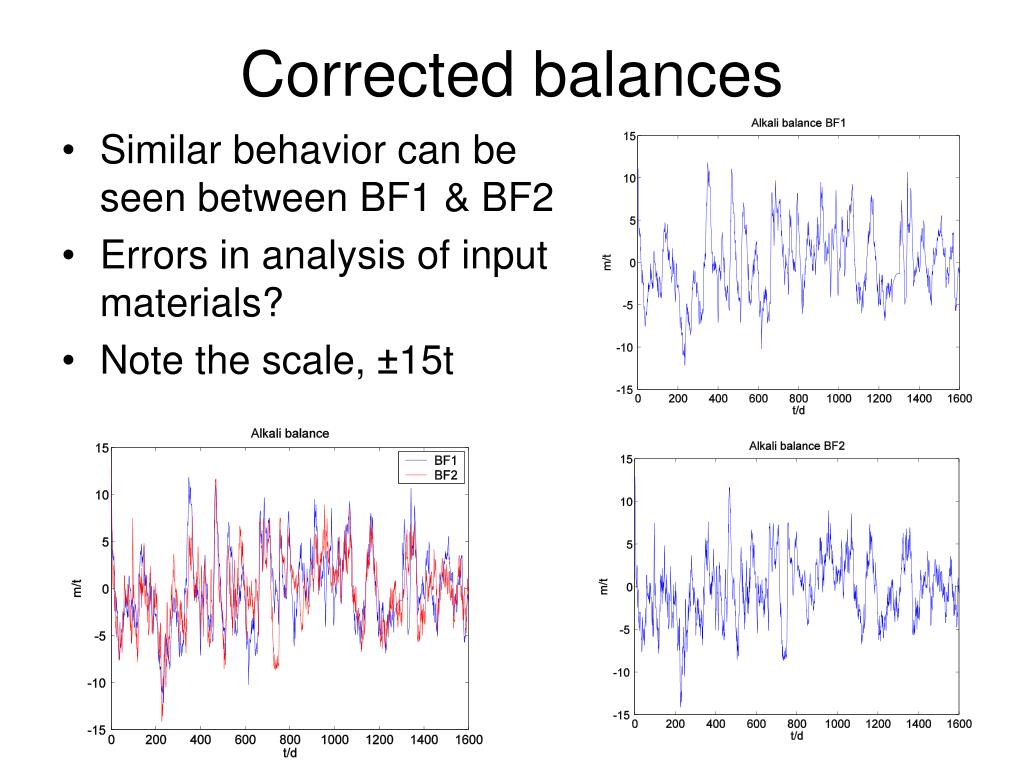

  13. Corrected balances • Drift removed with filtering • Similarities can be seen between BF1 & BF2

  14. Explaining errors • Outflow decreases before inflow and in both BFs?!? • Inaccurate sulfur content of oil?

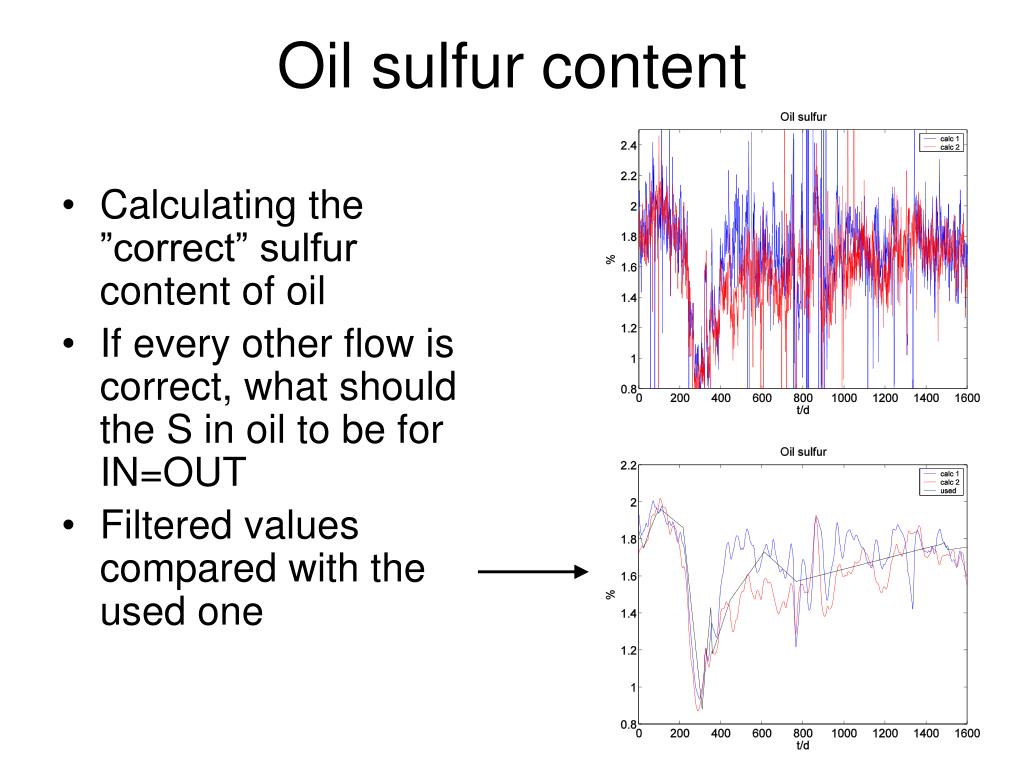

  15. Oil sulfur content • Calculating the ”correct” sulfur content of oil • If every other flow is correct, what should the S in oil to be for IN=OUT • Filtered values compared with the used one

  16. Hearth volume and sulfur S-rich skull melts in the hearth Outflow of S increases and returns to original level when skull melting stops

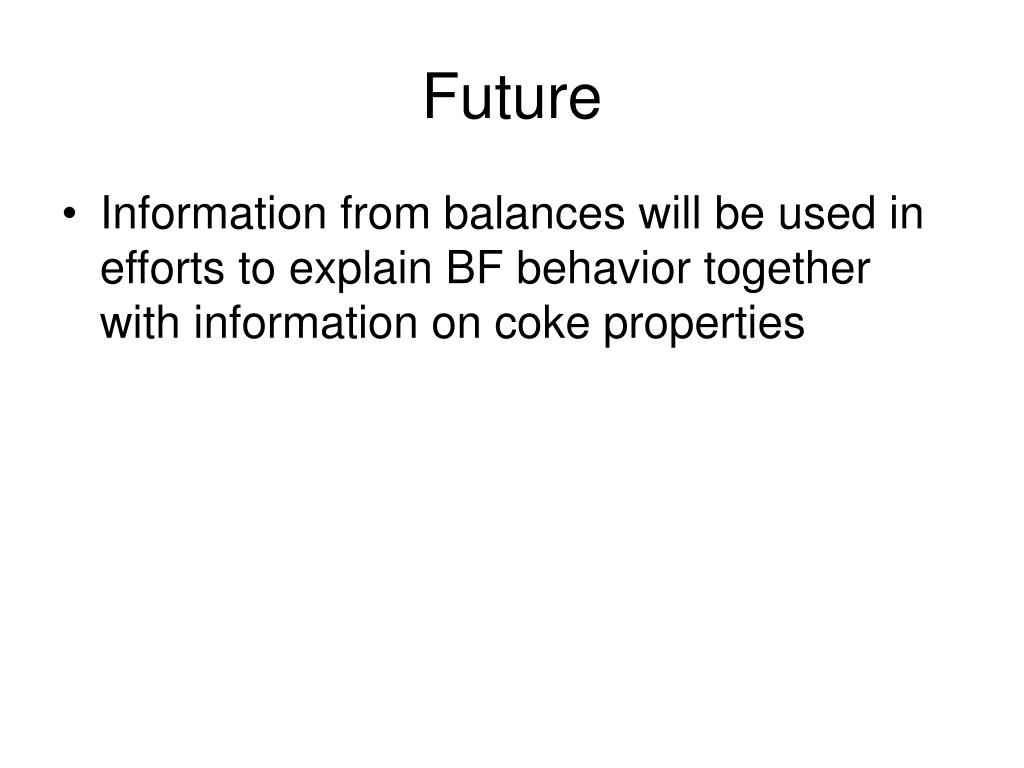

  17. Future • Information from balances will be used in efforts to explain BF behavior together with information on coke properties
