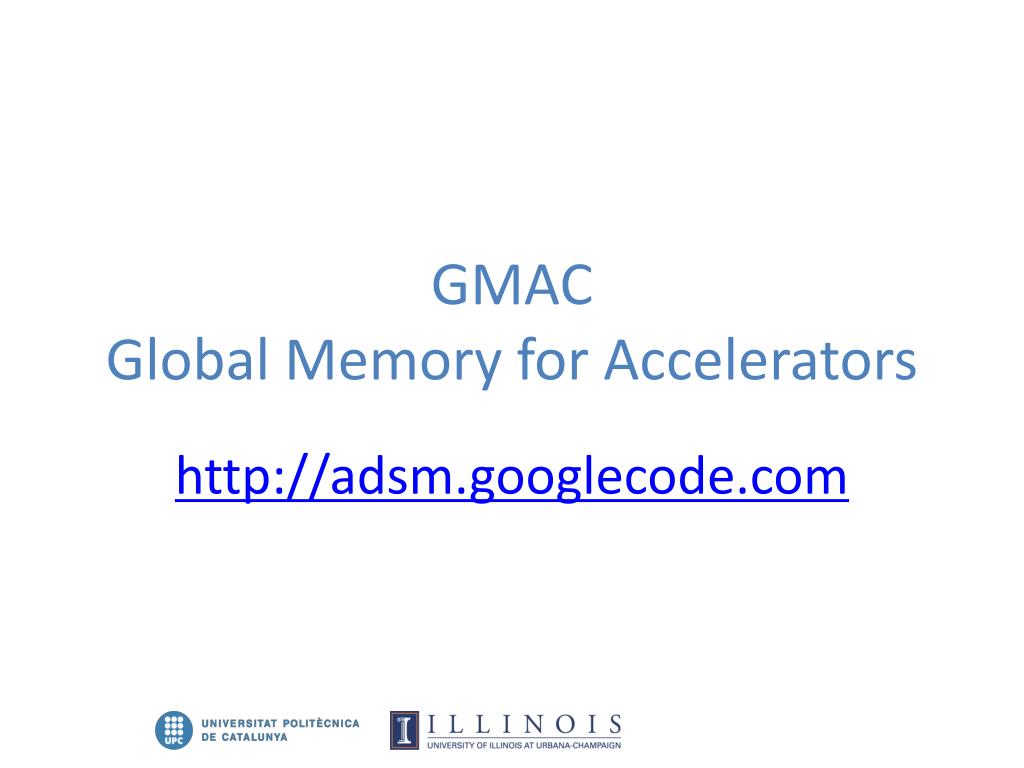

GMAC Global Memory for Accelerators

1. GMACGlobal Memory for Accelerators Isaac Gelado, John E. Stone, Javier Cabezas, Nacho Navarro and Wen-mei W. Hwu GTC 2010

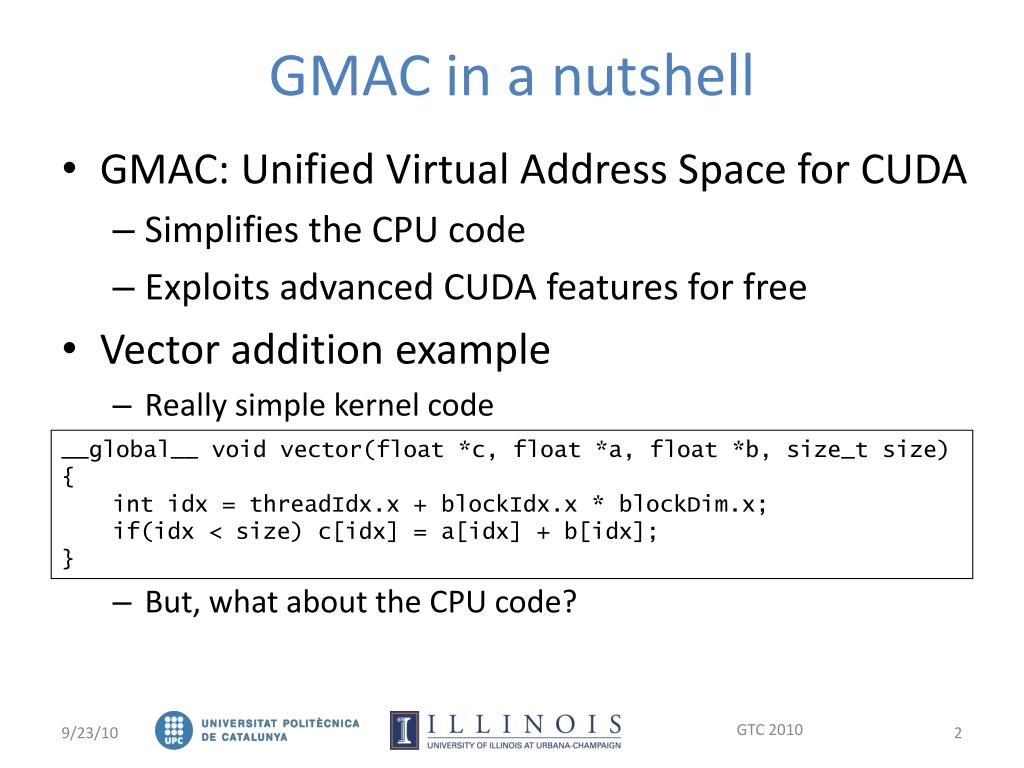

2. GMAC in a nutshell • GMAC: Unified Virtual Address Space for CUDA • Simplifies the CPU code • Exploits advanced CUDA features for free • Vector addition example • Really simple kernel code • But, what about the CPU code? __global__ void vector(float *c, float *a, float *b, size_t size) { int idx = threadIdx.x + blockIdx.x * blockDim.x; if(idx < size) c[idx] = a[idx] + b[idx]; } GTC 2010

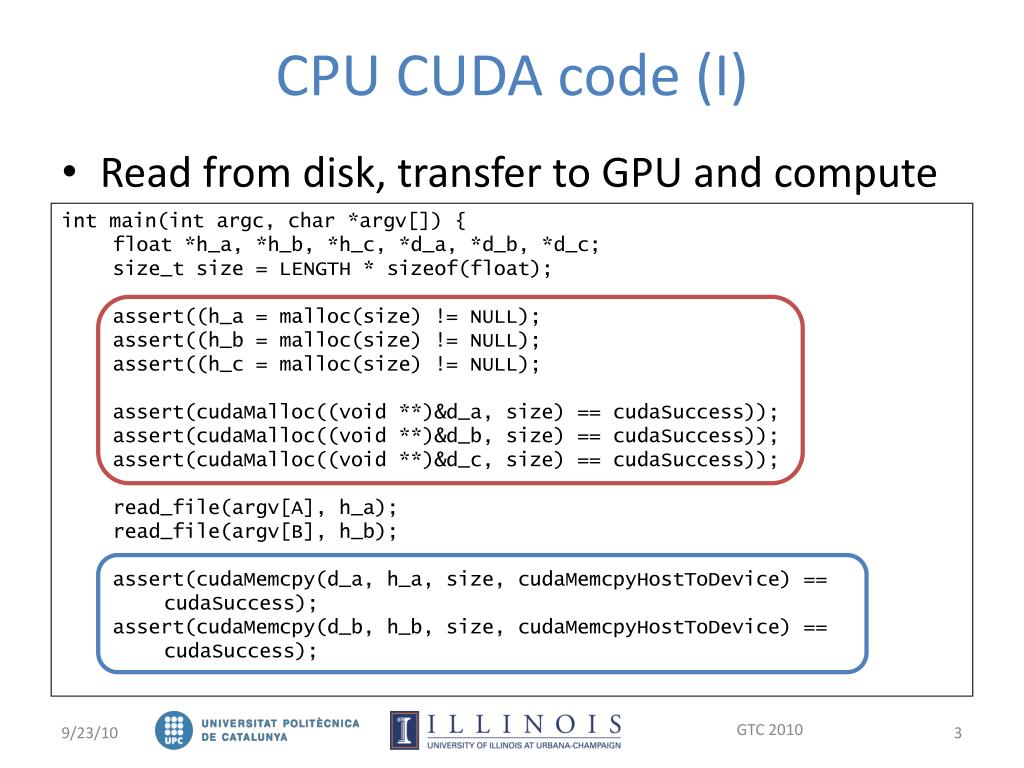

3. CPU CUDA code (I) • Read from disk, transfer to GPU and compute intmain(intargc, char *argv[]) { float *h_a, *h_b, *h_c, *d_a, *d_b, *d_c; size_t size = LENGTH * sizeof(float); assert((h_a = malloc(size) != NULL); assert((h_b = malloc(size) != NULL); assert((h_c = malloc(size) != NULL); assert(cudaMalloc((void **)&d_a, size) == cudaSuccess)); assert(cudaMalloc((void **)&d_b, size) == cudaSuccess)); assert(cudaMalloc((void **)&d_c, size) == cudaSuccess)); read_file(argv[A], h_a); read_file(argv[B], h_b); assert(cudaMemcpy(d_a, h_a, size, cudaMemcpyHostToDevice) == cudaSuccess); assert(cudaMemcpy(d_b, h_b, size, cudaMemcpyHostToDevice) == cudaSuccess); GTC 2010

4. CPU CUDA code (and II) • Read from disk, transfer to GPU and compute Db(BLOCK_SIZE); Dg(LENGTH / BLOCK_SIZE); if(LENGTH % BLOCK_SIZE) Dg.x++; vector<<<Dg, Db>>>(d_c, d_a, d_b, LENGTH); assert(cudaThreadSynchronize() == cudaSuccess); assert(cudaMemcpy(d_c, h_c, LENGTH * sizeof(float), cudaMemcpyDeviceToHost) == cudaSuccess); save_file(argv[C], h_c); free(h_a); cudaFree(d_a); free(h_b); cudaFree(d_b); free(h_c); cudaFree(d_c); return 0; } GTC 2010

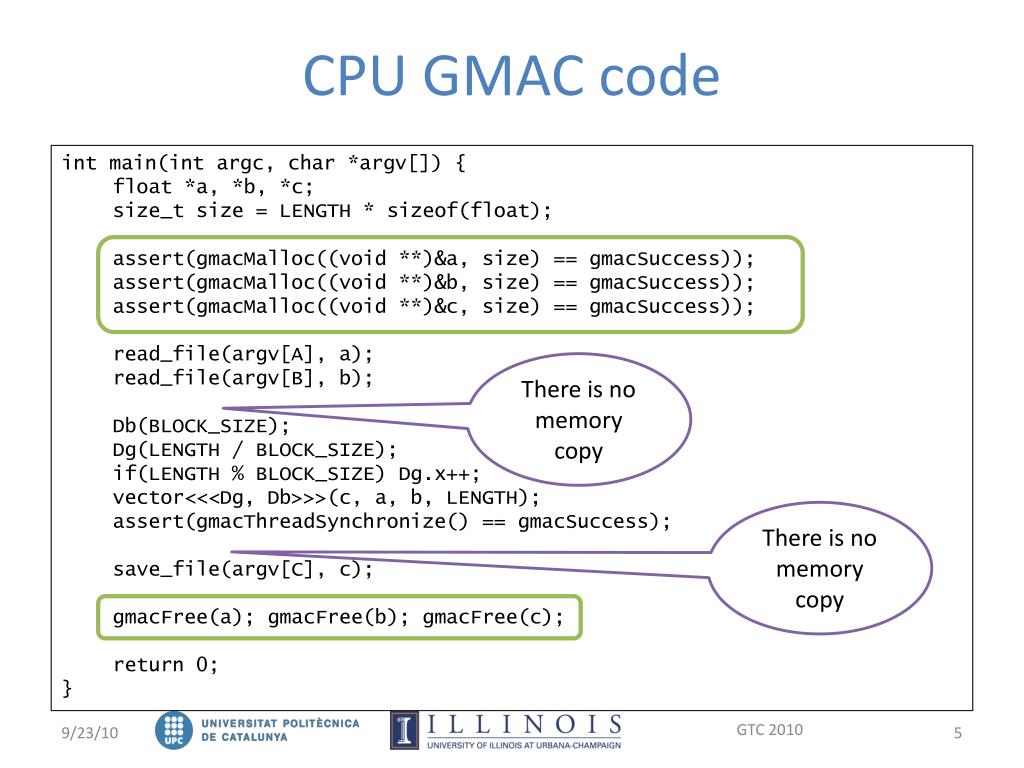

5. CPU GMAC code intmain(intargc, char *argv[]) { float *a, *b, *c; size_t size = LENGTH * sizeof(float); assert(gmacMalloc((void **)&a, size) ==gmacSuccess)); assert(gmacMalloc((void **)&b, size) ==gmacSuccess)); assert(gmacMalloc((void **)&c, size) ==gmacSuccess)); read_file(argv[A], a); read_file(argv[B],b); Db(BLOCK_SIZE); Dg(LENGTH / BLOCK_SIZE); if(LENGTH % BLOCK_SIZE) Dg.x++; vector<<<Dg, Db>>>(c, a, b, LENGTH); assert(gmacThreadSynchronize() == gmacSuccess); save_file(argv[C], c); gmacFree(a); gmacFree(b); gmacFree(c); return 0; } There is no memory copy There is no memory copy GTC 2010

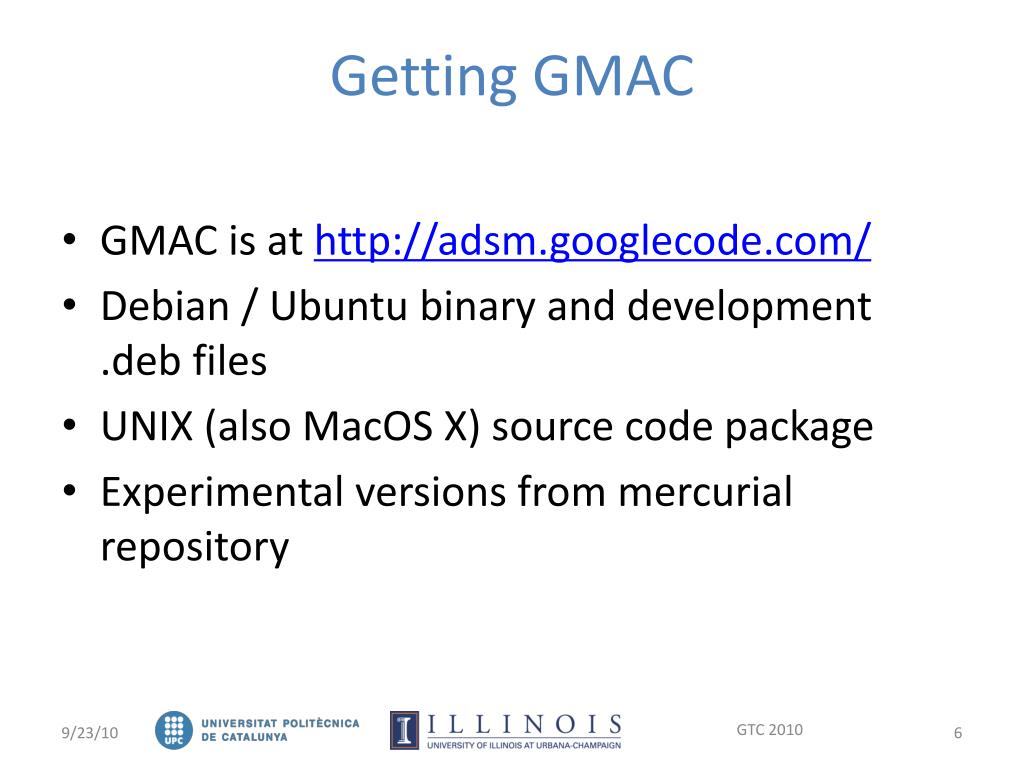

6. Getting GMAC • GMAC is at http://adsm.googlecode.com/ • Debian / Ubuntu binary and development .deb files • UNIX (also MacOS X) source code package • Experimental versions from mercurial repository GTC 2010

7. Outline • Introduction • GMAC Memory Model • Asymmetric Memory • Global Memory • GMAC Execution Model • Multi-threading • Inter-thread communication • Conclusions GTC 2010

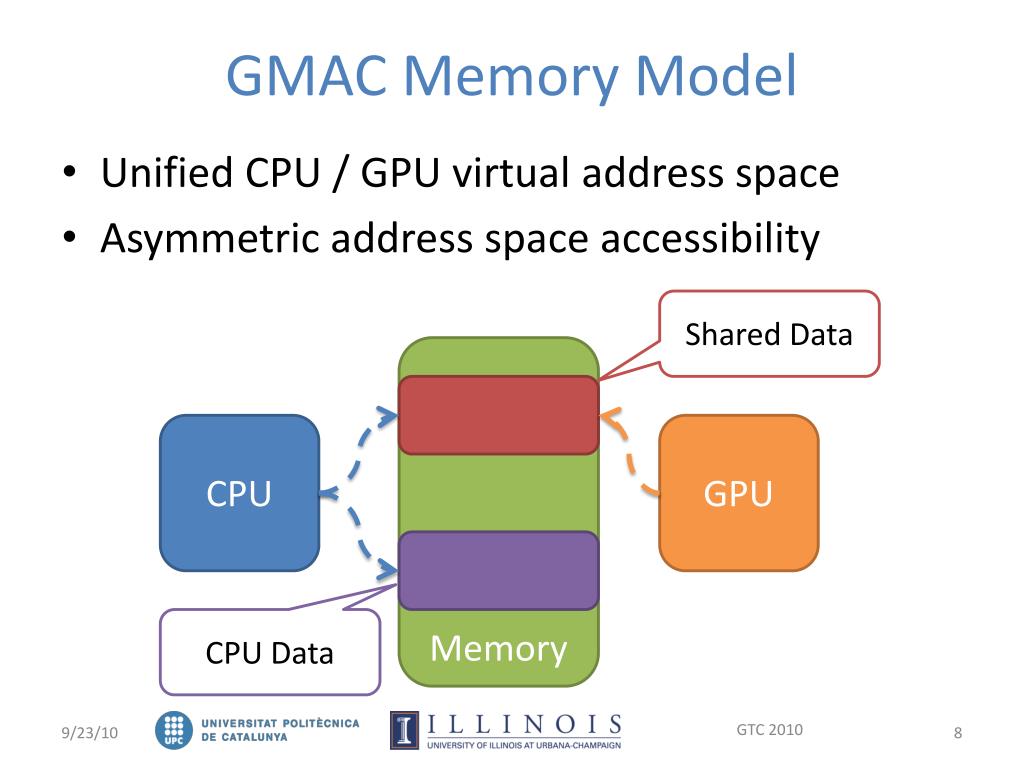

8. GMAC Memory Model • Unified CPU / GPU virtual address space • Asymmetric address space accessibility Shared Data Memory CPU GPU CPU Data GTC 2010

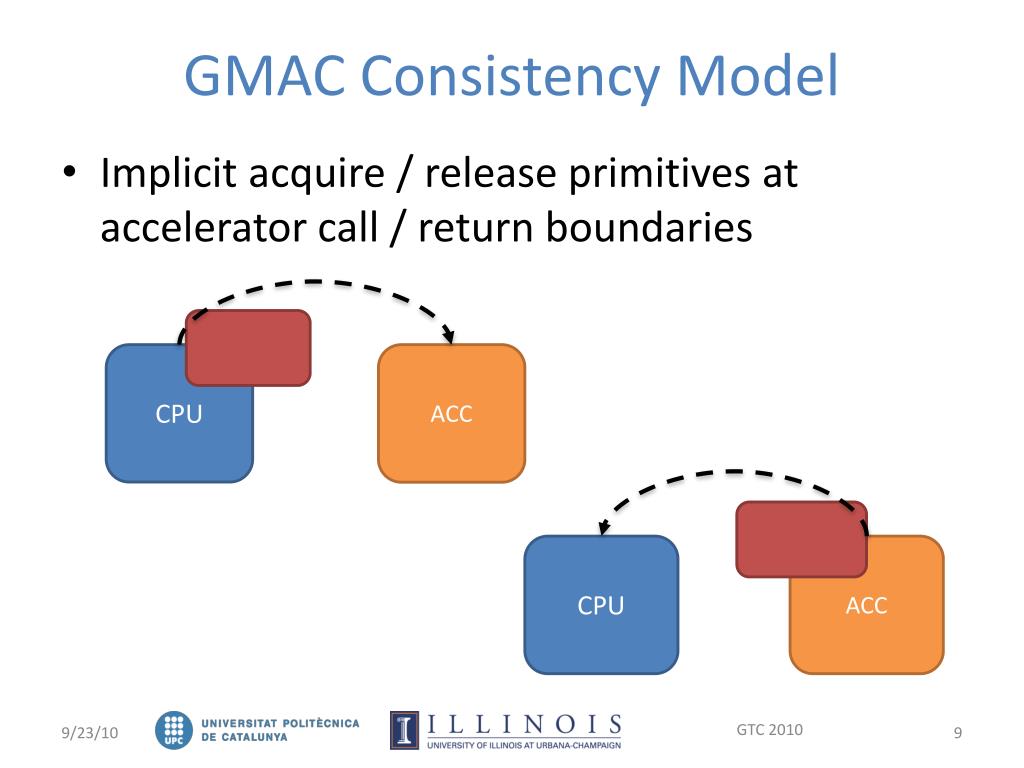

9. GMAC Consistency Model • Implicit acquire / release primitives at accelerator call / return boundaries CPU ACC CPU ACC GTC 2010

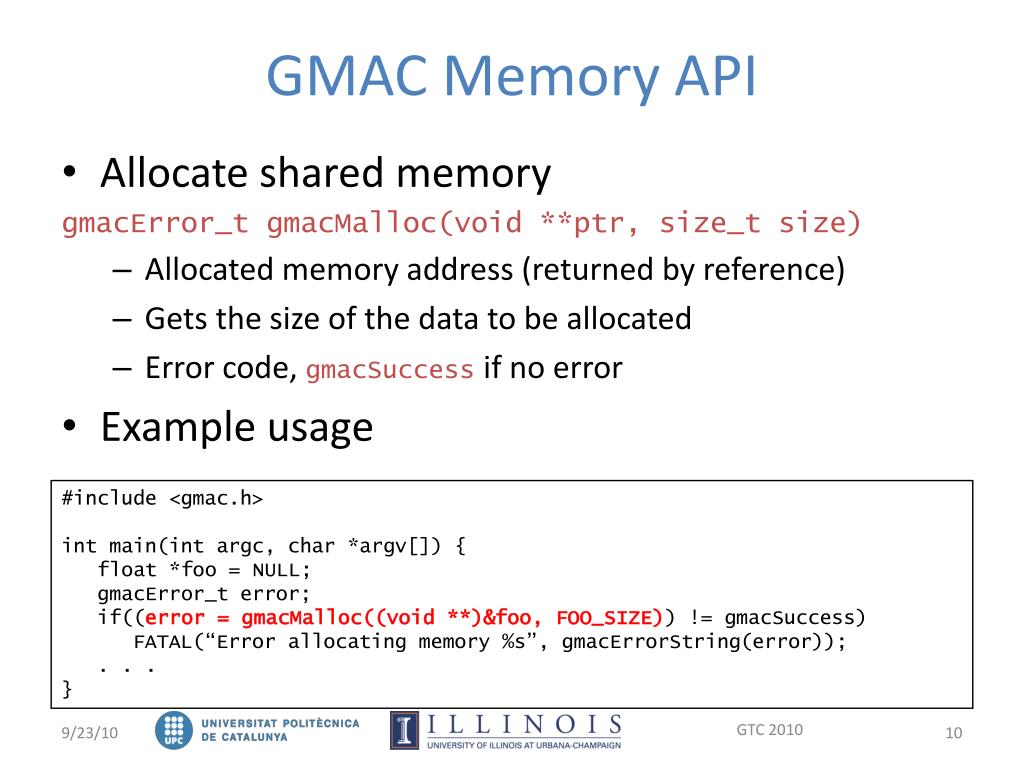

10. GMAC Memory API • Allocate shared memory gmacError_tgmacMalloc(void **ptr, size_t size) • Allocated memory address (returned by reference) • Gets the size of the data to be allocated • Error code, gmacSuccess if no error • Example usage #include <gmac.h> int main(intargc, char *argv[]) { float *foo = NULL; gmacError_t error; if((error = gmacMalloc((void **)&foo, FOO_SIZE)) != gmacSuccess) FATAL(“Error allocating memory %s”, gmacErrorString(error)); . . . } GTC 2010

11. GMAC Memory API • Release shared memory gmacError_tgmacFree(void *ptr) • Memory address to be released • Error code, gmacSuccess if no error • Example usage #include <gmac.h> int main(intargc, char *argv[]) { float *foo = NULL; gmacError_t error; if((error = gmacMalloc((void **)&foo, FOO_SIZE)) != gmacSuccess) FATAL(“Error allocating memory %s”, gmacErrorString(error)); . . . gmacFree(foo); } GTC 2010

12. GMAC Unified Address Space • Use fixed-size segments to map accelerator memory • Implement and export Accelerator Virtual Memory System Memory Accelerator Memory 0x00100000 0x00100000 CPU Accelerator GTC 2010

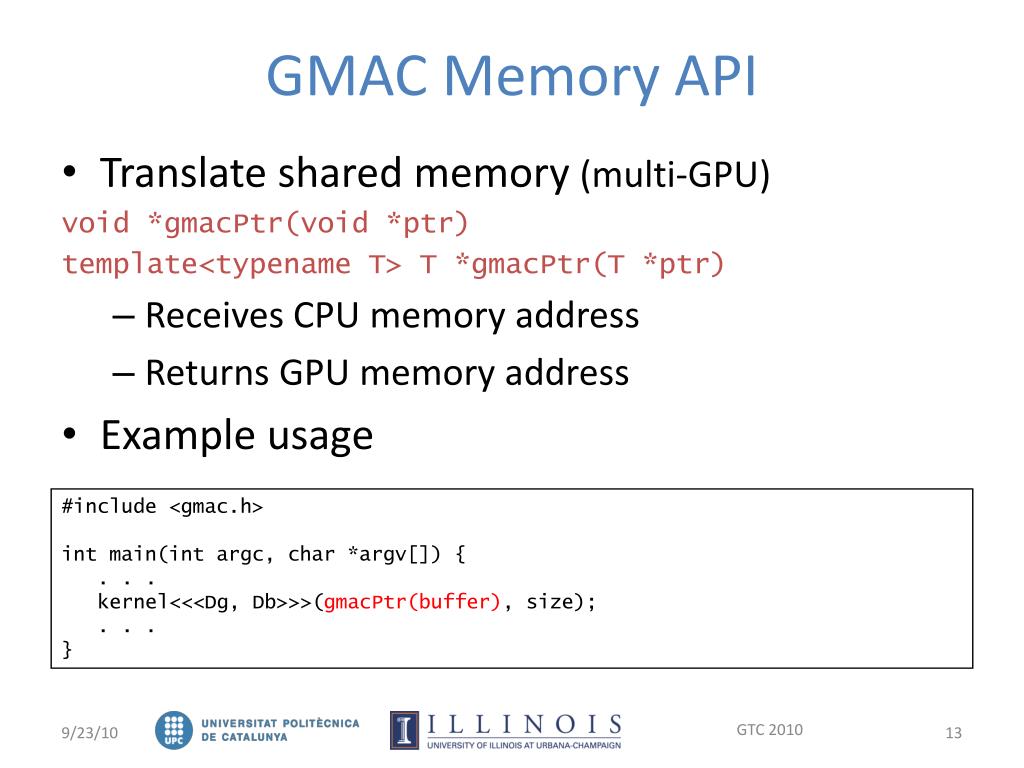

13. GMAC Memory API • Translate shared memory (multi-GPU) void *gmacPtr(void *ptr) template<typename T> T *gmacPtr(T *ptr) • Receives CPU memory address • Returns GPU memory address • Example usage #include <gmac.h> int main(int argc, char *argv[]) { . . . kernel<<<Dg, Db>>>(gmacPtr(buffer), size); . . . } GTC 2010

14. GMAC Example Code (I) intfdtd(FILE *fpMat, FILE *fpMed, int N) { /* Read and create data structures */ MaterialList materials if(readMaterials(fpMat, materials) == 0) return -1; Media media; if(readMedia(fpMed, media) == 0) return -1; Field field; if(createField(media.dim, field) == 0) return -1; for(int n = 0; n < N; n++) { . . . updateElectic<<<Dg, Db>>>(materials, media, field); . . . n++; updateMagnetic<<<Dg, Db>>>(materials, media, field); . . . } } GTC 2010

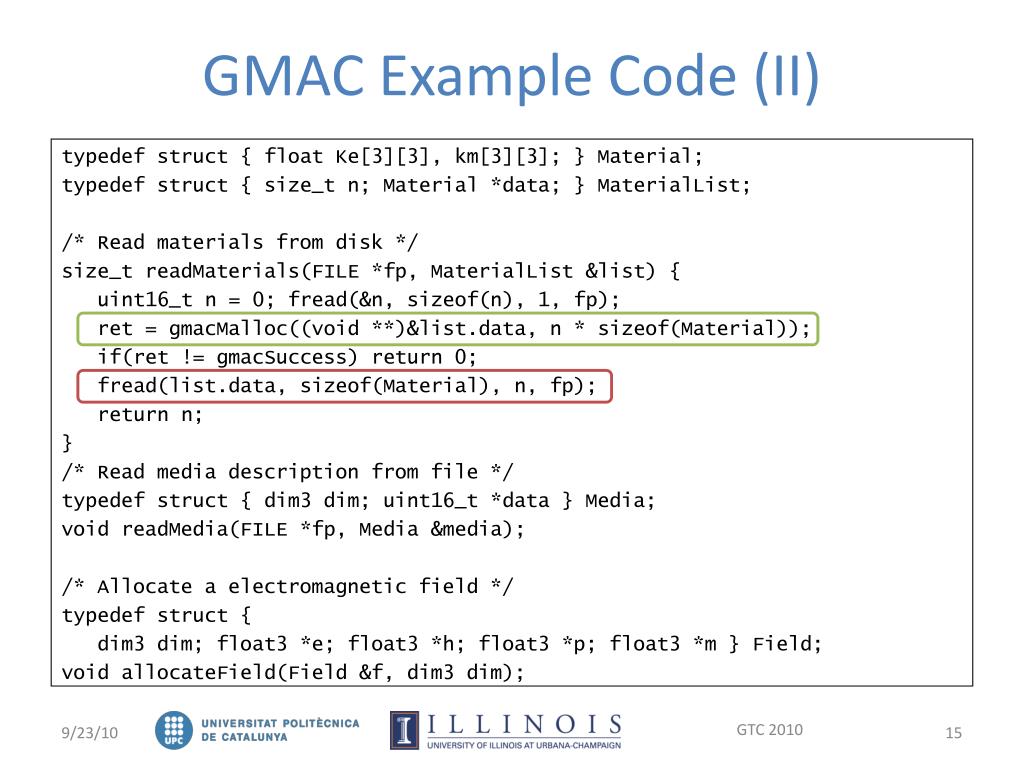

15. GMAC Example Code (II) typedefstruct { float Ke[3][3], km[3][3]; } Material; typedefstruct { size_t n; Material *data; } MaterialList; /* Read materials from disk */ size_treadMaterials(FILE *fp, MaterialList &list) { uint16_t n = 0; fread(&n, sizeof(n), 1, fp); ret = gmacMalloc((void **)&list.data, n * sizeof(Material)); if(ret != gmacSuccess) return 0; fread(list.data, sizeof(Material), n, fp); return n; } /* Read media description from file */ typedefstruct { dim3 dim; uint16_t *data } Media; void readMedia(FILE *fp, Media &media); /* Allocate a electromagnetic field */ typedefstruct{ dim3 dim; float3 *e; float3 *h; float3 *p; float3 *m } Field; void allocateField(Field &f, dim3 dim); GTC 2010

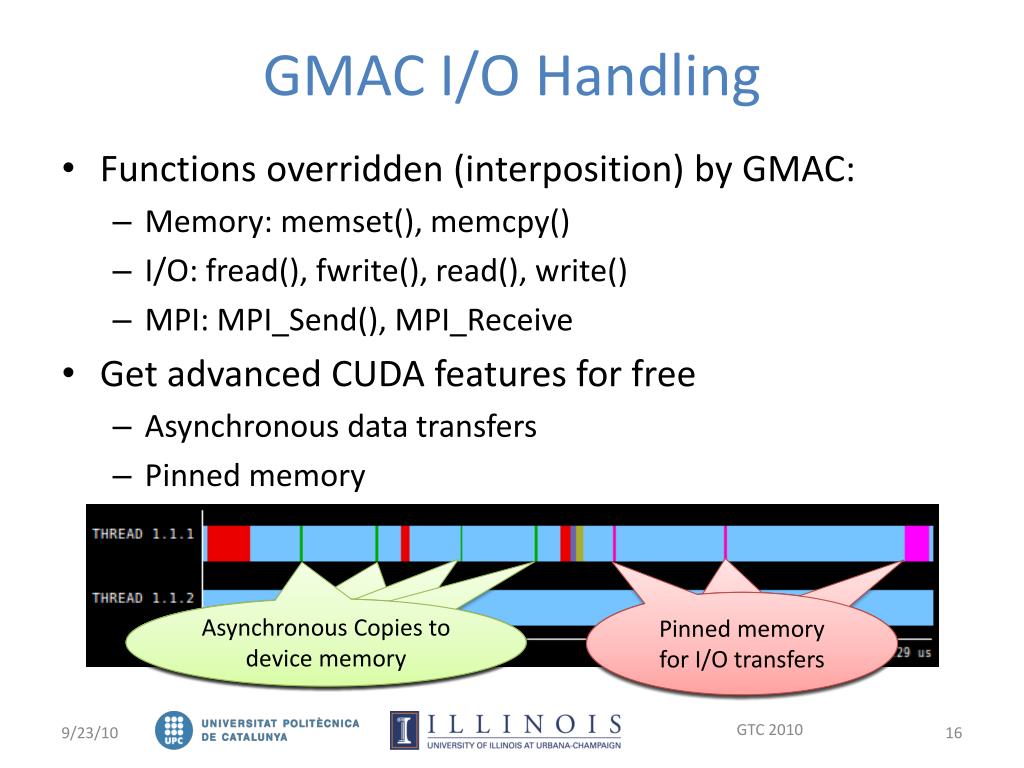

16. GMAC I/O Handling • Functions overridden (interposition) by GMAC: • Memory: memset(), memcpy() • I/O: fread(), fwrite(), read(), write() • MPI: MPI_Send(), MPI_Receive • Get advanced CUDA features for free • Asynchronous data transfers • Pinned memory Asynchronous Copies to device memory Pinned memory for I/O transfers GTC 2010

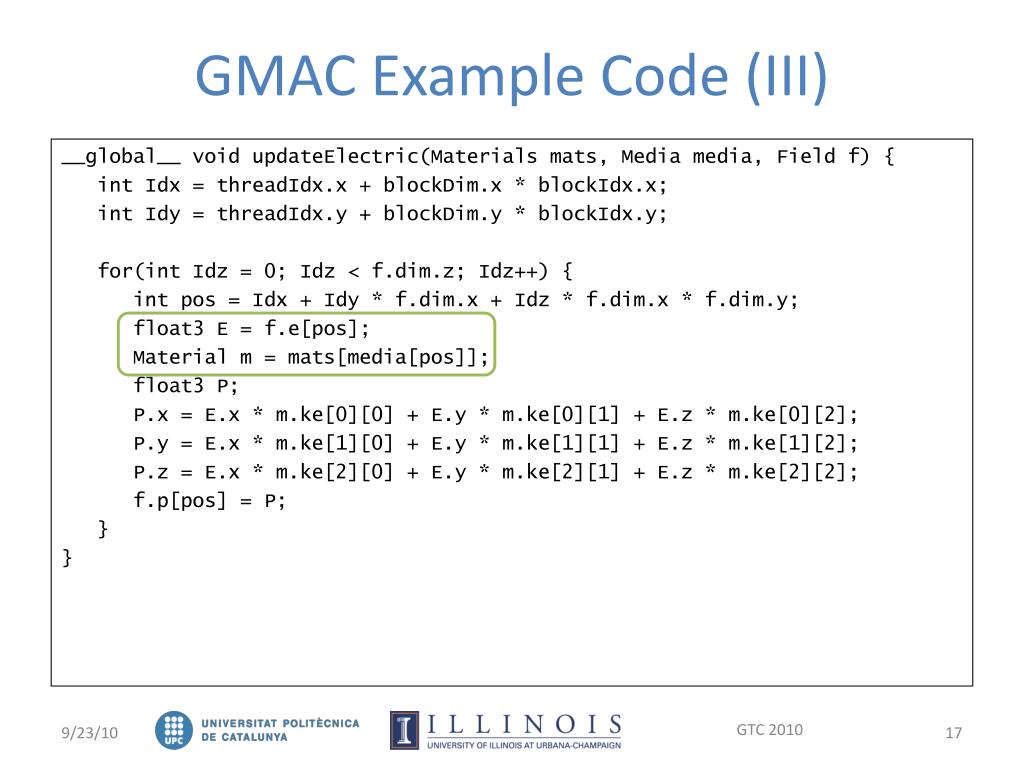

17. GMAC Example Code (III) __global__ void updateElectric(Materials mats, Media media, Field f) { intIdx = threadIdx.x + blockDim.x * blockIdx.x; intIdy = threadIdx.y + blockDim.y * blockIdx.y; for(intIdz = 0; Idz < f.dim.z; Idz++) { intpos = Idx + Idy * f.dim.x + Idz * f.dim.x * f.dim.y; float3 E = f.e[pos]; Material m = mats[media[pos]]; float3 P; P.x = E.x * m.ke[0][0] + E.y * m.ke[0][1] + E.z * m.ke[0][2]; P.y= E.x * m.ke[1][0] + E.y * m.ke[1][1] + E.z * m.ke[1][2]; P.z= E.x * m.ke[2][0] + E.y * m.ke[2][1] + E.z * m.ke[2][2]; f.p[pos] = P; } } GTC 2010

18. Outline • Introduction • GMAC Memory Model • Asymmetric Memory • Global Memory • GMAC Execution Model • Multi-threading • Inter-thread communication • Conclusions GTC 2010

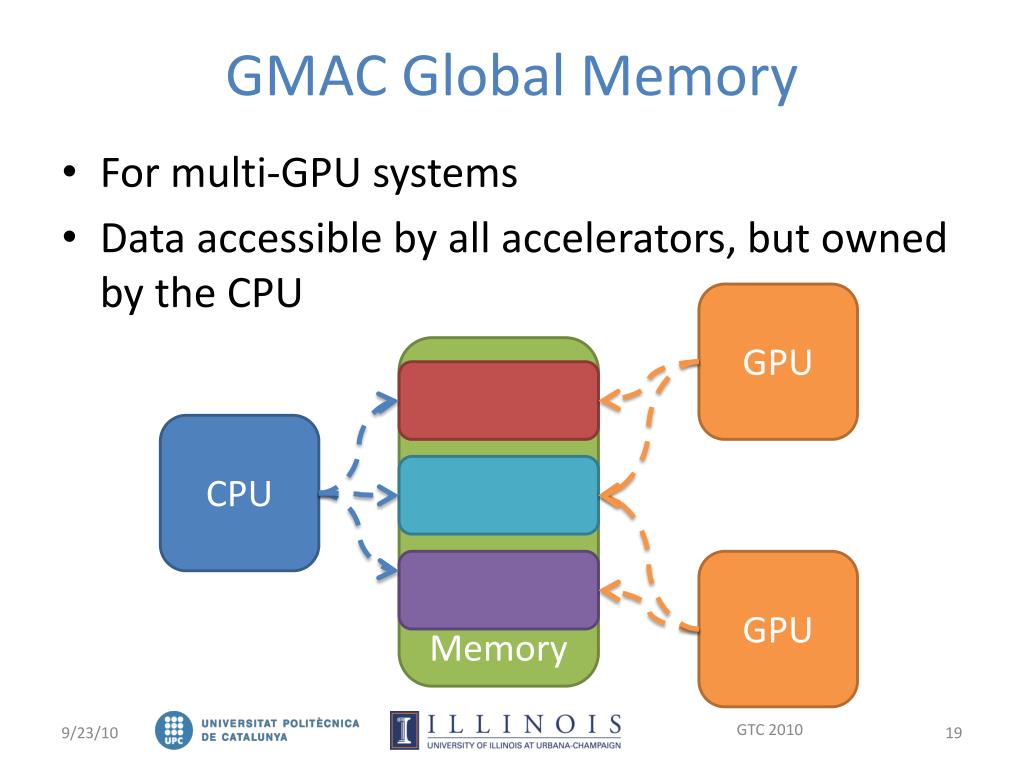

19. GMAC Global Memory • For multi-GPU systems • Data accessible by all accelerators, but owned by the CPU GPU Memory CPU GPU GTC 2010

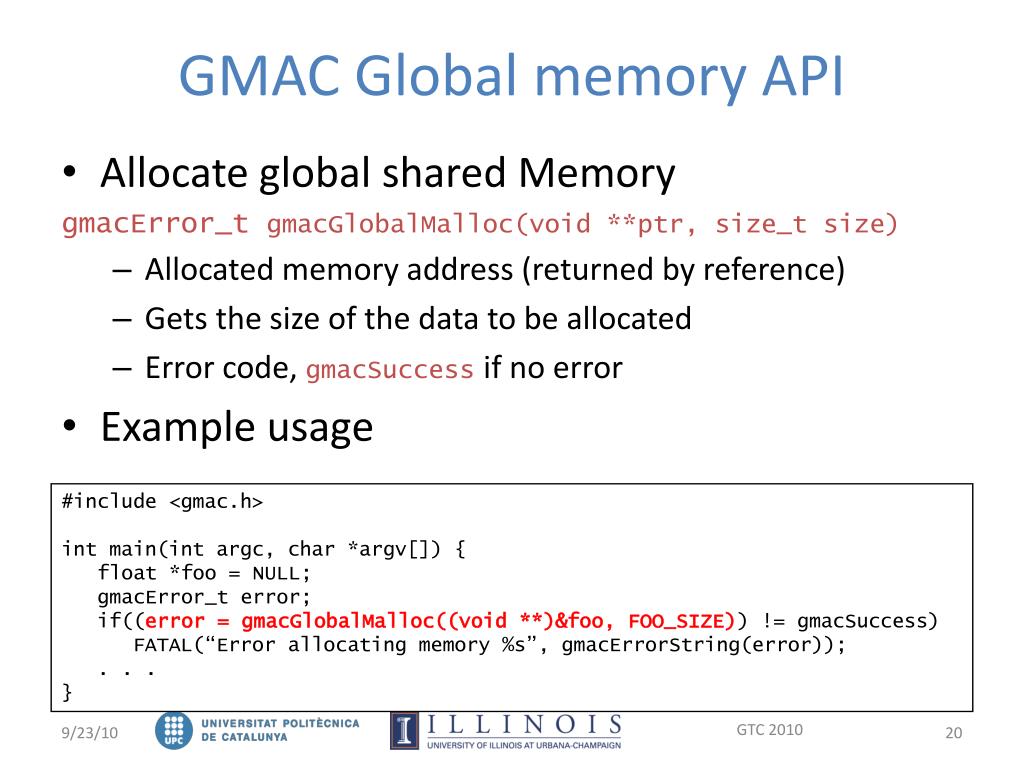

20. GMAC Global memory API • Allocate global shared Memory gmacError_tgmacGlobalMalloc(void **ptr, size_t size) • Allocated memory address (returned by reference) • Gets the size of the data to be allocated • Error code, gmacSuccess if no error • Example usage #include <gmac.h> int main(int argc, char *argv[]) { float *foo = NULL; gmacError_t error; if((error = gmacGlobalMalloc((void **)&foo, FOO_SIZE)) != gmacSuccess) FATAL(“Error allocating memory %s”, gmacErrorString(error)); . . . } GTC 2010

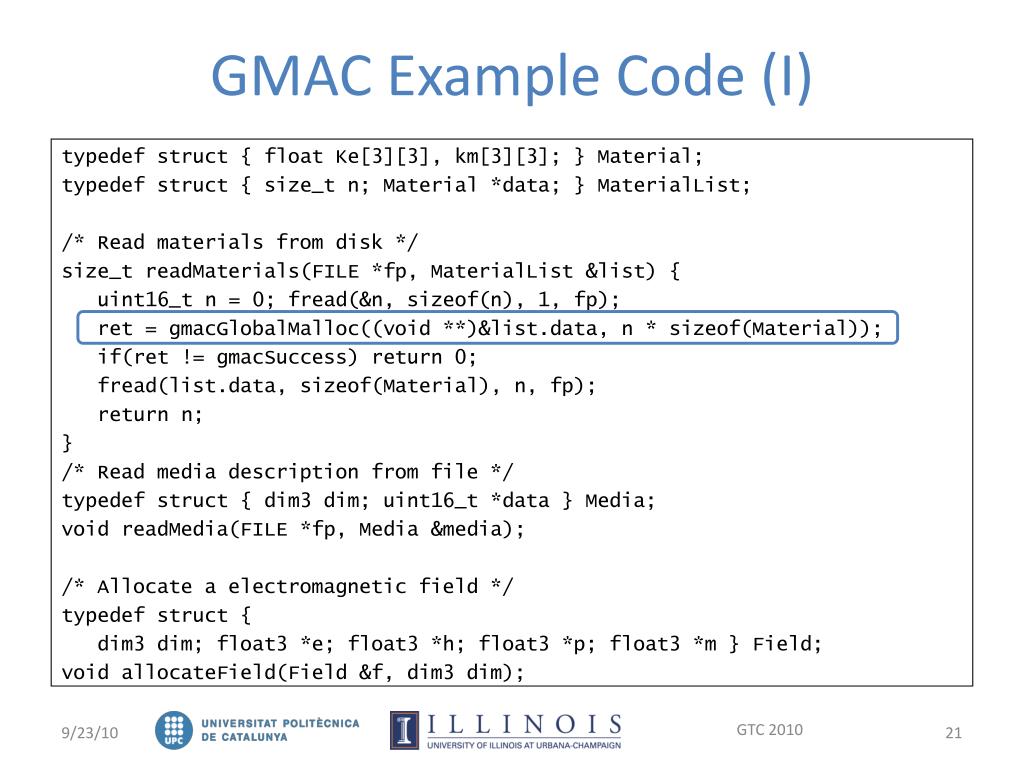

21. GMAC Example Code (I) typedefstruct { float Ke[3][3], km[3][3]; } Material; typedefstruct { size_t n; Material *data; } MaterialList; /* Read materials from disk */ size_treadMaterials(FILE *fp, MaterialList &list) { uint16_t n = 0; fread(&n, sizeof(n), 1, fp); ret = gmacGlobalMalloc((void **)&list.data, n * sizeof(Material)); if(ret != gmacSuccess) return 0; fread(list.data, sizeof(Material), n, fp); return n; } /* Read media description from file */ typedefstruct { dim3 dim; uint16_t *data } Media; void readMedia(FILE *fp, Media &media); /* Allocate a electromagnetic field */ typedefstruct{ dim3 dim; float3 *e; float3 *h; float3 *p; float3 *m } Field; void allocateField(Field &f, dim3 dim); GTC 2010

22. Outline • Introduction • GMAC Memory Model • Asymmetric Memory • Global Memory • GMAC Execution Model • Multi-threading • Inter-thread communication • Conclusions GTC 2010

23. GMAC and Multi-threading • In the past, one host thread had one CPU • In GMAC, each host thread has: • One CPU • One GPU • A GMAC thread is running at GPU or at the CPU, but not in both at the same time • Create threads using what you already know • pthread_create(...) GTC 2010

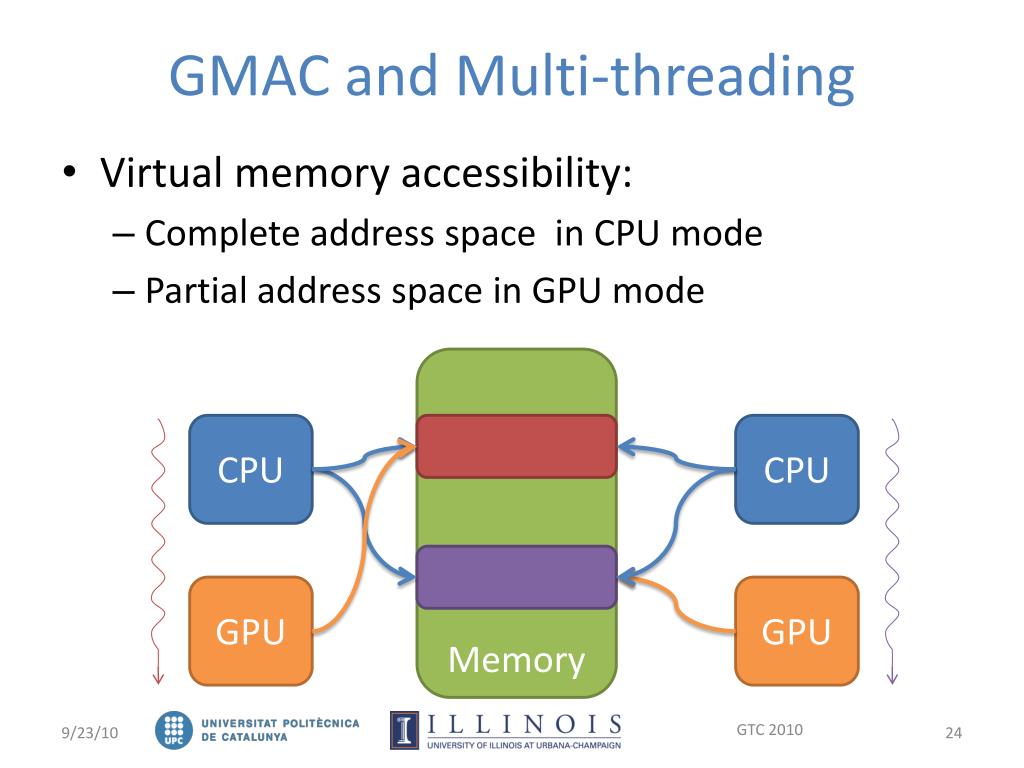

24. GMAC and Multi-threading • Virtual memory accessibility: • Complete address space in CPU mode • Partial address space in GPU mode Memory CPU CPU GPU GPU GTC 2010

25. Getting Full-duplex PCIe • Use multi-threading to fully utilize the PCIe • One CPU thread launch kernels • One CPU thread writes to shared memory • Once CPU thread reads from shared memory CPU GPU System Memory GPU Memory PCIe GTC 2010

26. Outline • Introduction • GMAC Memory Model • Asymmetric Memory • Global Memory • GMAC Execution Model • Multi-threading • Inter-thread communication • Conclusions GTC 2010

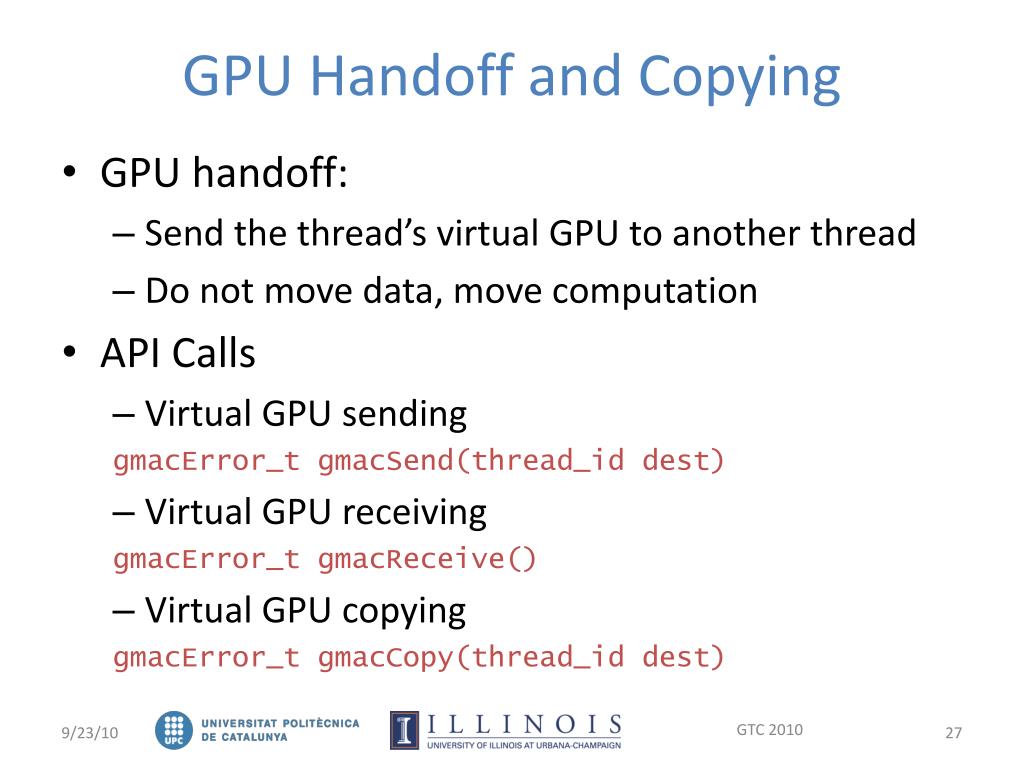

27. GPU Handoff and Copying • GPU handoff: • Send the thread’s virtual GPU to another thread • Do not move data, move computation • API Calls • Virtual GPU sending gmacError_tgmacSend(thread_iddest) • Virtual GPU receiving gmacError_tgmacReceive() • Virtual GPU copying gmacError_tgmacCopy(thread_iddest) GTC 2010

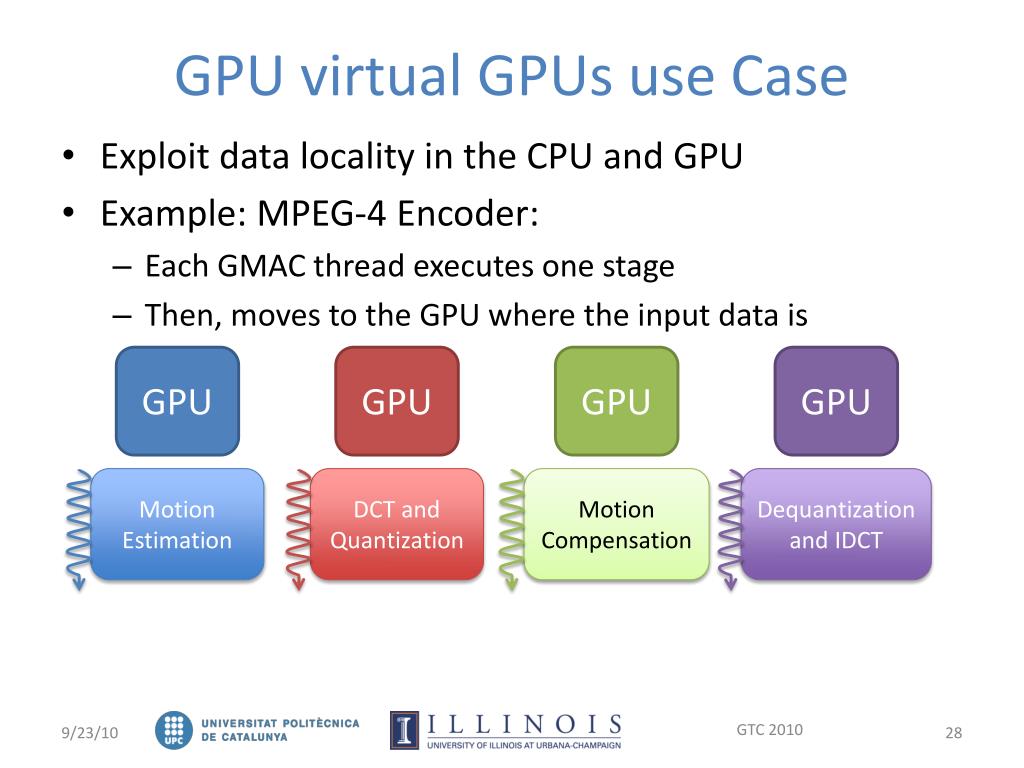

28. GPU virtual GPUs use Case • Exploit data locality in the CPU and GPU • Example: MPEG-4 Encoder: • Each GMAC thread executes one stage • Then, moves to the GPU where the input data is GPU GPU GPU GPU Dequantization and IDCT Motion Compensation Motion Estimation DCT and Quantization GTC 2010

29. Outline • Introduction • GMAC Memory Model • Asymmetric Memory • Global Memory • GMAC Execution Model • Multi-threading • Inter-thread communication • Conclusions GTC 2010

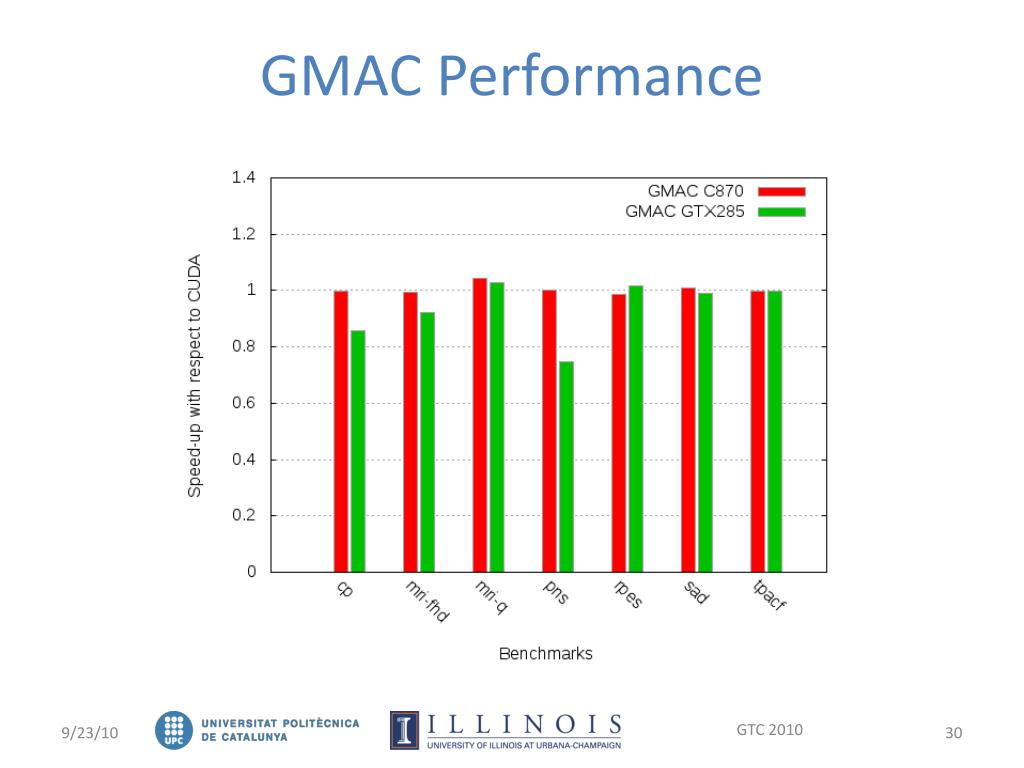

30. GMAC Performance GTC 2010

31. GMAC on Actual Applications (I) • Reverse Time Migration (BSC / Repsol) • Six months – one programmer • Currently in use by Repsol • Single-GPU using CUDA Run-time • Can live with it: double-allocations, memory consistency • Nightmare: overlap GPU computation and data transfers (CUDA streams and double-buffering with pinned memory) • Multi-GPU using CUDA Run-time • Can live with it: lack of IDE for Linux • Nightmare: everything else Cancelled GTC 2010

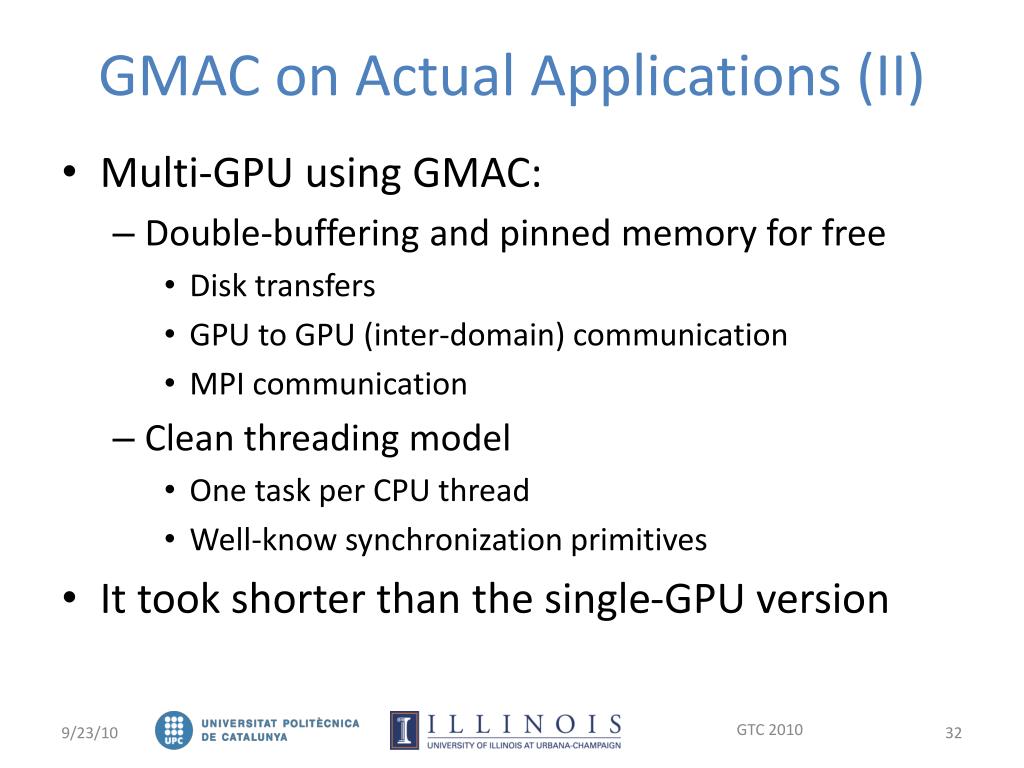

32. GMAC on Actual Applications (II) • Multi-GPU using GMAC: • Double-buffering and pinned memory for free • Disk transfers • GPU to GPU (inter-domain) communication • MPI communication • Clean threading model • One task per CPU thread • Well-know synchronization primitives • It took shorter than the single-GPU version GTC 2010

33. Conclusions • Single virtual address space for CPUs and GPUs • Use CUDA advanced features • Automatic overlap data communication and computation • Get access to any GPU from any CPU thread • Get more performance from your application more easily • Go: http://adsm.googlecode.com GTC 2010

34. Future Features • OpenCL and Windows 7 support coming soon • Data-dependence tracking: • Avoid transferring data to the GPU when not used by kernels • Avoid transferring data to the CPU when not modified kernels • Global shared memory partitioning between multiple GPUs GTC 2010

35. GMACGlobal Memory for Accelerators http://adsm.googlecode.com

36. Backup Slides

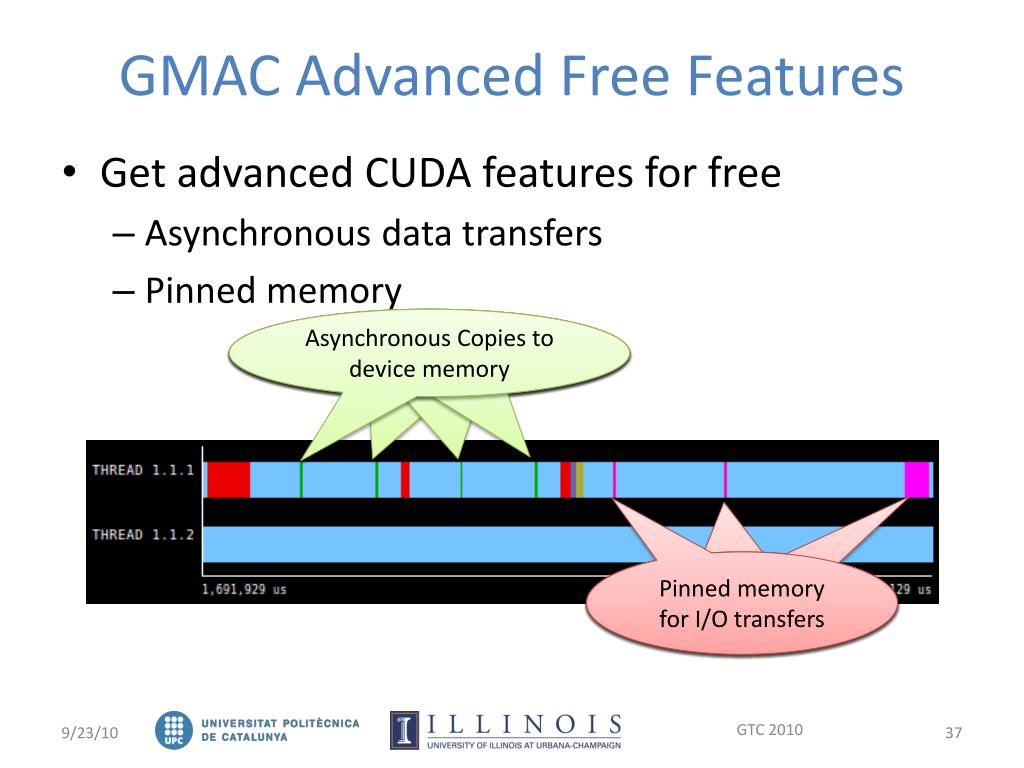

37. GMAC Advanced Free Features • Get advanced CUDA features for free • Asynchronous data transfers • Pinned memory Asynchronous Copies to device memory Pinned memory for I/O transfers GTC 2010

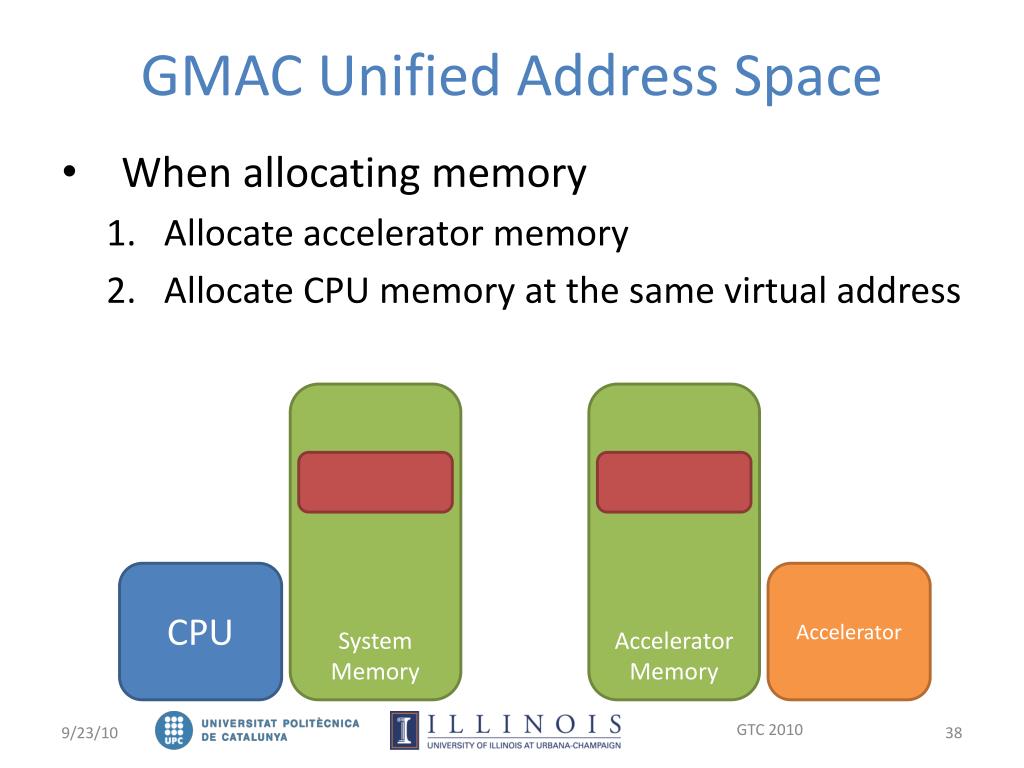

38. GMAC Unified Address Space • When allocating memory • Allocate accelerator memory • Allocate CPU memory at the same virtual address System Memory Accelerator Memory CPU Accelerator GTC 2010

39. Lazy Update Data Transfers • Avoid unnecessary data copies • Lazy-update: • Call: transfer modified data • Return: transfer when needed System Memory Accelerator Memory CPU Accelerator GTC 2010

40. Rolling Update Data Transfers • Overlap CPU execution and data transfers • Minimal transfer on-demand • Rolling-update: • Memory-block size granularity System Memory Accelerator Memory CPU Accelerator GTC 2010
