1. Management Information Systems, 10/e Raymond McLeod Jr. and George P. Schell Management Information Systems, 10/e Raymond McLeod and George Schell

2. Chapter 7 Systems Development Management Information Systems, 10/e Raymond McLeod and George Schell

3. Learning Objectives • Recognize the systems approach as the basic framework for solving problems of all kinds. • Know how to apply the systems approach to solving systems problems. • Understand that the systems development life cycle (SDLC) is a methodology – a recommended way to develop systems. Management Information Systems, 10/e Raymond McLeod and George Schell

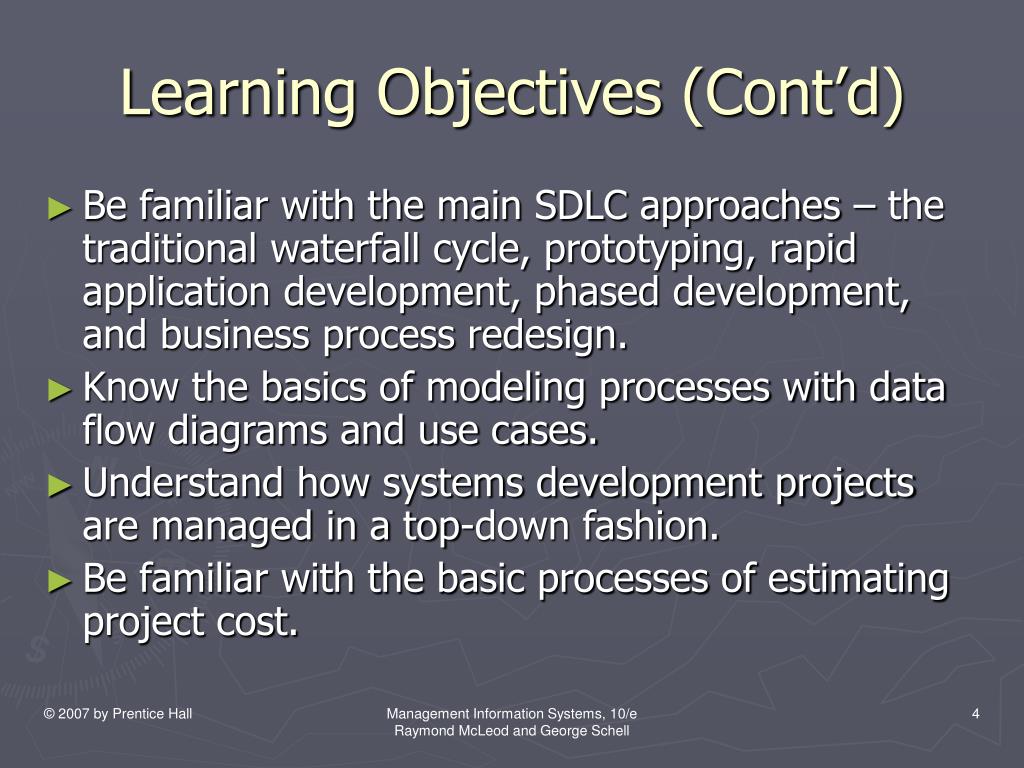

4. Learning Objectives (Cont’d) • Be familiar with the main SDLC approaches – the traditional waterfall cycle, prototyping, rapid application development, phased development, and business process redesign. • Know the basics of modeling processes with data flow diagrams and use cases. • Understand how systems development projects are managed in a top-down fashion. • Be familiar with the basic processes of estimating project cost. Management Information Systems, 10/e Raymond McLeod and George Schell

5. The Systems Approach • John Dewey identified three series of judgments involved in adequately resolving a controversy: • Recognize the controversy. • Weigh alternative claims. • Form a judgment. • During the late 1960s/early 1970s, interest in systematic problem solving strengthened. • Systems approach—a series of problem-solving steps that ensure the problem is first understood, alternative solutions are considered, and the selected solution works. Management Information Systems, 10/e Raymond McLeod and George Schell

6. Series of Steps • Preparation effort prepares the problem solver by providing a systems orientation. • Business areas, level of management, resource flows • Definition effort consists of identifying the problem to be solvedand then understanding it. • Solution effort involves identifying alternative solutions, evaluating them, selecting the one that appears best, implementing that solution, and following up to ensure that the problem is solved. Management Information Systems, 10/e Raymond McLeod and George Schell

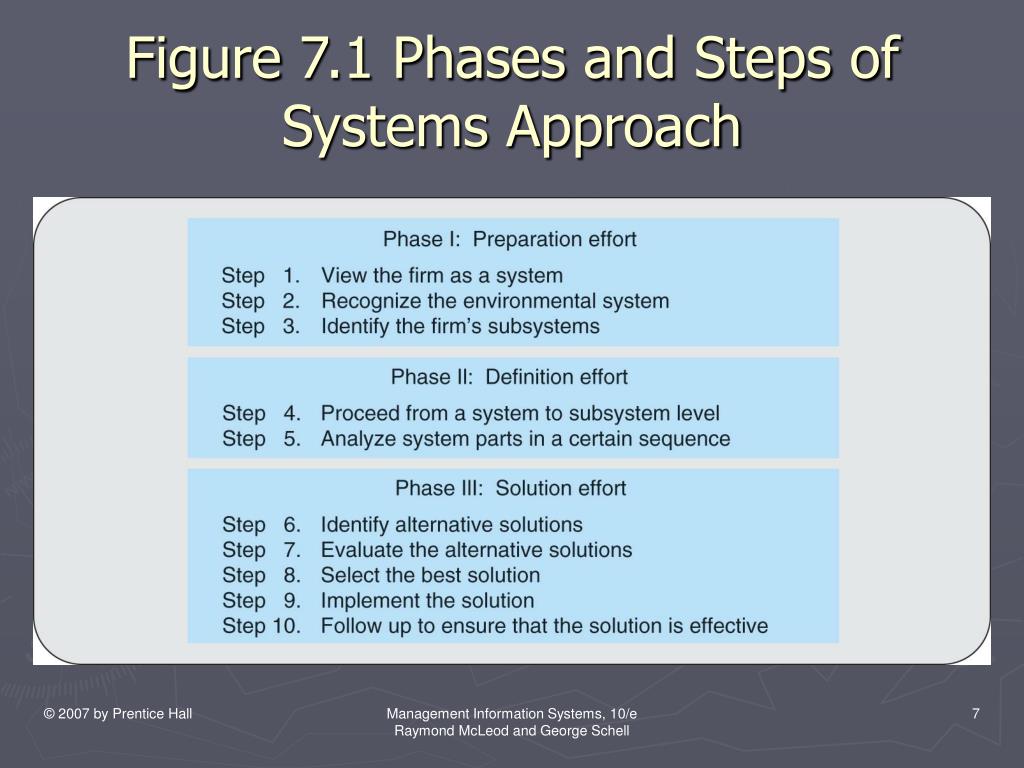

7. Figure 7.1 Phases and Steps of Systems Approach Management Information Systems, 10/e Raymond McLeod and George Schell

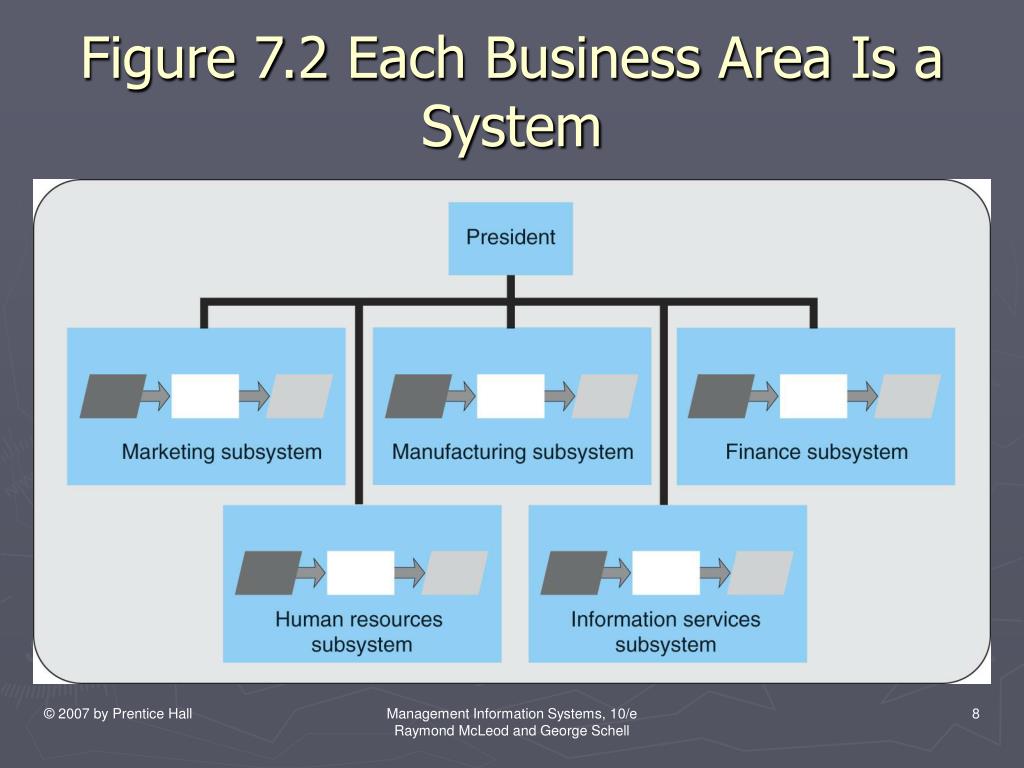

8. Figure 7.2 Each Business Area Is a System Management Information Systems, 10/e Raymond McLeod and George Schell

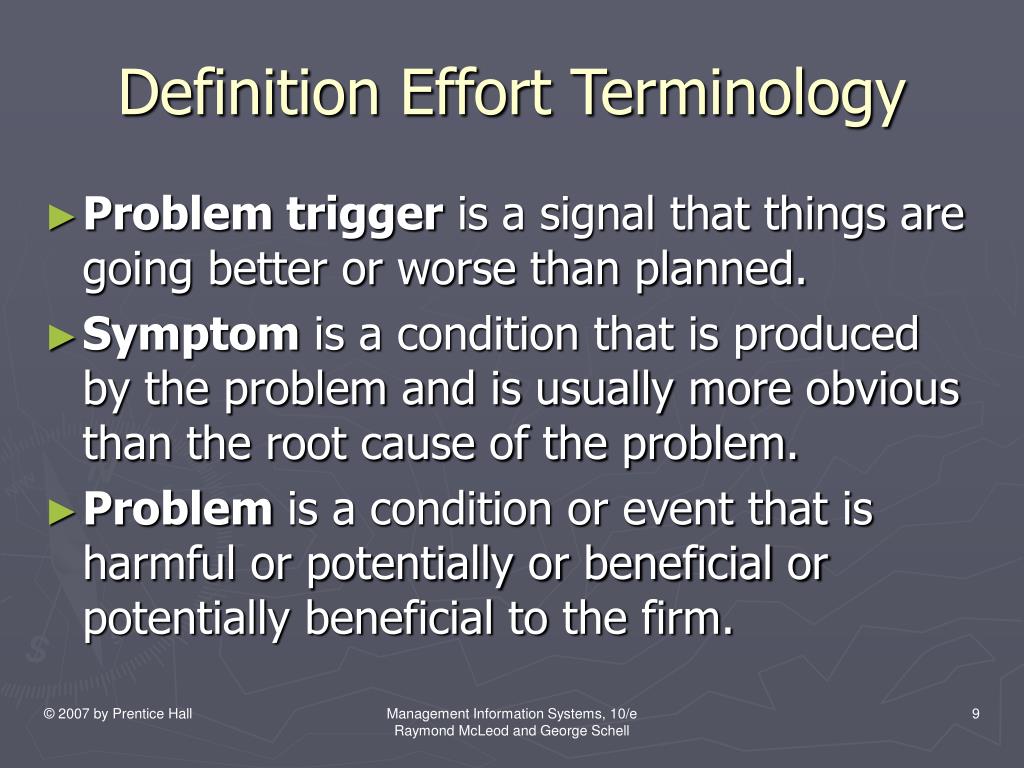

9. Definition Effort Terminology • Problem trigger is a signal that things are going better or worse than planned. • Symptom is a condition that is produced by the problem and is usually more obvious than the root cause of the problem. • Problem is a condition or event that is harmful or potentially or beneficial or potentially beneficial to the firm. Management Information Systems, 10/e Raymond McLeod and George Schell

10. Figure 7.3 Each Part of the System Is Analyzed in Sequence Management Information Systems, 10/e Raymond McLeod and George Schell

11. Select the Best Solution • Analysis–a systematic evaluation of options. • Judgment–the mental process of a single manager. • Bargaining–negotiations between several managers. Management Information Systems, 10/e Raymond McLeod and George Schell

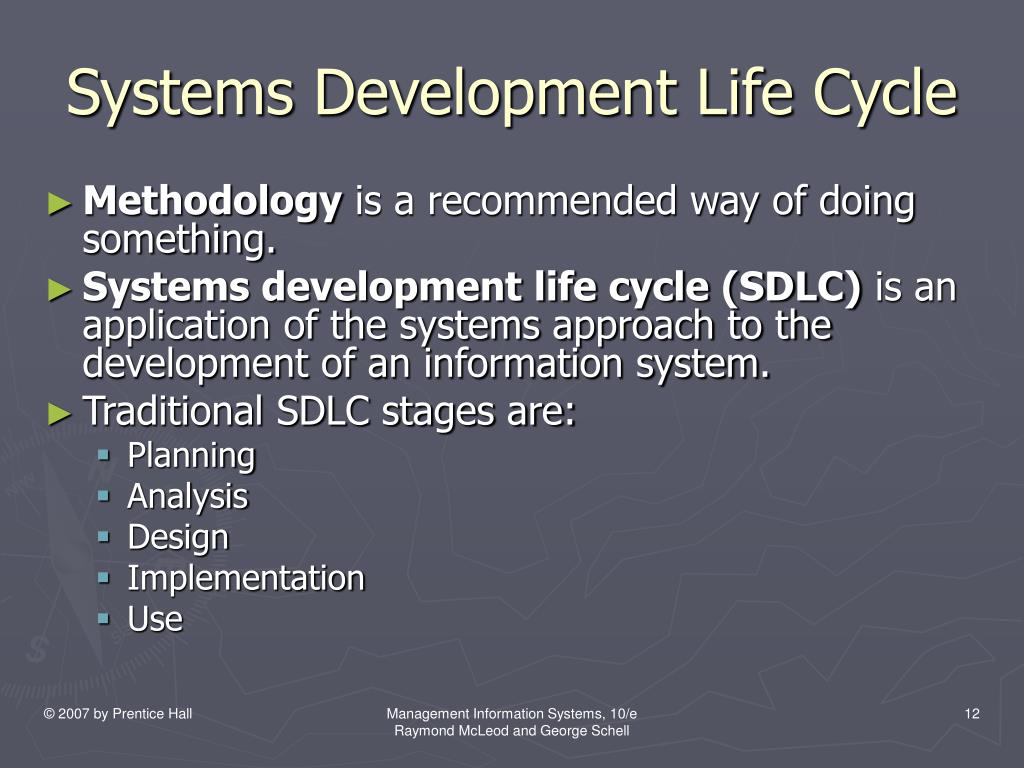

12. Systems Development Life Cycle • Methodology is a recommended way of doing something. • Systems development life cycle (SDLC) is an application of the systems approach to the development of an information system. • Traditional SDLC stages are: • Planning • Analysis • Design • Implementation • Use Management Information Systems, 10/e Raymond McLeod and George Schell

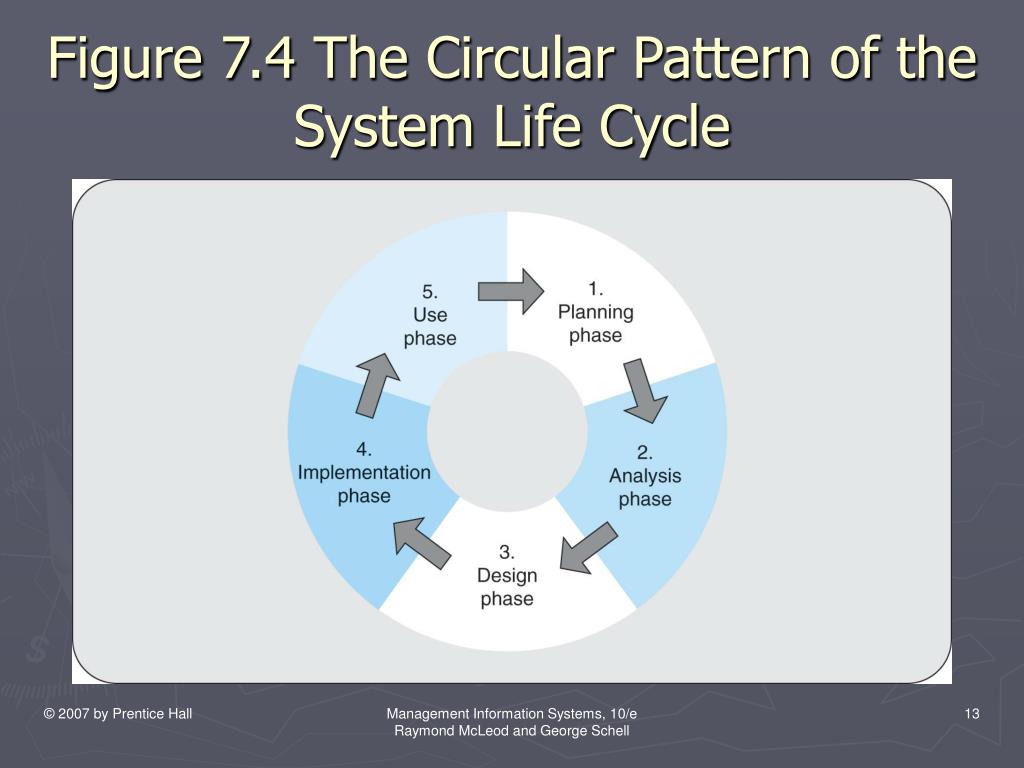

13. Figure 7.4 The Circular Pattern of the System Life Cycle Management Information Systems, 10/e Raymond McLeod and George Schell

14. Prototyping • Prototype is a version of a potential system that provides the developers and future users with an idea of how the system in its completed form will function. • Prototyping is the process of producing a prototype. • Best suited for small systems–reflecting the prototyping influence. Management Information Systems, 10/e Raymond McLeod and George Schell

15. Evolutionary Prototype • Evolutionary prototype is continually refined until it contains all of the functionality that users require of the new system. The steps involved are: • Identify user needs. • Develop prototype. • Integrated application developer • Prototyping toolkit • Determine if the prototype is acceptable. • Use the prototype. Management Information Systems, 10/e Raymond McLeod and George Schell

16. Figure 7.5 Development of an Evolutionary Prototype Management Information Systems, 10/e Raymond McLeod and George Schell

17. Requirements Prototype • Requirements prototype is developed as a way to define the functional requirements of the new system when users are unable to articulate exactly what they want. Begin with the Evolutionary Prototype steps, then the next steps are: • Code the new system; • Test the new system; • Determine if the new system is acceptable; • Put the new system into production. Management Information Systems, 10/e Raymond McLeod and George Schell

18. Figure 7.6 Development of a Requirements Prototype Management Information Systems, 10/e Raymond McLeod and George Schell

19. Attraction of Prototyping • Communications between the developer and user are improved. • The developer can do a better job of determining the users’ needs. • The user plays a more active role in system development. • The developers and the user spend less time and effort developing the system. • Implementation is much easier because the user knows what to expect. Management Information Systems, 10/e Raymond McLeod and George Schell

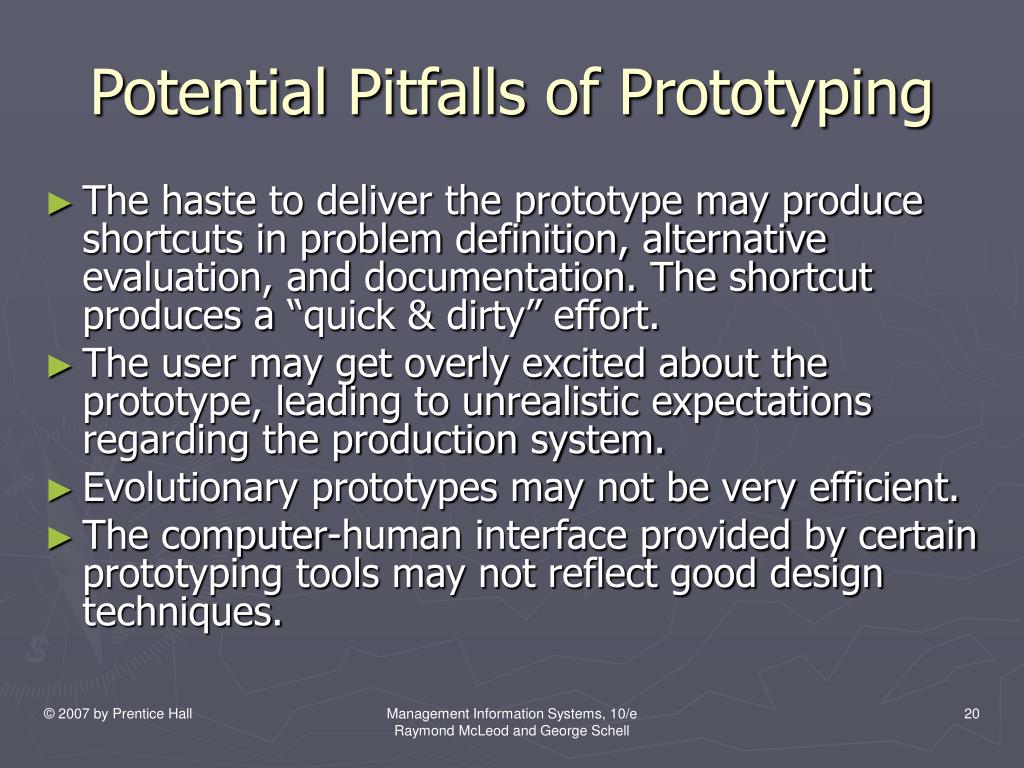

20. Potential Pitfalls of Prototyping • The haste to deliver the prototype may produce shortcuts in problem definition, alternative evaluation, and documentation. The shortcut produces a “quick & dirty” effort. • The user may get overly excited about the prototype, leading to unrealistic expectations regarding the production system. • Evolutionary prototypes may not be very efficient. • The computer-human interface provided by certain prototyping tools may not reflect good design techniques. Management Information Systems, 10/e Raymond McLeod and George Schell

21. Rapid Application Development • Rapid Application Development (RAD) is a term coined by James Martin. It refers to a development life cycle intended to produce systems quickly without sacrificing quality. • Information engineering (IE) is the name that Martin gives to his overall approach to system development, which treats it as a firm-wide activity. • Enterprise is used to describe the entire firm. • Essential to RAD is management, people, methodologies, and tools. • Best suited for large systems. Management Information Systems, 10/e Raymond McLeod and George Schell

22. Figure 7.7 Rapid Application Development Is an Integral Part of Information Engineering Management Information Systems, 10/e Raymond McLeod and George Schell

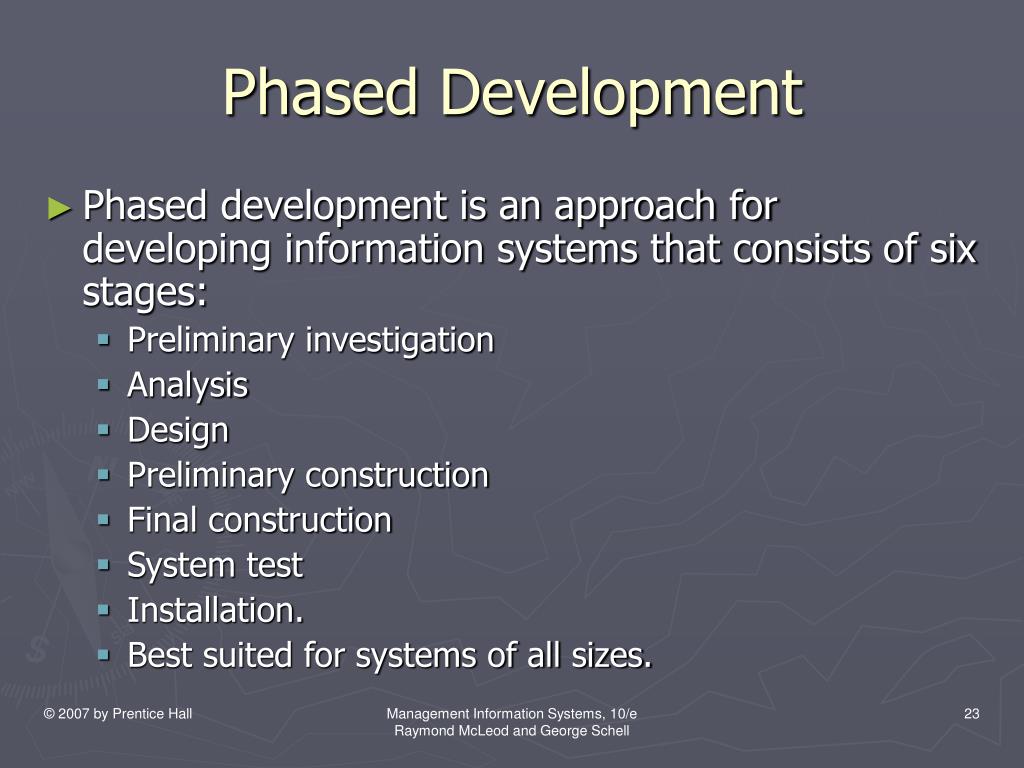

23. Phased Development • Phased development is an approach for developing information systems that consists of six stages: • Preliminary investigation • Analysis • Design • Preliminary construction • Final construction • System test • Installation. • Best suited for systems of all sizes. Management Information Systems, 10/e Raymond McLeod and George Schell

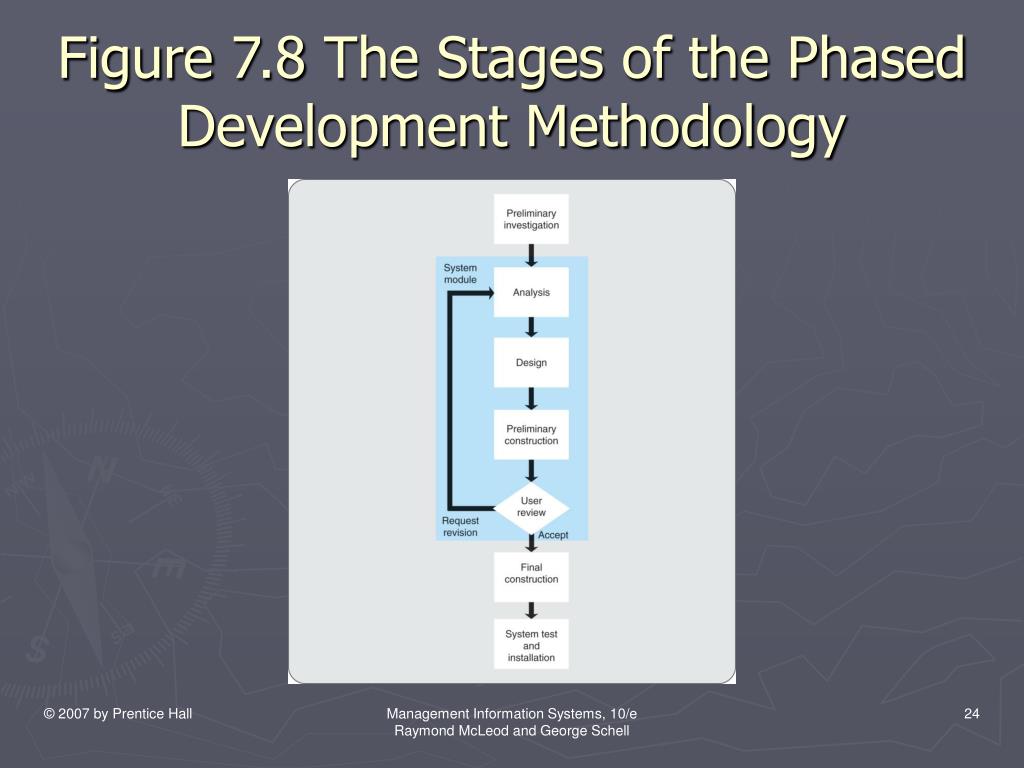

24. Figure 7.8 The Stages of the Phased Development Methodology Management Information Systems, 10/e Raymond McLeod and George Schell

25. Module Phases • System is subdivided into major modules such as: • Report writer; • Database; • Web interface. • Number of modules varies with the system from one to a dozen or so. • Stages are performed separately for each module. Management Information Systems, 10/e Raymond McLeod and George Schell

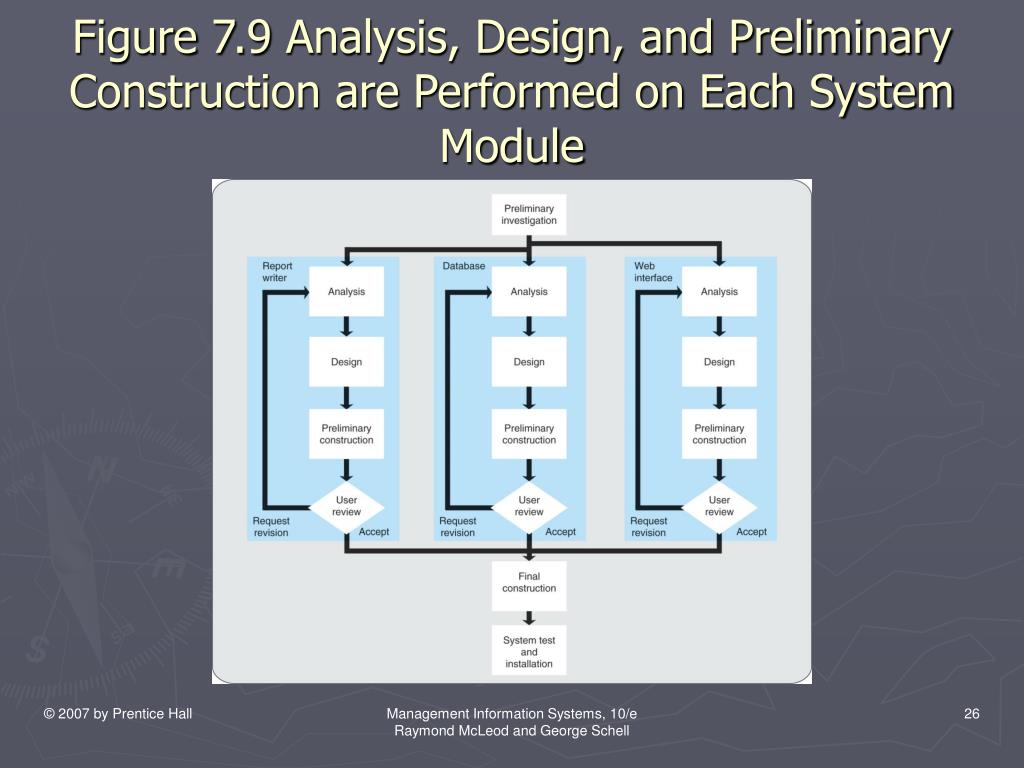

26. Figure 7.9 Analysis, Design, and Preliminary Construction are Performed on Each System Module Management Information Systems, 10/e Raymond McLeod and George Schell

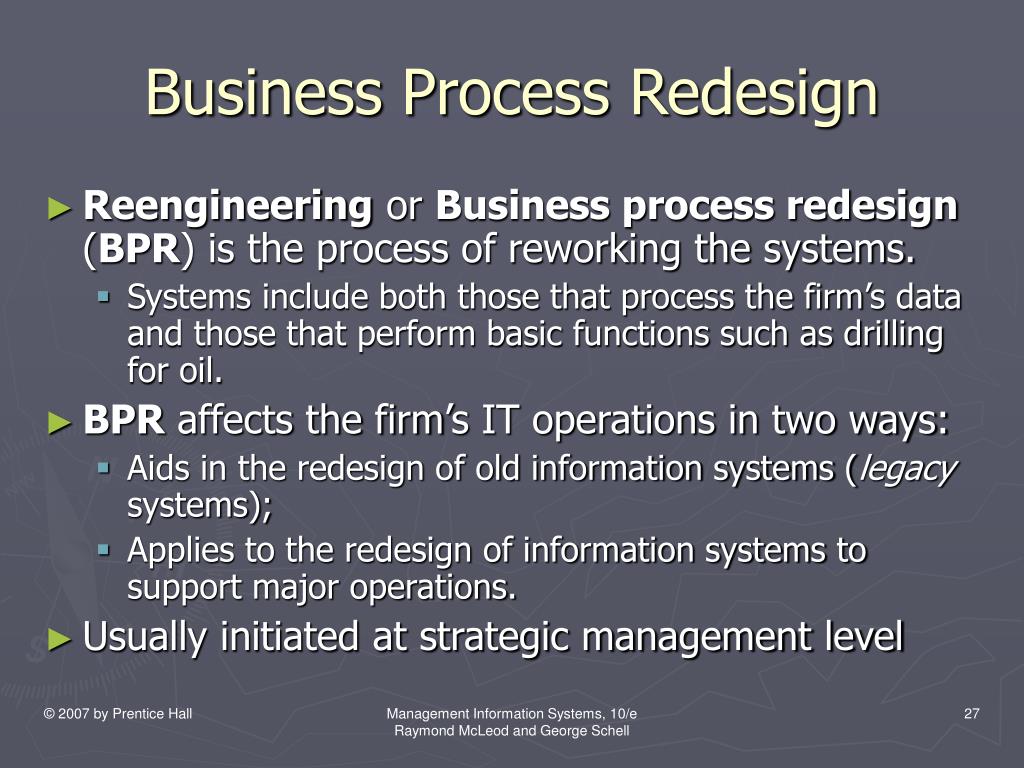

27. Business Process Redesign • Reengineering or Business process redesign (BPR) is the process of reworking the systems. • Systems include both those that process the firm’s data and those that perform basic functions such as drilling for oil. • BPR affects the firm’s IT operations in two ways: • Aids in the redesign of old information systems (legacy systems); • Applies to the redesign of information systems to support major operations. • Usually initiated at strategic management level Management Information Systems, 10/e Raymond McLeod and George Schell

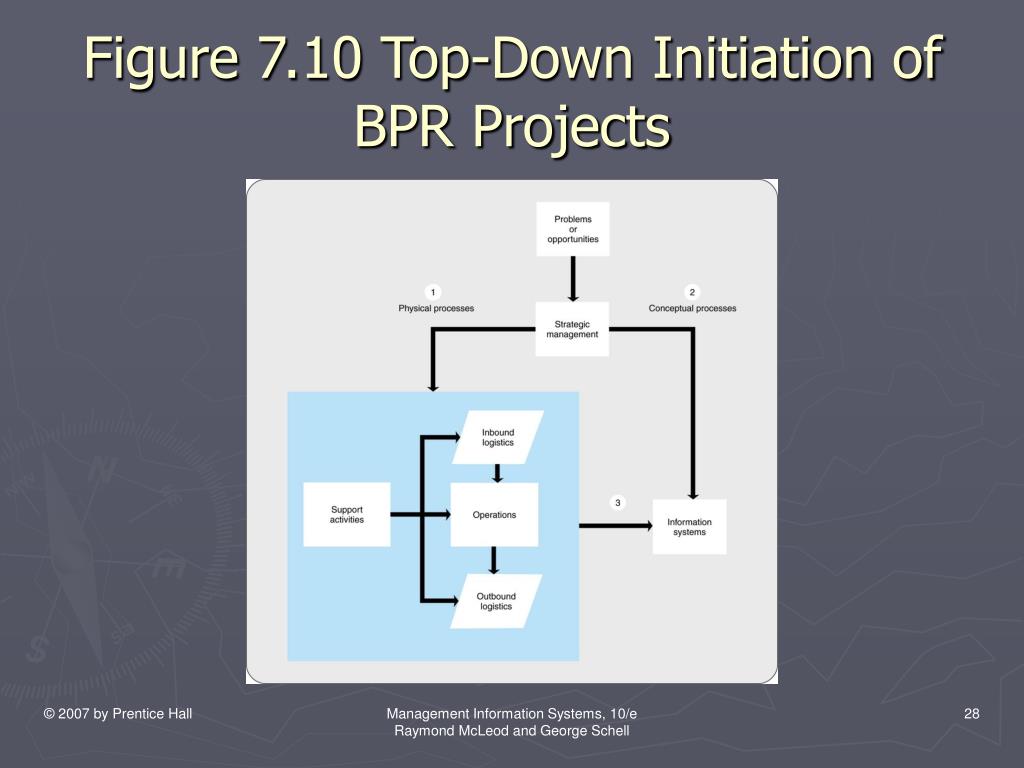

28. Figure 7.10 Top-Down Initiation of BPR Projects Management Information Systems, 10/e Raymond McLeod and George Schell

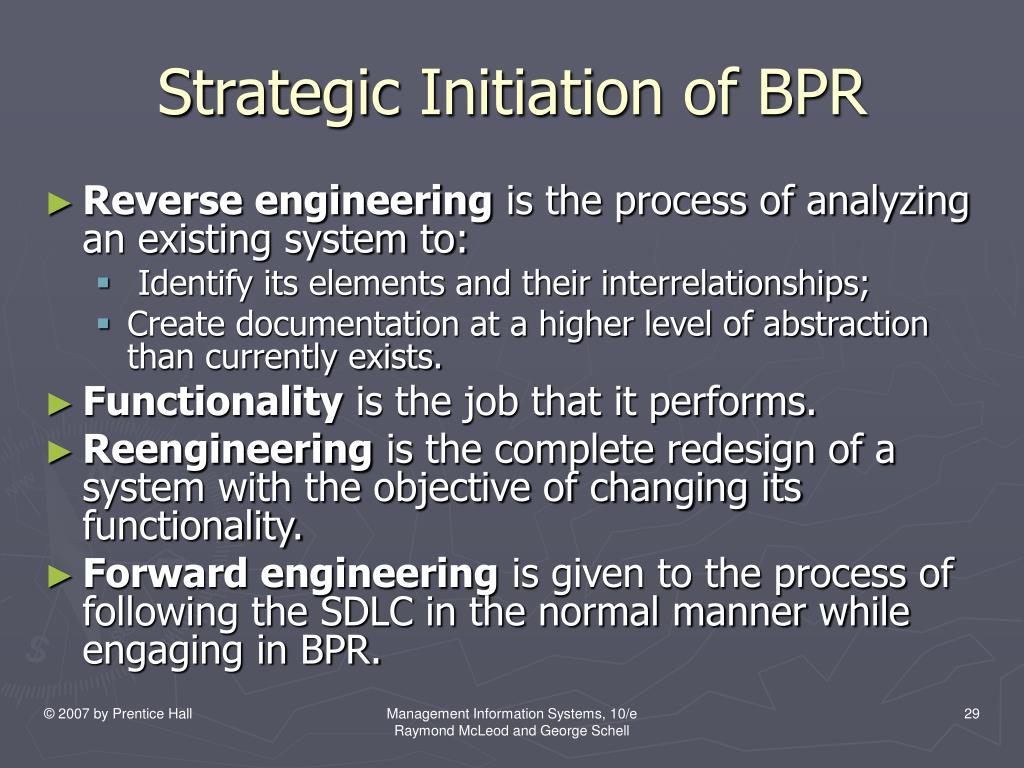

29. Strategic Initiation of BPR • Reverse engineering is the process of analyzing an existing system to: • Identify its elements and their interrelationships; • Create documentation at a higher level of abstraction than currently exists. • Functionality is the job that it performs. • Reengineering is the complete redesign of a system with the objective of changing its functionality. • Forward engineering is given to the process of following the SDLC in the normal manner while engaging in BPR. Management Information Systems, 10/e Raymond McLeod and George Schell

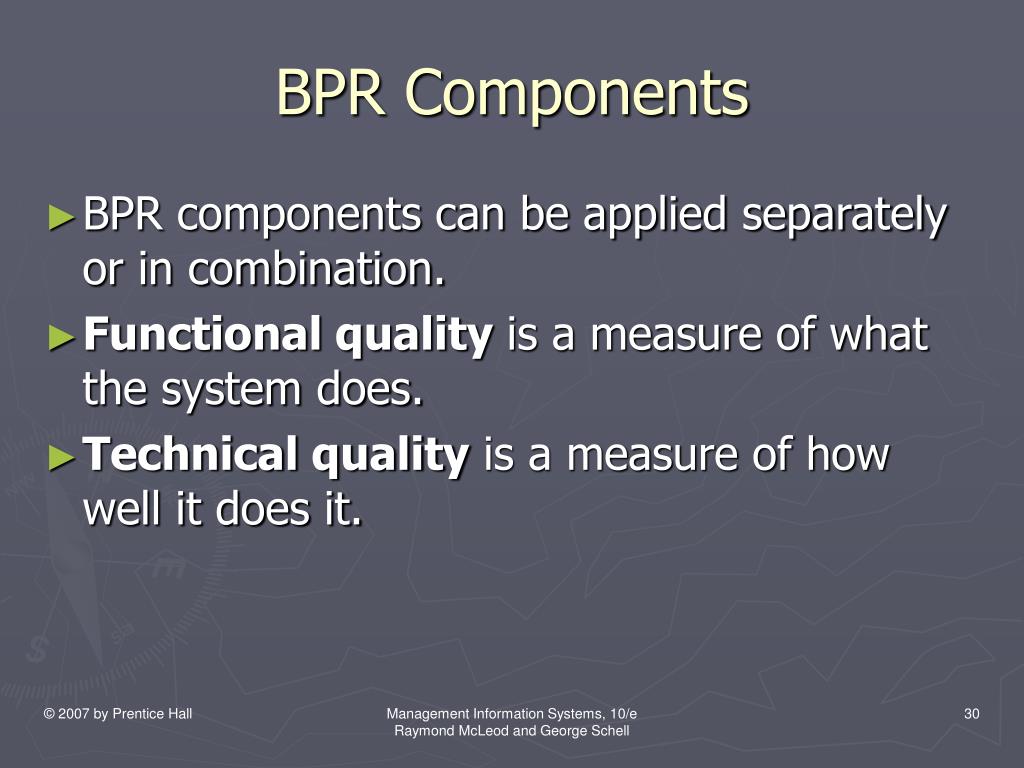

30. BPR Components • BPR components can be applied separately or in combination. • Functional quality is a measure of what the system does. • Technical quality is a measure of how well it does it. Management Information Systems, 10/e Raymond McLeod and George Schell

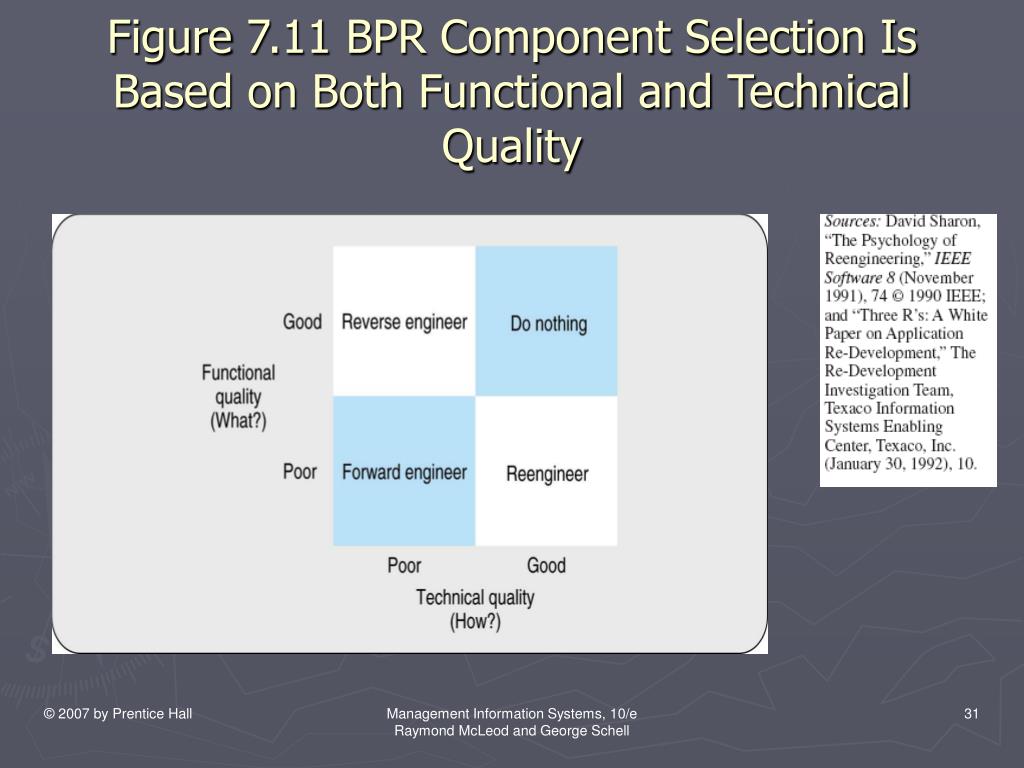

31. Figure 7.11 BPR Component Selection Is Based on Both Functional and Technical Quality Management Information Systems, 10/e Raymond McLeod and George Schell

32. Methodologies in Perspective • Traditional SDLC is an application of the systems approach to the problem of system development; contains all elements. • Prototyping is an abbreviated form focusing on the definition and satisfaction of user needs. • RAD is an alternative approach to the design and implementation phases of SDLC. • Phased development uses traditional SDLC and applies it in a modular fashion. Management Information Systems, 10/e Raymond McLeod and George Schell

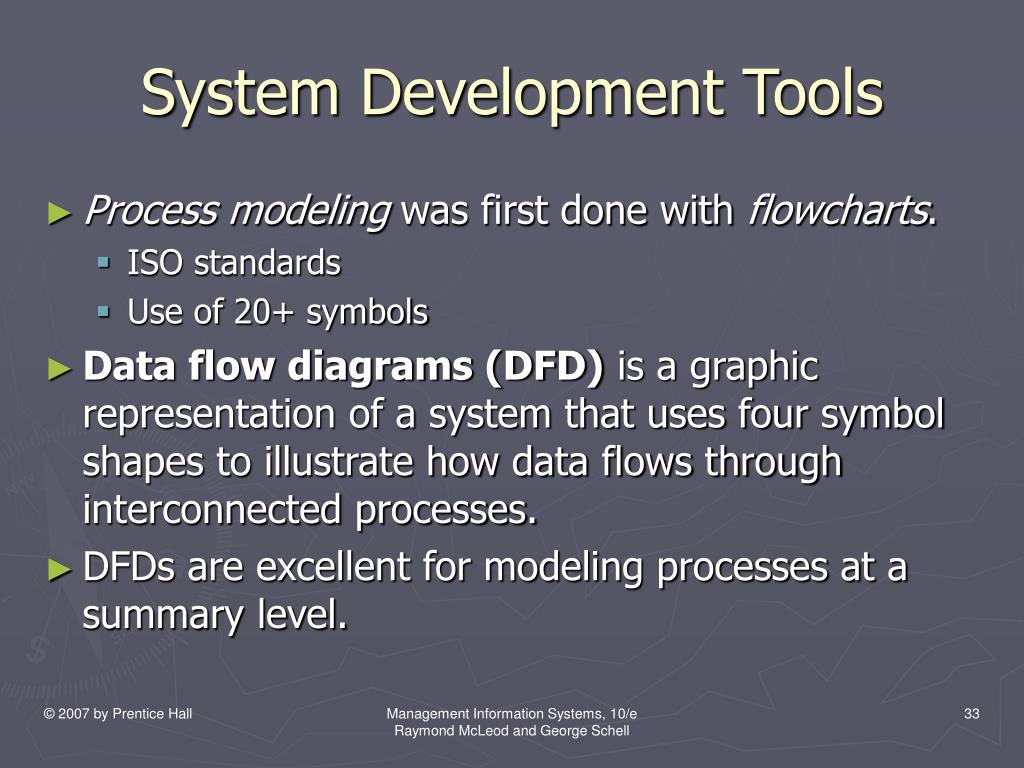

33. System Development Tools • Process modeling was first done with flowcharts. • ISO standards • Use of 20+ symbols • Data flow diagrams (DFD) is a graphic representation of a system that uses four symbol shapes to illustrate how data flows through interconnected processes. • DFDs are excellent for modeling processes at a summary level. Management Information Systems, 10/e Raymond McLeod and George Schell

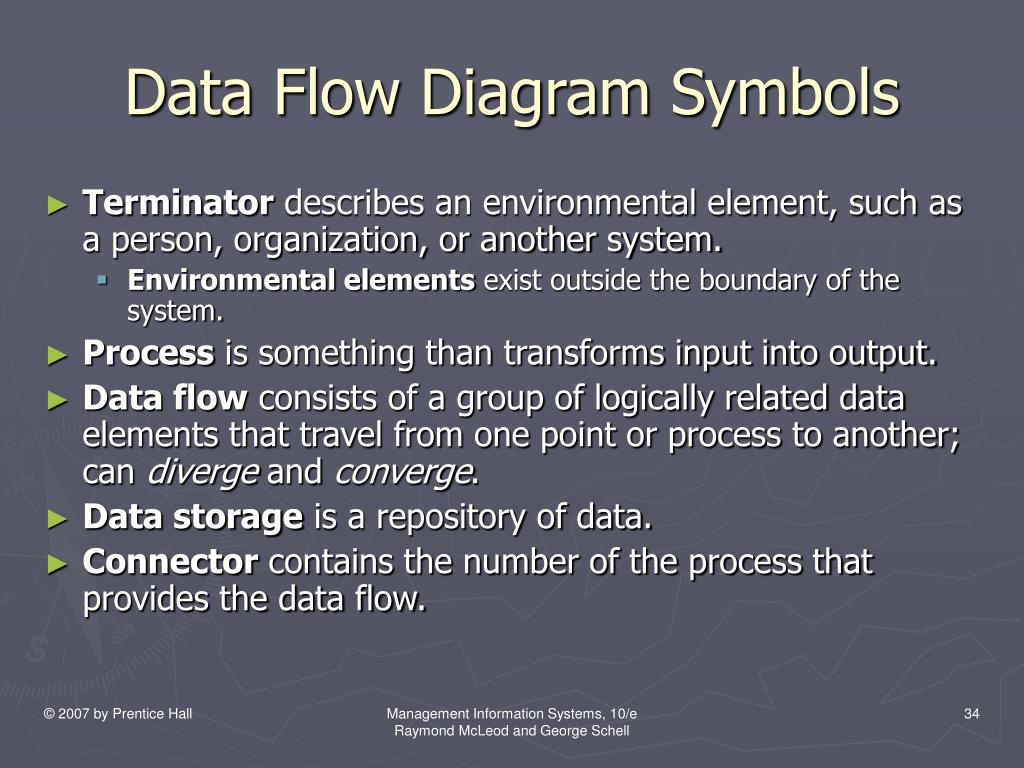

34. Data Flow Diagram Symbols • Terminator describes an environmental element, such as a person, organization, or another system. • Environmental elements exist outside the boundary of the system. • Process is something than transforms input into output. • Data flow consists of a group of logically related data elements that travel from one point or process to another; can diverge and converge. • Data storage is a repository of data. • Connector contains the number of the process that provides the data flow. Management Information Systems, 10/e Raymond McLeod and George Schell

35. Figure 7.12 A DFD of a Sales Commission System Management Information Systems, 10/e Raymond McLeod and George Schell

36. Leveled Data Flow Diagrams • Leveled DFDs is used to describe the hierarchy of diagrams, ranging from context to lowest-level n diagram. • Figure 0 diagram identifies the major processes of a system. • Use additional DFDs to achieve documentation at both a more summarized and a more detailed level. • Context diagram is a diagram that documents the system at a more summarized level. • Positions the system in an environmental context. • Figure n diagram is a diagram that provides more detail. • n represents the # of processes on the next higher level. • Documents a single process of a DFD in greater detail Management Information Systems, 10/e Raymond McLeod and George Schell

37. Figure 7.13 A Context Diagram of a Sales Commission System Management Information Systems, 10/e Raymond McLeod and George Schell

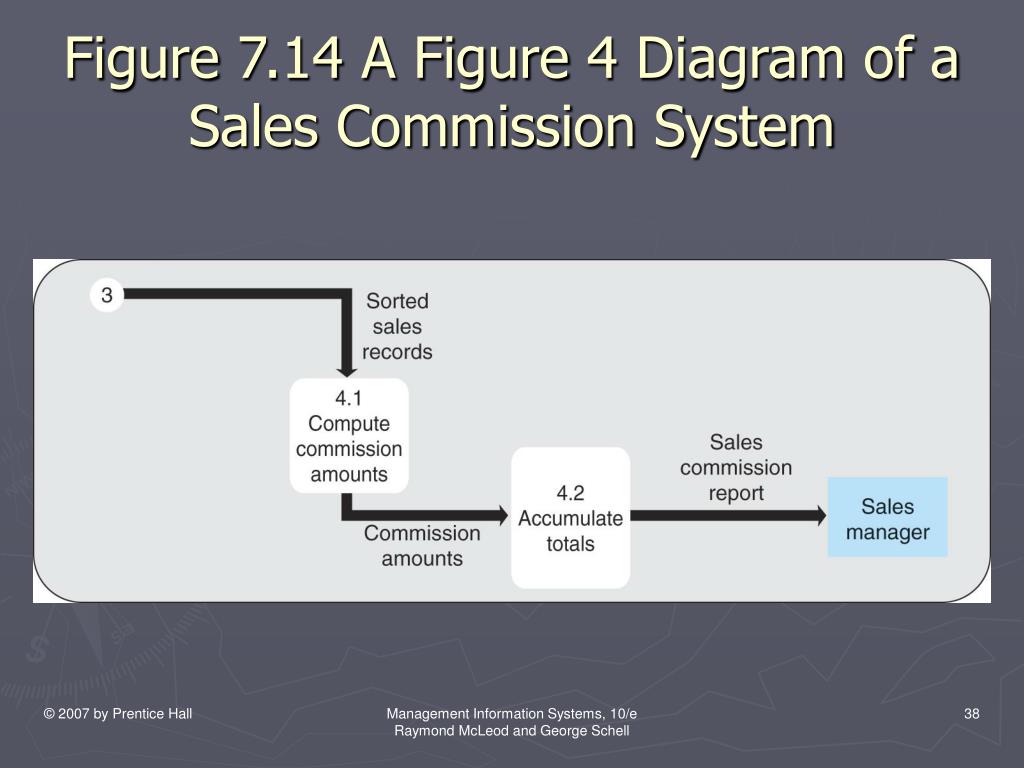

38. Figure 7.14 A Figure 4 Diagram of a Sales Commission System Management Information Systems, 10/e Raymond McLeod and George Schell

39. Use Cases • Use case is a narrative description in an outline form of the dialog that occurs between a primary and secondary system. • Continuous narrative format with each action numbered sequentially. • Ping-pong format consists of two narratives and the numbering indicates how the tasks alternate between the primary and secondary systems. • Alternative events are actions that are not normally expected to occur; alphabetic letters are appended to step numbers. Management Information Systems, 10/e Raymond McLeod and George Schell

40. Figure 7.15 A Use Case Management Information Systems, 10/e Raymond McLeod and George Schell

41. Figure 7.16 Use Case Guidelines Management Information Systems, 10/e Raymond McLeod and George Schell

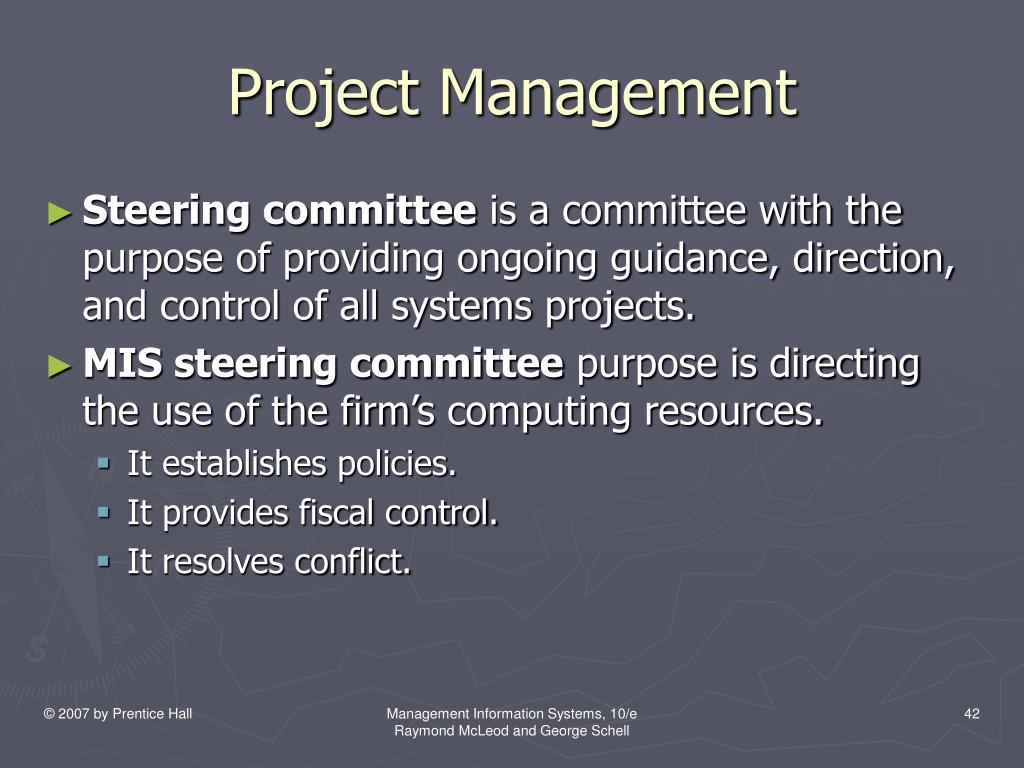

42. Project Management • Steering committee is a committee with the purpose of providing ongoing guidance, direction, and control of all systems projects. • MIS steering committee purpose is directing the use of the firm’s computing resources. • It establishes policies. • It provides fiscal control. • It resolves conflict. Management Information Systems, 10/e Raymond McLeod and George Schell

43. Figure 7.17 Managers of a System Life Cycle Arranged in a Hierarchy Management Information Systems, 10/e Raymond McLeod and George Schell

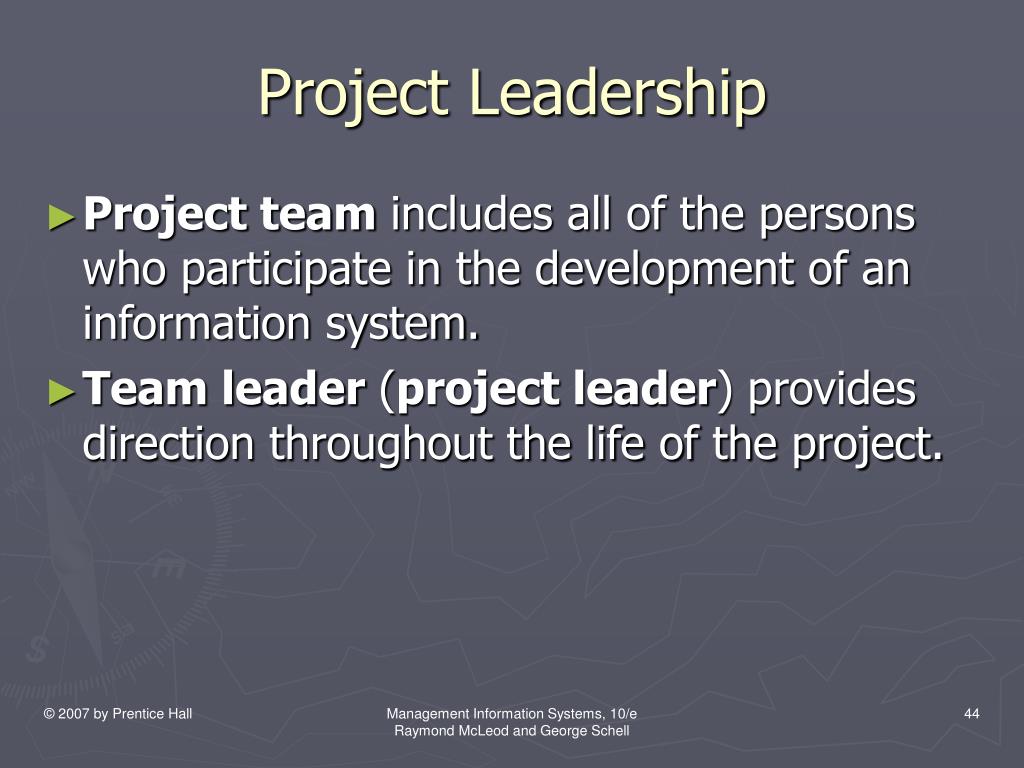

44. Project Leadership • Project team includes all of the persons who participate in the development of an information system. • Team leader (project leader) provides direction throughout the life of the project. Management Information Systems, 10/e Raymond McLeod and George Schell

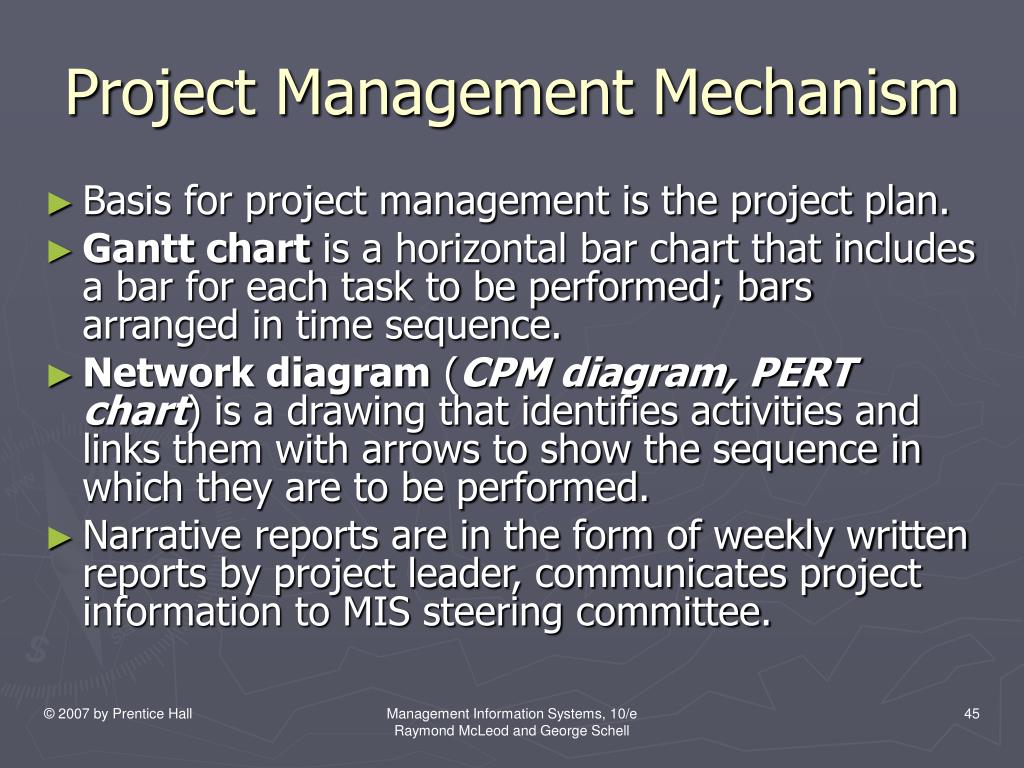

45. Project Management Mechanism • Basis for project management is the project plan. • Gantt chart is a horizontal bar chart that includes a bar for each task to be performed; bars arranged in time sequence. • Network diagram (CPM diagram, PERT chart) is a drawing that identifies activities and links them with arrows to show the sequence in which they are to be performed. • Narrative reports are in the form of weekly written reports by project leader, communicates project information to MIS steering committee. Management Information Systems, 10/e Raymond McLeod and George Schell

46. Figure 7.18 A Gantt Chart Management Information Systems, 10/e Raymond McLeod and George Schell

47. Figure 7.19 A Network Diagram Management Information Systems, 10/e Raymond McLeod and George Schell

48. Project Cost Estimating • Cost-estimating inputs • Work breakdown structure (WBS) • Resource requirements, resource rates • Activity duration estimates • Historical information • Cost-estimating tools and techniques • Bottom-up estimating • Computerized tools • Mathematical models • Cost-estimating outputs • Supporting details • Cost-management plan Management Information Systems, 10/e Raymond McLeod and George Schell

49. Table 7.1 Components of Cost-Estimating Process Management Information Systems, 10/e Raymond McLeod and George Schell

50. Table 7.2 Example of Project Cost Management Information Systems, 10/e Raymond McLeod and George Schell
