  1. Cooling and Ventilation Component Laura Fernández Nocelo ITCOBE

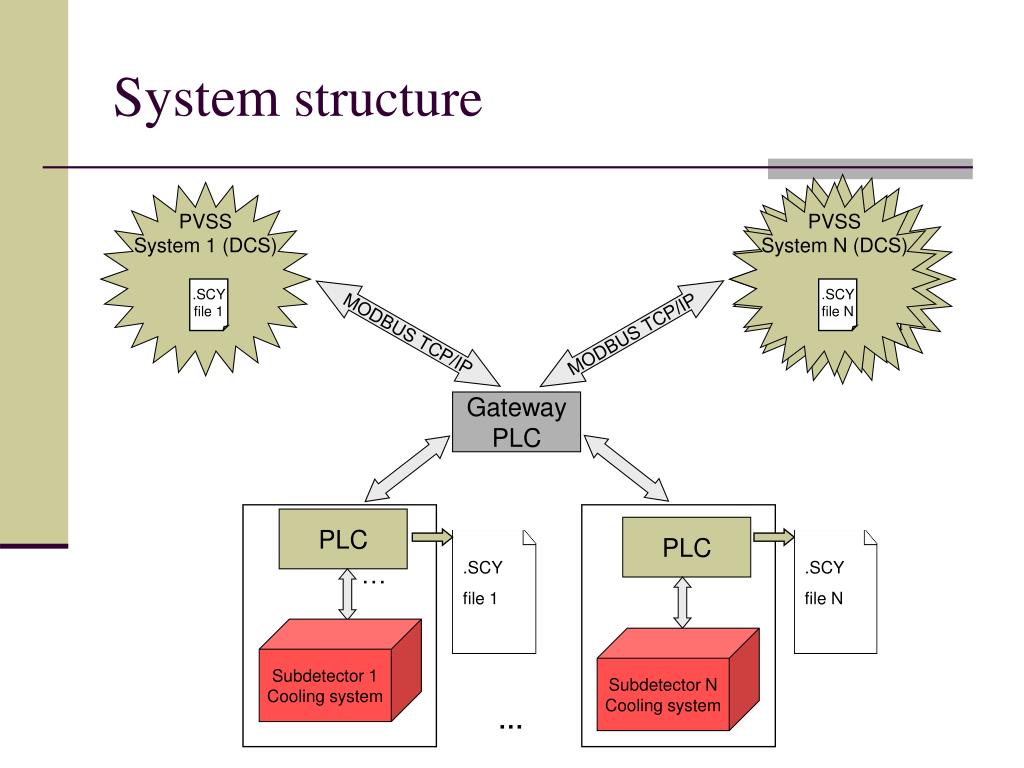

  2. PVSS System 1 (DCS) PVSS System N (DCS) PVSS System (DCS) .SCY file N .SCY file 1 .SCY file 1 .SCY file N … .SCY file N .SCY file 1 System structure MODBUS TCP/IP MODBUS TCP/IP Gateway PLC PLC PLC … Subdetector 1 Cooling system Subdetector N Cooling system …

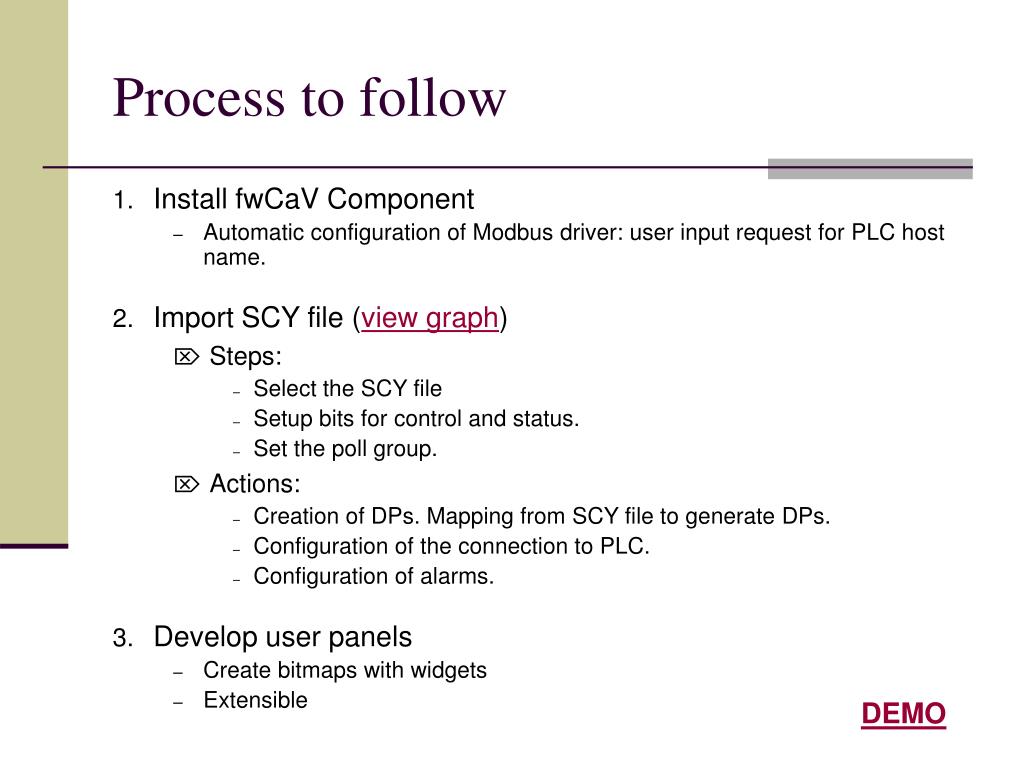

  3. Process to follow • Install fwCaV Component • Automatic configuration of Modbus driver: user input request for PLC host name. • Import SCY file (view graph) Steps: • Select the SCY file • Setup bits for control and status. • Set the poll group. Actions: • Creation of DPs. Mapping from SCY file to generate DPs. • Configuration of the connection to PLC. • Configuration of alarms. • Develop user panels • Create bitmaps with widgets • Extensible DEMO

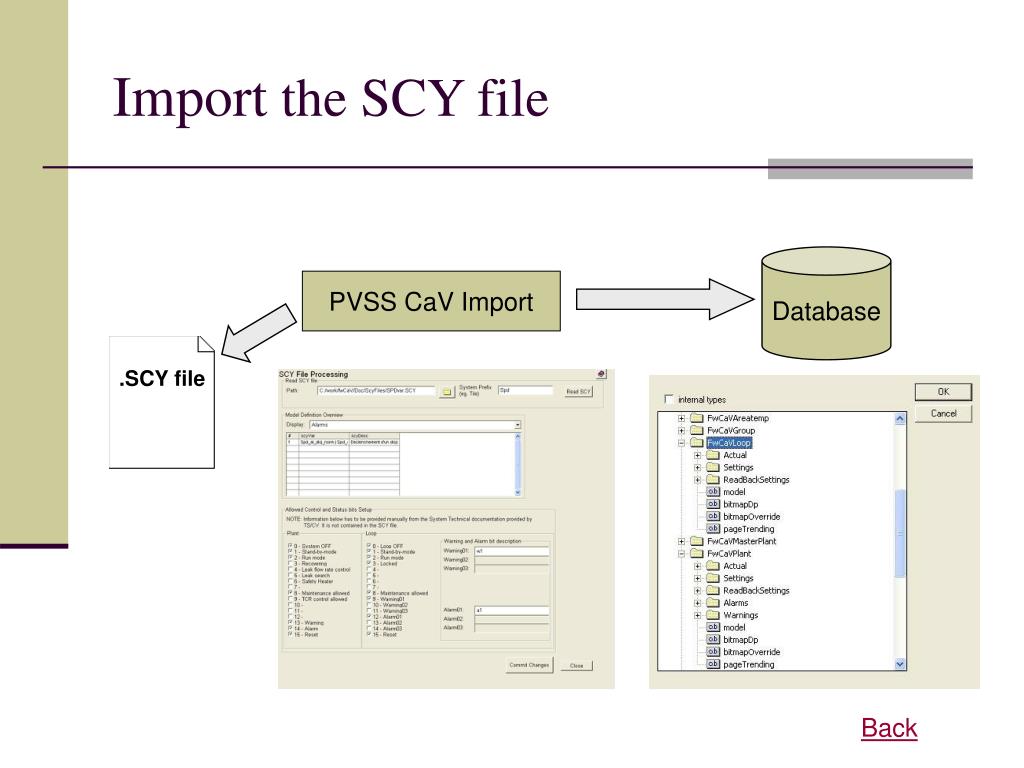

  4. .SCY file Import the SCY file Database PVSS CaV Import Back
