  1. Mirrors Plane and Spherical

  2. Plane Mirrors • Flat mirrors. Which type of image? Virtual We perceive the image at point I where the ray extensions intersect

  3. Image of Penny Real Penny Clifton Bluhm

  4. Curved Mirrors http://www.waitingtimetoys.com/wallmodels.2/fun.mirror.html http://www.throwlikeagirl.net/archives/000040.html

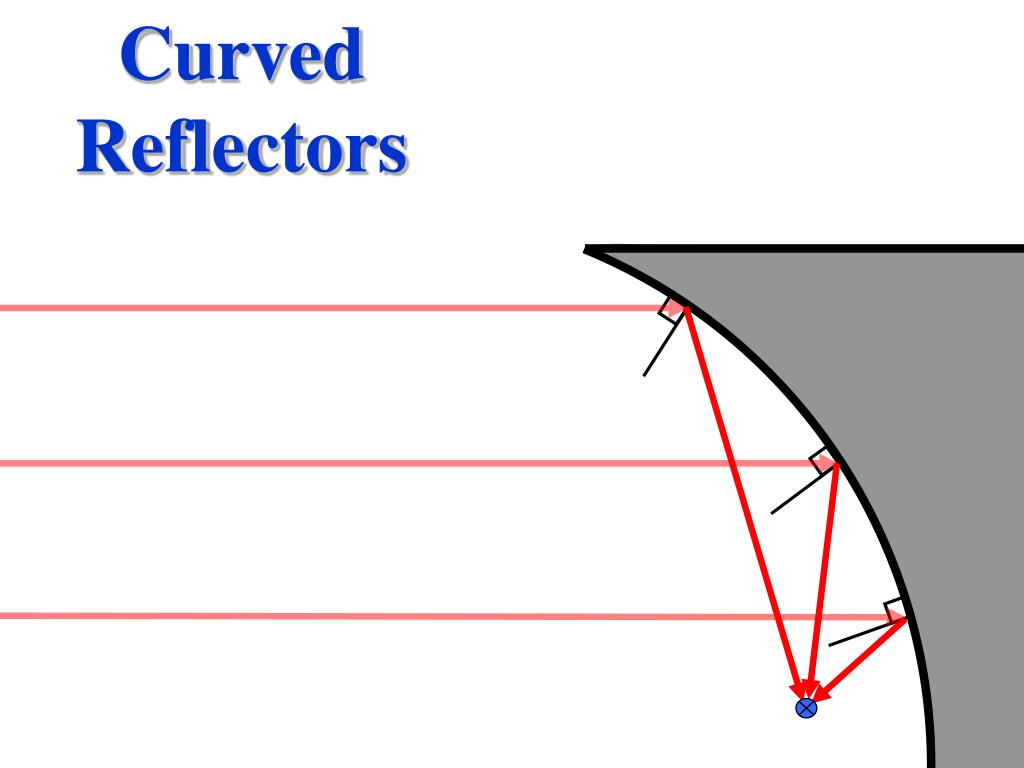

  5. Curved Reflectors

  6. FocalPoint Principle Axis FocalLength (cm)

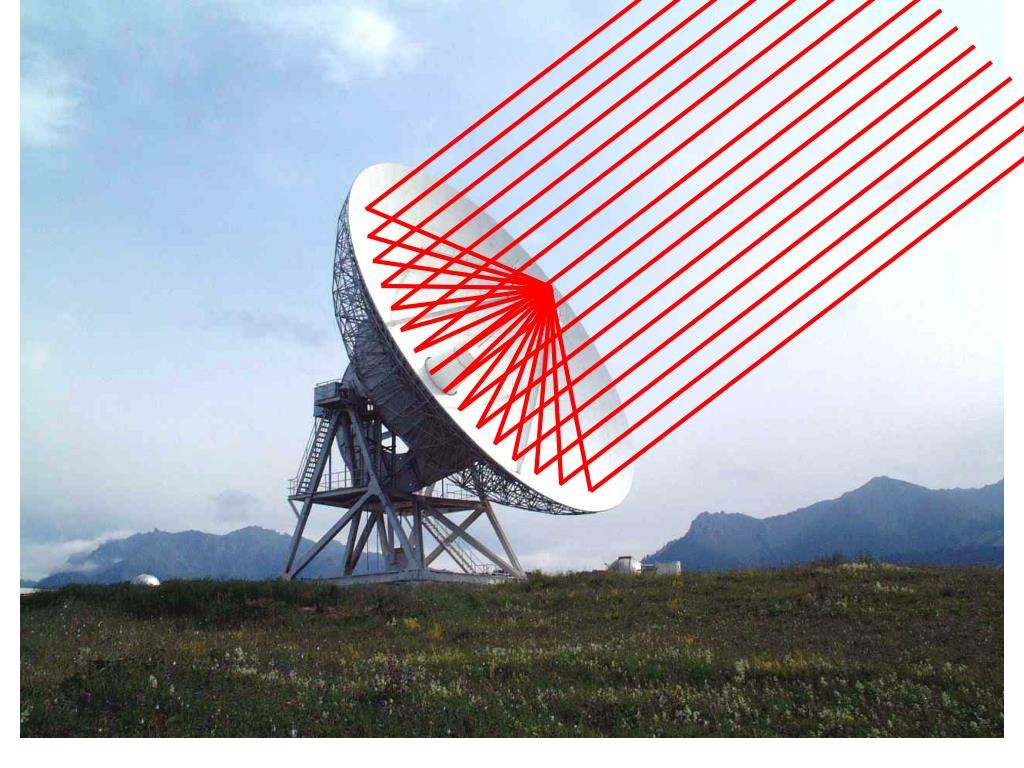

  7. http://www.atnf.csiro.au/news/press/images/urumqi/urumqi_25m_telescope.jpghttp://www.atnf.csiro.au/news/press/images/urumqi/urumqi_25m_telescope.jpg

  8. Arecibo Radio Telescope http://www.windows.ucar.edu/earth/images/arecibo.jpg Diameter = 305 m (1000 ft) Built = 1963Location = Puerto Rico

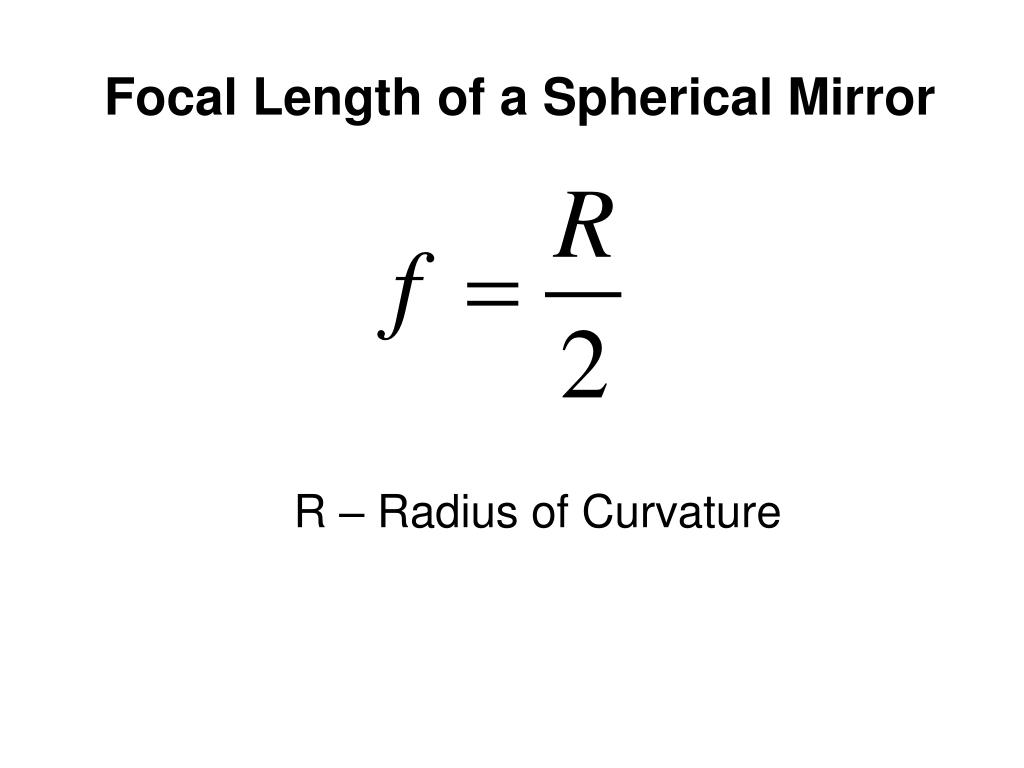

  9. Focal Length of a Spherical Mirror R – Radius of Curvature

  10. Ray Tracing We will predict the image that will be formed by a mirror or lens using ray tracing. We typically care about three ‘special’ rays: • Two rays that go through the focal points • The ray that go through the center of the object

  11. Spherical Mirrors and Ray Tracing The focal point of a concave mirror The focal point of a convex mirror Slide 18-32

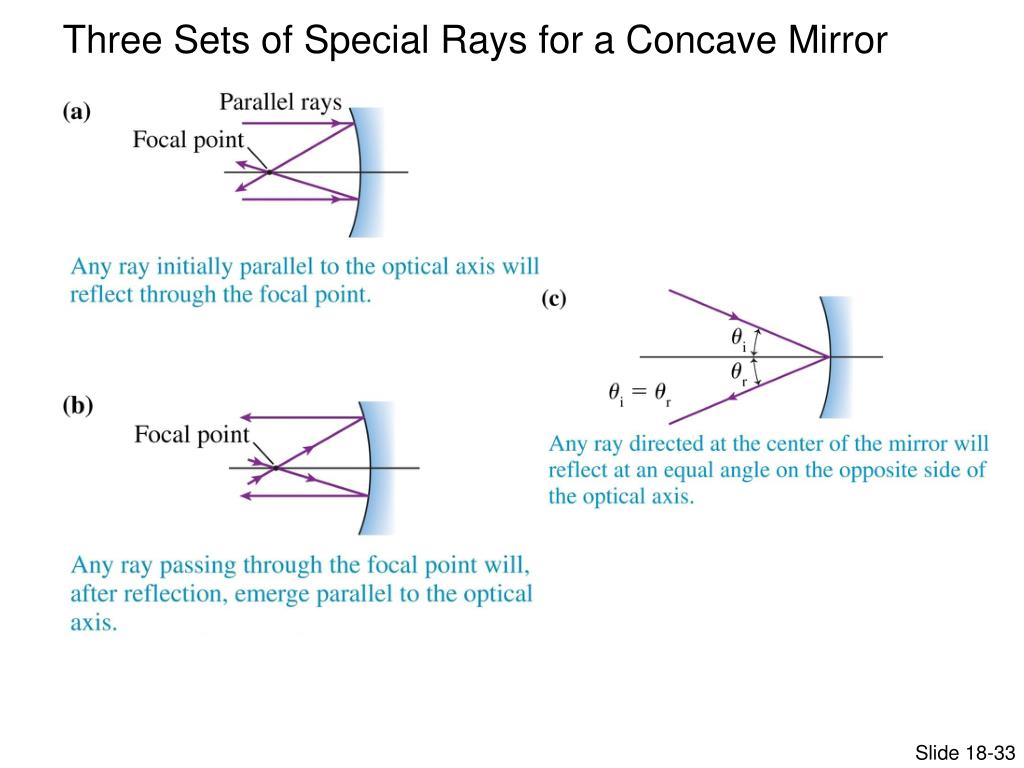

  12. Three Sets of Special Rays for a Concave Mirror Slide 18-33

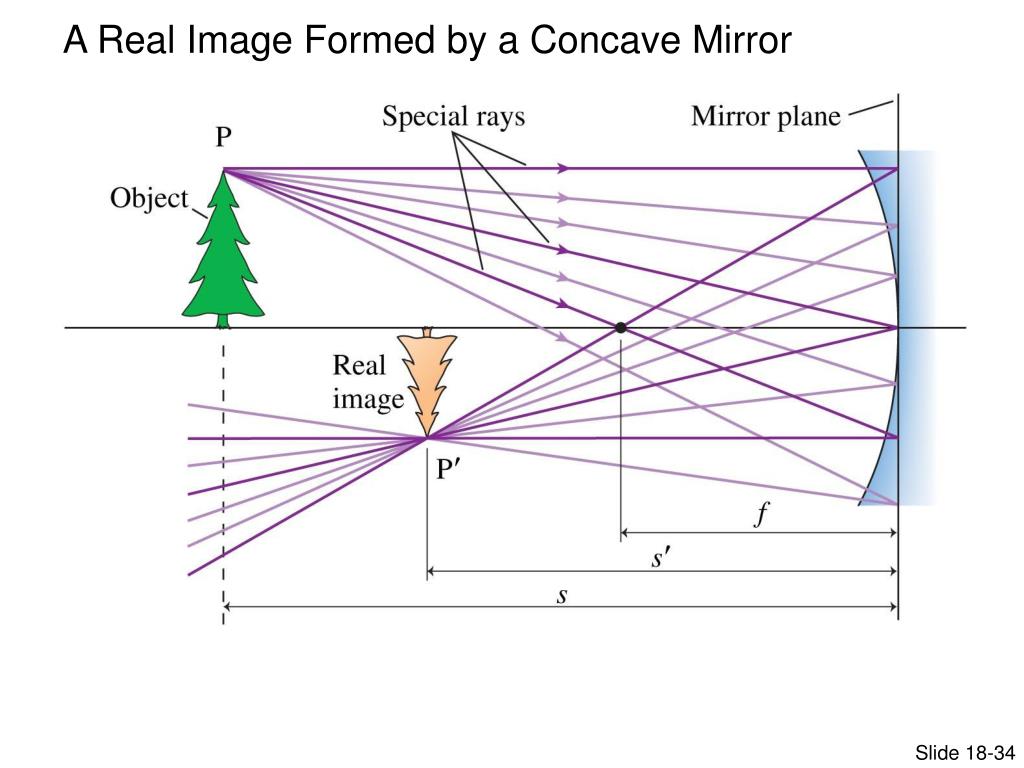

  13. A Real Image Formed by a Concave Mirror Slide 18-34

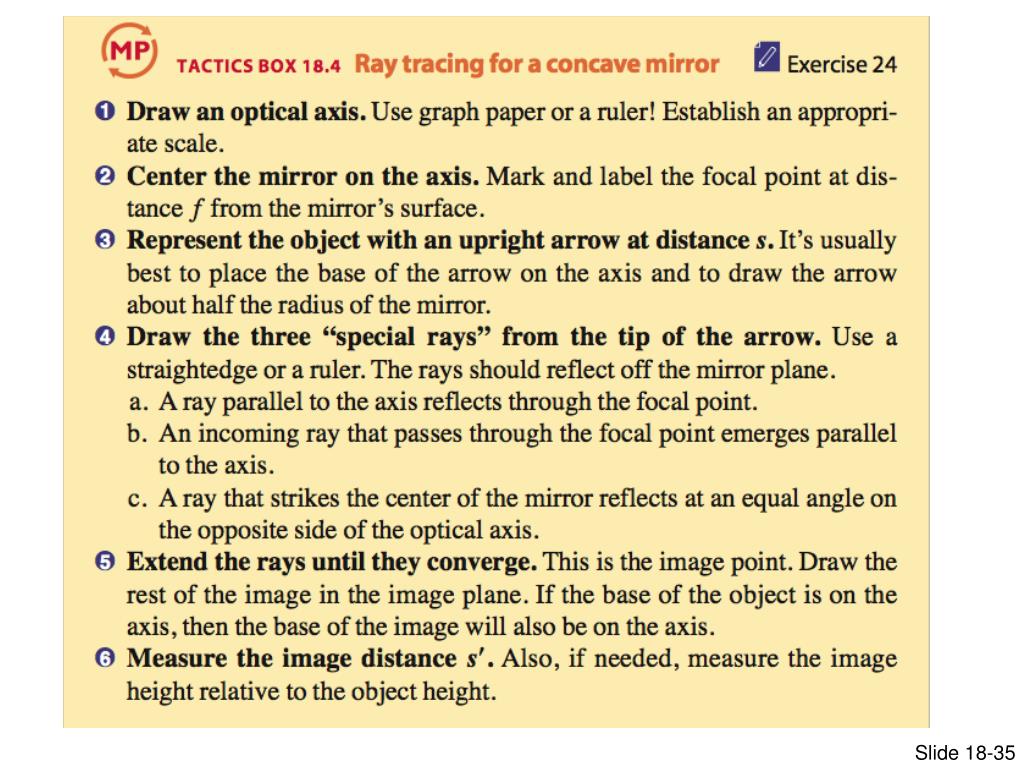

  14. Slide 18-35

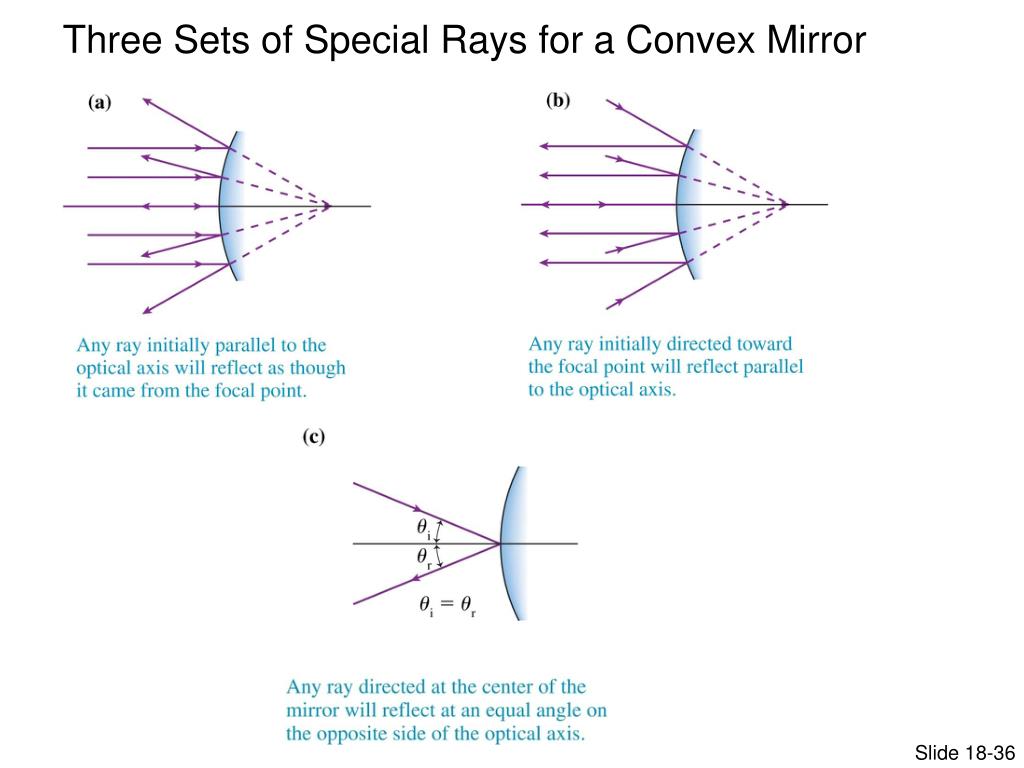

  15. Three Sets of Special Rays for a Convex Mirror Slide 18-36

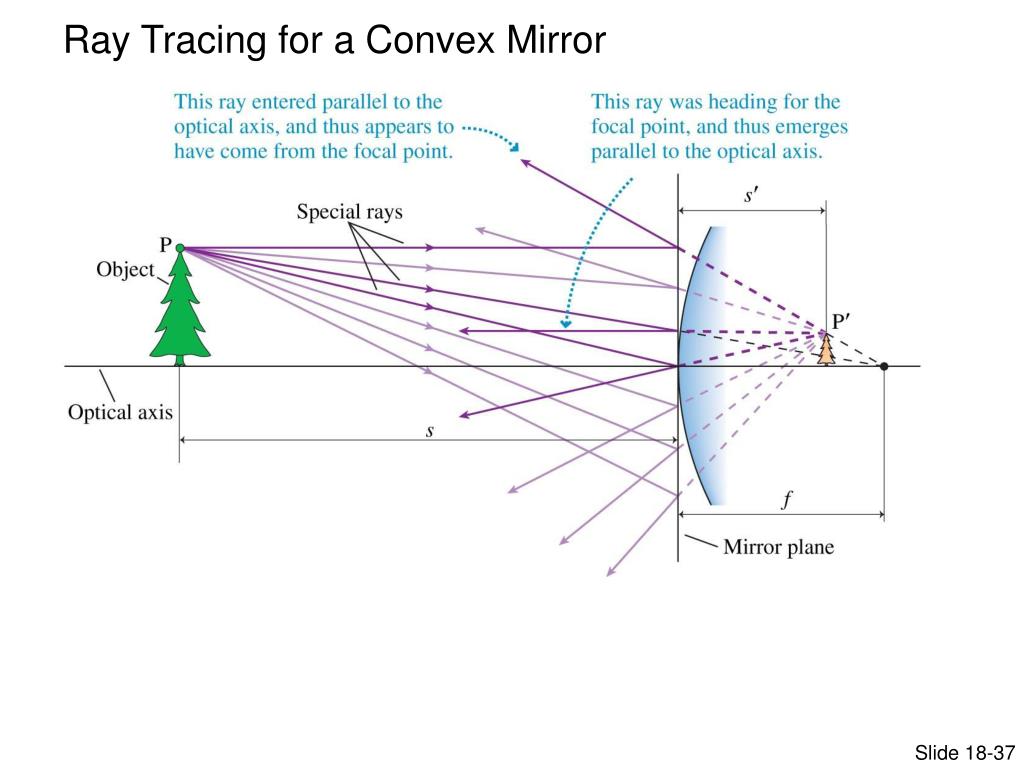

  16. Ray Tracing for a Convex Mirror Slide 18-37

  17. Images and Mirrors • Real images will form on the side of the mirror where the object is located • Virtual images will form on the opposite side

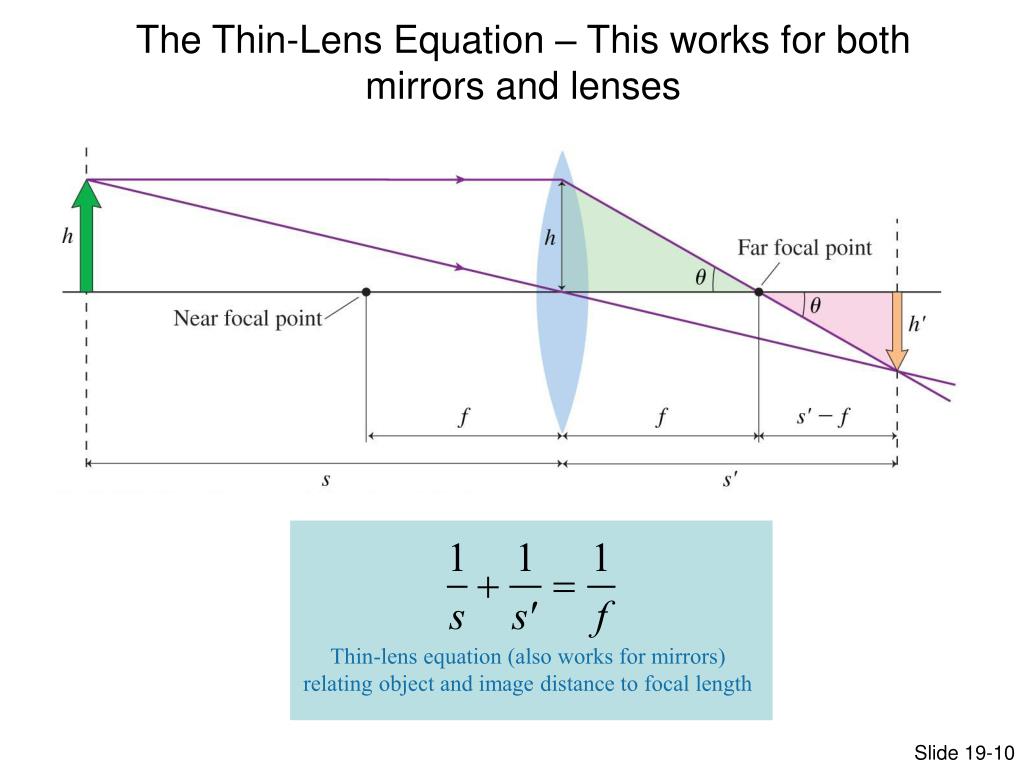

  18. The Thin-Lens Equation – This works for both mirrors and lenses Thin-lens equation (also works for mirrors) relating object and image distance to focal length Slide 19-10

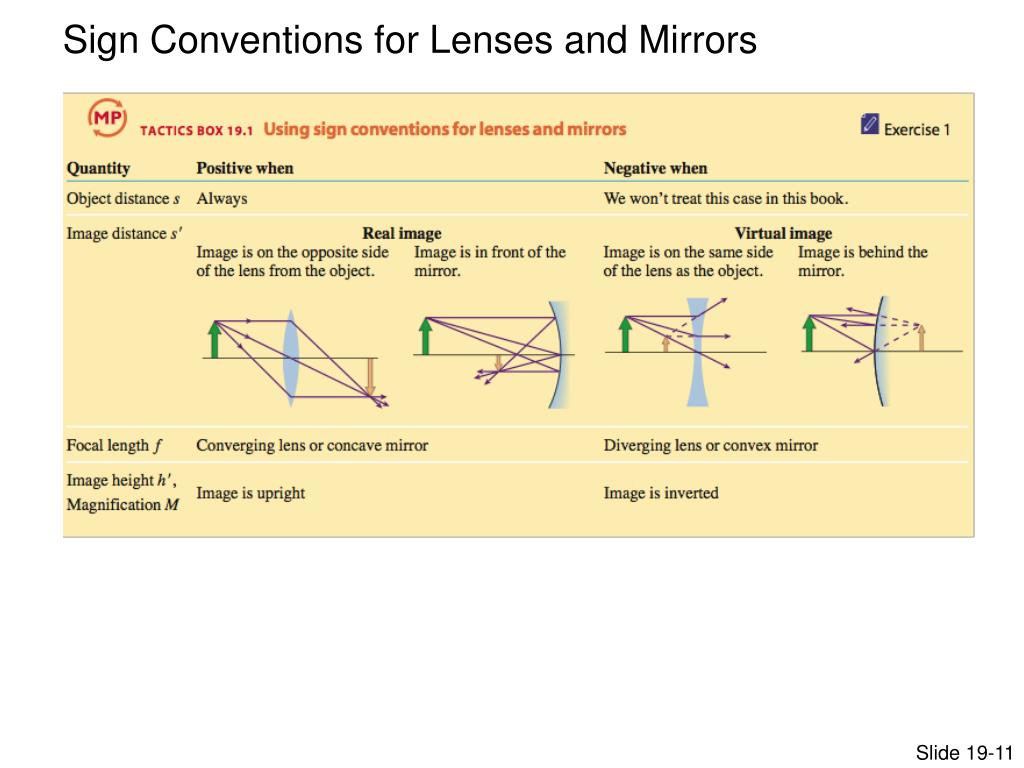

  19. Sign Conventions for Lenses and Mirrors Slide 19-11

  20. Magnification A random place for this slide but it needs to go somewhere. The next slide shows the different values from this equation. Slide 18-26

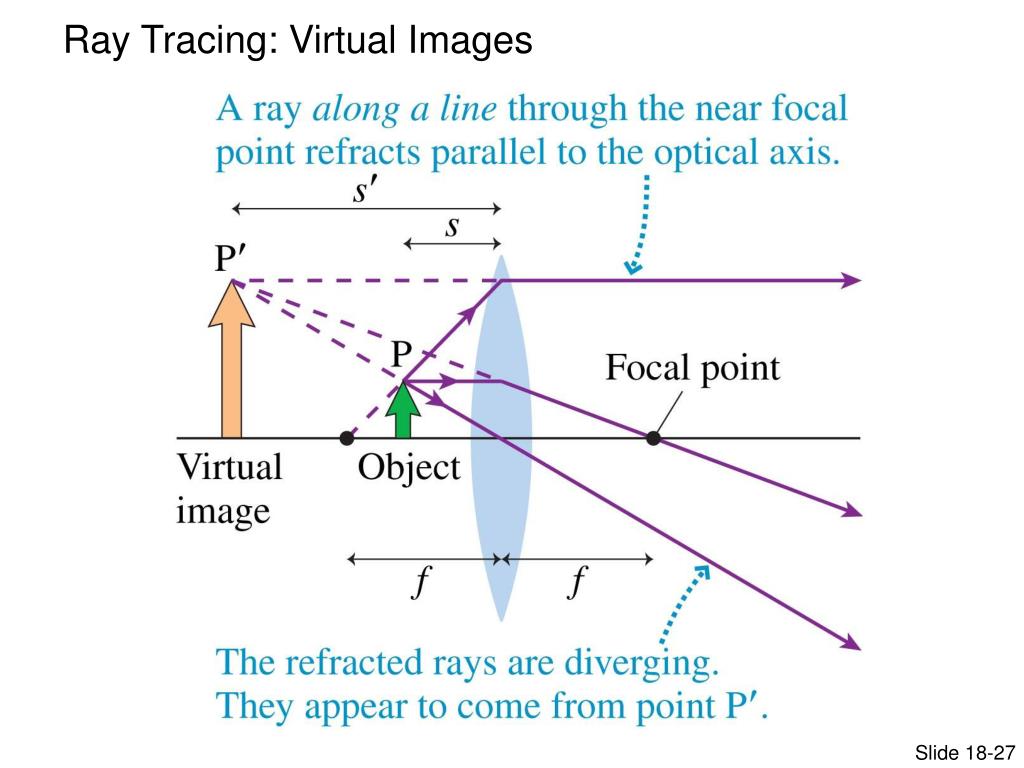

  21. Ray Tracing: Virtual Images Slide 18-27

  22. Sample Problem A convex mirror has a focal length of -10 cm. An object of 4 cm high is placed 20 cm in front of the mirror. • Find the position and size of the image. • Describe the nature of the image.
